Model Whirlpool JMC1150WS00 MICROWAVE – Common Parts & Diagrams

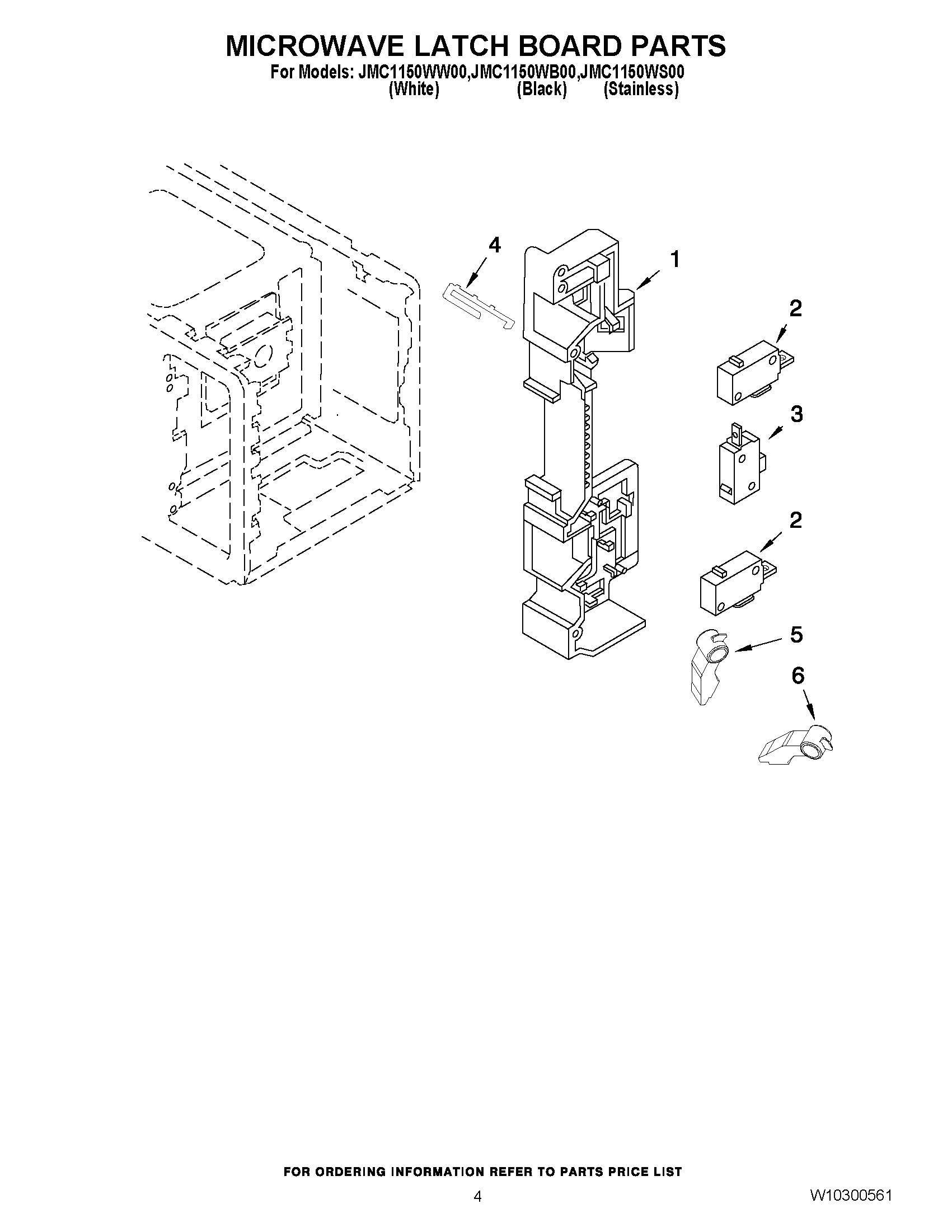

04 - MICROWAVE LATCH BOARD PARTS

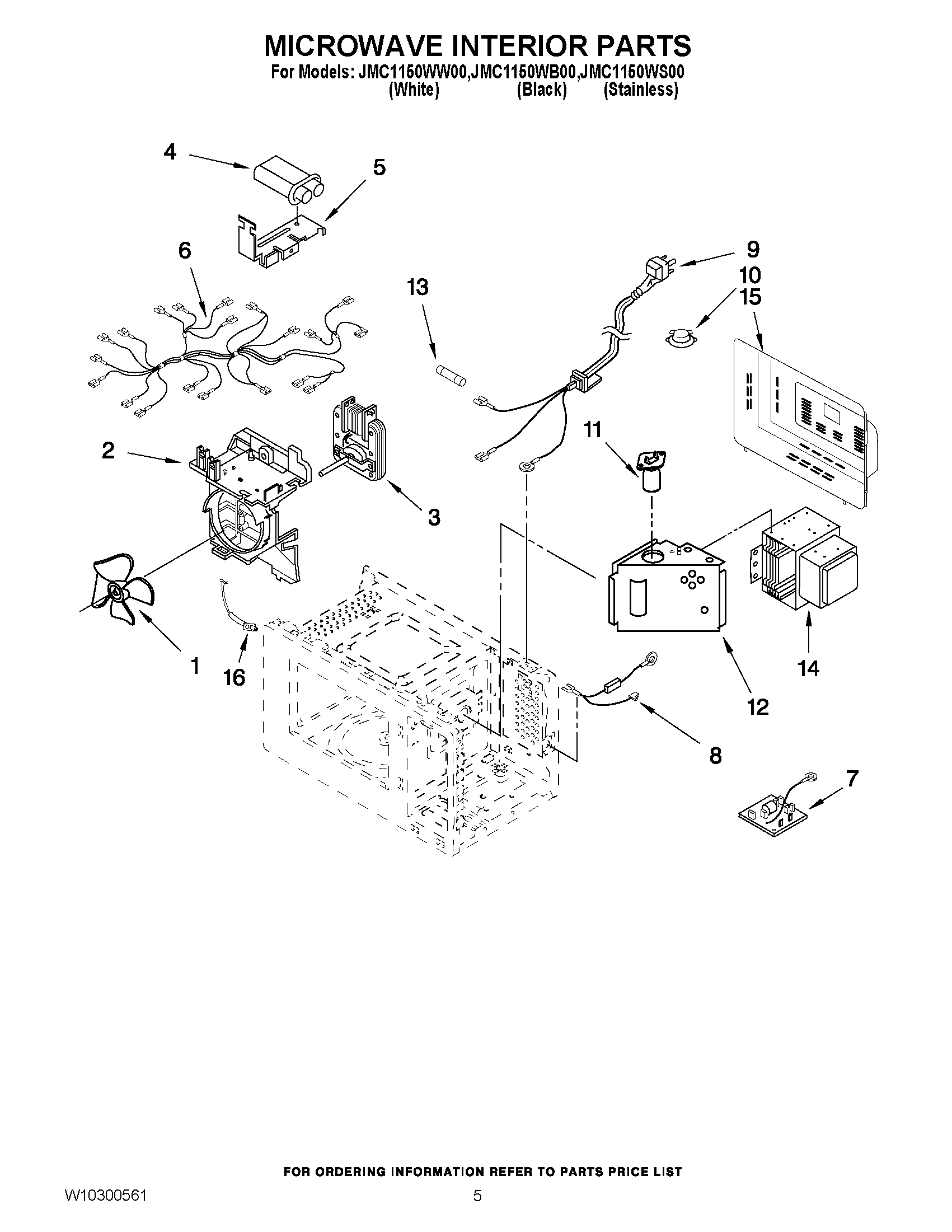

05 - MICROWAVE INTERIOR PARTS

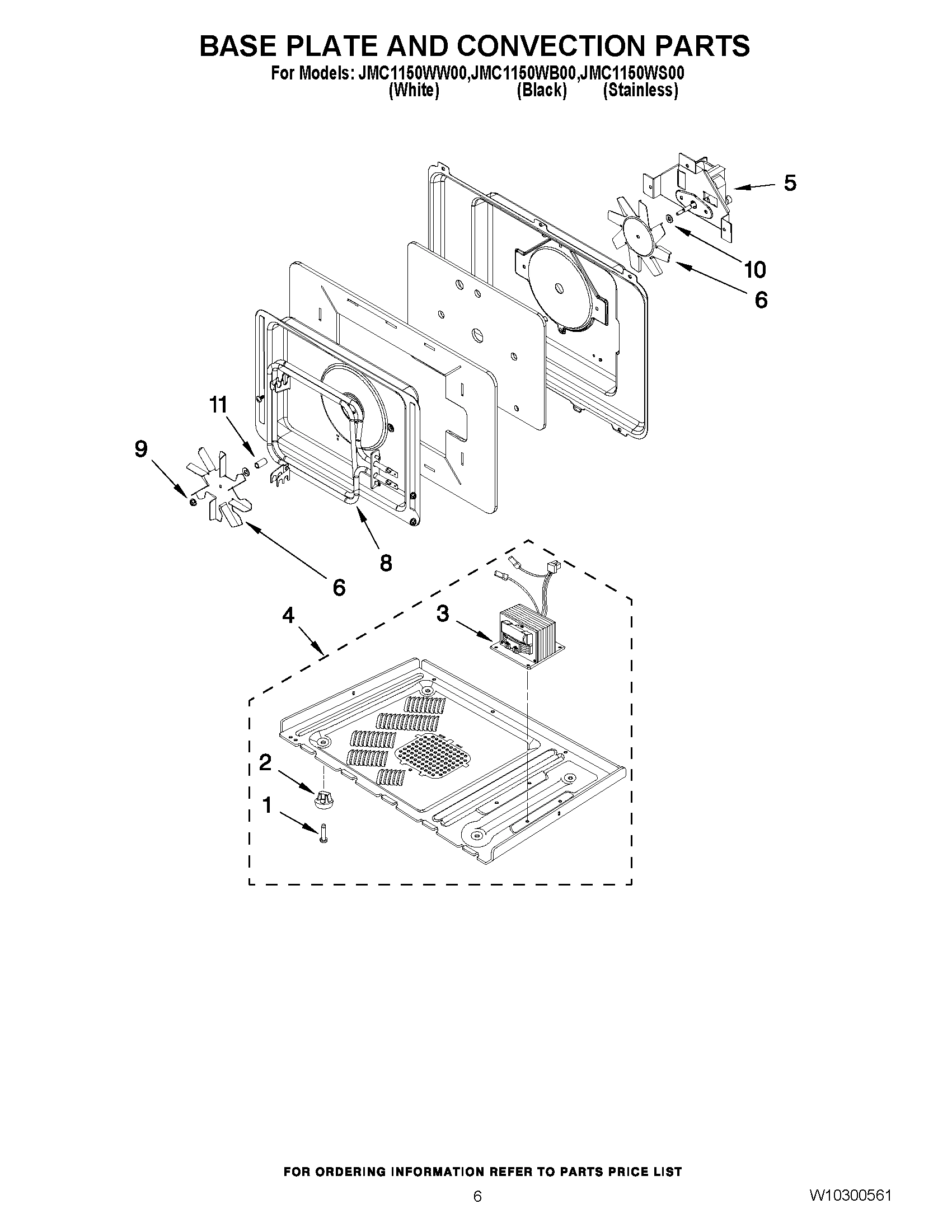

06 - BASE PLATE AND CONVECTION PARTS

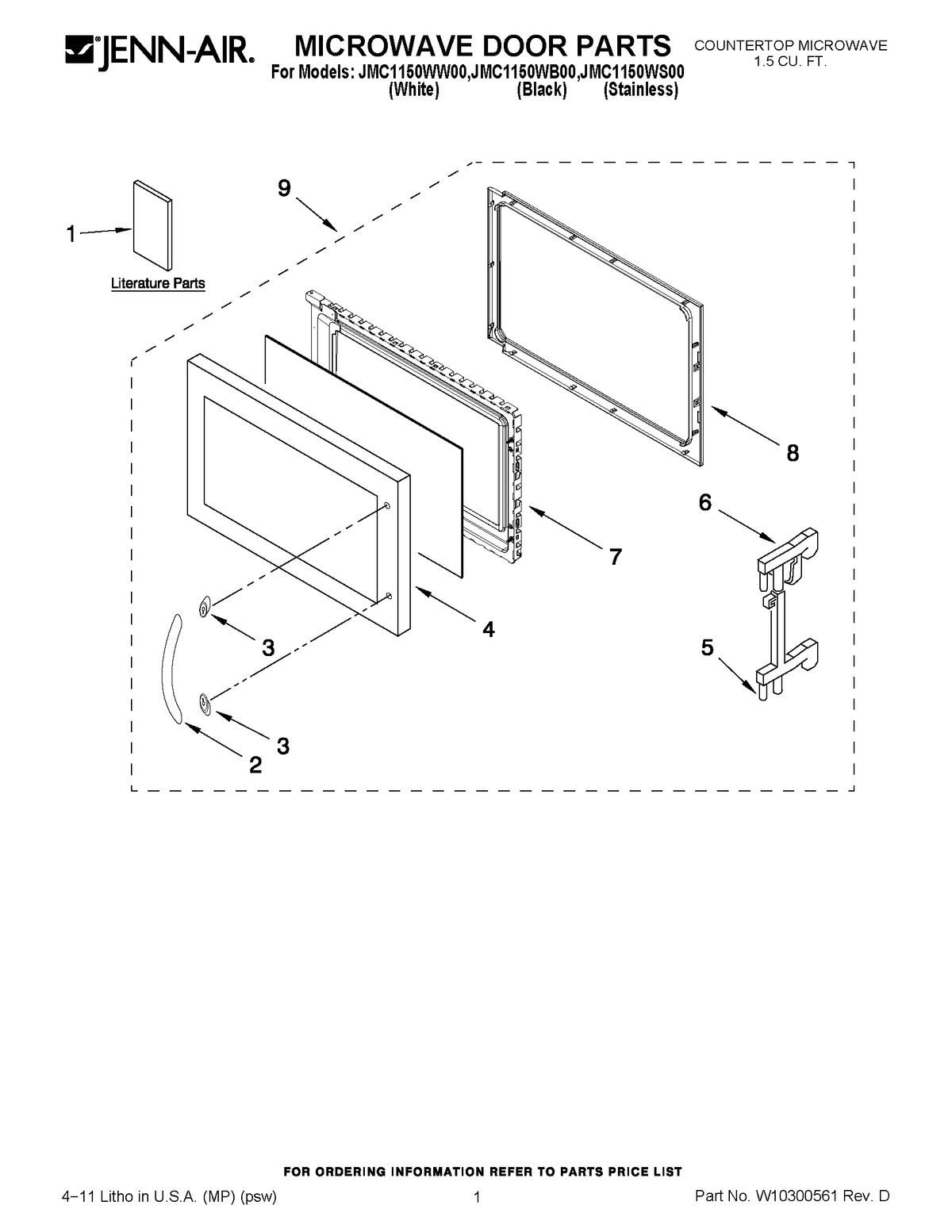

01 - MICROWAVE DOOR PARTS

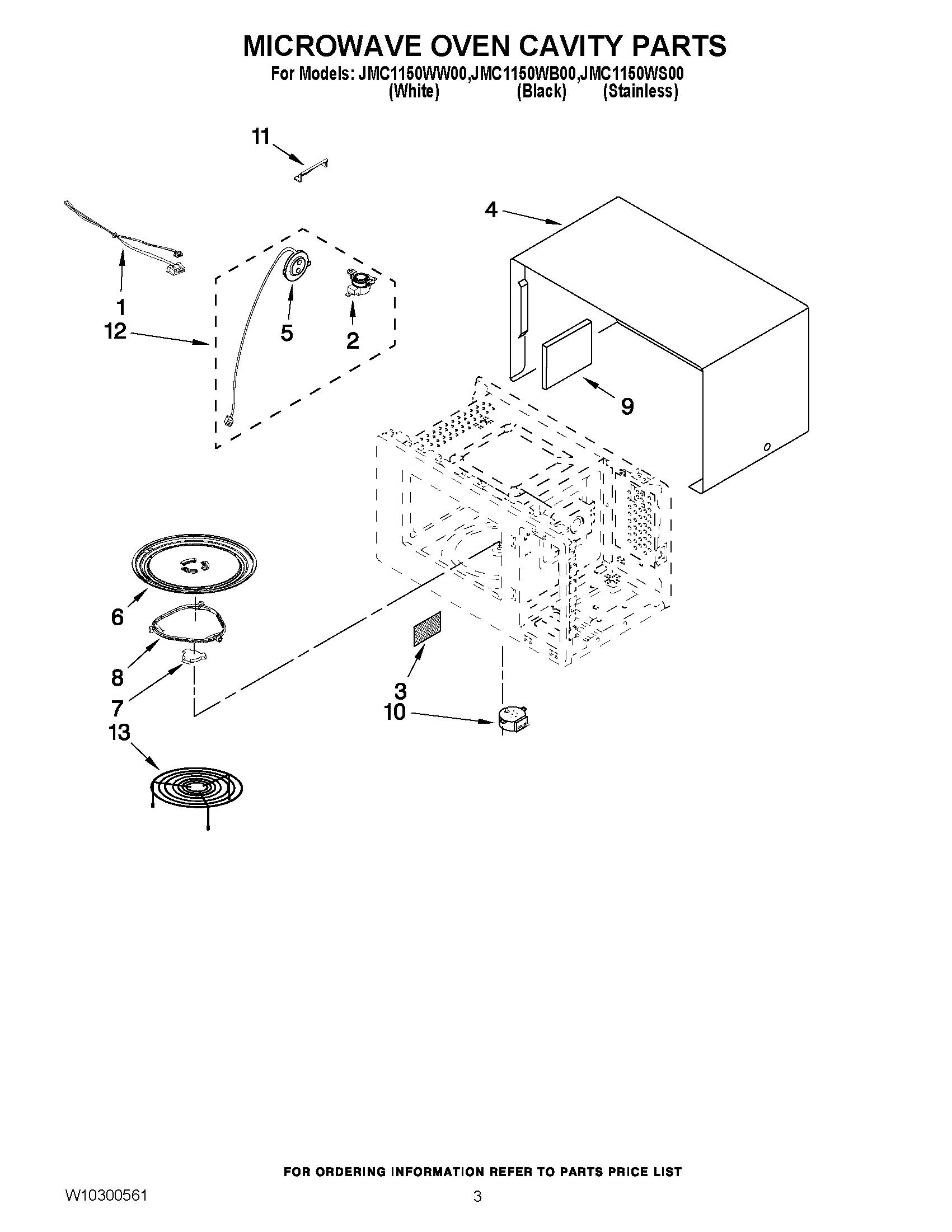

03 - MICROWAVE OVEN CAVITY PARTS

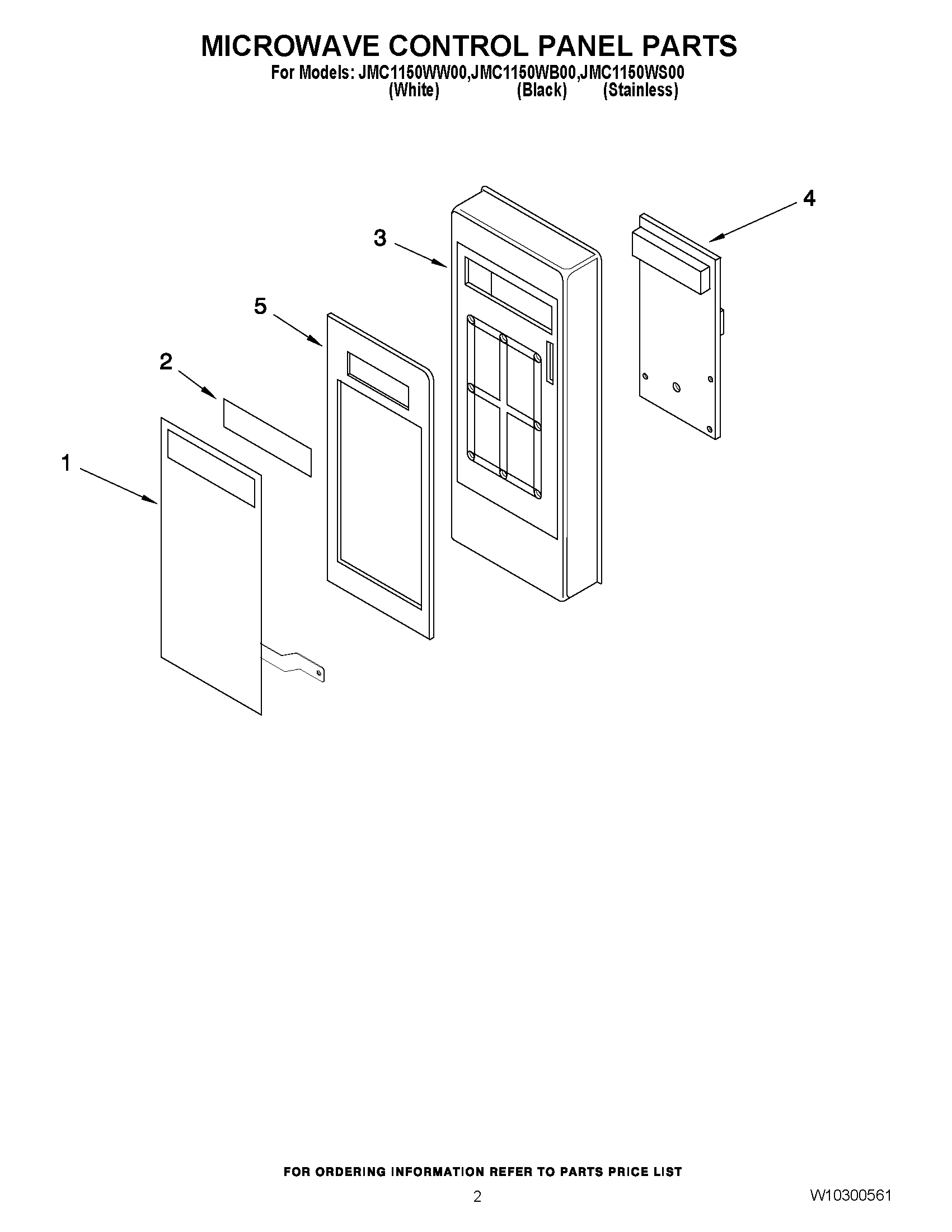

02 - MICROWAVE CONTROL PANEL PARTS
Common parts from model Whirlpool JMC1150WS00 MICROWAVE
1
BODY, LATCH WPL W10284504 Contact Us For Availability
1
BLADE-FAN WPL DE3190057A Contact Us For Availability
1
PIN, FOOT WPL DE6060025A Contact Us For Availability
1
U & C GUIDE WPL W10244851 Contact Us For Availability
1
COOK GUIDE LABEL WPL W10244852 Contact Us For Availability
1
TEMPLATE, TRIM KIT WPL W10244854 Contact Us For Availability
1
TECH SHEET WPL W10244855 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10308504 Contact Us For Availability
1
WIRE, HARNESS WPL W10284506 Contact Us For Availability
1
SW., MEMBRANE (BLACK) WPL W10284428 Contact Us For Availability
1
SW., MEMBRANE (WHITE) WPL W10284431 Contact Us For Availability
1
SW., MEMBRANE (STAINLESS) WPL W10284432 Contact Us For Availability
2
GUIDE, SUCTION WPL W10284507 Contact Us For Availability
2
LEG WPL DE6140065A Contact Us For Availability
2
HANDLE, DOOR (BLACK) WPL W10284434 Contact Us For Availability
2
HANDLE, DOOR (WHITE) WPL W10284435 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) WPL W10284436 Contact Us For Availability
2
THERMOSTAT WPL DE9600315B Contact Us For Availability
2
WINDOW-DISPLAY WPL DE6401526A Contact Us For Availability
3
HANDLE, SUPPORT (STAINLESS) WPL W10284444 Contact Us For Availability
3
MOTOR-FAN WPL DE3110155T Contact Us For Availability
3
TRANSFORMER WPL DE2600123A Contact Us For Availability
3
HANDLE, SUPPORT (BLACK) WPL W10284442 Contact Us For Availability
3
HANDLE, SUPPORT (WHITE) WPL W10284443 Contact Us For Availability
3
COVER, MGT WPL DE6300376A Contact Us For Availability
3
PANEL, CONTROL (BLACK/STAINLESS) WPL DE6401499A Contact Us For Availability
3
PANEL, CONTROL (WHITE) WPL DE6401499B Contact Us For Availability
4
DOOR (BLACK) WPL W10284437 Contact Us For Availability
4
H.V. CAPACITOR WPL 2501001011 Contact Us For Availability
4
ASSY, BASE PLATE WPL W10284508 Contact Us For Availability
4
DOOR (WHITE) WPL W10284438 Contact Us For Availability
4
OUTER, CASE (BLACK/STAINLESS) WPL DE7030033V Contact Us For Availability
4
OUTER, CASE (WHITE) WPL W10284503 Contact Us For Availability
4
PCB WPL RAS158000 Contact Us For Availability
5
CONVECTION, MOTOR WPL W10284497 Contact Us For Availability
5
H.V.C BRACKET WPL DE6150170A Contact Us For Availability
5
SPRING-KEY WPL DE6100198A Contact Us For Availability
5
SENSOR, HUMIDITY WPL DE3260011A Contact Us For Availability
5
CHASSIS-PANEL (FOR STAINLESS MODEL ONLY - MUS WPL DE6401501A Contact Us For Availability
6
LEVER, SWITCH WPL DE6600094A Contact Us For Availability
6
ASSEMBLY, LEADWIRE WPL DE9600500A Contact Us For Availability
6
BLADE-FAN WPL DE3190019B Contact Us For Availability
6
KEY, DOOR WPL W10284433 Contact Us For Availability
6
TRAY, GLASS WPL DE7400023A Contact Us For Availability
7
FILTER, NOISE WPL DE9600399B Contact Us For Availability
7
SEAL, DOOR WPL W10284439 Contact Us For Availability
7
SHAFT, TURNTABLE WPL DE6700206A Contact Us For Availability
8
H.V. DIODE CABLE WPL DE5900002A Contact Us For Availability
8
HEATER WPL DE4770077C Contact Us For Availability
8
DOOR WPL W10284441 Contact Us For Availability
8
RING, TURNTABLE WPL DE9700192C Contact Us For Availability
9
POWER CORD WPL DE3910102F Contact Us For Availability
9
FLANGE, NUT WPL DE6030016B Contact Us For Availability
9
DOOR ASSEMBLY (STAINLESS MODEL ONLY) WPL W10337316 Contact Us For Availability
10
THERMOSTAT WPL DE4720009A Contact Us For Availability
10
WASHER, MOTOR WPL DE6040014B Contact Us For Availability
10
MOTOR, DRIVE WPL DE3110104A Contact Us For Availability
11
LAMP, BASELESS WPL 4713001012 Contact Us For Availability
11
BUSH-MOTOR WPL DE7230016B Contact Us For Availability
11
BRACKET, GUIDE WPL W10284502 Contact Us For Availability
12
DUCT, AIR WPL DE6300348A Contact Us For Availability
12
ASSY, BRACKET WPL W10284510 Contact Us For Availability
13
FUSE WPL 3601001198 Contact Us For Availability
13
RACK WPL W10284513 Contact Us For Availability
15
COVER-BACK WPL DE6300346A Contact Us For Availability
16
SENSOR, THERM. WPL DE3210013A Contact Us For Availability
× ![]()
