Model Whirlpool JMA30Q REFRIGERATOR – Common Parts & Diagrams

Common parts from model Whirlpool JMA30Q REFRIGERATOR

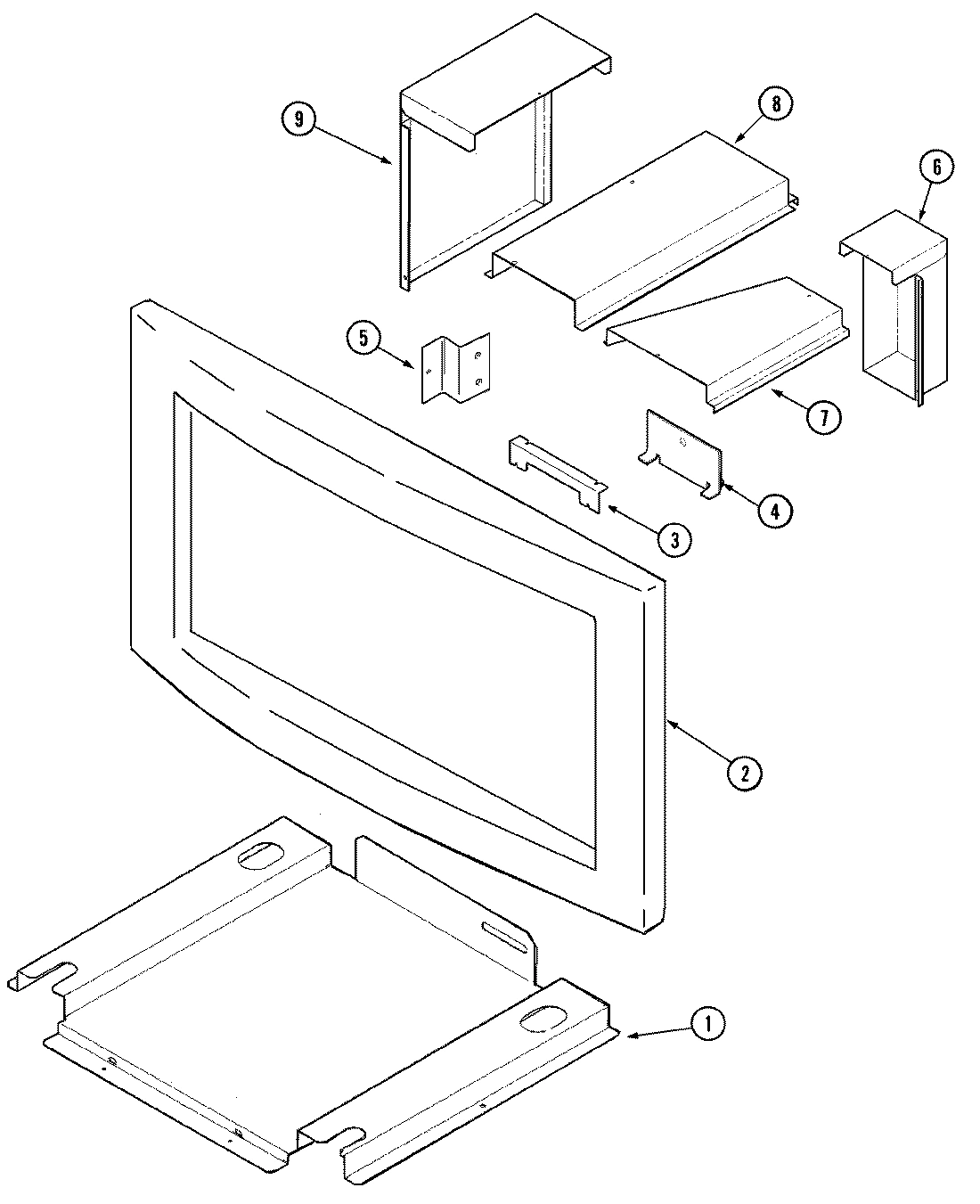

01 - TRIM KIT

Print

• This Diagram
• All Diagrams

1

BRACKET, MICROWAVE BASE WPL 74004503 Contact Us For Availability

View on Model

2

FRAME, MICROWAVE (30`` BSQ) WPL 74006463 Contact Us For Availability

View on Model

3

BRACKET, LOCKING (BUILT-IN) WPL 74004505 Contact Us For Availability

View on Model

4

BRACKET, LOCKING (REAR) WPL 71003522 Contact Us For Availability

View on Model

4

SCREW WPL 7101P33760 Contact Us For Availability

View on Model

5

BRACKET, SIDE MOUNTING WPL 74004504 Contact Us For Availability

View on Model

6

HOOD, INTAKE (REAR) WPL 71003521 Contact Us For Availability

View on Model

7

HOOD, INTAKE (TOP) WPL 71003520 Contact Us For Availability

View on Model

8

HOOD, EXHAUST (TOP) WPL 71003523 Contact Us For Availability

View on Model

9

HOOD, EXHAUST (SIDE) WPL 71003524 Contact Us For Availability

View on Model

10

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 View Details $4.82

View on Model

11

SCREW, BLACK WPL 71002514 Contact Us For Availability

View on Model

×
