Model Whirlpool JJW9527BAQ ELECTRIC WALL OVEN – Common Parts & Diagrams

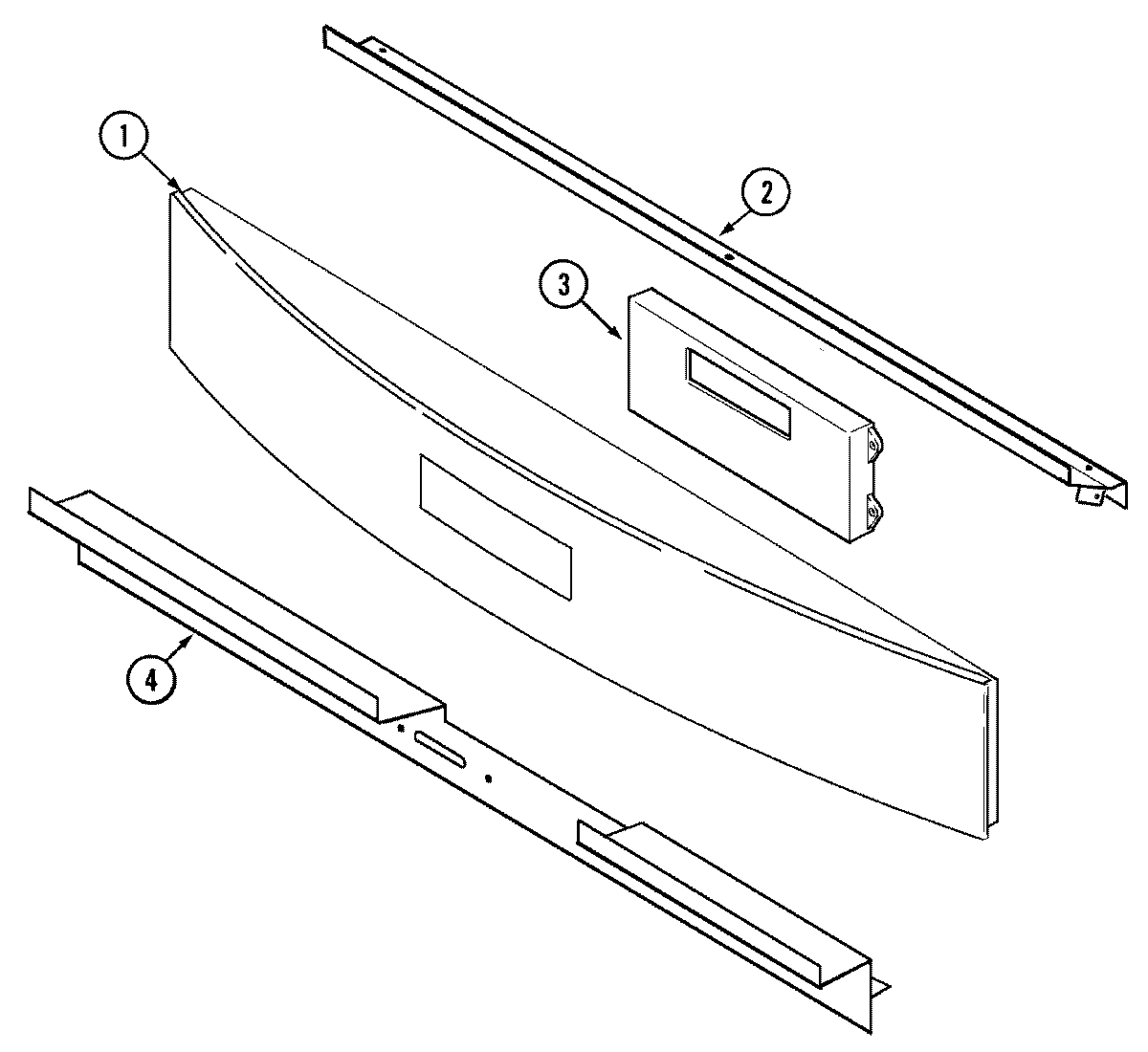

02 - CONTROL PANEL

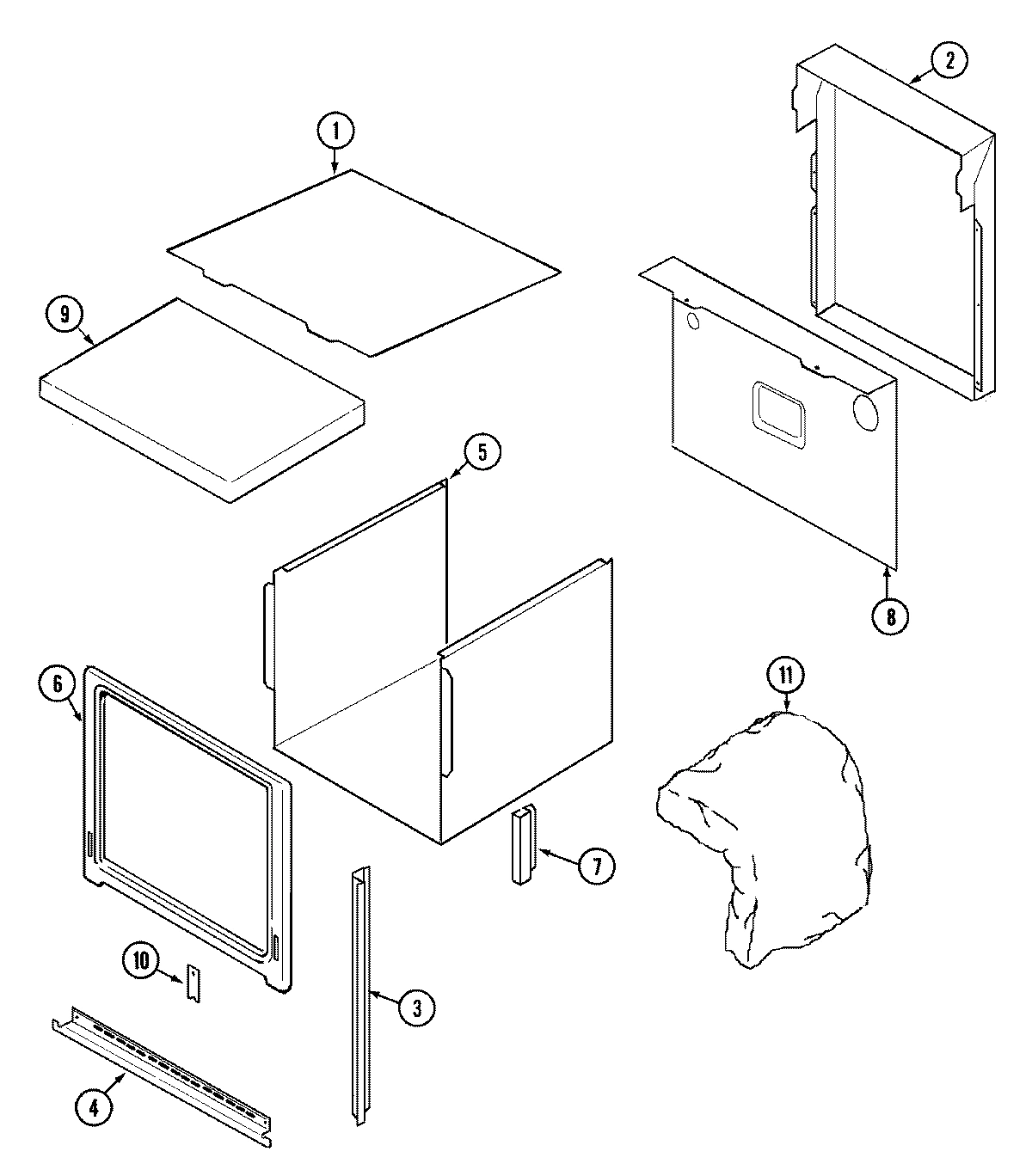

01 - BODY

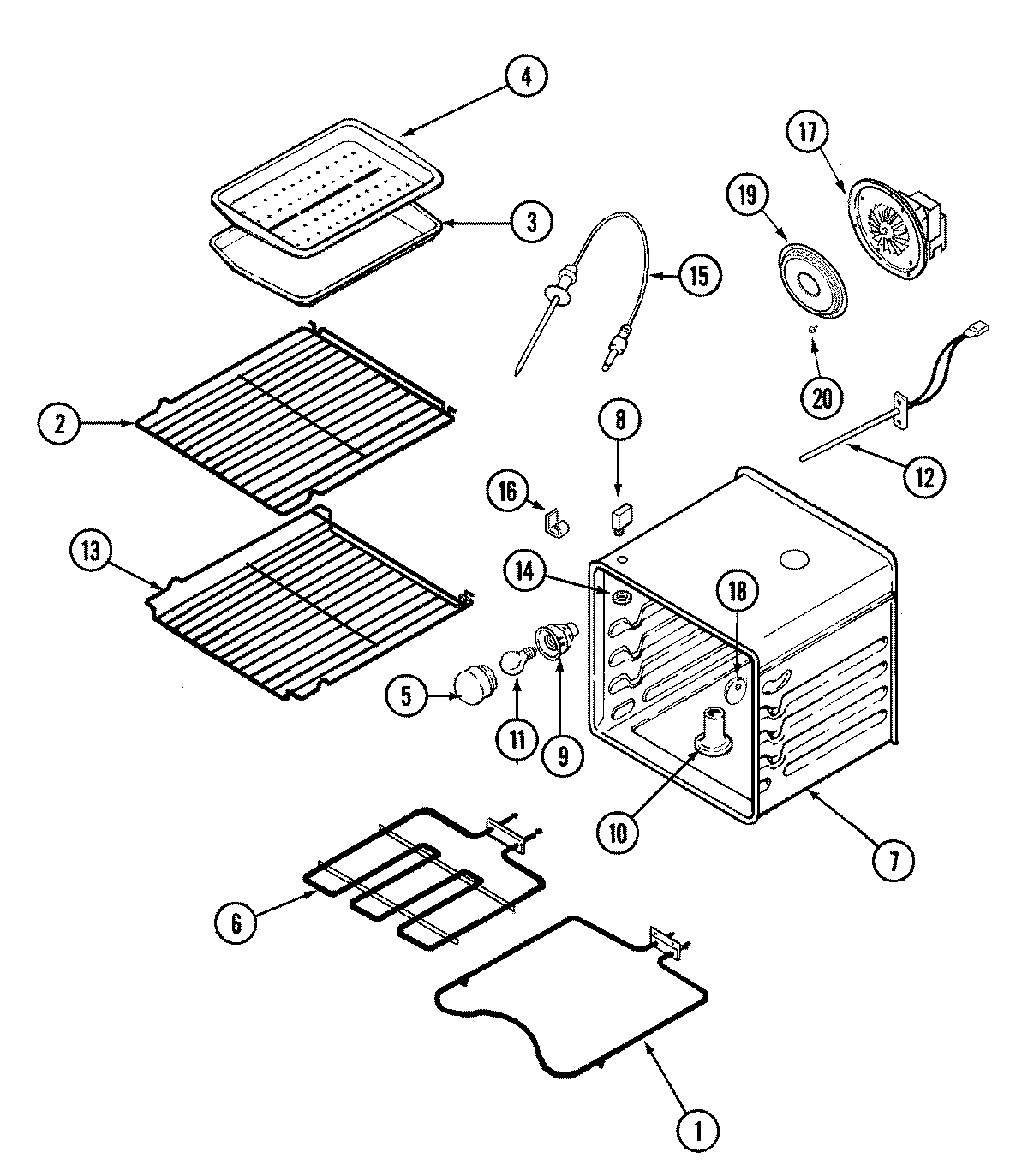

04 - OVEN

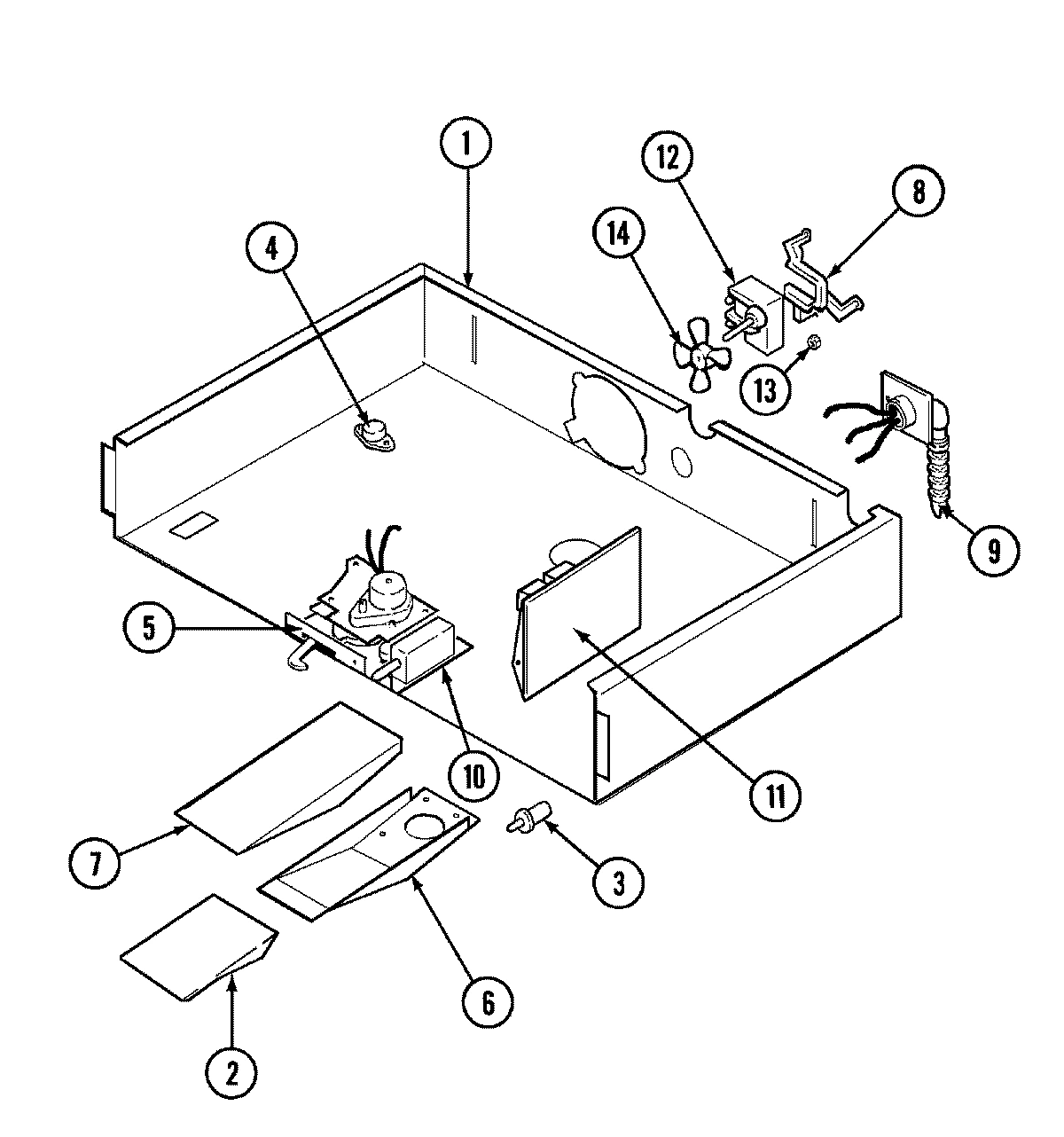

03 - INTERNAL CONTROLS

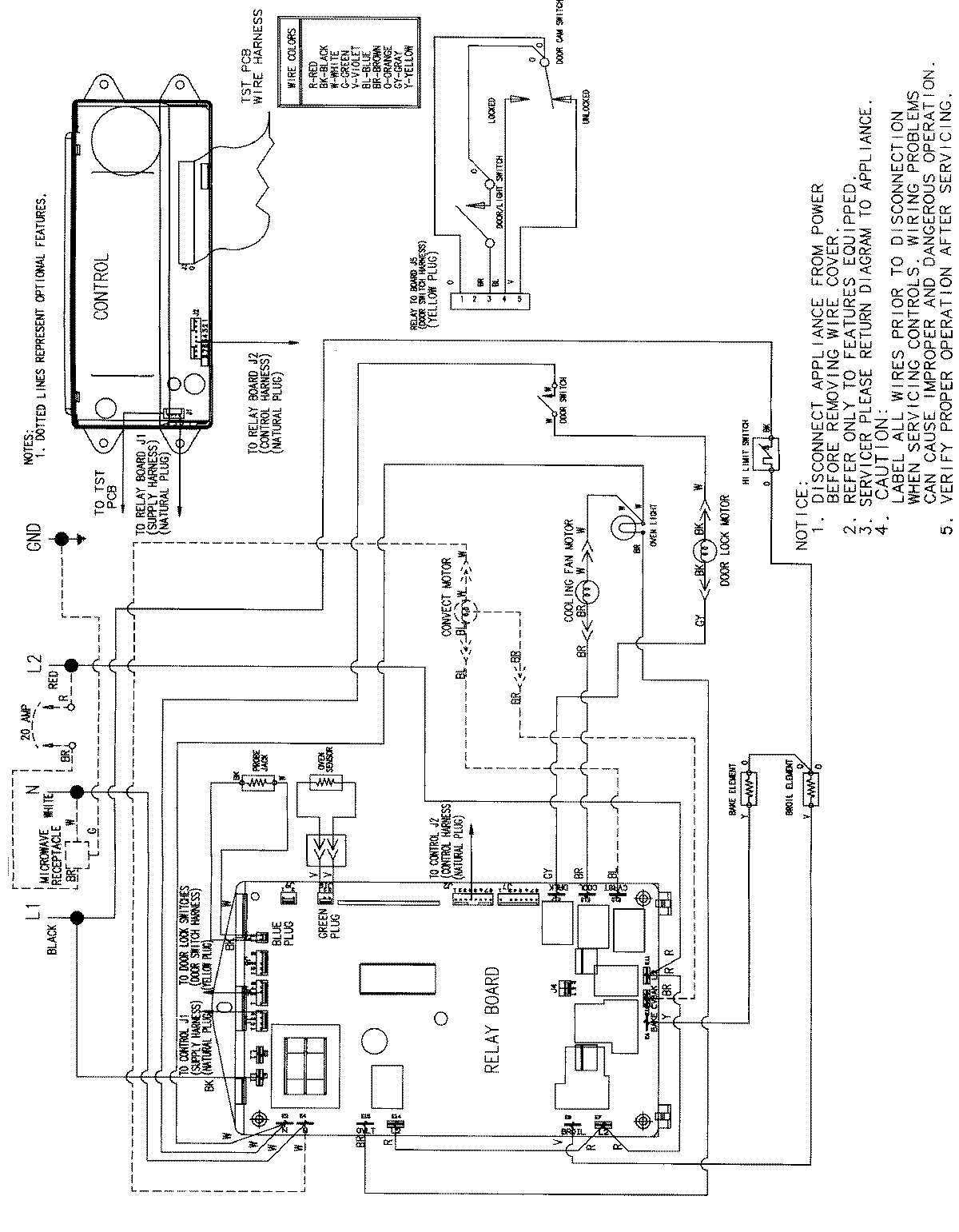

05 - WIRING INFORMATION
Common parts from model Whirlpool JJW9527BAQ ELECTRIC WALL OVEN
1
TOP (OUTER) WPL 71001950 Contact Us For Availability
1
PANEL, TOP (INR) WPL 74004615 Contact Us For Availability
2
RACK, OVEN WPL Y704660 Contact Us For Availability
2
SUPPORT, TOP CONTROL WPL 71003449 Contact Us For Availability
2
COVER, MAIN BACK WPL 71001813 Contact Us For Availability
2
EXTENSION, VENT WPL 71001843 Contact Us For Availability
3
TRIM, SIDE (BSQ) WPL 74005623 Contact Us For Availability
3
PAN, BROIL WPL 3401F01419 Contact Us For Availability
3
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
3
SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability
4
TRIM, CONTROL PANEL (BLK) WPL 71001946 Contact Us For Availability
4
SCREW (BSQ) WPL 71003563 Contact Us For Availability
4
TRIM, OVEN (LWR-BSQ) WPL 74005624 Contact Us For Availability
4
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
5
HARNESS, WIRE CONTROL (J2) WPL 71001798 Contact Us For Availability
5
HARNESS, DOOR SWITCH (UPR) WPL 71001808 Contact Us For Availability
5
HARNESS, DOOR LOCK (UPR) WPL 71001809 Contact Us For Availability
5
HARNESS, CONVECT WPL 71001861 Contact Us For Availability
5
HARNESS, MEAT PROBE WPL 71001868 Contact Us For Availability
5
HARNESS, TOUCH PAD/CLOCK WPL 71003403 Contact Us For Availability
5
HARNESS, CONTROL/RELAY BOARD WPL 71003404 Contact Us For Availability
5
HARNESS, MAIN (UPR) WPL 74005198 Contact Us For Availability
5
HARNESS, SENSOR (LWR) WPL 74005199 Contact Us For Availability
5
HARNESS, MAIN (UPR) WPL 74006938 Contact Us For Availability
5
HARNESS, UPR DR SW. & MTR WPL 74007064 Contact Us For Availability
5
PANEL, OVEN (SIDE/BTM/SIDE) WPL 74005645 Contact Us For Availability
5
LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability
6
COOKBOOK WPL 71003508 Contact Us For Availability
6
GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability
6
MANUAL, USE & CARE WPL 74005656 Contact Us For Availability
6
FRAME, OVEN WPL 71003180 Contact Us For Availability
6
VENT (BTM) WPL 71001846 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71003006 Contact Us For Availability
7
VENT (TOP) WPL 71001847 Contact Us For Availability
8
PANEL, BACK (INR) WPL 74004629 Contact Us For Availability
8
RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability
8
BRACKET, FAN WPL 71001853 Contact Us For Availability
9
INSULATION (BACK-TOP) WPL 71002329 Contact Us For Availability
9
INSULATION (BTM) WPL 71003614 Contact Us For Availability
9
RECEPTACLE, BULB WPL 71001866 Contact Us For Availability
9
WIRE CABLE ASSY. WPL 71001848 Contact Us For Availability
10
PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability
10
TUBE, VENT WPL 71002419 Contact Us For Availability
10
SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability
11
INSULATION (WRAP) WPL 71001817 Contact Us For Availability
11
BOARD, RELAY (UPPER) WPL 71003431 Contact Us For Availability
12
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
13
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
14
NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability
14
BLADE, FAN WPL 71001852 Contact Us For Availability
16
CLIP, OVEN WPL 71001170 Contact Us For Availability
17
MOTOR ASSY, CONVECTION WPL 74005657 Contact Us For Availability
18
BUTTON, PLUG WPL 702929 Contact Us For Availability
19
PLATE, CONVECTION (FRT) WPL 74005658 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002514 Contact Us For Availability
× ![]()
