Model Whirlpool JJD3024HM0 RANGE/OVEN, ELECTRIC, WARMING DRAWER – Common Parts & Diagrams

Common parts from model Whirlpool JJD3024HM0 RANGE/OVEN, ELECTRIC, WARMING DRAWER

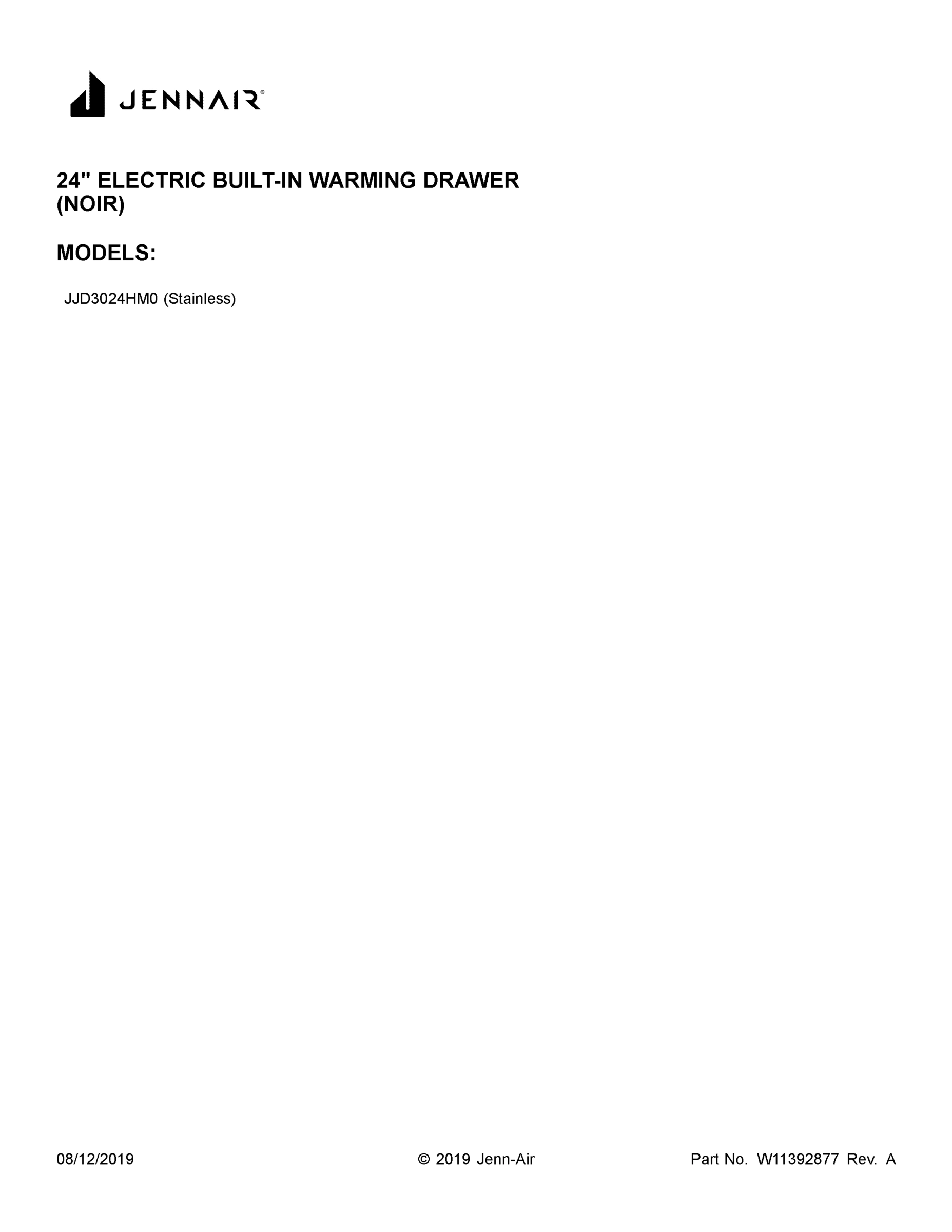

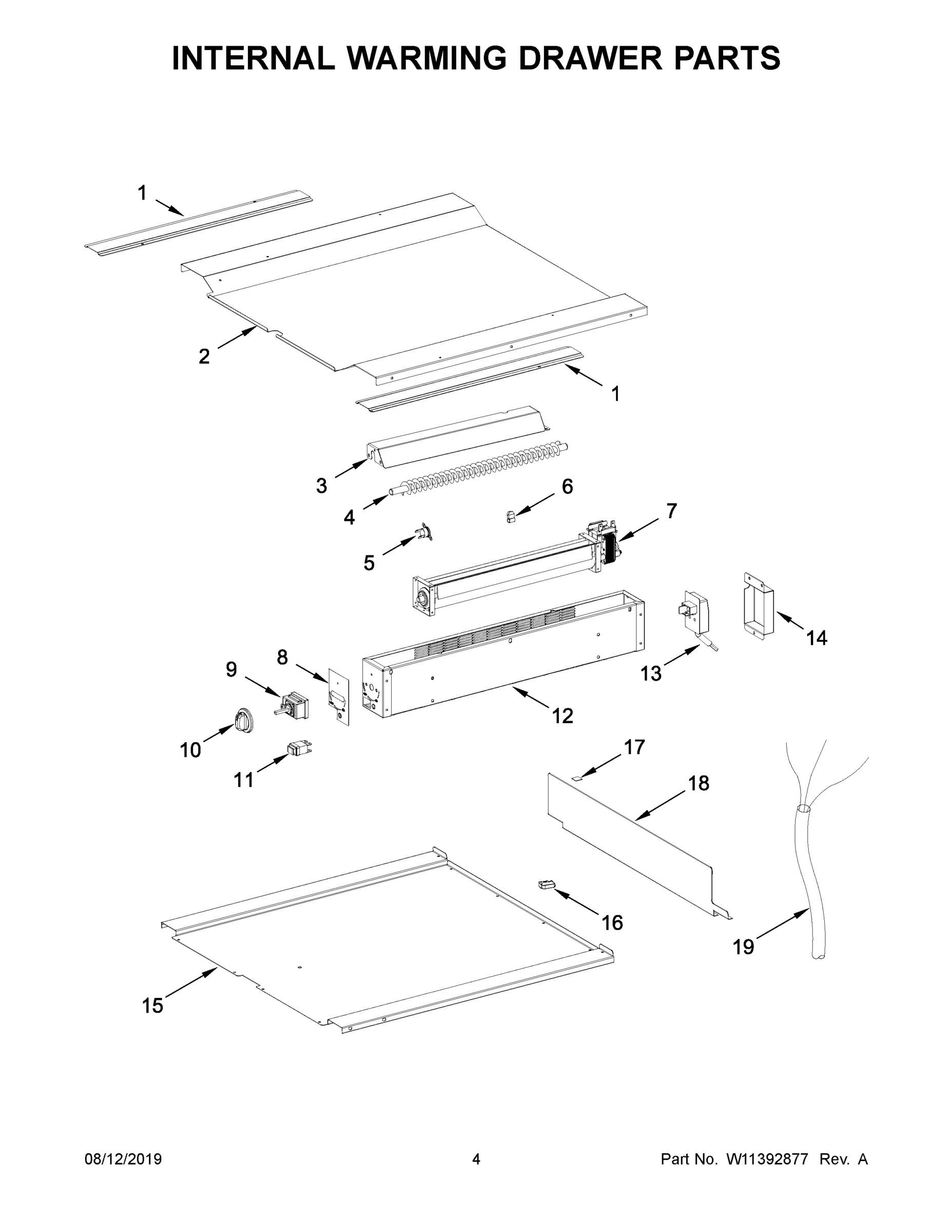

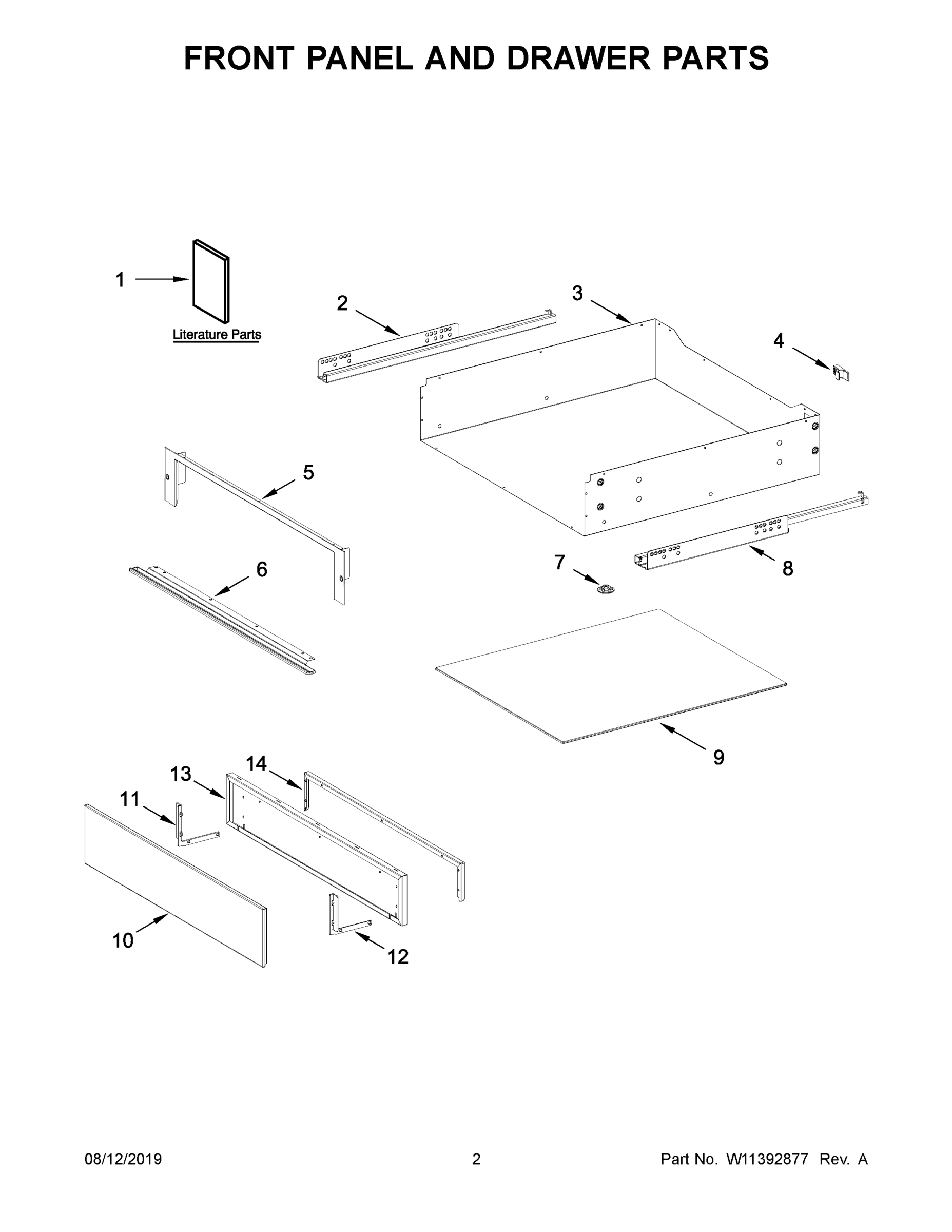

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

INSTALLATION INSTRUCTIONS WPL W11260097 Contact Us For Availability

View on Model

1A

USE AND CARE GUIDE WPL W11260128 Contact Us For Availability

View on Model

2

SHIELD, DRAWER TOP WPL W11391669 Contact Us For Availability

View on Model

2

RUNNER, DRAWER (LEFT) WPL W11391607 Contact Us For Availability

View on Model

3

W11391604 Whirlpool Warm Drawer Backorder WPL W11391604 View Details $277.74

View on Model

3

DUCT, AIR WPL W11391631 Contact Us For Availability

View on Model

4

W11391622 Whirlpool Warm Element Backorder WPL W11391622 View Details $177.56

View on Model

4

RECEPTACLE, COUPLER WPL W11391610 Contact Us For Availability

View on Model

5

W11391667 Whirlpool Frame Backorder WPL W11391667 View Details $234.61

View on Model

5

THERMOSTAT, SAFETY (85?C) WPL W11391632 Contact Us For Availability

View on Model

6

W11391621 Whirlpool Clip Backorder WPL W11391621 View Details $8.61

View on Model

6

W11391668 Whirlpool Trim Backorder WPL W11391668 View Details $65.46

View on Model

7

FAN, COOLING WPL W11391620 Contact Us For Availability

View on Model

7

PIN, LEVELING WPL W11391703 Contact Us For Availability

View on Model

8

W11391613 Whirlpool Mounting Bracket Backorder WPL W11391613 View Details $51.93

View on Model

8

RUNNER. DRAWER (RIGHT) WPL W11391608 Contact Us For Availability

View on Model

9

W11391619 Whirlpool Thermostat Backorder WPL W11391619 View Details $151.64

View on Model

9

W11391695 Whirlpool Drawer Liner Backorder WPL W11391695 View Details $150.32

View on Model

10

KNOB WPL W11391633 Contact Us For Availability

View on Model

10

PANEL, DRAWER FRONT WPL W11391704 Contact Us For Availability

View on Model

11

W11391616 Whirlpool Switch Backorder WPL W11391616 View Details $138.19

View on Model

11

BRACKET, DRAWER FRONT (LEFT) WPL W11391699 Contact Us For Availability

View on Model

12

HEAT SHIELD, DRAWER WPL W11391612 Contact Us For Availability

View on Model

12

BRACKET, DRAWER FRONT (RIGHT) WPL W11391698 Contact Us For Availability

View on Model

13

W11391662 Whirlpool Terminal Block Backorder WPL W11391662 View Details $23.40

View on Model

13

FRAME, FRONT WPL W11391705 Contact Us For Availability

View on Model

14

COVER, TERMINAL BLOCK WPL W11391665 Contact Us For Availability

View on Model

14

FRAME, INNER WPL W11391702 Contact Us For Availability

View on Model

15

W11391691 Whirlpool Drawer Liner Backorder WPL W11391691 View Details $230.90

View on Model

16

W11391674 Whirlpool Clip Backorder WPL W11391674 View Details $38.94

View on Model

17

GASKET WPL W11391694 Contact Us For Availability

View on Model

18

PANEL, DRAWER BACK WPL W11391692 Contact Us For Availability

View on Model

19

CABLE, POWER WPL W11391663 Contact Us For Availability

View on Model

×
