Model Maytag JIS1450DP2 RANGE/OVEN, INDUCTION, SLIDE-IN, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

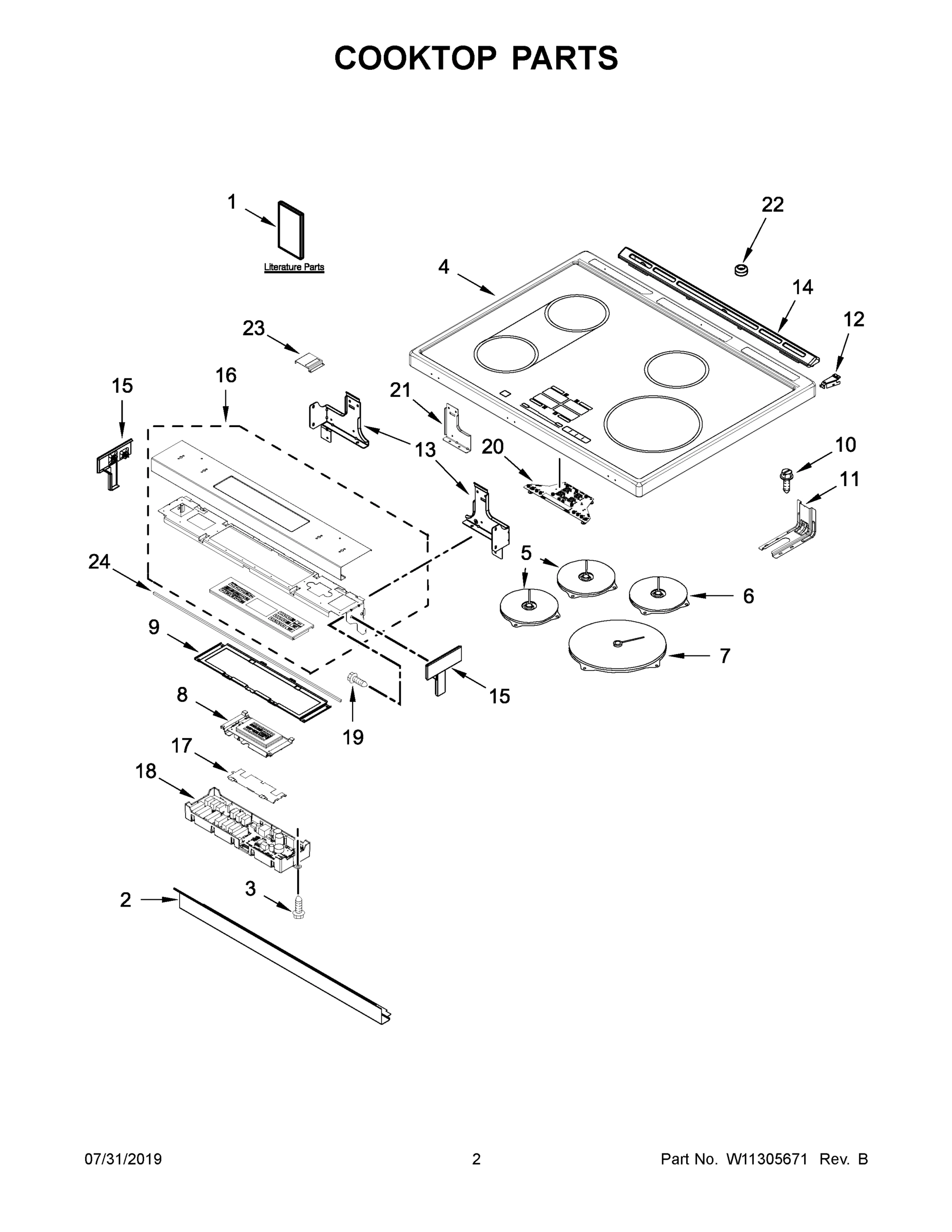

02 - COOKTOP PARTS

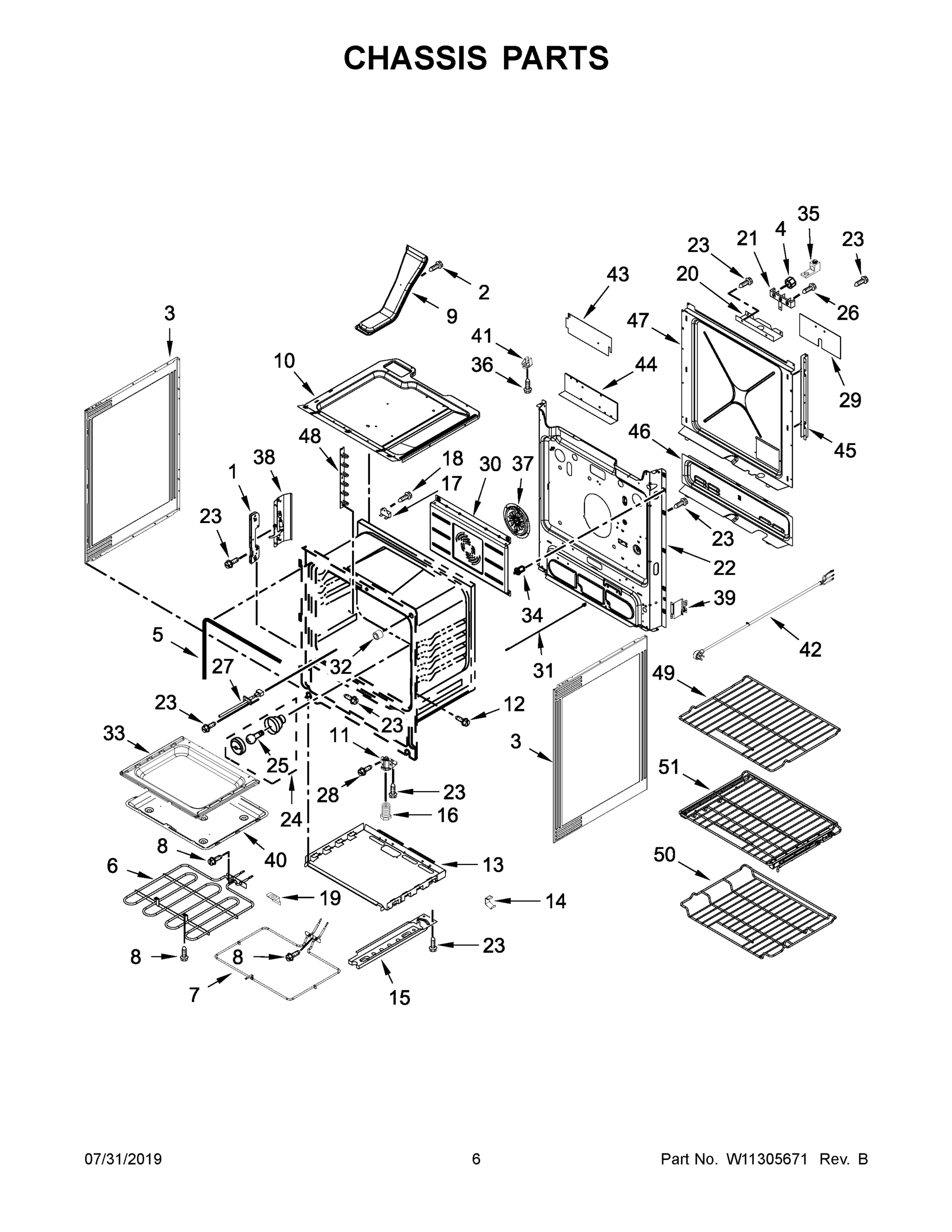

03 - INTERIOR PARTS

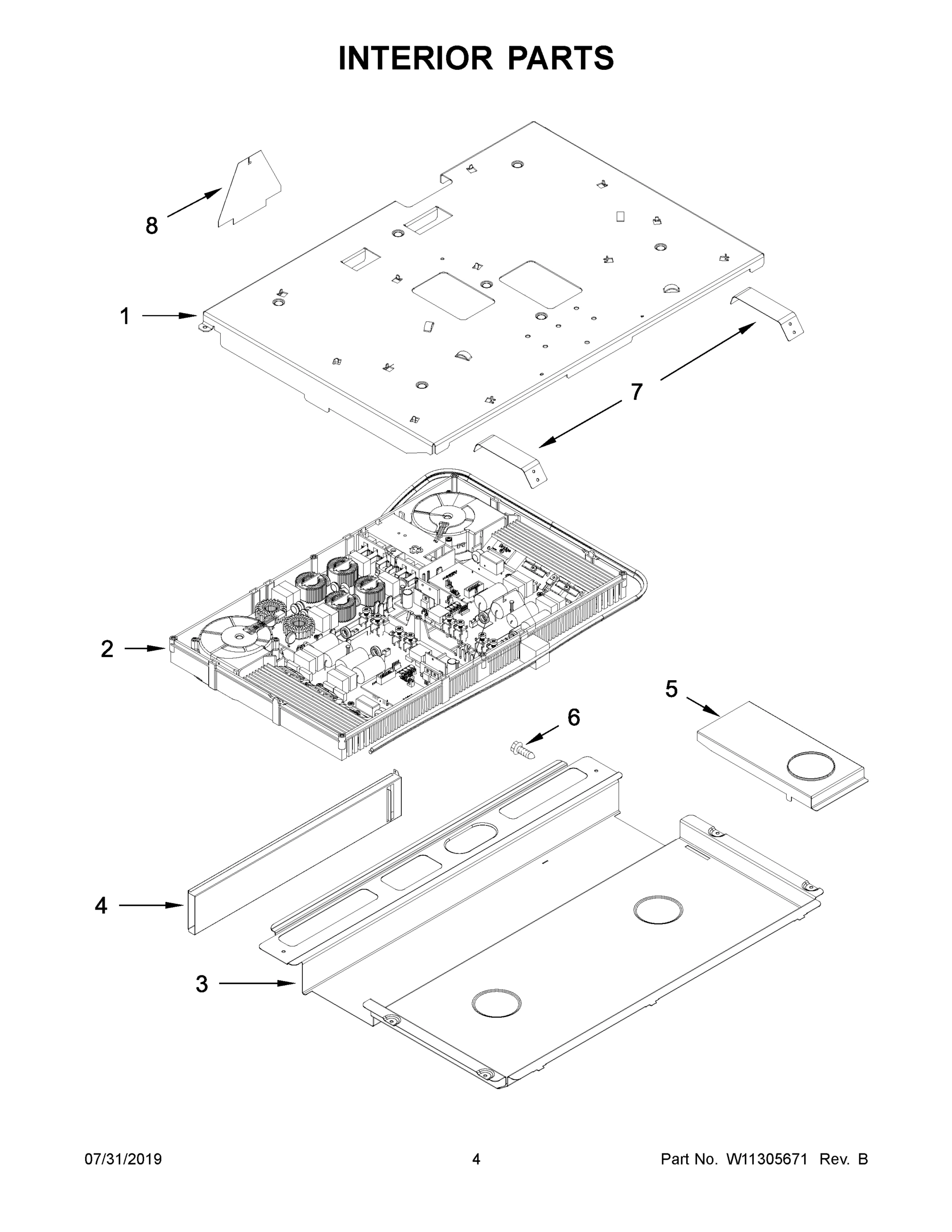

04 - CHASSIS PARTS

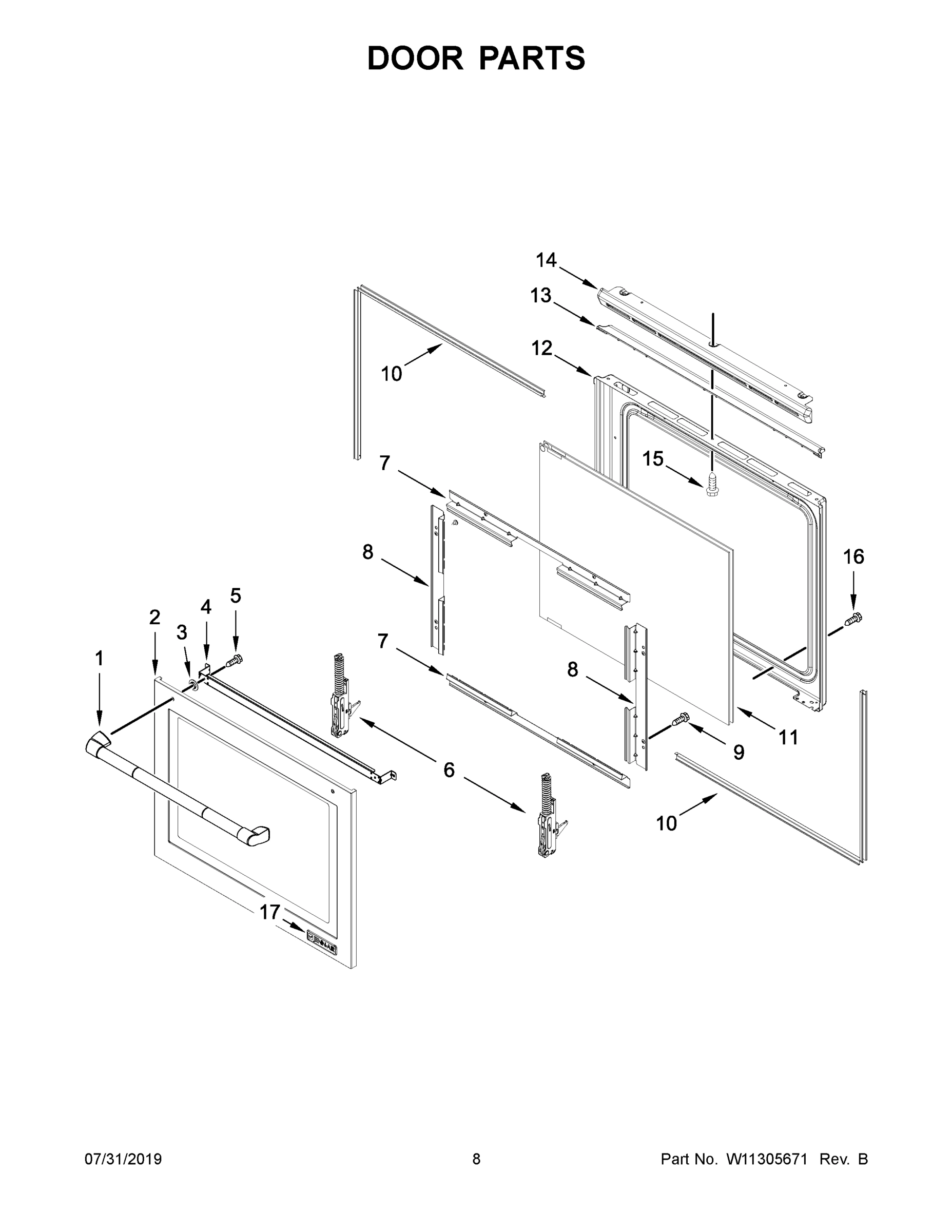

05 - DOOR PARTS

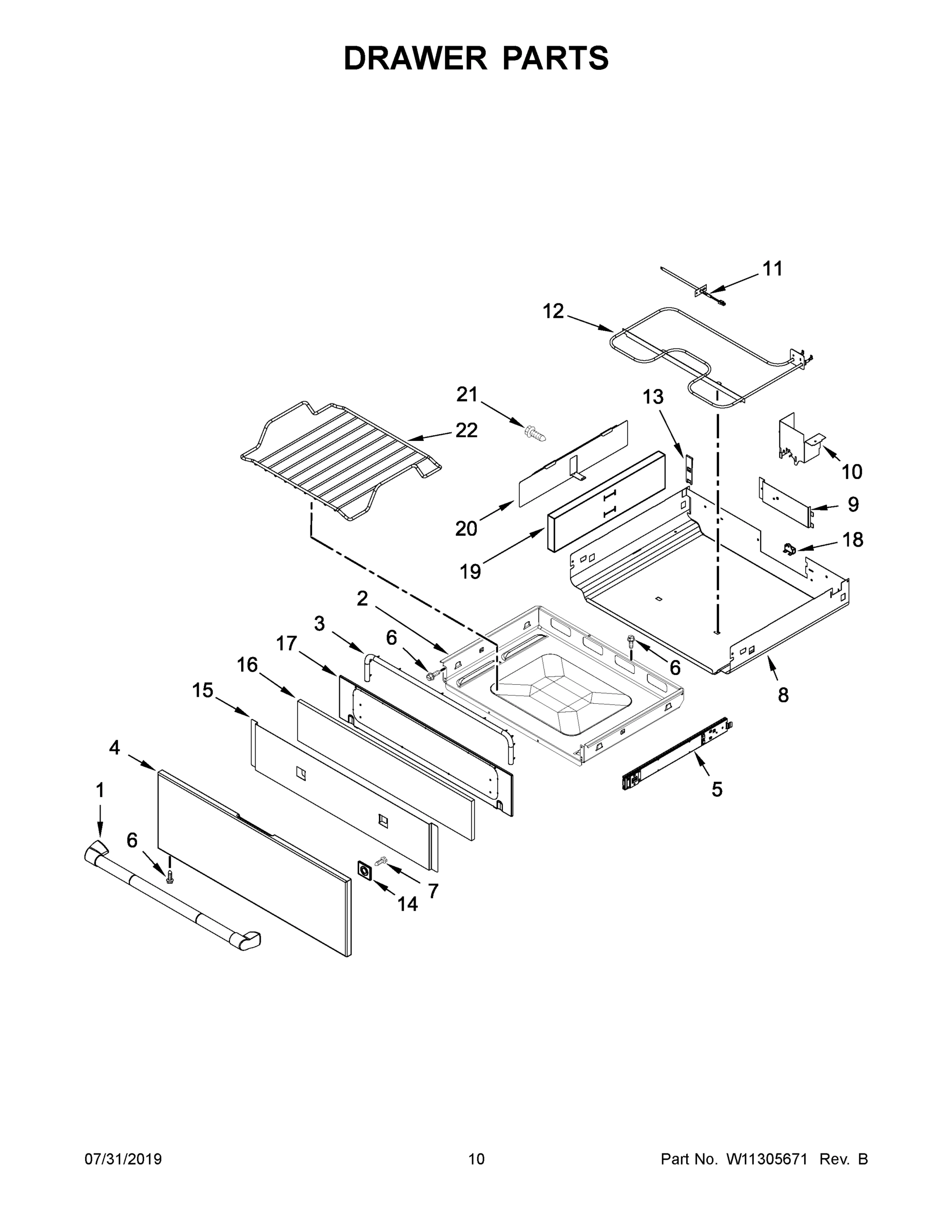

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JIS1450DP2 RANGE/OVEN, INDUCTION, SLIDE-IN, 30 INCH
1
PAN, INDUCTION (UPPER) MAY W10854047 Contact Us For Availability
1
HINGE, RECEIVER MAY W10634238 Contact Us For Availability
1
HANDLE, DRAWER (STAINLESS) MAY W10483386 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10896673 Contact Us For Availability
1B
SHEET, TECH MAY W10844271 Contact Us For Availability
1C
GUIDE, QUICK START (ENGLISH) MAY W10400064 Contact Us For Availability
1D
GUIDE, QUICK START (FRENCH) MAY W10400065 Contact Us For Availability
1E
WIRING DIAGRAM MAY W10902659 Contact Us For Availability
2
BRACKET, MOUNTING (STAINLESS) MAY W10743281 Contact Us For Availability
2
ASSEMBLY, INDUCTION MODULE MAY W10873520 Contact Us For Availability
2
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10634269 Contact Us For Availability
2
DRAWER, BAKE MAY W10757442 Contact Us For Availability
3
PAN, INDUCTION (LOWER) MAY W10536319 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
WASHER, DOOR MAY W10319024 Contact Us For Availability
3
SEAL, DRAWER MAY W10550987 Contact Us For Availability
4
COOKTOP (BLACK) MAY W10536318 Contact Us For Availability
4
ASSEMBLY, INDUCTION SIDE DUCT MAY W10719194 Contact Us For Availability
4
NUT MAY 3400029 Contact Us For Availability
4
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
4
PANEL, DRAWER FRONT (STAINLESS) MAY W10541958 Contact Us For Availability
5
ELEMENT (LEFT FRONT AND LEFT REAR) MAY W10636723 Contact Us For Availability
5
DUCT, RECIRCULATION PLATE MAY W10606133 Contact Us For Availability
5
GASKET, DOOR MAY W10162385 Contact Us For Availability
5
SLIDE, DRAWER (LEFT) MAY W10921904 Contact Us For Availability
5A
SLIDE, DRAWER (RIGHT) MAY W10921905 Contact Us For Availability
6
HOTPLATE (RIGHT REAR) MAY W10410580 Contact Us For Availability
6
ELEMENT, BROIL MAY W10544952 Contact Us For Availability
6
HINGE, SLOW CLOSE MAY W10885516 Contact Us For Availability
7
ELEMENT (RIGHT FRONT) MAY W10410578 Contact Us For Availability
7
SPRING (CANTILEVER) MAY W10854045 Contact Us For Availability
7
ELEMENT, BAKE MAY W10774342 Contact Us For Availability
7
SCREW MAY W10530626 Contact Us For Availability
7
RAIL, HORIZONTAL SUPPORT MAY W10813140 Contact Us For Availability
8
ASSEMBLY, DISPLAY MAY W10759324 Contact Us For Availability
8
INSULATION, SHIELD MAY W10884792 Contact Us For Availability
8
SCREW MAY W10362924 Contact Us For Availability
8
RAIL, VERTICAL SUPPORT MAY W10813139 Contact Us For Availability
8
ENCLOSURE, WARMING MAY W10634260 Contact Us For Availability
9
BRACKET , CONTROL MAY W10557780 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W11122085 Contact Us For Availability
9
SCREW MAY W10031790 Contact Us For Availability
9
COVER, GAS VALVE MAY W10727084 Contact Us For Availability
10
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
SPACER, GLASS MAY W10813142 Contact Us For Availability
10
COVER, WIRE MAY W10634259 Contact Us For Availability
11
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
MAY W11223202 MAY W11223202 Contact Us For Availability
11
SENSOR MAY W10720530 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
SCREW MAY W10067840 Contact Us For Availability
12
LINER, DOOR MAY W10826568 Contact Us For Availability
12
ELEMENT, BAKE MAY W10541944 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
13
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
SCOOP, DOOR (STAINLESS) MAY W10551024 Contact Us For Availability
13
COVER, SIDE MAY W10551019 Contact Us For Availability
13A
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
14
TRIM, VENT (STAINLESS) MAY W10636529 Contact Us For Availability
14
CLIP, PANEL MAY W10137382 Contact Us For Availability
14
SPACER, HANDLE MAY 3823F017-45 Contact Us For Availability
15
ENDCAP (STAINLESS (LEFT)) MAY W10557751 Contact Us For Availability
15
SCREW MAY 9780274 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
INSULATION, DRAWER FRONT MAY W10551018 Contact Us For Availability
15A
ENDCAP (STAINLESS (RIGHT)) MAY W10557754 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16
CONSOLE (STAINLESS) MAY W10901072 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
SCREW MAY W10031780 Contact Us For Availability
16
INSULATION, DRAWER MAY W10550982 Contact Us For Availability
17
BRACKET, CONTROL MAY W10558372 Contact Us For Availability
17
FUSE, THERMAL MAY 3196548 Contact Us For Availability
17
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
17
PANEL, FRONT INNER MAY W10541947 Contact Us For Availability
18
CONTROL, ELECTRONIC (MAXWELL) MAY W11254198 Contact Us For Availability
18
SCREW MAY 3196172 Contact Us For Availability
18
FUSE, THERMAL MAY W10729897 Contact Us For Availability
19
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
19
INSULATION, DRAWER SIDE MAY W10550984 Contact Us For Availability
20
USER, INTERFACE MAY W10808072 Contact Us For Availability
20
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
20
RETAINER, SIDE INSULATION MAY W10550985 Contact Us For Availability
21
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
21
SCREW MAY 3196560 Contact Us For Availability
22
BUMPER MAY W10664705 Contact Us For Availability
22
RACK, BAKE DRAWER MAY W10602493 Contact Us For Availability
23
SCREW MAY 3196178 Contact Us For Availability
23
SHIELD, KEYPAD MAY W10752321 Contact Us For Availability
24
GASKET, CONSOLE/ COOKTOP MAY W10612719 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
26
SCREW MAY 3400016 Contact Us For Availability
27
SENSOR MAY W10586204 Contact Us For Availability
28
SCREW MAY 3196169 Contact Us For Availability
29
SHIELD, POWER CORD MAY W10655441 Contact Us For Availability
30
BAFFLE, FULL CONVECTION MAY W10554262 Contact Us For Availability
31
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
33
BOTTOM, OVEN MAY W10774446 Contact Us For Availability
34
SWITCH, DOOR MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
SCREW MAY W10516115 Contact Us For Availability
37
ASSEMBLY, CONVECTION MAY W10874472 Contact Us For Availability
38
RECEIVER, SLOW CLOSE HINGE MAY W10605411 Contact Us For Availability
39
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
40
PAN, BAKE MAY W10346147 Contact Us For Availability
41
CLIP-PANEL, RATCHETING MAY W10866583 Contact Us For Availability
42
CORD, POWER MAY W10624592 Contact Us For Availability
43
SHIELD, WIRE MAY W11117035 Contact Us For Availability
44
SHIELD, HEAT MAY W10162260 Contact Us For Availability
45
CHANNEL, REAR MAY W10162241 Contact Us For Availability
46
COVER, WIRE MAY W10162248 Contact Us For Availability
47
COVER, BACK MAY W10289172 Contact Us For Availability
48
RACK, LADDER MAY W10603482 Contact Us For Availability
49
RACK, HEAVY DUTY MAY W10554005 Contact Us For Availability
50
RACK, MAXIMUM CAPACITY MAY W10554006 Contact Us For Availability
51
RACK, SLIDING MAY W10911366 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, KEYPAD MAY W10575120 Contact Us For Availability
NI
HARNESS, MAIN MAY W11171883 Contact Us For Availability
NI
HARNESS, DISPLAY MAY W11172426 Contact Us For Availability
NI
HARNESS, BAKE DRAWER MAY W11172530 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10575374 Contact Us For Availability
NI
SUPPRESSOR MAY W10653092 Contact Us For Availability
NI
INSULATION, HEAT SHIELD MAY W10655442 Contact Us For Availability
NI
INSULATION, WRAPPER MAY W10655489 Contact Us For Availability
NI
INSULATION, MAIN BACK MAY W10655490 Contact Us For Availability
NI
INSULATION, DOOR MAY W10766562 Contact Us For Availability
NI
INSULATION, (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION, (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES, PROTECT MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES, KIT, CO MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES, CLEANER MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS GRID, BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, MISCELLANEOUS RACK, BROILER MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES, CLEANER MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES, CLEANER MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES, WIPES, MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES, CLEANER MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS / POLISHES, PAD, CO MAY W10391473 Contact Us For Availability
NI
MAY W10432019 MAY W10432019 Contact Us For Availability
NI
MAY W10432539 MAY W10432539 Contact Us For Availability
NI
MAY W10432545 MAY W10432545 Contact Us For Availability
NI
MAY W10655448 MAY W10655448 Contact Us For Availability
NI
MAY W10655449 MAY W10655449 Contact Us For Availability
NI
MAY W10655450 MAY W10655450 Contact Us For Availability
NI
MAY W10675026 MAY W10675026 Contact Us For Availability
NI
MAY W10675027 MAY W10675027 Contact Us For Availability
NI
MAY W10675028 MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
