Model Maytag JIC4536XS00 36`` INDUCTION COOKTOP – Common Parts & Diagrams
01 - COVER SHEET

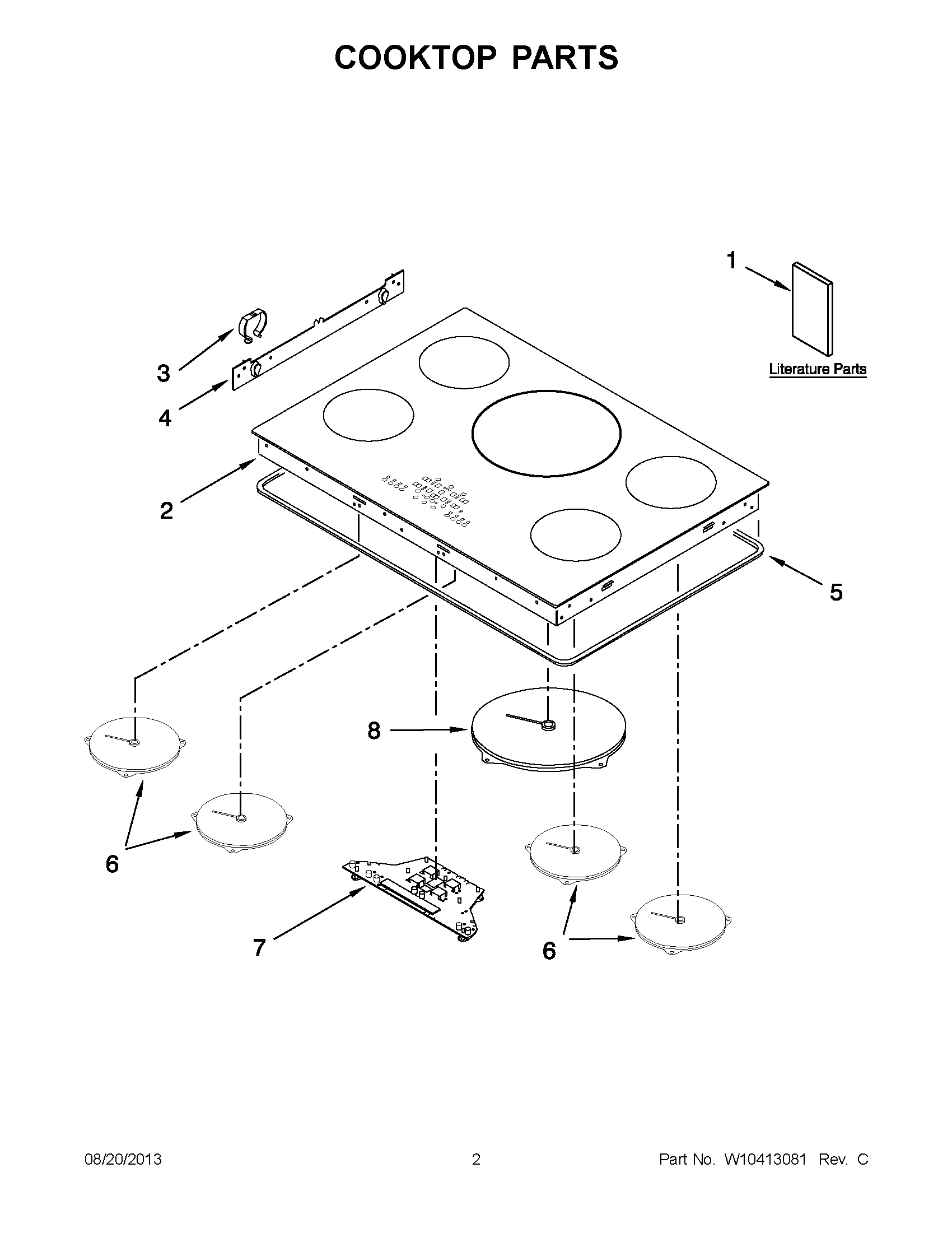

02 - COOKTOP PARTS

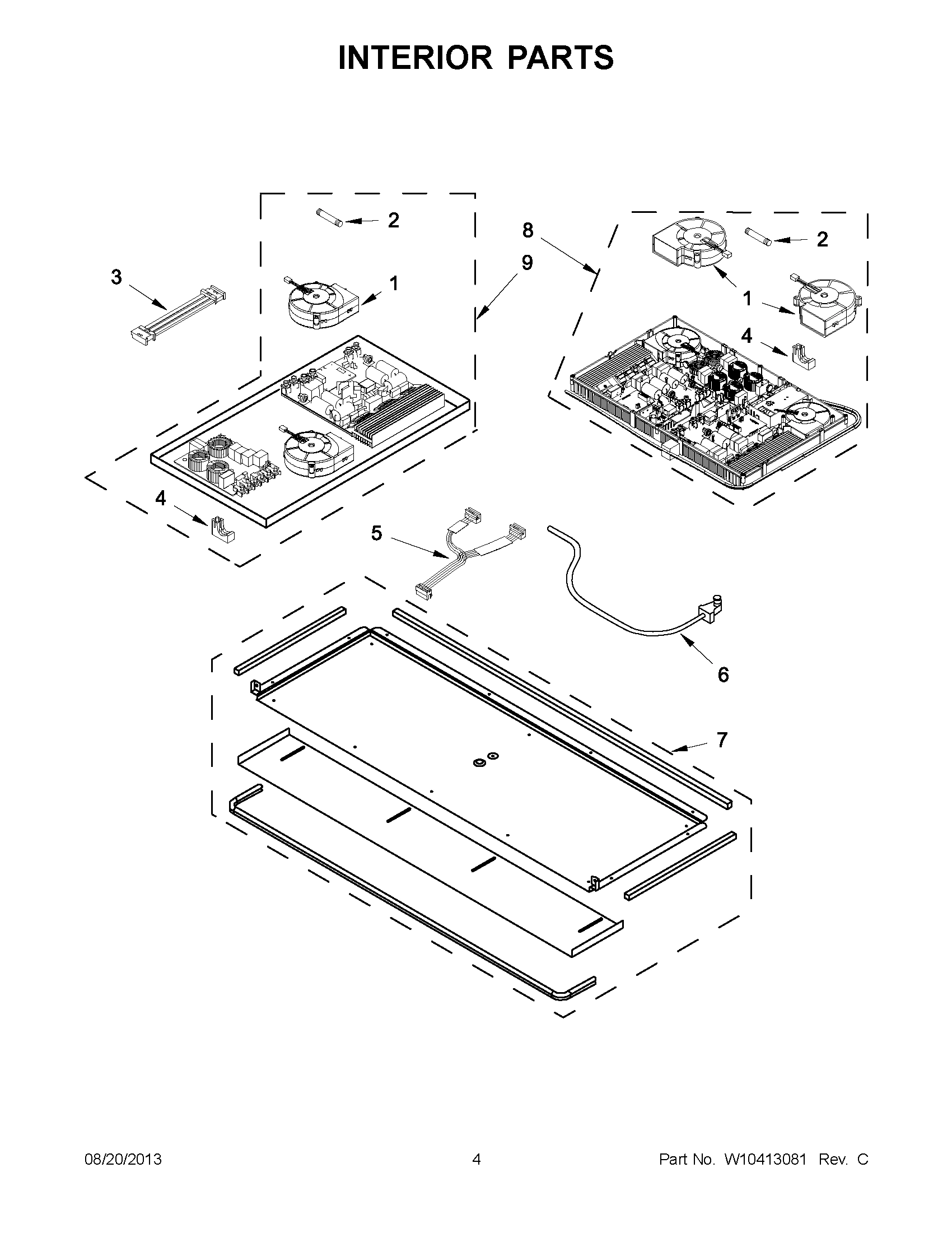

03 - INTERIOR PARTS
Common parts from model Maytag JIC4536XS00 36`` INDUCTION COOKTOP
1
MAY W10408874 MAY W10408874 Contact Us For Availability
1
MAY W10414503 MAY W10414503 Contact Us For Availability
1
FAN, COOLING (RIGHT) MAY W10328378 Contact Us For Availability
1
FAN, COOLING (LEFT) MAY W10328381 Contact Us For Availability
2
MAY W10396765 MAY W10396765 Contact Us For Availability
2
MAY W10396823 MAY W10396823 Contact Us For Availability
2
MAY W10328492 MAY W10328492 Contact Us For Availability
3
MAY W10328375 MAY W10328375 Contact Us For Availability
3
MAY W10328396 MAY W10328396 Contact Us For Availability
4
MAY W10328377 MAY W10328377 Contact Us For Availability
4
HARNESS, FIXING CLIP MAY W10328401 Contact Us For Availability
5
MAY W10237005 MAY W10237005 Contact Us For Availability
5
MAY W10409868 MAY W10409868 Contact Us For Availability
6
COIL, ELEMENT ( LEFT FRONT, RIGHT FRONT, LEFT MAY W10396548 Contact Us For Availability
6
MAY W10396788 MAY W10396788 Contact Us For Availability
7
USER INTERFACE – DISPLAY BOARD MAY W10396615 Contact Us For Availability
7
MAY W10432828 MAY W10432828 Contact Us For Availability
8
MAY W10396779 MAY W10396779 Contact Us For Availability
8
MAY W10607548 MAY W10607548 Contact Us For Availability
9
MAY W10607550 MAY W10607550 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
ADHESIVE, MARBLE COUNTERTOP MAY W10310006 Contact Us For Availability
NI
MAY W10328499 MAY W10328499 Contact Us For Availability
× ![]()
