Model Whirlpool JGW8130DDW15 GAS WALL OVEN – Common Parts & Diagrams
05 - OPTIONAL PARTS

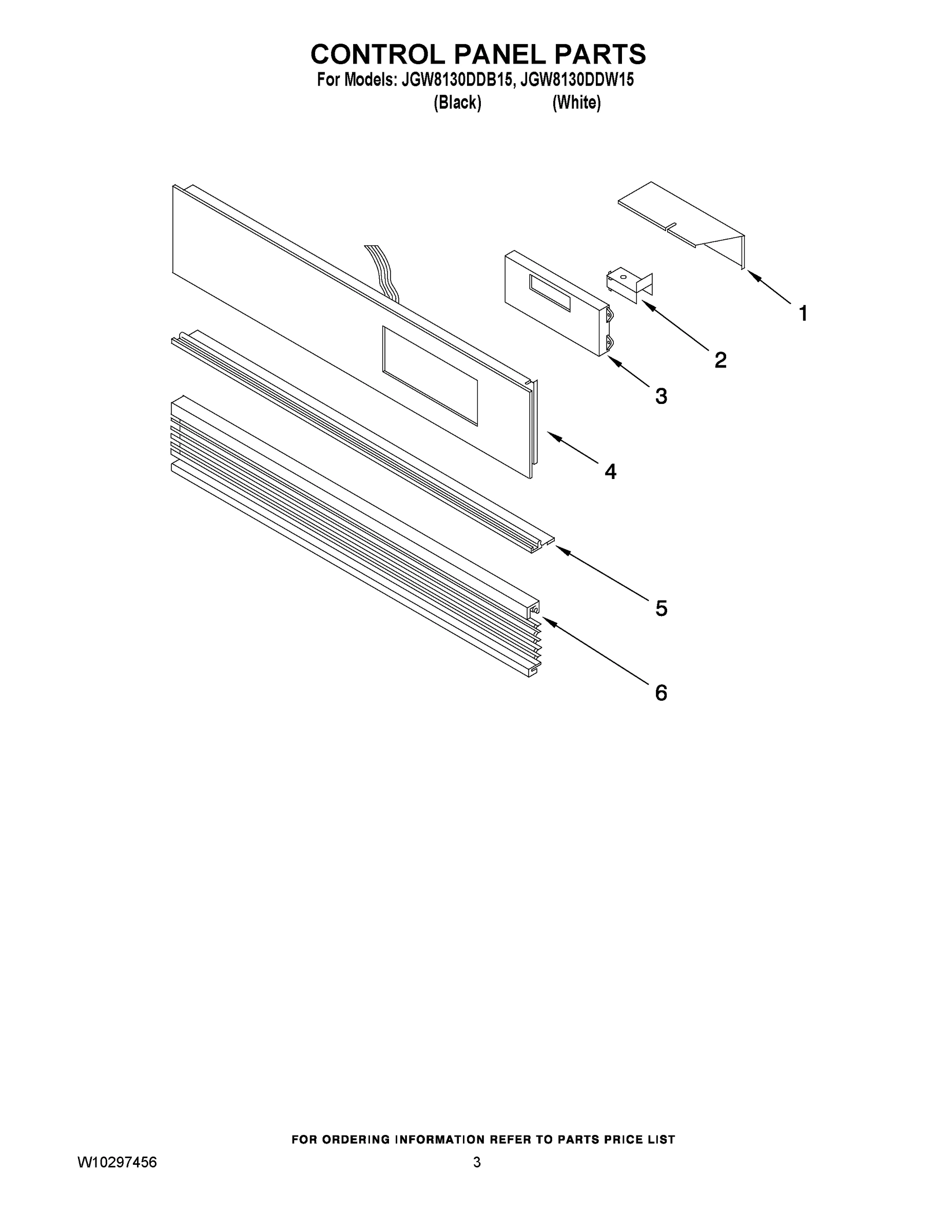

02 - CONTROL PANEL PARTS

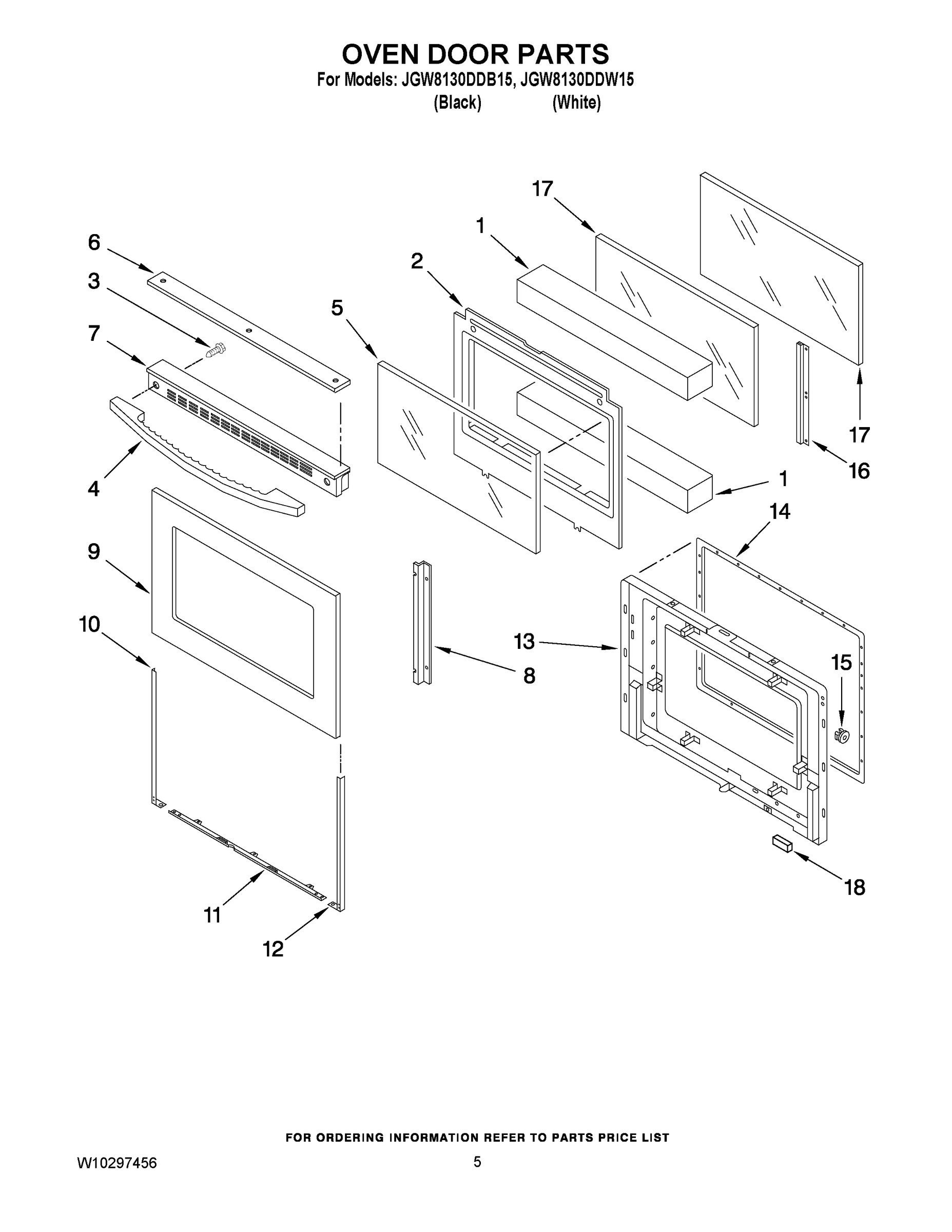

04 - OVEN DOOR PARTS

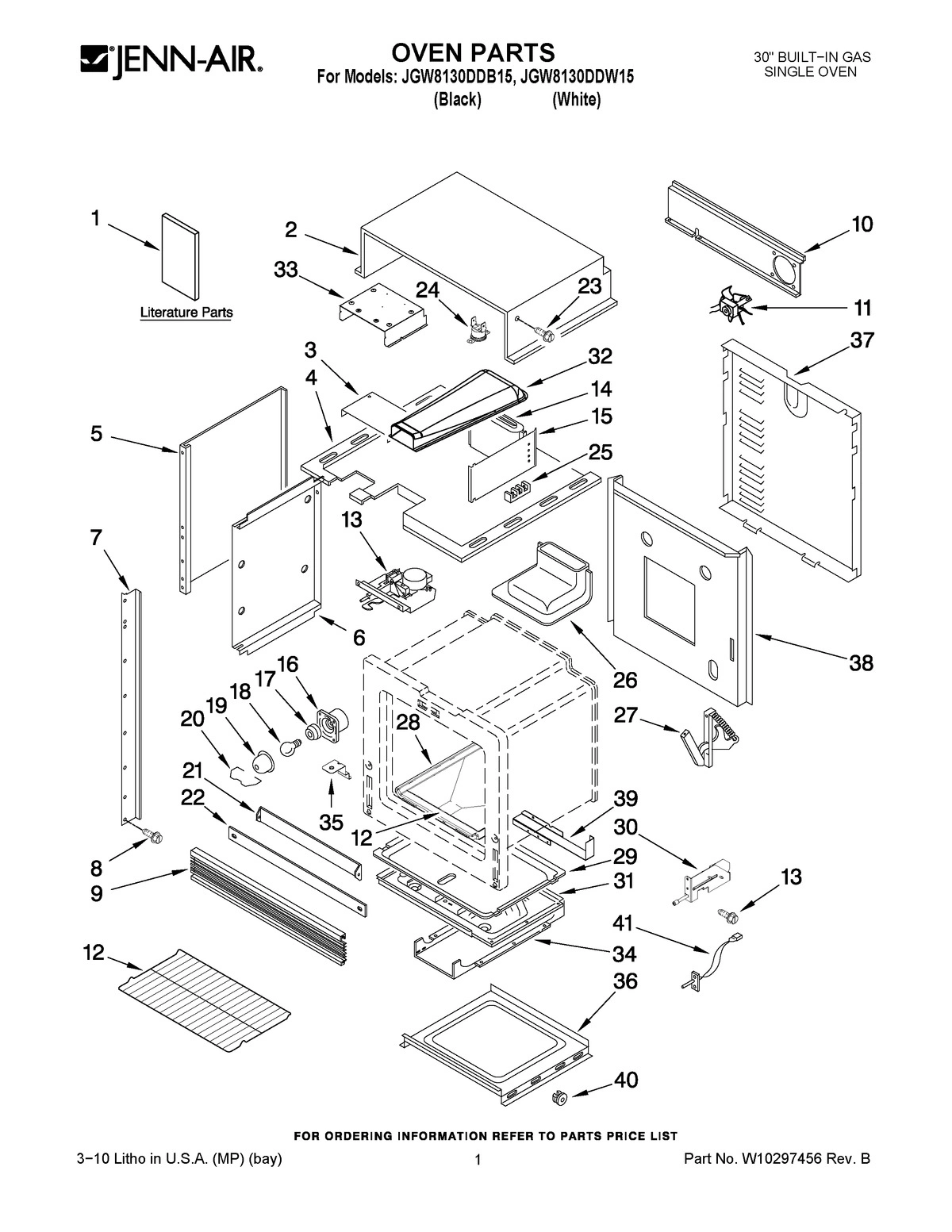

01 - OVEN PARTS

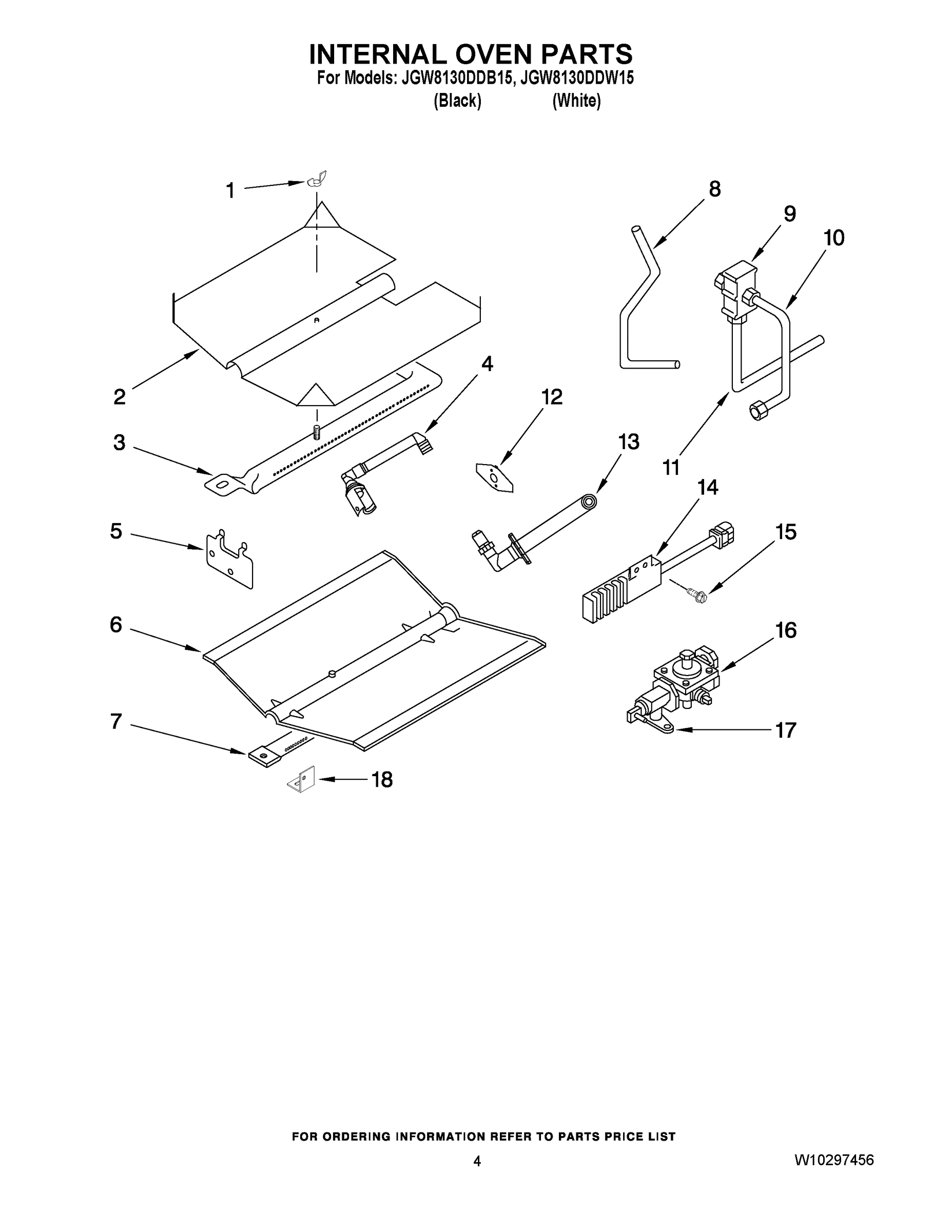

03 - INTERNAL OVEN PARTS
Common parts from model Whirlpool JGW8130DDW15 GAS WALL OVEN
1
SHIELD, VENT WPL 3604F38051 Contact Us For Availability
1
INSULATION, OVEN DOOR (2) WPL 7002P24660 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) WPL 8119P06860 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) WPL 8119P06960 Contact Us For Availability
1
BROCHURE, SAFER COOKING TIPS (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, SAFER COOKING TIPS (FRENCH) WPL W10065852 Contact Us For Availability
1
USE & CARE GUIDE WPL W10169649 Contact Us For Availability
1
NUT, WING WPL 7103P03060 Contact Us For Availability
2
BRACKET, CONTROL WPL 8004P08860 Contact Us For Availability
2
Baffle, Door WPL 3601F37351 Contact Us For Availability
2
COVER, TOP WPL 4005F73451 Contact Us For Availability
2
BAFFLE, BROIL BURNER WPL 3601F30745 Contact Us For Availability
3
CONTROL (GAS) WPL 8507P28460 Contact Us For Availability
3
SCREW, HANDLE WPL 7101P38160 Contact Us For Availability
3
RETAINER, LOCK WPL 3804F26751 Contact Us For Availability
3
BURNER, BROIL WPL 7505P29360 Contact Us For Availability
4
PANEL, CONTROL (INCLUDES MAIN WIRING HARNESS) WPL 5766M09960 Contact Us For Availability
4
PANEL, CONTROL (INCLUDES MAIN WIRING HARNESS) WPL 5766M10060 Contact Us For Availability
4
HANDLE DOOR (WHITE) WPL 7701P20060 Contact Us For Availability
4
HANDLE DOOR (BLACK) WPL 7701P24360 Contact Us For Availability
4
RETAINER, TOP INSULATION WPL 3804F26851 Contact Us For Availability
4
TUBING,OVEN BURNER WPL 7506P40160 Contact Us For Availability
5
TRIM,CONTROL PANEL (BLACK) WPL 7756P19760 Contact Us For Availability
5
TRIM,CONTROL PANEL (CHROME) WPL 7756P19860 Contact Us For Availability
5
Glass, Door WPL 7902P46860 Contact Us For Availability
5
PANEL, BODY (2) WPL 2618F08351 Contact Us For Availability
5
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
6
EXTRUSION, TOP VENT GRILL (BLACK) WPL 7756P19960 Contact Us For Availability
6
EXTRUSION, TOP VENT GRILL (CHROME) WPL 7756P20060 Contact Us For Availability
6
INSERT (WHITE MODEL ONLY) WPL 7728P09460 Contact Us For Availability
6
RETAINER, SIDE (2) WPL 3804F12851 Contact Us For Availability
6
BAFFLE, BOTTOM WPL 3601F23945 Contact Us For Availability
7
TRIM, DOOR TOP (BLACK) WPL 7706P60160 Contact Us For Availability
7
TRIM, DOOR TOP (WHITE) WPL 7706P60260 Contact Us For Availability
7
EXTRUSION,TRIM (RIGHT (BLACK) WPL 7750P26160 Contact Us For Availability
7
EXTRUSION,TRIM (LEFT (BLACK)) WPL 7750P26260 Contact Us For Availability
7
EXTRUSION,TRIM (RIGHT (CHROME)) WPL 7750P26360 Contact Us For Availability
7
EXTRUSION,TRIM (LEFT (CHROME)) WPL 7750P26460 Contact Us For Availability
7
BURNER, BAKE WPL 7505P31260 Contact Us For Availability
8
RETAINER, GLASS SUPPORT (2) WPL 3804F14445 Contact Us For Availability
8
SCREW, EXTRUSION (ZINC) WPL 7101P63460 Contact Us For Availability
8
SCREW, EXTRUSION (BLACK) WPL 7101P65360 Contact Us For Availability
8
TUBING, BROIL WPL 7506P29960 Contact Us For Availability
9
Kit, Door Glass (Black) WPL 12002300 Contact Us For Availability
9
KIT, DOOR GLASS (WHITE) WPL Y12002301 Contact Us For Availability
9
EXTRUSION, LOWER VENT GRILL (BLACK) WPL 7756P15960 Contact Us For Availability
9
EXTRUSION, LOWER VENT GRILL (CHROME) WPL 7756P16060 Contact Us For Availability
9
VALVE, OVEN WPL 7501P19360 Contact Us For Availability
10
TRIM, DOOR (LEFT) (BLACK) WPL 3608F11770 Contact Us For Availability
10
TRIM, DOOR (LEFT) (WHITE) WPL 3608F11771 Contact Us For Availability
10
HOUSING, FAN WPL 4001F08351 Contact Us For Availability
10
TUBING, BAKE WPL 7506P36760 Contact Us For Availability
11
Support, Glass (Black) WPL 3807F70870 Contact Us For Availability
11
Support, Glass (White) WPL 3807F70871 Contact Us For Availability
11
FAN ASSEMBLY WPL 7427P03160 Contact Us For Availability
11
TUBING, 30`` WPL 7506P39960 Contact Us For Availability
12
TRIM, DOOR (RIGHT) (BLACK) WPL 3608F11670 Contact Us For Availability
12
TRIM, DOOR (RIGHT) (WHITE) WPL 3608F11671 Contact Us For Availability
12
RACK, OVEN WPL 7801P17360 Contact Us For Availability
12
PLATE, BROILER WPL 3605F26945 Contact Us For Availability
13
Lining, Door WPL 2402W31219 Contact Us For Availability
13
FITTING, BROILER WPL 7507P37060 Contact Us For Availability
14
RISER, DUCT ASSY. WPL 4006D12845 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P10660 Contact Us For Availability
15
Nut, Snap (White (2)) WPL 7103P03960 Contact Us For Availability
15
NUT, SNAP (BLACK (2)) WPL 7103P14160 Contact Us For Availability
15
SHIELD, AIR WPL 3604F37951 Contact Us For Availability
15
SCREW, IGNITER WPL 7101P28260 Contact Us For Availability
16
Bracket, Inner Glass (2) WPL 3801F88651 Contact Us For Availability
16
HOUSING, BULB WPL 4001F10945 Contact Us For Availability
16
REGULATOR WPL 7510P08060 Contact Us For Availability
17
GLASS, DOOR-INNER (2) WPL 7902P43660 Contact Us For Availability
17
RECEPTACLE, BULB WPL 7408P04460 Contact Us For Availability
17
VALVE, SHUT OFF WPL 7501P04160 Contact Us For Availability
18
SPACER, RUBBER (2) (WHITE MODEL ONLY) WPL 8010P13060 Contact Us For Availability
18
BULB-OVEN WPL 7407P10360 Contact Us For Availability
18
SUPPORT, BAKE BURNER WPL 3807F48045 Contact Us For Availability
19
COVER, BULB WPL 7724P10260 Contact Us For Availability
20
RETAINER, COVER WPL 7804P00160 Contact Us For Availability
21
BAFFLE, OVEN WPL 3601F25145 Contact Us For Availability
22
STRIP, BOTTOM (BLACK) WPL 4005F35470 Contact Us For Availability
22
STRIP, BOTTOM (WHITE) WPL 4005F35471 Contact Us For Availability
23
SCREW WPL 7101P42660 Contact Us For Availability
24
SWITCH, LIMIT WPL 7403P89860 Contact Us For Availability
25
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
26
BOX, FLUE TRANSITION WPL 4006W11745 Contact Us For Availability
27
HINGE, DOOR WPL 7106P13360 Contact Us For Availability
28
BOTTOM, OVEN WPL 2205F05419 Contact Us For Availability
29
PAN, BAKE BURNER WPL 3401F08645 Contact Us For Availability
30
SWITCH, OVEN LIGHT WPL 7450P10960 Contact Us For Availability
31
RETAINER, BOTTOM WPL 3804F24551 Contact Us For Availability
32
DUCT, FLUE WPL 4006D10145 Contact Us For Availability
33
SHIELD, HEAT-TOP COVER WPL 3604F16645 Contact Us For Availability
34
Support, Oven WPL 3807F42951 Contact Us For Availability
35
SUPPORT,OVEN BOTTOM (2) WPL 3807F72745 Contact Us For Availability
36
BOTTOM, MAIN WPL 4011F29151 Contact Us For Availability
37
COVER, BACK WPL 4005F40551 Contact Us For Availability
38
BACK, MAIN WPL 4002F32051 Contact Us For Availability
39
BRACKET-INSULATION RETAINER WPL 3801F76851 Contact Us For Availability
40
NUT, SNAP (2) WPL 7103P12560 Contact Us For Availability
41
Sensor, Oven WPL 7430P04160 Contact Us For Availability
NI
HARNESS, DOOR WPL 5130P03360 Contact Us For Availability
NI
HARNESS, MAIN WPL 5130P03560 Contact Us For Availability
NI
CORD, POWER WPL 7402P04360 Contact Us For Availability
NI
INSULATION OVEN BACK WPL 7002P42560 Contact Us For Availability
NI
INSULATION, OVEN WRAP WPL 7002P42660 Contact Us For Availability
NI
WPL 7002P46060 WPL 7002P46060 Contact Us For Availability
× ![]()
