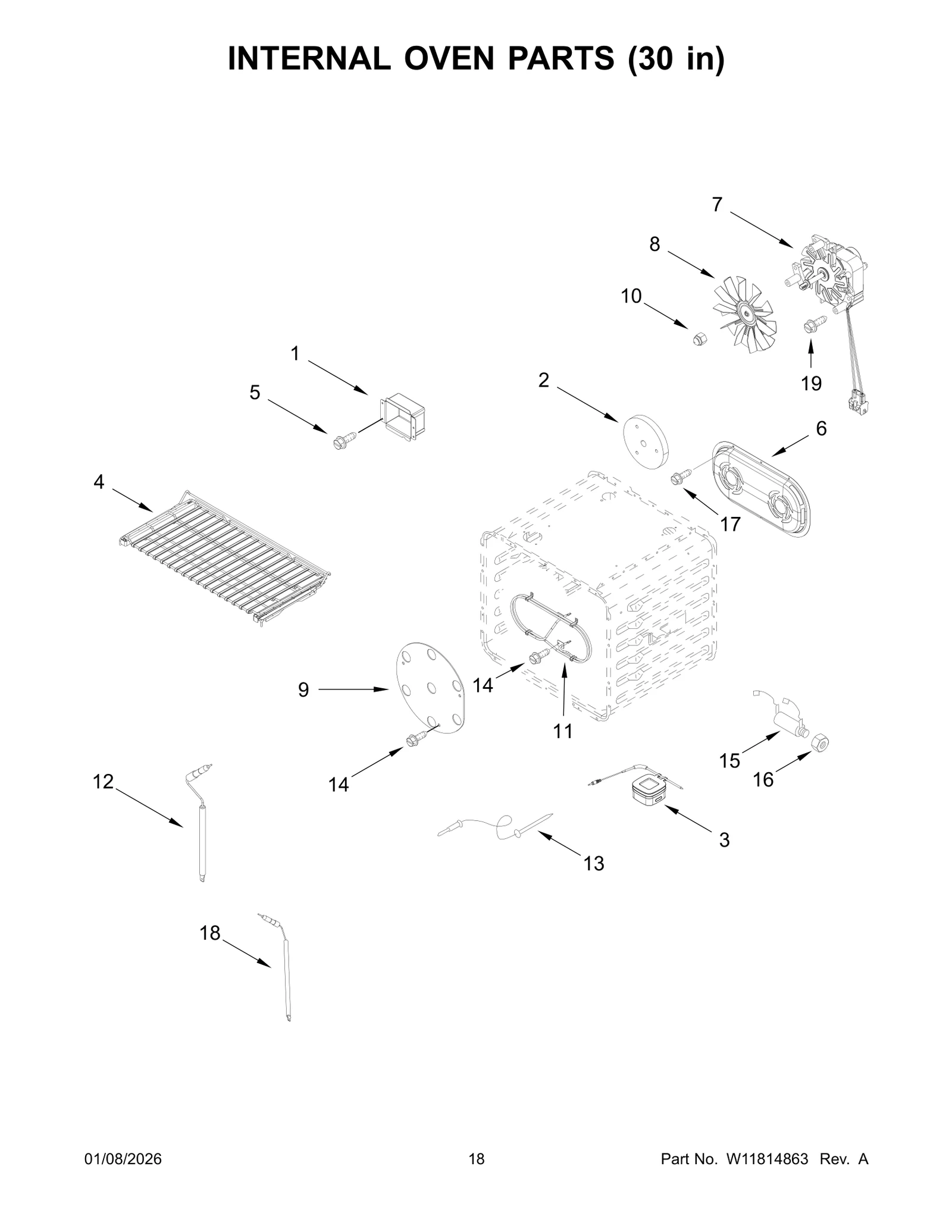

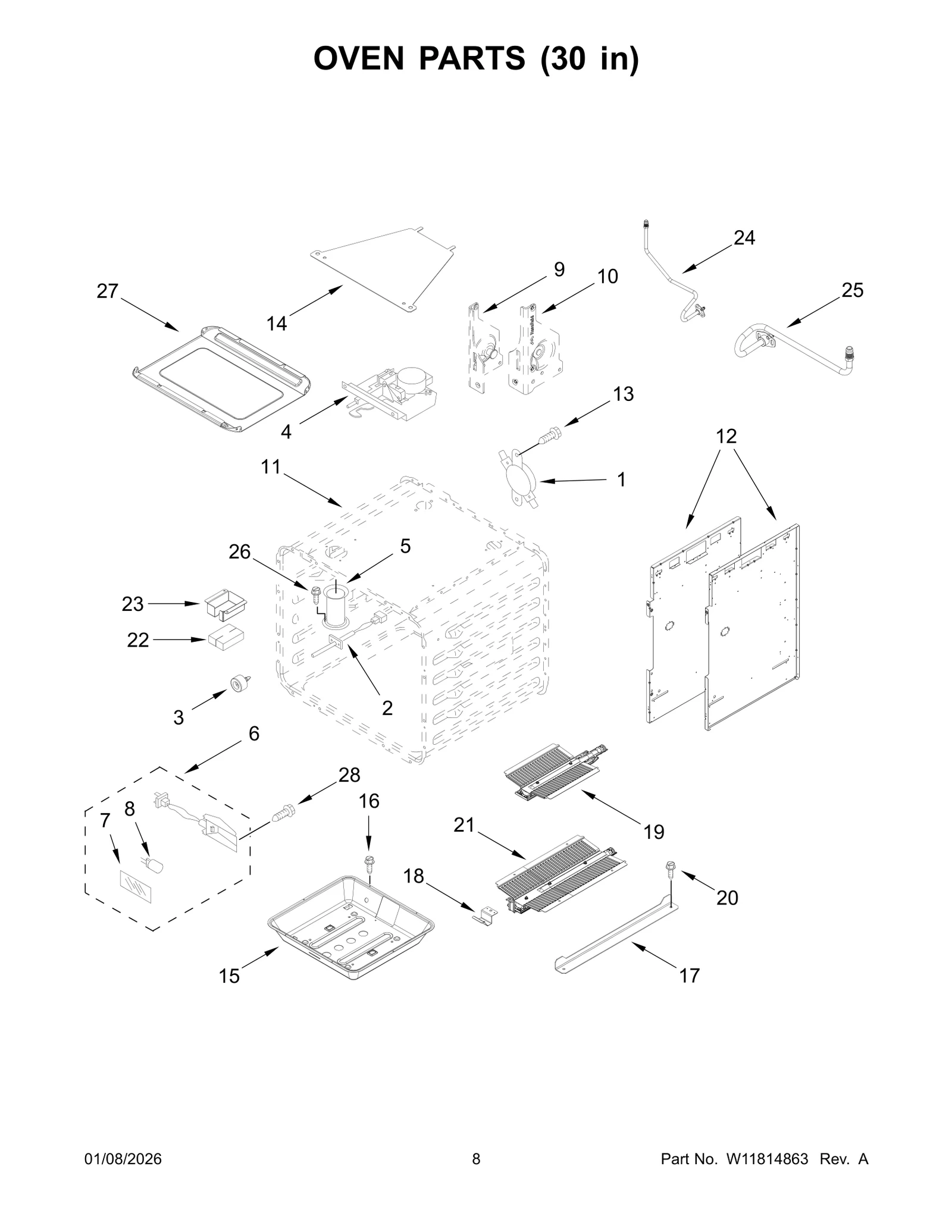

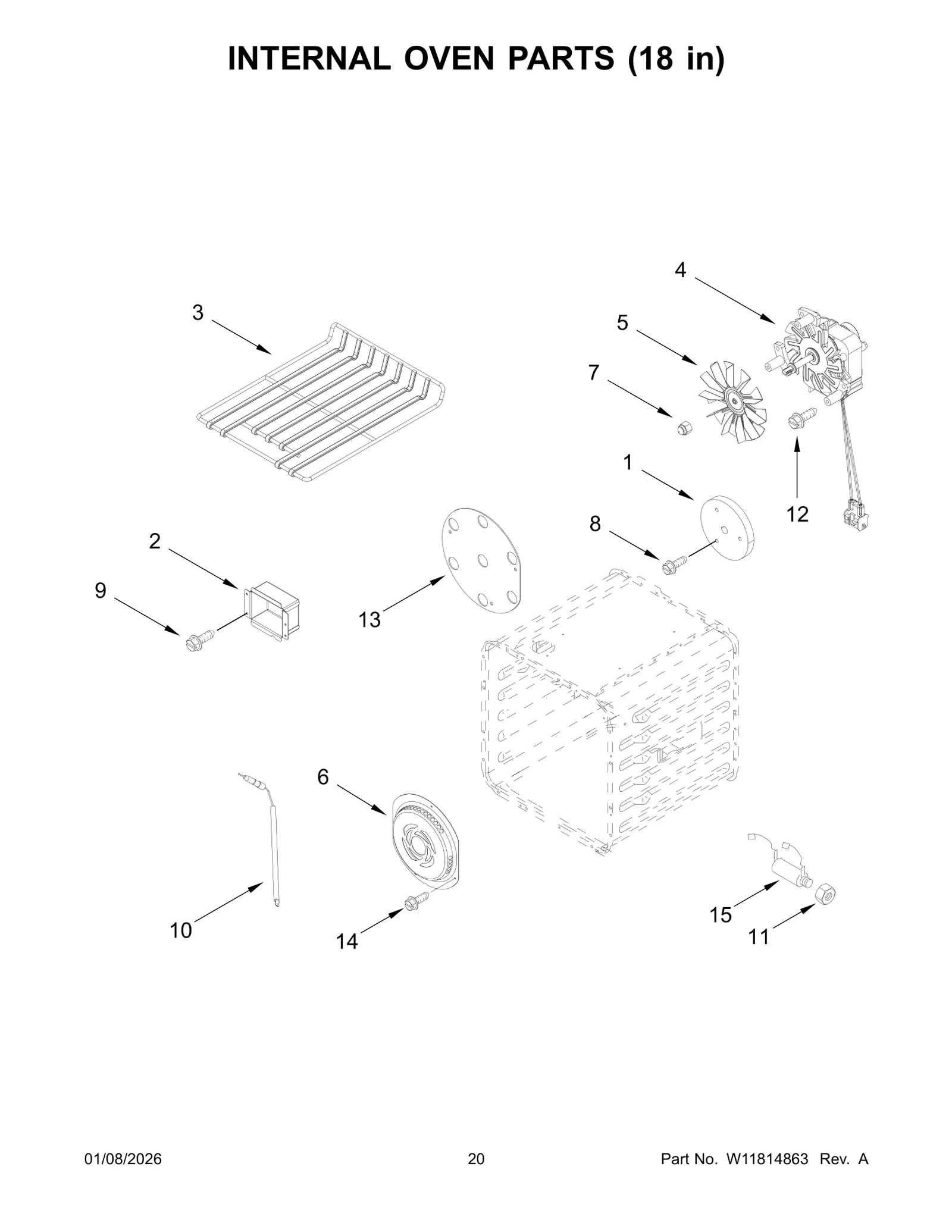

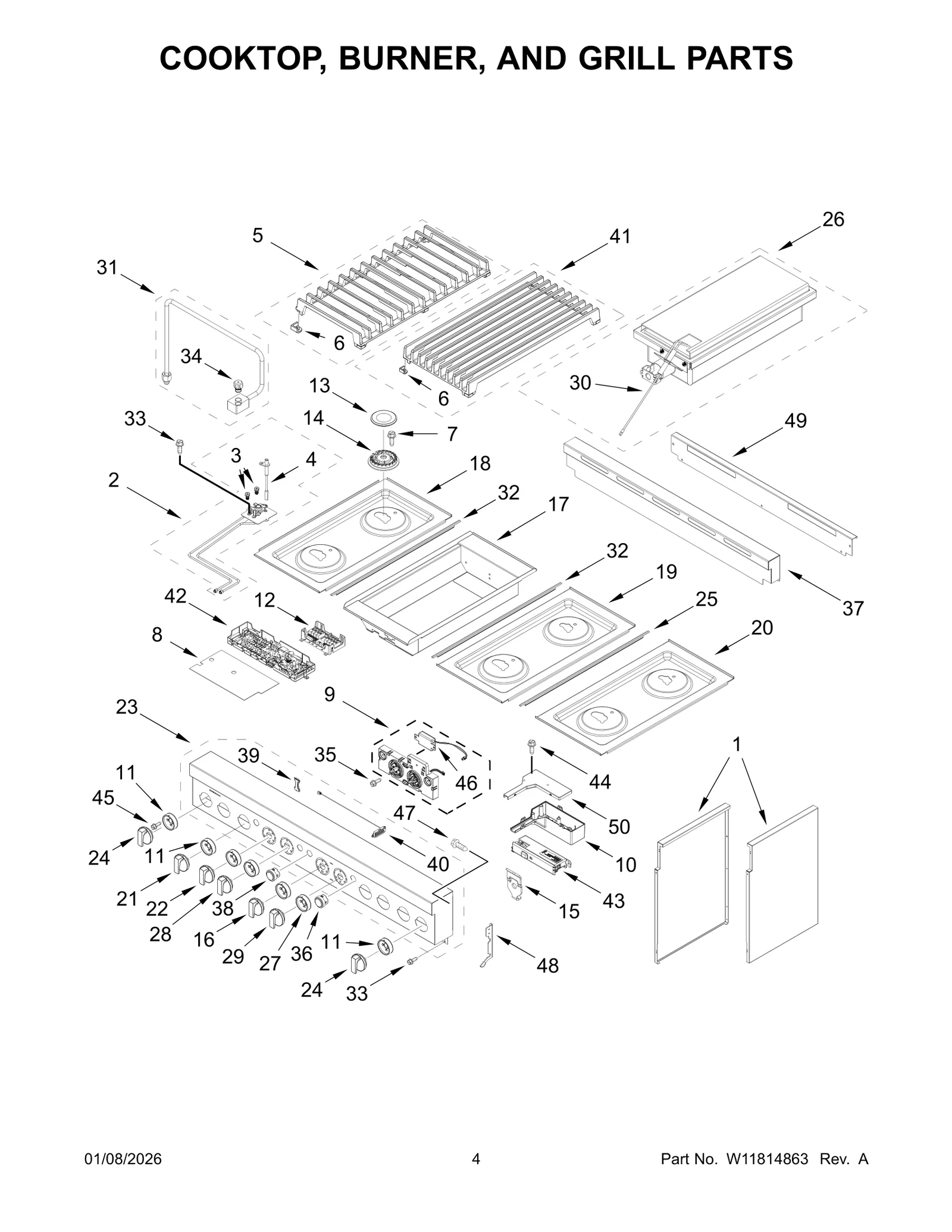

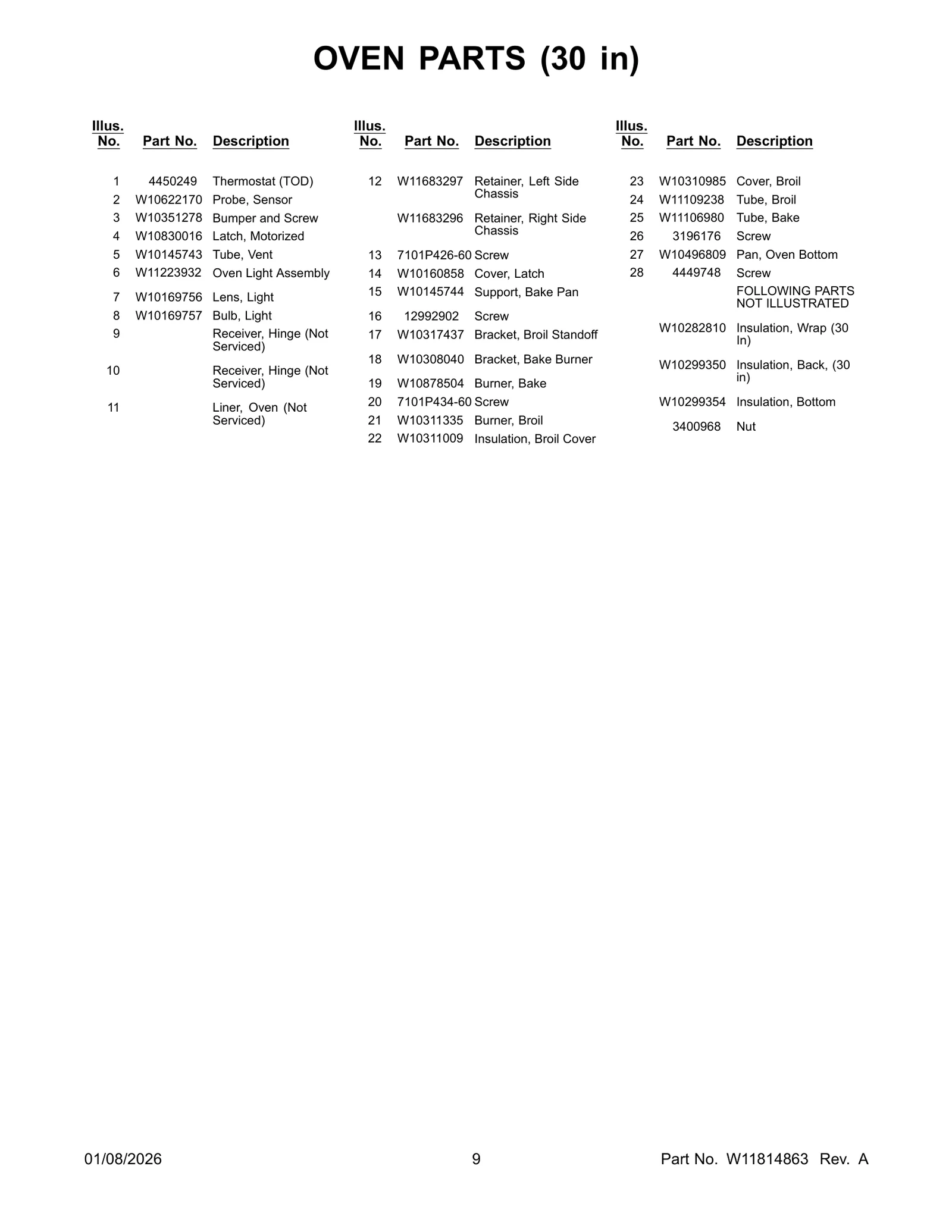

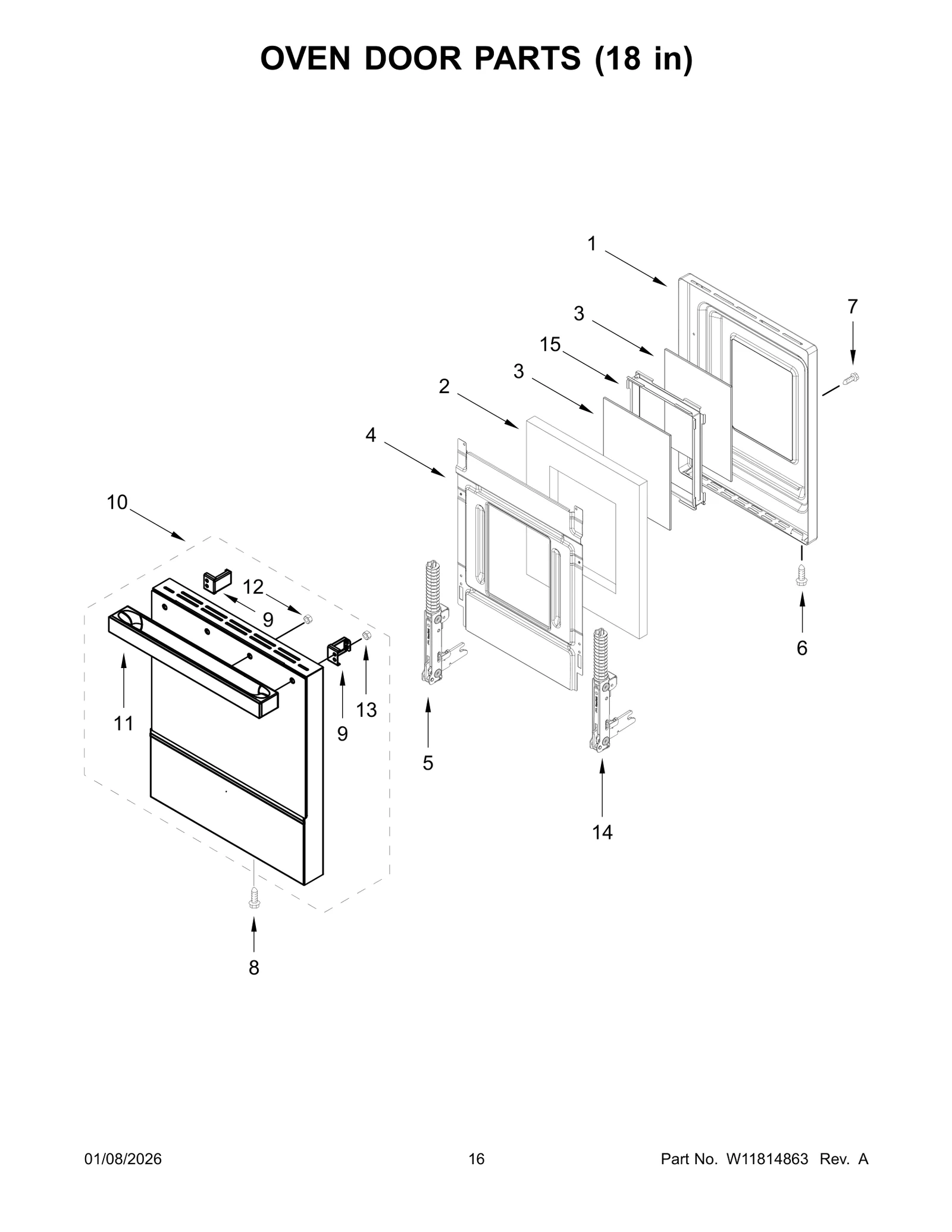

Model Whirlpool JGRP648HM07 Gas Range – Common Parts &amp; Diagrams

1

W11317946 Whirlpool Cover Plate Backorder WPL W11317946 $229.47

1

W11318335 Whirlpool Glass Frame Backorder WPL W11318335 $228.68

1

W11318831 Whirlpool Glass Frame Backorder WPL W11318831 $228.68

1

WP4450249 Whirlpool Thermostat Backorder WPL WP4450249 $151.03

1

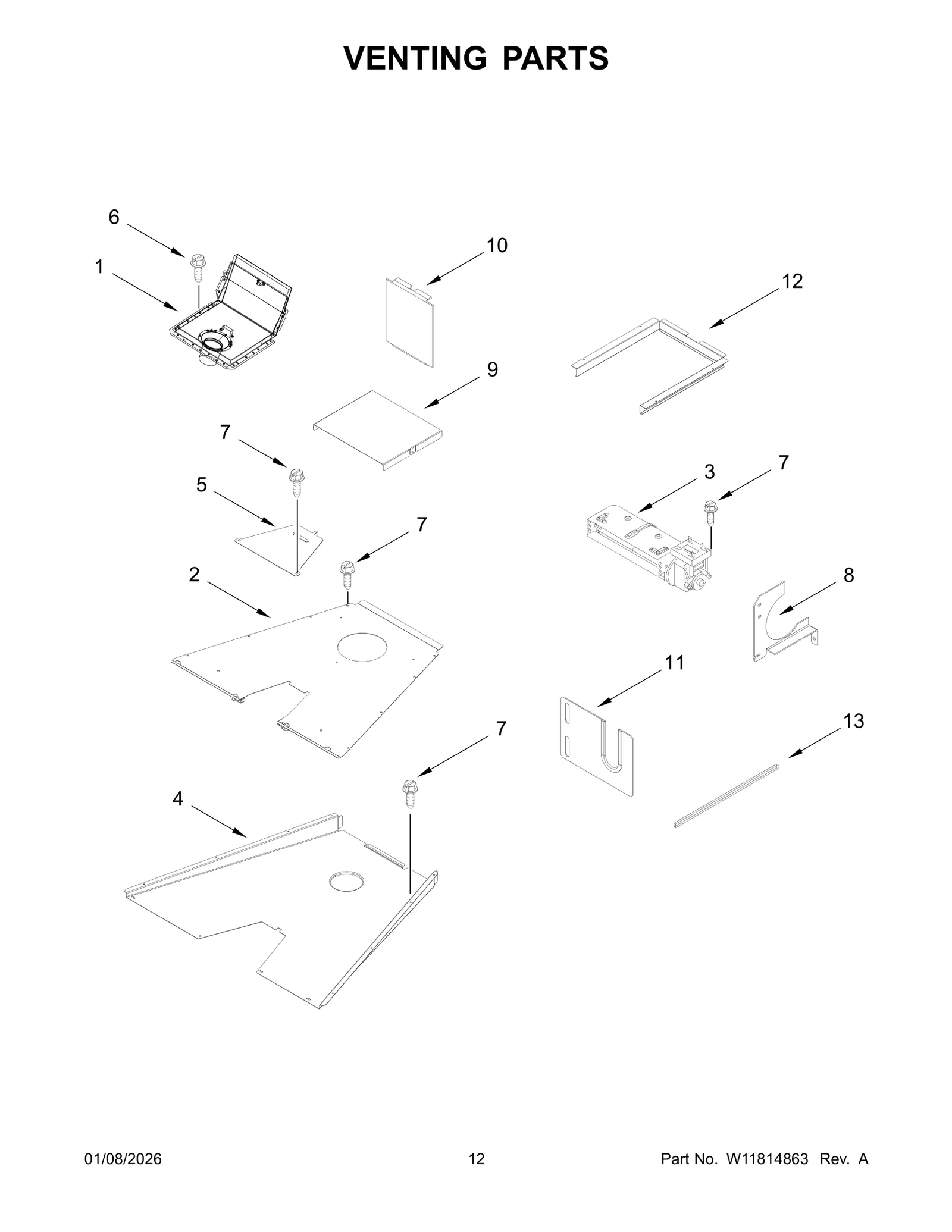

Vent, Chimney Box WPL W11476247 Contact Us For Availability

2

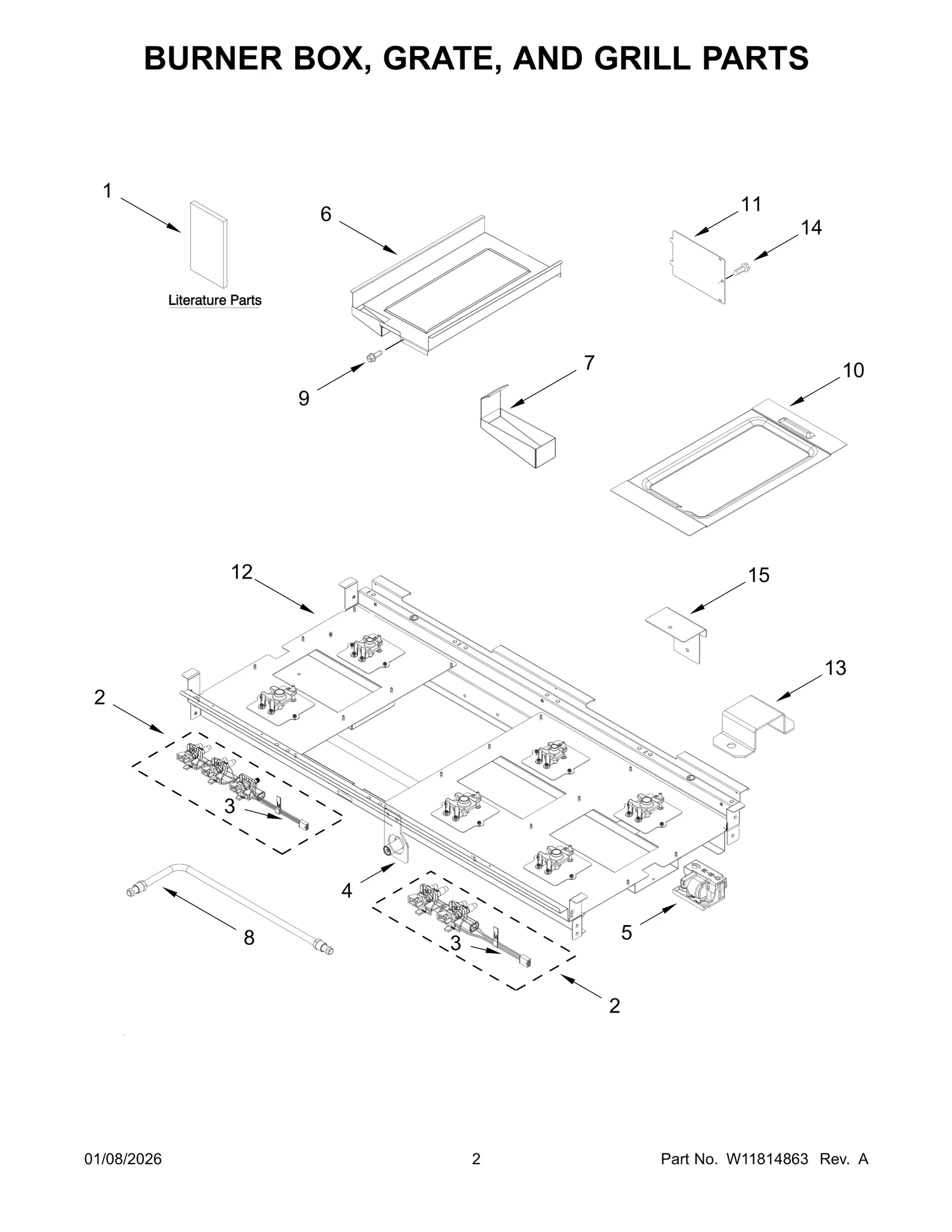

W10308051 Whirlpool Burner Box Backorder WPL W10308051 $212.60

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $98.27

2

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $125.78

2

PANEL-VENT Backorder WPL W11105221 $93.00

2

W11688507 Whirlpool Insulation In Stock WPL W11688507 $15.03

2

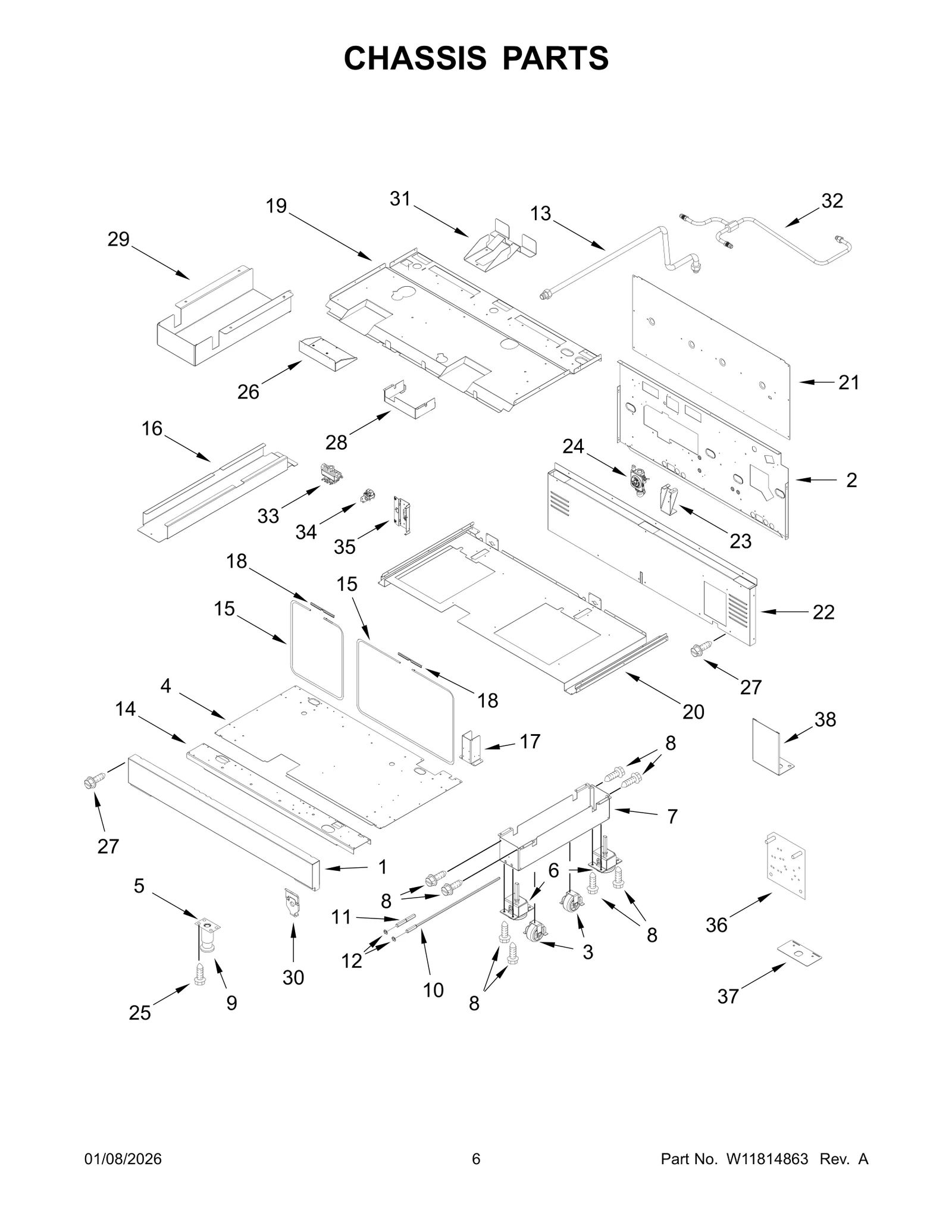

Back, Chassis WPL W11758514 Contact Us For Availability

2

Vent, Cooling Top (18 in) WPL W11113379 Contact Us For Availability

2

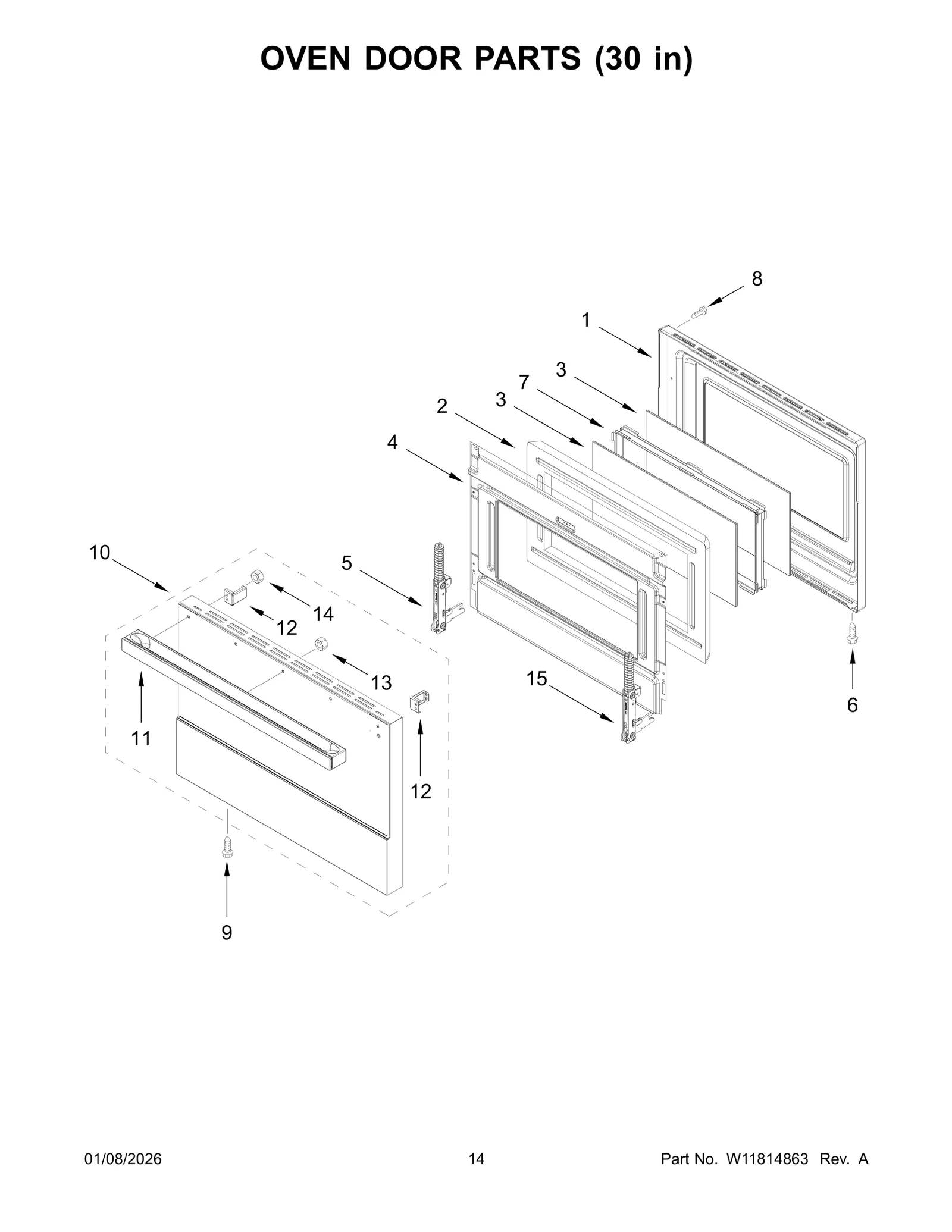

Insulation, Door (30 in) WPL W11413190 Contact Us For Availability

2

Insulation, Door WPL W10884821 Contact Us For Availability

3

W10892429 Whirlpool Orifice Spud Backorder WPL W10892429 $60.76

3

W11111351 Whirlpool Range Rack Backorder WPL W11111351 $97.65

3

W11248652 Whirlpool Blower In Stock WPL W11248652 $147.95

3

W11317951 Whirlpool Glass Door Backorder WPL W11317951 $110.22

3

W11318341 Whirlpool Meat Probe Backorder WPL W11318341 $133.38

3

W11318823 Whirlpool Door Glass Backorder WPL W11318823 $110.22

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $32.24

3

WPW10351278 Whirlpool Bumper Backorder WPL WPW10351278 $6.71

4

W10794440 Whirlpool Fan Motor Backorder WPL W10794440 $230.10

4

W11238756 Whirlpool Surface Igniter Backorder WPL W11238756 $44.53

4

W11320536 Whirlpool Duct Backorder WPL W11320536 $147.34

4

W11563568 Whirlpool Range Rack Backorder WPL W11563568 $282.23

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $12.91

4

Vent, Cooling Bottom WPL W11091676 Contact Us For Availability

4

Vent, Cooling Bottom WPL W11113377 Contact Us For Availability

4

Retainer, Glass WPL W11194821 Contact Us For Availability

4

Retainer, Glass WPL W11194818 Contact Us For Availability

5

W11320150 Whirlpool Convection Fan In Stock WPL W11320150 $230.71

5

W11568941 Whirlpool Door Hinge Assembly In Stock WPL W11568941 $73.54

5

WP9759118 Whirlpool Mounting Plate Backorder WPL WP9759118 $106.48

5

Tube, Vent WPL W10145743 Contact Us For Availability

5

Plate, Cooling Latch WPL W11109518 Contact Us For Availability

5

Hinge, Door (Left) WPL W11096982 Contact Us For Availability

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $75.59

6

W11193480 Whirlpool Screw In Stock WPL W11193480 $8.89

6

W11232487 Whirlpool Convection Baffle Backorder WPL W11232487 $145.50

6

W11233684 Whirlpool Range Light Assembly Backorder WPL W11233684 $66.86

6

BAFFL-CONV Backorder WPL W11368180 $163.30

6

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $4.82

7

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.56

7

W10794042 Whirlpool Nut Backorder WPL W10794042 $8.38

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $93.63

7

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.89

7

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

7

WPW10272594 Whirlpool Window Frame Backorder WPL WPW10272594 $131.13

8

W10162096 Whirlpool Screw Backorder WPL W10162096 $13.89

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $36.61

8

Bracket, Blower Mount WPL W11047754 Contact Us For Availability

9

RETAINER Backorder WPL W10246086 $50.67

9

W11317894 Whirlpool Mounting Bracket Backorder WPL W11317894 $54.25

9

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

9

WP9759117 Whirlpool Leveling Foot Backorder WPL WP9759117 $99.66

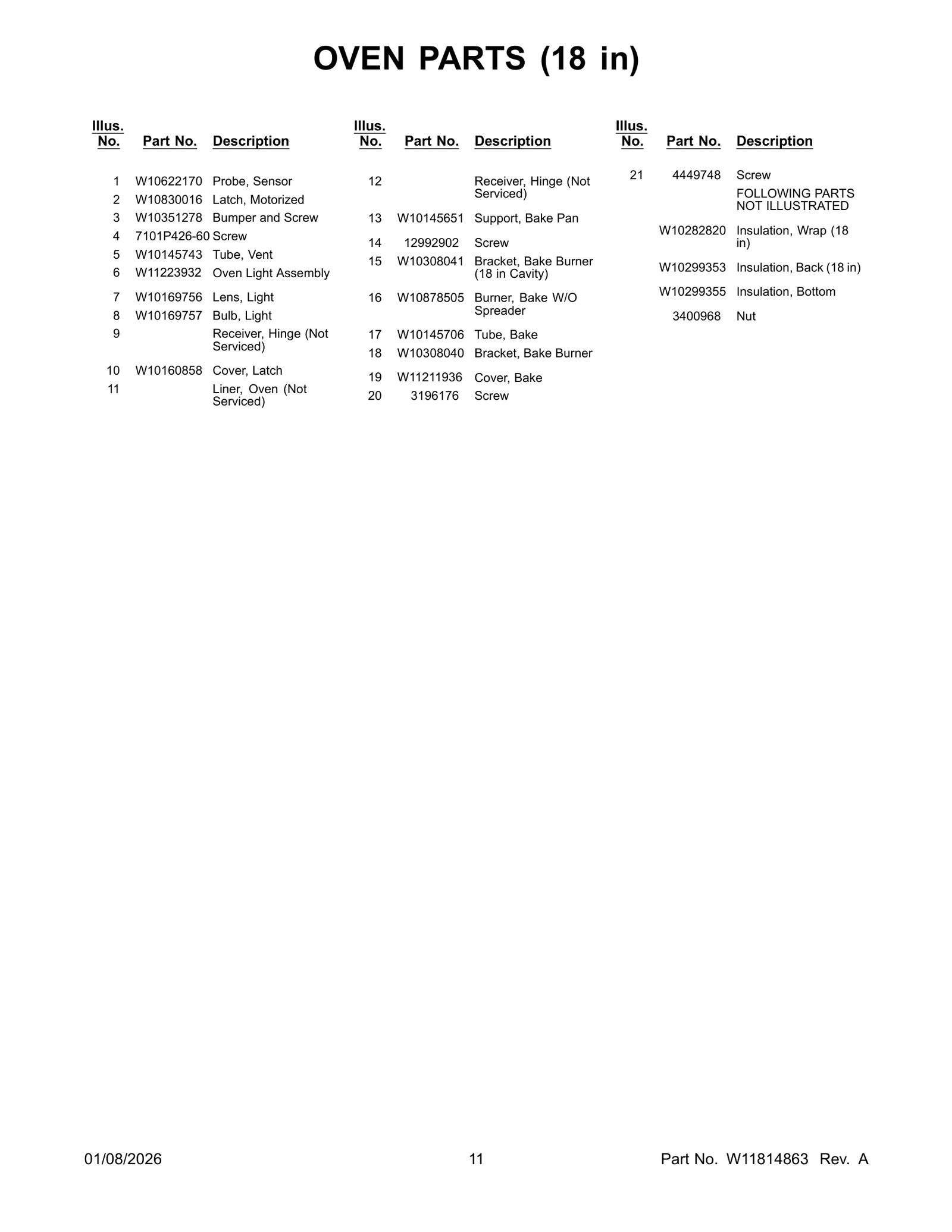

W10115869 Whirlpool Shaft Backorder WPL W10115869 $71.42

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $52.78

INSULATION Backorder WPL W10246087 $69.11

W11315556 Whirlpool Glass Door Backorder WPL W11315556 $1,147.89

W11315558 Whirlpool Door Glass Backorder WPL W11315558 $771.25

W11355922 Whirlpool Surface Igniter In Stock WPL W11355922 $44.33

W10115793 Whirlpool Shaft Backorder WPL W10115793 $51.02

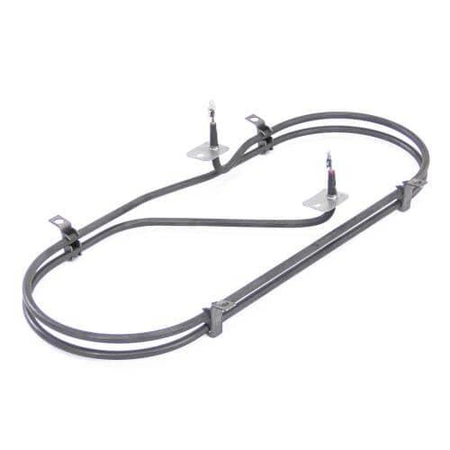

W11033310 Whirlpool Heating Element Backorder WPL W11033310 $114.14

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $4.82

Cover, Channel WPL W11106956 Contact Us For Availability

Handle, Door WPL W11411876 Contact Us For Availability

Handle, Door WPL W11411883 Contact Us For Availability

489504 Whirlpool Range Ring Backorder WPL 489504 $4.67

DUCT-AIR Backorder WPL W10145363 $81.15

W10850807 Whirlpool Screw Backorder WPL W10850807 $4.82

NUT Backorder WPL W11198435 $8.89

W11355920 Whirlpool Surface Igniter Backorder WPL W11355920 $44.33

Retainer, Left Side Chassis WPL W11683297 Contact Us For Availability

Retainer, Right Side Chassis WPL W11683296 Contact Us For Availability

Duct, Primary Air (18 in) WPL W10145364 Contact Us For Availability

NUT Backorder WPL 999299 $8.89

W10261523 Whirlpool Plate Backorder WPL W10261523 $52.04

W11175143 Whirlpool Gasket In Stock WPL W11175143 $14.95

W11319224 Whirlpool Burner Cap Backorder WPL W11319224 $176.24

W11364214 Whirlpool Gas Tubing Backorder WPL W11364214 $71.81

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $57.76

Support, Bake Pan WPL W10145651 Contact Us For Availability

SCREW Backorder WPL W10739592 $9.99

W11319673 Whirlpool Burner Head In Stock WPL W11319673 $120.47

W11319683 Whirlpool Burner Head In Stock WPL W11319683 $124.71

SUPPORT Backorder WPL W11369238 $77.73

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $4.82

Screw WPL N/S Contact Us For Availability

Hinge, Door (Right) WPL W11096981 Contact Us For Availability

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $117.46

W10624584 Whirlpool Power Cord Backorder WPL W10624584 $133.32

W11115326 Whirlpool Gasket Backorder WPL W11115326 $134.15

W11544575 Whirlpool Anti-Tip Bracket In Stock WPL W11544575 $34.64

W11568813 Whirlpool Door Hinge In Stock WPL W11568813 $57.54

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $42.89

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $20.30

WPW10145744 Whirlpool Support Backorder WPL WPW10145744 $141.79

Bracket, Bake Burner WPL W10308041 Contact Us For Availability

Frame, Glass WPL W11194812 Contact Us For Availability

16

W10878505 Whirlpool Range Burner Backorder WPL W10878505 $160.91

16

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $112.33

16

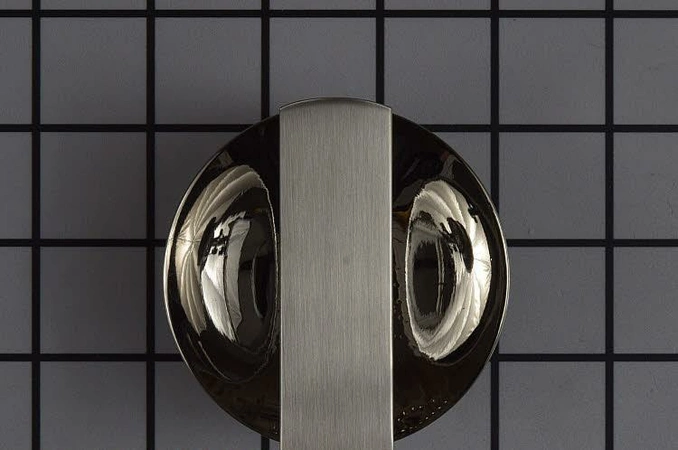

W11397970 Whirlpool Knob Assembly Backorder WPL W11397970 $87.21

W10115819 Whirlpool Brace Backorder WPL W10115819 $33.58

W10145706 Whirlpool Gas Tubing Assembly In Stock WPL W10145706 $142.67

W10317437 Whirlpool Support Assembly Backorder WPL W10317437 $9.41

Grill Box Assembly WPL W11174429 Contact Us For Availability

18

W10308040 Whirlpool Pan Bracket Backorder WPL W10308040 $50.72

18

W11316700 Whirlpool Cooktop Backorder WPL W11316700 $309.53

18

W11362015 Whirlpool Retainer Backorder WPL W11362015 $109.92

W11316701 Whirlpool Cooktop Backorder WPL W11316701 $309.53

W11504377 Whirlpool Broiler Pan Backorder WPL W11504377 $131.49

W11643161 Whirlpool Range Burner Backorder WPL W11643161 $117.56

Top, Chassis WPL W11324984 Contact Us For Availability

20

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

20

W11328008 Whirlpool Cooktop Backorder WPL W11328008 $309.53

20

Chassis, Bottom WPL W11040800 Contact Us For Availability

W11661180 Whirlpool Burner Broiler Backorder WPL W11661180 $109.87

Knob, Grill (Stainless) WPL W11560137 Contact Us For Availability

Panel, Back Top WPL W11103335 Contact Us For Availability

Insulation, Wrap (18 in) WPL W10282820 Contact Us For Availability

Insulation, Back (18 in) WPL W10299353 Contact Us For Availability

Insulation, Bottom WPL W10299355 Contact Us For Availability

22

W11406544 Whirlpool Knob Backorder WPL W11406544 $216.14

22

Panel, Back Bottom WPL W11780250 Contact Us For Availability

22

Insulation, Broil Cover WPL W10311009 Contact Us For Availability

23

W10310985 Whirlpool Access Cover Backorder WPL W10310985 $50.72

23

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $54.25

23

Panel, Console WPL W10878258 Contact Us For Availability

24

W11193822 Whirlpool Regulator Backorder WPL W11193822 $209.28

24

W11355244 Whirlpool Gas Tubing Backorder WPL W11355244 $121.57

24

Knob, Dual (Stainless) (For 6 Cooktop Burners WPL W11560135 Contact Us For Availability

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

25

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $154.56

25

W11355919 Whirlpool Range Gas Tubing Backorder WPL W11355919 $121.57

26

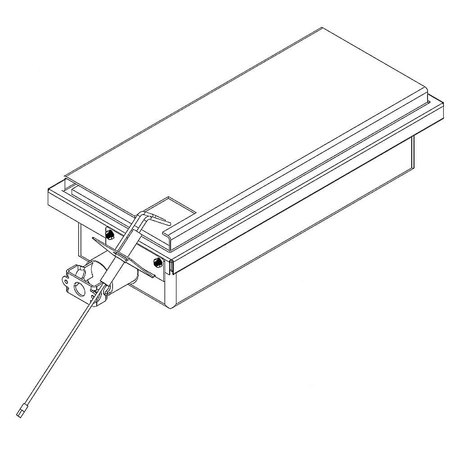

W11328568 Whirlpool Burner Grille Backorder WPL W11328568 $407.48

26

Drawer, Appliance Manager WPL W11106341 Contact Us For Availability

27

W11317892 Whirlpool Bezel Knob Backorder WPL W11317892 $69.07

27

W11661576 Whirlpool Range Bottom Pan Backorder WPL W11661576 $103.41

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $9.02

COVER-CNTL Backorder WPL W11369237 $57.55

W11406542 Whirlpool Knob Backorder WPL W11406542 $215.94

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $4.82

Insulation, Wrap (30 In) WPL W10282810 Contact Us For Availability

Insulation, Back, (30 in) WPL W10299350 Contact Us For Availability

Insulation, Bottom WPL W10299354 Contact Us For Availability

29

W11317539 Whirlpool Knob Backorder WPL W11317539 $91.17

29

Channel, Wire WPL W11368831 Contact Us For Availability

30

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $7.62

30

Electrode, Grill WPL W11174598 Contact Us For Availability

31

W11190223 Whirlpool Bracket Assembly Backorder WPL W11190223 $54.25

31

Grill Orifice Holder Assembly WPL W11419278 Contact Us For Availability

32

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $99.23

32

W11355235 Whirlpool Gas Tubing Backorder WPL W11355235 $121.57

33

W11239228 Whirlpool Gas Valve In Stock WPL W11239228 $205.35

34

W10311268 Whirlpool Gas Valve Backorder WPL W10311268 $234.36

34

Orifice, Grill (18K) WPL W11419282 Contact Us For Availability

35

W10145362 Whirlpool Control Bracket Backorder WPL W10145362 $56.46

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.67

36

W11319196 Whirlpool Push Button Backorder WPL W11319196 $11.98

36

WPW10511278 Whirlpool Spark Module In Stock WPL WPW10511278 $139.67

37

W10115855 Whirlpool Support Bracket Backorder WPL W10115855 $50.62

37

W11516014 Whirlpool Trim Top Backorder WPL W11516014 $229.39

38

W11318857 Whirlpool Push Button Backorder WPL W11318857 $11.98

38

Bracket, Rear Chassis WPL W11758326 Contact Us For Availability

39

Light Pipe Assembly WPL W10896369 Contact Us For Availability

40

W11318855 Whirlpool Antenna Backorder WPL W11318855 $150.69

41

Grill Grate Assembly WPL W11291185 Contact Us For Availability

42

W11620696-includeCORE Whirlpool W11620696 Ref Backorder WPL W11620696-includeCORE $334.97

43

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $115.50

44

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

45

W11509770 Whirlpool Screw In Stock WPL W11509770 $14.99

46

W11123146 Whirlpool Speaker Backorder WPL W11123146 $56.92

47

Screw WPL 3400099 Contact Us For Availability

48

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $52.76

48

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $52.76

49

W10323252 Whirlpool Trim Top Backorder WPL W10323252 $121.20

50

Cover, WIFI Inner WPL W11205794 Contact Us For Availability

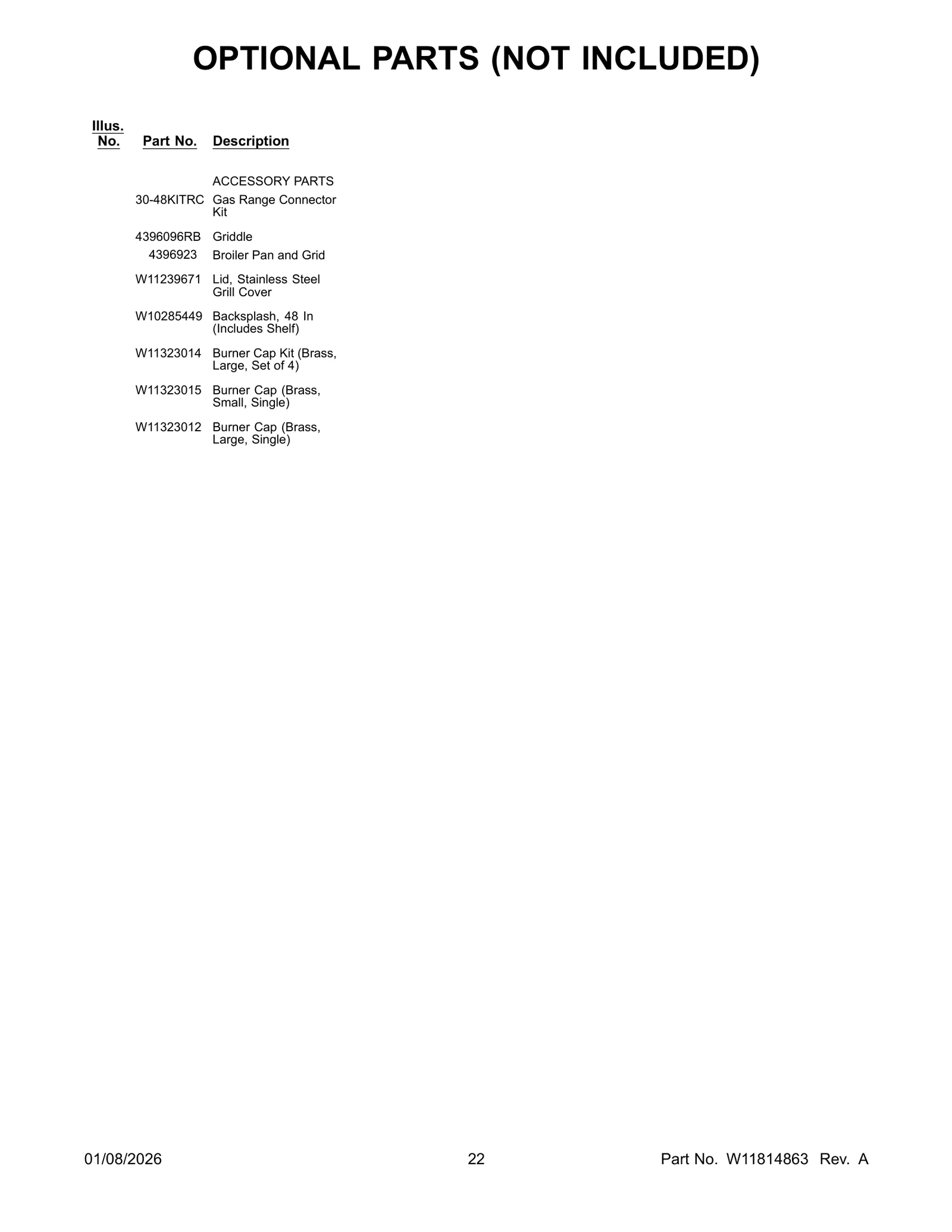

OPT-1

4396096RB Whirlpool Griddle Backorder WPL 4396096RB $191.57

OPT-2

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

OPT-3

W11239671 Whirlpool Cover Assembly Backorder WPL W11239671 $108.14

OPT-4

W10285449 Whirlpool Backsplash Backorder WPL W10285449 $825.29

OPT-5

W11323014 Whirlpool Range Burner Cap Backorder WPL W11323014 $367.49

OPT-6

W11323015 Whirlpool Range Burner Cap Backorder WPL W11323015 $104.99

OPT-7

W11323012 Whirlpool Burner Cap Backorder WPL W11323012 $115.49
