Model Maytag JGD8348CDP17 GAS COOK-TOP – Common Parts & Diagrams

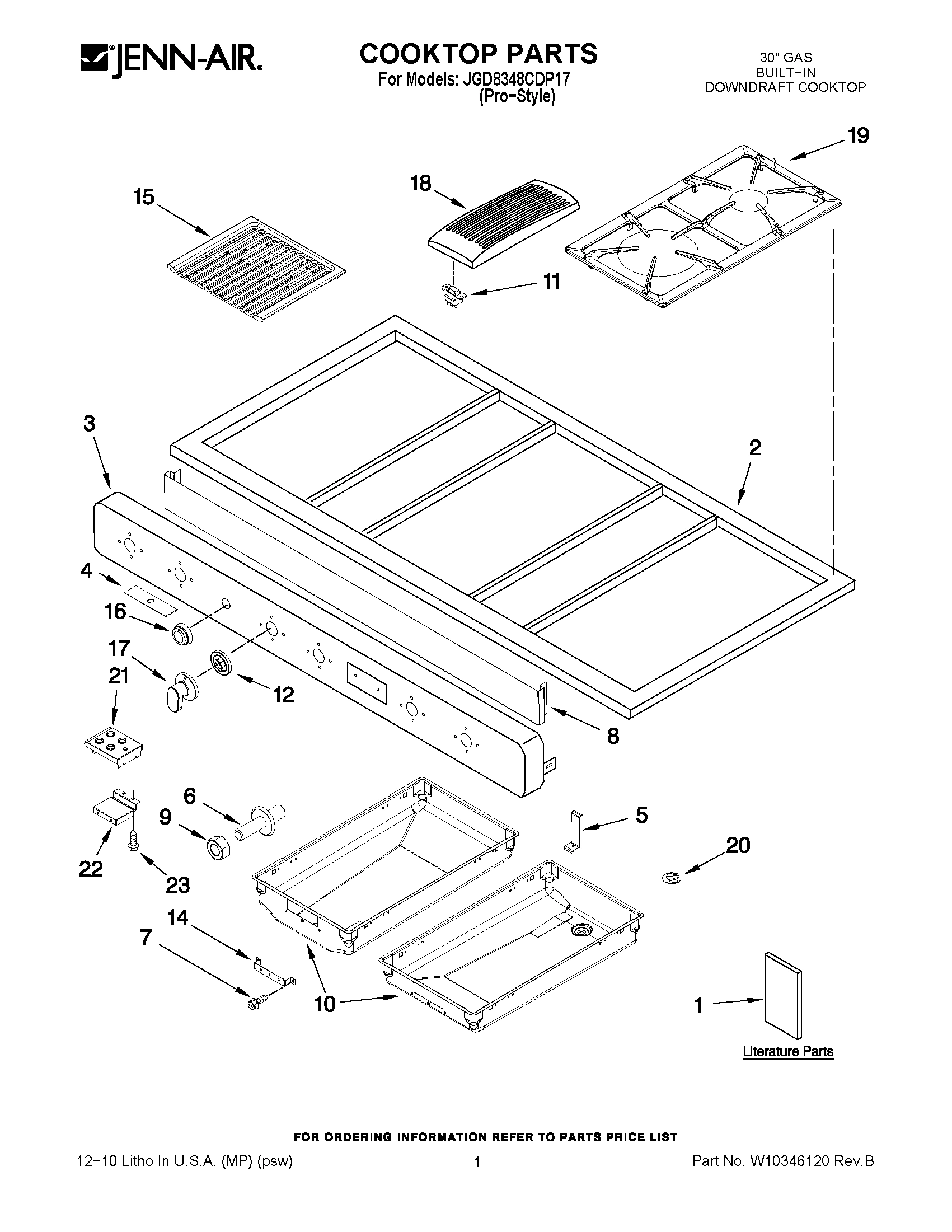

01 - COOKTOP PARTS

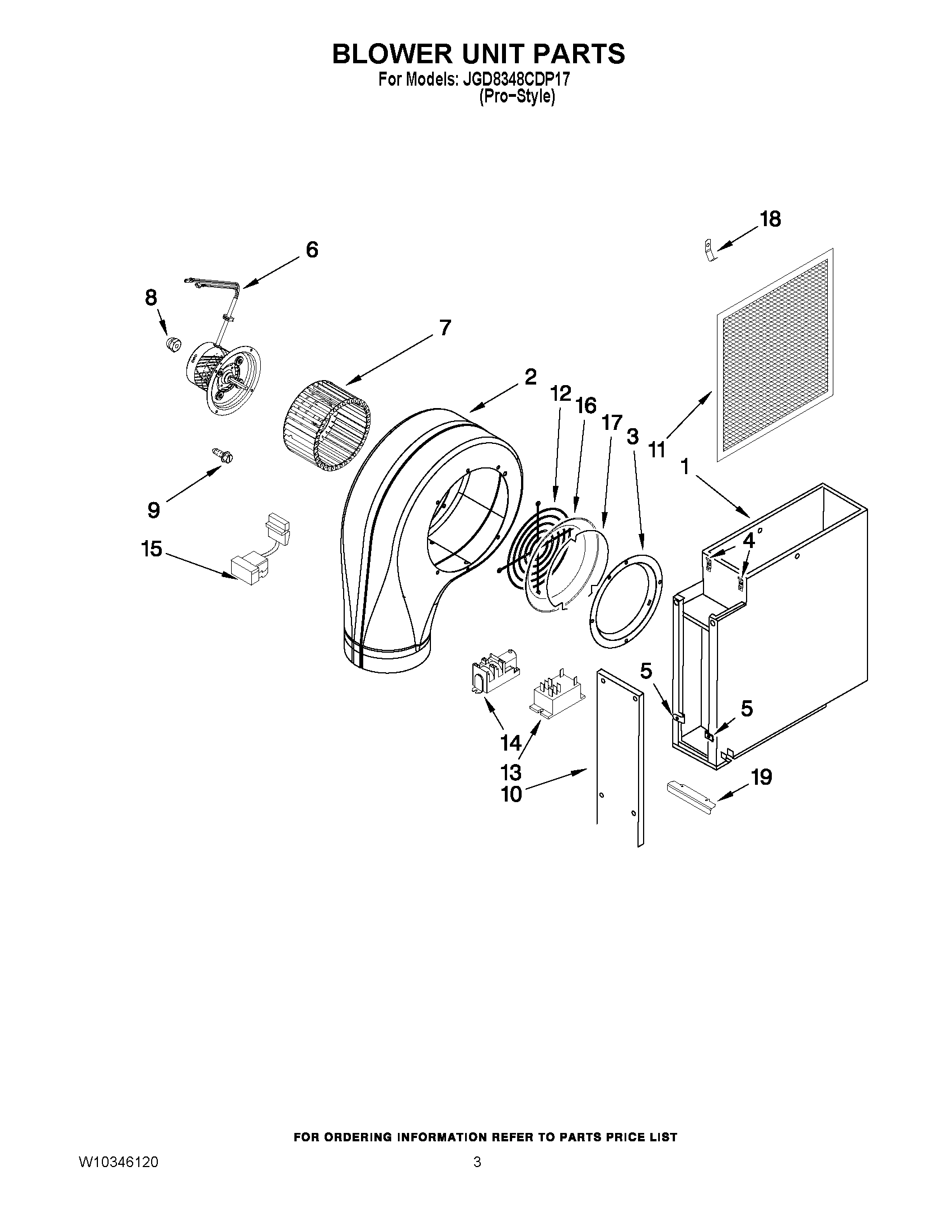

02 - BLOWER UNIT PARTS

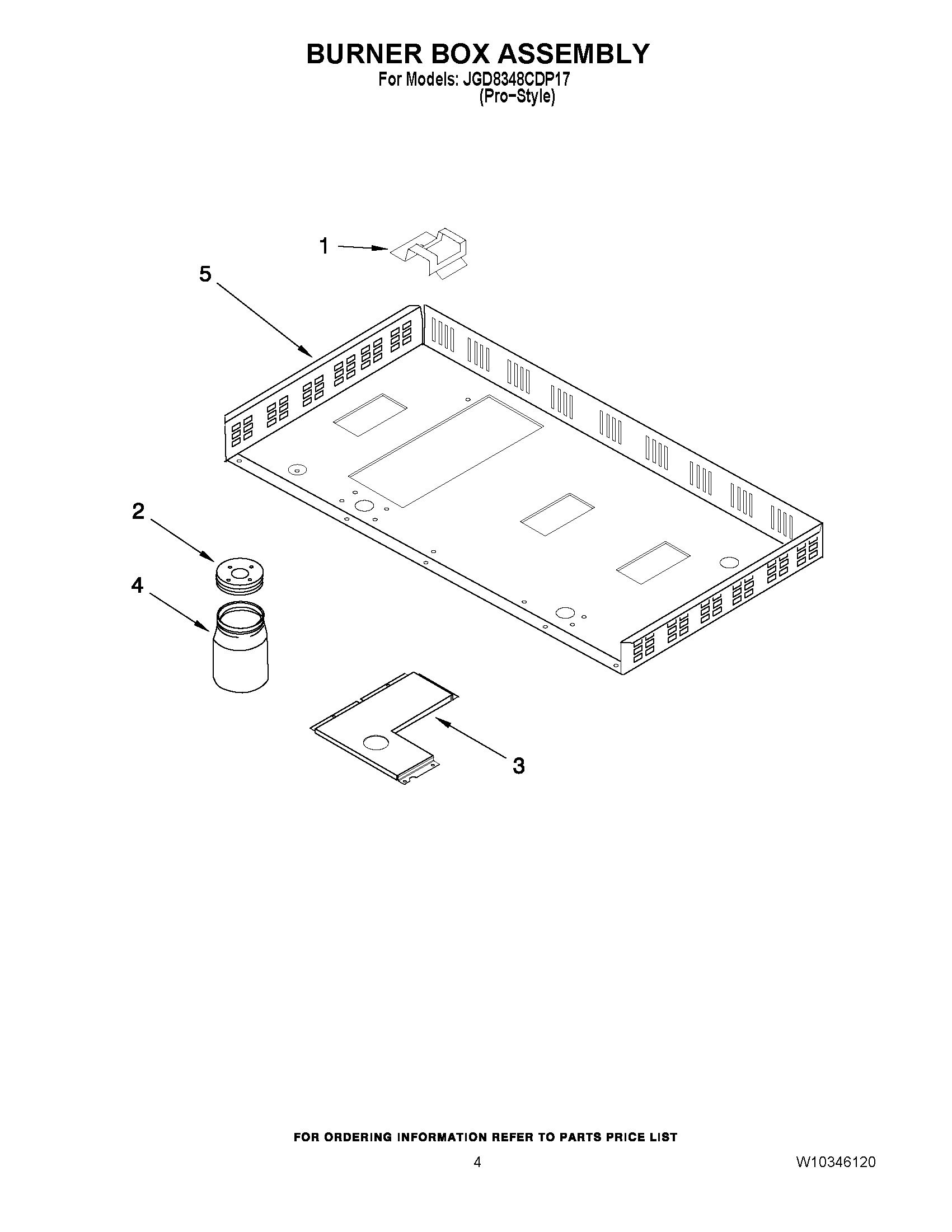

03 - BURNER BOX ASSEMBLY

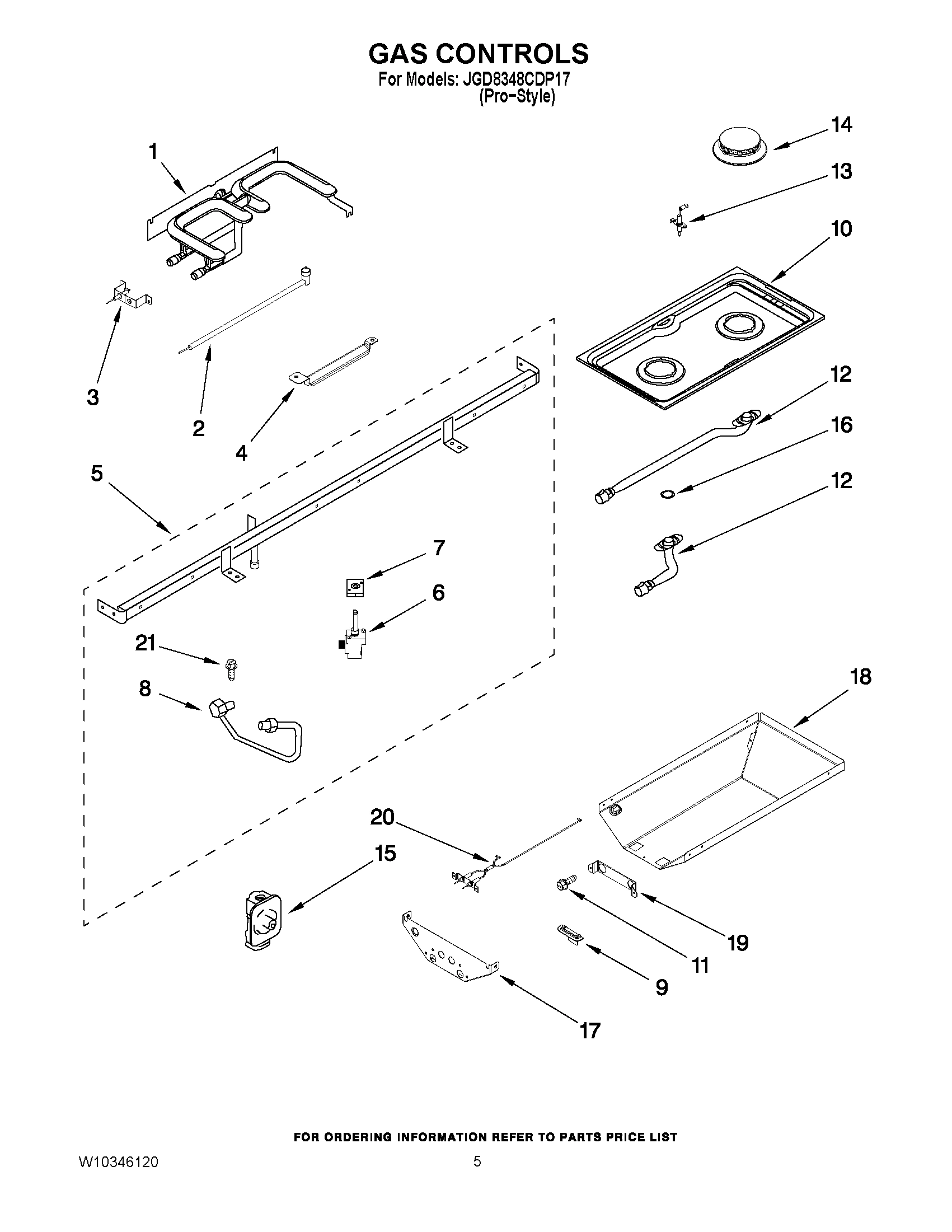

04 - GAS CONTROLS
05 - OPTIONAL PARTS
Common parts from model Maytag JGD8348CDP17 GAS COOK-TOP
1
INSTRUCTIONS, DUCTING MAY 8101P183-60 Contact Us For Availability
1
MAY 8101P658-60 MAY 8101P658-60 Contact Us For Availability
1
MAY 8104P807-60 MAY 8104P807-60 Contact Us For Availability
1
MAY 8111P535-60 MAY 8111P535-60 Contact Us For Availability
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
ASSY, PLENUM MAY 2801W038-80 Contact Us For Availability
1
MAY 3801F505-51 MAY 3801F505-51 Contact Us For Availability
1
E-BURNER, GRILL MAY 7505P290-60 Contact Us For Availability
2
MAY 7746P096-60 MAY 7746P096-60 Contact Us For Availability
2
BLWR ASSY, SCROLL MAY 2822W001-80 Contact Us For Availability
2
JAR, LID MAY 8312P150-60 Contact Us For Availability
2
IGNITOR, E-BURNER MAY 7432P112-60 Contact Us For Availability
3
MAY 7720P506-60 MAY 7720P506-60 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
BAFFLE, BURNER BOX MAY 3601F261-51 Contact Us For Availability
3
MAY 7432P116-60 MAY 7432P116-60 Contact Us For Availability
4
SWITCH, INSUL. MAY 7003P129-60 Contact Us For Availability
4
JAR, DRAIN MAY 8312P120-60 Contact Us For Availability
4
MAY 3604F337-50 MAY 3604F337-50 Contact Us For Availability
5
BRACKET, CONTROL PANEL MAY 3801F689-51 Contact Us For Availability
5
MAY 7104P007-60 MAY 7104P007-60 Contact Us For Availability
5
MAY 4011F461-51 MAY 4011F461-51 Contact Us For Availability
5
MAY 7513P455-60 MAY 7513P455-60 Contact Us For Availability
6
PIN, LOCATOR MAY 7113P020-60 Contact Us For Availability
6
MAY W10241953 MAY W10241953 Contact Us For Availability
6
MAY 7502P335-60 MAY 7502P335-60 Contact Us For Availability
6
MAY 7502P336-60 MAY 7502P336-60 Contact Us For Availability
6
MAY 7502P385-60 MAY 7502P385-60 Contact Us For Availability
7
MAY 7101P451-60 MAY 7101P451-60 Contact Us For Availability
7
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
7
MAY 7403P694-60 MAY 7403P694-60 Contact Us For Availability
7
MAY 7403P695-60 MAY 7403P695-60 Contact Us For Availability
8
TRIM, CONTROL PANEL MAY 3608F132-50 Contact Us For Availability
8
NUT, ACORN MAY 7103P192-60 Contact Us For Availability
8
MAY 7506P163-60 MAY 7506P163-60 Contact Us For Availability
8
MAY 7506P164-60 MAY 7506P164-60 Contact Us For Availability
8
MAY 7506P166-60 MAY 7506P166-60 Contact Us For Availability
8
MAY 7506P310-60 MAY 7506P310-60 Contact Us For Availability
9
MAY 7103P160-60 MAY 7103P160-60 Contact Us For Availability
9
MAY 7101P460-60 MAY 7101P460-60 Contact Us For Availability
9
MAY 7724P179-60 MAY 7724P179-60 Contact Us For Availability
10
MAY 3401F066-19 MAY 3401F066-19 Contact Us For Availability
10
PAN, GRILL (LEFT) MAY 3401F099-19 Contact Us For Availability
10
COVER, PLENUM ACCESS MAY 4005F648-80 Contact Us For Availability
10
CARTRIDGE, TOP MAY 2001F175-09 Contact Us For Availability
11
MAY 7403P882-60 MAY 7403P882-60 Contact Us For Availability
11
MAY 8312P121-60 MAY 8312P121-60 Contact Us For Availability
11
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
12
MAY 7740P145-60 MAY 7740P145-60 Contact Us For Availability
12
MAY 8312P151-60 MAY 8312P151-60 Contact Us For Availability
12
MAY 7538P008-60 MAY 7538P008-60 Contact Us For Availability
12
MAY 7538P009-60 MAY 7538P009-60 Contact Us For Availability
13
RELAY, FAN MAY 7428P030-60 Contact Us For Availability
13
IGNITOR, TOP BURNER MAY 7432P100-60 Contact Us For Availability
14
CLIP MAY 7112P150-60 Contact Us For Availability
14
MAY 7431P059-60 MAY 7431P059-60 Contact Us For Availability
14
MODULE, SPARK (4 + 0 120V) MAY 7431P060-60 Contact Us For Availability
14
ASSY., BURNER MAY 3403D075-10 Contact Us For Availability
15
GRATE, GRILL MAY 7518P070-60 Contact Us For Availability
15
MAY 8019P018-60 MAY 8019P018-60 Contact Us For Availability
15
REG., PRESSURE MAY 7510P075-60 Contact Us For Availability
16
MAY 7737P353-60 MAY 7737P353-60 Contact Us For Availability
16
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
16
MAY 7212P067-60 MAY 7212P067-60 Contact Us For Availability
17
MAY W10175692 MAY W10175692 Contact Us For Availability
17
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
17
MAY 4005F791-80 MAY 4005F791-80 Contact Us For Availability
18
MAY 7772P024-60 MAY 7772P024-60 Contact Us For Availability
18
MAY 3804F188-50 MAY 3804F188-50 Contact Us For Availability
18
MAY 4001F155-80 MAY 4001F155-80 Contact Us For Availability
19
GRATE, BURNER MAY 7518P483-60 Contact Us For Availability
19
MAY 3801F424-51 MAY 3801F424-51 Contact Us For Availability
19
BRACKET, VENTURI ALIGN MAY 3801F704-51 Contact Us For Availability
20
MAY 7212P053-60 MAY 7212P053-60 Contact Us For Availability
20
ASSEMBLY, IGNITOR/BLOCK MAY 7432P120-60 Contact Us For Availability
21
MAY 7770P005-60 MAY 7770P005-60 Contact Us For Availability
21
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
22
MAY 3801F426-80 MAY 3801F426-80 Contact Us For Availability
23
SCREW MAY 7101P432-60 Contact Us For Availability
NI
MAY 5700D880-60 MAY 5700D880-60 Contact Us For Availability
NI
MAY 5170P919-60 MAY 5170P919-60 Contact Us For Availability
NI
MAY 5170P925-60 MAY 5170P925-60 Contact Us For Availability
NI
HARNESS, RT SPARK CERAMIC BLOCK MAY 5170P926-60 Contact Us For Availability
NI
CORD, SUPPLY MAY 7402P087-60 Contact Us For Availability
NI
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
× ![]()
