Model Maytag JGD8130ADB21 GAS COOK-TOP – Common Parts & Diagrams

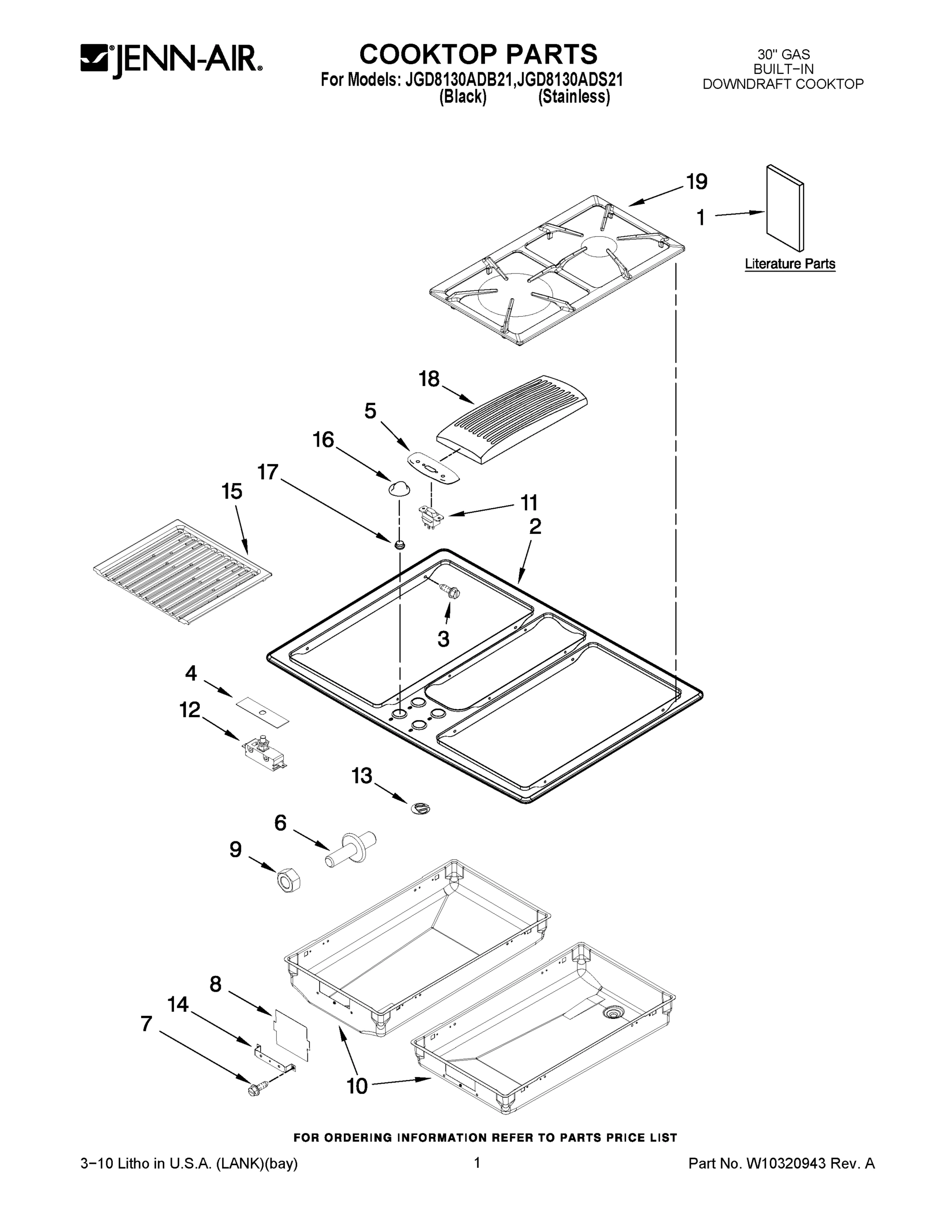

01 - COOKTOP PARTS

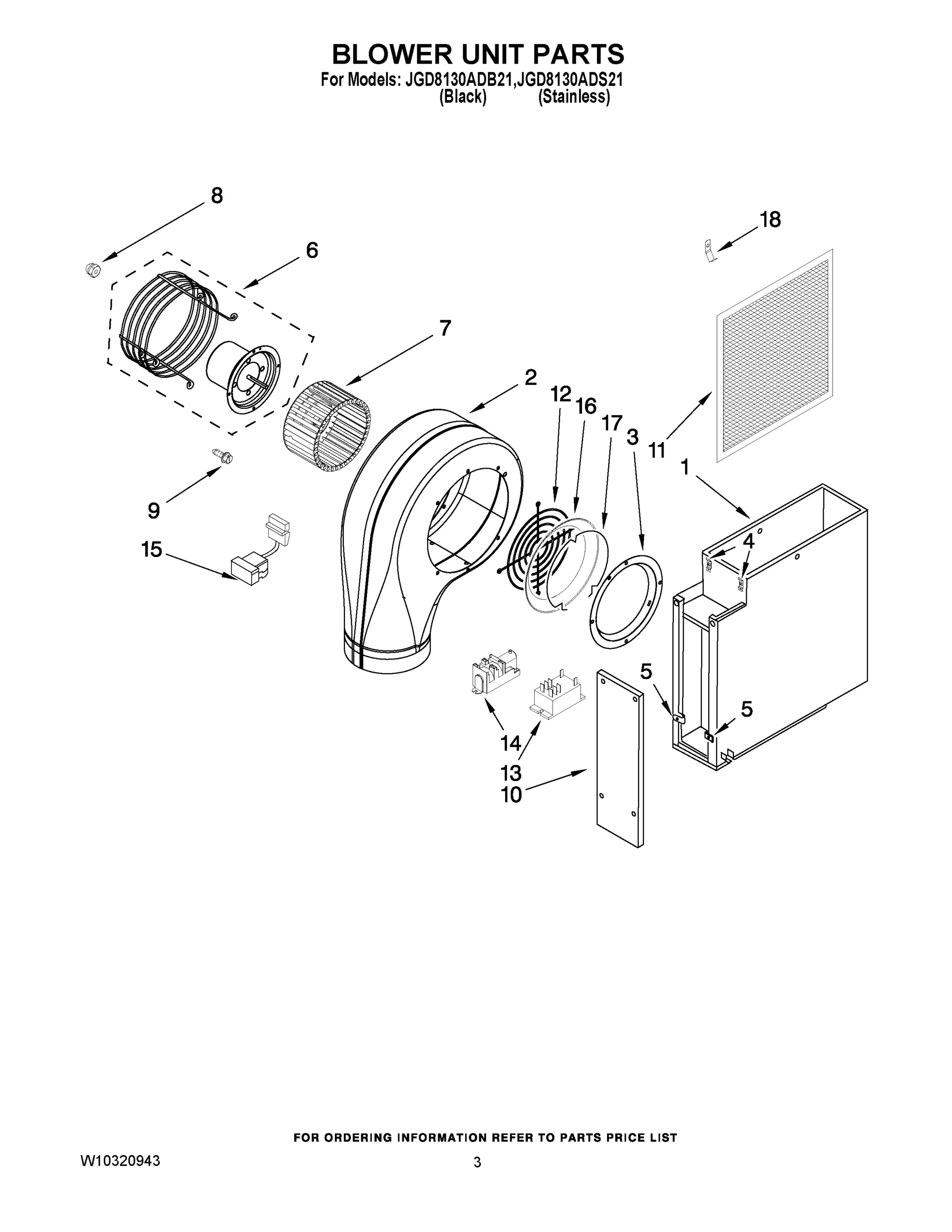

02 - BLOWER UNIT PARTS

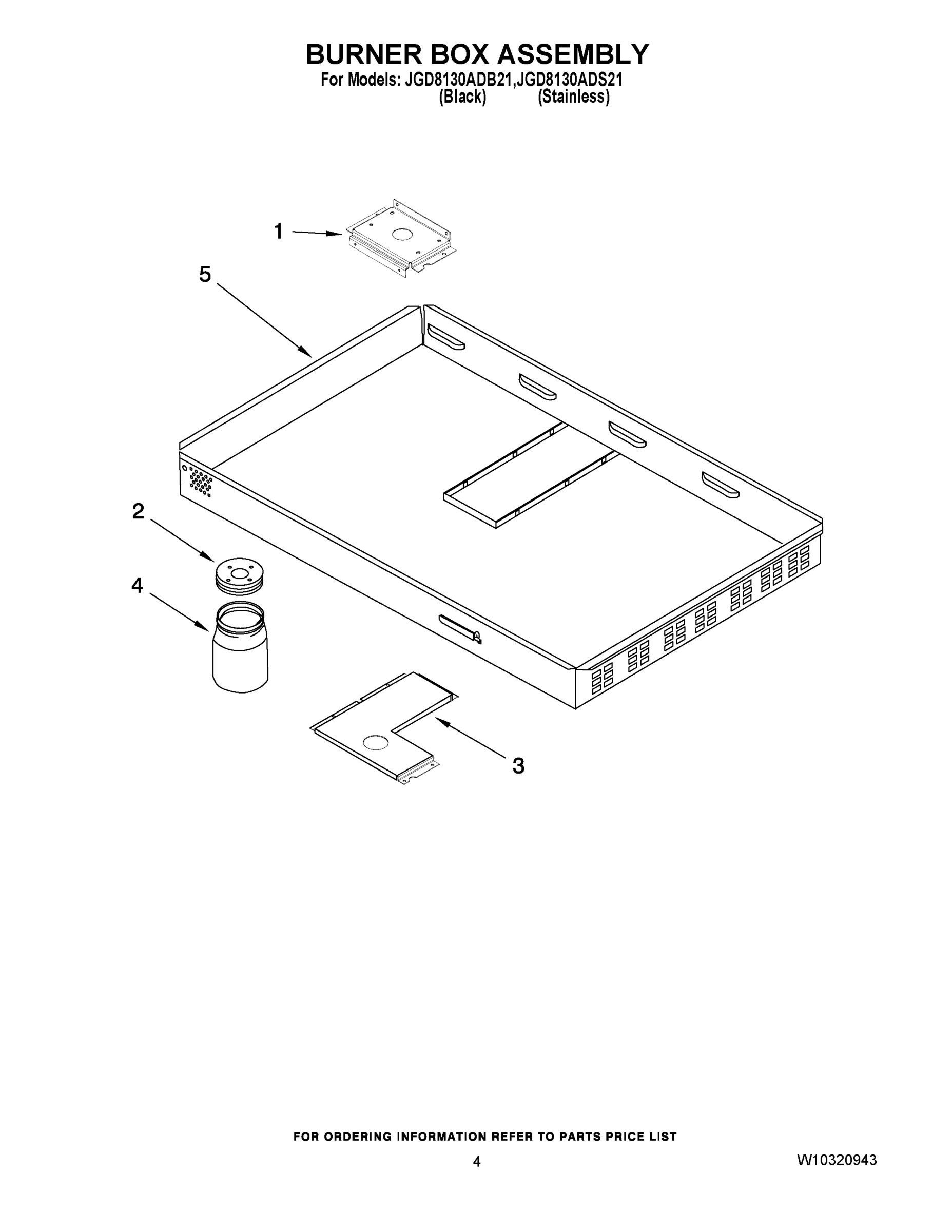

03 - BURNER BOX ASSEMBLY

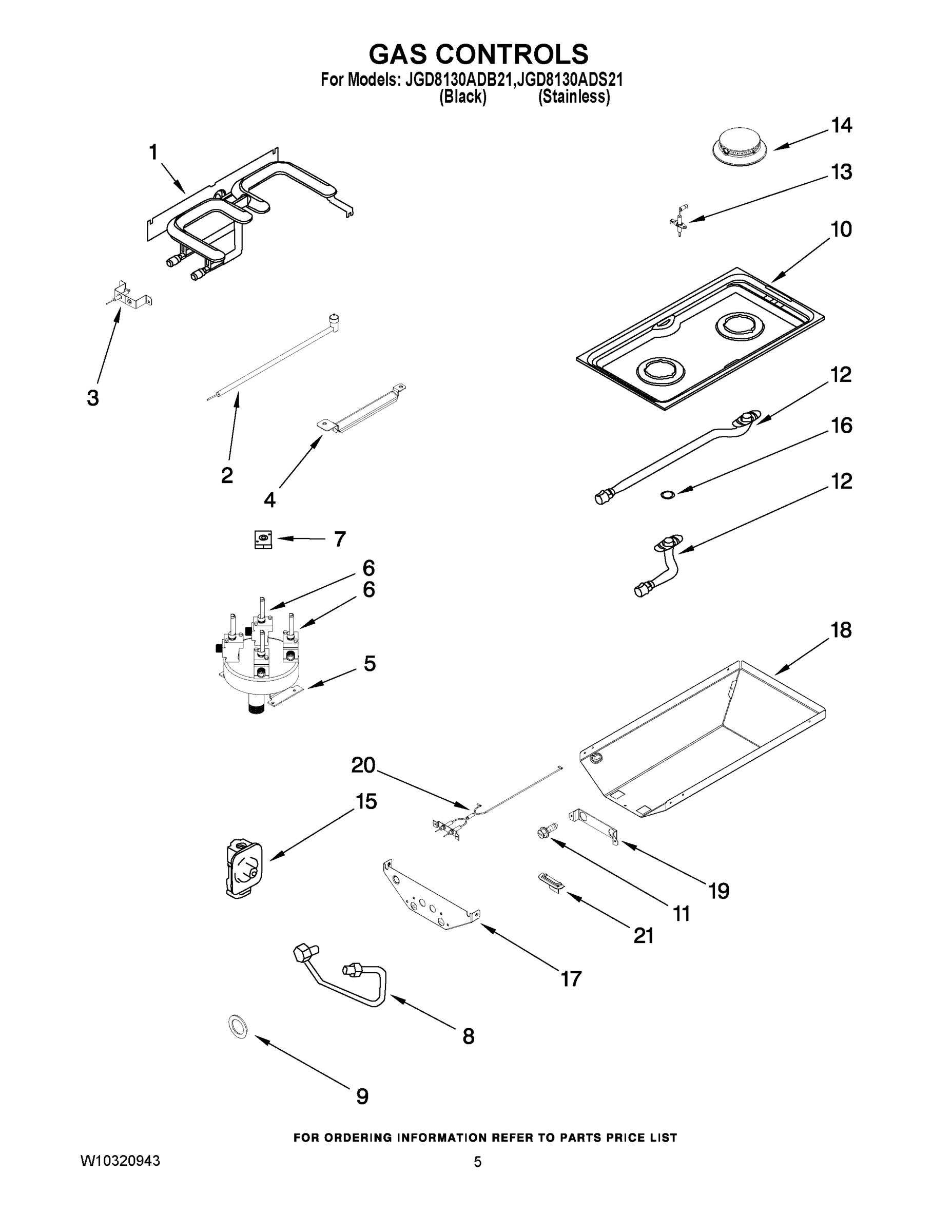

04 - GAS CONTROLS
05 - OPTIONAL PARTS
Common parts from model Maytag JGD8130ADB21 GAS COOK-TOP
1
INSTALLATION INSTRUCTIONS MAY 8101P580-60 Contact Us For Availability
1
MAY 8104P732-60 MAY 8104P732-60 Contact Us For Availability
1
USE & CARE GUIDE MAY 8111P530-60 Contact Us For Availability
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
ASSY, PLENUM MAY 2801W038-80 Contact Us For Availability
1
MAY 4005F647-51 MAY 4005F647-51 Contact Us For Availability
1
E-BURNER, GRILL MAY 7505P290-60 Contact Us For Availability
2
MAY 2002F152-09 MAY 2002F152-09 Contact Us For Availability
2
MAY 2002F209-50 MAY 2002F209-50 Contact Us For Availability
2
BLWR ASSY, SCROLL MAY 2822W001-80 Contact Us For Availability
2
JAR, LID MAY 8312P150-60 Contact Us For Availability
2
IGNITOR, E-BURNER MAY 7432P112-60 Contact Us For Availability
3
MAY 7101P342-60 MAY 7101P342-60 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
MAY 3601F309-51 MAY 3601F309-51 Contact Us For Availability
3
MAY 7432P116-60 MAY 7432P116-60 Contact Us For Availability
4
SWITCH, INSUL. MAY 7003P129-60 Contact Us For Availability
4
JAR, DRAIN MAY 8312P120-60 Contact Us For Availability
4
MAY 3604F337-50 MAY 3604F337-50 Contact Us For Availability
5
MAY 7744P390-60 MAY 7744P390-60 Contact Us For Availability
5
MAY 7104P007-60 MAY 7104P007-60 Contact Us For Availability
5
BOX, BURNER MAY 4011F364-51 Contact Us For Availability
5
MAY 7513P489-60 MAY 7513P489-60 Contact Us For Availability
6
PIN, LOCATOR MAY 7113P020-60 Contact Us For Availability
6
MAY W10241953 MAY W10241953 Contact Us For Availability
6
VALVE, TOP BURNER (LEFT) MAY 7502P371-60 Contact Us For Availability
6
MAY 7502P372-60 MAY 7502P372-60 Contact Us For Availability
7
MAY 7101P451-60 MAY 7101P451-60 Contact Us For Availability
7
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
7
MAY 7403P691-60 MAY 7403P691-60 Contact Us For Availability
7
MAY 7403P692-60 MAY 7403P692-60 Contact Us For Availability
8
MAY 7003P130-60 MAY 7003P130-60 Contact Us For Availability
8
NUT, ACORN MAY 7103P192-60 Contact Us For Availability
8
MAY 7506P261-60 MAY 7506P261-60 Contact Us For Availability
8
MAY 7506P262-60 MAY 7506P262-60 Contact Us For Availability
8
MAY 7506P263-60 MAY 7506P263-60 Contact Us For Availability
8
MAY 7506P285-60 MAY 7506P285-60 Contact Us For Availability
9
MAY 7103P160-60 MAY 7103P160-60 Contact Us For Availability
9
MAY 7101P460-60 MAY 7101P460-60 Contact Us For Availability
9
WASHER MAY 7109P055-60 Contact Us For Availability
10
MAY 3401F066-19 MAY 3401F066-19 Contact Us For Availability
10
PAN, GRILL (LEFT) MAY 3401F099-19 Contact Us For Availability
10
COVER, PLENUM ACCESS MAY 4005F648-80 Contact Us For Availability
10
CARTRIDGE, TOP MAY 2001F175-09 Contact Us For Availability
11
MAY 7403P428-60 MAY 7403P428-60 Contact Us For Availability
11
MAY 8312P121-60 MAY 8312P121-60 Contact Us For Availability
11
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
12
MAY 7403P654-60 MAY 7403P654-60 Contact Us For Availability
12
MAY 8312P151-60 MAY 8312P151-60 Contact Us For Availability
12
MAY 7538P008-60 MAY 7538P008-60 Contact Us For Availability
12
MAY 7538P009-60 MAY 7538P009-60 Contact Us For Availability
13
MAY 7408P047-60 MAY 7408P047-60 Contact Us For Availability
13
RELAY, FAN MAY 7428P030-60 Contact Us For Availability
13
IGNITOR, TOP BURNER MAY 7432P100-60 Contact Us For Availability
14
CLIP MAY 7112P150-60 Contact Us For Availability
14
MODULE, SPARK MAY 7431P060-60 Contact Us For Availability
14
MAY 3403M075-10 MAY 3403M075-10 Contact Us For Availability
15
GRATE, GRILL MAY 7518P070-60 Contact Us For Availability
15
MAY 8019P018-60 MAY 8019P018-60 Contact Us For Availability
15
REG., PRESSURE MAY 7510P075-60 Contact Us For Availability
16
MAY 7733P314-60 MAY 7733P314-60 Contact Us For Availability
16
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
16
MAY 7212P067-60 MAY 7212P067-60 Contact Us For Availability
17
PALNUT MAY 7103P164-60 Contact Us For Availability
17
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
17
MAY 4005F791-80 MAY 4005F791-80 Contact Us For Availability
18
MAY 7772P046-60 MAY 7772P046-60 Contact Us For Availability
18
MAY 3804F188-50 MAY 3804F188-50 Contact Us For Availability
18
MAY 4001F155-80 MAY 4001F155-80 Contact Us For Availability
19
MAY 7518P483-60 MAY 7518P483-60 Contact Us For Availability
19
BRACKET, VENTURI ALIGN MAY 3801F704-51 Contact Us For Availability
20
ASSEMBLY, IGNITOR/BLOCK MAY 7432P120-60 Contact Us For Availability
21
MAY 7724P179-60 MAY 7724P179-60 Contact Us For Availability
NI
MAY 5700A882-60 MAY 5700A882-60 Contact Us For Availability
NI
MAY 5170P921-60 MAY 5170P921-60 Contact Us For Availability
NI
MAY 5170P925-60 MAY 5170P925-60 Contact Us For Availability
NI
MAY 5170P966-60 MAY 5170P966-60 Contact Us For Availability
NI
CORD, SUPPLY MAY 7402P087-60 Contact Us For Availability
× ![]()
