Model Maytag JGCP648ADP12 GAS COOK-TOP – Common Parts & Diagrams

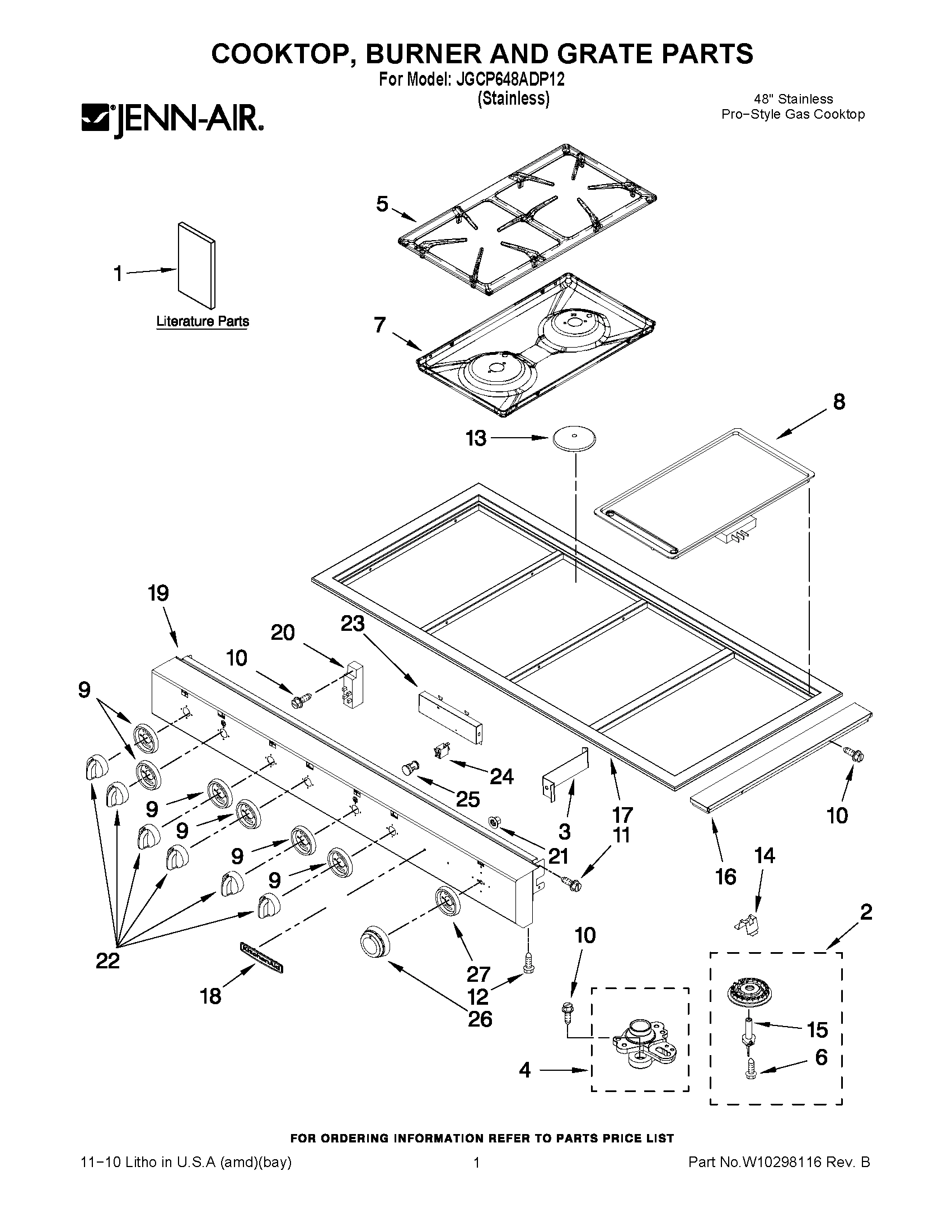

01 - COOKTOP, BURNER AND GRATE PARTS

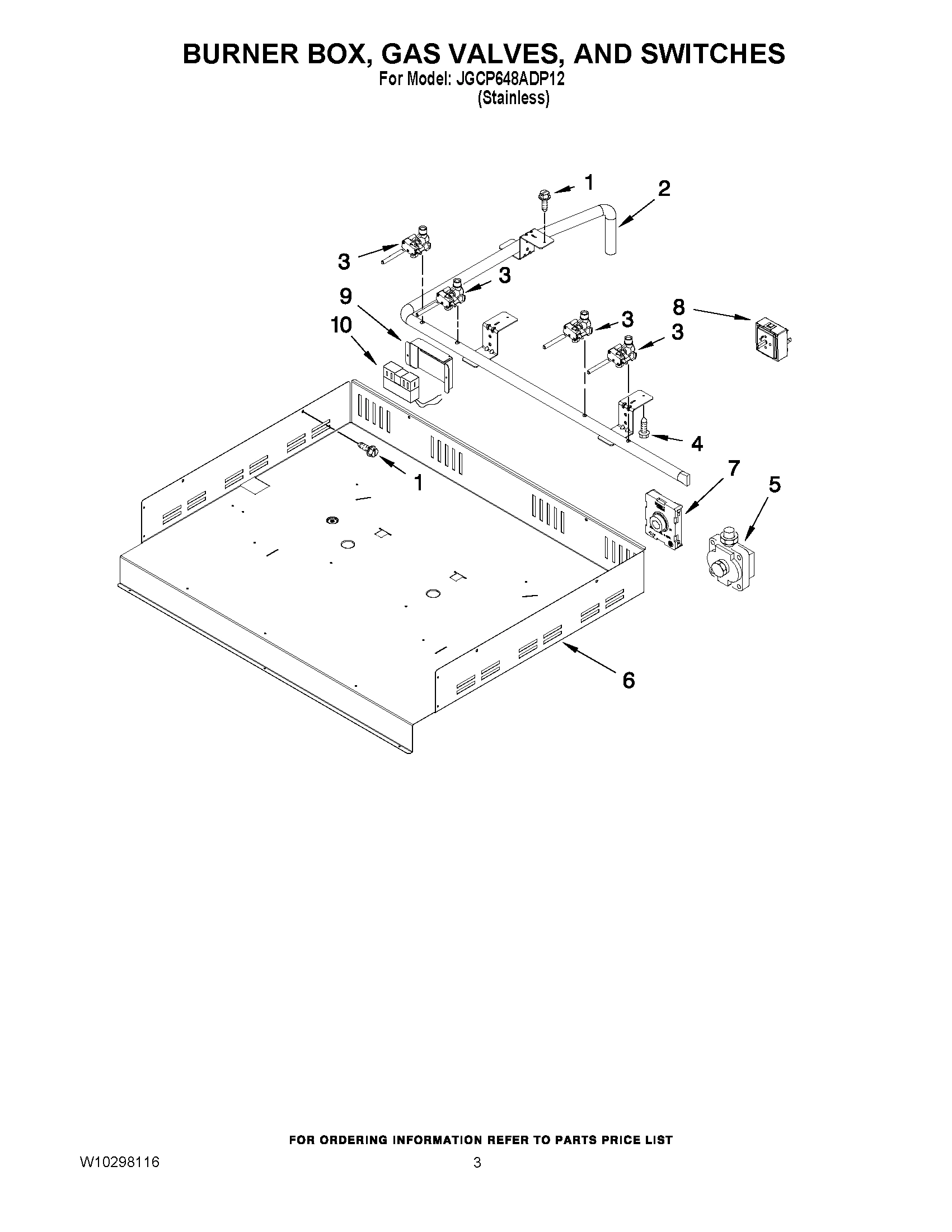

02 - BURNER BOX, GAS VALVES, AND SWITCHES
03 - OPTIONAL PARTS
Common parts from model Maytag JGCP648ADP12 GAS COOK-TOP
1
MAY 8101P657-60 MAY 8101P657-60 Contact Us For Availability
1
MAY 8112P342-60 MAY 8112P342-60 Contact Us For Availability
1
MAY 8119P070-60 MAY 8119P070-60 Contact Us For Availability
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
2
ORIFICE (LR) MAY 7505P304-60 Contact Us For Availability
2
ORIFICE (RR) MAY 7505P305-60 Contact Us For Availability
2
ORIFICE (LF & RF) MAY 7505P306-60 Contact Us For Availability
2
MAY 7513P362-60 MAY 7513P362-60 Contact Us For Availability
3
MAY 3801F689-51 MAY 3801F689-51 Contact Us For Availability
3
VALVE, BURNER (5K (LR & CR)) MAY 7502P485-60 Contact Us For Availability
3
VALVE, BURNER (12.5K (RR & CF)) MAY 7502P486-60 Contact Us For Availability
3
VALVE, BURNER (15K (RF & LF)) MAY 7502P487-60 Contact Us For Availability
4
MAY 7527P049-60 MAY 7527P049-60 Contact Us For Availability
4
MAY 7527P050-60 MAY 7527P050-60 Contact Us For Availability
4
ORIFICE HOLDER (LR & CR) MAY 7527P051-60 Contact Us For Availability
4
MAY 7527P052-60 MAY 7527P052-60 Contact Us For Availability
4
SCREW MAY 7101P640-60 Contact Us For Availability
5
GRATE, BURNER MAY 7518P417-60 Contact Us For Availability
5
MAY 7510P075-60 MAY 7510P075-60 Contact Us For Availability
6
SCREW MAY 3368921 Contact Us For Availability
6
MAY 4011F433-51 MAY 4011F433-51 Contact Us For Availability
7
MAY 3424F032-09 MAY 3424F032-09 Contact Us For Availability
7
DRIP, BOWL (LARGE) MAY 3424F033-09 Contact Us For Availability
7
DRIP, BOWL (MEDIUM) MAY 3424F034-09 Contact Us For Availability
7
MAY 7403P919-60 MAY 7403P919-60 Contact Us For Availability
8
MAY 7406P160-60 MAY 7406P160-60 Contact Us For Availability
8
MAY 7403P851-60 MAY 7403P851-60 Contact Us For Availability
9
MAY 7740P150-60 MAY 7740P150-60 Contact Us For Availability
9
MAY 4005F548-80 MAY 4005F548-80 Contact Us For Availability
10
MAY 7408P064-60 MAY 7408P064-60 Contact Us For Availability
11
SCREW MAY 7101P428-60 Contact Us For Availability
12
SCREW MAY 7101P634-60 Contact Us For Availability
13
CAP, BURNER (12.5K (RR & CF)) MAY 7504P165-60 Contact Us For Availability
13
CAP, BURNER (5K (LR & CR)) MAY 7504P202-60 Contact Us For Availability
13
CAP, BURNER (15K (RF & LF)) MAY 7504P204-60 Contact Us For Availability
14
MAY 3801F842-51 MAY 3801F842-51 Contact Us For Availability
15
MAY 7432P121-60 MAY 7432P121-60 Contact Us For Availability
16
MAY 3608F132-50 MAY 3608F132-50 Contact Us For Availability
17
MAY 7746P067-60 MAY 7746P067-60 Contact Us For Availability
18
MAY 7719P087-60 MAY 7719P087-60 Contact Us For Availability
19
MAY 7720P493-60 MAY 7720P493-60 Contact Us For Availability
20
MAY 7431P039-60 MAY 7431P039-60 Contact Us For Availability
21
NUT, HEX MAY 7103P166-60 Contact Us For Availability
22
MAY W10175692 MAY W10175692 Contact Us For Availability
23
MAY 4005F547-51 MAY 4005F547-51 Contact Us For Availability
24
MAY 7407P100-60 MAY 7407P100-60 Contact Us For Availability
26
MAY 7737P349-60 MAY 7737P349-60 Contact Us For Availability
27
MAY 7740P146-60 MAY 7740P146-60 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 5112P836-60 MAY 5112P836-60 Contact Us For Availability
NI
MAY 5171P396-60 MAY 5171P396-60 Contact Us For Availability
NI
MAY 7402P101-60 MAY 7402P101-60 Contact Us For Availability
NI
MAY 7509P125-60 MAY 7509P125-60 Contact Us For Availability
NI
MAY 8019P018-60 MAY 8019P018-60 Contact Us For Availability
NI
CLEANING WIPES, STAINLESS STEEL MAY 8212510 Contact Us For Availability
NI
MAY W10173474 MAY W10173474 Contact Us For Availability
× ![]()
