Model Maytag JGCP548WP02 COOKTOP/GRIDDLE, GAS, COUNTER UNIT, 48 INCH – Common Parts & Diagrams

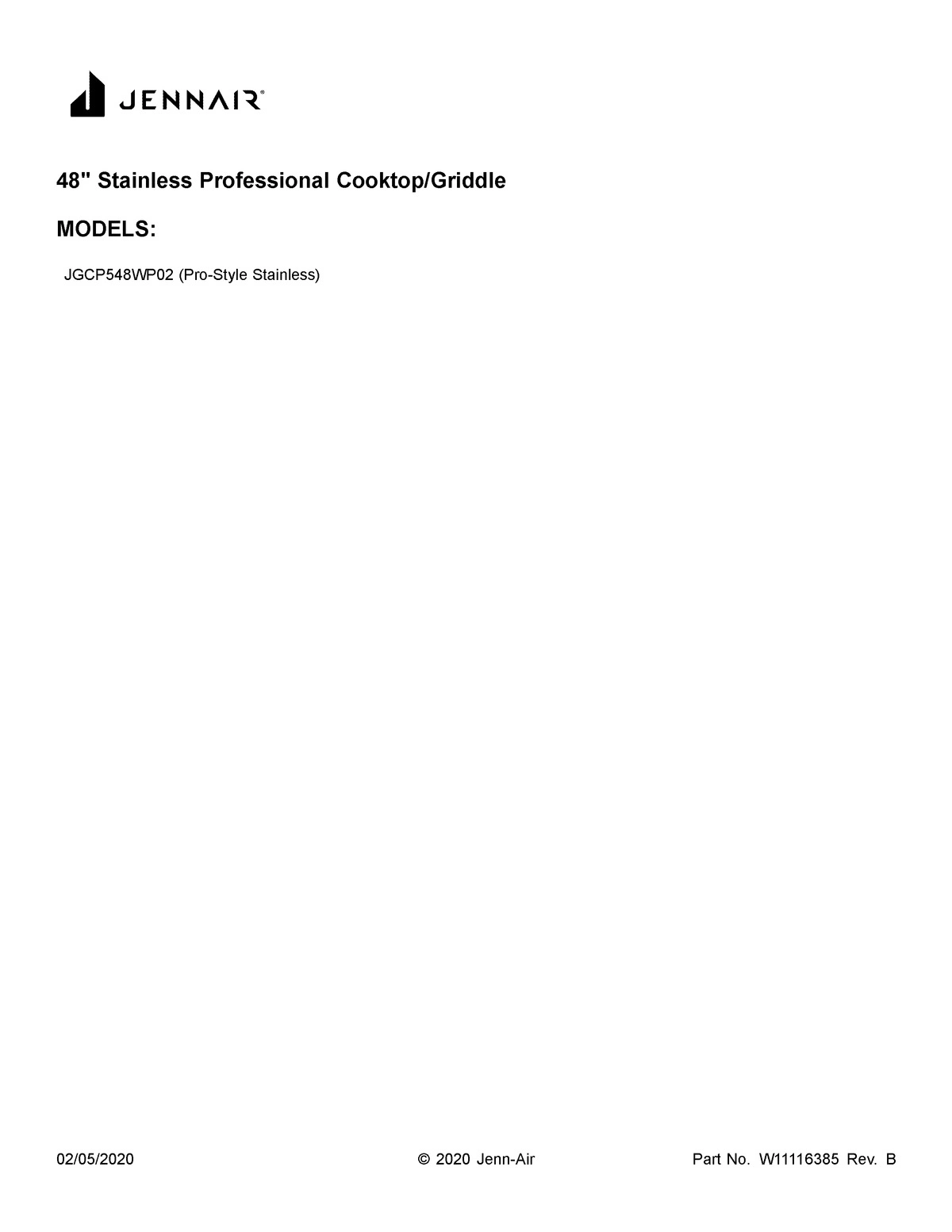

01 - COVER SHEET

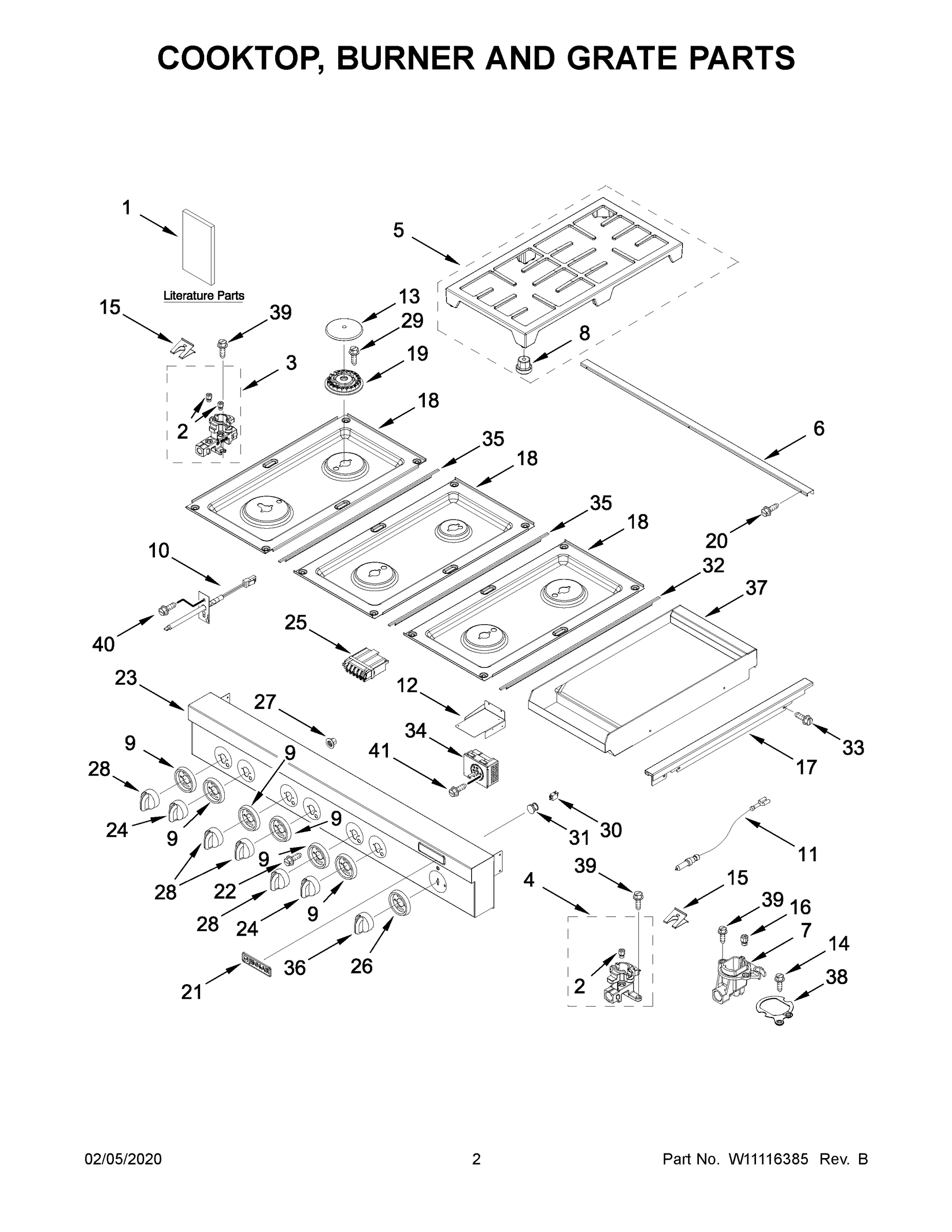

02 - COOKTOP, BURNER AND GRATE PARTS

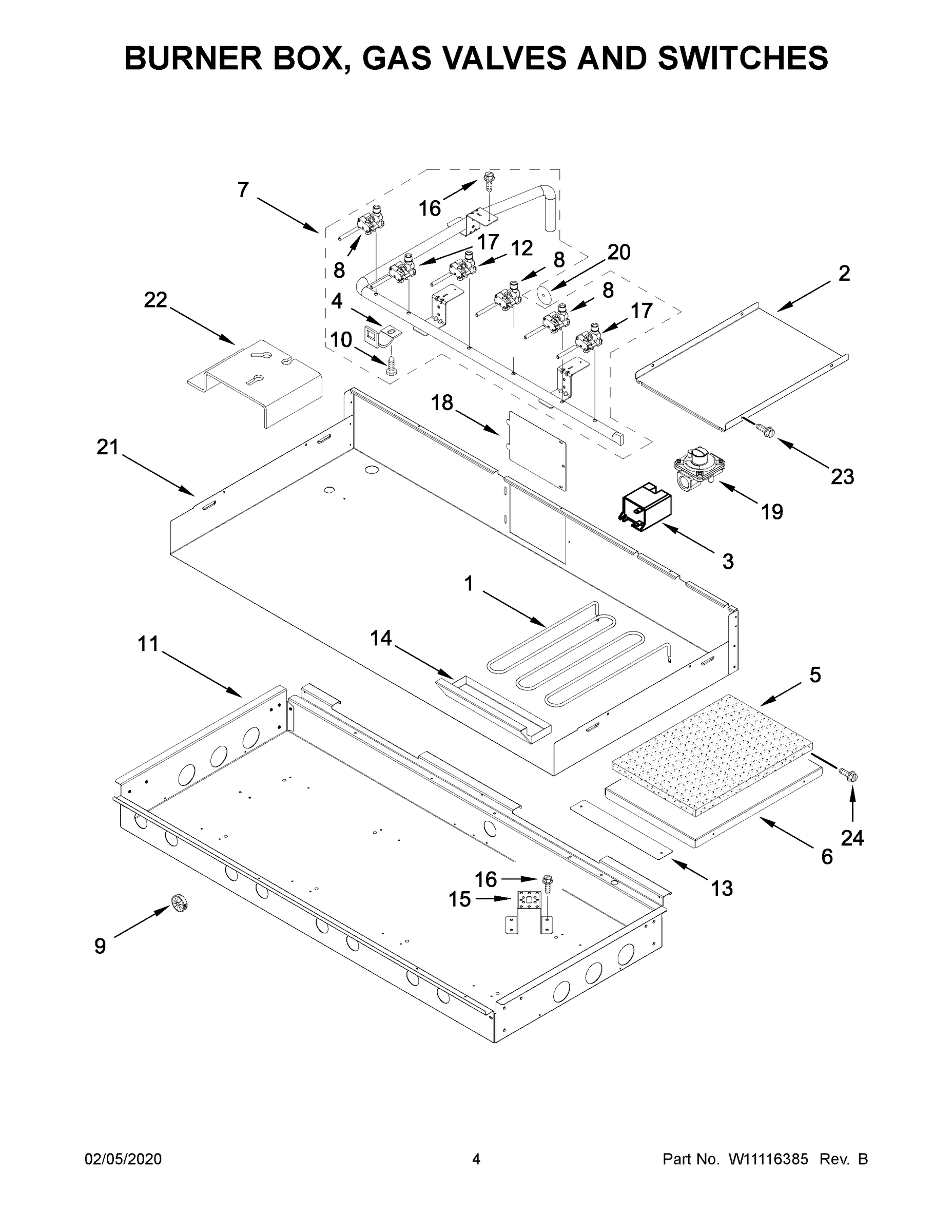

03 - BURNER BOX, GAS VALVES AND SWITCHES
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGCP548WP02 COOKTOP/GRIDDLE, GAS, COUNTER UNIT, 48 INCH
1
SHEET, TECH MAY W10403307 Contact Us For Availability
1
ELEMENT, GRIDDLE MAY W10193014 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W11090432 Contact Us For Availability
1B
INSTRUCTIONS, INSTALLATION MAY W11090452 Contact Us For Availability
2
ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH MAY W10657945 Contact Us For Availability
2
TRAY, ELEMENT GRIDDLE MAY W10145620 Contact Us For Availability
2A
ORIFICE (1.2K) (LEFT FRONT & RIGHT FRONT, LOW MAY W10256132 Contact Us For Availability
2B
ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT MAY W10364221 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT MAY W10846622 Contact Us For Availability
3
REIGNITOR MAY W10116108 Contact Us For Availability
4
ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER F MAY W10846623 Contact Us For Availability
4
BRACKET, VALVE MAY W10432260 Contact Us For Availability
5
MAY W11241666 MAY W11241666 Contact Us For Availability
5
INSULATION, GRIDDLE MAY W10145621 Contact Us For Availability
6
TRIM, ISLAND MAY W10269216 Contact Us For Availability
6
TRAY, GRIDDLE INSULATION MAY W10246074 Contact Us For Availability
7
HOLDER, ORIFICE (AUX) (CENTER REAR) MAY W10883622 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10402611 Contact Us For Availability
8
BUMPER, GRATE MAY W11306485 Contact Us For Availability
8
VALVE, SINGLE MAY W10385582 Contact Us For Availability
9
BEZEL MAY W10276494 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
10
SENSOR, GRIDDLE MAY W10319835 Contact Us For Availability
10
SCREW MAY W10189140 Contact Us For Availability
11
ELECTRODE, BURNER MAY 8286724 Contact Us For Availability
11
BOX, BURNER MAY W10371517 Contact Us For Availability
12
BRACKET, SPARK MODULE MAY W10846054 Contact Us For Availability
12
VALVE, SIMMER MAY W10385583 Contact Us For Availability
13
CAP, BURNER (BLACK) (LEFT FRONT & RIGHT FRONT MAY W10256034 Contact Us For Availability
13
PLATE, COVER MAY W10250433 Contact Us For Availability
13A
CAP, BURNER (BLACK) (LEFT REAR, CENTER FRONT, MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK) (CENTER REAR) MAY W10364463 Contact Us For Availability
14
SCREW MAY 3196160 Contact Us For Availability
14
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
15
CLIP, ELECTRODE SPRING (ALL EXCEPT CENTER REA MAY W10827923 Contact Us For Availability
15
BRACKET, BURNER MAY W10560553 Contact Us For Availability
15A
SPRING, ELECTRODE (CENTER REAR) MAY 8286863 Contact Us For Availability
16
ORIFICE (5K) MAY W10282663 Contact Us For Availability
16
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
17
TRIM, SIDE (LEFT) MAY W10226012 Contact Us For Availability
17
VALVE, DUAL MAY W10371235 Contact Us For Availability
17A
TRIM, SIDE (RIGHT) MAY W10226013 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18
COVER, IGNITION MAY W10115843 Contact Us For Availability
18A
COOKTOP (BLACK (CENTER)) MAY W10352966 Contact Us For Availability
18B
COOKTOP (BLACK (RIGHT)) MAY W10352963 Contact Us For Availability
19
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W10879806 Contact Us For Availability
19
REGULATOR, PRESSURE MAY W10449140 Contact Us For Availability
19A
SPREADER, FLAME (LEFT REAR, CENTER FRONT, RIG MAY W10256027 Contact Us For Availability
19B
SPREADER, FLAME (CENTER REAR) MAY W10282515 Contact Us For Availability
20
SCREW MAY 7101P338-60 Contact Us For Availability
20
SEAL, SWITCH COVER MAY W10189177 Contact Us For Availability
21
NAMEPLATE (STAINLESS) MAY W10159578 Contact Us For Availability
21
COVER, BURNER BOX MAY W10778210 Contact Us For Availability
22
SCREW MAY W10906658 Contact Us For Availability
22
BRACKET, MOUNTING ORIFICE MAY 8285790 Contact Us For Availability
23
ASSEMBLY, CONSOLE MAY W10779889 Contact Us For Availability
23
SCREW MAY 7101P434-60 Contact Us For Availability
24
KNOB, DUAL (STAINLESS) MAY W10145568 Contact Us For Availability
24
SCREW MAY 3196537 Contact Us For Availability
25
MODULE, SPARK MAY W10475147 Contact Us For Availability
26
BEZEL, GRIDDLE MAY W10145453 Contact Us For Availability
27
NU MAY 7103P166-60 Contact Us For Availability
28
MAY W10145454 MAY W10145454 Contact Us For Availability
29
MAY W10673618 MAY W10673618 Contact Us For Availability
30
MAY W10116114 MAY W10116114 Contact Us For Availability
31
MAY W10294500 MAY W10294500 Contact Us For Availability
32
MAY W10291193 MAY W10291193 Contact Us For Availability
33
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
34
MAY W10116113 MAY W10116113 Contact Us For Availability
35
MAY W10271524 MAY W10271524 Contact Us For Availability
36
MAY W10145566 MAY W10145566 Contact Us For Availability
37
MAY W10625221 MAY W10625221 Contact Us For Availability
38
MAY 8286930 MAY 8286930 Contact Us For Availability
39
MAY 3177991 MAY 3177991 Contact Us For Availability
39A
MAY 8286921 MAY 8286921 Contact Us For Availability
40
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
41
MAY W10674068 MAY W10674068 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10116096 MAY W10116096 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10283996 MAY W10283996 Contact Us For Availability
NI
MAY W10340850 MAY W10340850 Contact Us For Availability
NI
MAY W10393255 MAY W10393255 Contact Us For Availability
NI
MAY W10399615 MAY W10399615 Contact Us For Availability
NI
MAY W10624584 MAY W10624584 Contact Us For Availability
NI
MAY W10763503 MAY W10763503 Contact Us For Availability
NI
TUBE, (LEFT REAR) MAY W10280797 Contact Us For Availability
NI
TUBE (RIGHT REAR) (ALSO CENTER REAR) MAY W10353133 Contact Us For Availability
NI
TUBE (RIGHT FRONT) MAY W10353141 Contact Us For Availability
NI
TUBE (CENTER FRONT) MAY W10353152 Contact Us For Availability
NI
TUBE (LEFT FRONT) MAY W10353154 Contact Us For Availability
NI
ACCESSORY PARTS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORY PARTS, RING, WOK MAY W10216179 Contact Us For Availability
NI
INSULATION, BURNER BOX AND GRILL MAY W10247075 Contact Us For Availability
NI
INSULATION, BURNER BOX BACK MAY W10247076 Contact Us For Availability
× ![]()
