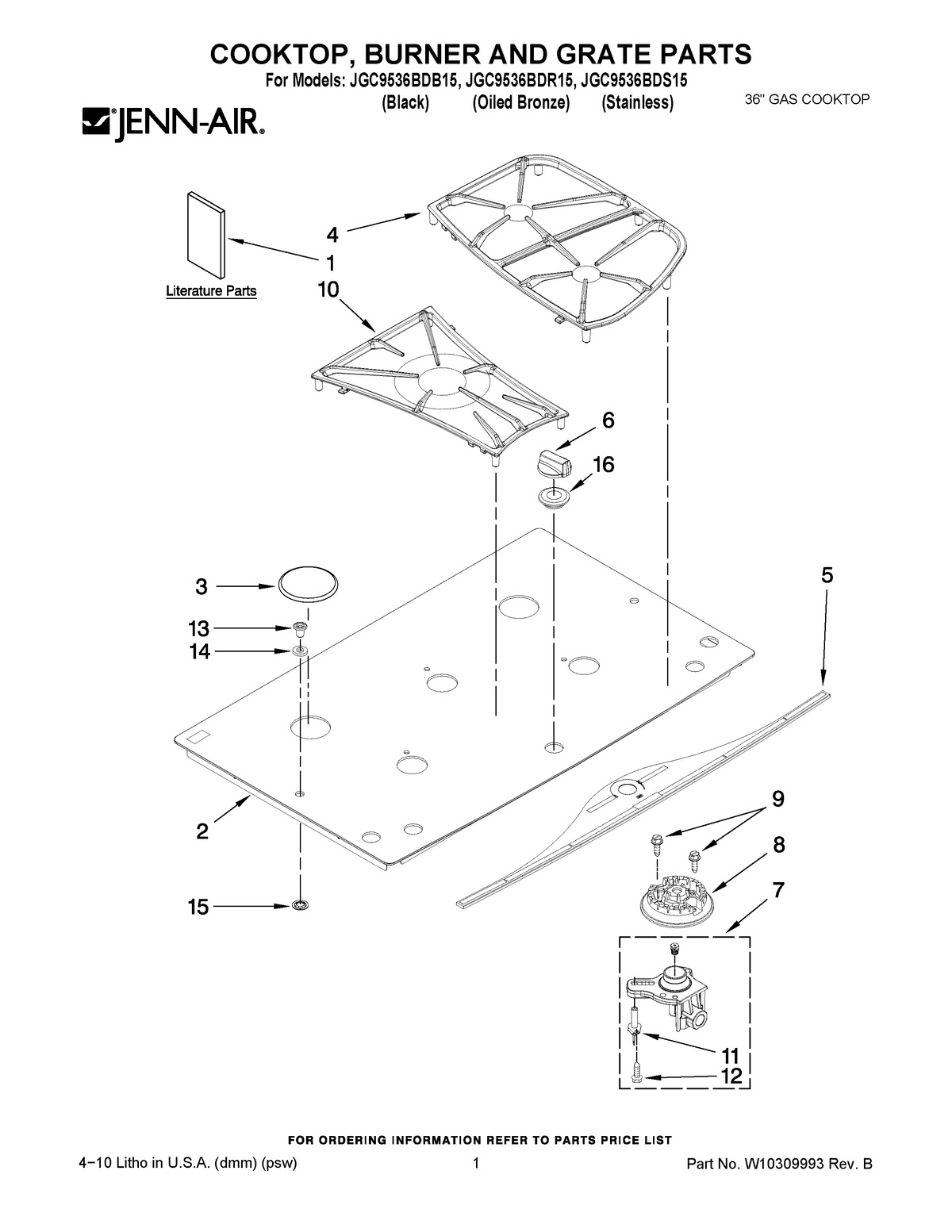

Model Whirlpool JGC9536BDB15 GAS COOK-TOP – Common Parts & Diagrams

1
WIRING DIAGRAM
WIRING DIAGRAM WPL W10210795 Contact Us For Availability
View on Model
1

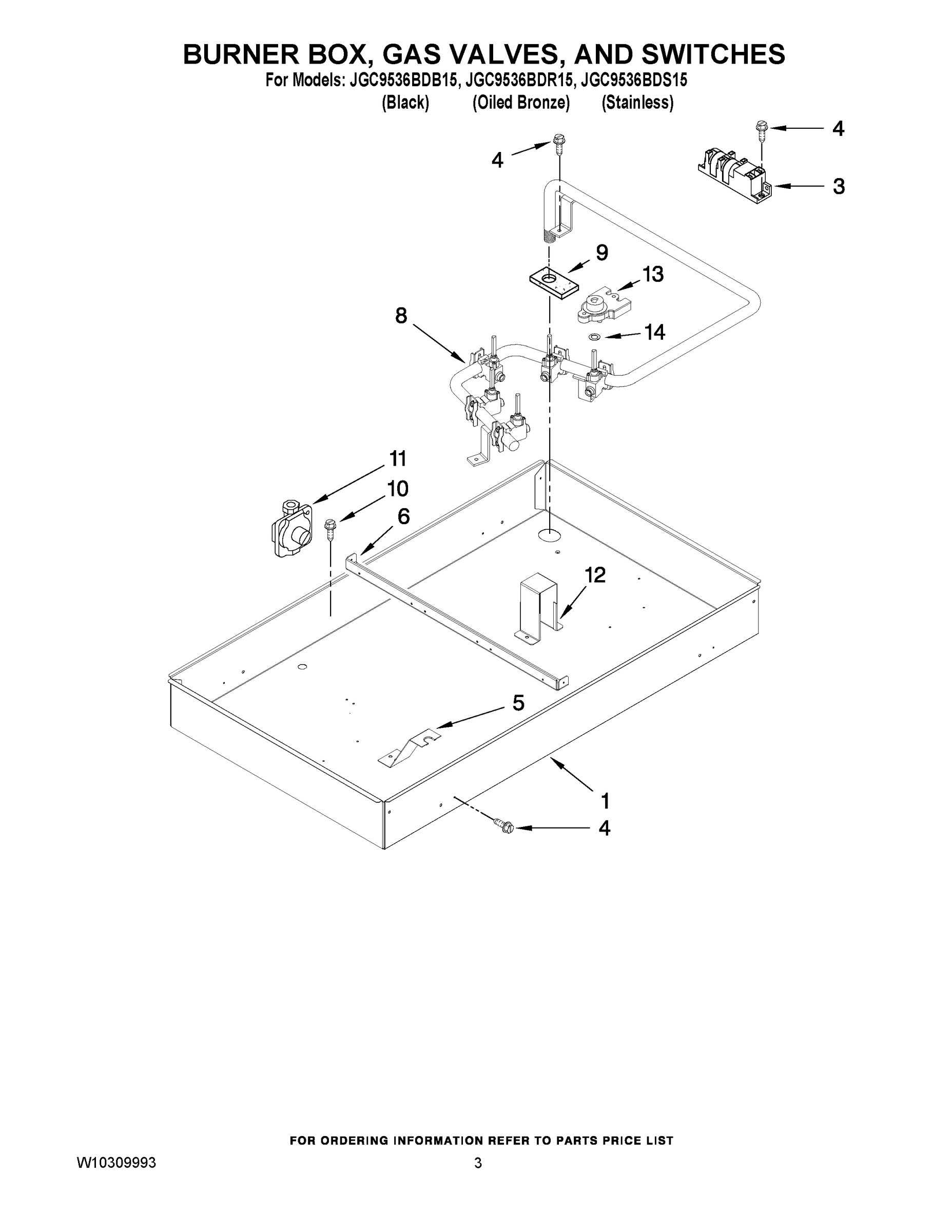

BURNER BOX
BURNER BOX WPL 4011F52751 Contact Us For Availability
View on Model
2
COOKTOP (BLACK)
COOKTOP (BLACK) WPL W10249276 Contact Us For Availability
View on Model
2
COOKTOP (OILED BRONZE)
COOKTOP (OILED BRONZE) WPL W10249278 Contact Us For Availability
View on Model
2
COOKTOP (STAINLESS)
COOKTOP (STAINLESS) WPL W10249279 Contact Us For Availability
View on Model
3
CAP, BURNER (LF & RF)
CAP, BURNER (LF & RF) WPL 7504P16560 Contact Us For Availability
View on Model
3
CAP, BURNER (LR & RR)
CAP, BURNER (LR & RR) WPL 7504P20260 Contact Us For Availability
View on Model
3
CAP, BURNER (CTR)
CAP, BURNER (CTR) WPL 7504P20460 Contact Us For Availability
View on Model
3
SPARK MODULE
SPARK MODULE WPL 7431P04960 Contact Us For Availability
View on Model
4
GRATE, BURNER (LEFT)
GRATE, BURNER (LEFT) WPL 7518P45960 Contact Us For Availability
View on Model
4
GRATE, BURNER (RIGHT)
GRATE, BURNER (RIGHT) WPL 7518P46060 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
5
TRIM, COOKTOP FOR SS MODEL ONLY (REAR)
TRIM, COOKTOP FOR SS MODEL ONLY (REAR) WPL W10168884 Contact Us For Availability
View on Model
5
TRIM, COOKTOP FOR SS MODEL ONLY (FRONT)
TRIM, COOKTOP FOR SS MODEL ONLY (FRONT) WPL W10168882 Contact Us For Availability
View on Model
5
BRACKET, ORIFICE HOLDER
BRACKET, ORIFICE HOLDER WPL W10190601 Contact Us For Availability
View on Model
6
BRACKET, DOWNDRAFT BRACE
BRACKET, DOWNDRAFT BRACE WPL 8405P08760 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (RF)
HOLDER, ORIFICE (RF) WPL 7527P13360 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (RR)
HOLDER, ORIFICE (RR) WPL 7527P13460 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (CENTER)
HOLDER, ORIFICE (CENTER) WPL 7527P13560 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (LF)
HOLDER, ORIFICE (LF) WPL 7527P13660 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (LR)
HOLDER, ORIFICE (LR) WPL 7527P13760 Contact Us For Availability
View on Model
8
HEAD, BURNER (LF & RF)
HEAD, BURNER (LF & RF) WPL 7505P30560 Contact Us For Availability
View on Model
8
HEAD, BURNER (CENTER)
HEAD, BURNER (CENTER) WPL 7505P30660 Contact Us For Availability
View on Model
8
HEAD, BURNER (LR & RR)
HEAD, BURNER (LR & RR) WPL 7505P33960 Contact Us For Availability
View on Model
8
PIPE, MANIFOLD (INCLUDES VALVES)
PIPE, MANIFOLD (INCLUDES VALVES) WPL 7513P35160 Contact Us For Availability
View on Model
9
Screw
Screw WPL 7101P68560 Contact Us For Availability
View on Model
9
Seal, Manifold Pipe Inlet
Seal, Manifold Pipe Inlet WPL 7208P02460 Contact Us For Availability
View on Model
10
GRATE, CENTER
GRATE, CENTER WPL 7518P46160 Contact Us For Availability
View on Model
10
Screw, Ground
Screw, Ground WPL 7101P46060 Contact Us For Availability
View on Model
11
IGNITOR
IGNITOR WPL 7432P12160 Contact Us For Availability
View on Model
11
REGULATOR, PRESSURE
REGULATOR, PRESSURE WPL 7510P09360 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL 7101P60660 Contact Us For Availability
View on Model
12
SUPPORT, GLASS
SUPPORT, GLASS WPL 3807F68951 Contact Us For Availability
View on Model
13
GROMMET, GRATE
GROMMET, GRATE WPL 8008P06460 Contact Us For Availability
View on Model
13
SWITCH, SPARK (LEFT)
SWITCH, SPARK (LEFT) WPL 7403P81860 Contact Us For Availability
View on Model
13
SWITCH, SPARK (CENTER)
SWITCH, SPARK (CENTER) WPL 7403P81960 Contact Us For Availability
View on Model
13
SWITCH, SPARK (RIGHT)
SWITCH, SPARK (RIGHT) WPL 7403P82060 Contact Us For Availability
View on Model
14
WASHER
WASHER WPL 7109P08160 Contact Us For Availability
View on Model
14
GASKET (LEFT)
GASKET (LEFT) WPL 7201P13560 Contact Us For Availability
View on Model
14
GASKET (RIGHT)
GASKET (RIGHT) WPL 7201P14460 Contact Us For Availability
View on Model
15
RING, RETAINING
RING, RETAINING WPL 7114P00860 Contact Us For Availability
View on Model
16
GROMMET (5)
GROMMET (5) WPL 8008P07160 Contact Us For Availability
View on Model
NI
WIRE, GREEN (2)
WIRE, GREEN (2) WPL 5112P84260 Contact Us For Availability
View on Model
NI
Cord, Power
Cord, Power WPL 7402P08760 Contact Us For Availability
View on Model
NI
Strain Relief
Strain Relief WPL 8007P00360 Contact Us For Availability
View on Model
NI
HARNESS, COOKTOP
HARNESS, COOKTOP WPL W10161748 Contact Us For Availability
View on Model
