  • Whirlpool JGC9430BDF14 Parts List

Model Whirlpool JGC9430BDF14 GAS COOK-TOP – Common Parts & Diagrams

1
USE & CARE GUIDE
USE & CARE GUIDE WPL W10204447 Contact Us For Availability
View on Model
1
WIRING DIAGRAM
WIRING DIAGRAM WPL W10210794 Contact Us For Availability
View on Model
1

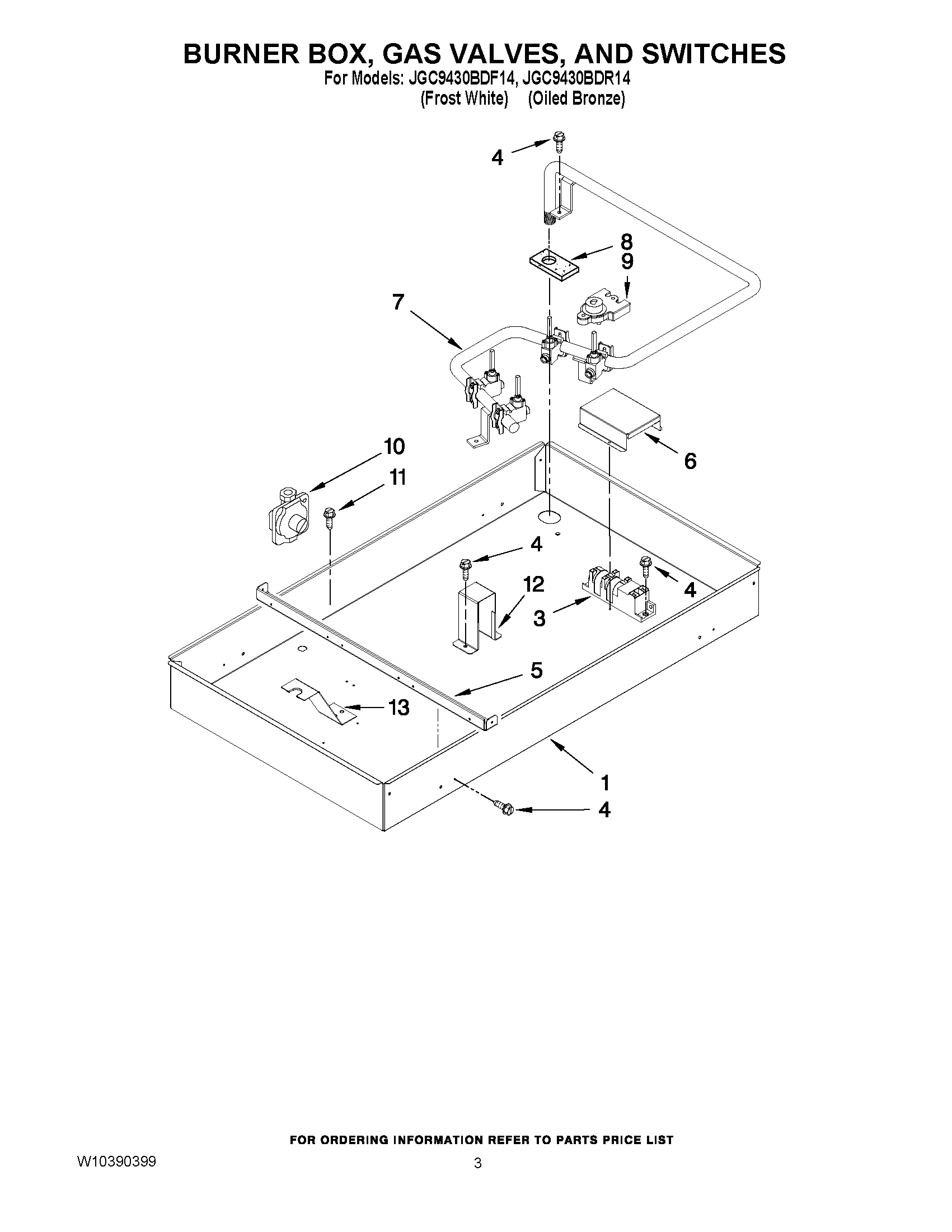

BURNER BOX
BURNER BOX WPL 4011F52651 Contact Us For Availability
View on Model
2

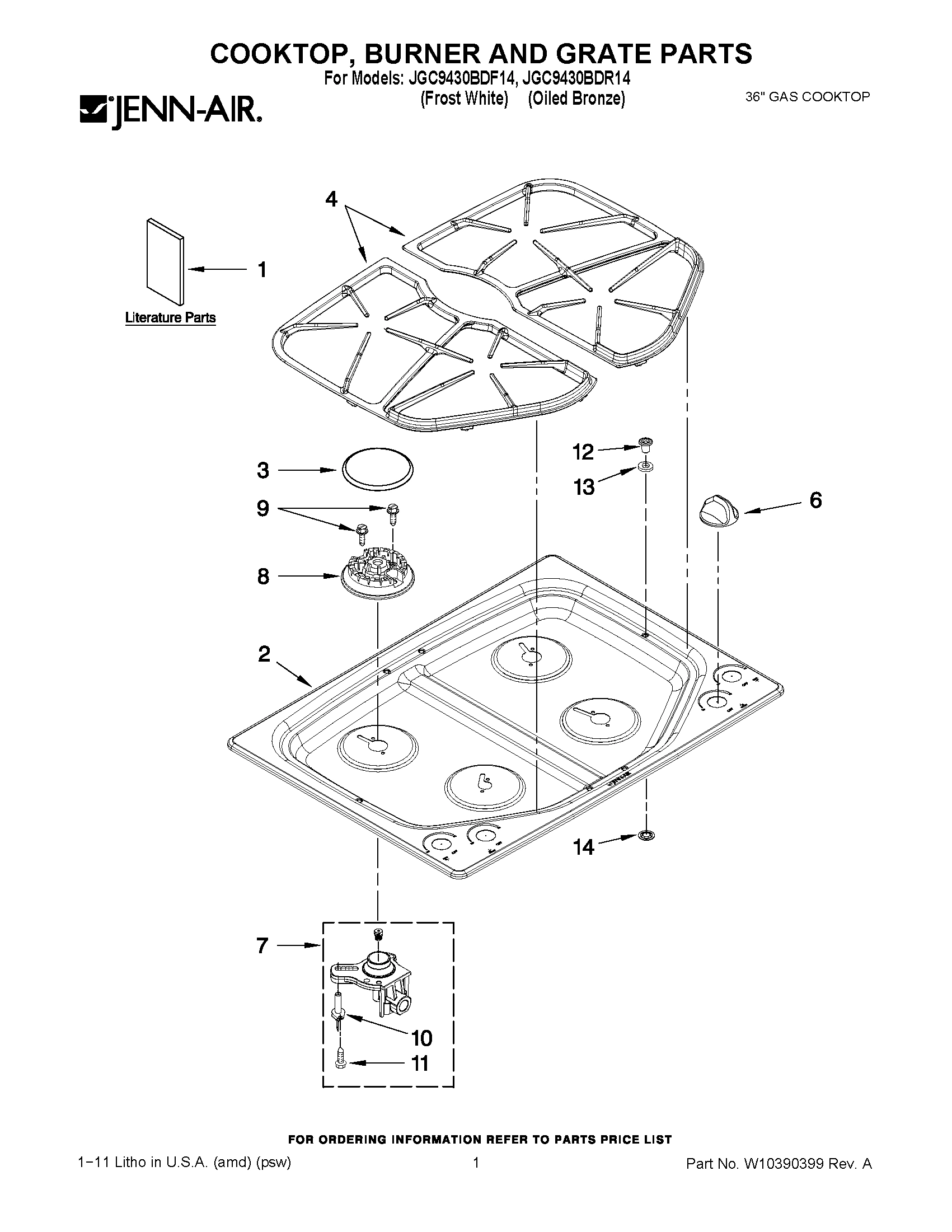

COOKTOP (OILED BRONZE)
COOKTOP (OILED BRONZE) WPL W10204900 Contact Us For Availability
View on Model
3
CAP, BURNER (LR & RR)
CAP, BURNER (LR & RR) WPL 7504P16560 Contact Us For Availability
View on Model
3
CAP, BURNER (LF)
CAP, BURNER (LF) WPL 7504P20260 Contact Us For Availability
View on Model
3
CAP, BURNER (RF)
CAP, BURNER (RF) WPL 7504P20460 Contact Us For Availability
View on Model
3
SPARK MODULE
SPARK MODULE WPL 7431P03860 Contact Us For Availability
View on Model
4
GRATE (LEFT)
GRATE (LEFT) WPL 7518P45660 Contact Us For Availability
View on Model
4
GRATE (RIGHT)
GRATE (RIGHT) WPL 7518P45760 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
5
BRACKET, ORIFICE HOLDER (2)
BRACKET, ORIFICE HOLDER (2) WPL 8405P08760 Contact Us For Availability
View on Model
6
COVER, SPARK MODULE
COVER, SPARK MODULE WPL 4005F81651 Contact Us For Availability
View on Model
7
ASSEMBLY, ORIFICE HOLDER (RF (15K))
ASSEMBLY, ORIFICE HOLDER (RF (15K)) WPL 7527P11660 Contact Us For Availability
View on Model
7
ASSEMBLY, ORIFICE HOLDER (RR (9.2K))
ASSEMBLY, ORIFICE HOLDER (RR (9.2K)) WPL 7527P11760 Contact Us For Availability
View on Model
7
ASSEMBLY, ORIFICE HOLDER (LF (5K))
ASSEMBLY, ORIFICE HOLDER (LF (5K)) WPL 7527P11860 Contact Us For Availability
View on Model
7
ASSEMBLY, ORIFICE HOLDER (LR (10.5K))
ASSEMBLY, ORIFICE HOLDER (LR (10.5K)) WPL 7527P11960 Contact Us For Availability
View on Model
7
PIPE, MANIFOLD (INCLUDES VALVES)
PIPE, MANIFOLD (INCLUDES VALVES) WPL 7513P30560 Contact Us For Availability
View on Model
8
HEAD, BURNER (LR & RR)
HEAD, BURNER (LR & RR) WPL 7505P30560 Contact Us For Availability
View on Model
8
HEAD, BURNER (RF)
HEAD, BURNER (RF) WPL 7505P30660 Contact Us For Availability
View on Model
8
HEAD, BURNER (LF)
HEAD, BURNER (LF) WPL 7505P33960 Contact Us For Availability
View on Model
8
Seal, Manifold Pipe Inlet
Seal, Manifold Pipe Inlet WPL 7208P02460 Contact Us For Availability
View on Model
9
Screw
Screw WPL 7101P68560 Contact Us For Availability
View on Model
9
SWITCH, SPARK (LEFT)
SWITCH, SPARK (LEFT) WPL 7403P81860 Contact Us For Availability
View on Model
9
SWITCH, SPARK (RIGHT)
SWITCH, SPARK (RIGHT) WPL 7403P82060 Contact Us For Availability
View on Model
10
IGNITOR
IGNITOR WPL 7432P12160 Contact Us For Availability
View on Model
10
REGULATOR, PRESSURE (CENTER) ORIFICE HOLDER
REGULATOR, PRESSURE (CENTER) ORIFICE HOLDER WPL 7510P09360 Contact Us For Availability
View on Model
11
SCREW
SCREW WPL 7101P60660 Contact Us For Availability
View on Model
11
Screw, Ground
Screw, Ground WPL 7101P46060 Contact Us For Availability
View on Model
12
GROMMET, GRATE (WHITE)
GROMMET, GRATE (WHITE) WPL 8008P06360 Contact Us For Availability
View on Model
12
GROMMET, GRATE (BLACK)
GROMMET, GRATE (BLACK) WPL 8008P06460 Contact Us For Availability
View on Model
12
SUPPORT, GLASS
SUPPORT, GLASS WPL 3807F68951 Contact Us For Availability
View on Model
13
WASHER
WASHER WPL 7109P08160 Contact Us For Availability
View on Model
13
BRACKET, ORIFICE SUPPORT
BRACKET, ORIFICE SUPPORT WPL W10190601 Contact Us For Availability
View on Model
14
RING, RETAINING
RING, RETAINING WPL 7114P00860 Contact Us For Availability
View on Model
NI
WIRE, GREEN
WIRE, GREEN WPL 5112P84260 Contact Us For Availability
View on Model
NI
HARNESS, COOKTOP
HARNESS, COOKTOP WPL 5171P93960 Contact Us For Availability
View on Model
NI
Cord, Power
Cord, Power WPL 7402P08760 Contact Us For Availability
View on Model
NI
Strain Relief
Strain Relief WPL 8007P00360 Contact Us For Availability
