Model Whirlpool JGC8430CDW11 GAS COOK-TOP – Common Parts & Diagrams

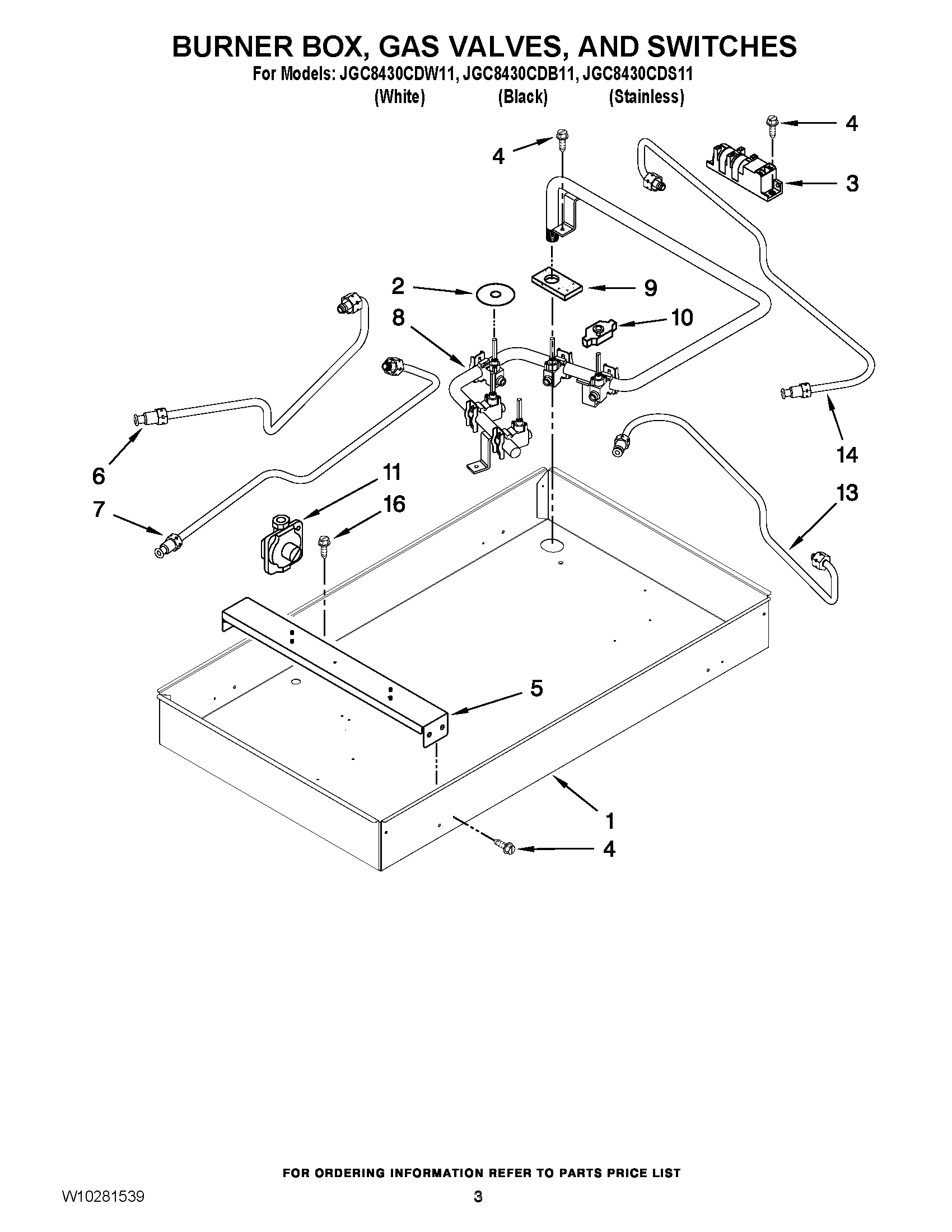

02 - BURNER BOX, GAS VALVES, AND SWITCHES

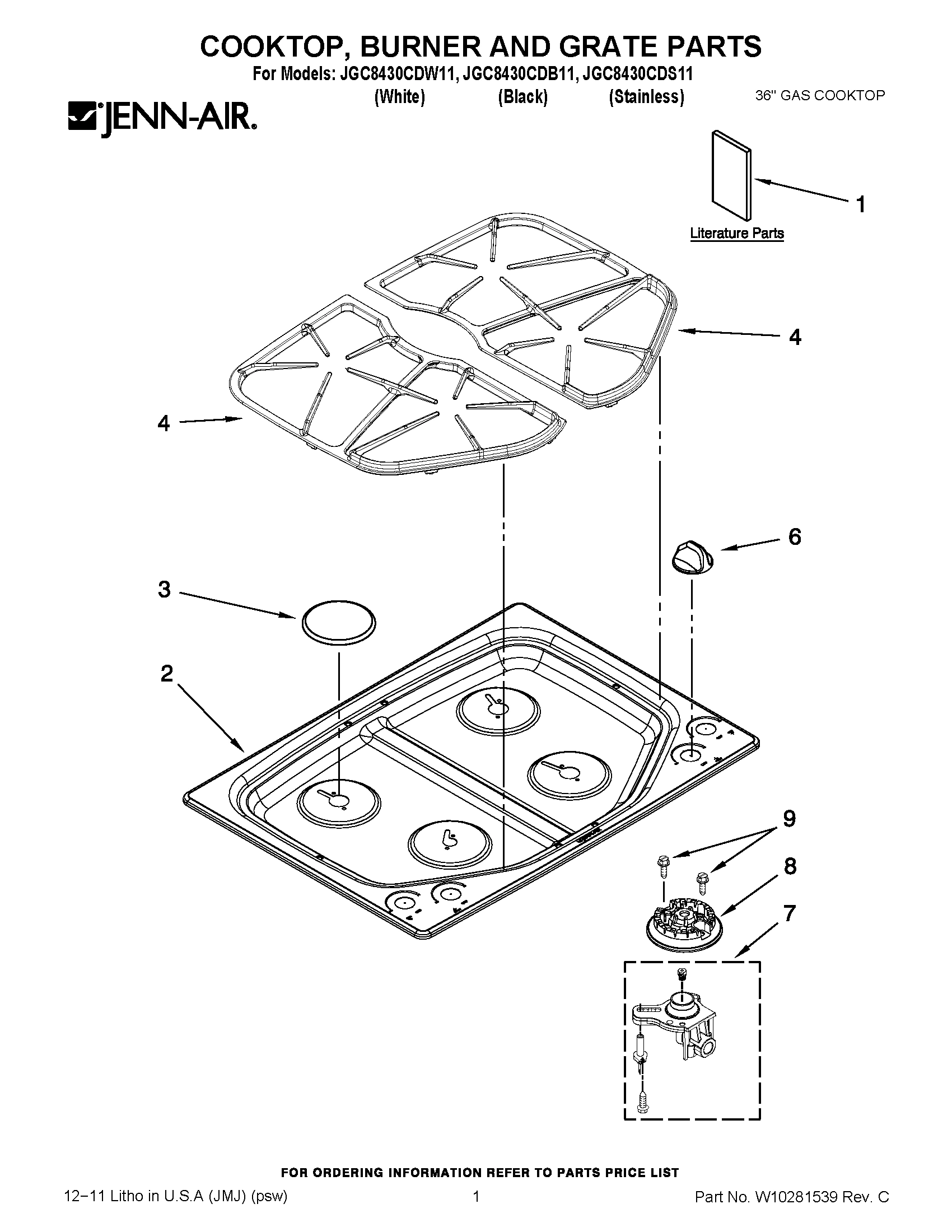

01 - COOKTOP, BURNER AND GRATE PARTS
03 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool JGC8430CDW11 GAS COOK-TOP
1
BURNER BOX WPL W10258464 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P64360 Contact Us For Availability
1
USE & CARE GUIDE WPL 8111P53760 Contact Us For Availability
1
Safe Cooking Tips (English) WPL 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) WPL W10210794 Contact Us For Availability
2
Seal, Valve Shaft WPL 8008P06560 Contact Us For Availability
2
COOKTOP (BLACK) WPL 2001N30709 Contact Us For Availability
2
COOKTOP (WHITE) WPL 2001N30781 Contact Us For Availability
2
COOKTOP (STAINLESS) WPL 2001N31950 Contact Us For Availability
3
SPARK MODULE WPL 7431P03860 Contact Us For Availability
3
CAP, BURNER (LR & RF) WPL 7504P16560 Contact Us For Availability
3
CAP, BURNER (LF & RR) WPL 7504P20260 Contact Us For Availability
3
Cap, Burner (Black) WPL 7504P21960 Contact Us For Availability
4
SCREW WPL 7101P42660 Contact Us For Availability
4
GRATE BLACK (LEFT) WPL 7518P43160 Contact Us For Availability
4
GRATE BLACK (RIGHT) WPL 7518P43260 Contact Us For Availability
5
BRACKET, ORIFICE HOLDER (2) WPL 3801F88951 Contact Us For Availability
6
TUBING, GAS (LEFT FRONT) WPL 7506P37060 Contact Us For Availability
6
KNOB, CONTROL (5) (WHITE) WPL 7733P50860 Contact Us For Availability
7
TUBING, GAS (LEFT REAR) WPL 7506P37160 Contact Us For Availability
7
HOLDER, ORIFICE (LR) WPL 7527P00260 Contact Us For Availability
7
HOLDER, ORIFICE (RF) WPL 7527P03360 Contact Us For Availability
7
HOLDER, ORIFICE (LF, RR) WPL 7527P04260 Contact Us For Availability
8
PIPE, MANIFOLD (INCLUDES VALVES) WPL 7513P30560 Contact Us For Availability
8
HEAD, BURNER (LF & RR) WPL 7505P30460 Contact Us For Availability
8
HEAD, BURNER (LR & RF) WPL 7505P30560 Contact Us For Availability
9
Seal, Manifold Pipe Inlet WPL 7208P02460 Contact Us For Availability
9
Screw WPL 7101P68560 Contact Us For Availability
11
REGULATOR, PRESSURE (CENTER) WPL 7510P09360 Contact Us For Availability
13
TUBING, GAS (RIGHT FRONT) WPL 7506P37260 Contact Us For Availability
14
TUBING, GAS (RIGHT REAR) ORIFICE HOLDER WPL 7506P37360 Contact Us For Availability
16
Screw, Ground WPL 7101P46060 Contact Us For Availability
NI
HARNESS, COOKTOP (WHITE) WPL 5171P93960 Contact Us For Availability
NI
Screw WPL 7101P06260 Contact Us For Availability
NI
Cord, Power WPL 7402P08760 Contact Us For Availability
NI
SPUD KIT WPL 7509P10460 Contact Us For Availability
NI
Strain Relief WPL 8007P00360 Contact Us For Availability
× ![]()
