Model Whirlpool JGC8430CDB10 GAS COOK-TOP – Common Parts & Diagrams

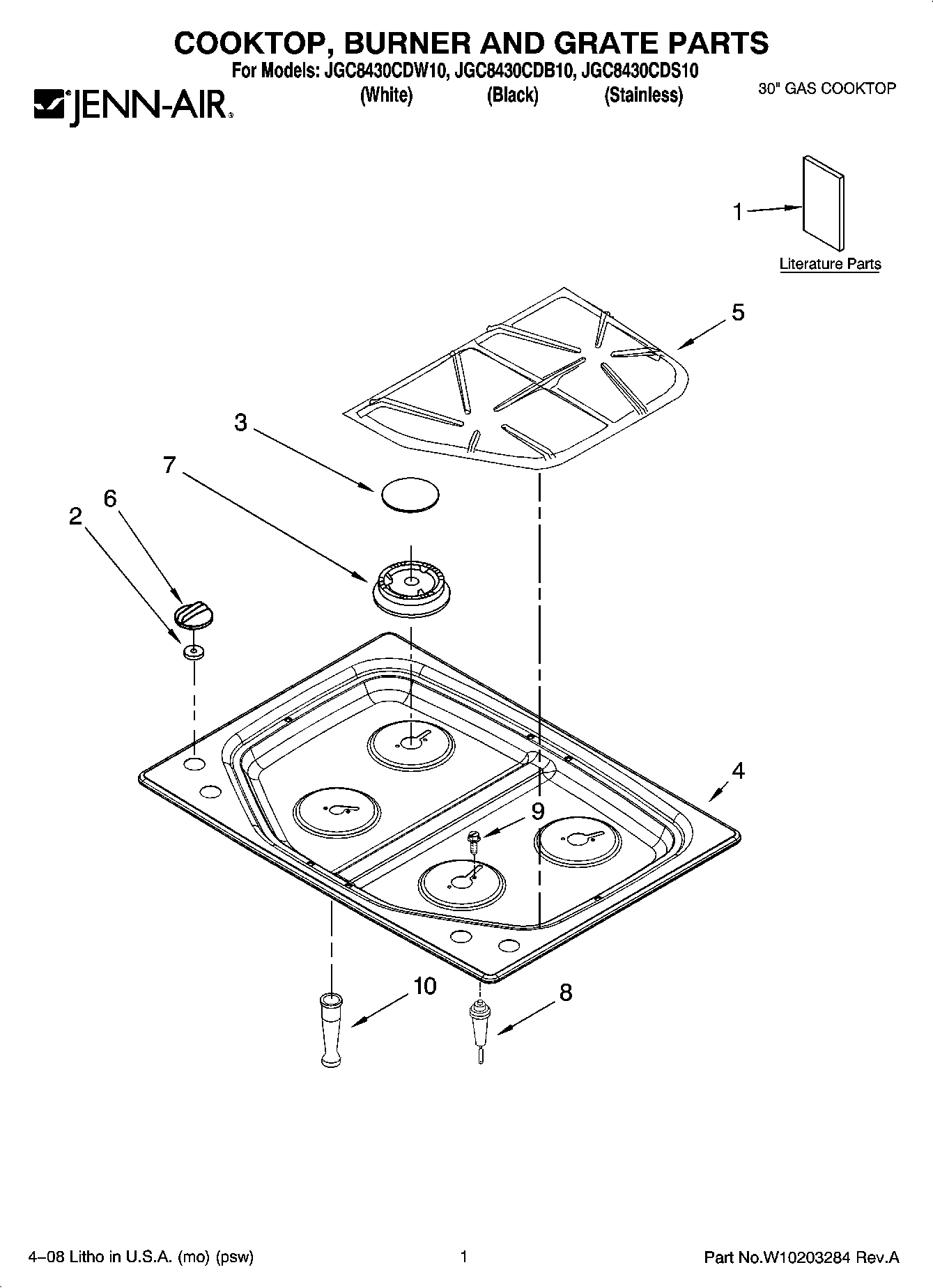

01 - COOKTOP, BURNER AND GRATE PARTS

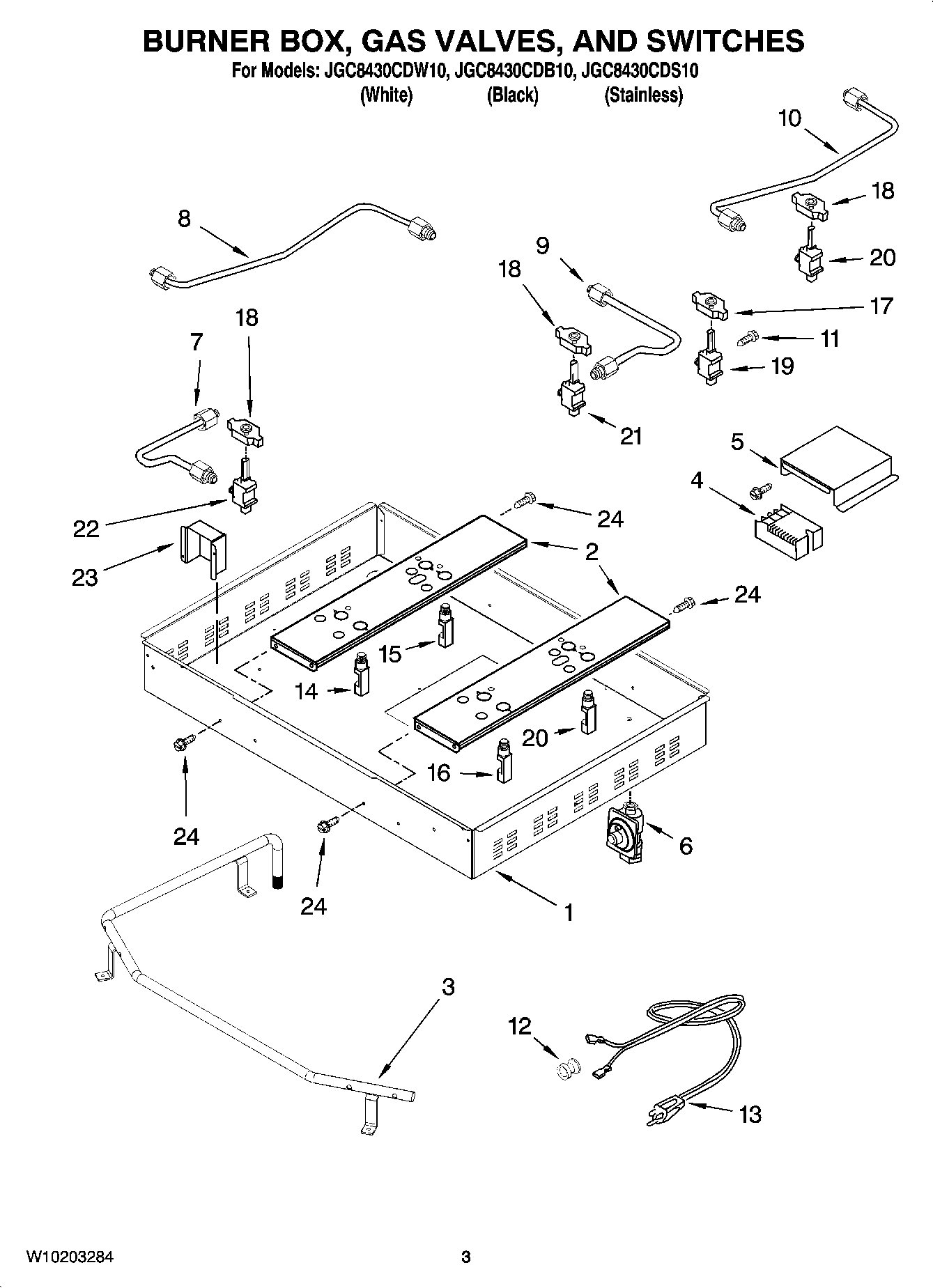

02 - BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

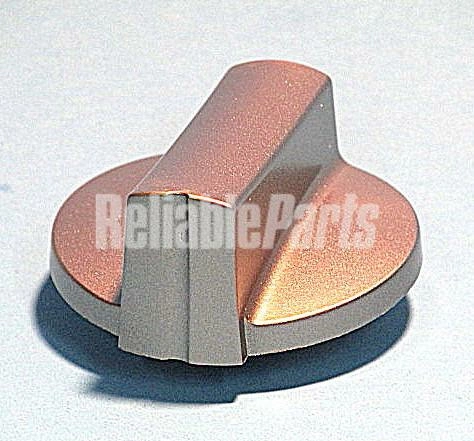

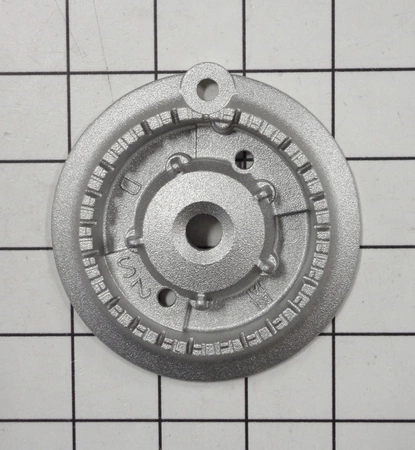

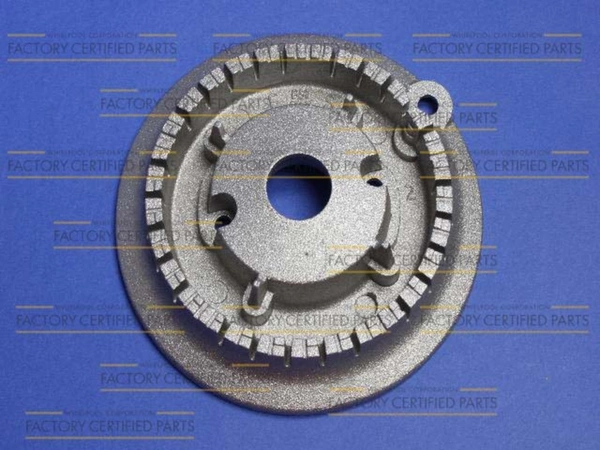

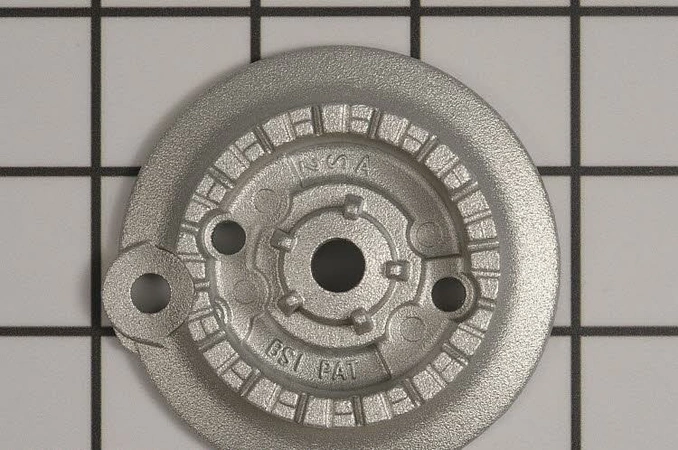

Common parts from model Whirlpool JGC8430CDB10 GAS COOK-TOP
1
Box, Burner WPL W10203541 Contact Us For Availability
2
Support Burner (2) WPL 74009545 Contact Us For Availability
3
Pipe, Manifold WPL 74007997 Contact Us For Availability
4
Top, Main (Stainless) WPL W10203480 Contact Us For Availability
5
Grate, Burner (L.Hand) WPL W10203486 Contact Us For Availability
5
Grate, Burner (R.Hand) WPL W10203484 Contact Us For Availability
5
Cover, Spark Mod WPL W10203556 Contact Us For Availability
7
TUBE, BURNER (LF) WPL 74007755 Contact Us For Availability
9
TUBE, BURNER (RF) WPL 74007757 Contact Us For Availability
10
Venturi (Large) WPL 74010092 Contact Us For Availability
10
Venturi (X-Large) WPL W10203539 Contact Us For Availability
10
TUBE, BURNER (RR) WPL 74007758 Contact Us For Availability
11
SCREW, VALVE WPL 71003231 Contact Us For Availability
12
Relief, Strain WPL 550707 Contact Us For Availability
14
Holder W/Orifice (6.5K) (LF,RR) WPL 71002720 Contact Us For Availability
19
Burner, Valve (LR) WPL W10203501 Contact Us For Availability
20
Burner, Valve (LF) WPL W10203511 Contact Us For Availability
21
Burner, Valve (RF) WPL W10203512 Contact Us For Availability
22
Burner, Valve (RR) WPL W10203514 Contact Us For Availability
23
Brkt, Hold Down WPL 74006339 Contact Us For Availability
NI
Harness,Spark(RT) WPL 74005963 Contact Us For Availability
NI
Kit, LP Orifice WPL 74007746 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI3598A29 Contact Us For Availability
NI
Miscellaneous WPL ARI3599A31 Contact Us For Availability
NI
WIRING HARNESS PARTS WPL ARI3600A78 Contact Us For Availability
NI
Harness, Main WPL W10203495 Contact Us For Availability
× ![]()
