Model Whirlpool JGC2530EB00 COOKTOP, GAS, COUNTER UNIT – Common Parts & Diagrams

Common parts from model Whirlpool JGC2530EB00 COOKTOP, GAS, COUNTER UNIT

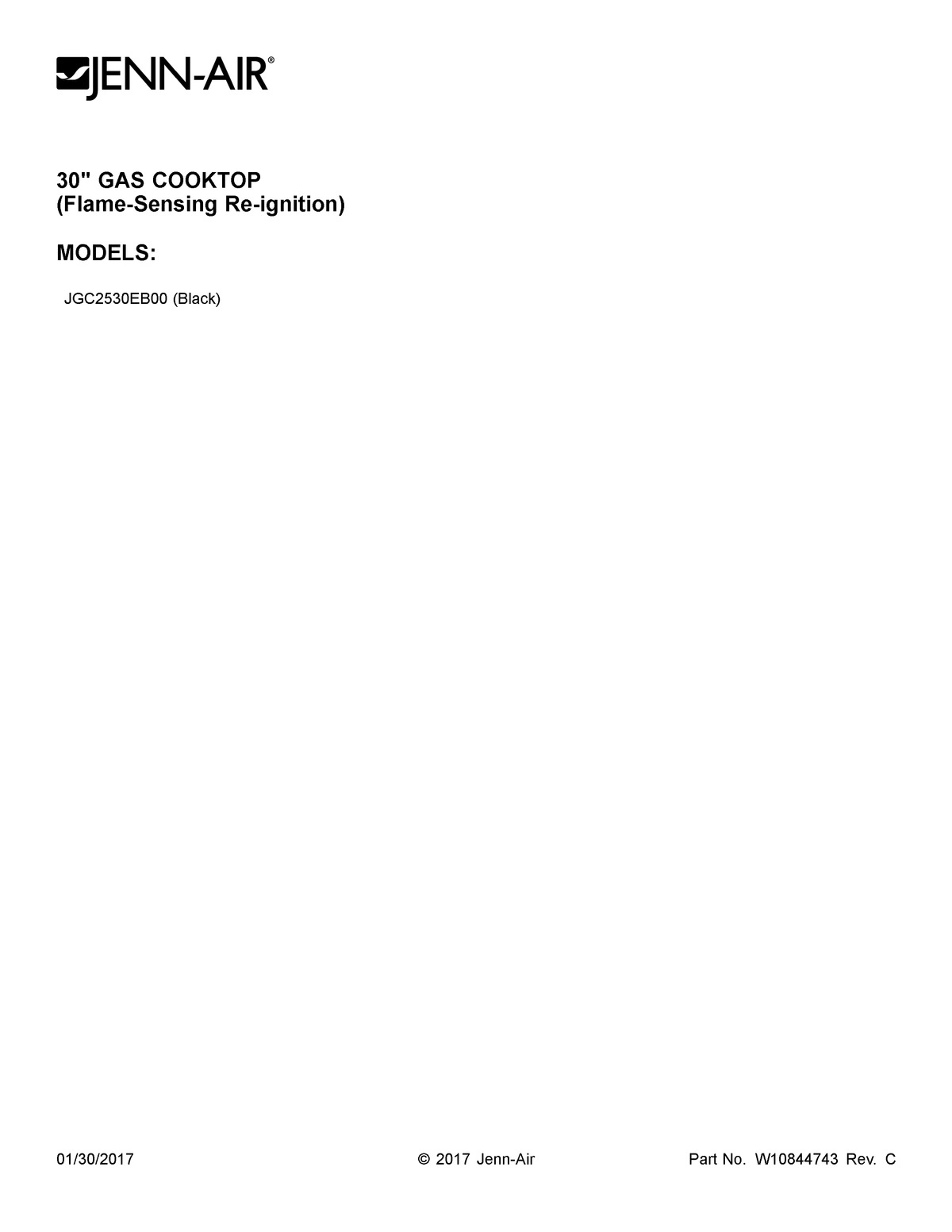

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

2

GRATE, BURNER WPL W10845770 Contact Us For Availability

View on Model

3

W10691230 Whirlpool Burner Cap Backorder WPL W10691230 View Details $88.97

View on Model

3A

W10691229 Whirlpool Burner Cap Backorder WPL W10691229 View Details $71.60

View on Model

3B

W10691282 Whirlpool Burner Cap Backorder WPL W10691282 View Details $104.14

View on Model

3C

W10691232 Whirlpool Burner Cap Backorder WPL W10691232 View Details $112.64

View on Model

4

W11676624 Whirlpool Screw Backorder WPL W11676624 View Details $8.89

View on Model

4A

SCREW, BURNER BASE (SMALL BURNER) WPL W10626017 Contact Us For Availability

View on Model

5

W10691283 Whirlpool Burner Head In Stock WPL W10691283 View Details $102.23

View on Model

5

W10845603 Whirlpool Sleeve Assembly Backorder WPL W10845603 View Details $13.13

View on Model

5A

W10691285 Whirlpool Burner Head Backorder WPL W10691285 View Details $92.80

View on Model

5B

W10691430 Whirlpool Burner Head Backorder WPL W10691430 View Details $198.50

View on Model

5C

W10691284 Whirlpool Burner Head Backorder WPL W10691284 View Details $114.09

View on Model

8

SCREW, INJECTOR HOLDER WPL W10626015 Contact Us For Availability

View on Model

9

WPW10571491 Whirlpool Orifice Holder Backorder WPL WPW10571491 View Details $48.42

View on Model

9A

W10691684 Whirlpool Orifice Holder Backorder WPL W10691684 View Details $66.32

View on Model

9C

WPW10571492 Whirlpool Orifice Holder Backorder WPL WPW10571492 View Details $53.93

View on Model

10

W10617810 Whirlpool Surface Igniter Backorder WPL W10617810 View Details $52.79

View on Model

10B

W10692364 Whirlpool Surface Igniter Backorder WPL W10692364 View Details $93.41

View on Model

11

W10571930 Whirlpool Appliance Clip Backorder WPL W10571930 View Details $15.03

View on Model

12

W10637348 Whirlpool Screw Backorder WPL W10637348 View Details $18.97

View on Model

13

WPW10620810 Whirlpool Knob Backorder WPL WPW10620810 View Details $115.19

View on Model

14

W10618500 Whirlpool Knob Bezel Backorder WPL W10618500 View Details $105.09

View on Model

16

W10850783 Whirlpool Grate Pad Assembly Backorder WPL W10850783 View Details $25.07

View on Model

17

W10691432 Whirlpool Burner Valve Backorder WPL W10691432 View Details $127.29

View on Model

17C

W10691437 Whirlpool Burner Valve Backorder WPL W10691437 View Details $127.29

View on Model

20

W10845776 Whirlpool Wire Harness Backorder WPL W10845776 View Details $96.61

View on Model

21

W10845767 Whirlpool Mounting Bracket Backorder WPL W10845767 View Details $52.85

View on Model

21A

W10845230 Whirlpool Mounting Bracket Backorder WPL W10845230 View Details $52.85

View on Model

22

SCREW WPL W10626012 Contact Us For Availability

View on Model

23

W11601369 Whirlpool Spark Module In Stock WPL W11601369 View Details $55.73

View on Model

24

WPW10569189 Whirlpool Regulator Backorder WPL WPW10569189 View Details $169.00

View on Model

25

W10845798 Whirlpool Burner Box Backorder WPL W10845798 View Details $286.16

View on Model

26

8190978 Whirlpool Oven Mounting Bracket Backorder WPL 8190978 View Details $63.91

View on Model

27

W10392007 Whirlpool Power Cord Backorder WPL W10392007 View Details $78.97

View on Model

NI

W10618504 Whirlpool Bushing Backorder WPL W10618504 View Details $20.40

View on Model

NI

W10625905 Whirlpool Screw Backorder WPL W10625905 View Details $13.79

View on Model

NI

W10625907 Whirlpool Screw Backorder WPL W10625907 View Details $14.62

View on Model

NI

W10686629 Whirlpool Conversion Kit Backorder WPL W10686629 View Details $46.19

View on Model

NI

W10686630 Whirlpool Conversion Kit Backorder WPL W10686630 View Details $41.99

View on Model

NI

W10686634 Whirlpool Conversion Kit Backorder WPL W10686634 View Details $214.08

View on Model

NI

W10691233 Whirlpool Burner Cap Backorder WPL W10691233 View Details $237.28

View on Model

NI

W10845779 Whirlpool Wire Harness Backorder WPL W10845779 View Details $125.66

View on Model

NI

W11628754 Whirlpool Cooktop Gasket Backorder WPL W11628754 View Details $107.06

View on Model

NI

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
