Model GE JGBP26GEH3 Gas Range Or Dual Fuel – Common Parts & Diagrams

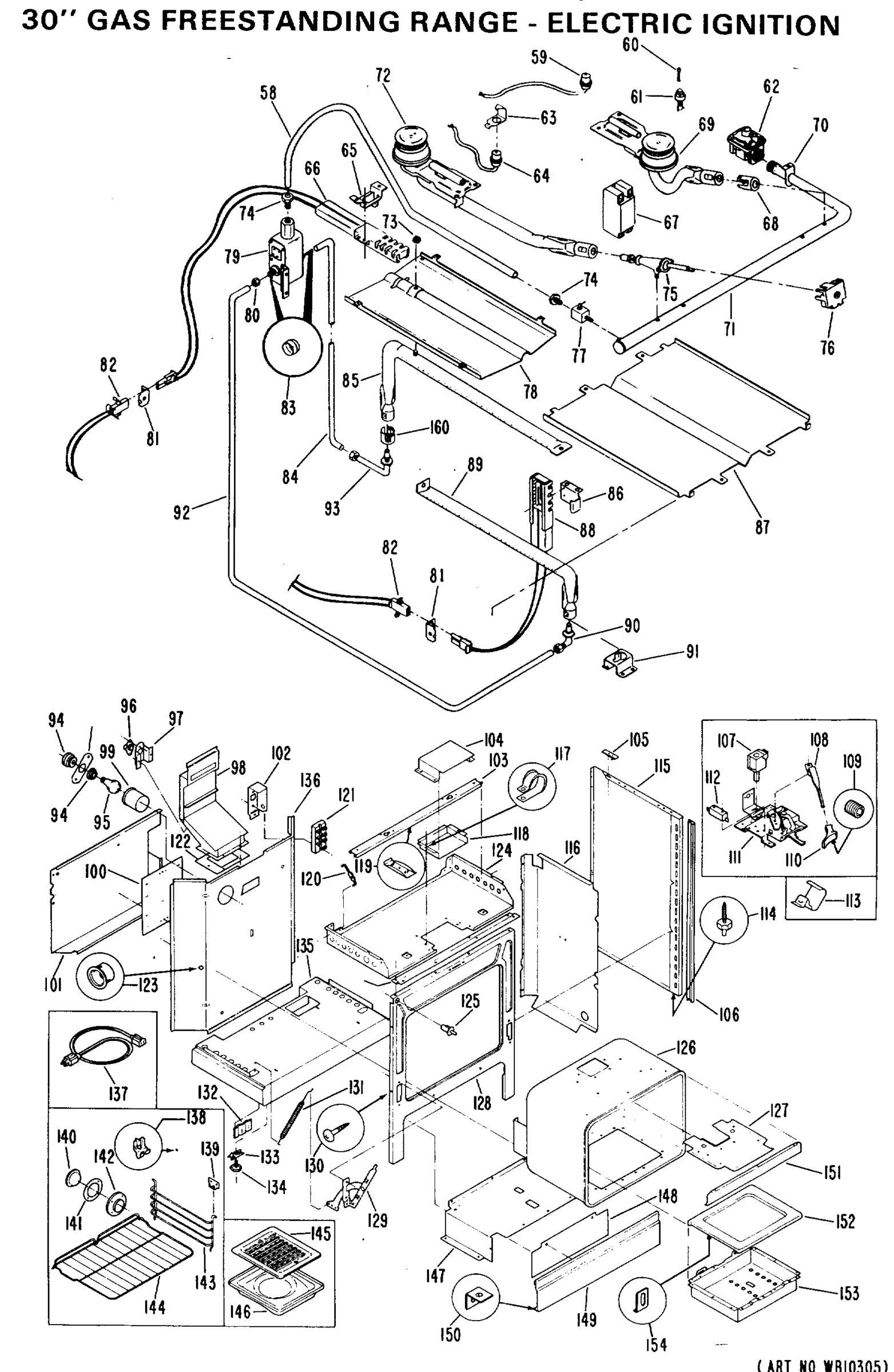

30" GAS FREESTANDING RANGE - ELECTRIC IGNITION
30" GAS FREESTANDING RANGE - ELECTRIC IGNITION
Common parts from model GE JGBP26GEH3 Gas Range Or Dual Fuel
1
GEN WB56X1756 GEN WB56X1756 Contact Us For Availability
2
GEN WB02X4665 GEN WB02X4665 Contact Us For Availability
3
RECEPTACLE-FLUOR LIGHT GEN WB08X0242 Contact Us For Availability
4
INSULATOR-FLUOR. LT. REC GEN WB02X4294 Contact Us For Availability
5
BRKT-FLUOR LIGHT GEN WB02X4295 Contact Us For Availability
6
GEN WB61X0277 GEN WB61X0277 Contact Us For Availability
7
GEN WB02X4276 GEN WB02X4276 Contact Us For Availability
8
SWITCH-SELECTOR GEN WB24X0331 Contact Us For Availability
9
LIGHT INDICATOR AMBER (1 GEN WB02X4290 Contact Us For Availability
9
GEN WB02X4291 GEN WB02X4291 Contact Us For Availability
10
LIGHT INDICATOR RED (125 GEN WB02X4288 Contact Us For Availability
10
GEN WB02X4289 GEN WB02X4289 Contact Us For Availability
11
BALLAST-FLOUR LIGHT GEN WB27X0295 Contact Us For Availability
12
THERMOSTAT-OVEN GEN WB21X0396 Contact Us For Availability
13
BRACKET-CONTROL MTG GEN WB02X4292 Contact Us For Availability
14
CLOCK-RADIAL-3 STEM GEN WB19X0209 Contact Us For Availability
15
BUSHING-CONTROL PANEL GEN WB02X4293 Contact Us For Availability
16
GEN WB02X4278 GEN WB02X4278 Contact Us For Availability
17
KNOB-THERMOSTAT GEN WB03X0629 Contact Us For Availability
18
KNOB CLOCK GEN WB03X0628 Contact Us For Availability
19
KNOB-SELECTOR SWITCH GEN WB03X0630 Contact Us For Availability
20
GEN WB61X0275 GEN WB61X0275 Contact Us For Availability
21
END CAP GEN WB07X1374 Contact Us For Availability
22
GLASS BACKGUARD GEN WB36X0682 Contact Us For Availability
23
GEN WB02X4287 GEN WB02X4287 Contact Us For Availability
24
BRACKET-BACKSPLASH MOUNT GEN WB02X4286 Contact Us For Availability
25
GEN WB32X0083 GEN WB32X0083 Contact Us For Availability
26
GEN WB32X0084 GEN WB32X0084 Contact Us For Availability
27
GEN WB07X1363 GEN WB07X1363 Contact Us For Availability
28
GEN WB62X1621 GEN WB62X1621 Contact Us For Availability
28
GEN WB62X1622 GEN WB62X1622 Contact Us For Availability
29
GEN WB07X1362 GEN WB07X1362 Contact Us For Availability
30
GEN WB02X4280 GEN WB02X4280 Contact Us For Availability
31
SWITCH-FLUORESCENT LIGHT GEN WB24X0333 Contact Us For Availability
32
SWITCH-OVEN LIGHT GEN WB24X0332 Contact Us For Availability
33
GEN WB01X0808 GEN WB01X0808 Contact Us For Availability
34
BEZEL LIGHT SWITCH GEN WB01X0626 Contact Us For Availability
35
KNOB-TOP BURNER GEN WB03X0631 Contact Us For Availability
36
PANEL CONTROL GEN WB07X1376 Contact Us For Availability
37
GEN WB55X0576 GEN WB55X0576 Contact Us For Availability
38
GEN WB01X0687 GEN WB01X0687 Contact Us For Availability
39
*FASTENER-8AU TYPE GEN WB01X0732 Contact Us For Availability
40
GEN WB01X0705 GEN WB01X0705 Contact Us For Availability
41
SEAL-DOOR GEN WB02X4296 Contact Us For Availability
42
GLASS PACKAGE (VIS. S/C) GEN WB36X0683 Contact Us For Availability
43
GEN WB55X0582 GEN WB55X0582 Contact Us For Availability
44
COVER ACCESS ALMOND GEN WB02X4487 Contact Us For Availability
44
SHIELD-WOOL (VIS.) GEN WB55X0521 Contact Us For Availability
45
FASTENER-NYLON SPACER (1 GEN WB01X0730 Contact Us For Availability
45
FASTENER SPACER RED GEN WB01X0731 Contact Us For Availability
46
GEN WB36X0679 GEN WB36X0679 Contact Us For Availability
47
BRACKET-GLASS GEN WB02X4297 Contact Us For Availability
48
GEN WB02X4283 GEN WB02X4283 Contact Us For Availability
50
PLUG BUTTON-FRONT FRAME GEN WB02X4299 Contact Us For Availability
51
GLASS-OVEN DOOR (BLACK V GEN WB36X0684 Contact Us For Availability
52
GEN WB07X1377 GEN WB07X1377 Contact Us For Availability
53
GEN WB15X0208 GEN WB15X0208 Contact Us For Availability
54
GEN WB02X4285 GEN WB02X4285 Contact Us For Availability
58
TUBE VALVE SUPPLY 7/16X26-1/2 GEN WB02X4300 Contact Us For Availability
59
BASE-IGNITOR R/H GEN WB02X4215 Contact Us For Availability
60
GEN WB01X0809 GEN WB01X0809 Contact Us For Availability
60
FUSE-5A 250V GEN WB27X0277 Contact Us For Availability
61
GEN WB02X4213 GEN WB02X4213 Contact Us For Availability
61
GEN WB02X4667 GEN WB02X4667 Contact Us For Availability
62
GEN WB21X0395 GEN WB21X0395 Contact Us For Availability
63
RETAINER HARNESS ASM GEN WB02X4214 Contact Us For Availability
64
BASE IGNITER L/H GEN WB02X4216 Contact Us For Availability
65
GEN WB02X4307 GEN WB02X4307 Contact Us For Availability
67
IGNITER MODULE BOARD GEN WB21X0389 Contact Us For Availability
68
MIXER AIR TOP BURNERS GEN WB02X4191 Contact Us For Availability
69
GEN WB28X0061 GEN WB28X0061 Contact Us For Availability
70
ANGLE SUPPORT GEN WB02X4188 Contact Us For Availability
71
GEN WB02X4298 GEN WB02X4298 Contact Us For Availability
72
GEN WB28X0062 GEN WB28X0062 Contact Us For Availability
73
NUT (10-24) BAFFLE MTG GEN WB01X0694 Contact Us For Availability
74
NUT LOXIT 7/16" GEN WB01X0713 Contact Us For Availability
75
VALVE TOP BURNERS GEN WB21X0397 Contact Us For Availability
76
SWITCH IGNITER GEN WB24X0334 Contact Us For Availability
77
VALVE-SHUT-OFF GEN WB21X0390 Contact Us For Availability
78
BAFFLE BROILER BURNER GEN WB49X0526 Contact Us For Availability
79
VALVE OVEN SAFETY GEN WB21X0398 Contact Us For Availability
80
NUT COMPRESSION 3/8" GEN WB02X4301 Contact Us For Availability
81
BRACKET CONNECTOR MTG GEN WB02X4308 Contact Us For Availability
82
GEN WB18X0219 GEN WB18X0219 Contact Us For Availability
83
FERRULE 3/8" GEN WB02X4302 Contact Us For Availability
84
TUBE BROILER SUPPLY 3/8"X14" GEN WB02X4303 Contact Us For Availability
85
BURNER BROILER GEN WB28X0046 Contact Us For Availability
86
GEN WB02X4310 GEN WB02X4310 Contact Us For Availability
87
GEN WB49X0527 GEN WB49X0527 Contact Us For Availability
88
IGNITER OVEN BURNER GEN WB02X4309 Contact Us For Availability
89
BURNER OVEN GEN WB28X0047 Contact Us For Availability
90
MIXER ELBOW (OVEN) GEN WB02X4312 Contact Us For Availability
91
GEN WB02X4311 GEN WB02X4311 Contact Us For Availability
92
TUBE OVEN SUPPLY 3/8"X54" GEN WB02X4196 Contact Us For Availability
93
GEN WB02X4304 GEN WB02X4304 Contact Us For Availability
94
GEN WB08X0243 GEN WB08X0243 Contact Us For Availability
96
SWITCH-THERMAL-DOOR LOCK GEN WB24X0337 Contact Us For Availability
96
SWITCH PRE-HEAT GEN WB24X0336 Contact Us For Availability
97
GEN WB02X4319 GEN WB02X4319 Contact Us For Availability
98
GEN WB49X0531 GEN WB49X0531 Contact Us For Availability
99
GEN WB02X4317 GEN WB02X4317 Contact Us For Availability
100
GEN WB55X0531 GEN WB55X0531 Contact Us For Availability
101
GEN WB55X0530 GEN WB55X0530 Contact Us For Availability
102
GEN WB02X4211 GEN WB02X4211 Contact Us For Availability
103
CHANNEL BURNERS SUPPORT GEN WB02X4275 Contact Us For Availability
104
GEN WB02X4322 GEN WB02X4322 Contact Us For Availability
105
GLIDE MAIN TOP GEN WB01X0708 Contact Us For Availability
106
TRIM VERTICAL GEN WB07X1364 Contact Us For Availability
107
GEN WB27X0296 GEN WB27X0296 Contact Us For Availability
108
GEN WB15X0209 GEN WB15X0209 Contact Us For Availability
109
SET SCREW KNOB GEN WB01X0734 Contact Us For Availability
110
KNOB LATCH HANDLE GEN WB03X0632 Contact Us For Availability
111
GEN WB14X0048 GEN WB14X0048 Contact Us For Availability
112
GEN WB24X0338 GEN WB24X0338 Contact Us For Availability
113
GEN WB02X4325 GEN WB02X4325 Contact Us For Availability
114
PIN BODY PANEL GUIDE GEN WB01X0733 Contact Us For Availability
115
GEN WB56X1694 GEN WB56X1694 Contact Us For Availability
115
PANEL SIDE R/H ALMOND GEN WB56X1695 Contact Us For Availability
115
GEN WB56X1696 GEN WB56X1696 Contact Us For Availability
115
PANEL SIDE R/H WHITE GEN WB56X1697 Contact Us For Availability
116
GEN WB55X0532 GEN WB55X0532 Contact Us For Availability
116
GEN WB55X0533 GEN WB55X0533 Contact Us For Availability
117
GEN WB02X4323 GEN WB02X4323 Contact Us For Availability
118
GEN WB02X4324 GEN WB02X4324 Contact Us For Availability
119
GEN WB01X0729 GEN WB01X0729 Contact Us For Availability
120
GEN WB14X0047 GEN WB14X0047 Contact Us For Availability
121
GEN WB17X0189 GEN WB17X0189 Contact Us For Availability
122
GEN WB02X4320 GEN WB02X4320 Contact Us For Availability
123
GEN WB02X0572 GEN WB02X0572 Contact Us For Availability
124
GEN WB49X0557 GEN WB49X0557 Contact Us For Availability
125
GEN WB24X0335 GEN WB24X0335 Contact Us For Availability
127
GEN WB55X0525 GEN WB55X0525 Contact Us For Availability
129
HINGE L/H GEN WB14X0044 Contact Us For Availability
129
HINGE R/H GEN WB14X0045 Contact Us For Availability
131
GEN WB09X0201 GEN WB09X0201 Contact Us For Availability
132
CHANNEL STIFFENER GEN WB02X4315 Contact Us For Availability
133
FASTENER GEN WB01X0710 Contact Us For Availability
134
LEG LEVELING GEN WB01X0711 Contact Us For Availability
135
GEN WB49X0552 GEN WB49X0552 Contact Us For Availability
136
GEN WB49X0530 GEN WB49X0530 Contact Us For Availability
137
GEN WB18X0214 GEN WB18X0214 Contact Us For Availability
138
GEN WB02X4329 GEN WB02X4329 Contact Us For Availability
139
GEN WB02X4330 GEN WB02X4330 Contact Us For Availability
140
GEN WB02X4326 GEN WB02X4326 Contact Us For Availability
141
GEN WB02X4327 GEN WB02X4327 Contact Us For Availability
142
GEN WB02X4328 GEN WB02X4328 Contact Us For Availability
143
GEN WB48X0184 GEN WB48X0184 Contact Us For Availability
144
GEN WB48X0170 GEN WB48X0170 Contact Us For Availability
147
GEN WB55X0529 GEN WB55X0529 Contact Us For Availability
148
GEN WB55X0528 GEN WB55X0528 Contact Us For Availability
149
BOTTOM PANEL GEN WB56X1691 Contact Us For Availability
150
GEN WB02X4314 GEN WB02X4314 Contact Us For Availability
151
GEN WB56X0527 GEN WB56X0527 Contact Us For Availability
152
BOTTOM OVEN GEN WB55X0526 Contact Us For Availability
153
GEN WB49X0528 GEN WB49X0528 Contact Us For Availability
154
GEN WB02 GEN WB02 Contact Us For Availability
9999
GEN 31-0468 GEN 31-0468 Contact Us For Availability
9999
GEN 49-4680 GEN 49-4680 Contact Us For Availability
× ![]()
