Model Whirlpool JG3127WTV GAS RANGE – Common Parts & Diagrams
06 - TOP ASSEMBLY

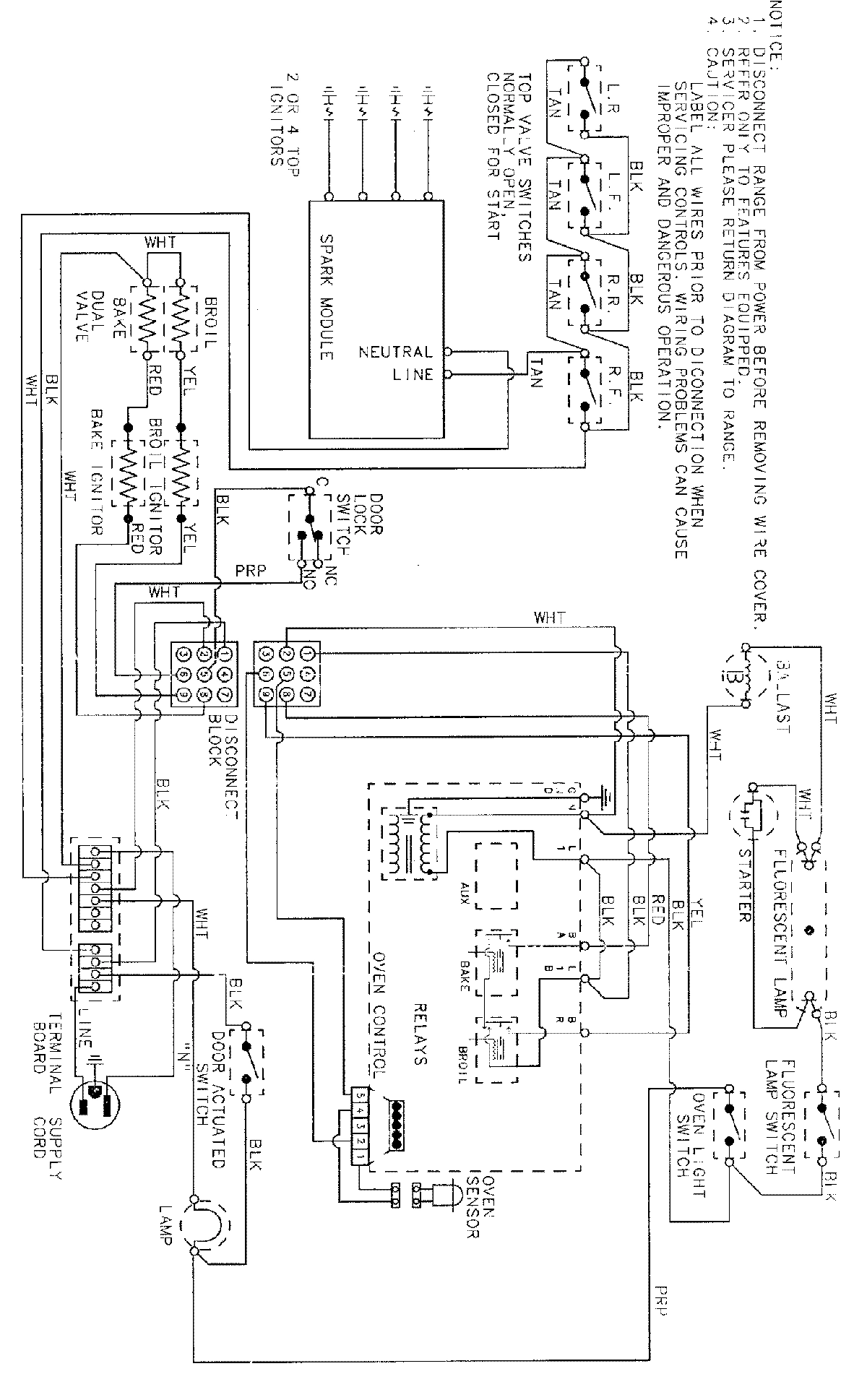

07 - WIRING INFORMATION

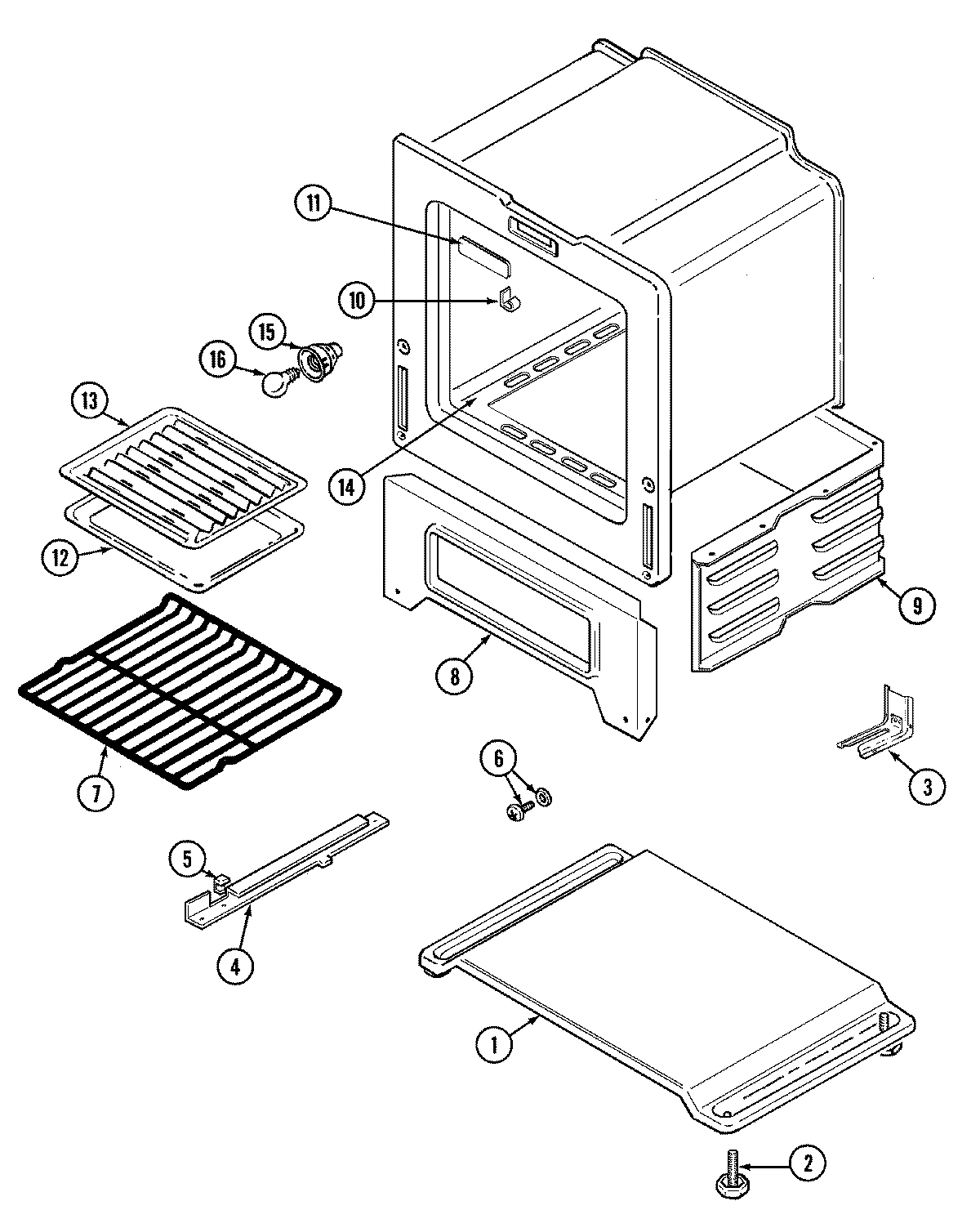

05 - OVEN/BASE

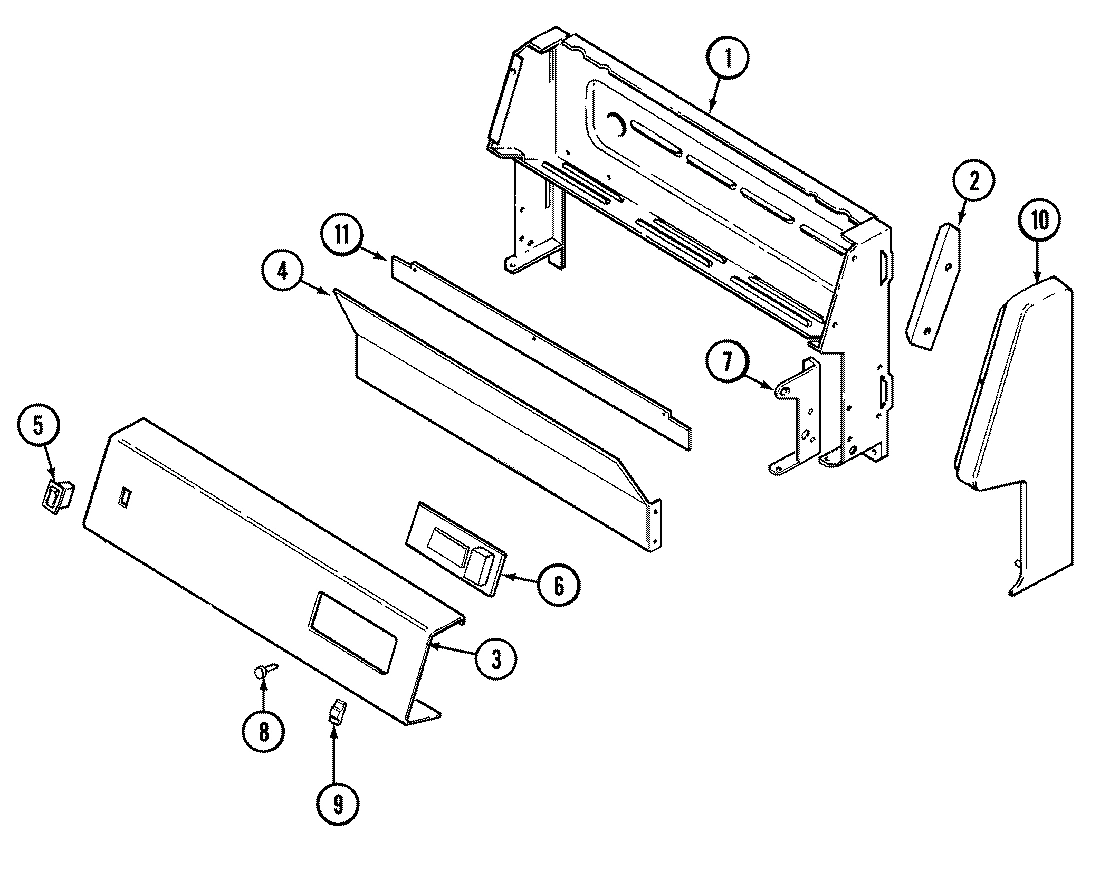

02 - CONTROL PANEL

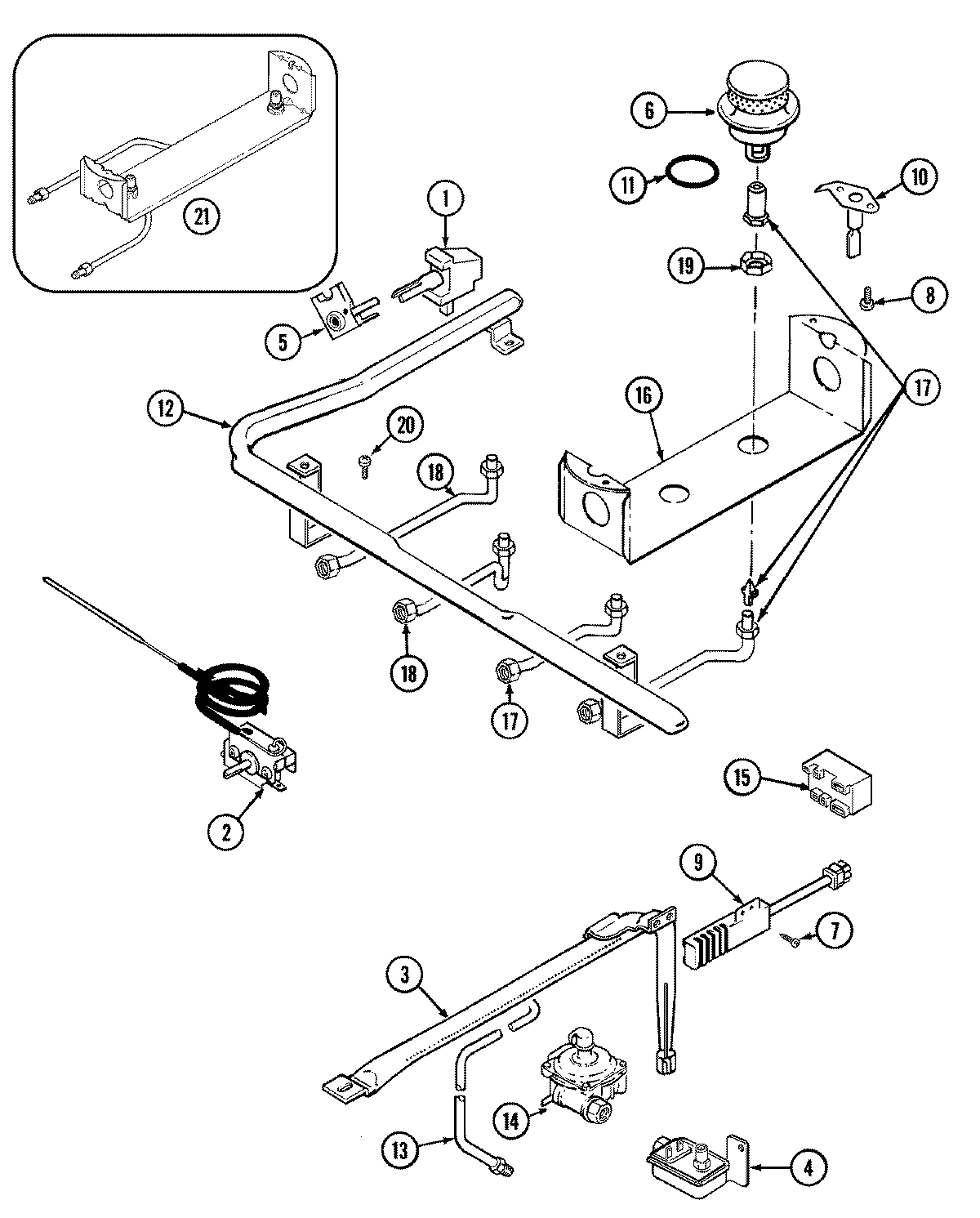

04 - GAS CONTROL

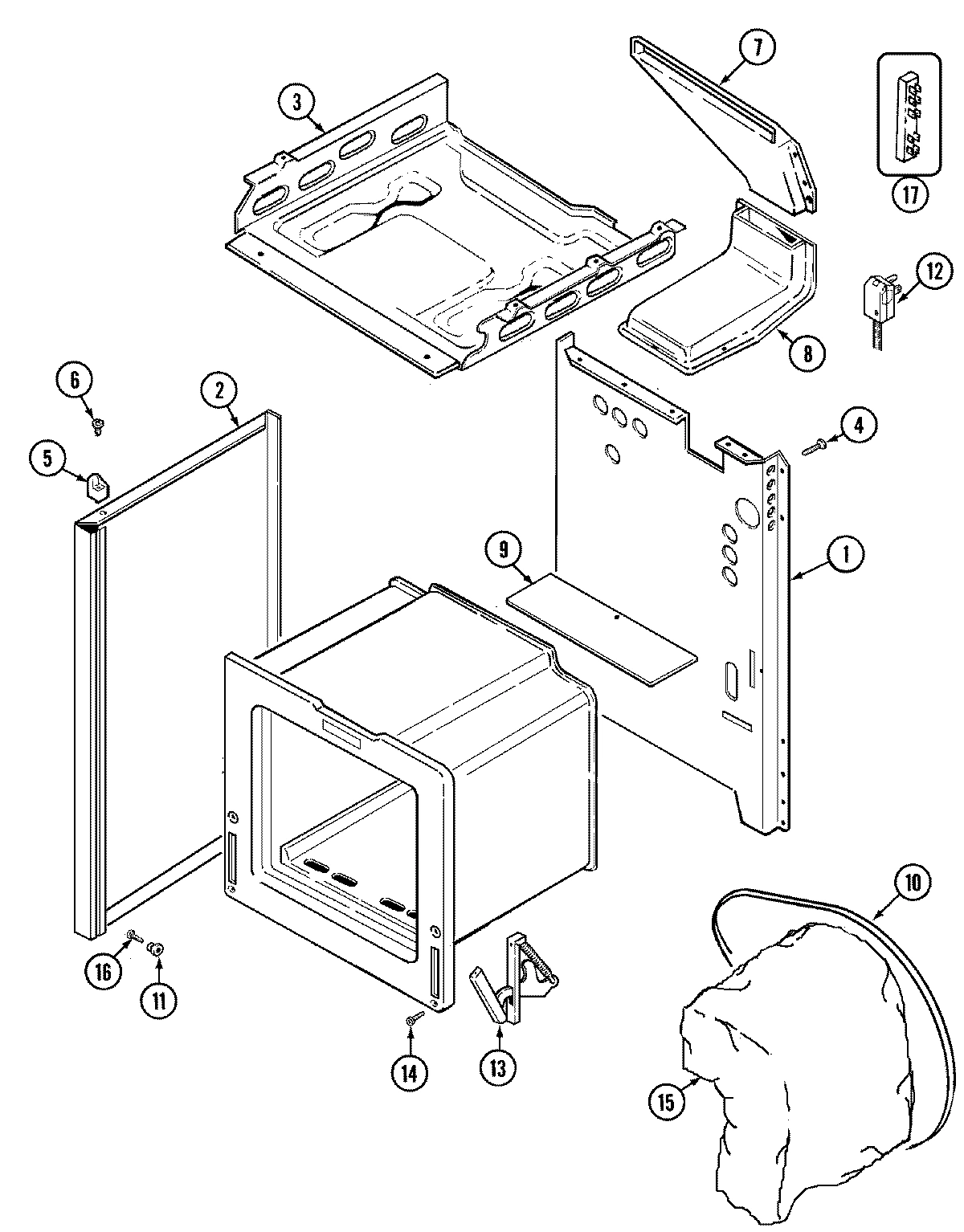

01 - BODY

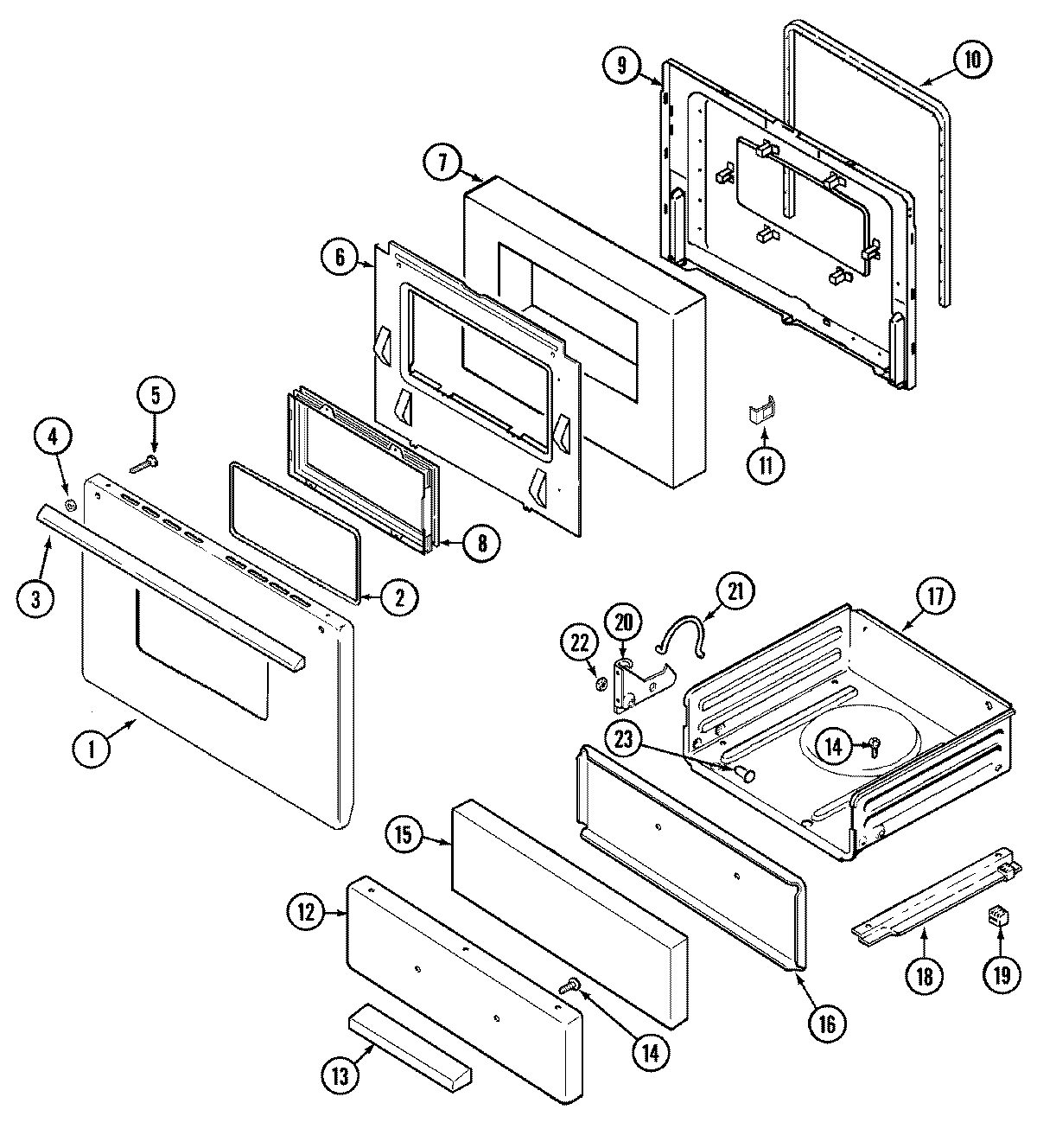

03 - DOOR/DRAWER
Common parts from model Whirlpool JG3127WTV GAS RANGE
1
TOP, MAIN (WHT) WPL 2001W08581 Contact Us For Availability
1
BASE WPL 4003W02980 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P23260 Contact Us For Availability
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F09771 Contact Us For Availability
2
TRIM, VENT (DARK GRAY) WPL 3608F04226 Contact Us For Availability
2
LEG, LEVELING WPL 74001311 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
2
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
2
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
2
THERMOSTAT WPL 7404P08760 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
3
GRATE (GRAY) WPL 2003W02626 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW WPL 7101P34460 Contact Us For Availability
3
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
3
PANEL ASSY., CONTROL WPL 74002902 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
SCREW WPL 7118P01860 Contact Us For Availability
4
SHIELD WPL 8036P00160 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
VALVE, OVEN WPL 7501P13760 Contact Us For Availability
4
SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability
5
PANEL, MANIFOLD (WHT) WPL 7712P17260 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
5
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
6
SCREW WPL 7101P29360 Contact Us For Availability
6
CLOCK WPL 7602P10460 Contact Us For Availability
6
SEALED BURNER ASSY. (GRY) WPL 3412D01826 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
7
KNOB, THERMOSTAT (WHT----NA WPL 7731P07860 Contact Us For Availability
7
RACK, OVEN WPL 7801P04760 Contact Us For Availability
7
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
7
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
7
WASHER WPL 7109P02060 Contact Us For Availability
7
SCREW WPL 7118P01960 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
7
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
8
KNOB, VALVE (WHT) WPL 7733P04660 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
8
BUTTON, SET (WHT) WPL 7711P47360 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
WINDOW ASY. WPL 7907P01760 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
SIDES, BROILER WPL 4016F04445 Contact Us For Availability
9
SCREW WPL 7118P01360 Contact Us For Availability
9
BUTTON, SLIDE (WHT)----NA WPL 7711P47260 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
SUPPORT, OVEN BACK INSULATION WPL 3807F41651 Contact Us For Availability
9
LINING, DOOR WPL 2402W21219 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
SCREW WPL 7101P31860 Contact Us For Availability
10
END CAP (RT-WHT) WPL 7726P09760 Contact Us For Availability
10
END CAP (LT-WHT)----NA WPL 7726P09860 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
11
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
11
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
11
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
11
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
12
NUT, SPEED WPL 7103P12960 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
HARNESS, BACKGUARD WPL 5180D14060 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
13
GLIDE WPL 8016P01360 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
MANUAL, USE & CARE WPL 16007436 Contact Us For Availability
13
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
14
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
14
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
PIPE, NIPPLE WPL 7507P12360 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P06360 Contact Us For Availability
14
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
15
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
15
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
15
INSULATION WPL 4804F02560 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
16
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
17
FITTING, ORIFICE (REAR) WPL 7507P15960 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
18
FITTING, ORIFICE (FRT) WPL 7507P11060 Contact Us For Availability
18
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
18
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
19
PALNUT WPL 7103P11960 Contact Us For Availability
19
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
19
GLIDE, DRAWER REAR WPL 8016P01260 Contact Us For Availability
20
SCREW WPL 7101P29660 Contact Us For Availability
20
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
20
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
21
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
21
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
21
ORIFICE FITTING ASSEMBLY WPL 5187D02660 Contact Us For Availability
21
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
21
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
22
NUT, GRIP WPL 7103P02260 Contact Us For Availability
23
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001546 Contact Us For Availability
× ![]()
