Model Whirlpool JF42SEFXDB01 REFRIGERATOR – Common Parts & Diagrams

1
Crisper Pan Assembly (Includes 2) (Right)
Crisper Pan Assembly (Includes 2) (Right) WPL 2268171 Contact Us For Availability
View on Model
1
Liner, Freezer (Not Servicable)
Liner, Freezer (Not Servicable) WPL ARI3299A86 Contact Us For Availability
View on Model
1
Door, Refrigerator (Includes Item 2) (Right)
Door, Refrigerator (Includes Item 2) (Right) WPL W10192508 Contact Us For Availability
View on Model
1
Door, Refrigerator (Includes Item 2) (Left)
Door, Refrigerator (Includes Item 2) (Left) WPL W10192510 Contact Us For Availability
View on Model
1

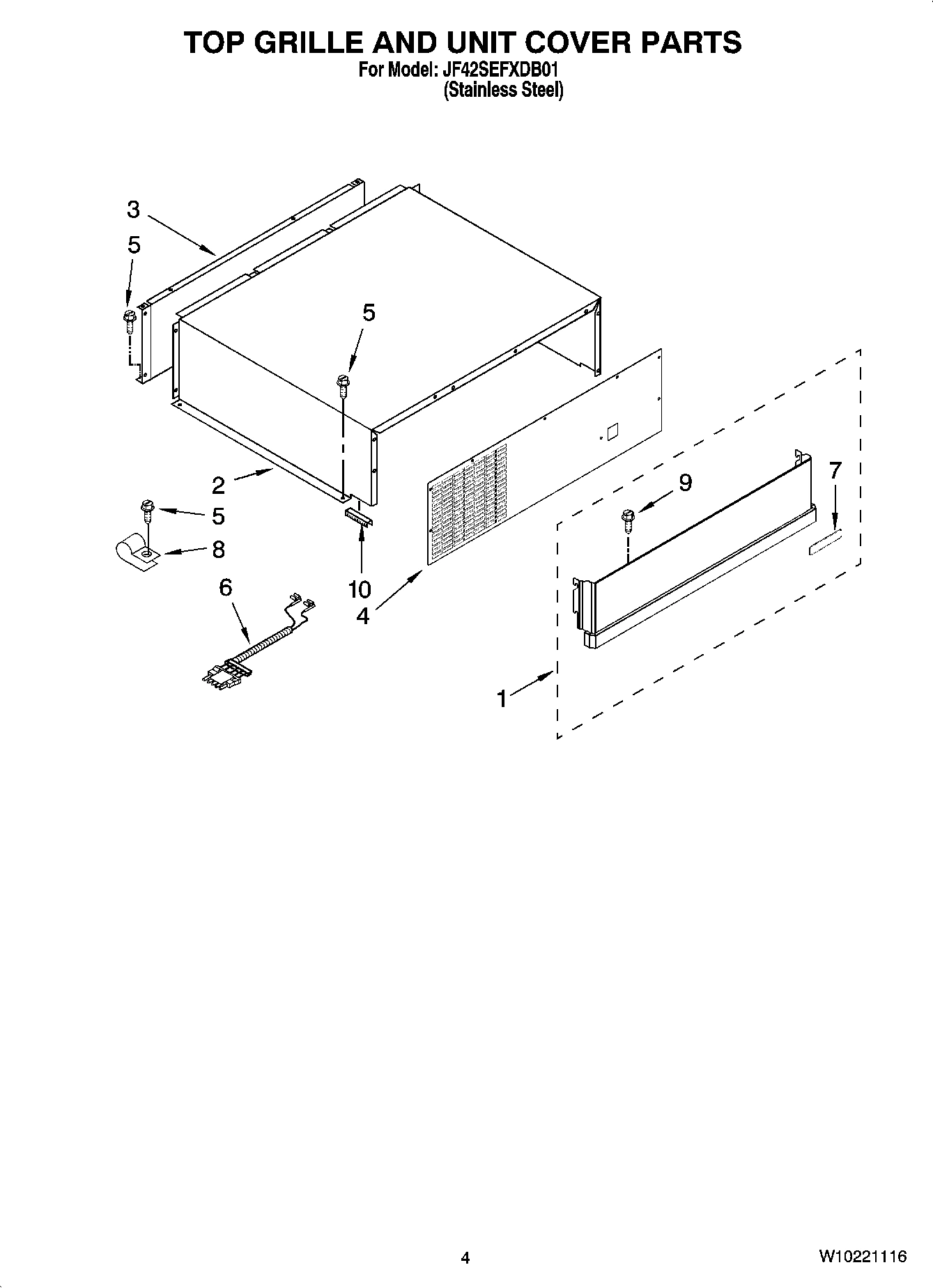

Top Grille Assembly
Top Grille Assembly WPL W10162618 Contact Us For Availability
View on Model
1
Tube, Transition (Condenser)
Tube, Transition (Condenser) WPL 2309072 Contact Us For Availability
View on Model
2
Cover, Unit
Cover, Unit WPL W10161693 Contact Us For Availability
View on Model
4
Front, Unit Cover
Front, Unit Cover WPL 2307682 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL W10061370 Contact Us For Availability
View on Model
5
Bracket, Mounting
Bracket, Mounting WPL 2307945 Contact Us For Availability
View on Model
6
Tube, Suction
Tube, Suction WPL 2309076 Contact Us For Availability
View on Model
6
Cover, Light Switch
Cover, Light Switch WPL 2314022 Contact Us For Availability
View on Model
7
Cam, Mullion (Bottom)
Cam, Mullion (Bottom) WPL 2316858 Contact Us For Availability
View on Model
7
Bottom Hinge Assembly (Right)
Bottom Hinge Assembly (Right) WPL 2316751 Contact Us For Availability
View on Model
7
Cam, Mullion (Top)
Cam, Mullion (Top) WPL 2316857 Contact Us For Availability
View on Model
7
Nameplate
Nameplate WPL W10159580 Contact Us For Availability
View on Model
8
Transformer
Transformer WPL 2303033 Contact Us For Availability
View on Model
8
Skin, Door
Skin, Door WPL W10183779 Contact Us For Availability
View on Model
8
Scroll Assembly
Scroll Assembly WPL 2306178 Contact Us For Availability
View on Model
9
SEAL-TRIM, SIDE
SEAL-TRIM, SIDE WPL 2005925 Contact Us For Availability
View on Model
9
Ice Pan Assembly (Includes 10)
Ice Pan Assembly (Includes 10) WPL 2306174 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL W10004850 Contact Us For Availability
View on Model
10
Motor, Fan
Motor, Fan WPL 2259385 Contact Us For Availability
View on Model
11
Switch Assembly, Icemaker (Includes Emitter)
Switch Assembly, Icemaker (Includes Emitter) WPL 2268299 Contact Us For Availability
View on Model
12
Cover, Wiring (Icemaker)
Cover, Wiring (Icemaker) WPL 2306187 No Longer Available
View on Model
12
Diffuser Assembly
Diffuser Assembly WPL 2320523 Contact Us For Availability
View on Model
12
Filler, Foam
Filler, Foam WPL 2309218 Contact Us For Availability
View on Model
13
Spacer, Door Edge (Handle Side)
Spacer, Door Edge (Handle Side) WPL 2314068 Contact Us For Availability
View on Model
14
Defrost Bi-Metal
Defrost Bi-Metal WPL W10139165 Contact Us For Availability
View on Model
14
Cover, Evaporator
Cover, Evaporator WPL 2306100 Contact Us For Availability
View on Model
14
Spacer, Door Edge (Hinge Side)
Spacer, Door Edge (Hinge Side) WPL 2316768 Contact Us For Availability
View on Model
15
Spacer, Door Edge (Top / Bottom)
Spacer, Door Edge (Top / Bottom) WPL 2309204 Contact Us For Availability
View on Model
17
Diffuser, Crisper (Complete)(2)
Diffuser, Crisper (Complete)(2) WPL 2268249 Contact Us For Availability
View on Model
17
Screw, Door Stop
Screw, Door Stop WPL W10005070 Contact Us For Availability
View on Model
17
Cover, Box
Cover, Box WPL W10153595 Contact Us For Availability
View on Model
18
Cover
Cover WPL 2257538 Contact Us For Availability
View on Model
18
Cover, Wiring
Cover, Wiring WPL W10151288 Contact Us For Availability
View on Model
19
Mullion Assembly
Mullion Assembly WPL 2307938 Contact Us For Availability
View on Model
20
Divider, Freezer Bins (Includes Receiver)
Divider, Freezer Bins (Includes Receiver) WPL 2317925 Contact Us For Availability
View on Model
20
Block, Evaporator Water Filter
Block, Evaporator Water Filter WPL 2306180 Contact Us For Availability
View on Model
22
SHIELD
SHIELD WPL 2317927 Contact Us For Availability
View on Model
23
Support, Slide (Left)
Support, Slide (Left) WPL 2306105 Contact Us For Availability
View on Model
23
Clip, Heater
Clip, Heater WPL 2317920 Contact Us For Availability
View on Model
24
Bracket, Evaporator Cover (Right Side)
Bracket, Evaporator Cover (Right Side) WPL 2317893 Contact Us For Availability
View on Model
24
Bracket, Evaporator Cover (Left Side)
Bracket, Evaporator Cover (Left Side) WPL 2320512 Contact Us For Availability
View on Model
26
Bracket, Air Return
Bracket, Air Return WPL W10121940 Contact Us For Availability
View on Model
26
Clamp, Tube
Clamp, Tube WPL 488937 Contact Us For Availability
View on Model
30
WASHER
WASHER WPL W10075920 Contact Us For Availability
View on Model
32
Skirt, Grille (Bottom)
Skirt, Grille (Bottom) WPL 2209025B Contact Us For Availability
View on Model
32
Air Deflector Asy
Air Deflector Asy WPL W10135430 Contact Us For Availability
View on Model
34
Grille Base, Front
Grille Base, Front WPL 2325188B Contact Us For Availability
View on Model
35
Bracket, Mounting (Power Switch)
Bracket, Mounting (Power Switch) WPL 2307684 Contact Us For Availability
View on Model
NI
Valve, Access (5/8``)
Valve, Access (5/8``) WPL 978029 Contact Us For Availability
View on Model
NI
Cleaner, Stainless Steel
Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability
View on Model
NI
Following Parts Not Illustrated (Optional Par
Following Parts Not Illustrated (Optional Par WPL ARI3302A49 Contact Us For Availability
View on Model
