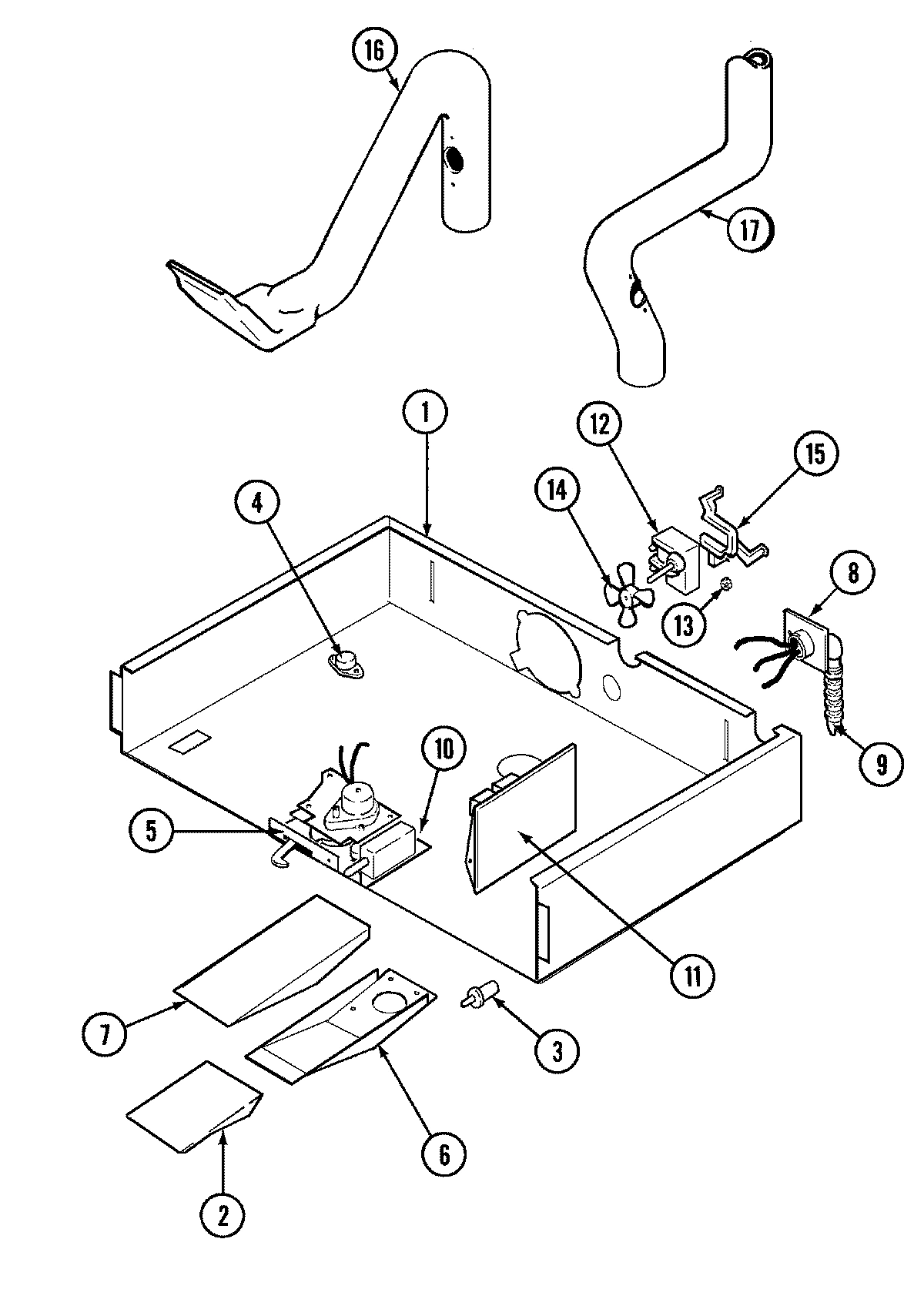

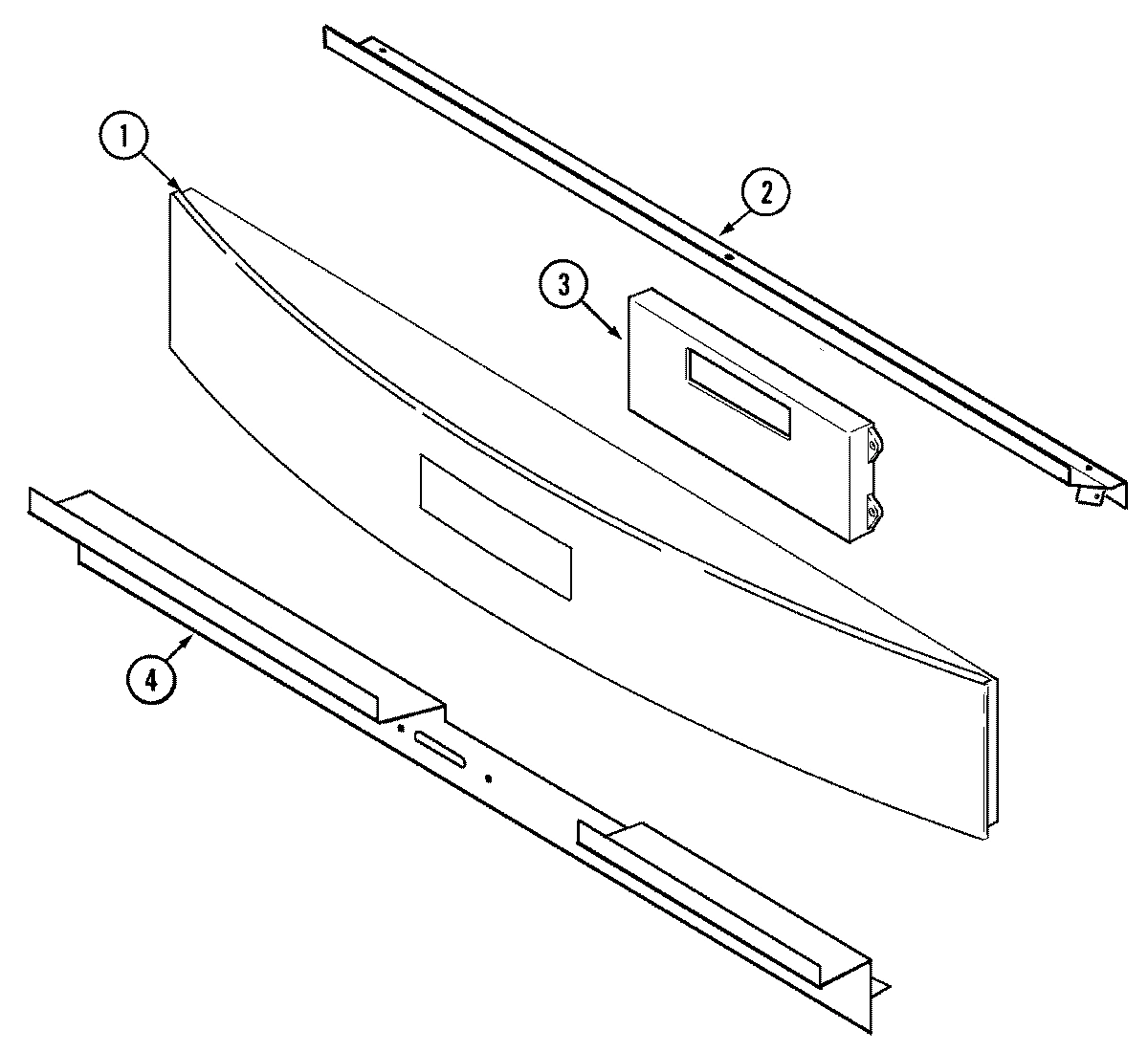

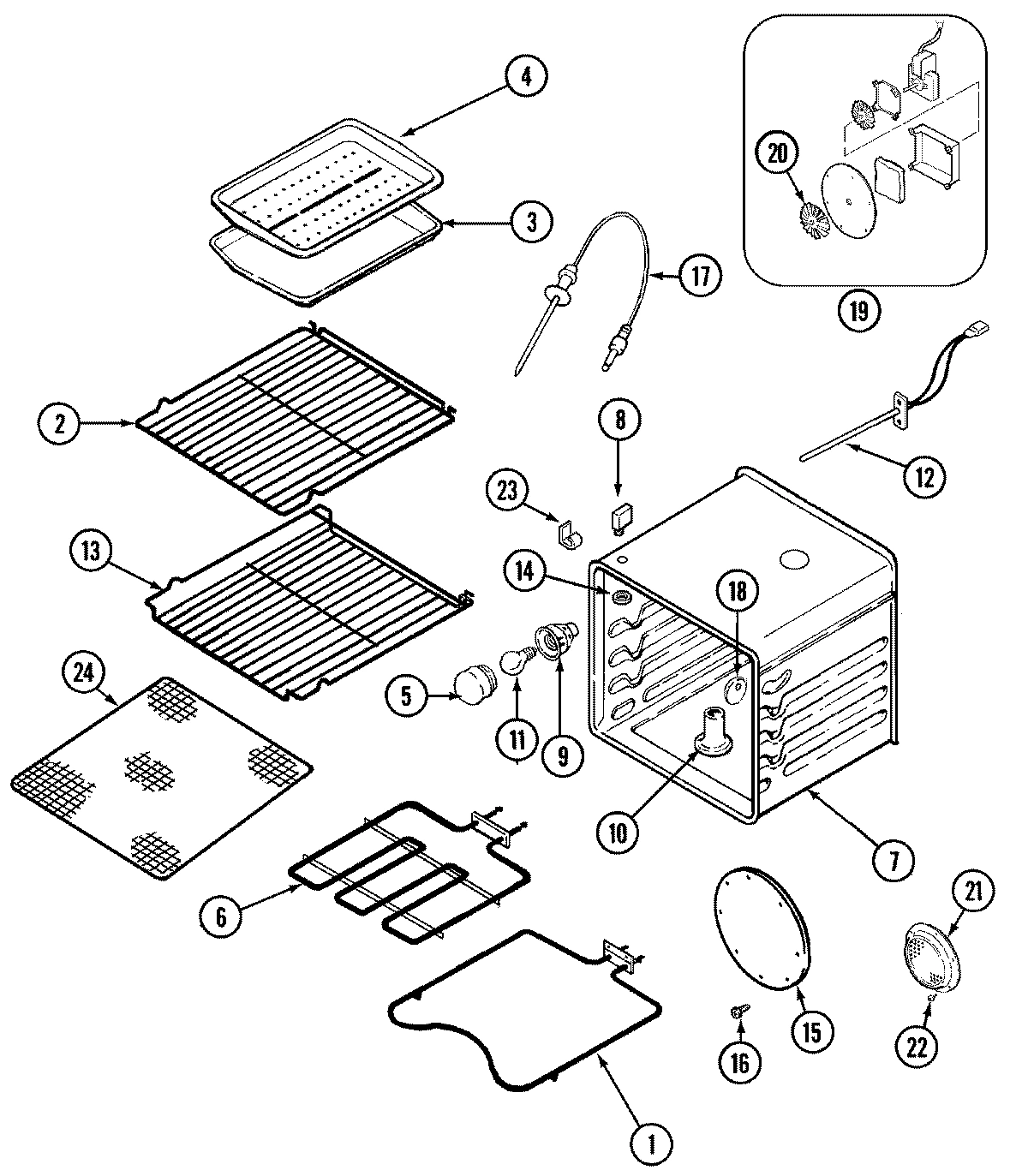

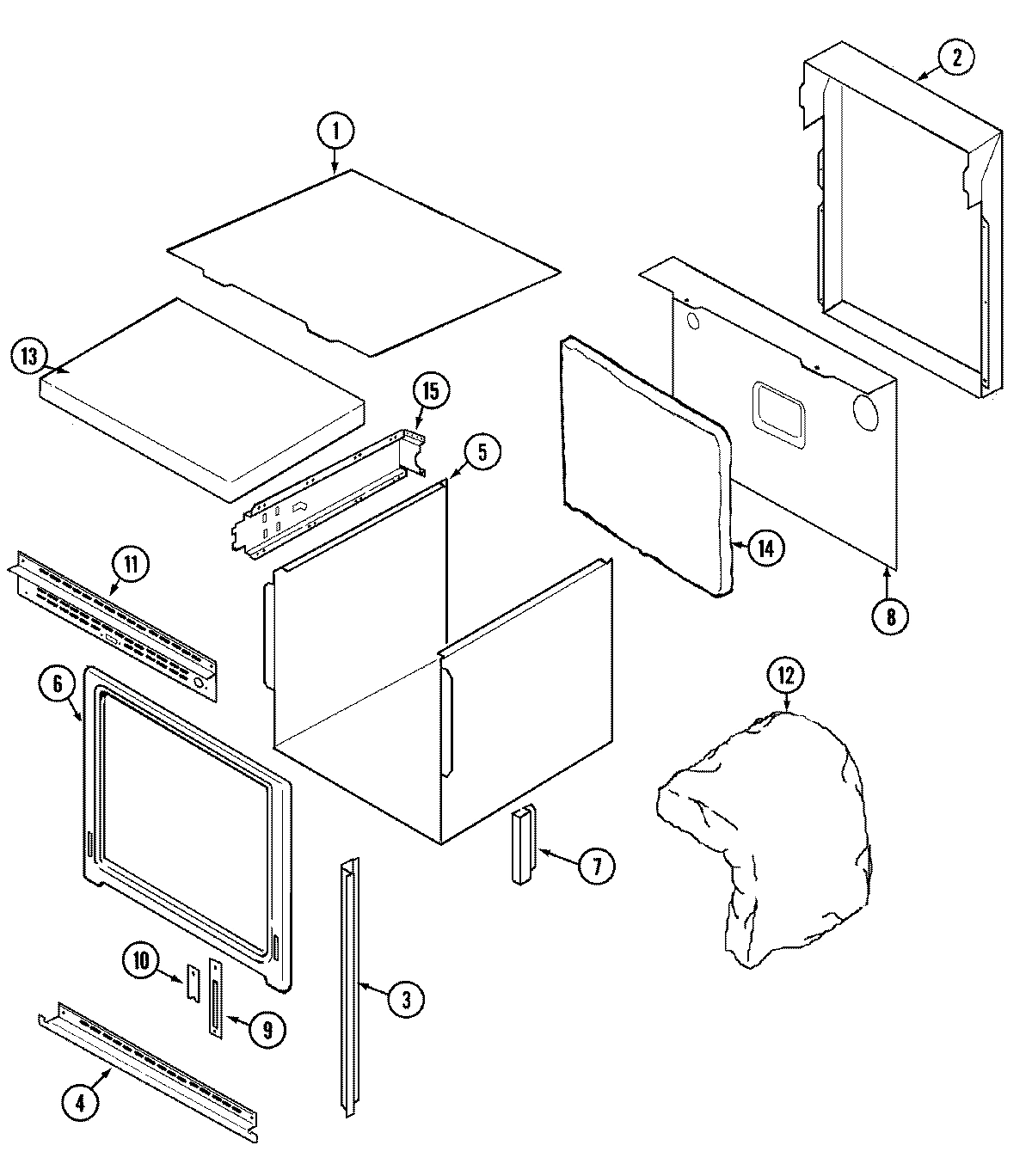

Model Whirlpool JEW9630ACW ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

WPW10310258 Whirlpool Bake Element In Stock WPL WPW10310258 $138.66

1

TOP, OVEN (OUTER) WPL 71001811 Contact Us For Availability

1

PANEL, TOP (INR-CTR) WPL 71001885 Contact Us For Availability

1

PANEL, INNER TOP WPL 71001842 Contact Us For Availability

1

CONTROL PANEL ASSY (WHT) WPL 71003453 Contact Us For Availability

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $118.37

2

BACK, OUTER (UPR) WPL 71001878 Contact Us For Availability

2

BACK, OUTER (LWR) WPL 71001883 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

2

SUPPORT, TOP WPL 71003405 Contact Us For Availability

3

WP71003401-includeCORE Whirlpool WP71003401 C Backorder WPL WP71003401-includeCORE $344.17

3

SCREW WPL 71001827 Contact Us For Availability

3

TRIM, SIDE (LT-WHT)----NA WPL 71003407 Contact Us For Availability

3

TRIM, SIDE (RT-WHT) WPL 71003408 Contact Us For Availability

3

PAN, BROIL WPL 3401F01419 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

4

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $148.74

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

4

TRIM, OVEN (LWR-WHT) WPL 71001821 Contact Us For Availability

4

THERMOSTAT, FIXED WPL 71001887 Contact Us For Availability

4

TRIM, CONTROL PANEL WPL 71001804 Contact Us For Availability

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

5

PANEL, OVEN (SIDE/BTM/SIDE) WPL 71001814 Contact Us For Availability

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

5

HARNESS, WIRE CONTROL (J2) WPL 71001798 Contact Us For Availability

5

HARNESS, CONTROL (J10-UPR) WPL 71001806 Contact Us For Availability

5

HARNESS, SUPPLY (J1) WPL 71001807 Contact Us For Availability

5

HARNESS, DOOR SWITCH (UPR) WPL 71001808 Contact Us For Availability

5

HARNESS, DOOR LOCK (UPR) WPL 71001809 Contact Us For Availability

5

HARNESS, CONVECT WPL 71001861 Contact Us For Availability

5

HARNESS, MEAT PROBE WPL 71001868 Contact Us For Availability

5

HARNESS, CONTROL (J9-LWR) WPL 71001875 Contact Us For Availability

5

HARNESS, DOOR SWITCH (LWR) WPL 71001876 Contact Us For Availability

5

HARNESS, DOOR LOCK (LWR) WPL 71001877 Contact Us For Availability

5

HARNESS, RELAY BOARD (J7) WPL 71001892 Contact Us For Availability

5

HARNESS, TOUCH PAD/CLOCK WPL 71003403 Contact Us For Availability

5

HARNESS, CONTROL/RELAY BOARD WPL 71003404 Contact Us For Availability

6

FRAME, OVEN WPL 71003180 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

6

GUIDE, COOKING WPL 71002782 Contact Us For Availability

6

GUIDE, COOKING (FCH) WPL 71002938 Contact Us For Availability

6

MANUAL, USE & CARE WPL 71003509 Contact Us For Availability

6

MANUAL, USE & CARE (FCH) WPL 71003510 Contact Us For Availability

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $213.49

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003005 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

8

BACK, OVEN (INNER) WPL 71001816 Contact Us For Availability

8

RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability

8

CLAMP, CONDUIT WPL 701692 Contact Us For Availability

9

PLATE, HINGE COVER WPL 71001815 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

WIRE CABLE ASSY. WPL 71001888 Contact Us For Availability

10

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

10

TUBE, VENT WPL 71002419 Contact Us For Availability

10

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

EXTRUSION, CENTER (BLK) WPL 71003400 Contact Us For Availability

BOARD, RELAY (UPPER) WPL 71003412 Contact Us For Availability

BOARD, RELAY (LOWER) WPL 71003413 Contact Us For Availability

12

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

12

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

12

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

13

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

13

INSULATION (TOP-BTM) WPL 71001820 Contact Us For Availability

14

INSULATION (BACK-TOP) WPL 71002329 Contact Us For Availability

14

NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability

14

BLADE, FAN WPL 71001852 Contact Us For Availability

PLATE, COVER (CENTER SUPPORT) WPL 71003411 Contact Us For Availability

SUPPORT (CTR) WPL Y04100669 Contact Us For Availability

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

BRACKET, FAN WPL 71001853 Contact Us For Availability

16

TUBE, VENT (UPR) WPL 71002417 Contact Us For Availability

17

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $171.29

17

TUBE, VENT (LWR) WPL 71002418 Contact Us For Availability

18

BUTTON, PLUG WPL 702929 Contact Us For Availability

19

CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability

20

WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability

21

PLATE, CONVECTION (FRT) WPL 71001854 Contact Us For Availability

22

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

22

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

23

CLIP, OVEN WPL 71001170 Contact Us For Availability

24

74007237 Whirlpool Spacer Backorder WPL 74007237 $40.16

24

RACK, DEHYDRATION WPL 74003595 Contact Us For Availability

25

WIRE, GROUND WPL 71001869 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002515 Contact Us For Availability
