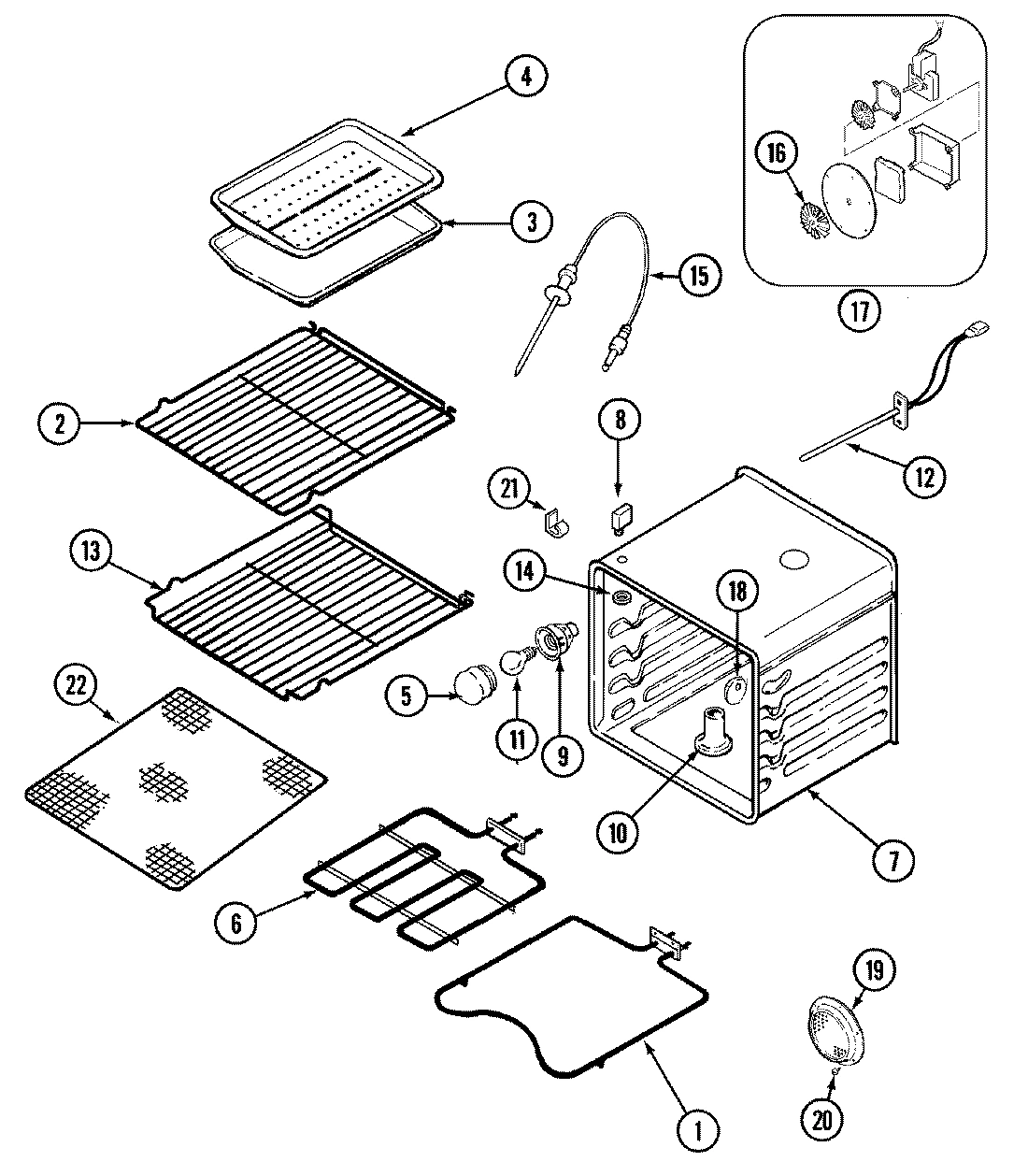

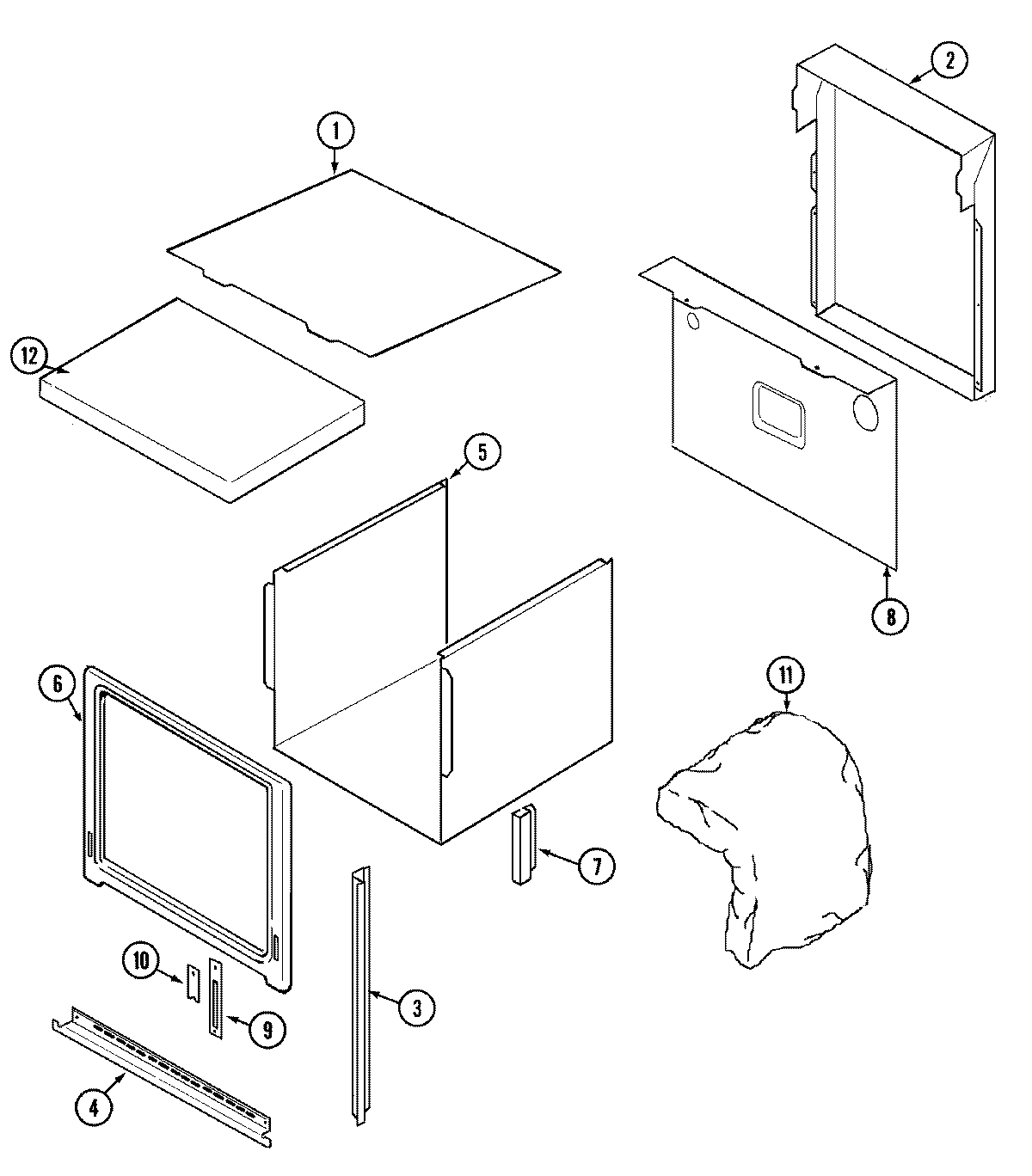

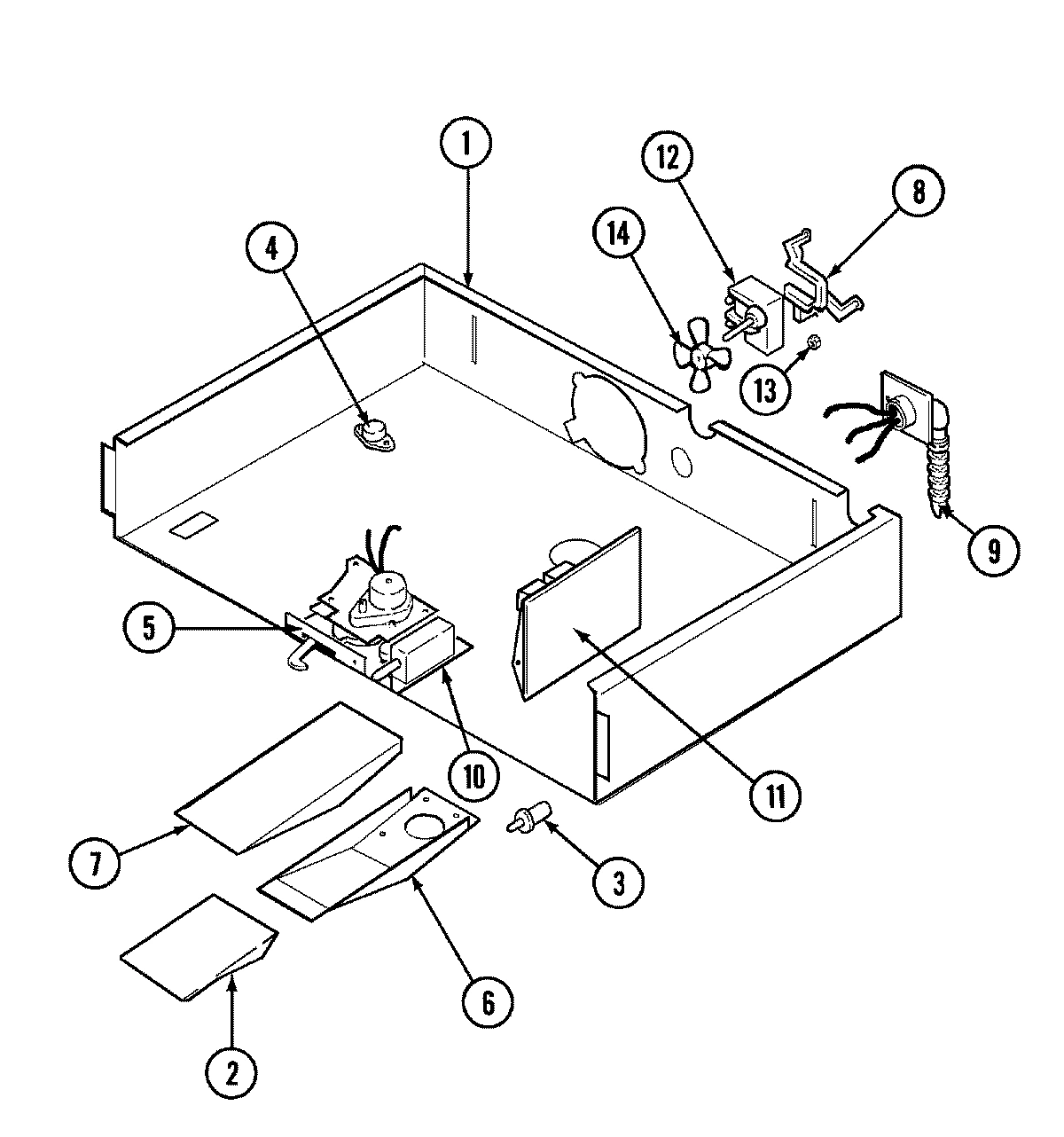

Model Whirlpool JEW9530ACW ELECTRIC WALL OVEN – Common Parts & Diagrams

1
PANEL, INNER TOP
PANEL, INNER TOP WPL 71001842 Contact Us For Availability
View on Model
1
TOP, OVEN (OUTER)
TOP, OVEN (OUTER) WPL 71001811 Contact Us For Availability
View on Model
2
EXTENSION, VENT
EXTENSION, VENT WPL 71001843 Contact Us For Availability
View on Model
2
COVER, MAIN BACK
COVER, MAIN BACK WPL 71001813 Contact Us For Availability
View on Model
3
SWITCH, DOOR LOCK
SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability
View on Model
3
TRIM, SIDE (LT-WHT)
TRIM, SIDE (LT-WHT) WPL 71003420 Contact Us For Availability
View on Model
3
TRIM, SIDE (RT-WHT)
TRIM, SIDE (RT-WHT) WPL 71003421 Contact Us For Availability
View on Model
4
TRIM, OVEN (LWR-WHT)
TRIM, OVEN (LWR-WHT) WPL 71001821 Contact Us For Availability
View on Model
5
LATCH, DOOR ASSY.
LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability
View on Model
5
PANEL, OVEN (SIDE/BTM/SIDE)
PANEL, OVEN (SIDE/BTM/SIDE) WPL 71001814 Contact Us For Availability
View on Model
6
VENT (BTM)
VENT (BTM) WPL 71001846 Contact Us For Availability
View on Model
6
FRAME, OVEN
FRAME, OVEN WPL 71003180 Contact Us For Availability
View on Model
7
VENT (TOP)
VENT (TOP) WPL 71001847 Contact Us For Availability
View on Model
7
WASHER, ALUM
WASHER, ALUM WPL 71001403 Contact Us For Availability
View on Model
7
OVEN WELD ASSY.
OVEN WELD ASSY. WPL 71003005 Contact Us For Availability
View on Model
8
BRACKET, FAN
BRACKET, FAN WPL 71001853 Contact Us For Availability
View on Model
8
BACK, OVEN (INNER)
BACK, OVEN (INNER) WPL 71001816 Contact Us For Availability
View on Model
8
RECEPTACLE, PROBE
RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability
View on Model
9
WIRE CABLE ASSY.
WIRE CABLE ASSY. WPL 71001848 Contact Us For Availability
View on Model
9
PLATE, HINGE COVER
PLATE, HINGE COVER WPL 71001815 Contact Us For Availability
View on Model
9
RECEPTACLE, BULB
RECEPTACLE, BULB WPL 71001866 Contact Us For Availability
View on Model
10
SWITCH, DOOR LIGHT
SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability
View on Model
10
PLATE, HINGE TRAP
PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability
View on Model
10
TUBE, VENT
TUBE, VENT WPL 71002419 Contact Us For Availability
View on Model
11
BOARD, RELAY (UPPER)
BOARD, RELAY (UPPER) WPL 71003412 Contact Us For Availability
View on Model
11
INSULATION (WRAP)
INSULATION (WRAP) WPL 71001817 Contact Us For Availability
View on Model
12
FAN MOTOR ASSY.
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
View on Model
12
INSULATION (TOP-BTM)
INSULATION (TOP-BTM) WPL 71001820 Contact Us For Availability
View on Model
12
INSULATION (BACK-TOP)
INSULATION (BACK-TOP) WPL 71002329 Contact Us For Availability
View on Model
14
BLADE, FAN
BLADE, FAN WPL 71001852 Contact Us For Availability
View on Model
14
NUT, HEX 3/8``
NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability
View on Model
16
WHEEL, CONVECT ASSY.
WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability
View on Model
17
CONVECTION MTR ASSY
CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability
View on Model
18
BUTTON, PLUG
BUTTON, PLUG WPL 702929 Contact Us For Availability
View on Model
19
PLATE, CONVECTION (FRT)
PLATE, CONVECTION (FRT) WPL 71001854 Contact Us For Availability
View on Model
21
CLIP, OVEN
CLIP, OVEN WPL 71001170 Contact Us For Availability
View on Model
22
RACK, DEHYDRATION
RACK, DEHYDRATION WPL 74003595 Contact Us For Availability
View on Model
24
WIRE, GROUND
WIRE, GROUND WPL 71001869 Contact Us For Availability
View on Model
NI

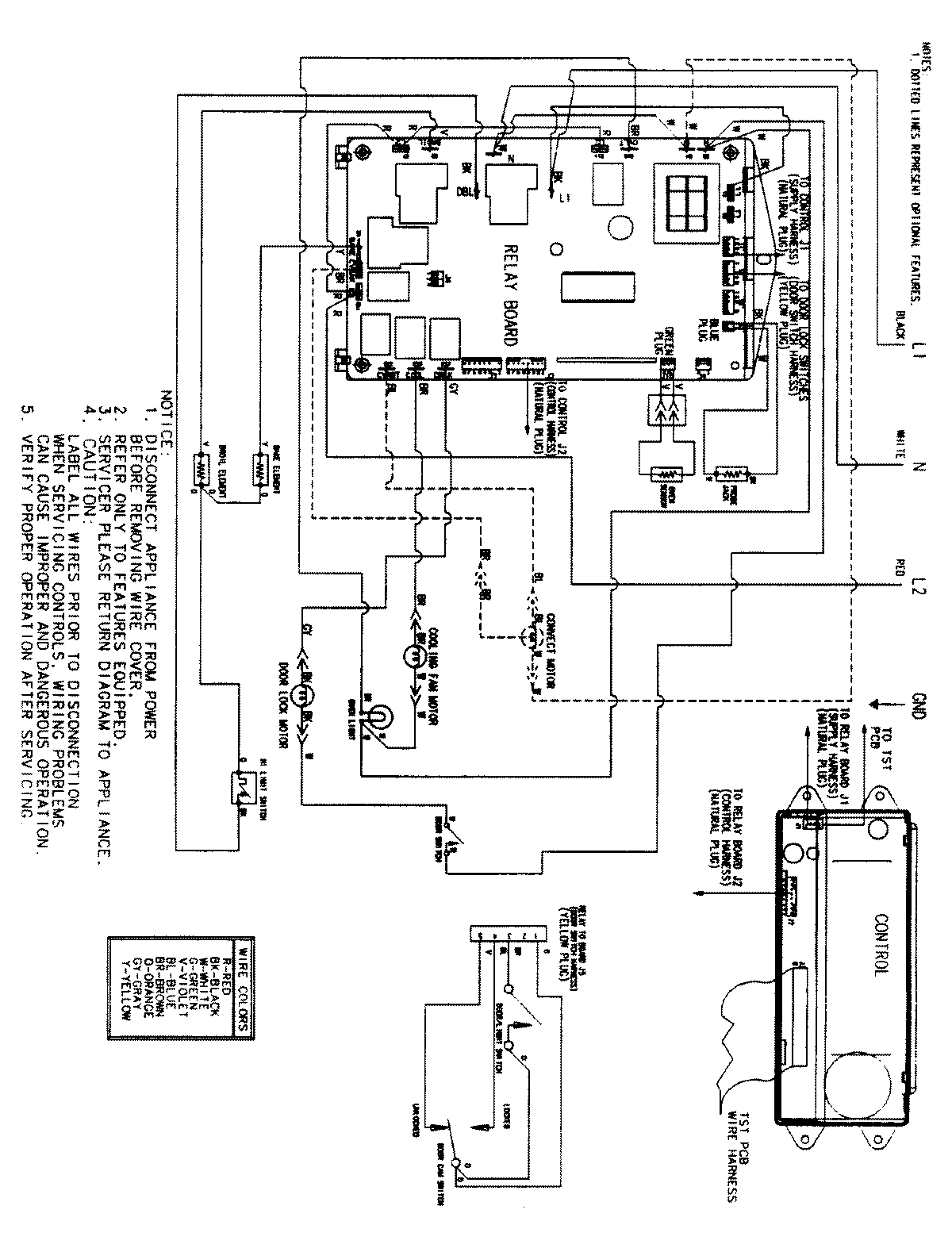

WIRING INFORMATION
WIRING INFORMATION WPL 15002516 Contact Us For Availability
View on Model
