Model LG JES735WH MWO-S – Common Parts & Diagrams
Diagram 0

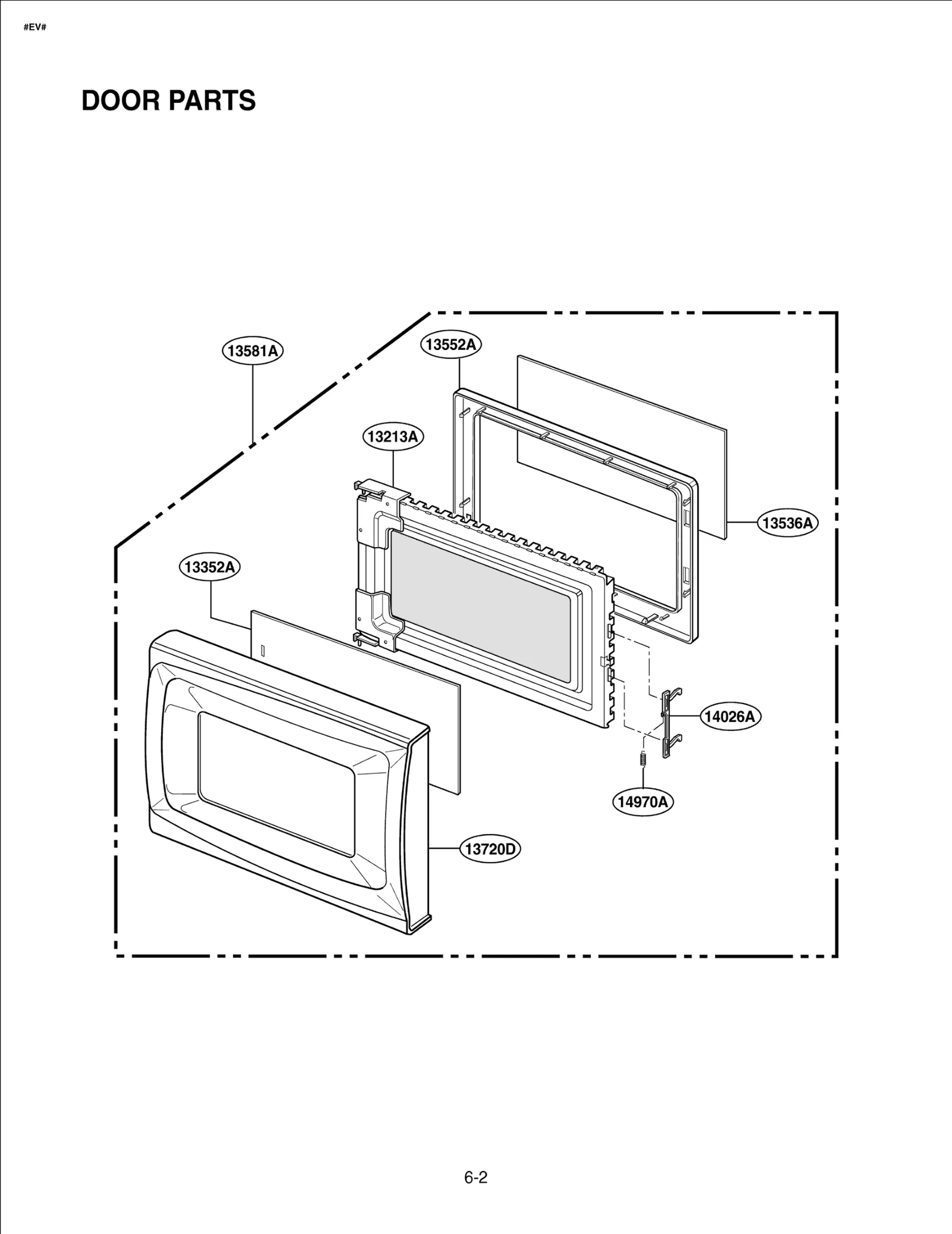

Diagram 1

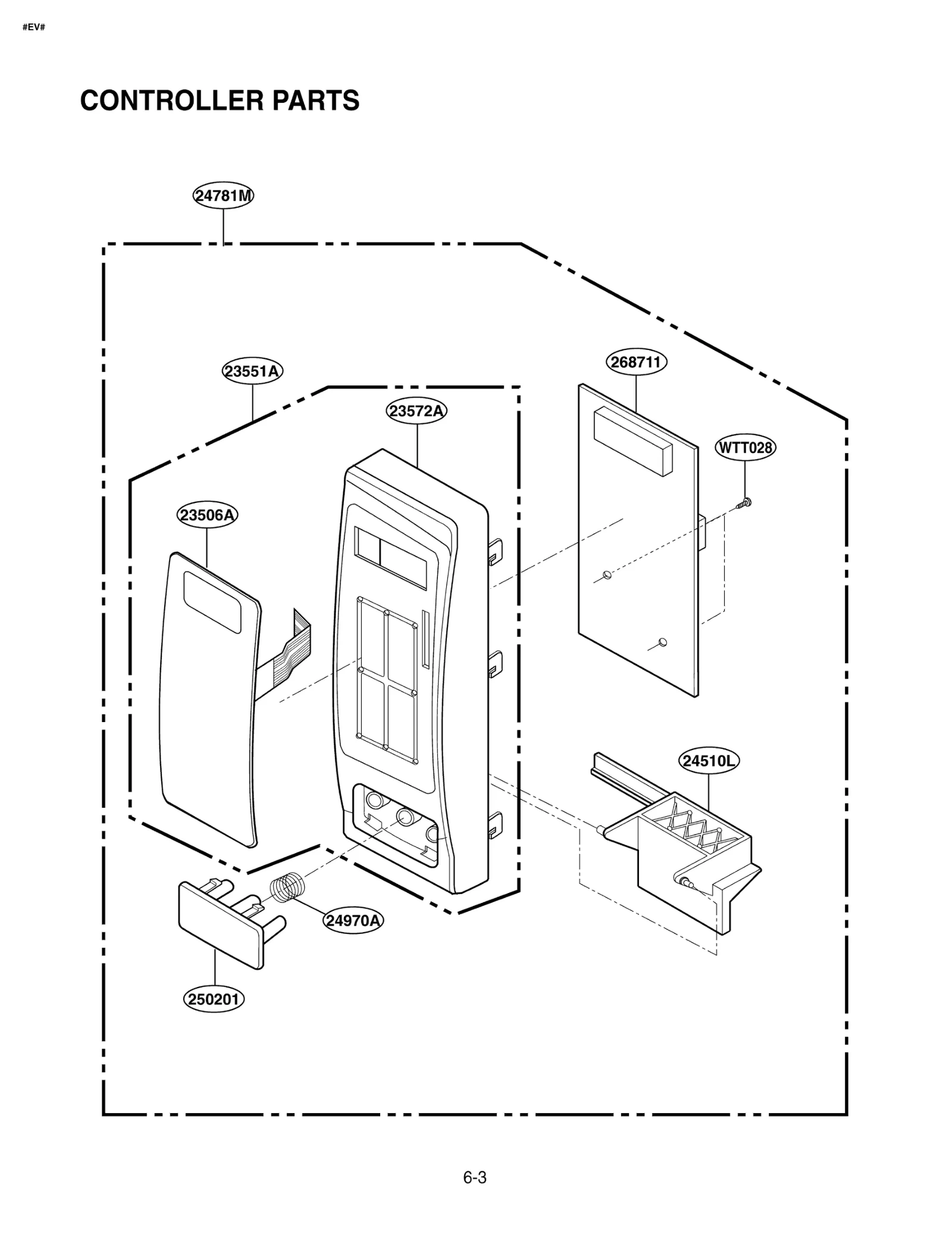

Diagram 2

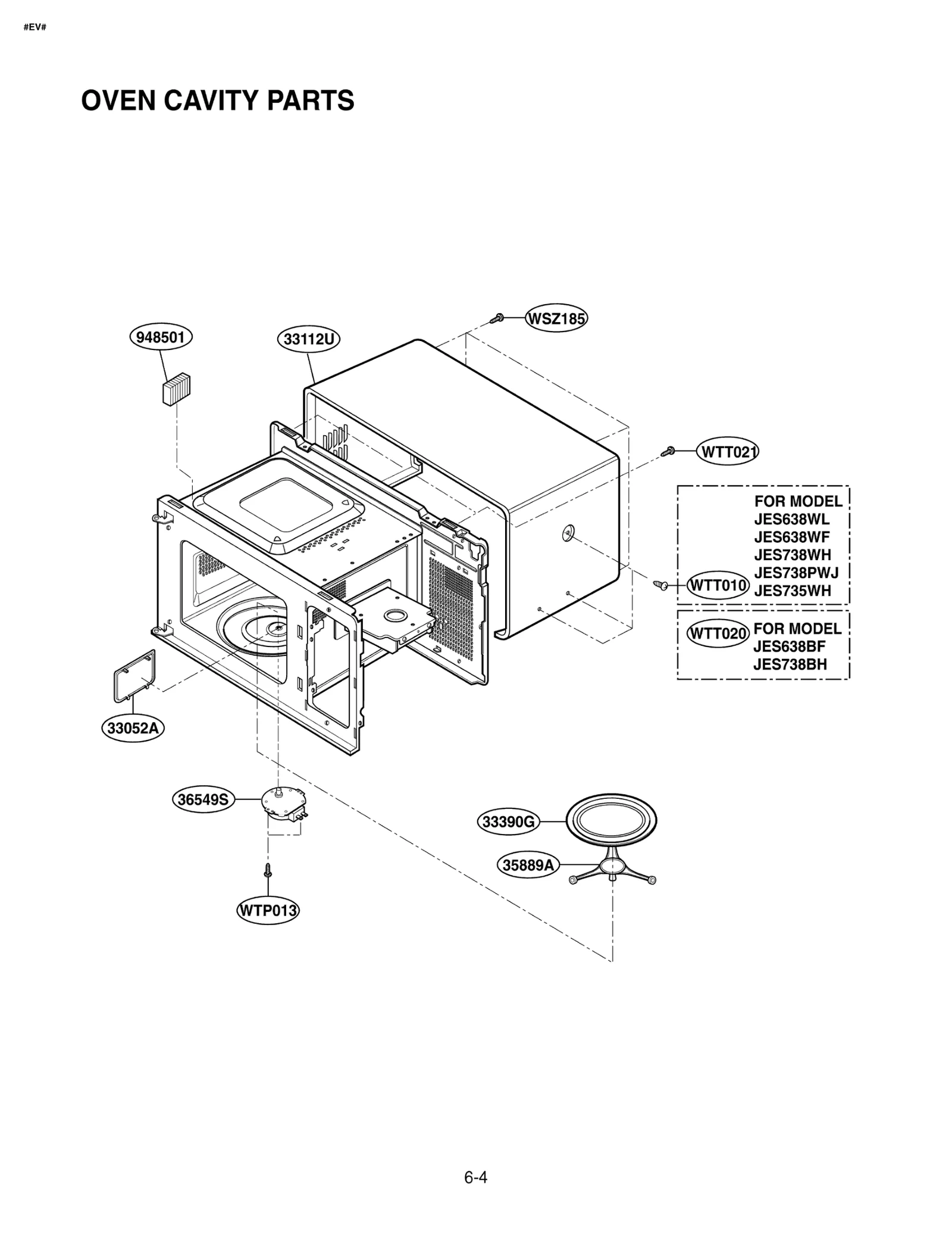

Diagram 3

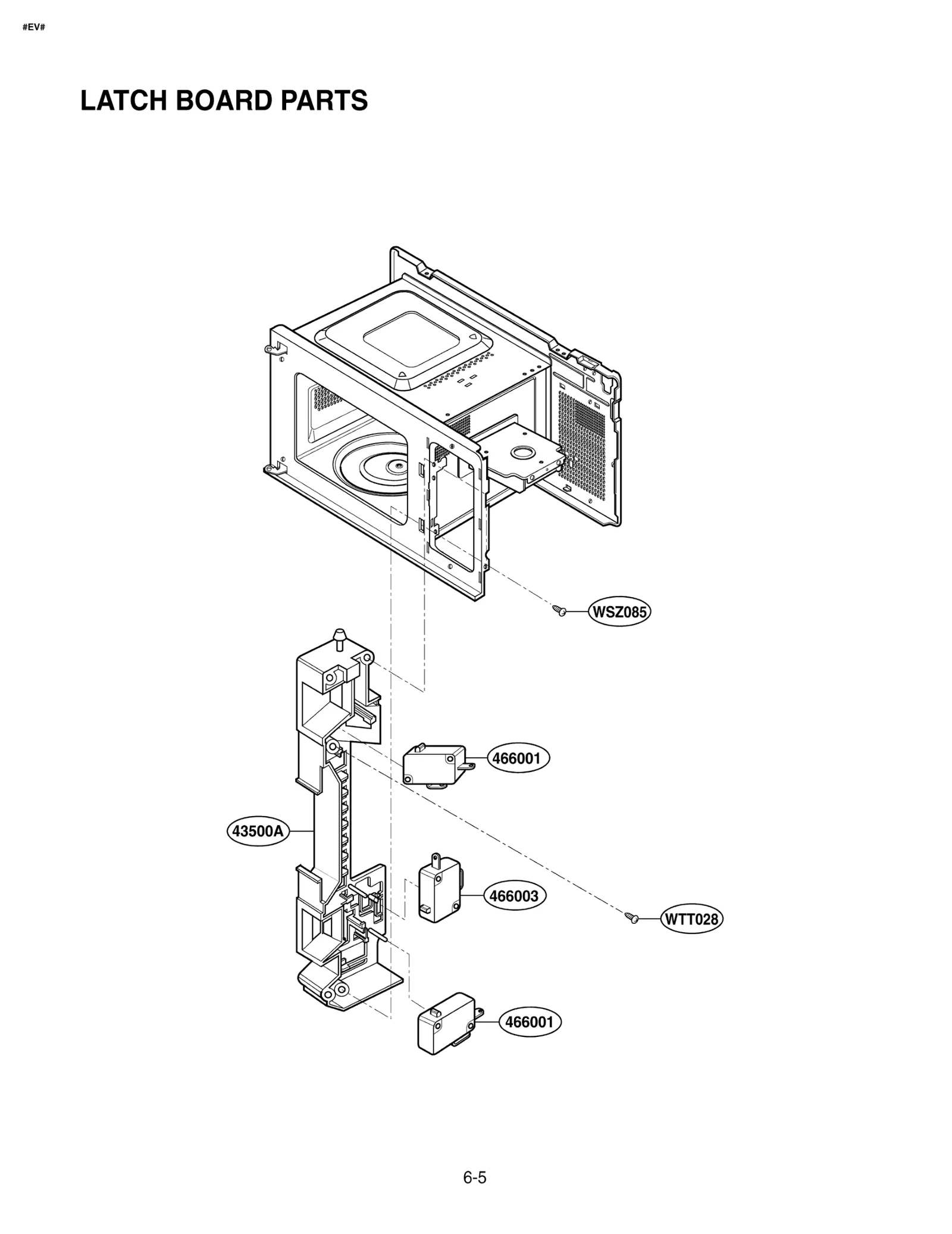

Diagram 4

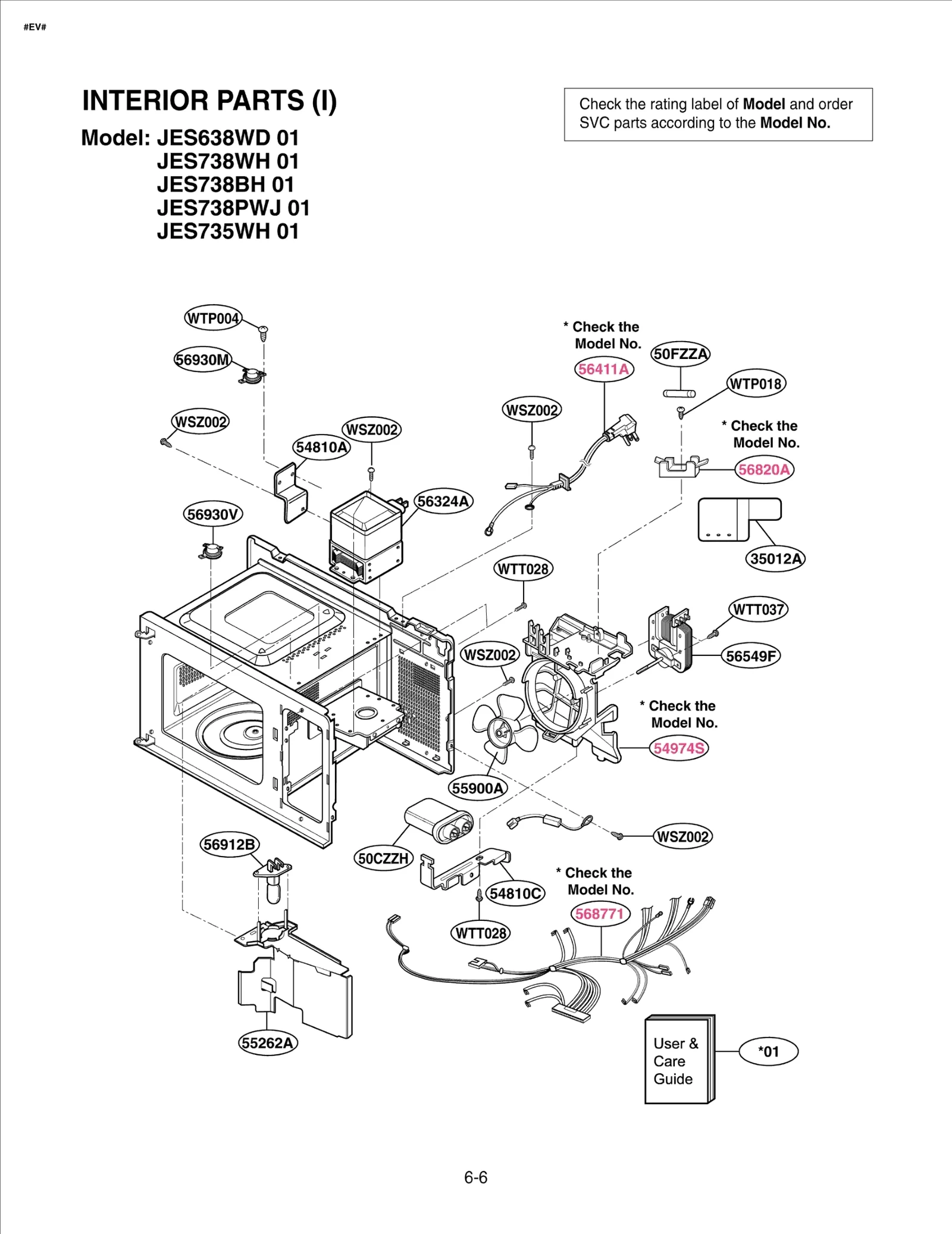

Diagram 5

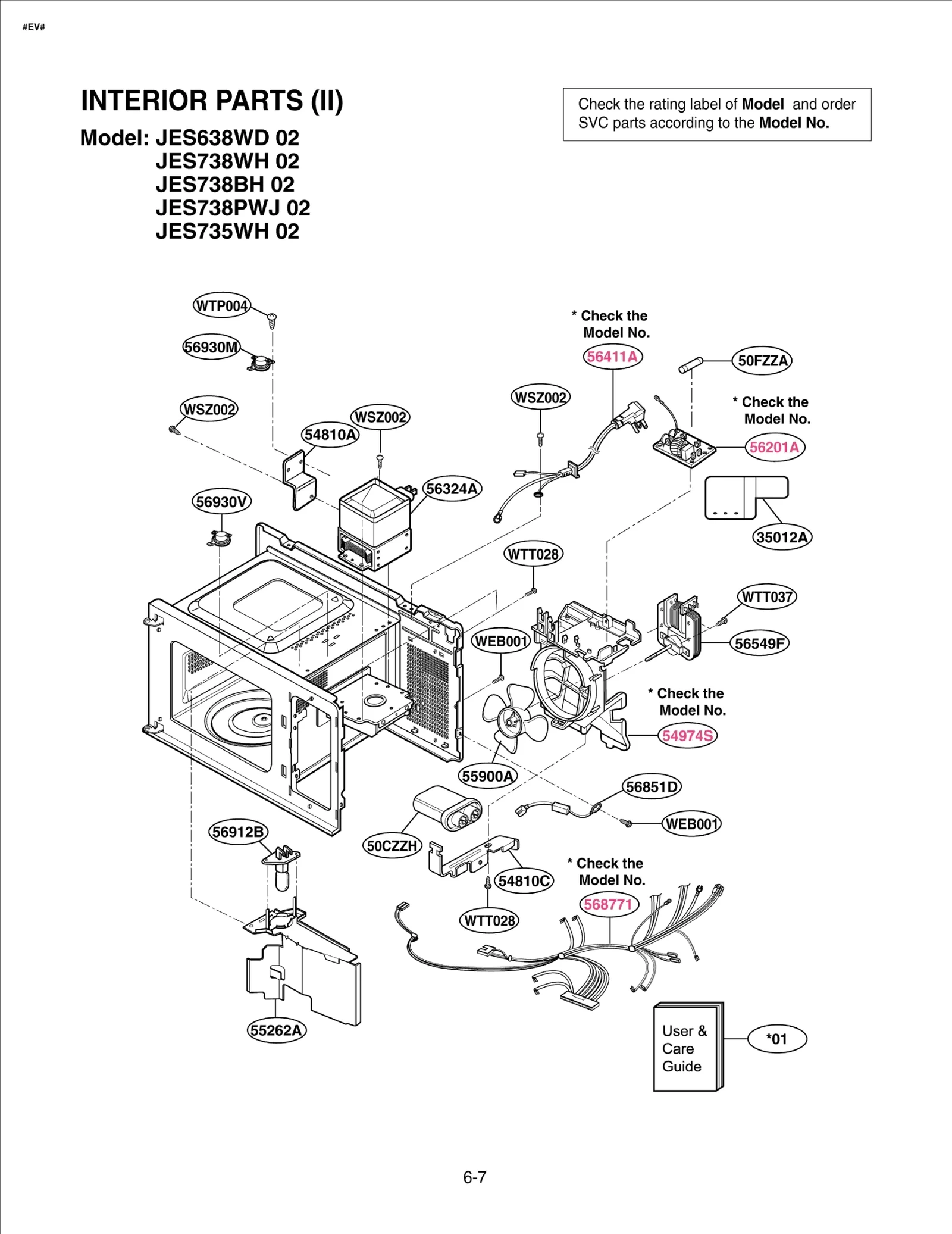

Diagram 6

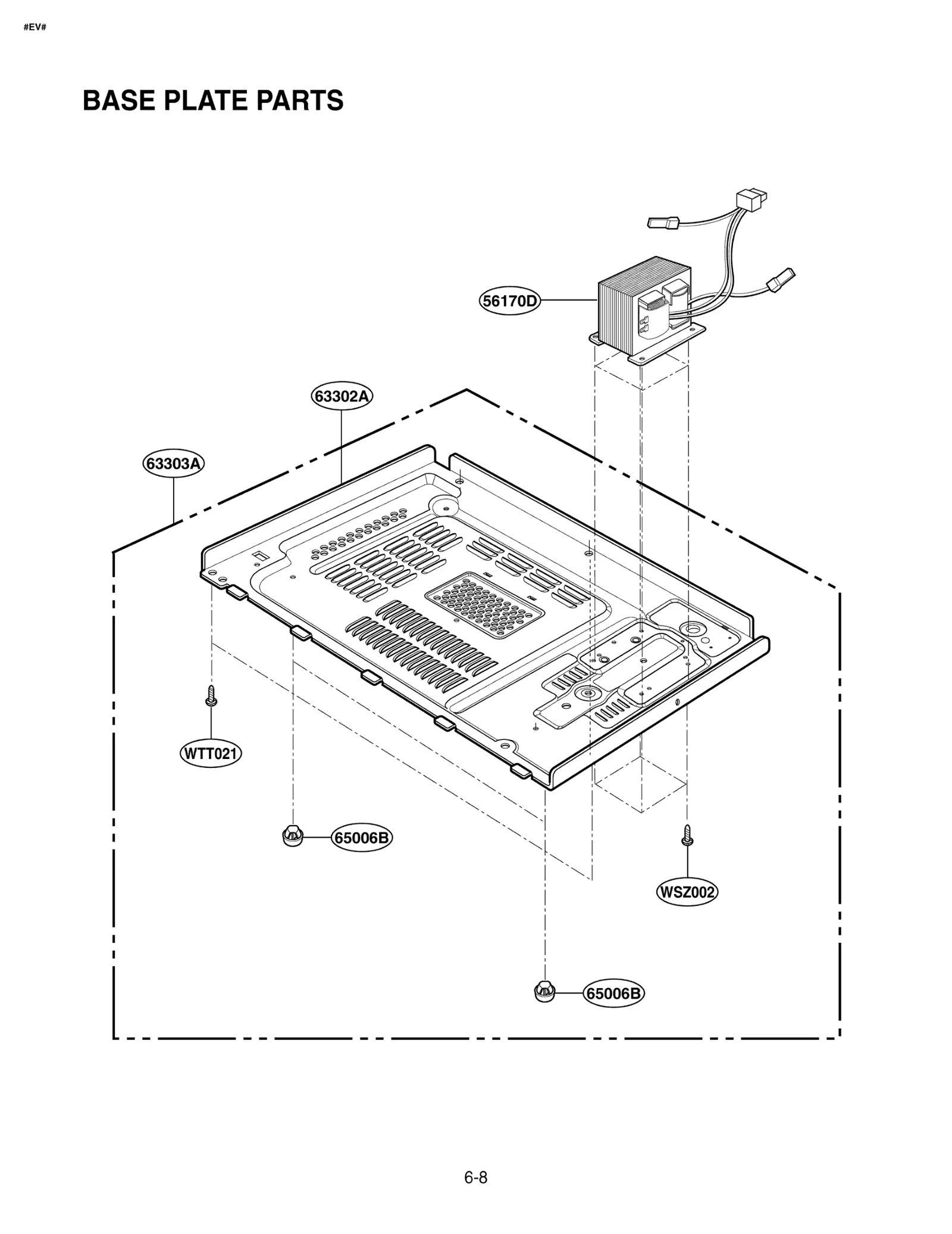

Diagram 7
Diagram 8
Common parts from model LG JES735WH MWO-S
*01
LGE 3828W5A3835 LGE 3828W5A3835 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S2191 Contact Us For Availability
*05
LGE 3850W1D069C LGE 3850W1D069C Contact Us For Availability
*07
LGE 3858W5T049L LGE 3858W5T049L Contact Us For Availability
*10
LGE 3890W3C296A LGE 3890W3C296A Contact Us For Availability
50CZZH
CAPACITOR,[HIGH VOLT LGE 0CZZW1H001L Contact Us For Availability
50FZZA
FUSE LGE 3B70856G Contact Us For Availability
35012A
Insulator LGE 5012W3A015B Contact Us For Availability
54810A
LGE 4810W1A066A LGE 4810W1A066A Contact Us For Availability
54974S
GUIDE,SUCTION LGE 4974W1A001B Contact Us For Availability
56411A
LGE 6411W1A002T LGE 6411W1A002T Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56820A
FUSE HOLDER LGE 4930W3B025B Contact Us For Availability
63302A
LGE 3302W1A054D LGE 3302W1A054D Contact Us For Availability
63303A
LGE 3303W1A052C LGE 3303W1A052C Contact Us For Availability
568771
HARNESS LGE 6877W1A355B Contact Us For Availability
BZ1
BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability
C01
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
CN1
LGE 6630VM03107 LGE 6630VM03107 Contact Us For Availability
CU1
CUSHION LGE 4850W4C001G Contact Us For Availability
RY1
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
WSZ202
SCREW,DRAWING LGE 1SZZW2A002D Contact Us For Availability
× ![]()
