Model Whirlpool JEC9536BDR12 ELECTRIC COOK-TOP – Common Parts & Diagrams

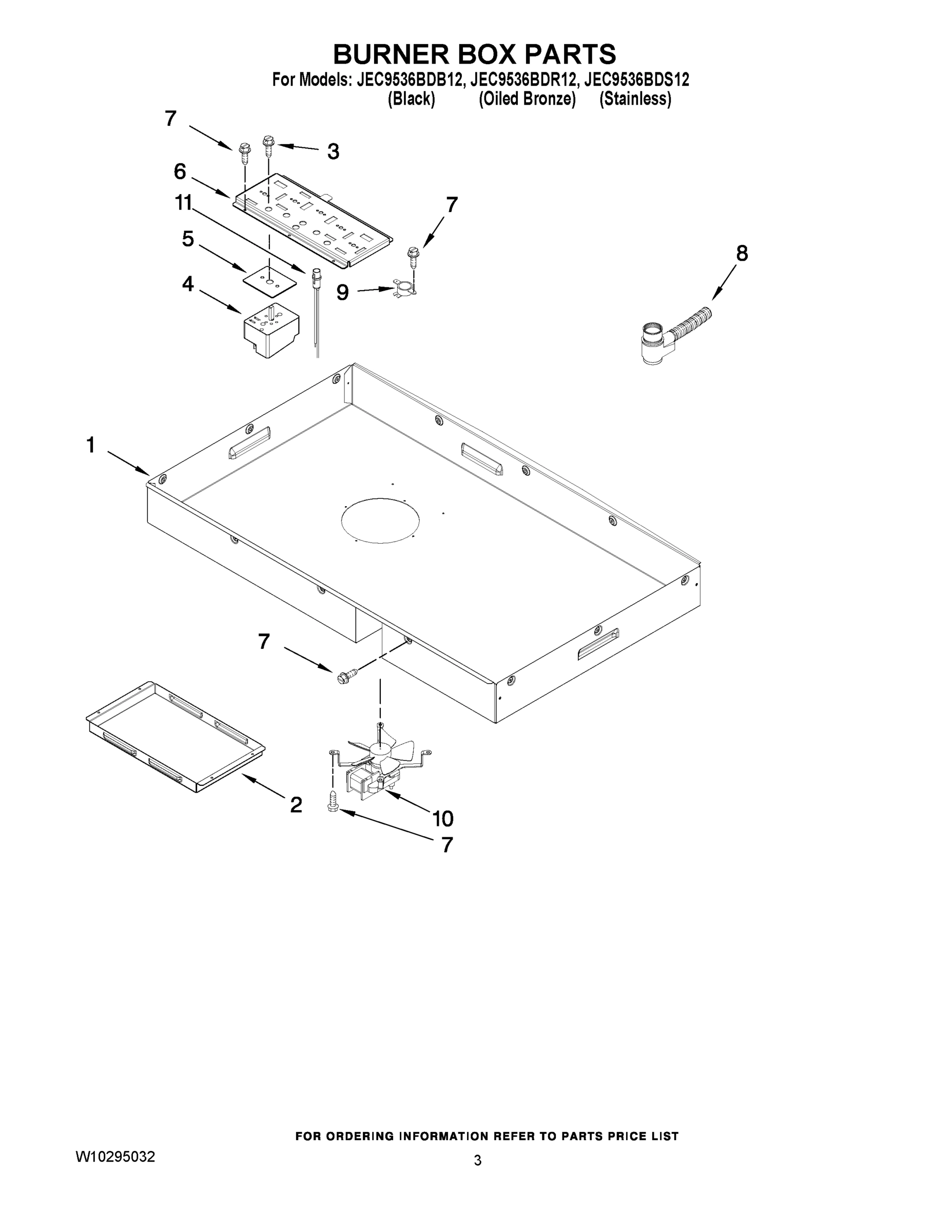

02 - BURNER BOX PARTS
03 - OPTIONAL PARTS (NOT INCLUDED)

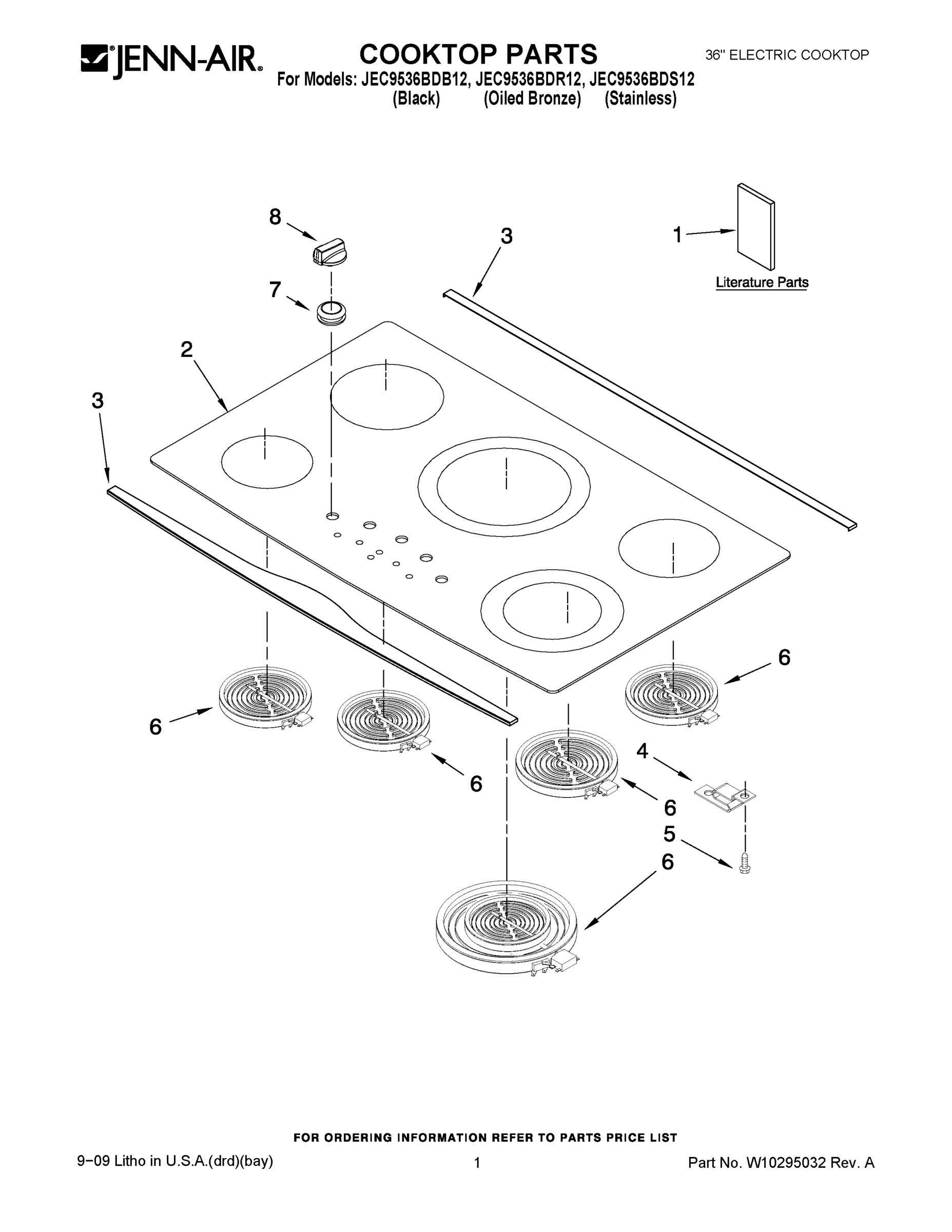

01 - COOKTOP PARTS
Common parts from model Whirlpool JEC9536BDR12 ELECTRIC COOK-TOP
1
INSTALLATION INSTRUCTIONS WPL 8101P49560 Contact Us For Availability
1
USE & CARE GUIDE WPL 8111P53460 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) WPL 8119P38160 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) WPL 8119P38260 Contact Us For Availability
1
BROCHURE, SAFER COOKING TIPS (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, SAFER COOKING TIPS (FRENCH) WPL W10065852 Contact Us For Availability
2
COOKTOP (BLACK) WPL 7920P20560 Contact Us For Availability
2
COOKTOP (OILED BRONZE) WPL 7920P20660 Contact Us For Availability
3
Trim, Stainless (Rear) WPL W10168884 Contact Us For Availability
3
Trim, Stainless (Front) WPL W10168880 Contact Us For Availability
4

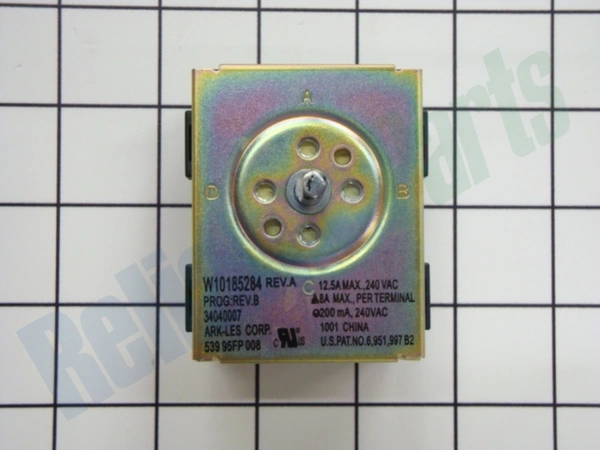

SWITCH, INFINITE (2600W (LR)) WPL 7403P75460 Contact Us For Availability
4
SWITCH, INFINITE (1400W (LF)) WPL 7403P75560 Contact Us For Availability
4
SWITCH, INFINITE (DUAL (CENTER)) WPL 7403P81660 Contact Us For Availability
4
SWITCH, INFINITE (120V (RR)) WPL 7403P84860 Contact Us For Availability
4
SUPPORT, CERAMIC ELEMENT (12) WPL 8004P09360 Contact Us For Availability
5
GASKET, INFINITE SWITCH (5) WPL 7201P07760 Contact Us For Availability
5
SCREW (24) WPL 101P42660 Contact Us For Availability
6
PLATE, SWITCH WPL 3605F35251 Contact Us For Availability
6
ELEMENT (1200W (LF)) WPL 7406P36560 Contact Us For Availability
6
ELEMENT (2700W DUAL (CENTER)) WPL 7406P36860 Contact Us For Availability
6
ELEMENT (100W WARMING (RR)) WPL 7406P37260 Contact Us For Availability
6
ELEMENT (1800W (LR)) WPL 7406P42160 Contact Us For Availability
6
ELEMENT (3000W (RF)) WPL 7406P49160 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
GROMMET WPL 8008P07660 Contact Us For Availability
8
KNOB, CONTROL (5) WPL W10168629 Contact Us For Availability
8
HARNESS MAIN WPL 5171P82460 Contact Us For Availability
9
THERMOSTAT WPL 7403P22760 Contact Us For Availability
10
FAN, COOLING WPL 7427P08760 Contact Us For Availability
11
LIGHT, PANEL (BROWN) WPL 7407P18760 Contact Us For Availability
11
LIGHT, PANEL (YELLOW) WPL 7407P18860 Contact Us For Availability
11
LIGHT, PANEL (BLUE) WPL 7407P18960 Contact Us For Availability
11
LIGHT, PANEL (ORANGE) WPL 7407P19060 Contact Us For Availability
11
LIGHT, PANEL (BLACK) WPL 7407P19160 Contact Us For Availability
11
LIGHT, PANEL (RED) WPL 7407P19260 Contact Us For Availability
NI
HARNESS, SWITCH LT WPL 5171P41960 Contact Us For Availability
NI
HARNESS, SWITCH RT WPL 5171P42060 Contact Us For Availability
NI
HARNESS, PANEL LIGHT ASSEMBLY WPL 5171P76460 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
Clamp, Wire 3/4`` WPL 7111P02060 Contact Us For Availability
NI
GROMMET WPL 8008P05560 Contact Us For Availability
× ![]()
