  • Whirlpool JEC9530BDF11 Parts List

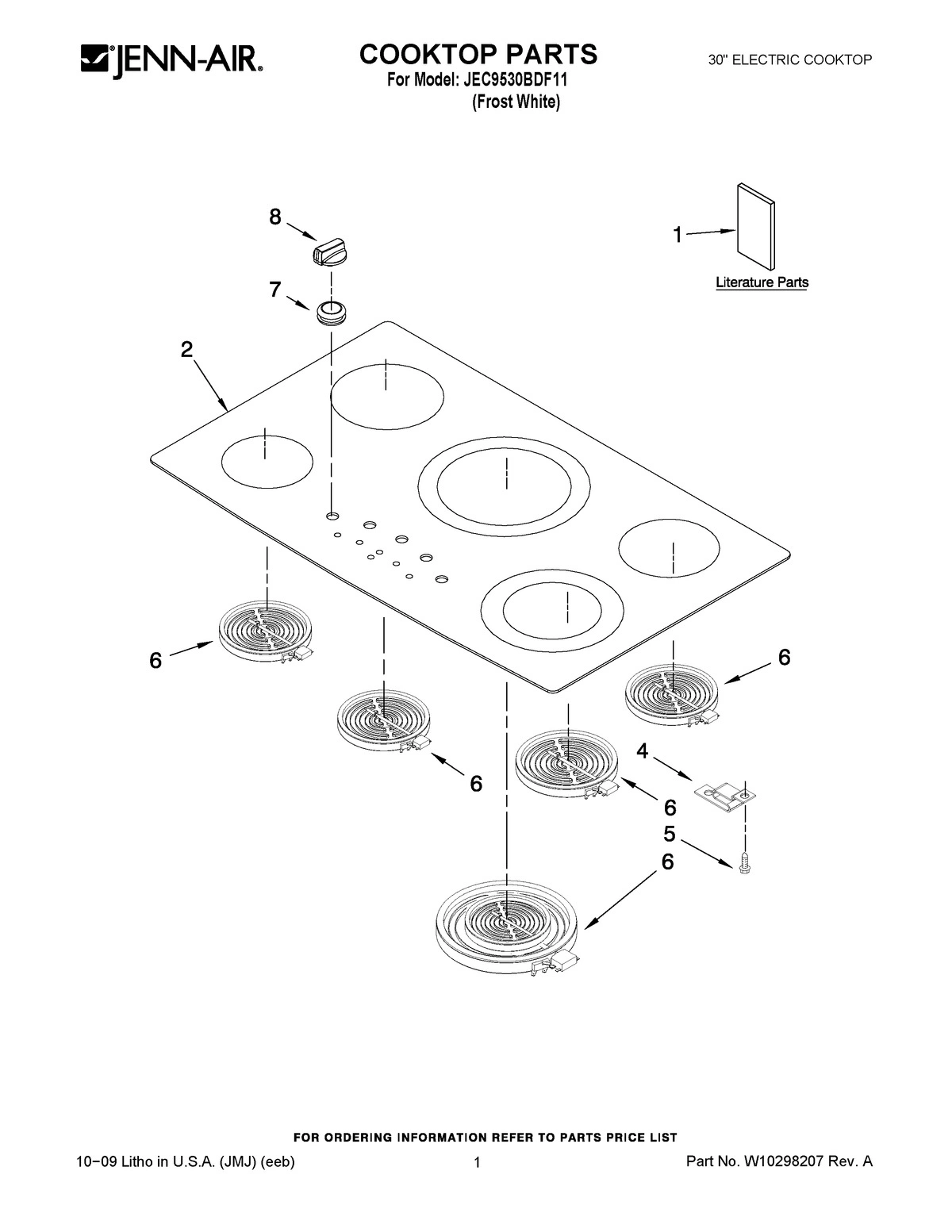

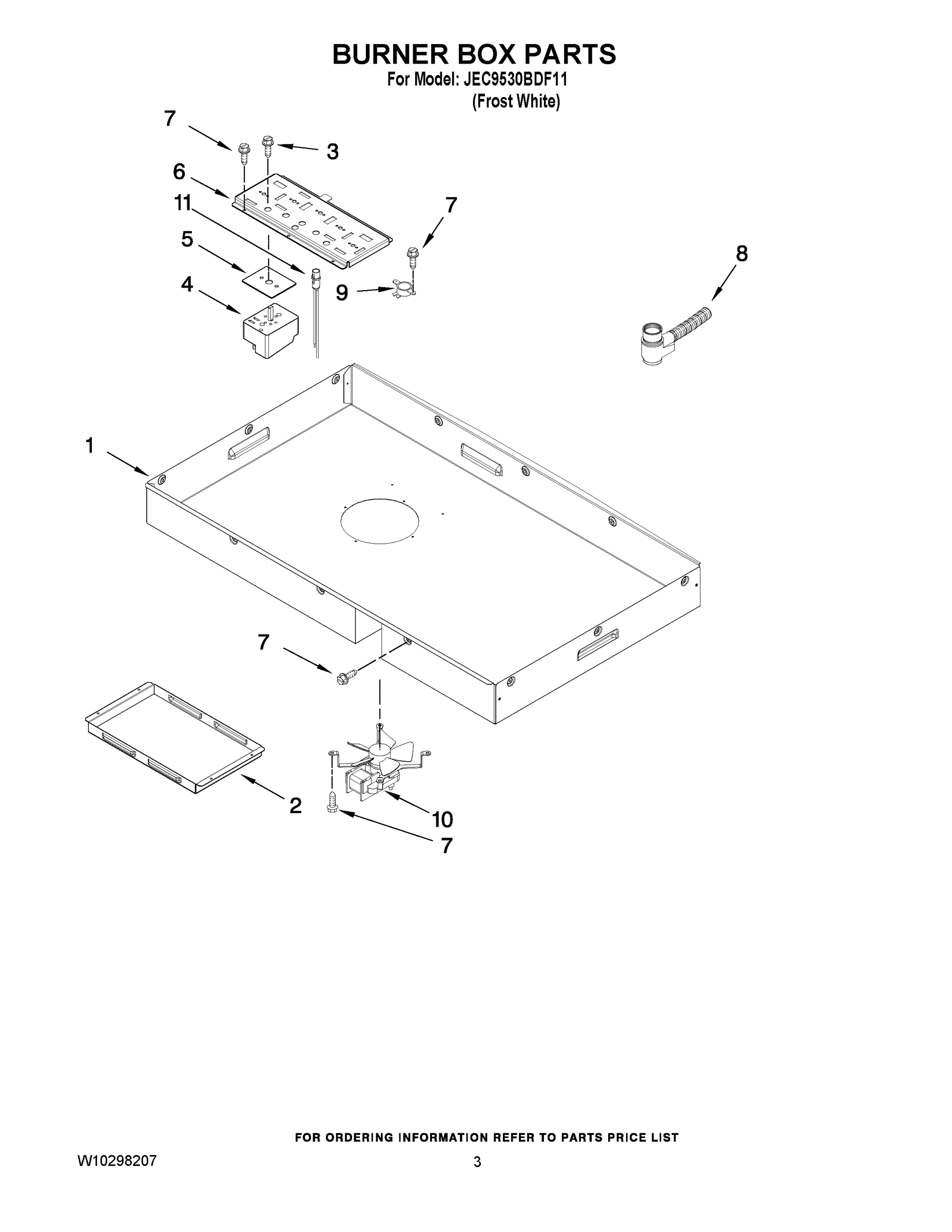

Model Whirlpool JEC9530BDF11 ELECTRIC COOK-TOP – Common Parts & Diagrams

1
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS WPL 8101P49560 Contact Us For Availability
View on Model
1
USE & CARE GUIDE
USE & CARE GUIDE WPL 8111P53460 Contact Us For Availability
View on Model
1
WIRING DIAGRAM (ENGLISH)
WIRING DIAGRAM (ENGLISH) WPL 8119P37960 Contact Us For Availability
View on Model
1
WIRING DIAGRAM (FRENCH)
WIRING DIAGRAM (FRENCH) WPL 8119P38060 Contact Us For Availability
View on Model
1
BROCHURE, SAFER COOKING TIPS (ENGLISH)
BROCHURE, SAFER COOKING TIPS (ENGLISH) WPL 9762761 Contact Us For Availability
View on Model
1
BROCHURE, SAFER COOKING TIPS (FRENCH)
BROCHURE, SAFER COOKING TIPS (FRENCH) WPL W10065852 Contact Us For Availability
View on Model
2
BAFFLE, BOTTOM
BAFFLE, BOTTOM WPL 3601F38451 Contact Us For Availability
View on Model
2
COOKTOP (WHITE)
COOKTOP (WHITE) WPL 7920P17260 Contact Us For Availability
View on Model
3
Screw, Switch (10)
Screw, Switch (10) WPL 7101P30960 Contact Us For Availability
View on Model
4
SWITCH, INFINITE (2600W (LR))
SWITCH, INFINITE (2600W (LR)) WPL 7403P75460 Contact Us For Availability
View on Model
4
SWITCH, INFINITE (1400W (LF/RR))
SWITCH, INFINITE (1400W (LF/RR)) WPL 7403P75560 Contact Us For Availability
View on Model
4
SWITCH, INFINITE (120V (CTR))
SWITCH, INFINITE (120V (CTR)) WPL 7403P84860 Contact Us For Availability
View on Model
4
SWITCH, INFINITE (CUSTOM (RF))
SWITCH, INFINITE (CUSTOM (RF)) WPL 8507P36860 Contact Us For Availability
View on Model
4
SUPPORT, CERAMIC ELEMENT (12)
SUPPORT, CERAMIC ELEMENT (12) WPL 8004P09360 Contact Us For Availability
View on Model
5
GASKET, INFINITE SWITCH (5)
GASKET, INFINITE SWITCH (5) WPL 7201P13060 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
6
PLATE, SWITCH
PLATE, SWITCH WPL 3605F34351 Contact Us For Availability
View on Model
6
ELEMENT (1200W (LF/RR))
ELEMENT (1200W (LF/RR)) WPL 7406P36560 Contact Us For Availability
View on Model
6
ELEMENT (100W WARMING (RR))
ELEMENT (100W WARMING (RR)) WPL 7406P37260 Contact Us For Availability
View on Model
6
ELEMENT (2000W (LR))
ELEMENT (2000W (LR)) WPL 7406P42060 Contact Us For Availability
View on Model
6
ELEMENT (3000W (RF) (CENTER))
ELEMENT (3000W (RF) (CENTER)) WPL 7406P49160 Contact Us For Availability
View on Model
7
GROMMET
GROMMET WPL 8008P07660 Contact Us For Availability
View on Model
8
KNOB, CONTROL (5)
KNOB, CONTROL (5) WPL W10168629 Contact Us For Availability
View on Model
8
HARNESS MAIN
HARNESS MAIN WPL 5171P82360 Contact Us For Availability
View on Model
9
THERMOSTAT
THERMOSTAT WPL 7403P22760 Contact Us For Availability
View on Model
10
FAN, COOLING
FAN, COOLING WPL 7427P08760 Contact Us For Availability
View on Model
11
LIGHT, PANEL (BROWN)
LIGHT, PANEL (BROWN) WPL 7407P18760 Contact Us For Availability
View on Model
11
LIGHT, PANEL (YELLOW)
LIGHT, PANEL (YELLOW) WPL 7407P18860 Contact Us For Availability
View on Model
11
LIGHT, PANEL (BLUE)
LIGHT, PANEL (BLUE) WPL 7407P18960 Contact Us For Availability
View on Model
11
LIGHT, PANEL (ORANGE)
LIGHT, PANEL (ORANGE) WPL 7407P19060 Contact Us For Availability
View on Model
11
LIGHT, PANEL (BLACK)
LIGHT, PANEL (BLACK) WPL 7407P19160 Contact Us For Availability
View on Model
11
LIGHT, PANEL (RED)
LIGHT, PANEL (RED) WPL 7407P19260 Contact Us For Availability
View on Model
NI
HARNESS, SWITCH LT
HARNESS, SWITCH LT WPL 5171P41760 Contact Us For Availability
View on Model
NI
HARNESS, SWITCH RT
HARNESS, SWITCH RT WPL 5171P41860 Contact Us For Availability
View on Model
NI
HARNESS, PANEL LIGHT ASSEMBLY
HARNESS, PANEL LIGHT ASSEMBLY WPL 5171P76460 Contact Us For Availability
View on Model
NI
Screw, Ground
Screw, Ground WPL 7101P02760 Contact Us For Availability
View on Model
NI
Clamp, Wire 3/4``
Clamp, Wire 3/4`` WPL 7111P02060 Contact Us For Availability
View on Model
NI
GROMMET
GROMMET WPL 8008P05560 Contact Us For Availability
View on Model
