  • Whirlpool JEC0530ADB14 Parts List

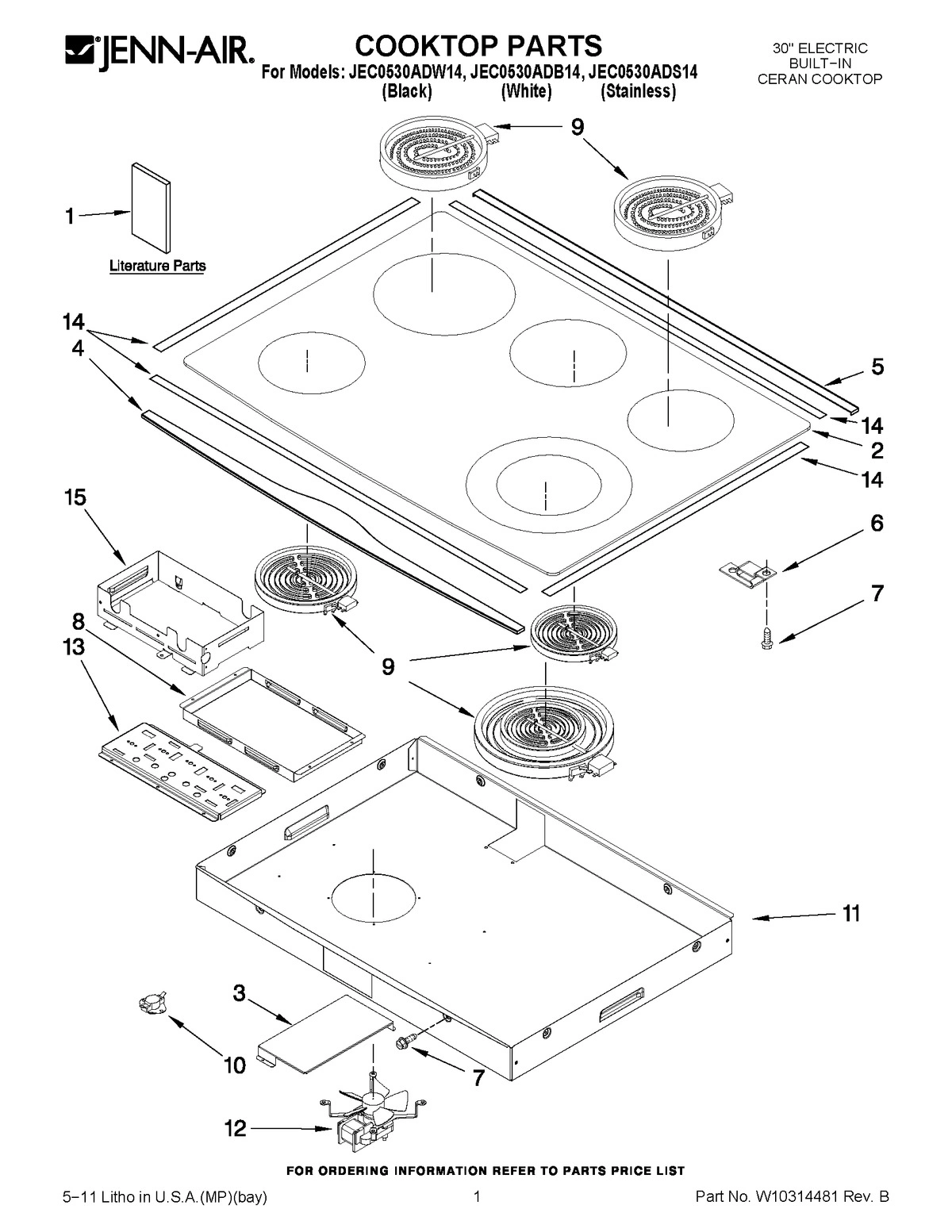

Model Whirlpool JEC0530ADB14 ELECTRIC COOK-TOP – Common Parts & Diagrams

1
WIRING DIAGRAM (ENGLISH)
WIRING DIAGRAM (ENGLISH) WPL W10259194 Contact Us For Availability
View on Model
1
WIRING DIAGRAM (FRENCH)
WIRING DIAGRAM (FRENCH) WPL W10259196 Contact Us For Availability
View on Model
1
USE & CARE GUIDE
USE & CARE GUIDE WPL W10267677 Contact Us For Availability
View on Model
2
COOKTOP, GLASS (BLACK)
COOKTOP, GLASS (BLACK) WPL 7920P21760 Contact Us For Availability
View on Model
2
COOKTOP, GLASS (WHITE)
COOKTOP, GLASS (WHITE) WPL 7920P21860 Contact Us For Availability
View on Model
3
SHIELD, HEAT
SHIELD, HEAT WPL 3604F40651 Contact Us For Availability
View on Model
4
TRIM, FRONT (STAINLESS ONLY)
TRIM, FRONT (STAINLESS ONLY) WPL W10168876 Contact Us For Availability
View on Model
5
TRIM, REAR (STAINLESS ONLY)
TRIM, REAR (STAINLESS ONLY) WPL W10168883 Contact Us For Availability
View on Model
6
SUPPORT, ELEMENT
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
8
BAFFLE, BOTTOM
BAFFLE, BOTTOM WPL 3601F38451 Contact Us For Availability
View on Model
9
ELEMENT, SURFACE (2000W LR)
ELEMENT, SURFACE (2000W LR) WPL 7406P42060 Contact Us For Availability
View on Model
9
ELEMENT, SURFACE (3000W DUAL RF)
ELEMENT, SURFACE (3000W DUAL RF) WPL W10259199 Contact Us For Availability
View on Model
9
ELEMENT, SURFACE (ELEMENT, WARMING)
ELEMENT, SURFACE (ELEMENT, WARMING) WPL W10259200 Contact Us For Availability
View on Model
10
THERMOSTAT (165F-215F)
THERMOSTAT (165F-215F) WPL 7403P22760 Contact Us For Availability
View on Model
11
BOX, BURNER
BOX, BURNER WPL W10215431 Contact Us For Availability
View on Model
12
FAN, COOLING
FAN, COOLING WPL 7427P08760 Contact Us For Availability
View on Model
13
BOARD, CONTROL (WHITE)
BOARD, CONTROL (WHITE) WPL 8507P20060 Contact Us For Availability
View on Model
14
TAPE, FOAM
TAPE, FOAM WPL 8270P18860 Contact Us For Availability
View on Model
15
BAFFLE, HEAT SHIELD
BAFFLE, HEAT SHIELD WPL 3601F36851 Contact Us For Availability
View on Model
NI
CONDUIT ASSEMBLY
CONDUIT ASSEMBLY WPL 5171P40060 Contact Us For Availability
View on Model
NI
HARNESS, RIGHT
HARNESS, RIGHT WPL 5171P40260 Contact Us For Availability
View on Model
NI
HARNESS, LEFT
HARNESS, LEFT WPL 5171P40360 Contact Us For Availability
View on Model
NI
HARNESS, ELECTRONIC, 30``
HARNESS, ELECTRONIC, 30`` WPL 5171P44260 Contact Us For Availability
View on Model
NI
Screw, Ground
Screw, Ground WPL 7101P46060 Contact Us For Availability
View on Model
NI
GROMMET, WIRE
GROMMET, WIRE WPL 8008P06860 Contact Us For Availability
View on Model
NI
CLIP, HARNESS
CLIP, HARNESS WPL 8286382 Contact Us For Availability
View on Model
NI
BUSHING
BUSHING WPL FE02313 Contact Us For Availability
View on Model
NI
HARNESS, MAIN
HARNESS, MAIN WPL W10259203 Contact Us For Availability
View on Model
