Model Maytag JDB3600AWS3 DISHWASHER – Common Parts & Diagrams

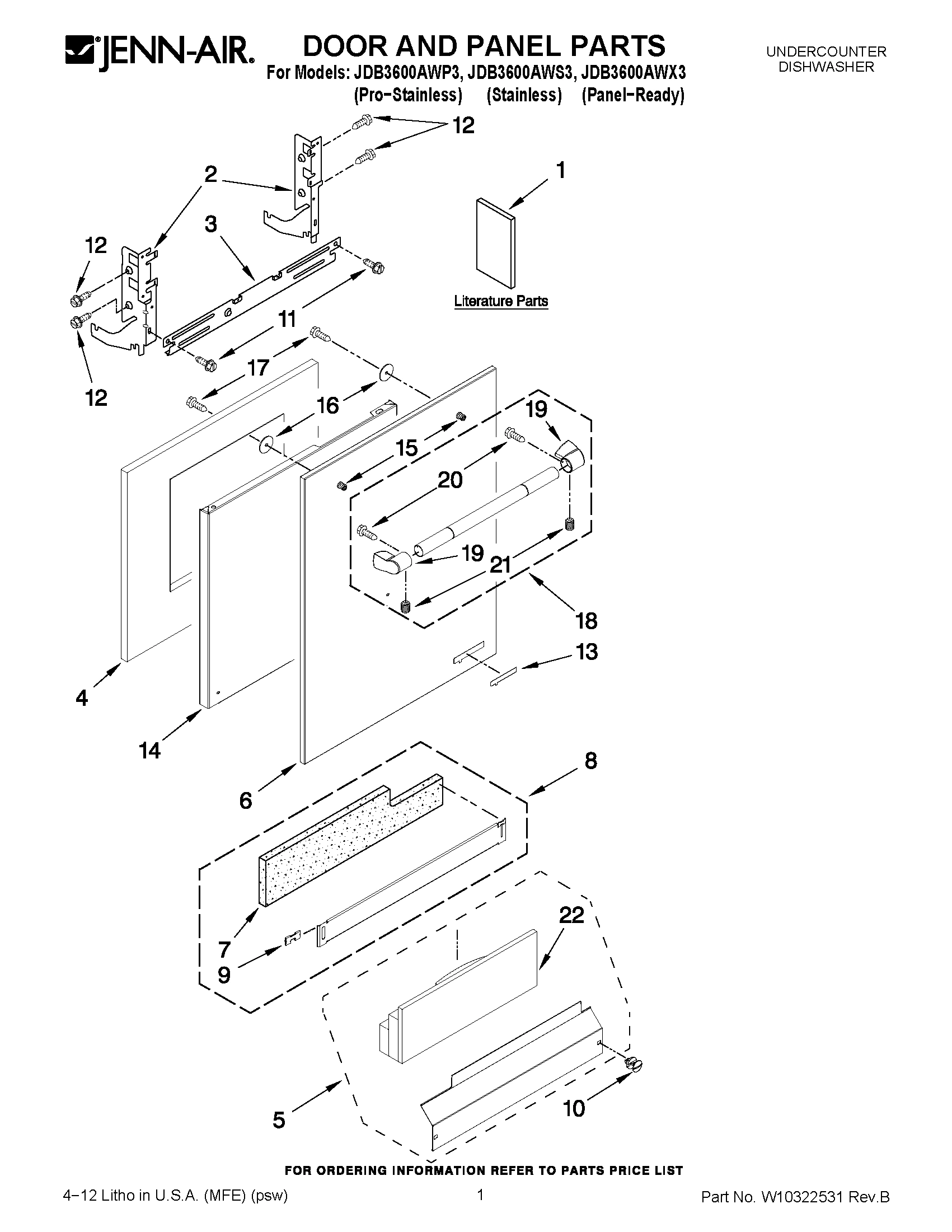

01 - DOOR AND PANEL PARTS

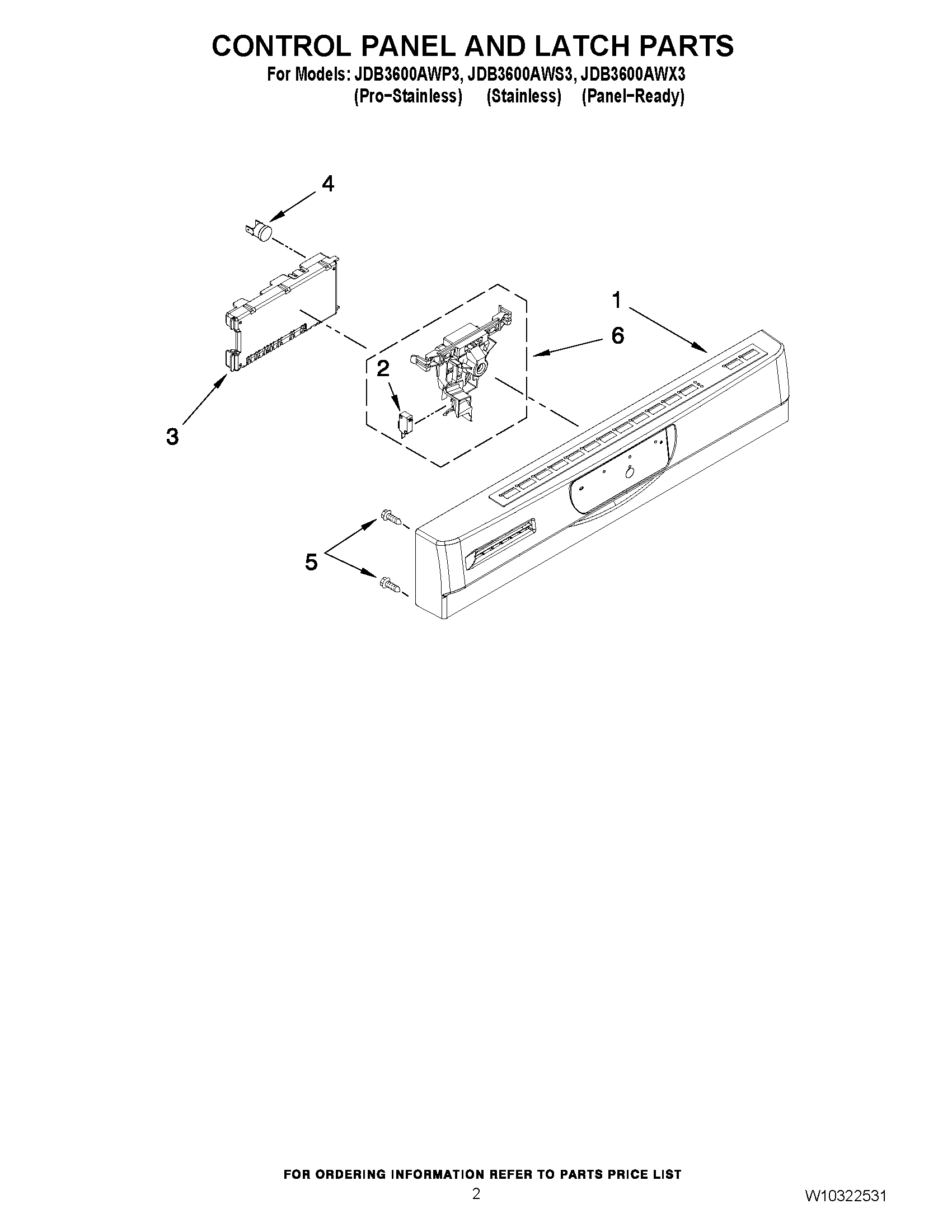

02 - CONTROL PANEL AND LATCH PARTS

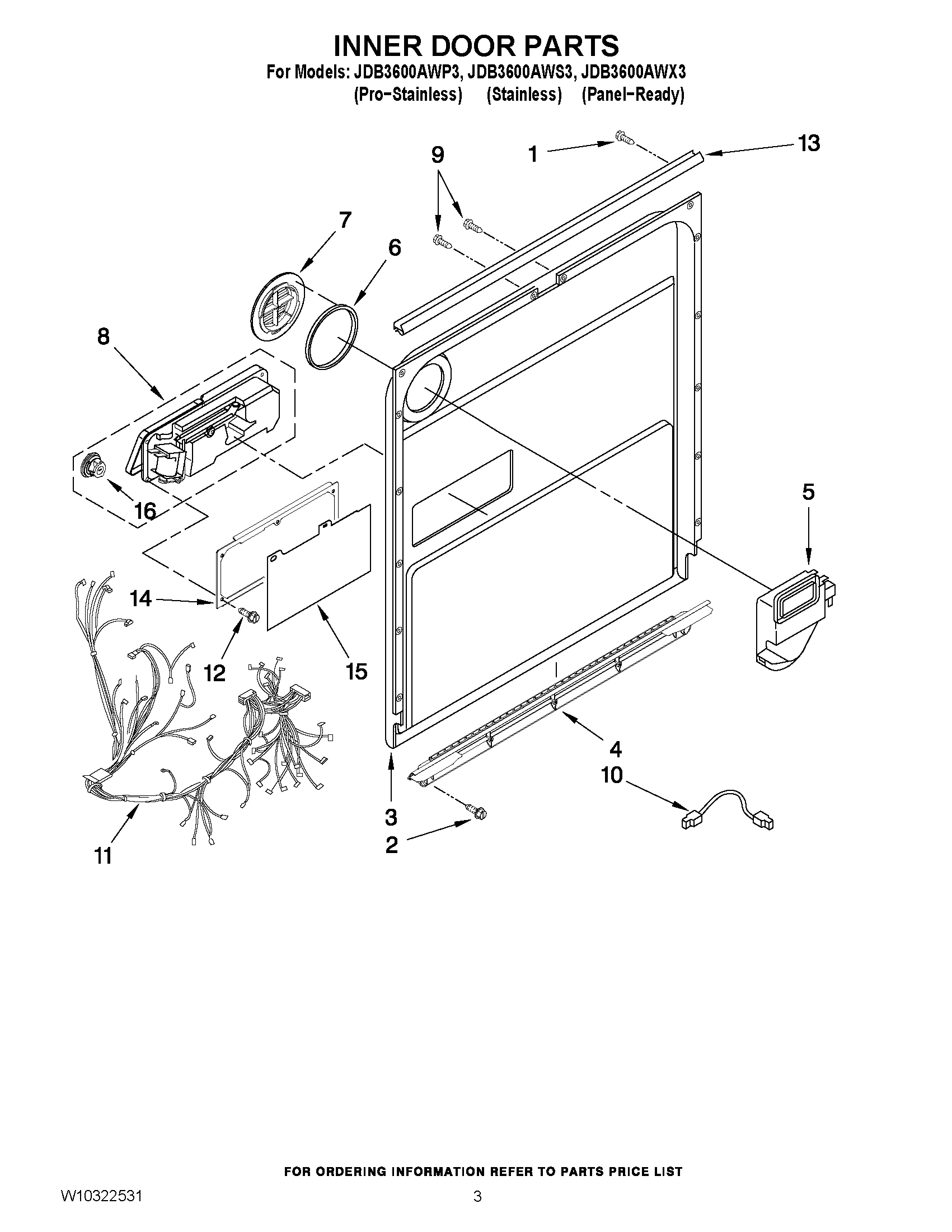

03 - INNER DOOR PARTS

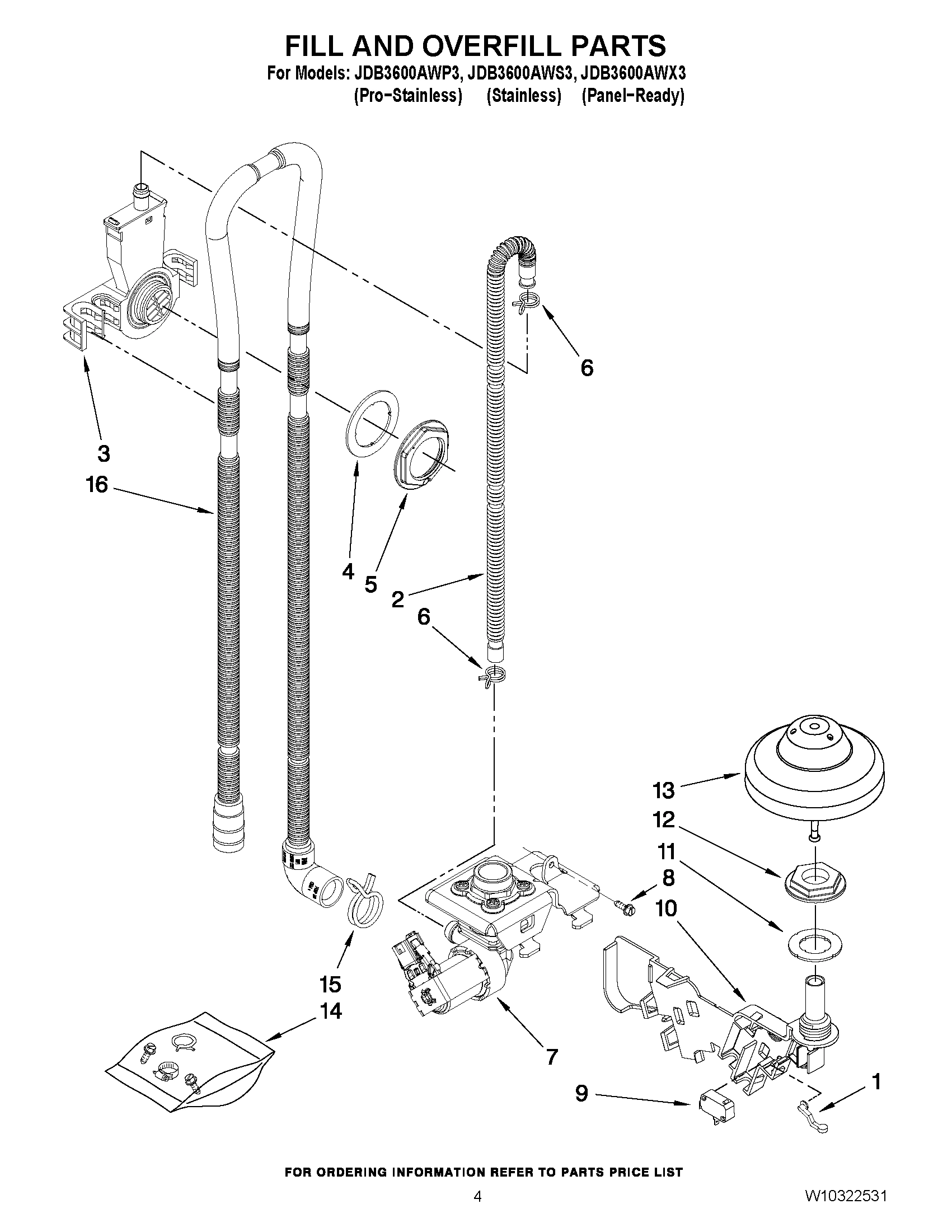

04 - FILL AND OVERFILL PARTS

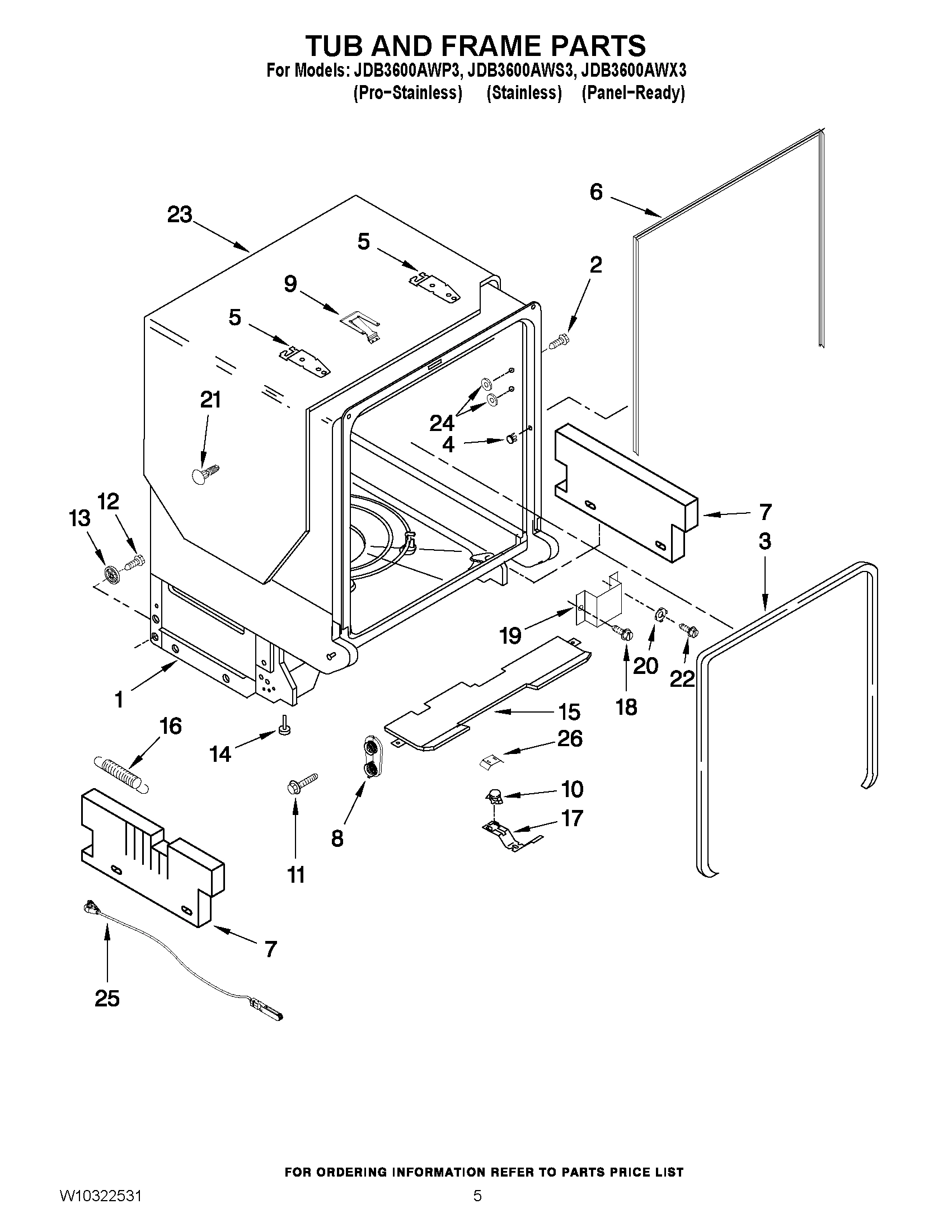

05 - TUB AND FRAME PARTS

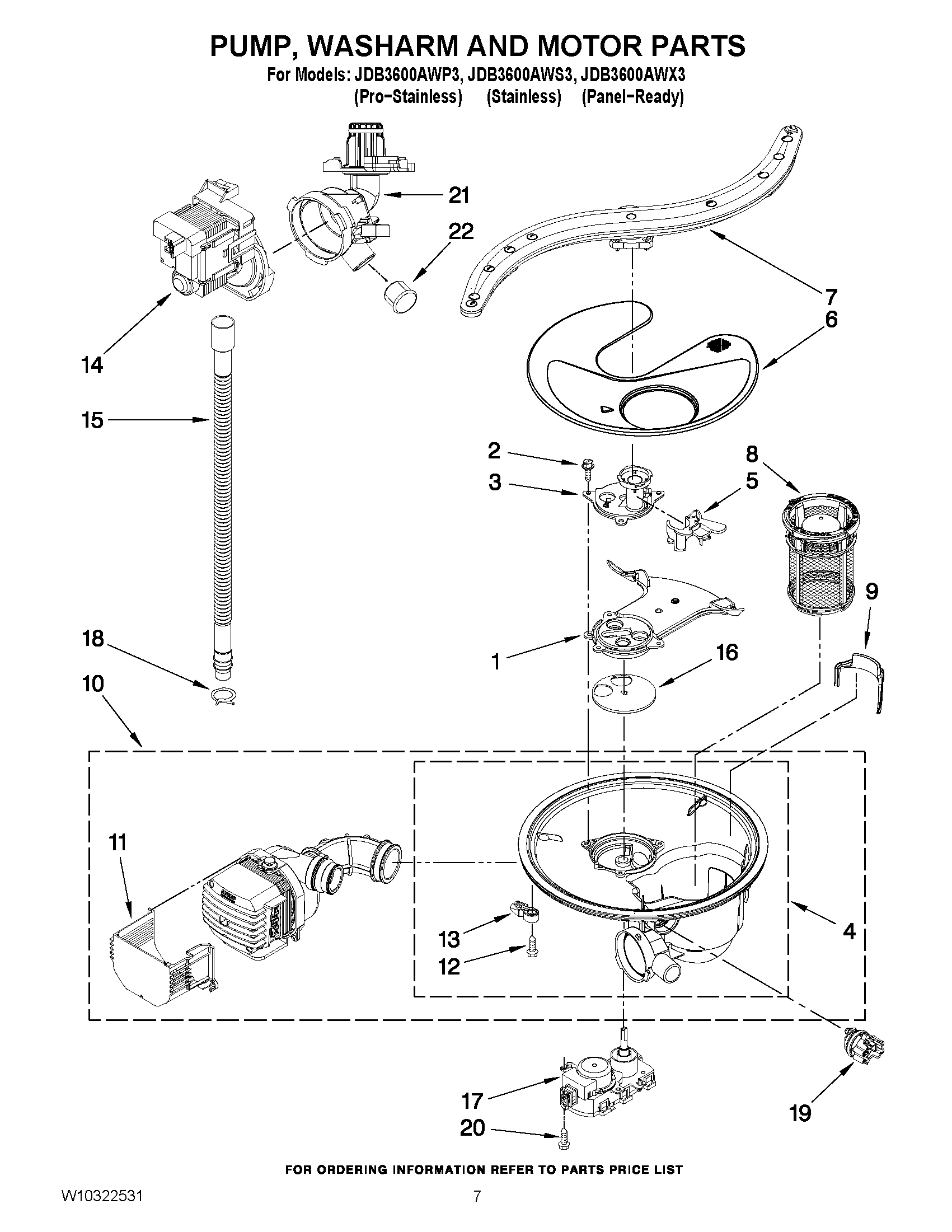

06 - PUMP, WASHARM AND MOTOR PARTS

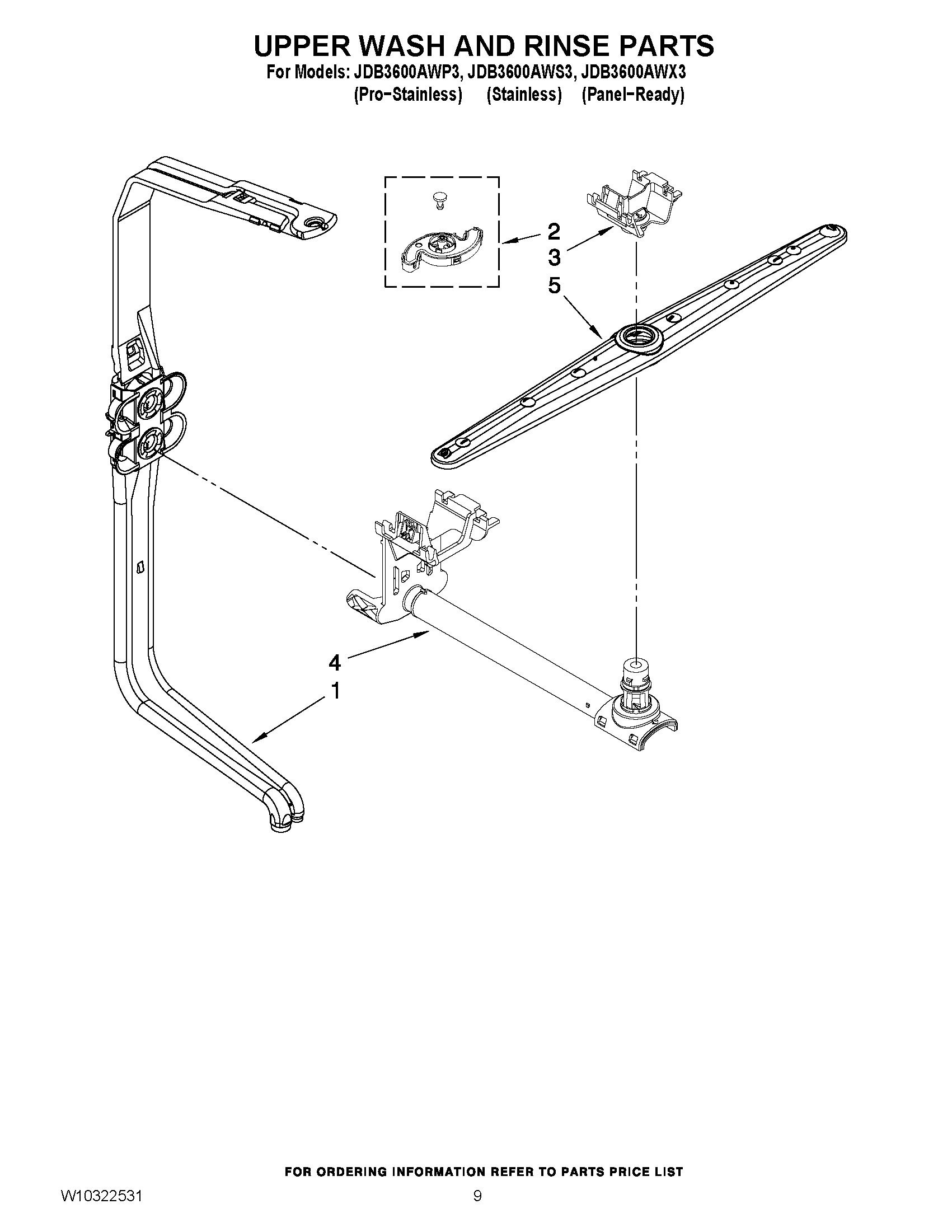

07 - UPPER WASH AND RINSE PARTS

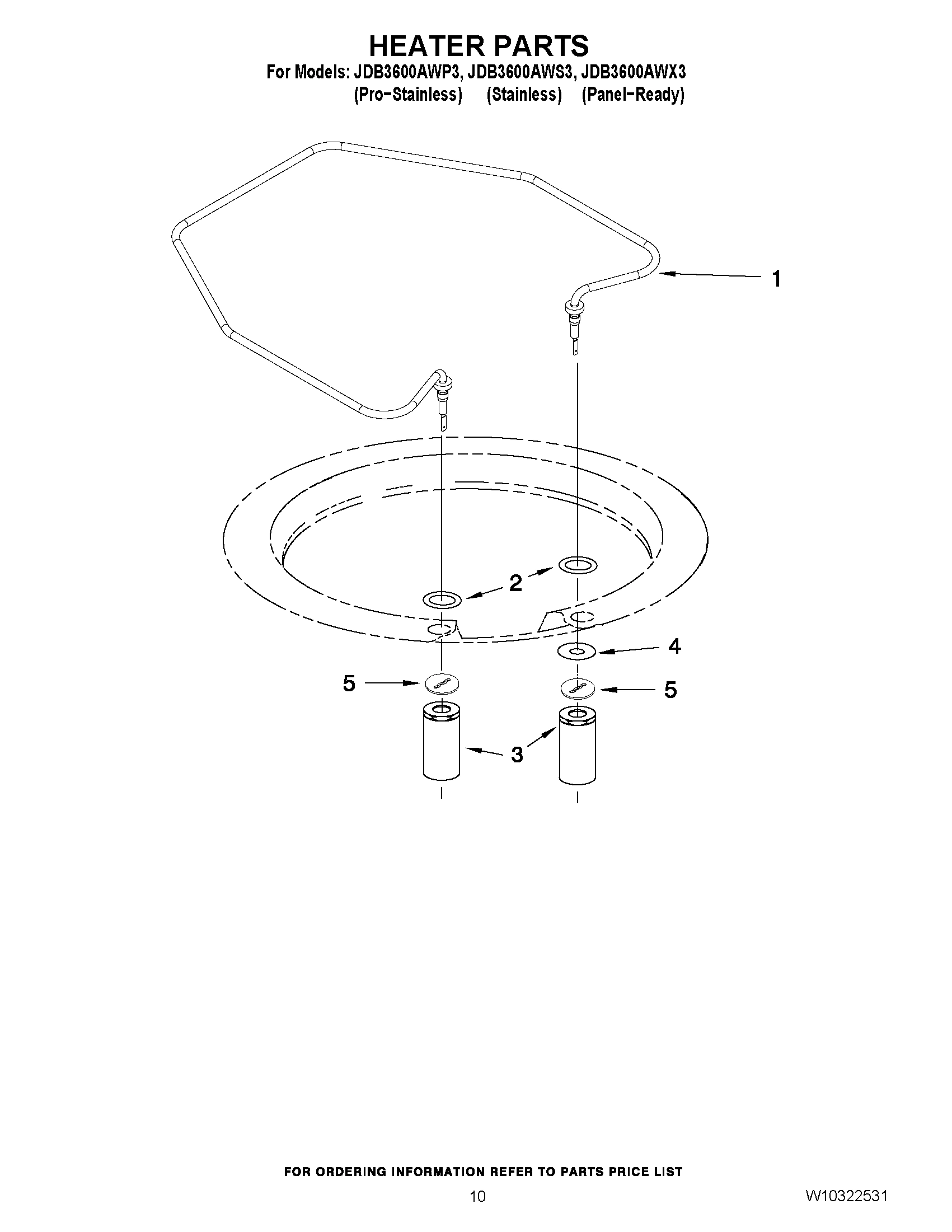

08 - HEATER PARTS

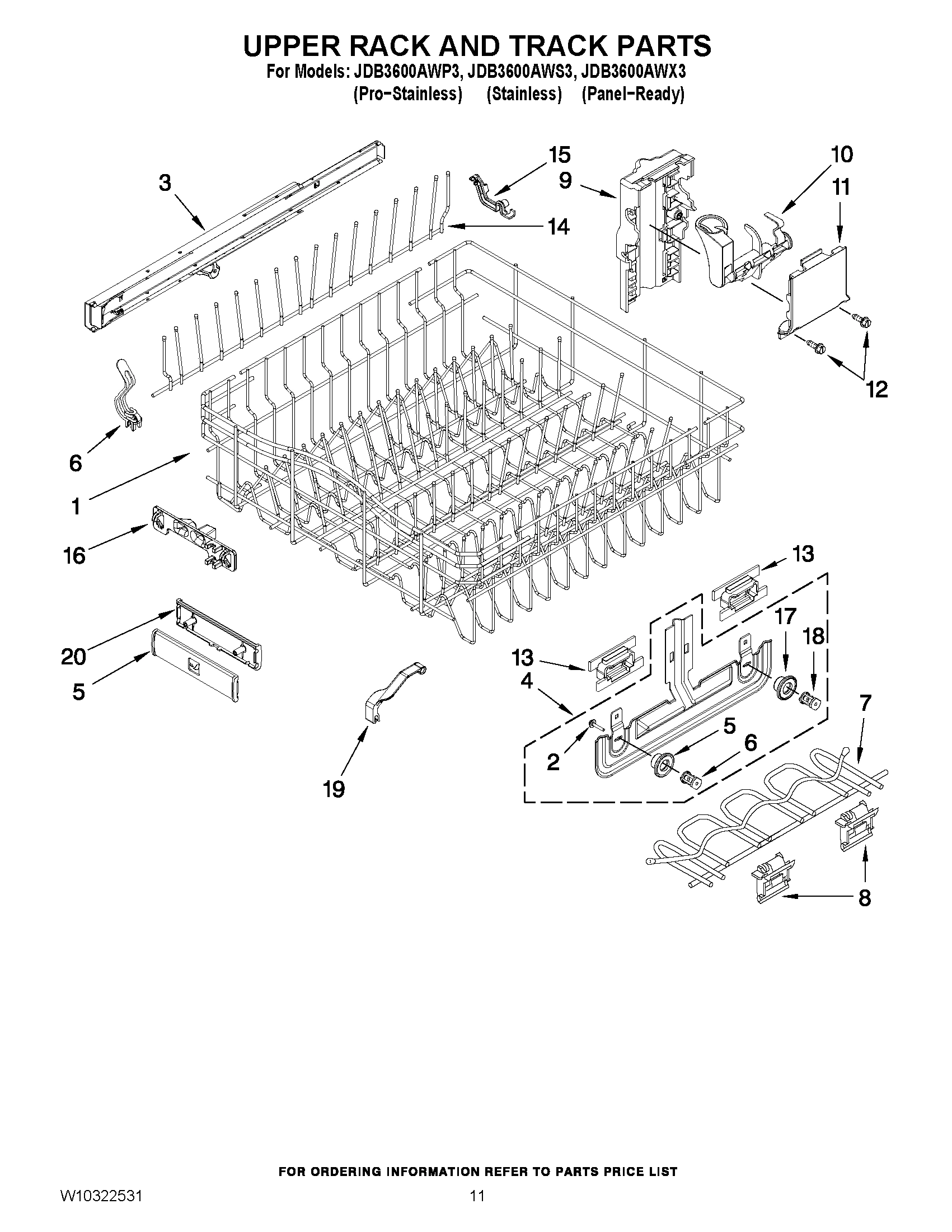

09 - UPPER RACK AND TRACK PARTS

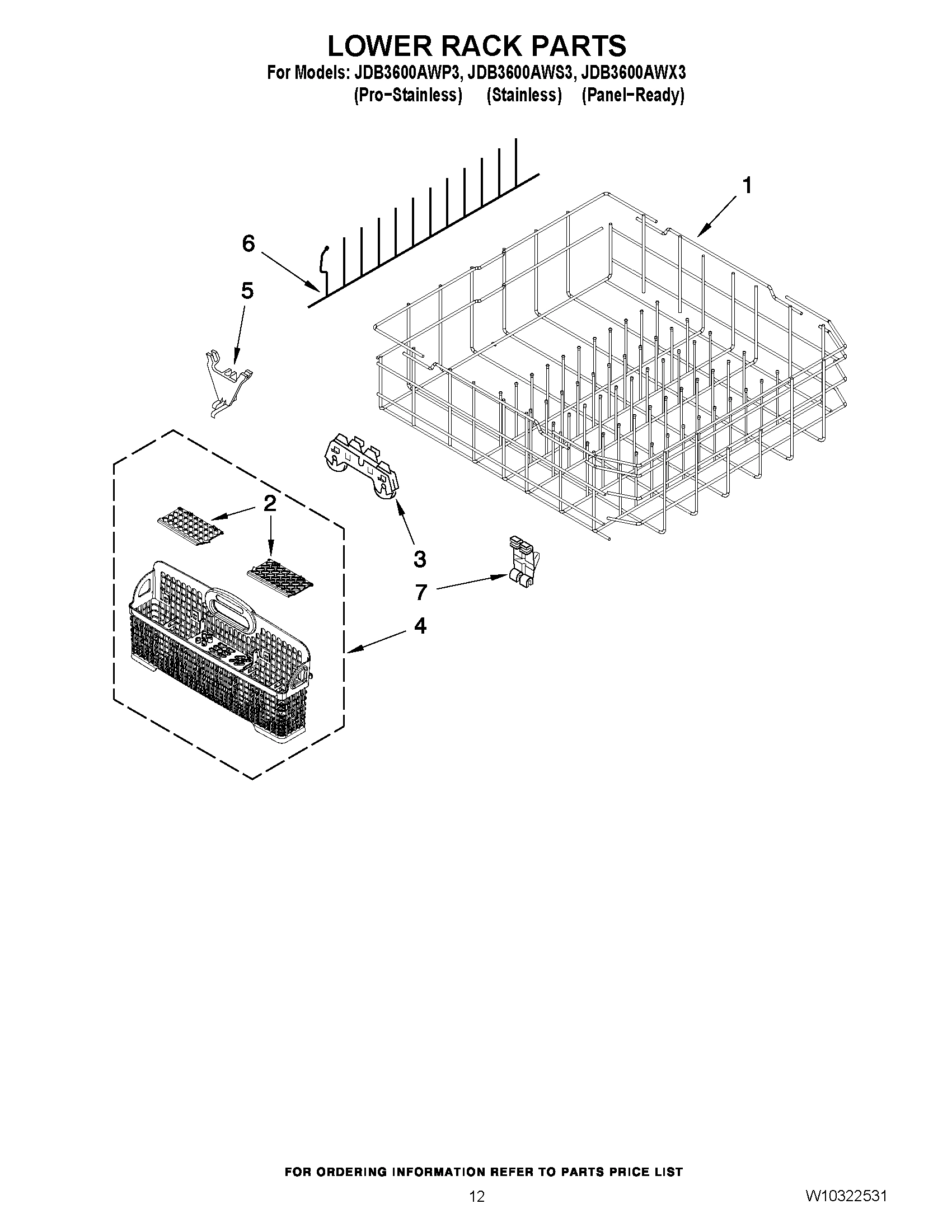

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB3600AWS3 DISHWASHER
1
MAY W10142826 MAY W10142826 Contact Us For Availability
1
MAY W10158347 MAY W10158347 Contact Us For Availability
1
MAY W10282554 MAY W10282554 Contact Us For Availability
1
USE & CARE GUIDE (ENGLISH/FRENCH) MAY W10300216 Contact Us For Availability
1
USE & CARE GUIDE (SPANISH) MAY W10300217 Contact Us For Availability
1
MAY W10395347 MAY W10395347 Contact Us For Availability
1
MAY W10208755 MAY W10208755 Contact Us For Availability
1
MAY W10275465 MAY W10275465 Contact Us For Availability
1
MAY W10348409 MAY W10348409 Contact Us For Availability
1
MAY 8268892 MAY 8268892 Contact Us For Availability
1
MAY W10319023 MAY W10319023 Contact Us For Availability
1
MAY 8579241 MAY 8579241 Contact Us For Availability
1
MAY 8579262 MAY 8579262 Contact Us For Availability
1
MAY W10082892 MAY W10082892 Contact Us For Availability
1
MAY W10194861 MAY W10194861 Contact Us For Availability
1
DISHRACK, LOWER MAY W10056350 Contact Us For Availability
2
MAY 8534853 MAY 8534853 Contact Us For Availability
2
MAY 8534854 MAY 8534854 Contact Us For Availability
2
MAY W10102497 MAY W10102497 Contact Us For Availability
2
MAY 8281217 MAY 8281217 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY W10309090 MAY W10309090 Contact Us For Availability
2
MAY W10348405 MAY W10348405 Contact Us For Availability
2
SPRAYARM, 3RD LEVEL MAY 8557720 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
SCREW STATIONARY MAY 8281156 Contact Us For Availability
2
MAY W10311149 MAY W10311149 Contact Us For Availability
2
MAY W10311150 MAY W10311150 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
CONTROL, ELEC. MAY W10285178 Contact Us For Availability
3
MAY W10056250 MAY W10056250 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
MAY W10112096 MAY W10112096 Contact Us For Availability
3
MAY W10324447 MAY W10324447 Contact Us For Availability
3
MAY W10238395 MAY W10238395 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
MAY W10247511 MAY W10247511 Contact Us For Availability
3
MAY W10247512 MAY W10247512 Contact Us For Availability
3
MAY W10261336 MAY W10261336 Contact Us For Availability
4
INSULATION, DOOR MAY W10234565 Contact Us For Availability
4
MAY W10344801 MAY W10344801 Contact Us For Availability
4
MAY W10077883 MAY W10077883 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10082838 MAY W10082838 Contact Us For Availability
4
SUMP WITH SEAL (INCLUDES ITEMS 12, 13 AND 2 H MAY W10208687 Contact Us For Availability
4
MAY W10238399 MAY W10238399 Contact Us For Availability
4
RETAINER, SPRING GRIP MAY 3400931 Contact Us For Availability
4
ADJUSTER, ASSEMBLY MAY 8268653 Contact Us For Availability
4
MAY W10311153 MAY W10311153 Contact Us For Availability
5
MAY W10287593 MAY W10287593 Contact Us For Availability
5
MAY 8572611 MAY 8572611 Contact Us For Availability
5
MAY W10213825 MAY W10213825 Contact Us For Availability
5
MAY 8269145 MAY 8269145 Contact Us For Availability
5
MAY 8579298 MAY 8579298 Contact Us For Availability
5
MAY W10324454 MAY W10324454 Contact Us For Availability
5
SHIELD, HEATER NUT MAY W10343251 Contact Us For Availability
5
HANDLE, DISHRACK (FRONT) MAY W10056297 Contact Us For Availability
5
MAY W10238412 MAY W10238412 Contact Us For Availability
6
MAY W10234558 MAY W10234558 Contact Us For Availability
6
MAY W10234559 MAY W10234559 Contact Us For Availability
6
MAY W10404412 MAY W10404412 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
SEAL, CABINET MAY W10179427 Contact Us For Availability
6
MAY 8579253 MAY 8579253 Contact Us For Availability
6
MAY W10238406 MAY W10238406 Contact Us For Availability
6
TINEROW MAY W10056351 Contact Us For Availability
7
INSULATION, TOE PANEL MAY W10385107 Contact Us For Availability
7
MAY W10077877 MAY W10077877 Contact Us For Availability
7
MAY W10195048 MAY W10195048 Contact Us For Availability
7
SIDE SHIELD (RIGHT AND LEFT) MAY W10275523 Contact Us For Availability
7
MAY W10195665 MAY W10195665 Contact Us For Availability
7
MAY W10208697 MAY W10208697 Contact Us For Availability
7
RETAINER, TINEROW MAY W10238411 Contact Us For Availability
8
TOE PANEL (INCLUDES ITEMS 7 & 9) MAY 8558252 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10238413 MAY W10238413 Contact Us For Availability
8
BALANCE, DOOR MAY W10084086 Contact Us For Availability
8
MAY W10393351 MAY W10393351 Contact Us For Availability
8
MAY W10238407 MAY W10238407 Contact Us For Availability
9
CLIP, GROUNDING MAY 8269016 Contact Us For Availability
9
MAY 8533965 MAY 8533965 Contact Us For Availability
9
MAY W10102495 MAY W10102495 Contact Us For Availability
9
MAY W10317686 MAY W10317686 Contact Us For Availability
9
MAY W10056308 MAY W10056308 Contact Us For Availability
9
MAY W10238416 MAY W10238416 Contact Us For Availability
10
MAY 302868 MAY 302868 Contact Us For Availability
10
MAY 8545608 MAY 8545608 Contact Us For Availability
10
STANDPIPE, OVERFILL (INCLUDES ITEM 11) MAY 8545946 Contact Us For Availability
10
MAY 661566 MAY 661566 Contact Us For Availability
10
MOTOR & SUMP ASSY. MAY W10234567 Contact Us For Availability
10
MAY W10238417 MAY W10238417 Contact Us For Availability
10
MAY W10238418 MAY W10238418 Contact Us For Availability
11
MAY W10413104 MAY W10413104 Contact Us For Availability
11
MAY 8531743 MAY 8531743 Contact Us For Availability
11
MAY 3400074 MAY 3400074 Contact Us For Availability
11
MAY 8579272 MAY 8579272 Contact Us For Availability
11
MAY W10238419 MAY W10238419 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
MAY W10177098 MAY W10177098 Contact Us For Availability
12
MAY W10195038 MAY W10195038 Contact Us For Availability
12
SCREW (2) MAY W10348411 Contact Us For Availability
12
MAY W10348407 MAY W10348407 Contact Us For Availability
12
MAY 9741232 MAY 9741232 Contact Us For Availability
13
MAY W10114211 MAY W10114211 Contact Us For Availability
13
MAY 8535660 MAY 8535660 Contact Us For Availability
13
MAY W10077871 MAY W10077871 Contact Us For Availability
13
WHEEL, LEG MAY 8268977 Contact Us For Availability
13
MAY W10372113 MAY W10372113 Contact Us For Availability
13
MAY W10238420 MAY W10238420 Contact Us For Availability
14
PANEL, CUSTOM 6`` MAY W10292632 Contact Us For Availability
14
MAY W10462232 MAY W10462232 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & MAY W10292152 Contact Us For Availability
14
MAY 8524584 MAY 8524584 Contact Us For Availability
14
MAY W10158351 MAY W10158351 Contact Us For Availability
14
MAY W10194862 MAY W10194862 Contact Us For Availability
15
STUD MAY 8564951 Contact Us For Availability
15
MAY W10482094 MAY W10482094 Contact Us For Availability
15
INSULATION BOTTOM MAY W10195367 Contact Us For Availability
15
MAY 8269144 MAY 8269144 Contact Us For Availability
15
MAY W10238404 MAY W10238404 Contact Us For Availability
16
PLATE, BACKING MAY W10142904 Contact Us For Availability
16
MAY 8564929 MAY 8564929 Contact Us For Availability
16
DRAIN LOOP WITH CHECK VALVE MAY W10195751 Contact Us For Availability
16
MAY 8270182 MAY 8270182 Contact Us For Availability
16
MAY 8579251 MAY 8579251 Contact Us For Availability
16
MAY W10238405 MAY W10238405 Contact Us For Availability
17
MAY W10123421 MAY W10123421 Contact Us For Availability
17
MAY 9742648 MAY 9742648 Contact Us For Availability
17
MAY W10056349 MAY W10056349 Contact Us For Availability
17
MAY 8270138 MAY 8270138 Contact Us For Availability
18
MAY W10194841 MAY W10194841 Contact Us For Availability
18
HANDLE (STAINLESS (INCLUDES 19, 20 & 21)) MAY W10208769 Contact Us For Availability
18
Hose Clamp MAY 356138 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
MAY 8268703 MAY 8268703 Contact Us For Availability
19
MAY W10194837 MAY W10194837 Contact Us For Availability
19
MAY W10194838 MAY W10194838 Contact Us For Availability
19
MAY 8268991 MAY 8268991 Contact Us For Availability
19
MAY W10134017 MAY W10134017 Contact Us For Availability
19
CLIP, DISPENSER GUARD MAY W10267076 Contact Us For Availability
20
MAY M0207303 MAY M0207303 Contact Us For Availability
20
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
20
HANDLE, DISHRACK (REAR) MAY W10056298 Contact Us For Availability
21
MAY 8534008 MAY 8534008 Contact Us For Availability
21
MAY 304666 MAY 304666 Contact Us For Availability
21
MAY W10179455 MAY W10179455 Contact Us For Availability
22
MAY W10350437 MAY W10350437 Contact Us For Availability
22
MAY 3400014 MAY 3400014 Contact Us For Availability
22
PLUG, DRAIN MAY W10193605 Contact Us For Availability
23
MAY 8573239 MAY 8573239 Contact Us For Availability
24
GASKET, MOUNTING BRACKET MAY 9743002 Contact Us For Availability
25
DOOR CABLE ASSEMBLY MAY W10158291 Contact Us For Availability
26
MAY W10321574 MAY W10321574 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
MAY 4396853 MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ.) (WHITE) MAY 676453 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ.) (GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
NI
CUSTOM PANEL & TRIM KIT ( BLACK) MAY 8212489 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
