Model Whirlpool JBZFR18IGX00 FREEZER, BUILT IN, 18 INCH – Common Parts &amp; Diagrams

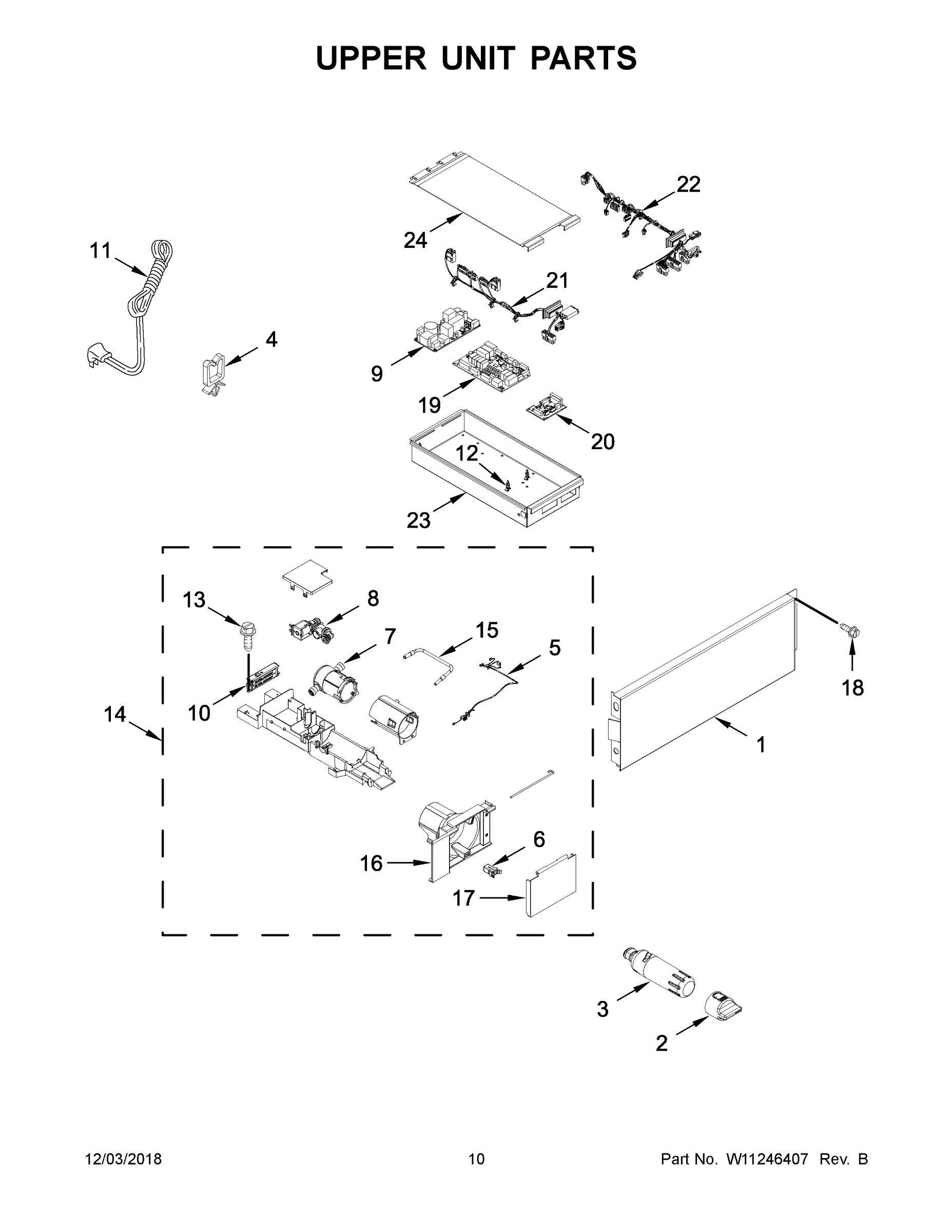

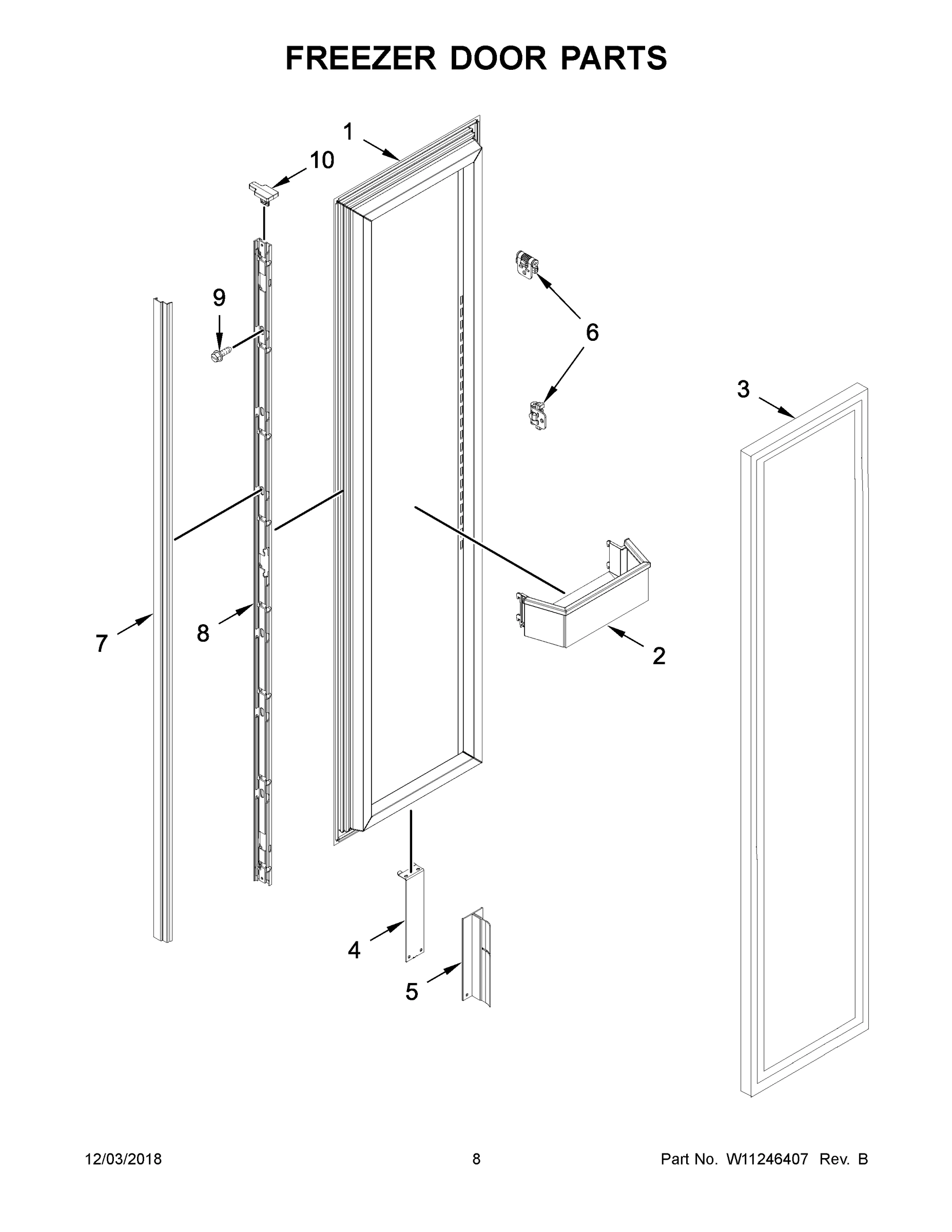

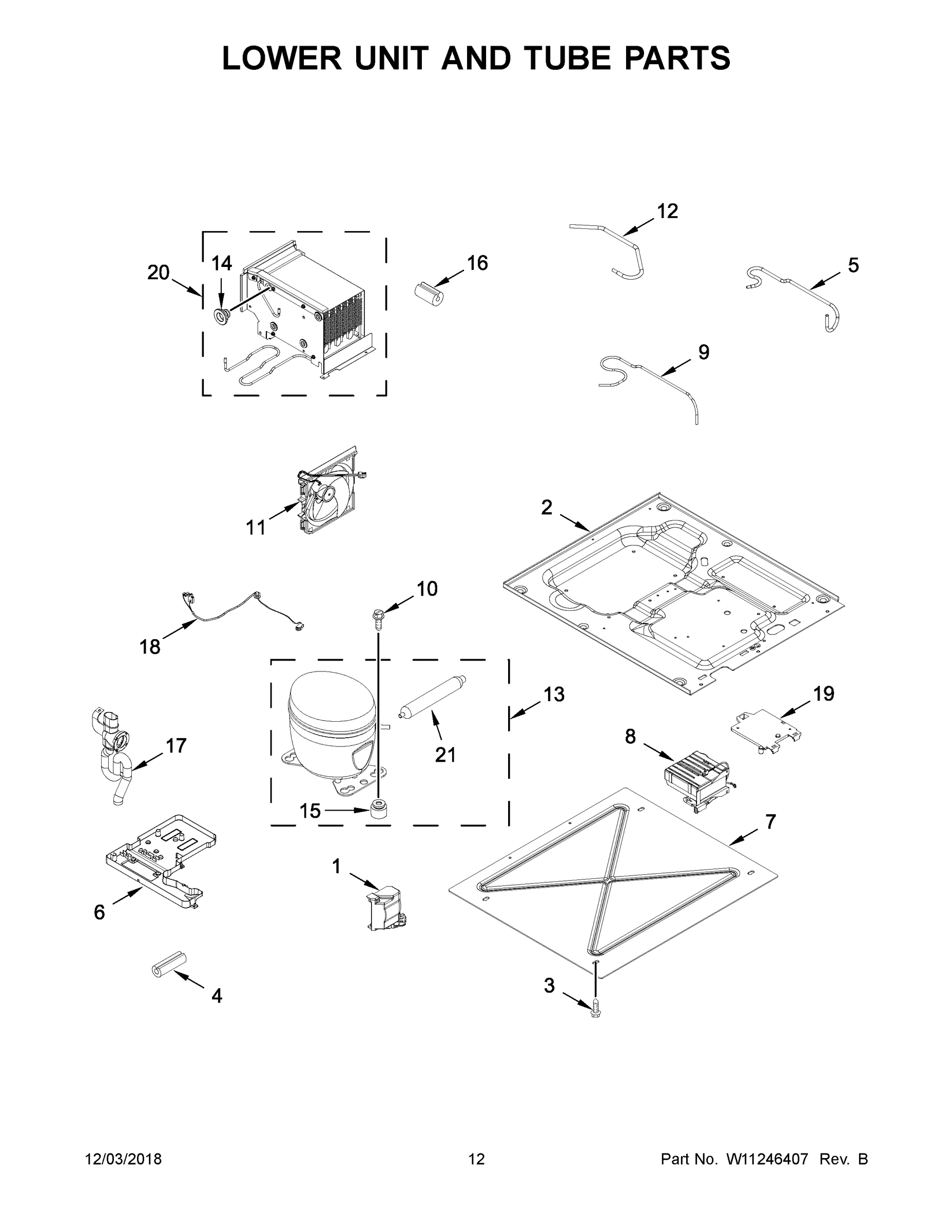

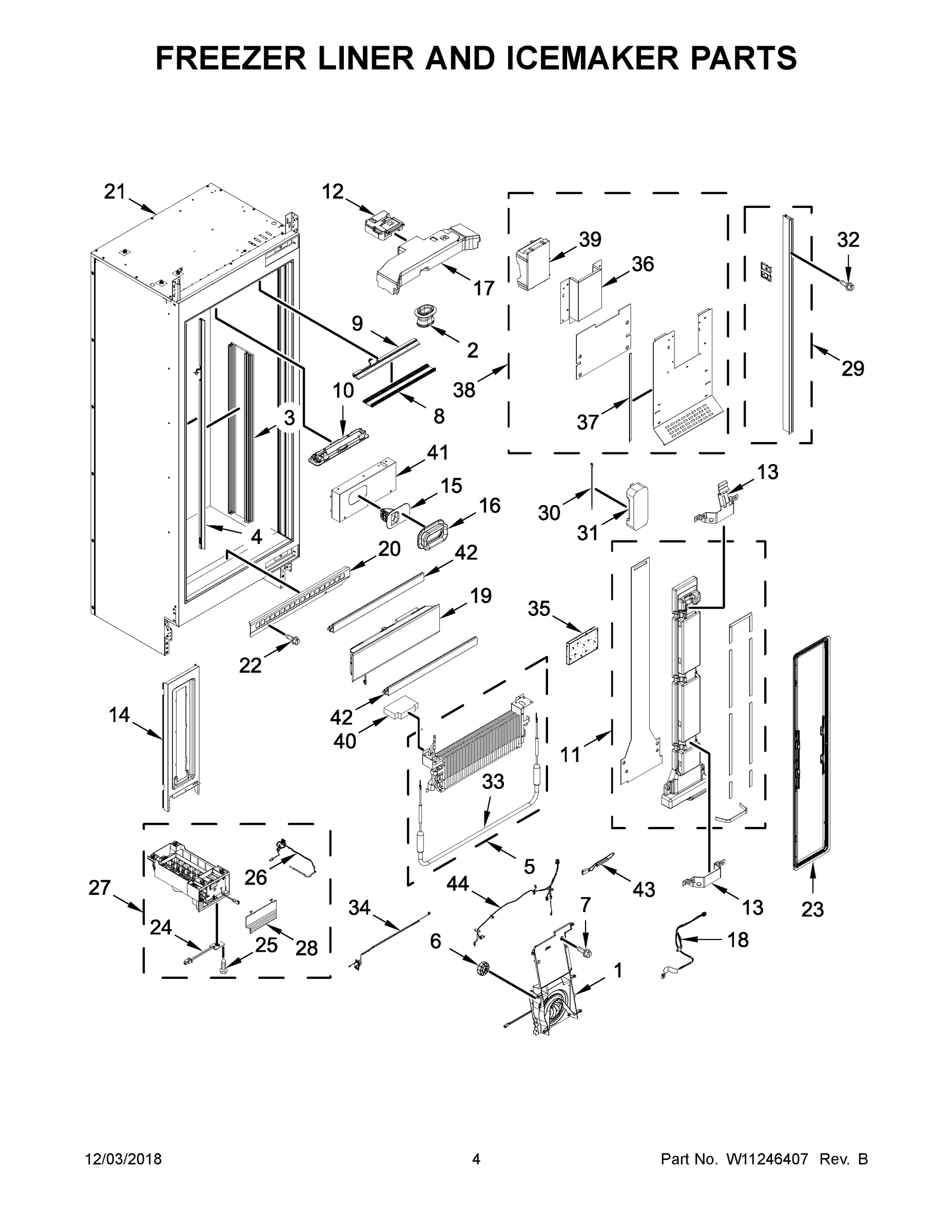

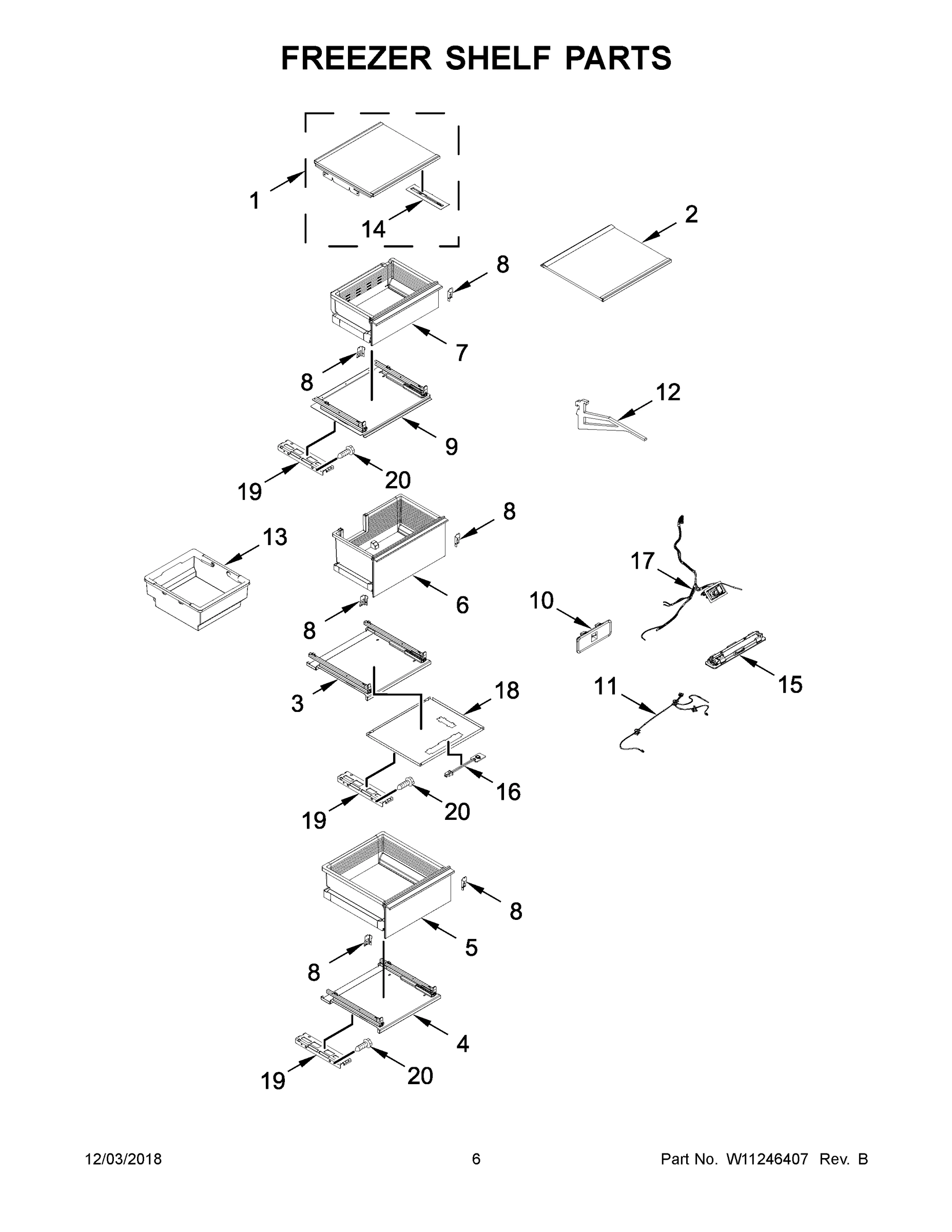

1

W11247636 Whirlpool Cover Assembly Backorder WPL W11247636 $105.74

1

W11247667 Whirlpool Refrigerator Cover Backorder WPL W11247667 $74.84

1

ASSEMBLY, DELI SHELF (INCLUDES THERMISTOR) WPL W10824593 Contact Us For Availability

1

ASSEMBLY, FREEZER DOOR WPL W10823677 Contact Us For Availability

2

W10370680 Whirlpool Refrigerator Fitting Backorder WPL W10370680 $23.79

2

W11307256 Whirlpool Glass Shelf Backorder WPL W11307256 $185.63

2

W11679634 Whirlpool Filter Cap Backorder WPL W11679634 $8.89

2

ASSEMBLY, DOOR BIN WPL W10824621 Contact Us For Availability

2

PAN, BASE WPL W10761666 Contact Us For Availability

3

EDR2RXD1 Whirlpool Everydrop® Water Filter 2 In Stock WPL EDR2RXD1 $65.34

3

W11038430 Whirlpool Gasket Backorder WPL W11038430 $211.47

3

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

3

ASSEMBLY, UPPER CRISPER SLIDE SUPPORT WPL W10824119 Contact Us For Availability

3

COVER, LED SIDE WPL W10816886 Contact Us For Availability

4

W11233381 Whirlpool Module Backorder WPL W11233381 $138.01

4

W11775252 Whirlpool Bracket Backorder WPL W11775252 $38.94

4

ASSEMBLY, LOWER CRISPER SLIDE SUPPORT WPL W10821600 Contact Us For Availability

4

CLIP WPL 2223913 Contact Us For Availability

4

GROMMET, EVAPORATOR TRAY WPL W10886557 Contact Us For Availability

4A

W11233382 Whirlpool Module Backorder WPL W11233382 $183.62

5

W11233377 Whirlpool Refrigerator Divider Backorder WPL W11233377 $33.48

5

W11233646 Whirlpool Tube Backorder WPL W11233646 $46.44

5

W11245087 Whirlpool Freezer Evaporator Backorder WPL W11245087 $230.67

5

ASSEMBLY, CRISPER WPL W10816844 Contact Us For Availability

5

HARNESS, VALVE (ALSO ORDER 2300868 - 5/16" WA WPL W10873611 Contact Us For Availability

6

W10225833 Whirlpool Grommet Backorder WPL W10225833 $30.35

6

W11235097 Whirlpool Adapter Backorder WPL W11235097 $73.48

6

W11299812 Whirlpool Refrigerator Latch Backorder WPL W11299812 $58.46

6

W11307277 Whirlpool Crisper Pan Backorder WPL W11307277 $253.93

6

TRAY, EVAPORATOR DRAIN WPL W10801047 Contact Us For Availability

6A

W11235098 Whirlpool Refrigerator Adapter Backorder WPL W11235098 $73.48

7

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

7

W11194438 Whirlpool Water Filter Housing In Stock WPL W11194438 $134.13

7

W11299811 Whirlpool Refrigerator Door Trim Backorder WPL W11299811 $89.75

7

ASSEMBLY, DELI WPL W10816763 Contact Us For Availability

7

PLATE, BOTTOM WPL W10834246 Contact Us For Availability

8

W11233375 Whirlpool Freezer Valve Backorder WPL W11233375 $139.86

8

W11233620 Whirlpool Refrigerator Inverter Box Backorder WPL W11233620 $239.15

8

W11302040 Whirlpool Refrigerator Bracket Backorder WPL W11302040 $161.43

8

CLIP, RETAINER (LEFT HAND) WPL W10856559 Contact Us For Availability

8

COVER, LED TOP WPL W10816889 Contact Us For Availability

8A

CLIP, RETAINER (RIGHT HAND) WPL W10856558 Contact Us For Availability

9

W11247585 Whirlpool Support Backorder WPL W11247585 $152.36

9

W11302041 Whirlpool Refrigerator Screw Backorder WPL W11302041 $8.89

9

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $53.31

9

WPW10624574-includeCORE Whirlpool WPW10624574 Backorder WPL WPW10624574-includeCORE $246.92

9

TUBE, DISCHARGE WPL W10770889 Contact Us For Availability

9

STRIP, TOP LED WPL W10826247 Contact Us For Availability

W11233384 Whirlpool Module Assembly Backorder WPL W11233384 $137.01

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $115.50

W11234857 Whirlpool Housing Backorder WPL W11234857 $170.98

W11302061 Whirlpool Refrigerator Trim Backorder WPL W11302061 $57.83

SCREW WPL 489473 Contact Us For Availability

W11233637 Whirlpool Fan Backorder WPL W11233637 $199.19

W11235114 Whirlpool Gasket Backorder WPL W11235114 $59.67

W11247586 Whirlpool Wire Harness Backorder WPL W11247586 $99.08

W11380825 Whirlpool Refrigerator Power Cord Backorder WPL W11380825 $111.07

W11233639 Whirlpool Refrigerator Tube Backorder WPL W11233639 $46.44

W11235115 Whirlpool Refrigerator Damper Backorder WPL W11235115 $135.87

W11690161 Whirlpool Support Backorder WPL W11690161 $32.95

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.67

W11036131 Whirlpool Bracket Backorder WPL W11036131 $87.85

W11234515 Whirlpool Freezer Ice Pan Backorder WPL W11234515 $197.18

W11328338 Whirlpool Compressor Backorder WPL W11328338 $409.69

SCREW WPL W11168732 Contact Us For Availability

13A

ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER WPL W11036132 Contact Us For Availability

W10587113 Whirlpool Grommet Backorder WPL W10587113 $10.00

W11247640 Whirlpool Freezer Mount Kit Backorder WPL W11247640 $232.95

W11265008 Whirlpool Thermistor Backorder WPL W11265008 $80.13

WALL, FALSE WPL W10816928 Contact Us For Availability

W11233371 Whirlpool Water Tube Backorder WPL W11233371 $83.12

W11235093 Whirlpool Refrigerator Cover Backorder WPL W11235093 $74.84

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

DUCT, DELI WPL W10816934 Contact Us For Availability

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $6.02

W11233372 Whirlpool Refrigerator Door Hinge Backorder WPL W11233372 $244.86

W11235118 Whirlpool Gasket Assembly Backorder WPL W11235118 $16.13

W11247540 Whirlpool Refrigerator Housing Backorder WPL W11247540 $147.43

W11247543 Whirlpool Refrigerator Filter Cover Backorder WPL W11247543 $71.26

HARNESS, MULLION WPL W11238953 Contact Us For Availability

ASSEMBLY, DRAIN TUBE WPL W10781987 Contact Us For Availability

ASSEMBLY, DUCT WPL W10815187 Contact Us For Availability

W11233622 Whirlpool Wire Harness Backorder WPL W11233622 $99.08

W11247538 Whirlpool Screw Backorder WPL W11247538 $8.89

CLIP, WIRE WPL W10604160 Contact Us For Availability

PLATE, CRISPER LED SUPPORT WPL W10902247 Contact Us For Availability

HARNESS, DAMPER WPL W10890824 Contact Us For Availability

W11302062-includeCORE Whirlpool W11302062 Fre Backorder WPL W11302062-includeCORE $321.93

W11763850-includeCORE Whirlpool Backorder WPL W11763850-includeCORE $490.71

SCREW WPL W10141645 Contact Us For Availability

BRACKET, SUPPORT WPL W11045476 Contact Us For Availability

BRACKET, INVERTER MOUNTING WPL W10663674 Contact Us For Availability

W11233378 Whirlpool Trim Assembly Backorder WPL W11233378 $115.93

W11233634 Whirlpool Condenser Backorder WPL W11233634 $208.96

W11233638-includeCORE Whirlpool W11233638 Ref Backorder WPL W11233638-includeCORE $321.93

W11307250 Whirlpool Freezer Grille Backorder WPL W11307250 $78.17

20A

W11233379 Whirlpool Trim Assembly Backorder WPL W11233379 $118.68

W11234285 Whirlpool Electronic Control Board Backorder WPL W11234285 $121.28

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

HARNESS, HV WPL W10890820 Contact Us For Availability

22

W10848725 Whirlpool Front Grille Backorder WPL W10848725 $112.23

22

W11233621 Whirlpool Wire Harness Backorder WPL W11233621 $99.08

22

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $5.02

22A

W10848724 Whirlpool Front Grille Backorder WPL W10848724 $82.12

23

W11302064 Whirlpool Tray Mount Backorder WPL W11302064 $11.58

23

ASSEMBLY, AIR TOWER PANEL WPL W10816938 Contact Us For Availability

24

W11234552 Whirlpool Module Backorder WPL W11234552 $137.01

24

LID, COVER WPL W10822213 Contact Us For Availability

25

SCREW WPL W11224718 Contact Us For Availability

26

W11234553 Whirlpool Wire Harness Backorder WPL W11234553 $94.38

27

W11646196 Whirlpool Icemaker In Stock WPL W11646196 $136.90

28

W11234555 Whirlpool Freezer Front Cover Backorder WPL W11234555 $14.02

29

LADDER, SHELF (INCLUDES SCREW GUIDE) (LEFT HA WPL W10905671 Contact Us For Availability

29A

LADDER, SHELF (INCLUDES SCREW GUIDE) (RIGHT H WPL W10905672 Contact Us For Availability

30

W11234826 Whirlpool Refrigerator Thermistor Backorder WPL W11234826 $84.14

31

W11235125 Whirlpool Cover Backorder WPL W11235125 $74.84

32

SCREW (BLACK) WPL W10894079 Contact Us For Availability

33

W11245154 Whirlpool Heater Assembly Backorder WPL W11245154 $99.41

34

W11515313 Whirlpool Freezer Water Tube In Stock WPL W11515313 $245.87

35

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.67

36

COVER, EVAPORATOR PANEL U SHAPE WPL W10895218 Contact Us For Availability

37

GASKET, EVAPORATOR PANEL WPL W10895214 Contact Us For Availability

38

ASSEMBLY, EVAPO WPL W10876958 Contact Us For Availability

39

WPL W10780861 WPL W10780861 Contact Us For Availability

40

WPL W11216532 WPL W11216532 Contact Us For Availability

40A

WPL W11216529 WPL W11216529 Contact Us For Availability

41

WPL W10816944 WPL W10816944 Contact Us For Availability

42

WPL W10816922 WPL W10816922 Contact Us For Availability

42A

WPL W10887667 WPL W10887667 Contact Us For Availability

43

W10602825 Whirlpool Refrigerator Wire Jumper In Stock WPL W10602825 $29.54

44

W11299624 Whirlpool Wire Harness Backorder WPL W11299624 $94.38

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $36.01

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

W10756744 Whirlpool Refrigerator Touch-Up Pai Backorder WPL W10756744 $16.79

W10756745 Whirlpool Touch-Up Backorder WPL W10756745 $31.49

W11234308 Whirlpool Spacer Backorder WPL W11234308 $10.23

W11247578 Whirlpool Installation Kit Backorder WPL W11247578 $370.44

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

MISCELLANEOUS, CLEANER, STAINLESS STEEL WPL 20000008 Contact Us For Availability

MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. WPL 542639 Contact Us For Availability

JOIN KIT, HINGE - LEFT HAND / NON HINGE - RIG WPL W11103738 Contact Us For Availability

JOIN KIT, NON HINGE - LEFT HAND / HINGE - RIG WPL W11103740 Contact Us For Availability

BEZEL TRIM KIT, NON HINGE - LEFT HAND / HINGE WPL W11227384 Contact Us For Availability

BEZEL TRIM KIT, HINGE - LEFT HAND / HINGE - R WPL W11227385 Contact Us For Availability

BEZEL TRIM KIT, HINGE WPL W11227386 Contact Us For Availability
