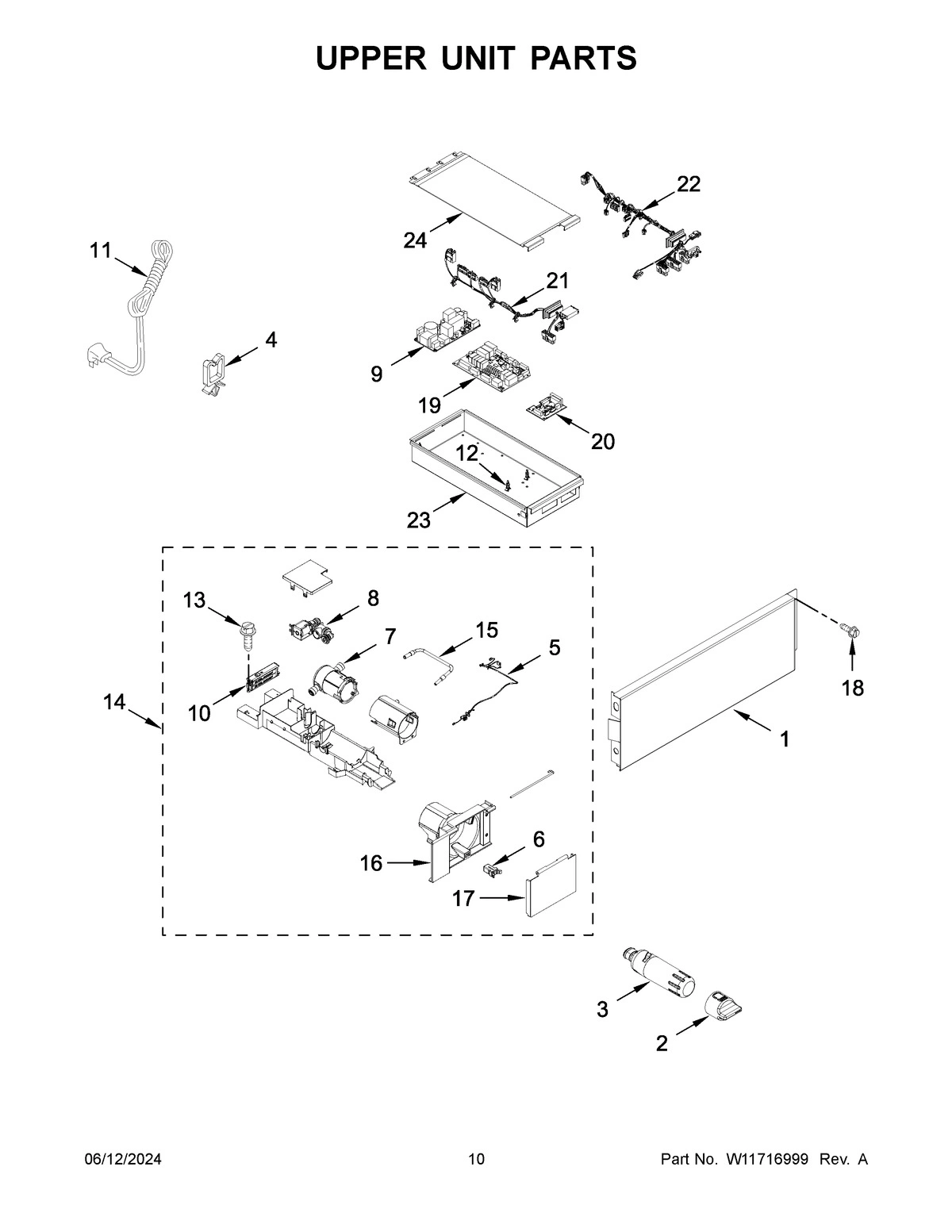

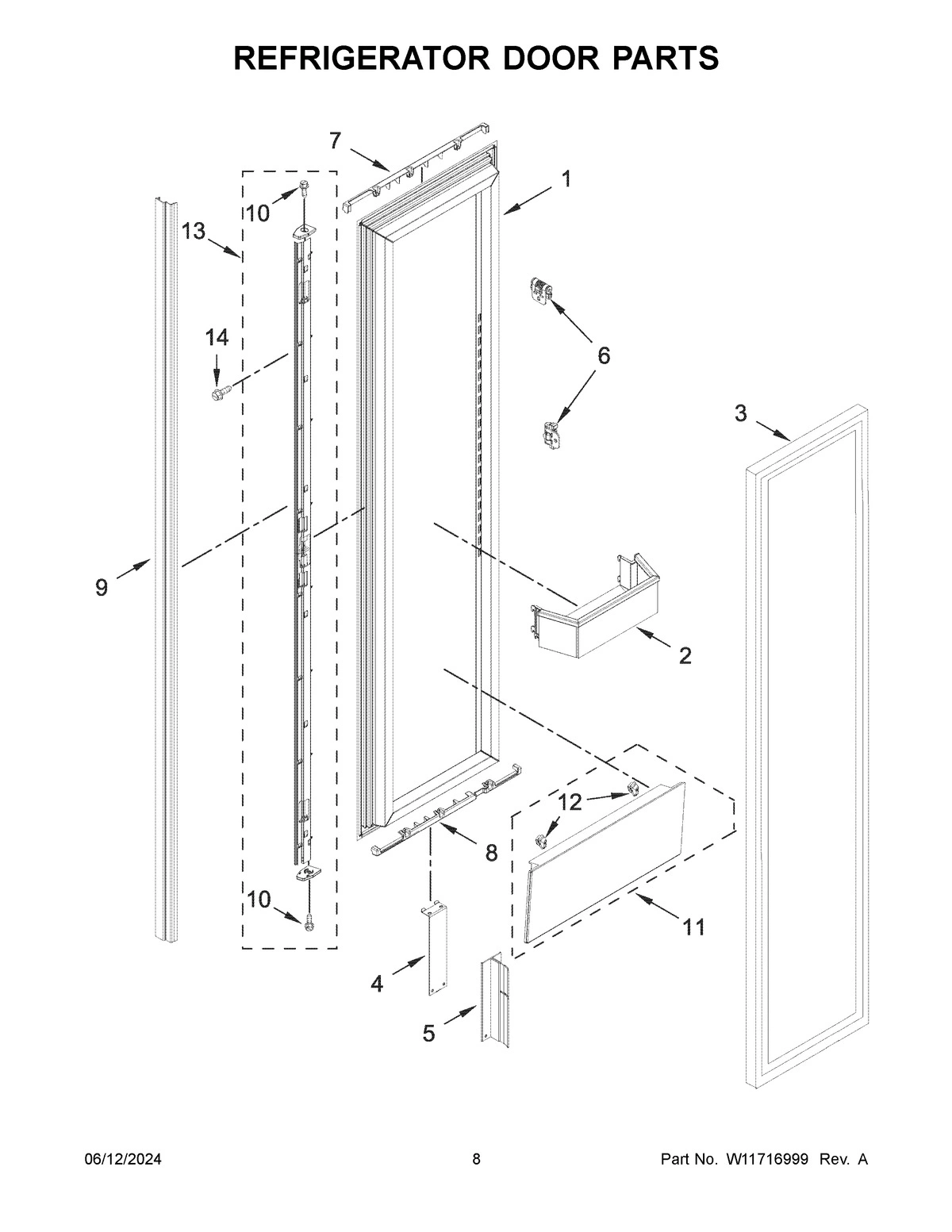

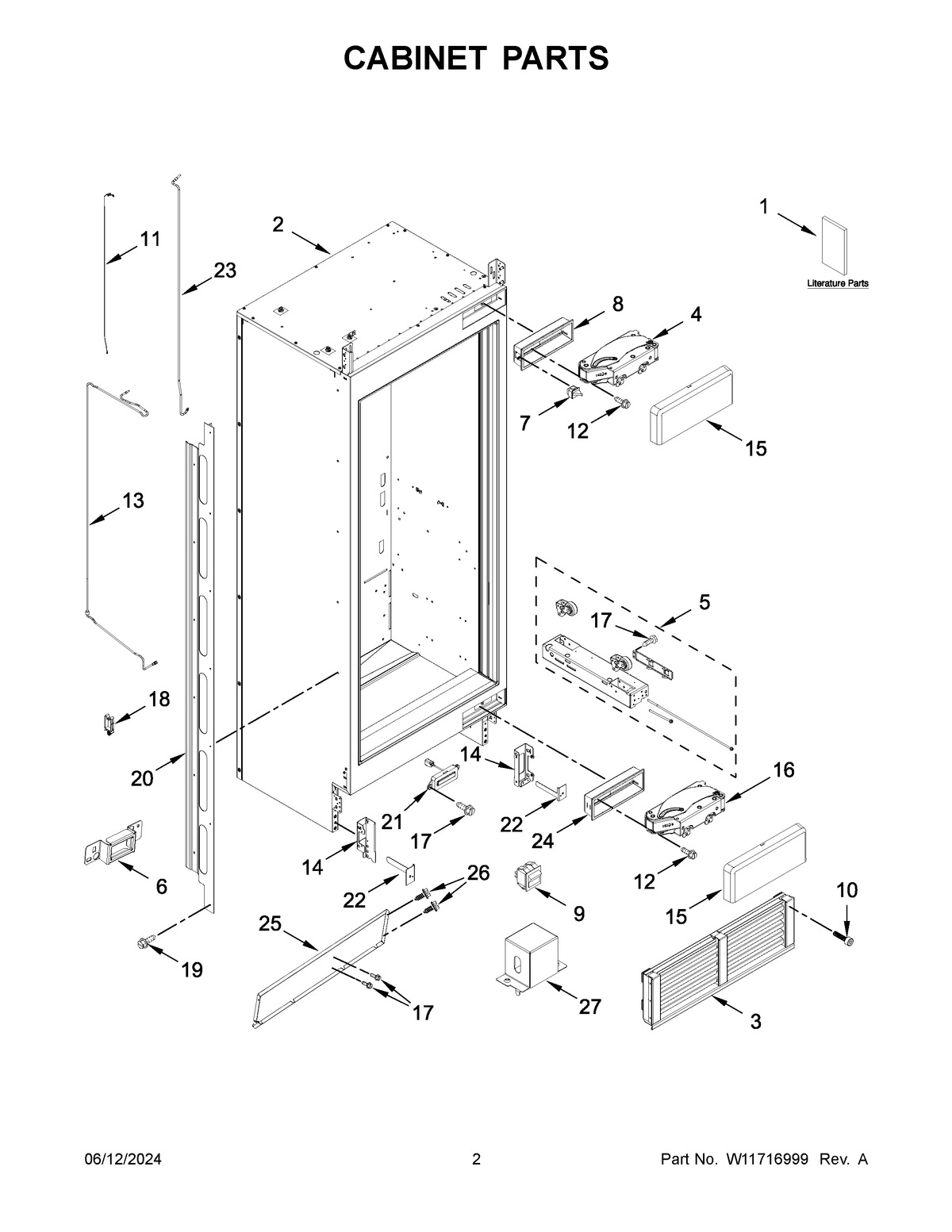

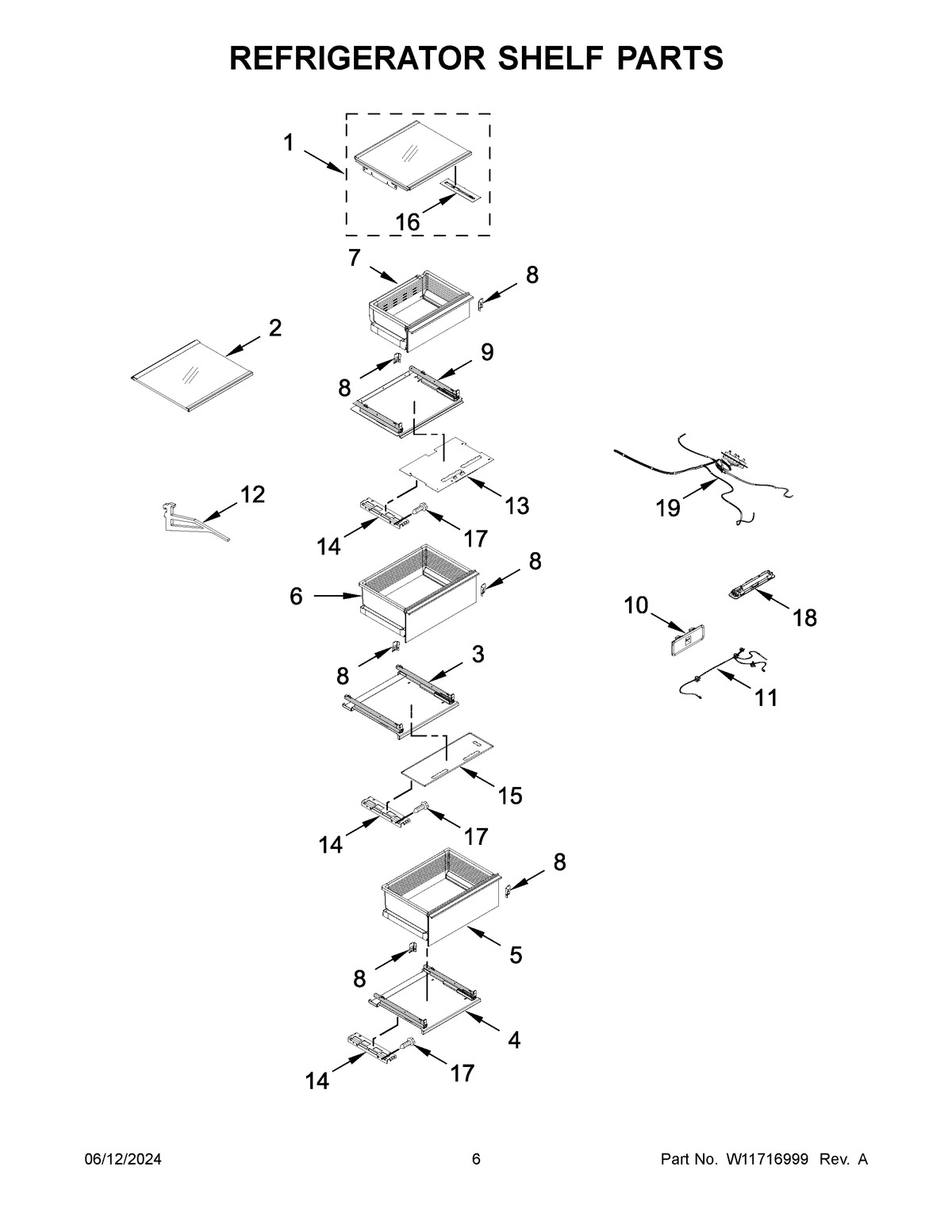

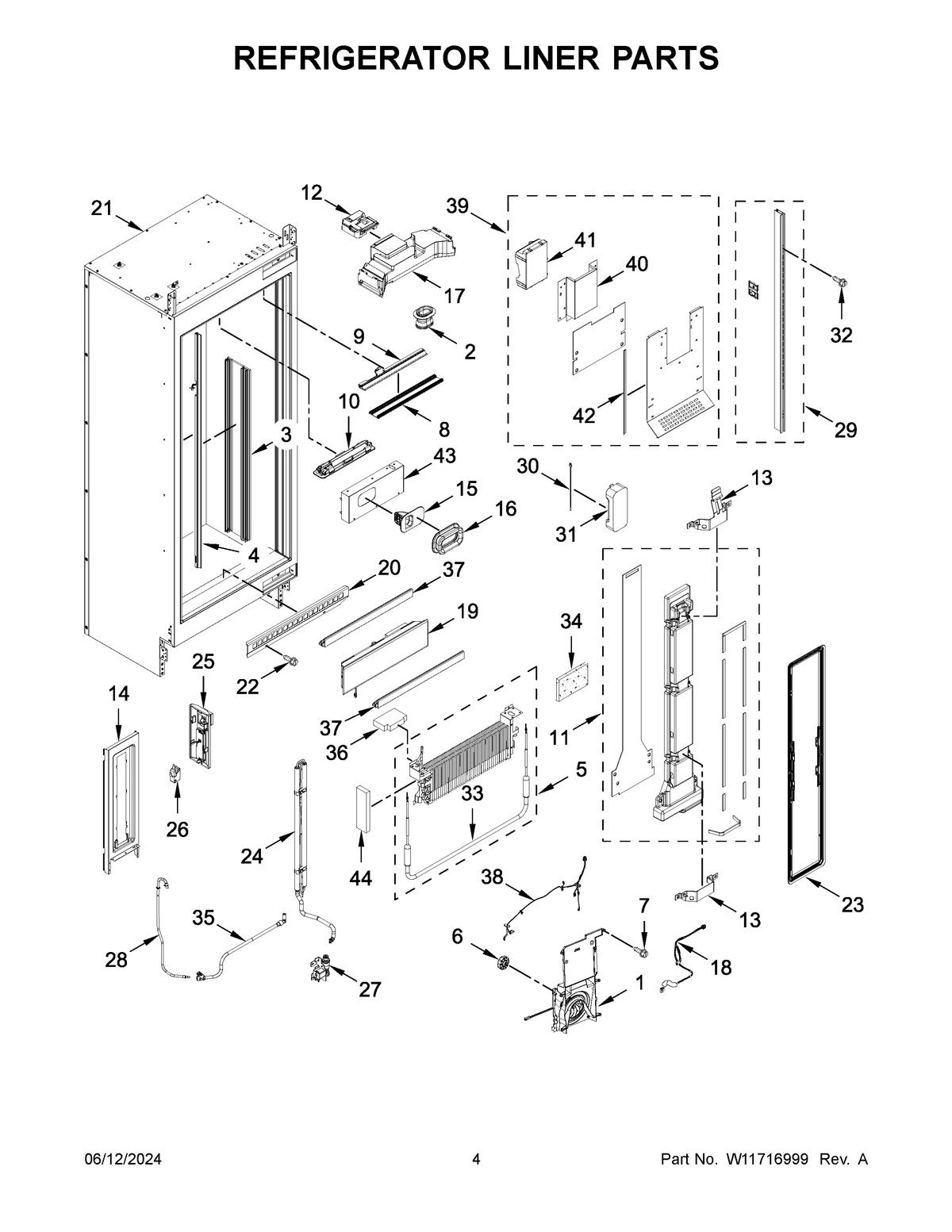

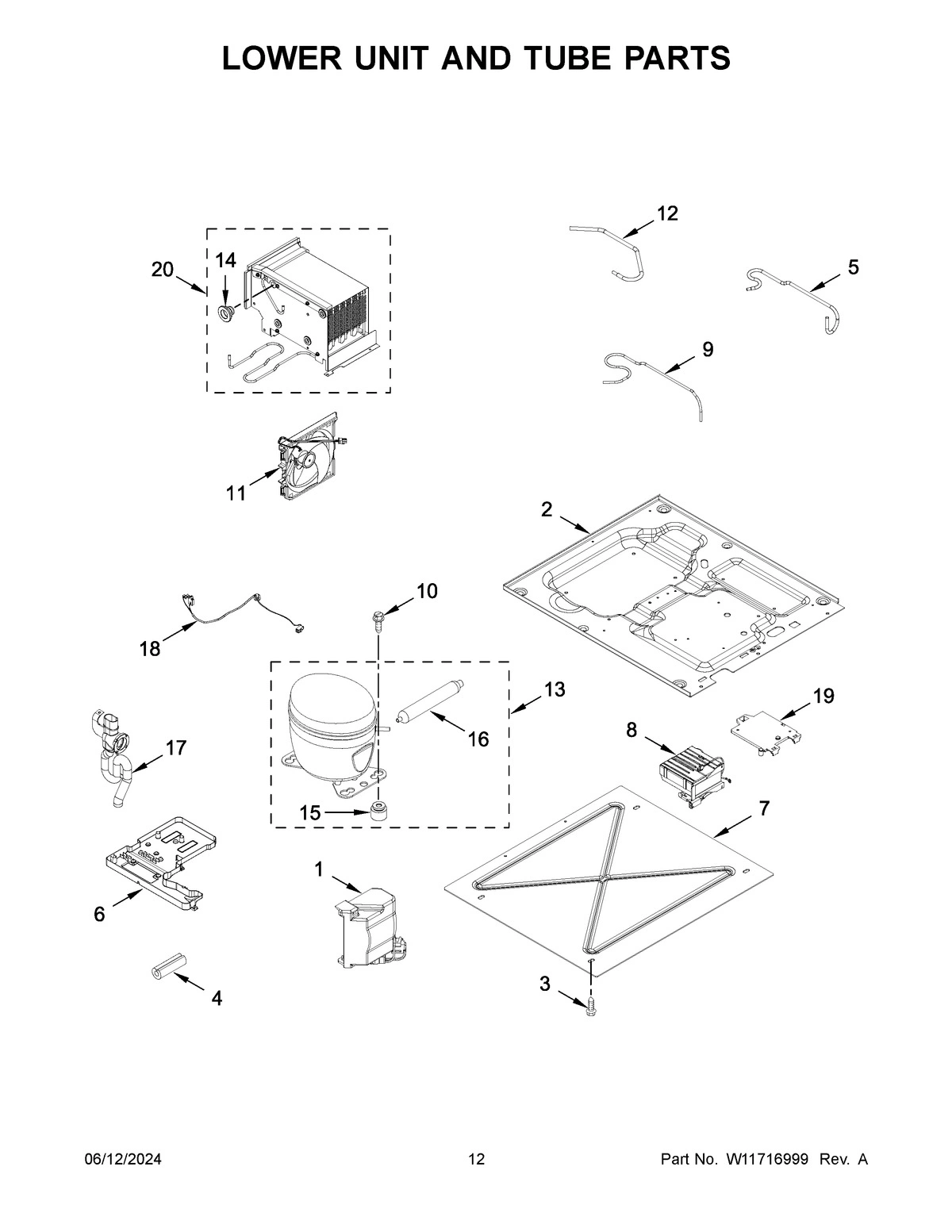

Model Whirlpool JBRFSR30RX00 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

W11234861 Whirlpool Refrigerator Cover Backorder WPL W11234861 $151.68

1

W11247667 Whirlpool Refrigerator Cover Backorder WPL W11247667 $69.28

1

ASSEMBLY, DELI SHELF WPL W10824595 Contact Us For Availability

1

ASSEMBLY, SLIMTECH DOOR WPL W11723973 Contact Us For Availability

2

W10370680 Whirlpool Refrigerator Fitting Backorder WPL W10370680 $23.57

2

W11234495 Whirlpool Glass Shelf Backorder WPL W11234495 $329.72

2

W11679634 Whirlpool Filter Cap Backorder WPL W11679634 $12.63

2

ASSEMBLY, DOOR BIN WPL W11703749 Contact Us For Availability

2

PAN, BASE WPL W10761666 Contact Us For Availability

3

EDR2RXD1 Whirlpool Everydrop® Water Filter 2 In Stock WPL EDR2RXD1 $65.34

3

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $14.93

3

COVER, LED SIDE WPL W10816886 Contact Us For Availability

3

ASSEMBLY, UPPER CRISPER SLIDE SUPPORT WPL W10824121 Contact Us For Availability

3

GASKET, DOOR (BLACK) WPL W11704822 Contact Us For Availability

4

W11233381 Whirlpool Module Backorder WPL W11233381 $184.22

4

ASSEMBLY, LOWER CRISPER SLIDE SUPPORT WPL W10821602 Contact Us For Availability

4

BRACKET, AIR DIVIDER WPL W11629976 Contact Us For Availability

4

CLIP WPL 2223913 Contact Us For Availability

4

GROMMET, EVAPORATOR TRAY WPL W10886557 Contact Us For Availability

4A

W11233382 Whirlpool Module Backorder WPL W11233382 $245.04

5

W11233377 Whirlpool Refrigerator Divider Backorder WPL W11233377 $43.23

5

ASSEMBLY, EVAPORATOR AND HEATER (ALSO ORDER T WPL W11351160 Contact Us For Availability

5

ASSEMBLY, BOTTOM CRISPER PAN WPL W11022754 Contact Us For Availability

5

HARNESS, VALVE (ALSO ORDER 2300868 - 5/16" WA WPL W10831294 Contact Us For Availability

5

TUBE, SUCTION WPL W11495450 Contact Us For Availability

5A

W11504451 Whirlpool Coupler Backorder WPL W11504451 $40.67

5B

W11506619 Whirlpool Refrigerator Coupler In Stock WPL W11506619 $16.12

6

W10225833 Whirlpool Grommet Backorder WPL W10225833 $40.13

6

W11299812 Whirlpool Refrigerator Latch Backorder WPL W11299812 $54.12

6

ASSEMBLY, MIDDLE CRISPER PAN WPL W11022755 Contact Us For Availability

6

ASSEMBLY, PANEL ADJUSTER (HORIZONTAL) WPL W11622276 Contact Us For Availability

6

TRAY, EVAPORATOR DRAIN WPL W10801047 Contact Us For Availability

6A

ASSEMBLY, PANEL ADJUSTER (VERTICAL) WPL W11622579 Contact Us For Availability

7

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.77

7

W11194438 Whirlpool Water Filter Housing In Stock WPL W11194438 $100.09

7

ASSEMBLY, DELI WPL W10816761 Contact Us For Availability

7

COVER, TOP DOOR WPL W11640060 Contact Us For Availability

7

PLATE, BOTTOM WPL W10834246 Contact Us For Availability

8

W11642201 Whirlpool Inverter Box Backorder WPL W11642201 $365.71

8

COVER, LED TOP WPL W10816892 Contact Us For Availability

8

CLIP, RETAINER (LEFT HAND) WPL W10856559 Contact Us For Availability

8

COVER, BOTTOM DOOR WPL W11640062 Contact Us For Availability

8

VALVE, PILOT (ALSO ORDER 2300868 - 5/16" WATE WPL W10870856 Contact Us For Availability

8A

CLIP, RETAINER (RIGHT HAND) WPL W10856558 Contact Us For Availability

9

W11232780 Whirlpool Support Bracket In Stock WPL W11232780 $228.26

9

WPW10624574-includeCORE Whirlpool WPW10624574 Backorder WPL WPW10624574-includeCORE $231.95

9

STRIP, TOP LED WPL W10826249 Contact Us For Availability

9

TRIM, PANEL ADJUST WPL W11622709 Contact Us For Availability

9

TUBE, DISCHARGE WPL W11297133 Contact Us For Availability

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $118.62

W11234857 Whirlpool Housing Backorder WPL W11234857 $158.28

SCREW WPL 324004079 Contact Us For Availability

SCREW WPL 489473 Contact Us For Availability

W11233637 Whirlpool Fan Backorder WPL W11233637 $184.38

W11234859 Whirlpool Refrigerator Wire Harness Backorder WPL W11234859 $91.72

W11235114 Whirlpool Gasket Backorder WPL W11235114 $79.66

W11380825 Whirlpool Refrigerator Power Cord Backorder WPL W11380825 $102.81

ASSEMBLY, VACUUM COVER WPL W11705866 Contact Us For Availability

W11235115 Whirlpool Refrigerator Damper Backorder WPL W11235115 $125.77

W11690161 Whirlpool Support In Stock WPL W11690161 $30.50

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.55

CLIP, PANEL WPL W11709161 Contact Us For Availability

TUBE, PROCESS WPL W11517921 Contact Us For Availability

W11036131 Whirlpool Bracket Backorder WPL W11036131 $82.76

W11557671 Whirlpool Refrigerator Compressor In Stock WPL W11557671 $505.38

PANEL, MULLION WPL W11024696 Contact Us For Availability

ASSEMBLY, DOOR ADJUST WPL W11622671 Contact Us For Availability

SCREW WPL W11168732 Contact Us For Availability

13A

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $16.24

13A

ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER WPL W11036132 Contact Us For Availability

13B

W11504421 Whirlpool Freezer Coupler Backorder WPL W11504421 $21.15

13C

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $17.28

W11248063 Whirlpool Mounting Kit Backorder WPL W11248063 $310.08

WALL, FALSE WPL W10816931 Contact Us For Availability

BRACKET, SUPPORT WPL W11045476 Contact Us For Availability

SCREW WPL W10704731 Contact Us For Availability

GROMMET WPL W10587113 Contact Us For Availability

14A

ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT H WPL W11028835 Contact Us For Availability

W11233371 Whirlpool Water Tube In Stock WPL W11233371 $76.94

W11306698 Whirlpool Plate Backorder WPL W11306698 $73.62

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.04

COVER, HINGE WPL W11641247 Contact Us For Availability

DUCT, DELI WPL W10816934 Contact Us For Availability

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $25.05

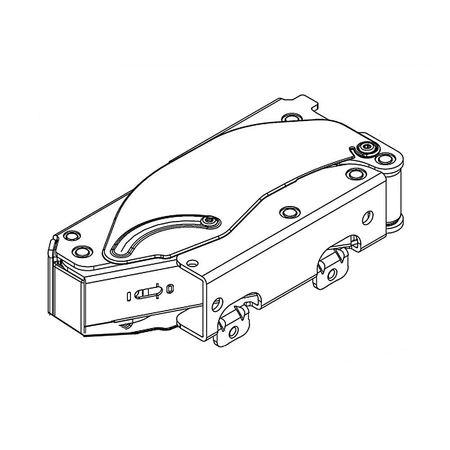

W11233372 Whirlpool Refrigerator Door Hinge Backorder WPL W11233372 $391.88

W11235118 Whirlpool Gasket Assembly Backorder WPL W11235118 $15.97

W11247540 Whirlpool Refrigerator Housing Backorder WPL W11247540 $136.47

THERMISTOR Backorder WPL W11265008 $106.93

16B

W11504447 Whirlpool Refrigerator Coupler In Stock WPL W11504447 $28.00

17

W11247543 Whirlpool Refrigerator Filter Cover Backorder WPL W11247543 $65.97

17

ASSEMBLY, DUCT WPL W10863618 Contact Us For Availability

17

ASSEMBLY, DRAIN TUBE WPL W10781987 Contact Us For Availability

W11233384 Whirlpool Module Assembly Backorder WPL W11233384 $126.83

W11247538 Whirlpool Screw Backorder WPL W11247538 $14.93

W11247700 Whirlpool Wire Harness Assembly Backorder WPL W11247700 $91.72

CLIP, WIRE WPL W10604160 Contact Us For Availability

HARNESS, COMPRESSOR WPL W11411189 Contact Us For Availability

HARNS-WIRE Backorder WPL W10818566 $87.37

W11404241-includeCORE Whirlpool W11404241 Ref Backorder WPL W11404241-includeCORE $384.24

W11645579-includeCORE Whirlpool W11645579 Ref Backorder WPL W11645579-includeCORE $265.63

SCREW WPL W10141645 Contact Us For Availability

BRACKET, INVERTER MOUNTING WPL W10663674 Contact Us For Availability

W11233378 Whirlpool Trim Assembly Backorder WPL W11233378 $147.32

W11233634 Whirlpool Condenser In Stock WPL W11233634 $193.43

W11233638-includeCORE Whirlpool W11233638 Ref Backorder WPL W11233638-includeCORE $334.07

GRILLE, AIR RETURN WPL W10847992 Contact Us For Availability

20A

W11233379 Whirlpool Trim Assembly Backorder WPL W11233379 $150.82

20A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $18.46

20B

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $13.65

21

W11234285 Whirlpool Electronic Control Board In Stock WPL W11234285 $123.35

21

LINER (NOT A SERVICEABLE PART) WPL ARI8B23AD81B97D70C7853D17BAA6EEAA2D Contact Us For Availability

21

HARNESS, HV WPL W10890822 Contact Us For Availability

22

W10848725 Whirlpool Front Grille Backorder WPL W10848725 $72.36

22

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.77

22

HARNESS, LV WPL W11319311 Contact Us For Availability

22A

W10848724 Whirlpool Front Grille Backorder WPL W10848724 $76.01

23

W11247672 Whirlpool Refrigerator Water Tube Backorder WPL W11247672 $76.94

23

W11302064 Whirlpool Tray Mount Backorder WPL W11302064 $18.35

23

ASSEMBLY, AIR TOWER PANEL WPL W10816938 Contact Us For Availability

24

W11603843 Whirlpool Refrigerator Water Reserv Backorder WPL W11603843 $116.96

24

POCKET, HINGE LOWER (CHARCOAL SPARKLE) WPL W10900023 Contact Us For Availability

24

LID, COVER WPL W10822213 Contact Us For Availability

25

W11247958 Whirlpool Cover Assembly Backorder WPL W11247958 $98.87

25

PANEL, MC REAR WPL W10772058 Contact Us For Availability

26

WP12575502 Whirlpool Refrigerator Switch Backorder WPL WP12575502 $44.00

27

W11247961 Whirlpool Refrigerator Valve Backorder WPL W11247961 $129.47

27

COVER, POWER SWITCH WPL W11415331 Contact Us For Availability

28

W11248065 Whirlpool Water Tube Backorder WPL W11248065 $76.94

29

LADDER, SHELF (INCLUDES SCREW GUIDE) (LEFT HA WPL W10905671 Contact Us For Availability

29A

LADDER, SHELF (INCLUDES SCREW GUIDE) (RIGHT H WPL W10905672 Contact Us For Availability

30

W11234826 Whirlpool Refrigerator Thermistor Backorder WPL W11234826 $77.89

31

W11235125 Whirlpool Cover Backorder WPL W11235125 $69.28

32

SCREW (BLACK) WPL W11288606 Contact Us For Availability

33

HEATER, WPL W11312289 Contact Us For Availability

34

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.64

35

W11579165 Whirlpool Water Tube Backorder WPL W11579165 $56.21

36

WPL W11216536 WPL W11216536 Contact Us For Availability

36A

WPL W11216535 WPL W11216535 Contact Us For Availability

37

WPL W10816925 WPL W10816925 Contact Us For Availability

37A

WPL W10887669 WPL W10887669 Contact Us For Availability

38

W11642297 Whirlpool Wire Harness Backorder WPL W11642297 $67.02

39

WPL W11441795 WPL W11441795 Contact Us For Availability

40

WPL W10895218 WPL W10895218 Contact Us For Availability

41

WPL W10780861 WPL W10780861 Contact Us For Availability

42

WPL W10895214 WPL W10895214 Contact Us For Availability

43

WPL W10816946 WPL W10816946 Contact Us For Availability

44

WPL W10876968 WPL W10876968 Contact Us For Availability

44A

WPL W10876969 WPL W10876969 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $43.36

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $5.76

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $158.72

W10756744 Whirlpool Refrigerator Touch-Up Pai Backorder WPL W10756744 $16.63

W10756745 Whirlpool Touch-Up Backorder WPL W10756745 $32.78

W11247578 Whirlpool Installation Kit Backorder WPL W11247578 $628.43

W11691746 Whirlpool Installation Kit Backorder WPL W11691746 $317.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $74.33

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $110.74

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

GAUGE, DOOR WPL W11663175 Contact Us For Availability

REFRIGERANT CHARGE 55.8 GRAMS (R600A) WPL ARI6746102C49EB56442C0E6C4AFBBD14C8 Contact Us For Availability

JOIN KIT (HINGE - LEFT HAND / NON HINGE - RIG WPL W11103738 Contact Us For Availability

JOIN KIT (NON HINGE - LEFT HAND / HINGE - RIG WPL W11103740 Contact Us For Availability
