Model Ipso IXU195Z Washer – Common Parts & Diagrams
Frame

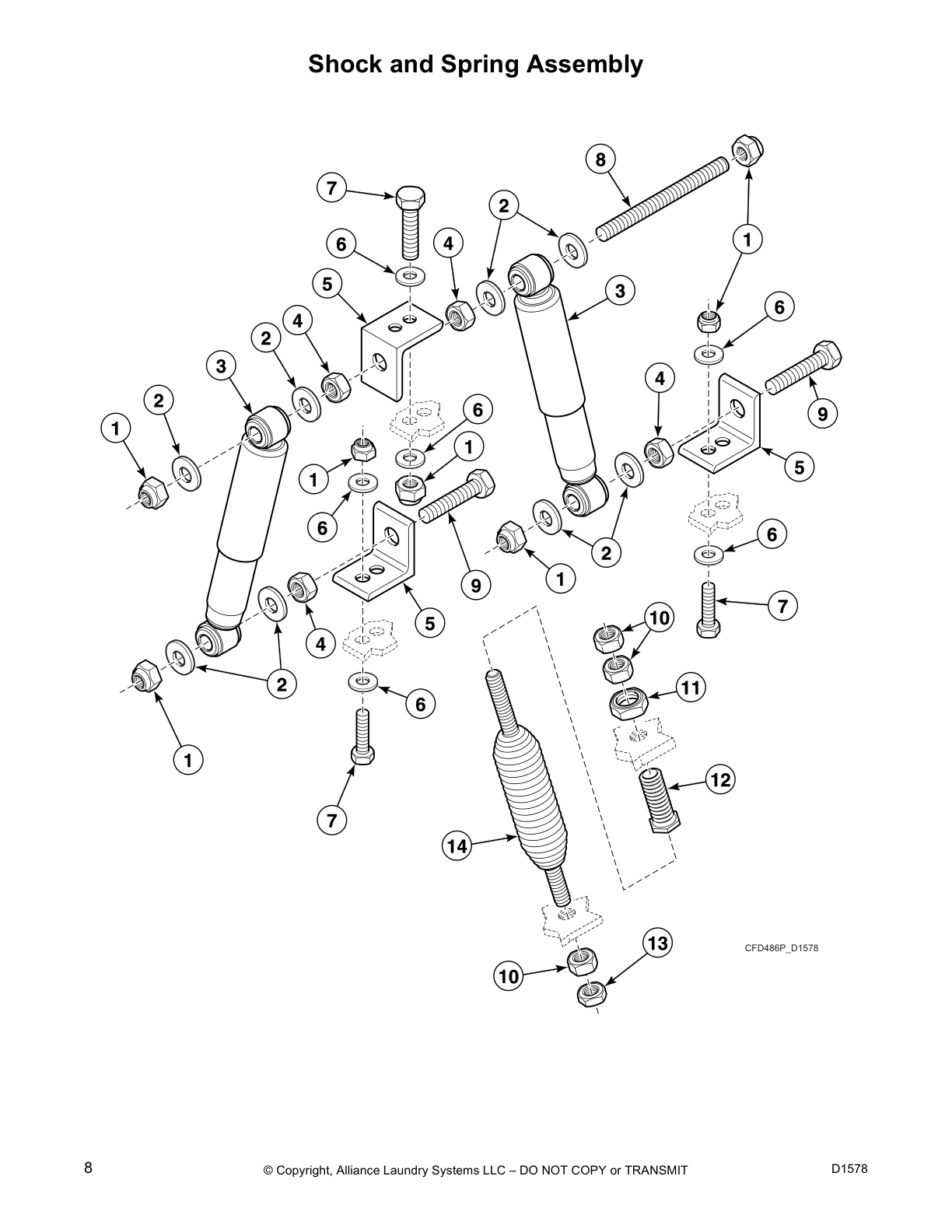

Shock and Spring Assembly

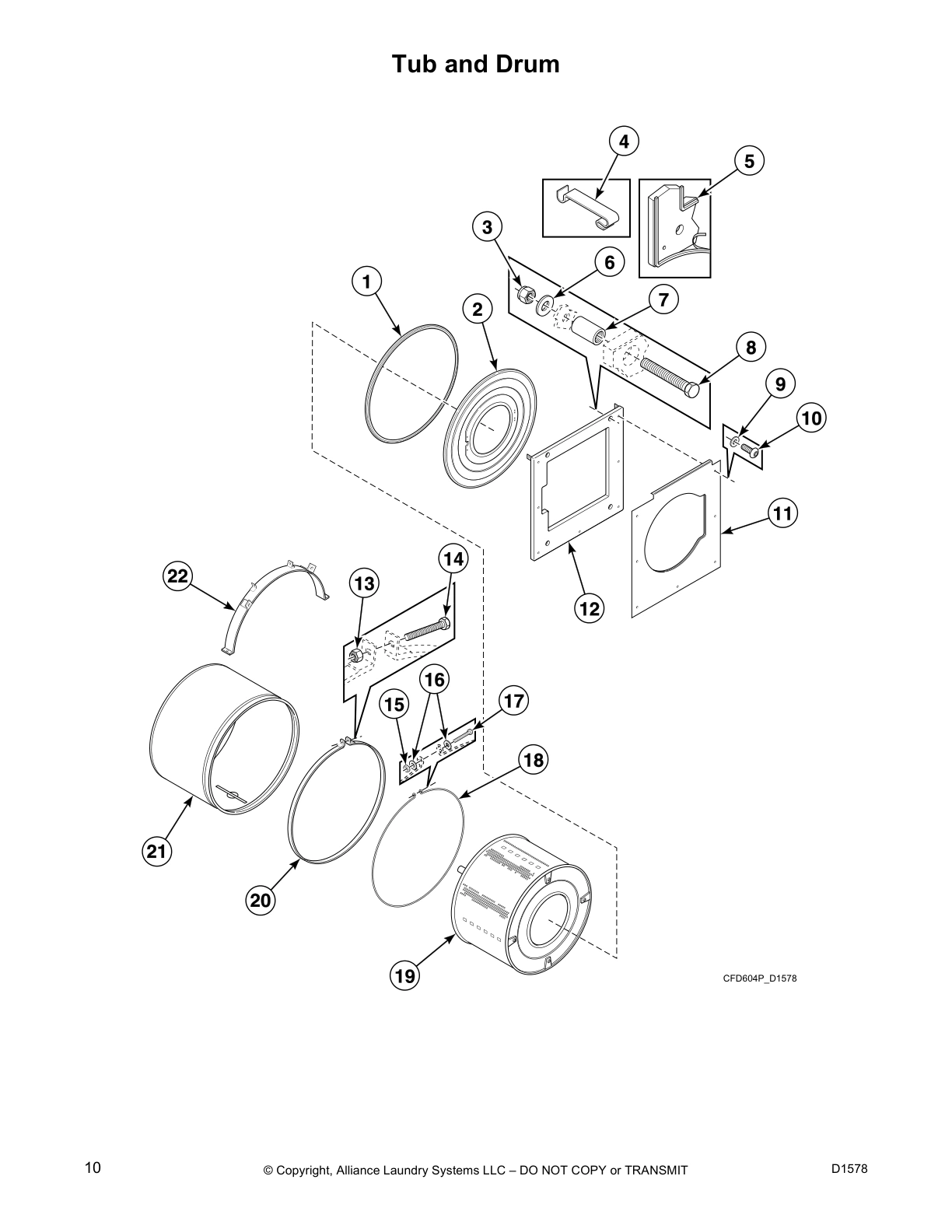

Tub and Drum

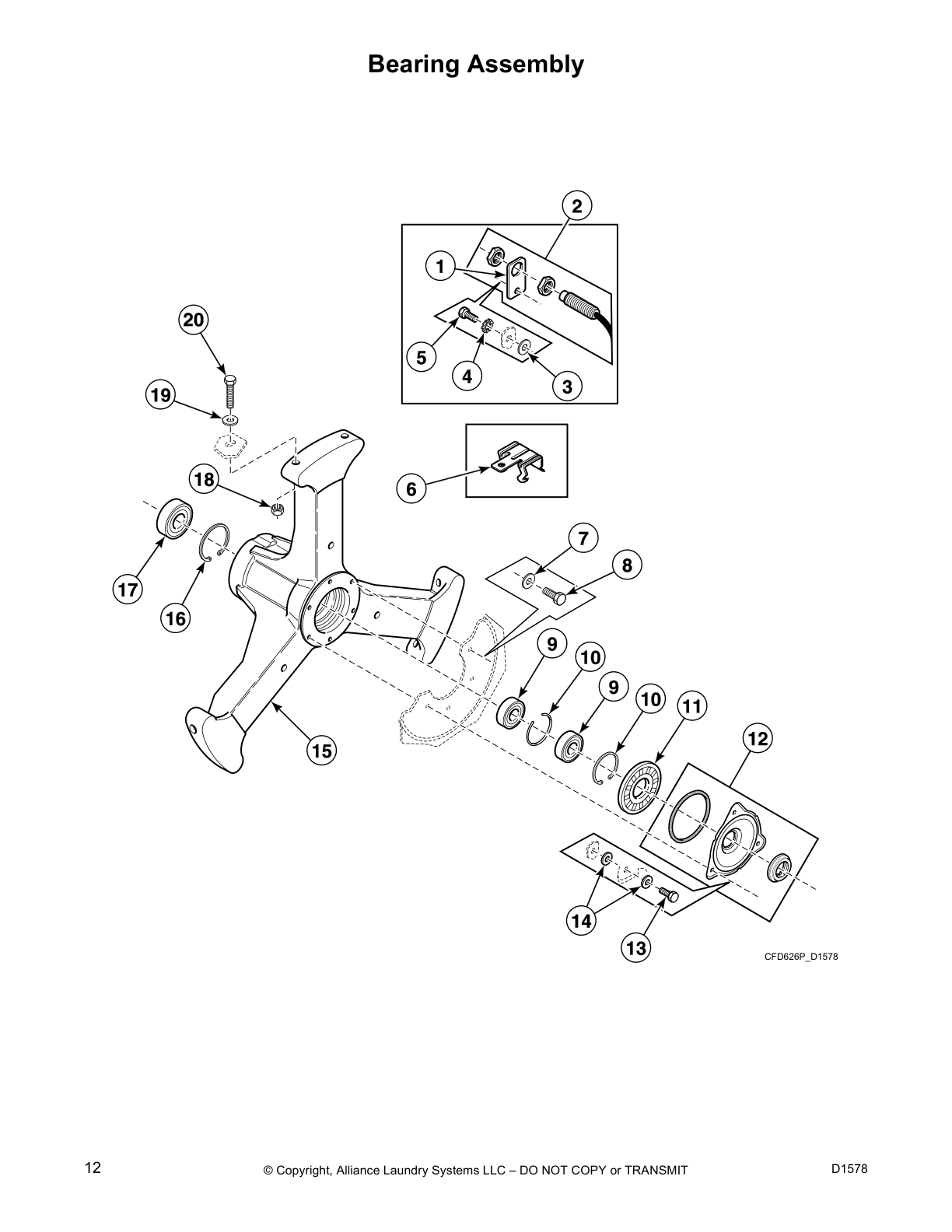

Bearing Assembly

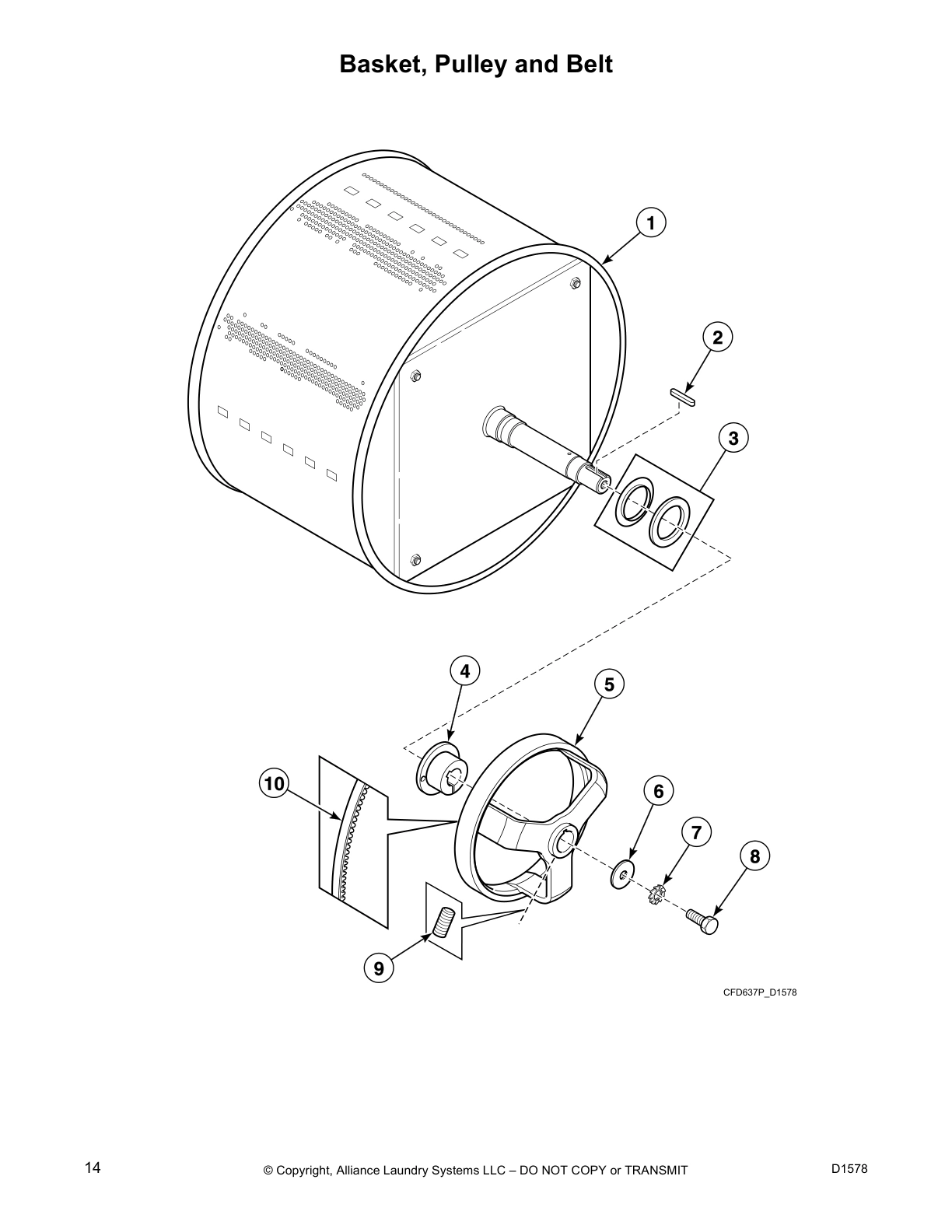

Basket, Pulley and Belt

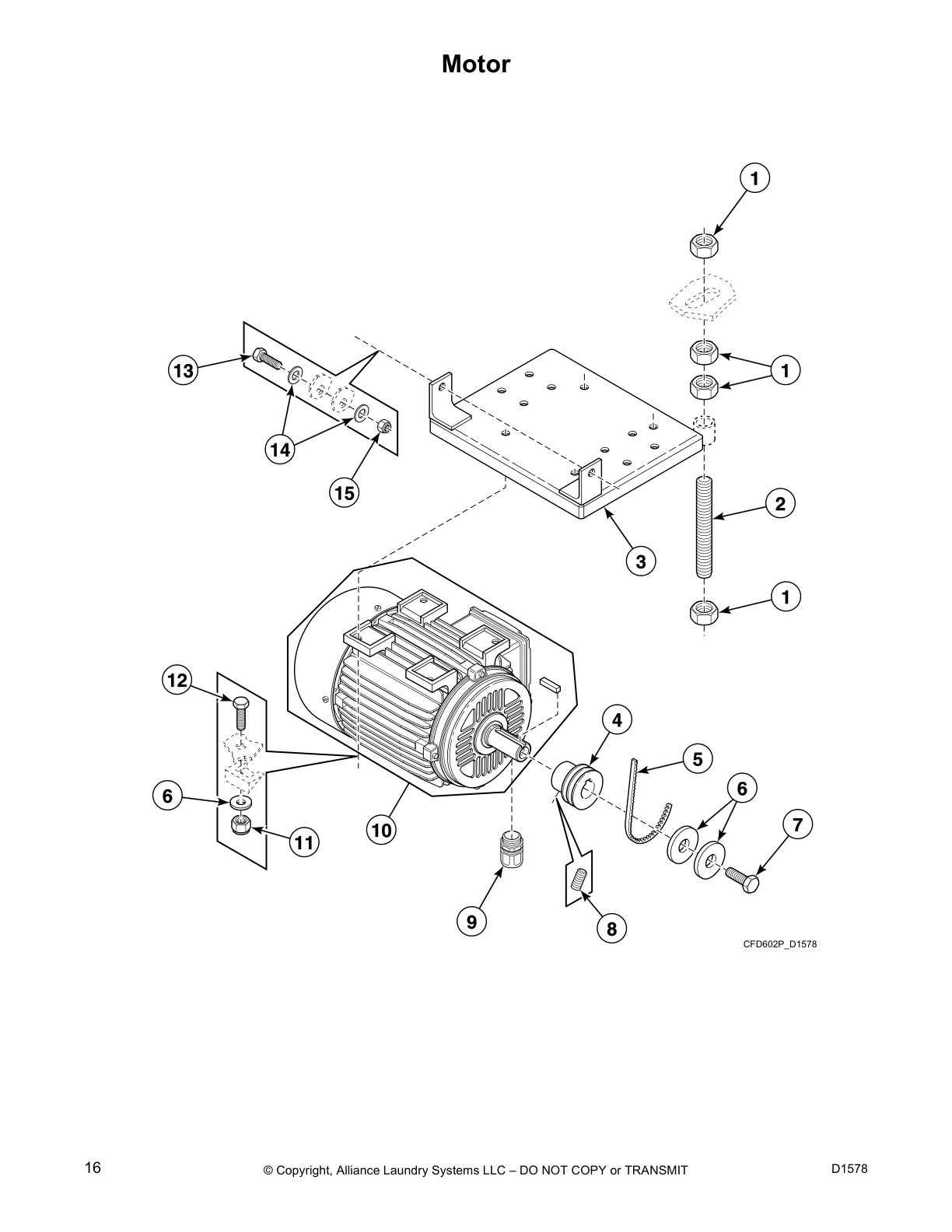

Motor

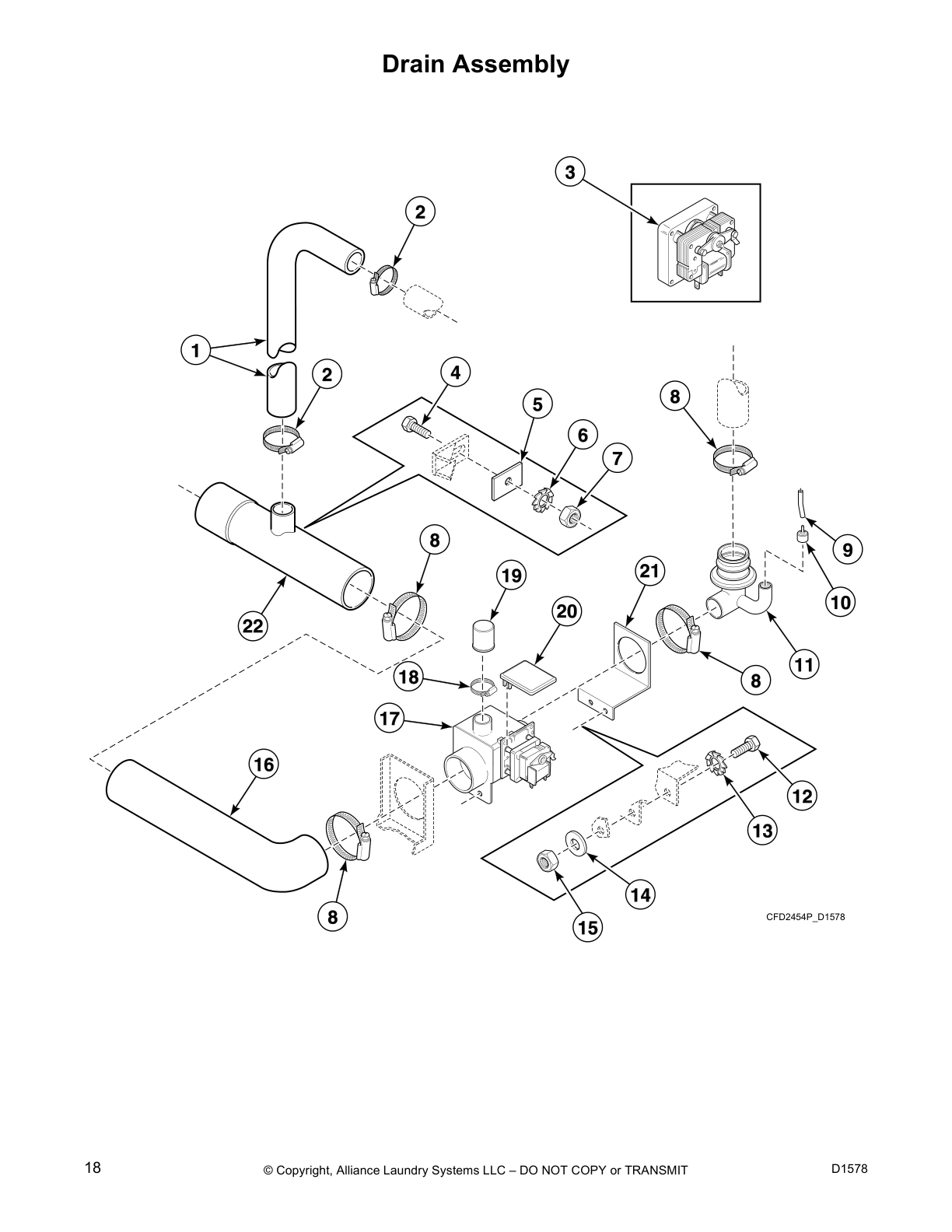

Drain Assembly

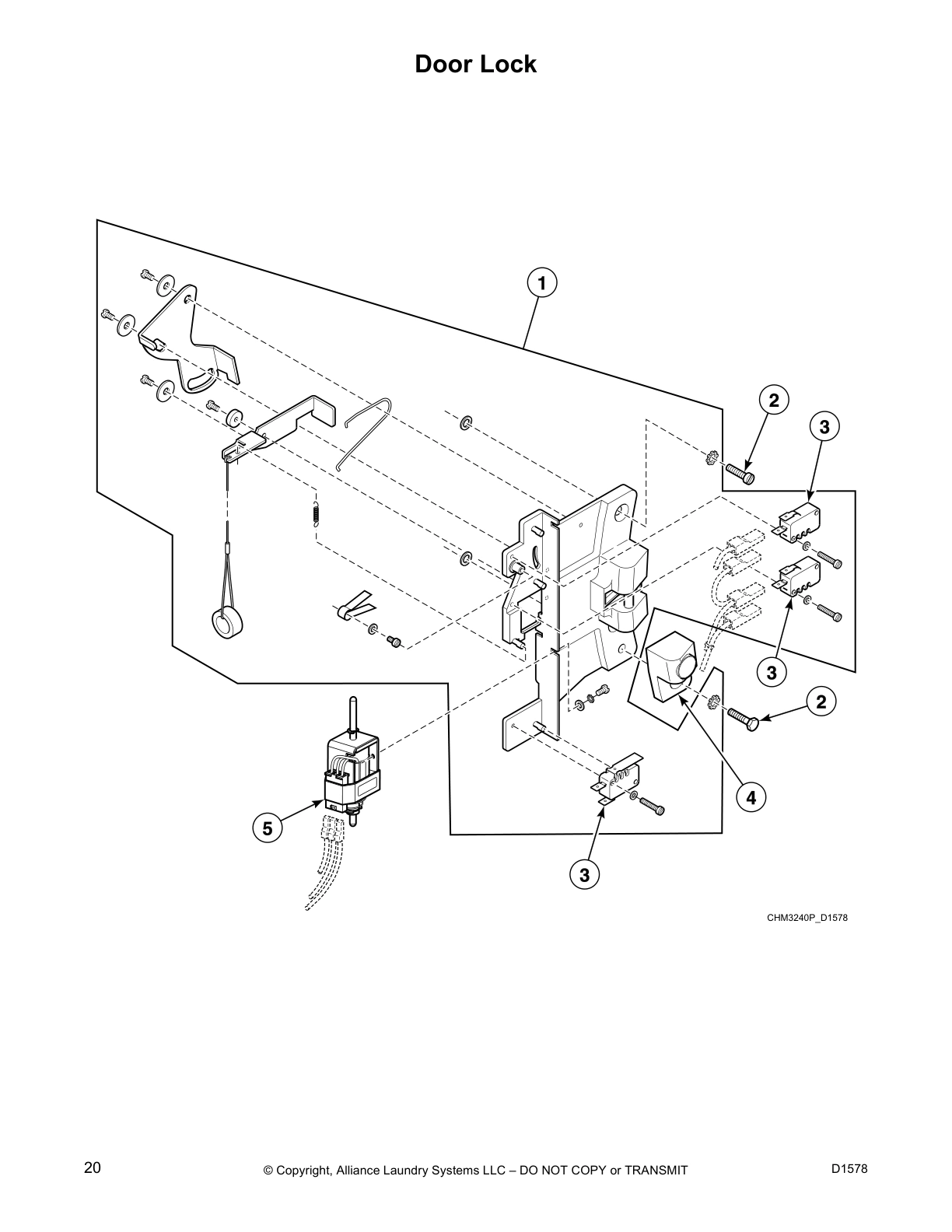

Door Lock

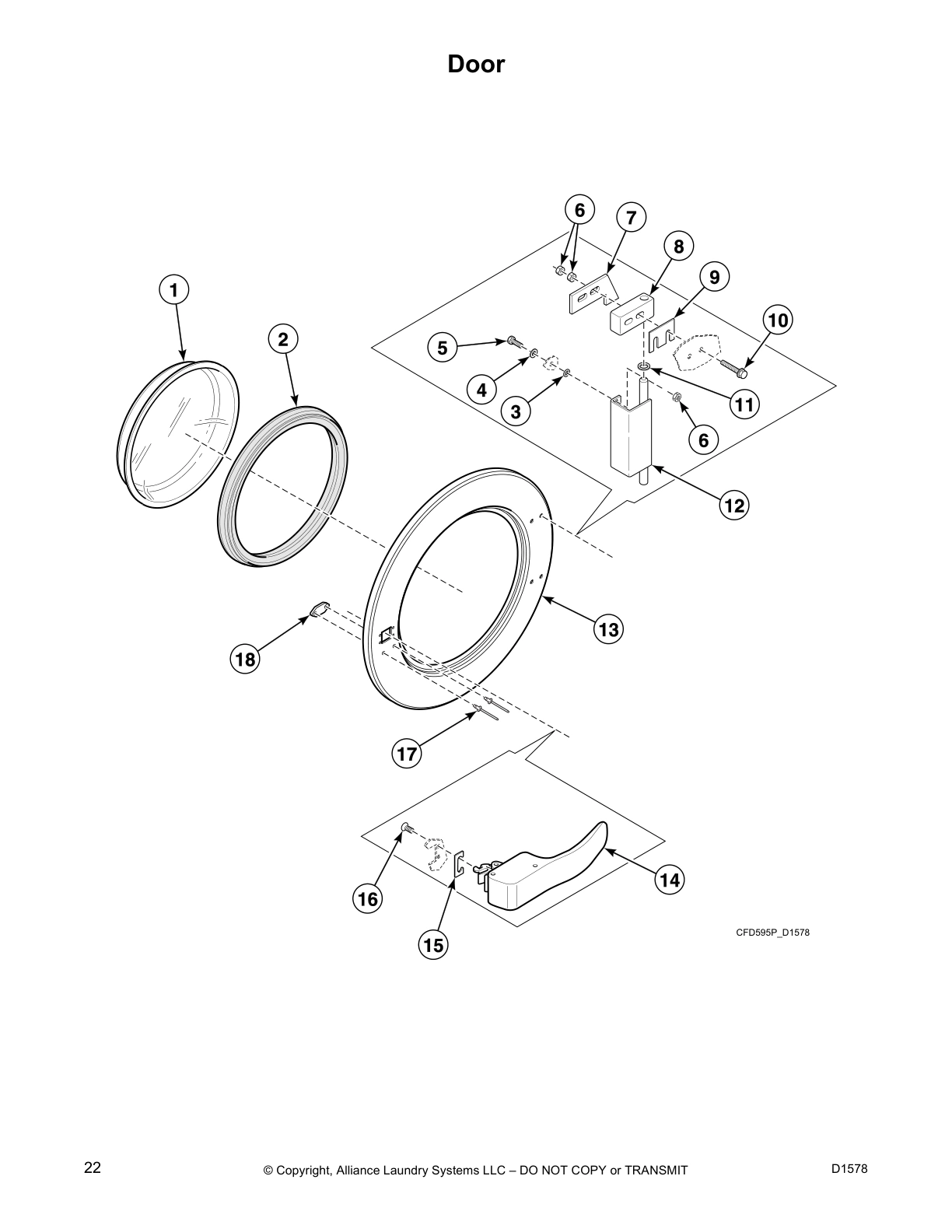

Door

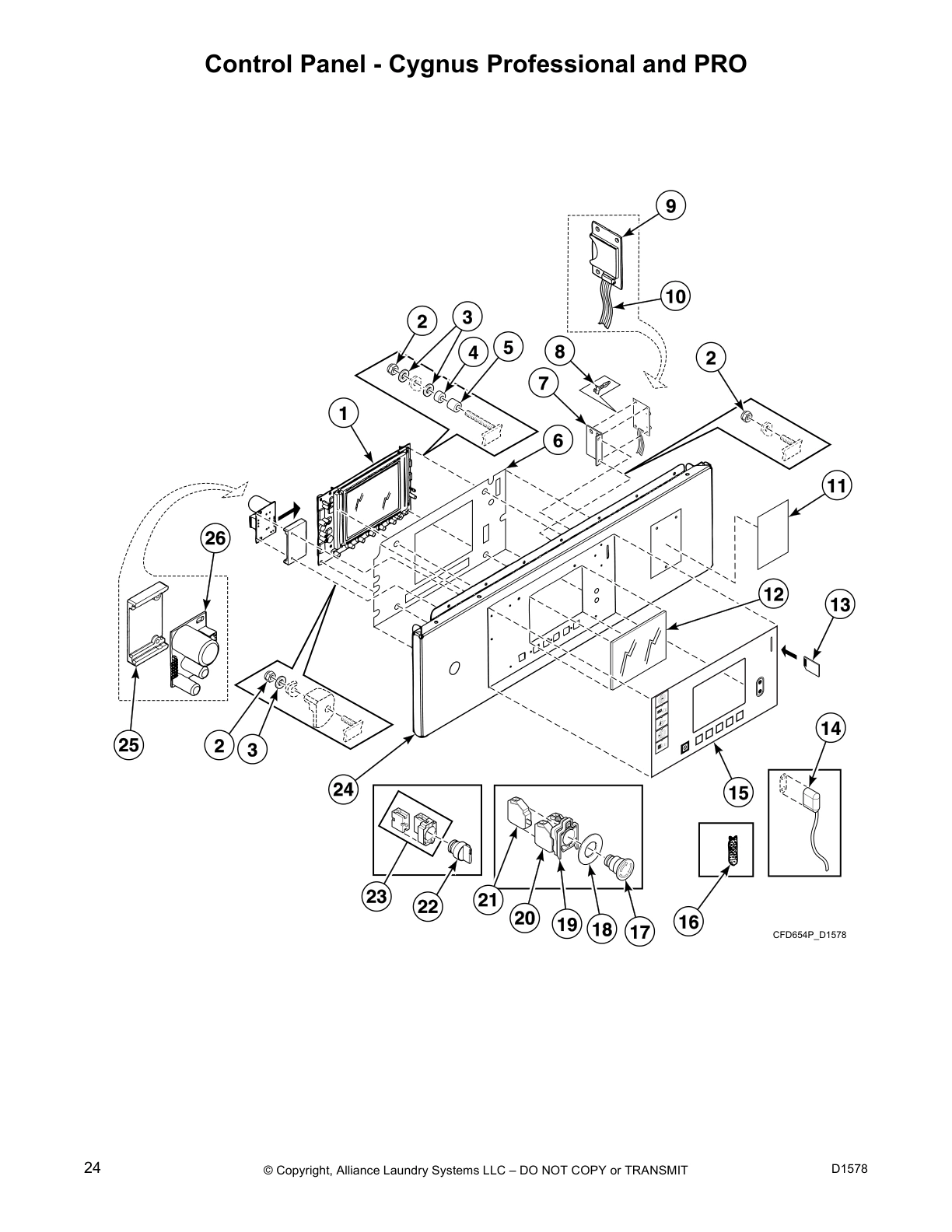

Control Panel - Cygnus Professional and PRO

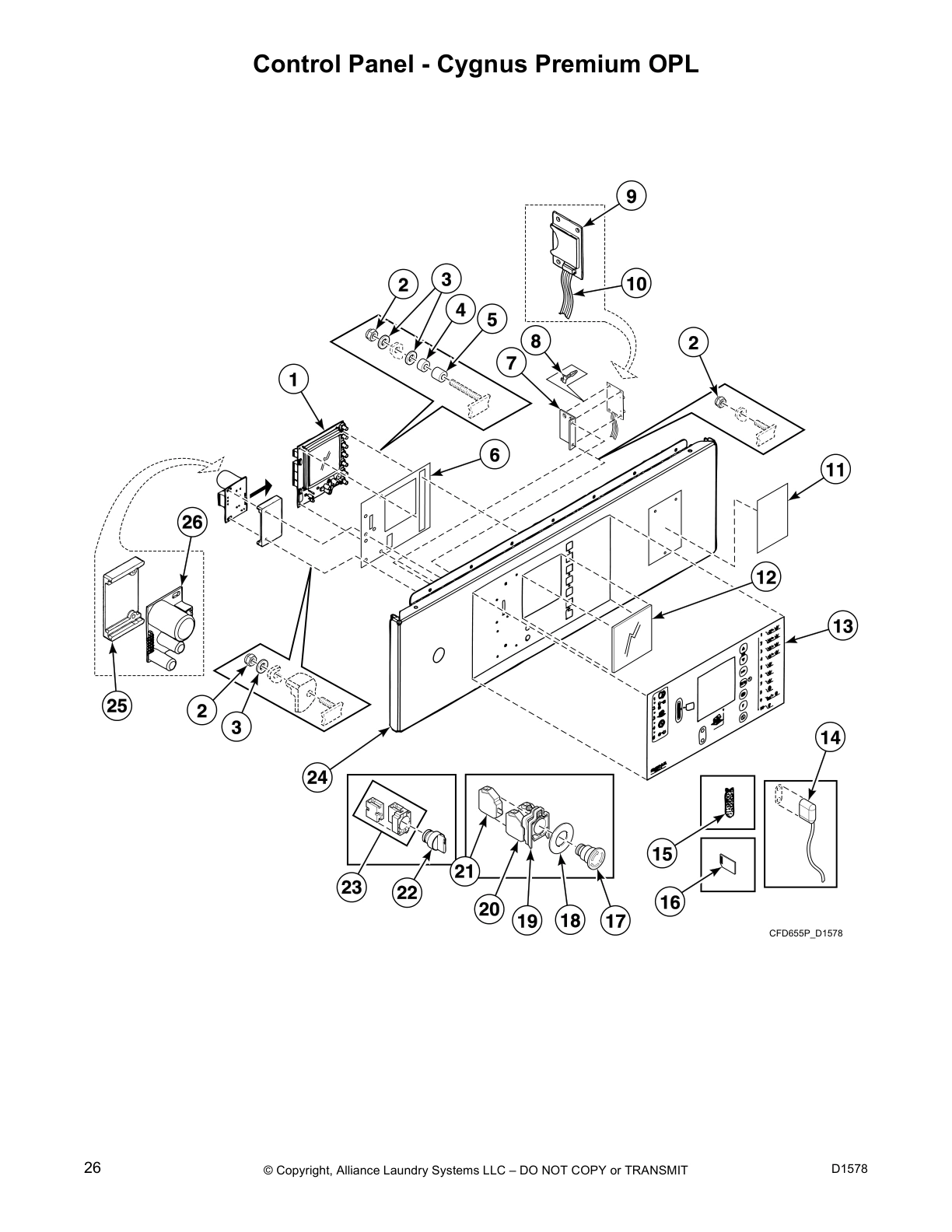

Control Panel - Cygnus Premium OPL

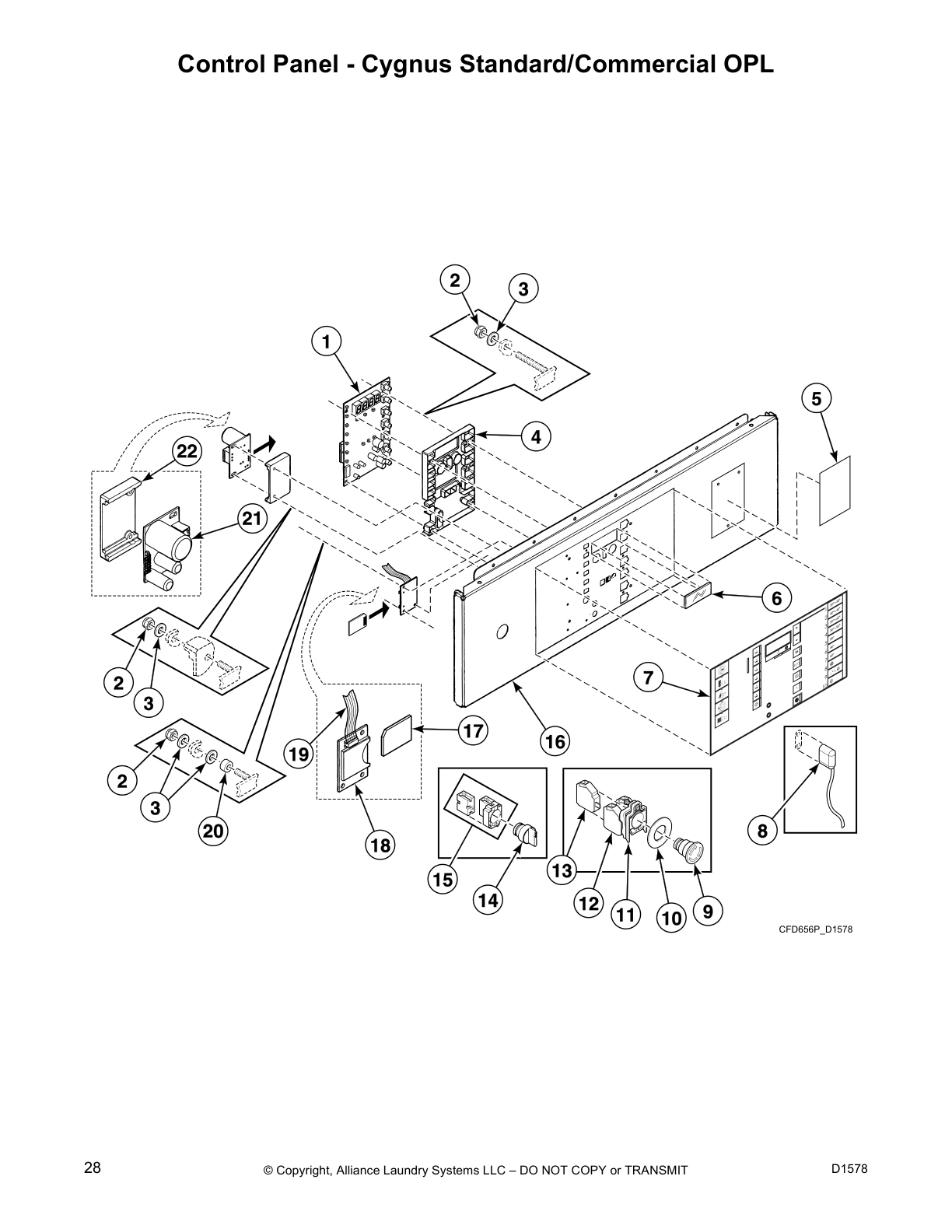

Control Panel - Cygnus Standard/Commercial OPL

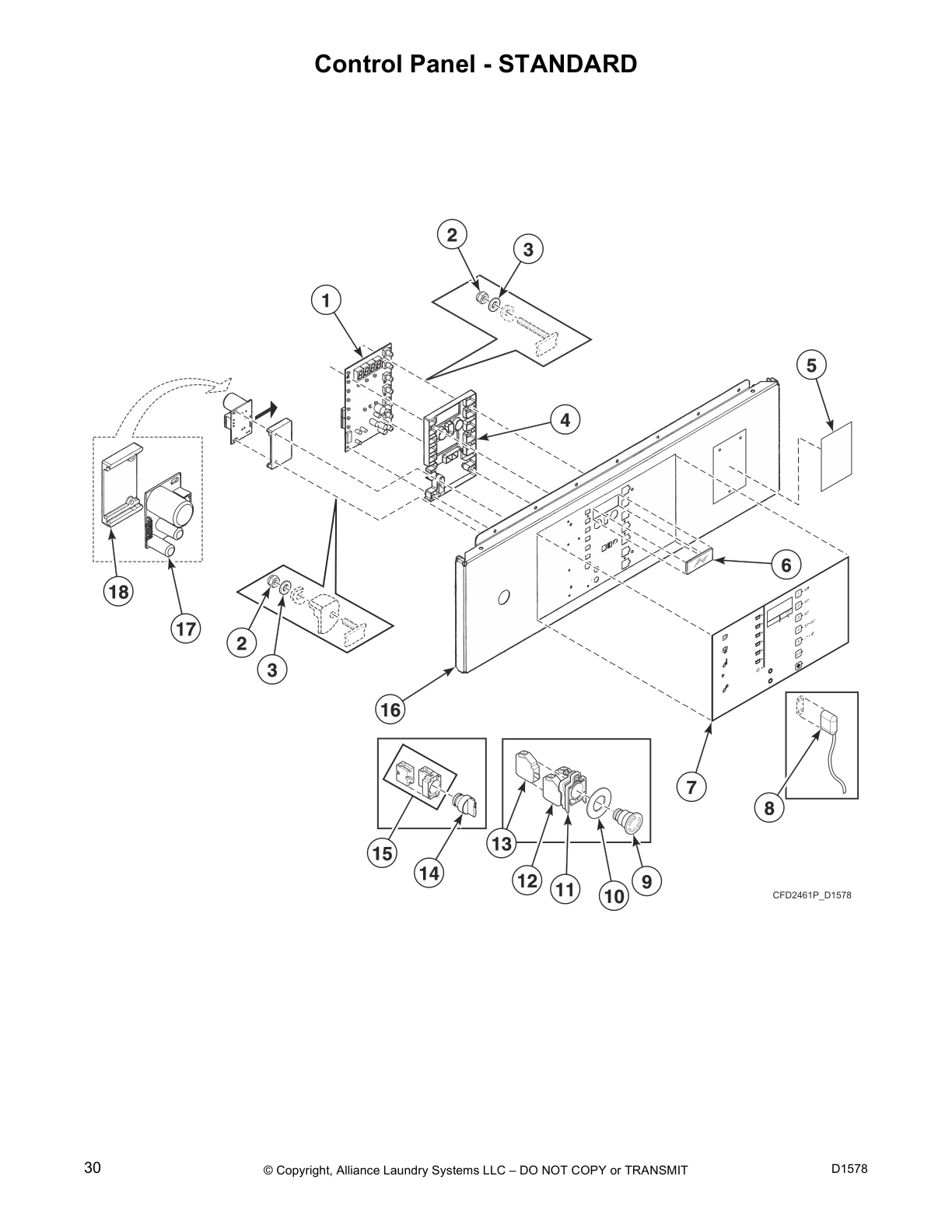

Control Panel - STANDARD

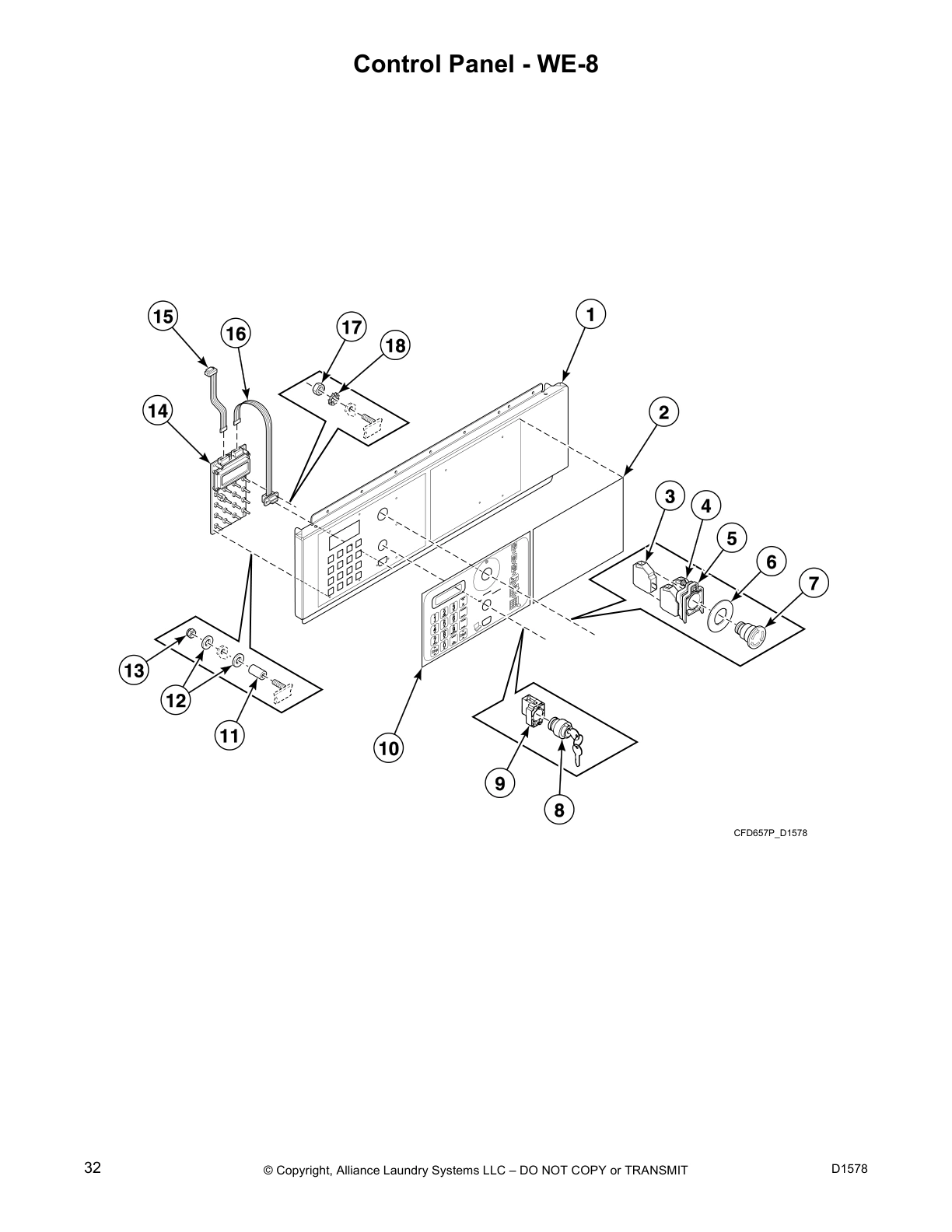

Control Panel - WE-8

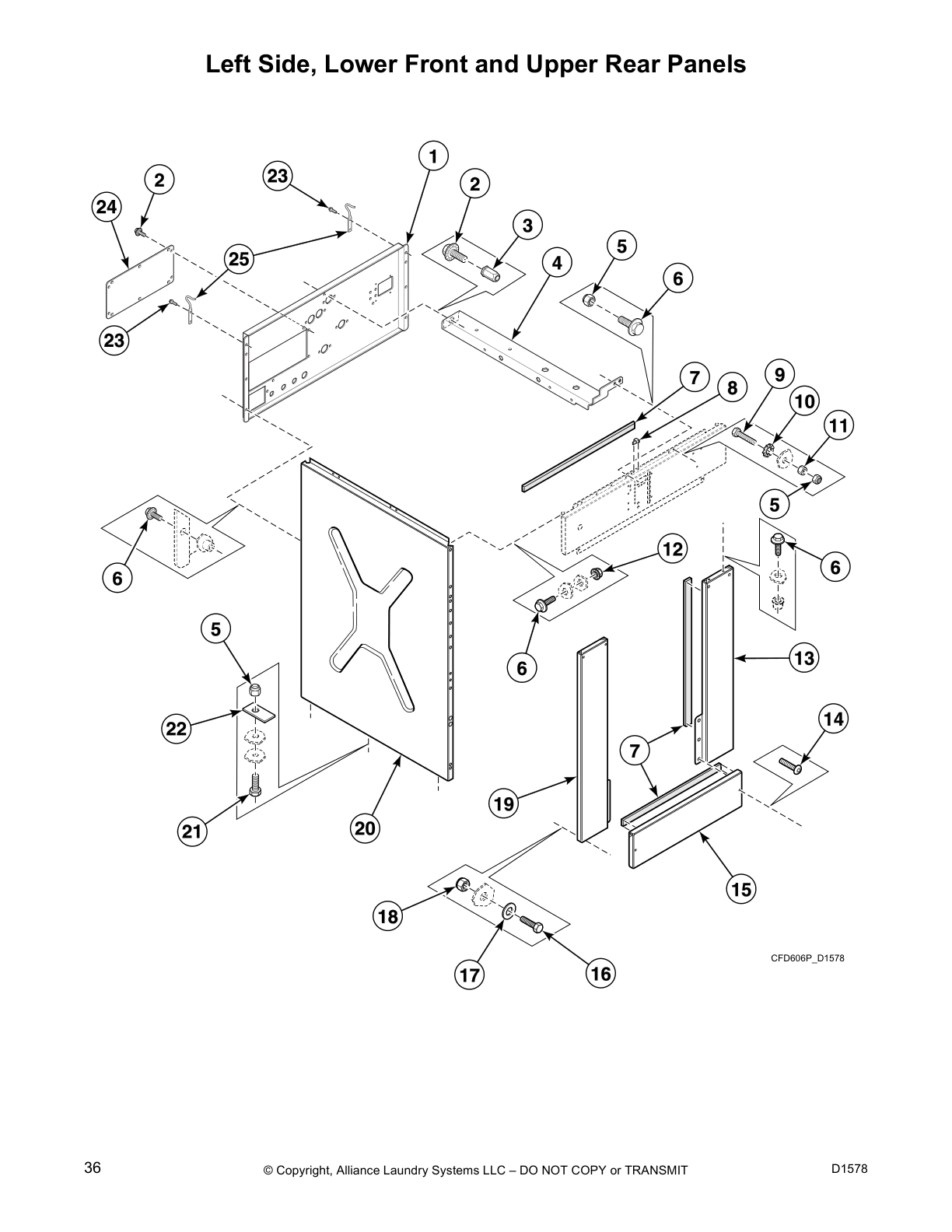

Left Side, Lower Front and Upper Rear Panels

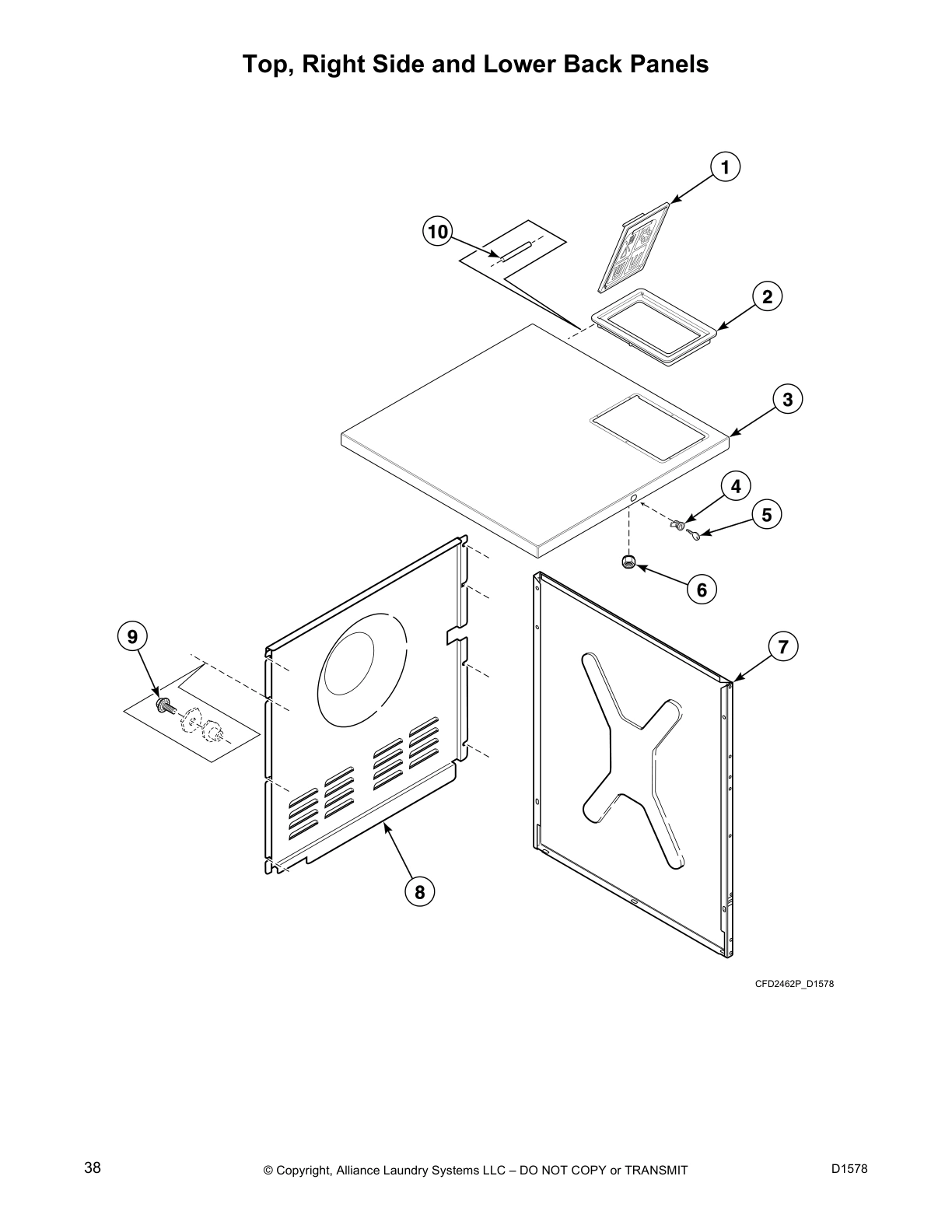

Top, Right Side and Lower Back Panels

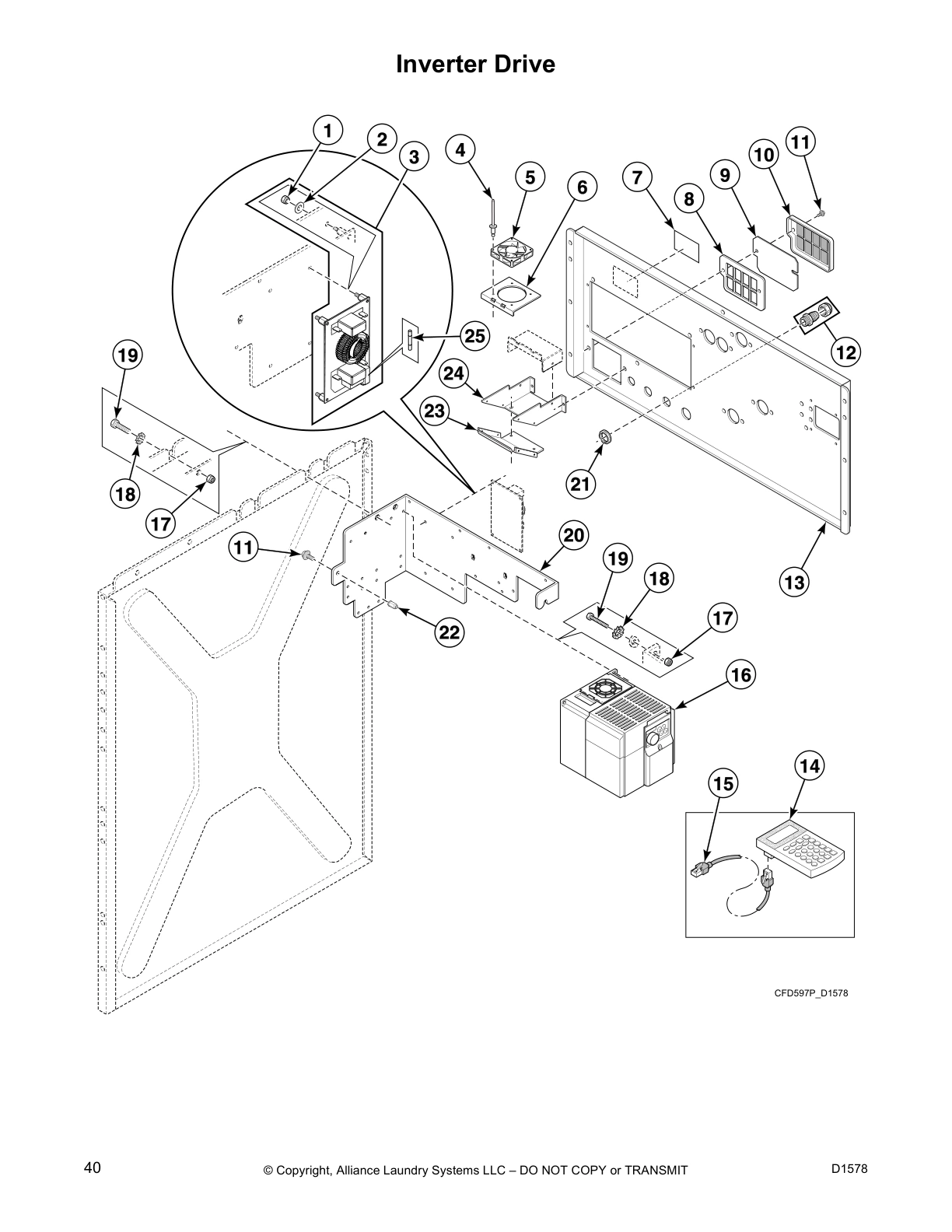

Inverter Drive

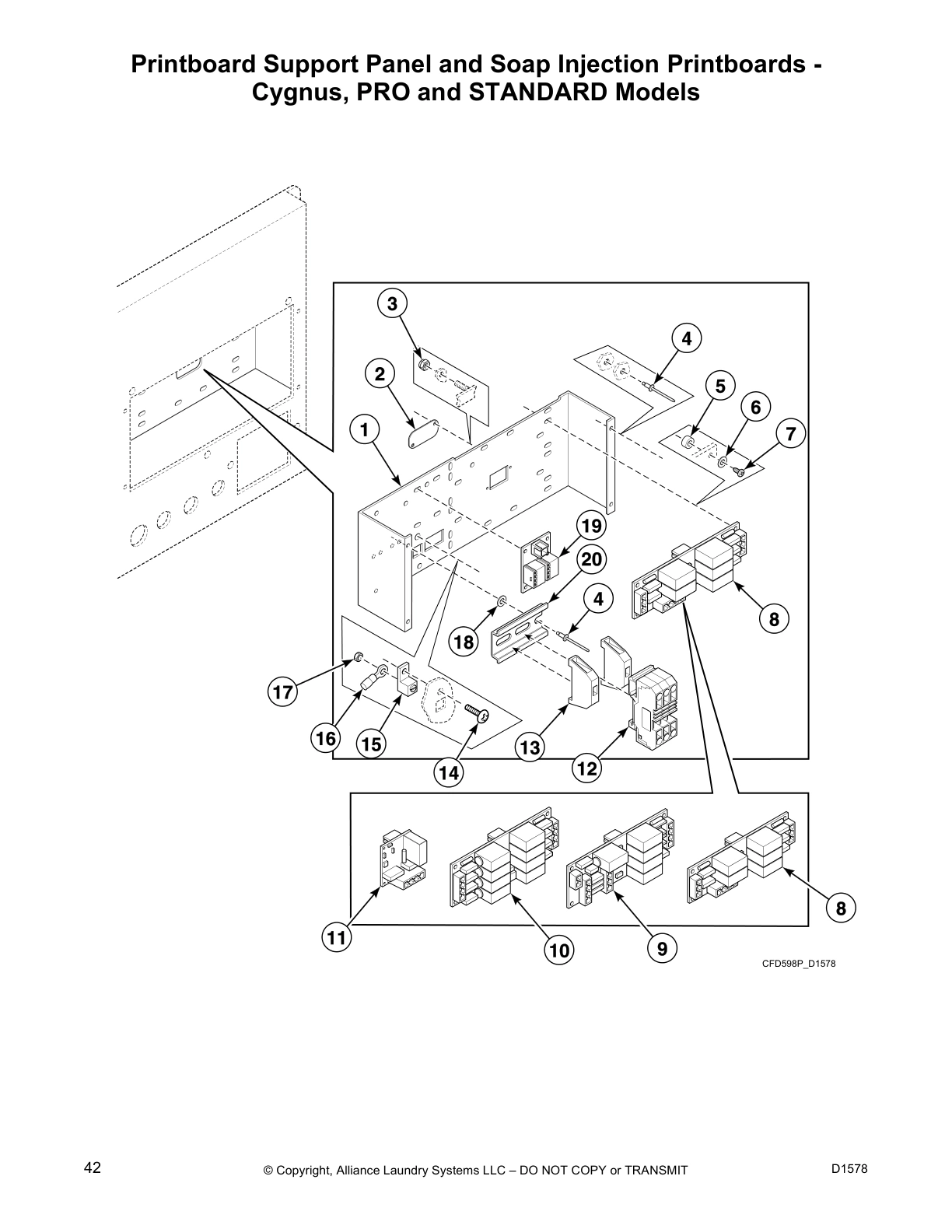

Printboard Support Panel and Soap Injection Printboards -
Cygnus, PRO and STANDARD Models

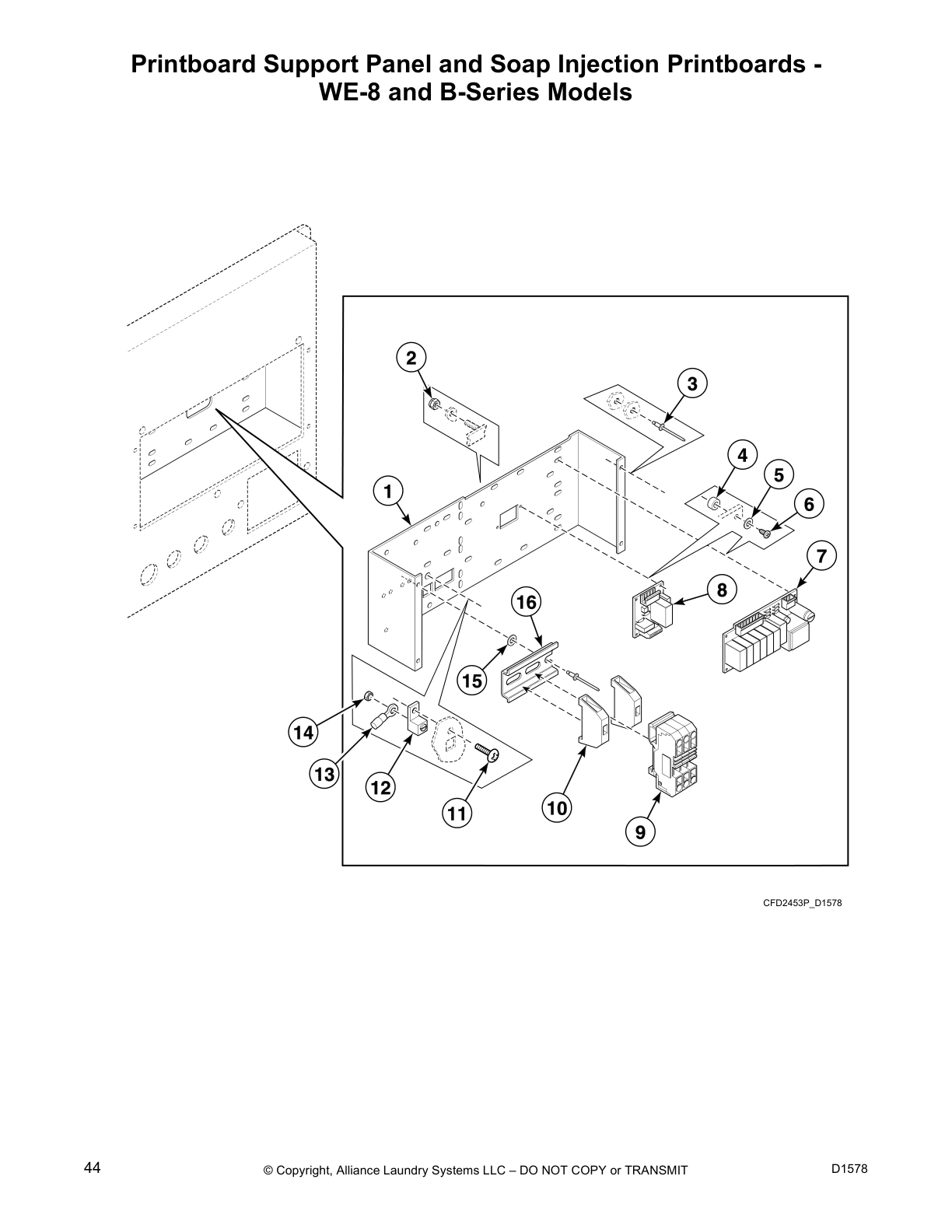

Printboard Support Panel and Soap Injection Printboards -
WE-8 and B-Series Models

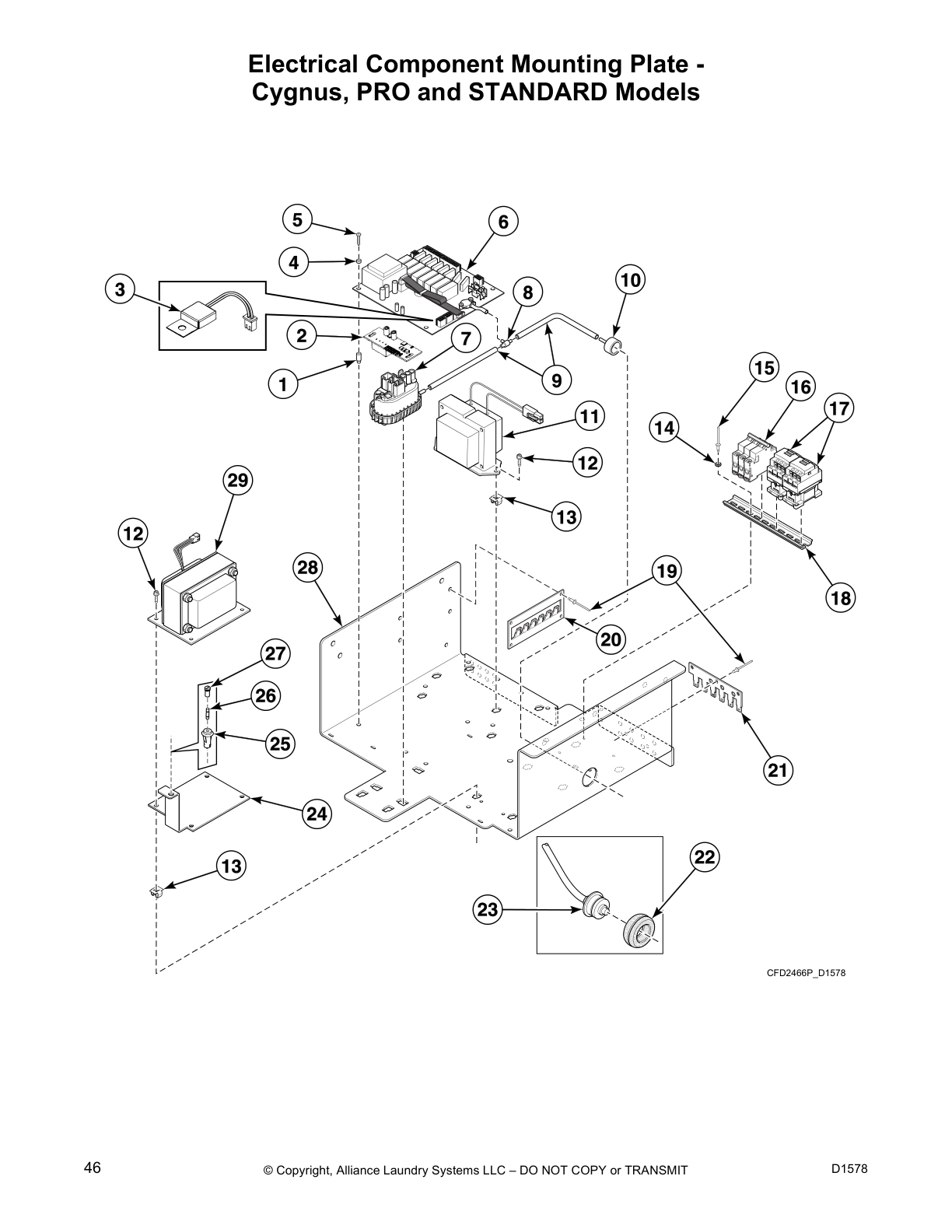

Electrical Component Mounting Plate -
Cygnus, PRO and STANDARD Models

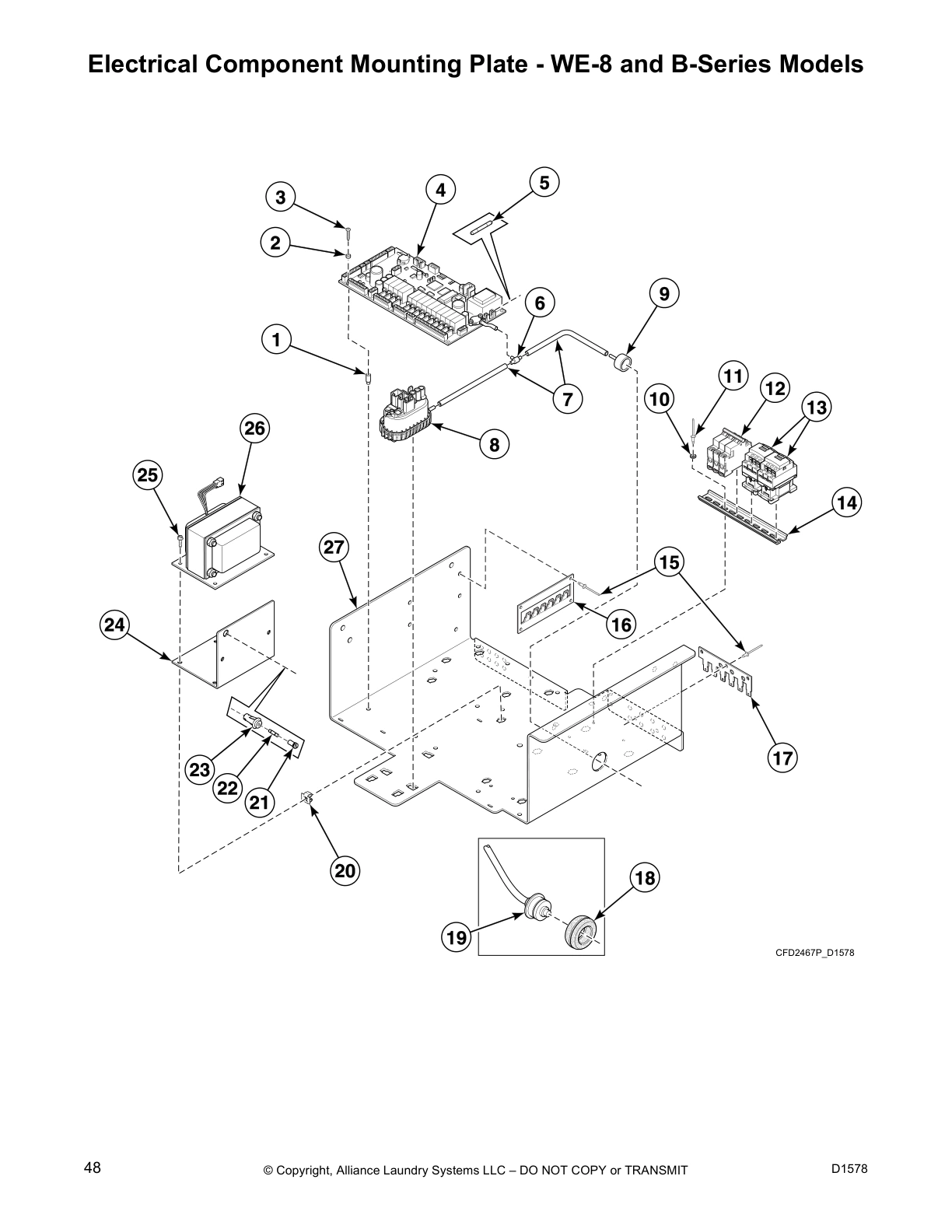

Electrical Component Mounting Plate - WE-8 and B-Series Models

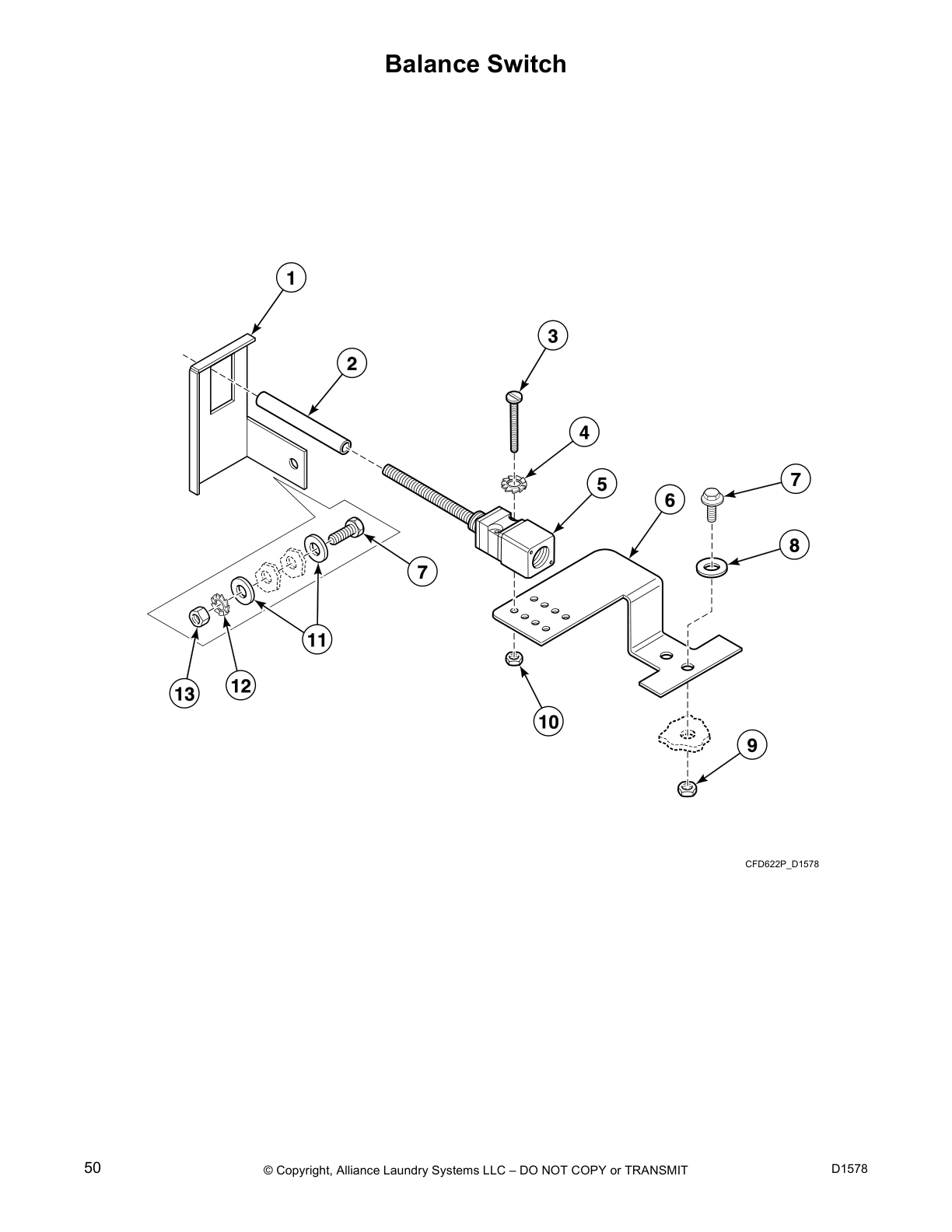

Balance Switch

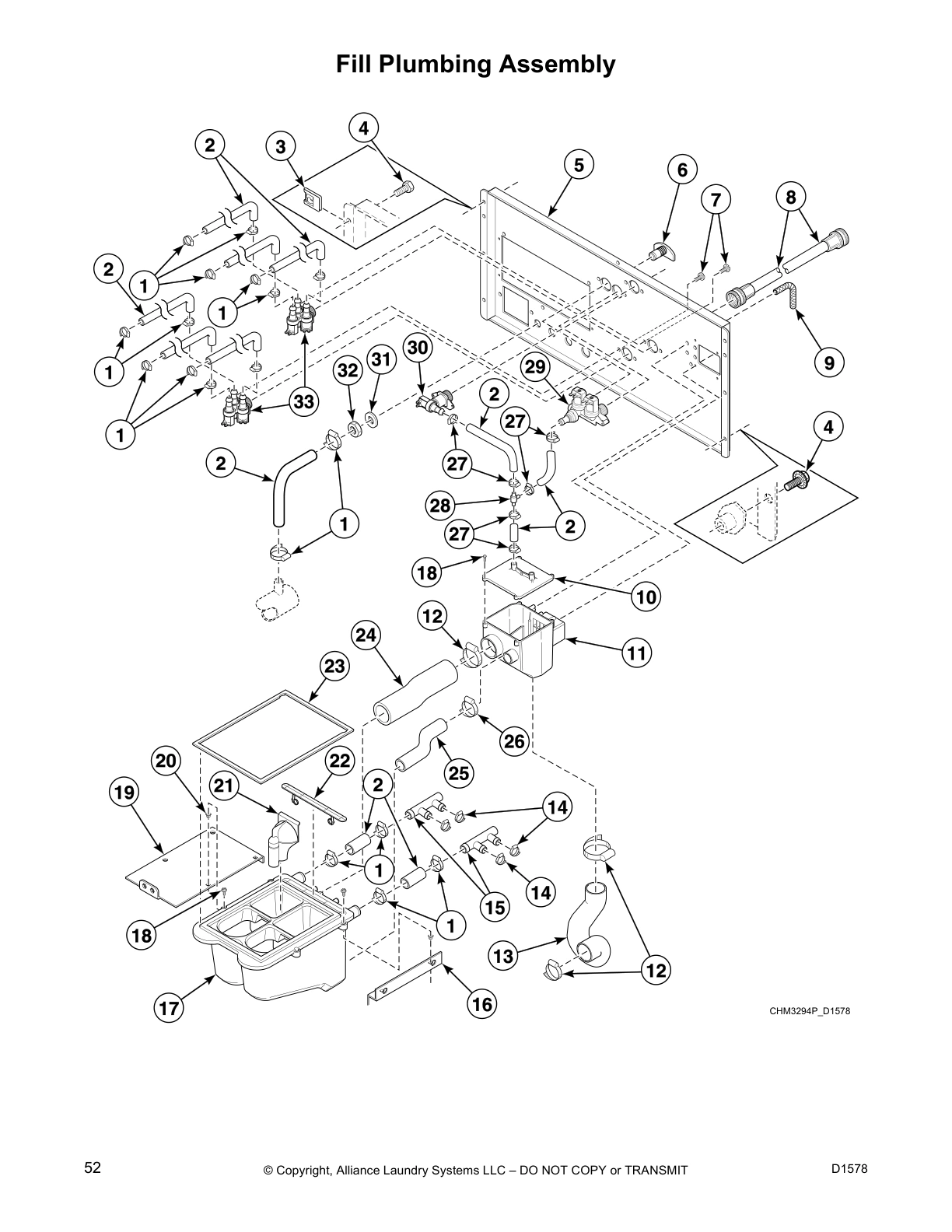

Fill Plumbing Assembly

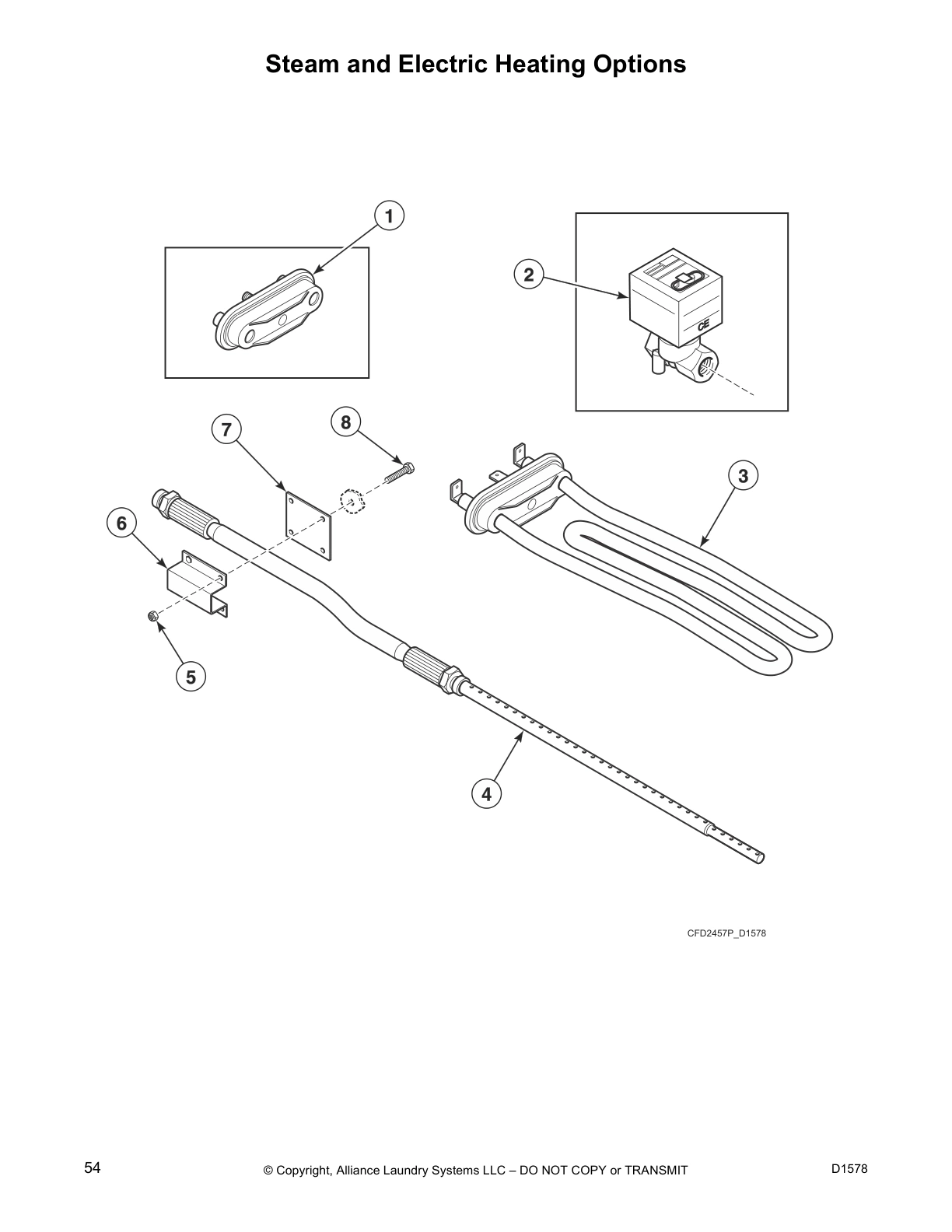

Steam and Electric Heating Options

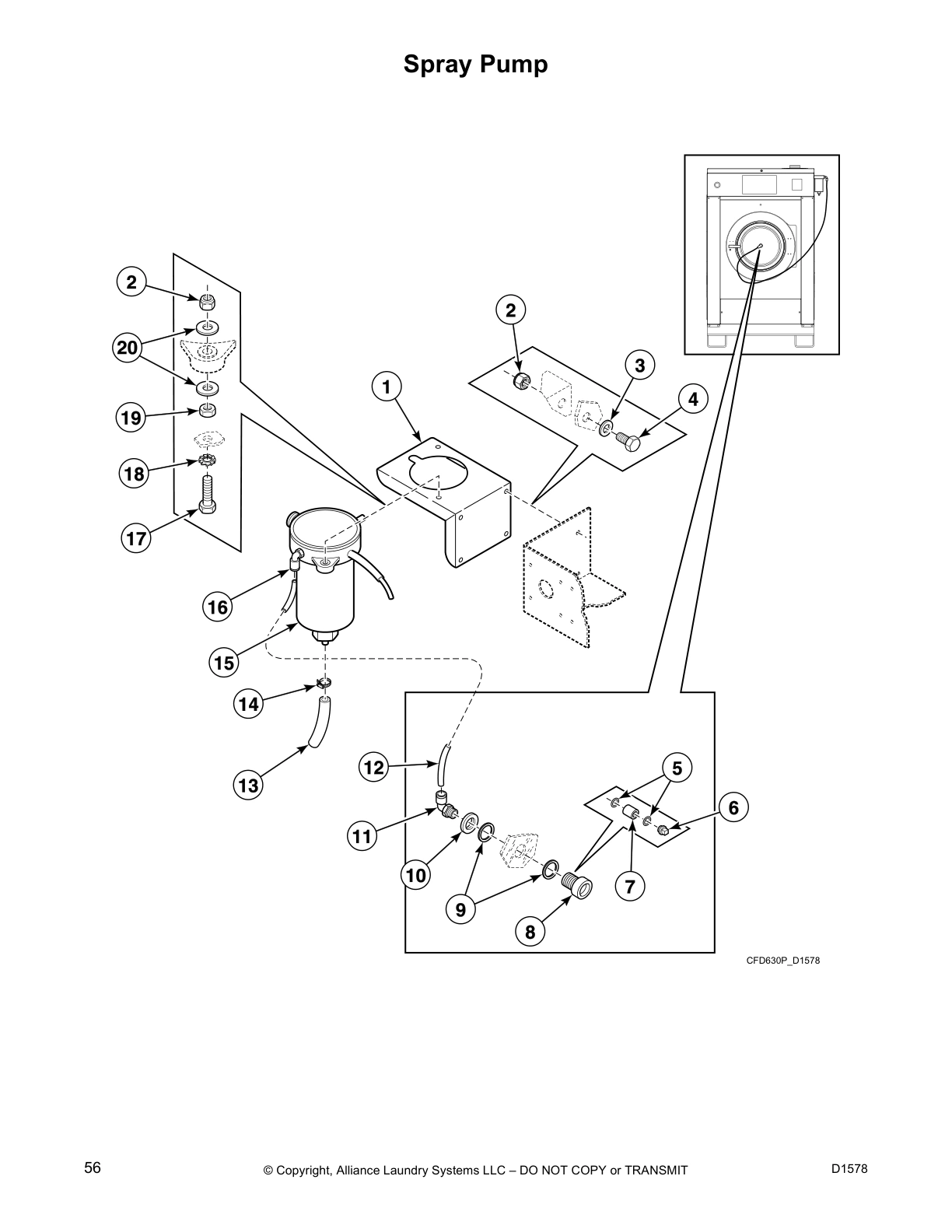

Spray Pump
Common parts from model Ipso IXU195Z Washer
SPQ 381P3P SPQ 381P3P Contact Us For Availability
Steam Heat Harness SPQ B12349703 Contact Us For Availability
Power Jumper Harness SPQ B12381204 Contact Us For Availability
Dual Heat Harness SPQ B12382302 Contact Us For Availability
Relay SPQ B12349603 Contact Us For Availability
1
Tub Support Frame SPQ B12512701 Contact Us For Availability
1
Nut SPQ 204/00019/00 Contact Us For Availability
1
Speed Detector Bracket SPQ 152/00055/00 Contact Us For Availability
1
Overflow Hose SPQ 223/00131/00 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
2
SPQ B12511601 SPQ B12511601 Contact Us For Availability
2
O-Ring SPQ 204/00009/00 Contact Us For Availability
2
Key SPQ 212/00026/00 Contact Us For Availability
2
Screw SPQ 207/00102/00 Contact Us For Availability
2
Rivet SPQ 204/00116/00 Contact Us For Availability
2
Supply Dispenser Cover Frame SPQ B12597501 Contact Us For Availability
2
Bolt SPQ 223/00246/00 Contact Us For Availability
3
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
3
Bearing Replacement Tool Kit SPQ 202/00003/00 Contact Us For Availability
3
SPQ 115/10126/00 SPQ 115/10126/00 Contact Us For Availability
3
SPQ 209/00051/11 SPQ 209/00051/11 Contact Us For Availability
3
Bolt SPQ 217/00021/00 Contact Us For Availability
3
Out-of-Balance Switch Harness SPQ 207/00018/00 Contact Us For Availability
4
Shock Absorber Service Kit SPQ B12418401 Contact Us For Availability
4
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
4
Pulley SPQ 239/00013/00 Contact Us For Availability
4
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
4
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
4
SPQ 205/00107/00 SPQ 205/00107/00 Contact Us For Availability
4
Steam Injector SPQ 119/00087/50 Contact Us For Availability
5
SPQ 246/00092/00 SPQ 246/00092/00 Contact Us For Availability
5
Door Hinge Blocking Plate SPQ 205/00104/00 Contact Us For Availability
5
Washer SPQ 226/00148/00 Contact Us For Availability
5
Standoff SPQ 211/00122/00 Contact Us For Availability
5
Nameplate SPQ B12389801 Contact Us For Availability
5
Nut SPQ 206/00101/00 Contact Us For Availability
5
Key SPQ 70155603 Contact Us For Availability
5
SPQ 223/00177/00 SPQ 223/00177/00 Contact Us For Availability
6
SPQ 224/00052/00 SPQ 224/00052/00 Contact Us For Availability
6
Bolt SPQ 201/00011/00 Contact Us For Availability
6
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
6
SPQ 223/00035/02 SPQ 223/00035/02 Contact Us For Availability
6
SPQ F8201001 SPQ F8201001 Contact Us For Availability
6
Nut SPQ B12509101 Contact Us For Availability
6
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
6
Bracket Support SPQ 111/00155/10 Contact Us For Availability
7
SPQ 115/00151/00 SPQ 115/00151/00 Contact Us For Availability
7
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
7
Screw SPQ 203/00001/00 Contact Us For Availability
7
SPQ 206/00006/00 SPQ 206/00006/00 Contact Us For Availability
7
Door Hinge Spacer SPQ B12565001 Contact Us For Availability
7
Side Panel SPQ B12516901 Contact Us For Availability
7
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
7
Steam Bracket SPQ 111/00155/00 Contact Us For Availability
7
SPQ 211/00126/00 SPQ 211/00126/00 Contact Us For Availability
8
SPQ 206/00071/00 SPQ 206/00071/00 Contact Us For Availability
8
SPQ 201/00201/00 SPQ 201/00201/00 Contact Us For Availability
8
SPQ 206/00004/00 SPQ 206/00004/00 Contact Us For Availability
8
SPQ 223/00071/00 SPQ 223/00071/00 Contact Us For Availability
8
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
8
Memory Card PC-Board SPQ 229/00268/00 Contact Us For Availability
8
Memory Card PC-Board SPQ 211/00145/00 Contact Us For Availability
8
Control Supply Harness SPQ B12392701 Contact Us For Availability
8
SPQ F200166 SPQ F200166 Contact Us For Availability
9
SPQ B12419101 SPQ B12419101 Contact Us For Availability
9
SPQ 206/00056/00 SPQ 206/00056/00 Contact Us For Availability
9
SPQ 118/00124/00 SPQ 118/00124/00 Contact Us For Availability
9
SPQ B12612101 SPQ B12612101 Contact Us For Availability
9
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
9
SPQ 223/00176/00 SPQ 223/00176/00 Contact Us For Availability
10
Retainer Ring SPQ 212/00006/00 Contact Us For Availability
10
Screw SPQ 207/00126/00 Contact Us For Availability
10
Washer SPQ 202/00004/00 Contact Us For Availability
10
Nut SPQ 204/00007/00 Contact Us For Availability
11
Washer SPQ 201/00010/00 Contact Us For Availability
11
Bolt SPQ 204/00111/00 Contact Us For Availability
11
Drain Tub to Drain Valve Hose SPQ B12403201 Contact Us For Availability
11
Washer SPQ 202/00104/00 Contact Us For Availability
11
Rivet SPQ 208/00017/00 Contact Us For Availability
11
Relay PC-Board SPQ 209/02016/00 Contact Us For Availability
11
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
11
Soap Injector Coupling SPQ 223/00182/00 Contact Us For Availability
12
Washer SPQ 224/00046/00 Contact Us For Availability
12
Counterweight SPQ 115/00140/00 Contact Us For Availability
12
Seal Plate Assembly SPQ B12333701 Contact Us For Availability
12
Washer SPQ 206/00003/00 Contact Us For Availability
12
Bolt SPQ 206/00009/00 Contact Us For Availability
12
Out-of-Balance Switch Boot SPQ 203/00003/00 Contact Us For Availability
12
Plexi Frame SPQ 225/00321/00 Contact Us For Availability
12
Circuit Breaker SPQ B12487101 Contact Us For Availability
12
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
12
Soap Injector Hose SPQ 223/00180/00 Contact Us For Availability
13
Threaded Rod SPQ 206/00072/00 Contact Us For Availability
13
Screw SPQ 204/00004/00 Contact Us For Availability
13
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
14
Washer SPQ 206/00066/00 Contact Us For Availability
14
Nut SPQ 202/00002/00 Contact Us For Availability
14
Switch Knob SPQ 209/00099/29 Contact Us For Availability
14
Manifold SPQ 223/00011/00 Contact Us For Availability
15
Motor Harness SPQ 204/00113/00 Contact Us For Availability
15
Bearing Housing Assembly SPQ 139/10006/00 Contact Us For Availability
15
Datacard Cover SPQ 223/00348/00 Contact Us For Availability
15
Operating Sticker SPQ B12383701 Contact Us For Availability
15
Bolt SPQ 111/32943/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Thermostat Seal SPQ 225/10004/00 Contact Us For Availability
15
Dispenser Assembly SPQ F8333201 Contact Us For Availability
16
Bearing SPQ 212/00037/00 Contact Us For Availability
16
Hose Clamp SPQ 223/00328/00 Contact Us For Availability
16
Datacard Cover SPQ B12383601 Contact Us For Availability
16
Left Front Panel SPQ 206/00042/00 Contact Us For Availability
16
Soap Injector Elbow Coupling SPQ 223/00181/00 Contact Us For Availability
17
Bolt SPQ 205/00103/00 Contact Us For Availability
17
Tub Front Mounting Strap SPQ 206/00032/00 Contact Us For Availability
17
Nut SPQ F100134 Contact Us For Availability
17
Door Lock PC-Board SPQ B12388201 Contact Us For Availability
17
Washer SPQ 204/00114/00 Contact Us For Availability
17
Siphon Cover SPQ F8047401 Contact Us For Availability
18
Tub Front Panel Clip SPQ 238/00011/00 Contact Us For Availability
18
Washer SPQ 203/00004/00 Contact Us For Availability
18
Drain Valve Plate Assembly SPQ 223/00012/00 Contact Us For Availability
18
Mounting Plate SPQ 223/00374/00 Contact Us For Availability
18
Memory Card PC-Board SPQ B12305201 Contact Us For Availability
18
Outlet Pipe Plate Assembly SPQ 204/00109/00 Contact Us For Availability
19
Caddy Bracket SPQ 201/00001/00 Contact Us For Availability
19
Nut SPQ 204/00106/00 Contact Us For Availability
19
Expansion Clip SPQ 223/00123/00 Contact Us For Availability
19
Data Card Ribbon Assembly SPQ B12538301 Contact Us For Availability
19
Top Cover Latch SPQ 111/32951/50 Contact Us For Availability
20
Gasket SPQ 137/00008/00 Contact Us For Availability
20
Hardware Kit SPQ 248/00114/00 Contact Us For Availability
20
Soap Injector Orifice Nipple SPQ 202/00101/00 Contact Us For Availability
20
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
20
Transformer SPQ 70329501 Contact Us For Availability
21
Outlet Pipe Plate Assembly SPQ 114/00010/00 Contact Us For Availability
21
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
21
E-Stop Drive Fan Harness SPQ 211/00170/00 Contact Us For Availability
21
Pressure Switch Hose Tee SPQ F8401301 Contact Us For Availability
21
Access Cover SPQ F8047901 Contact Us For Availability
22
Spacer SPQ 115/00161/00 Contact Us For Availability
22
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
22
SPQ 204/00011/00 SPQ 204/00011/00 Contact Us For Availability
22
Dispenser Gasket SPQ F8047801 Contact Us For Availability
23
Water Inlet Tee SPQ F8308301 Contact Us For Availability
26
Expansion Clip SPQ 223/00223/00 Contact Us For Availability
27
Washer SPQ 223/00013/00 Contact Us For Availability
28
Nut SPQ 223/00041/00 Contact Us For Availability
29
ID Chip SPQ 209/02020/00 Contact Us For Availability
31
Bolt SPQ 201/00002/00 Contact Us For Availability
32
Water Hose SPQ 204/00201/00 Contact Us For Availability
NI
SPQ 206/00014/00 SPQ 206/00014/00 Contact Us For Availability
NI
SPQ F407P4 SPQ F407P4 Contact Us For Availability
NI
SPQ 381P3-1 SPQ 381P3-1 Contact Us For Availability
NI
SPQ 3884P SPQ 3884P Contact Us For Availability
NI
SPQ B12382103 SPQ B12382103 Contact Us For Availability
NI
Door Lock Harness SPQ B12495001 Contact Us For Availability
NI
E-Stop Harness SPQ B12348901 Contact Us For Availability
NI
SPQ B12501501 SPQ B12501501 Contact Us For Availability
NI
SPQ B12529201 SPQ B12529201 Contact Us For Availability
NI
SPQ B12388301 SPQ B12388301 Contact Us For Availability
NI
SPQ B12348301 SPQ B12348301 Contact Us For Availability
NI
SPQ B12381402 SPQ B12381402 Contact Us For Availability
NI
SPQ B12348101 SPQ B12348101 Contact Us For Availability
NI
SPQ B12349902 SPQ B12349902 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
Steam Heat Kit SPQ B12551001 Contact Us For Availability
NI
Heat Harness SPQ B12455905 Contact Us For Availability
NI
Branch Harness SPQ B12348501 Contact Us For Availability
NI
Steam Valve Harness SPQ B12348502 Contact Us For Availability
NI
Electric Heat Harness SPQ B12349803 Contact Us For Availability
NI
SPQ B12308001 SPQ B12308001 Contact Us For Availability
NI
SPQ B12455904 SPQ B12455904 Contact Us For Availability
× ![]()
