Model Ipso IXR135R Washer – Common Parts & Diagrams

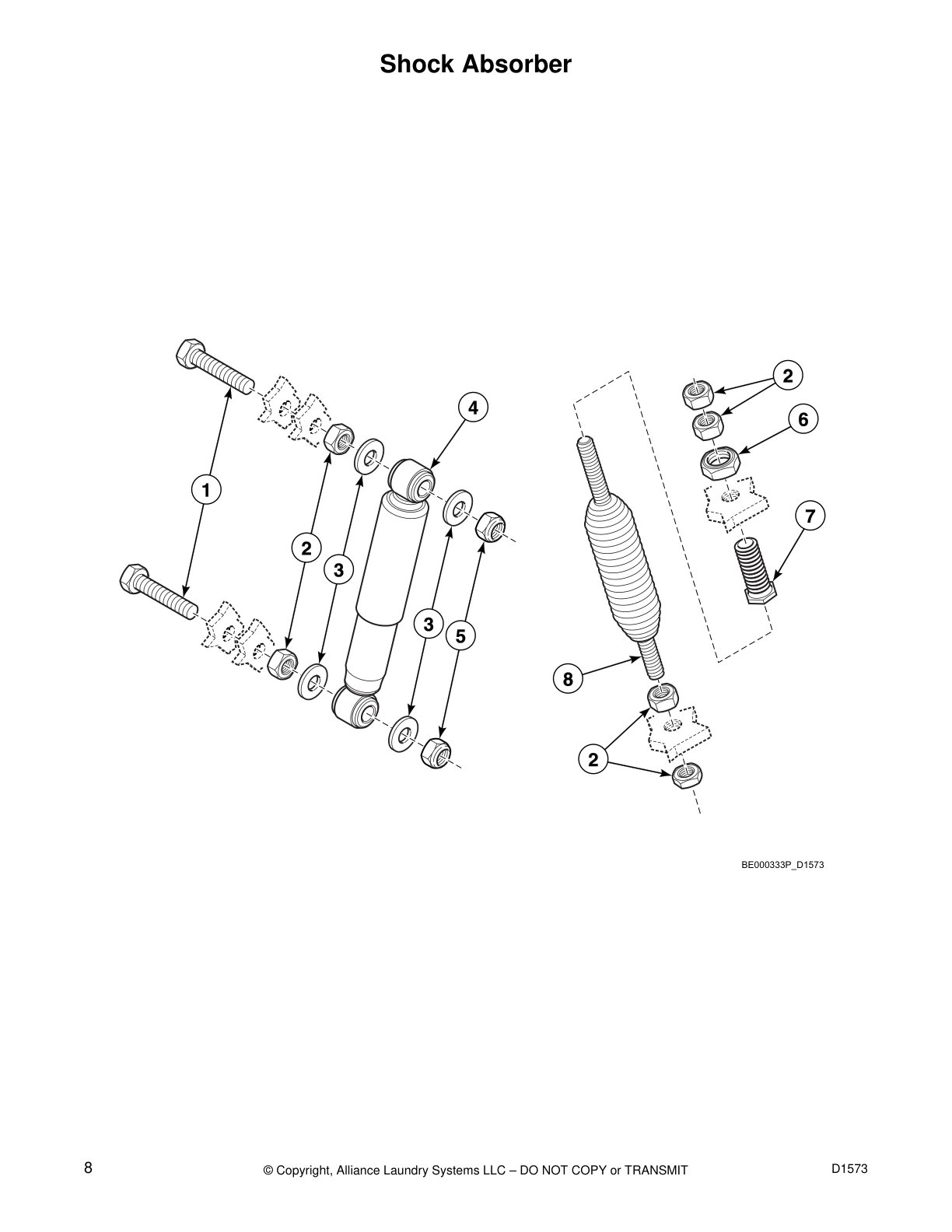

Shock Absorber

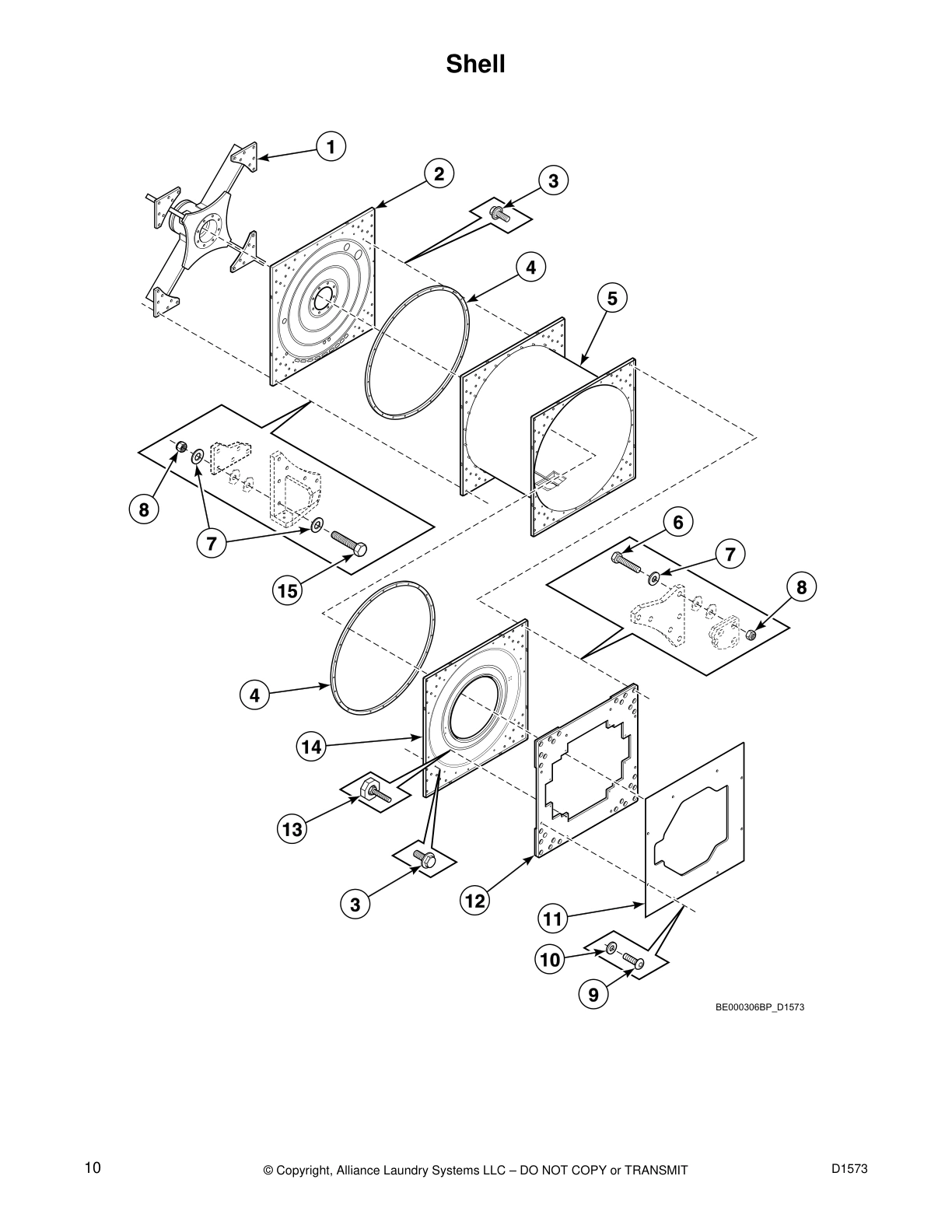

Shell

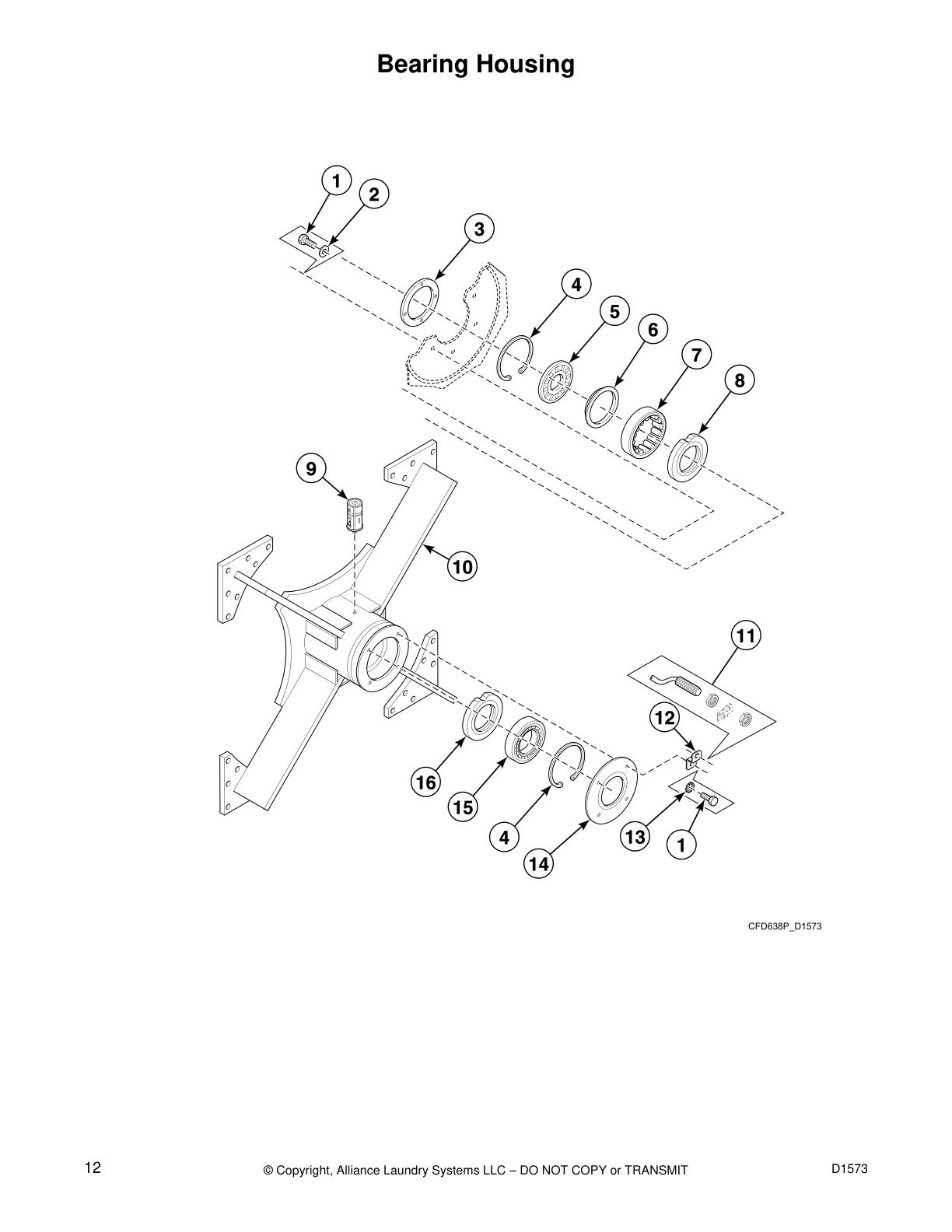

Bearing Housing

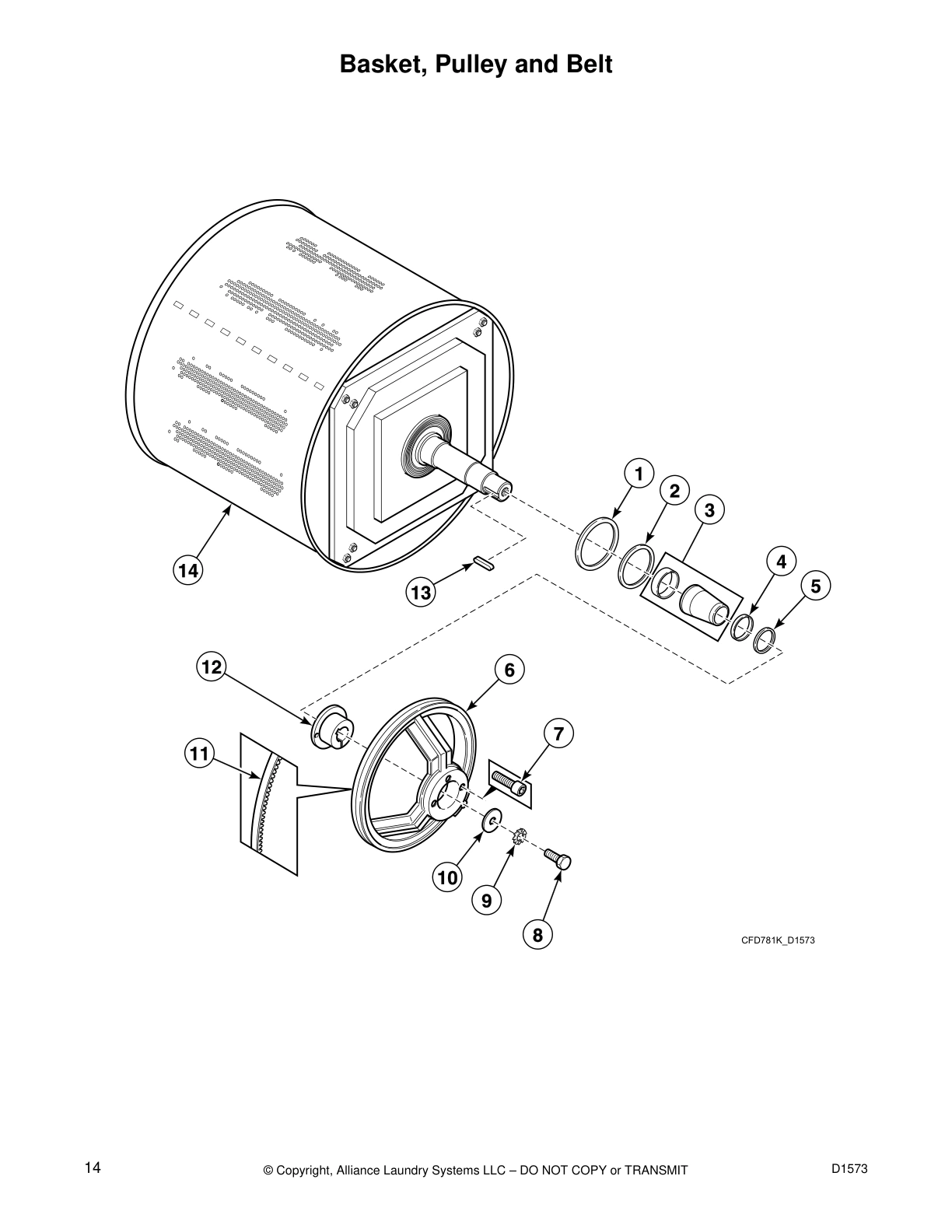

Basket, Pulley and Belt

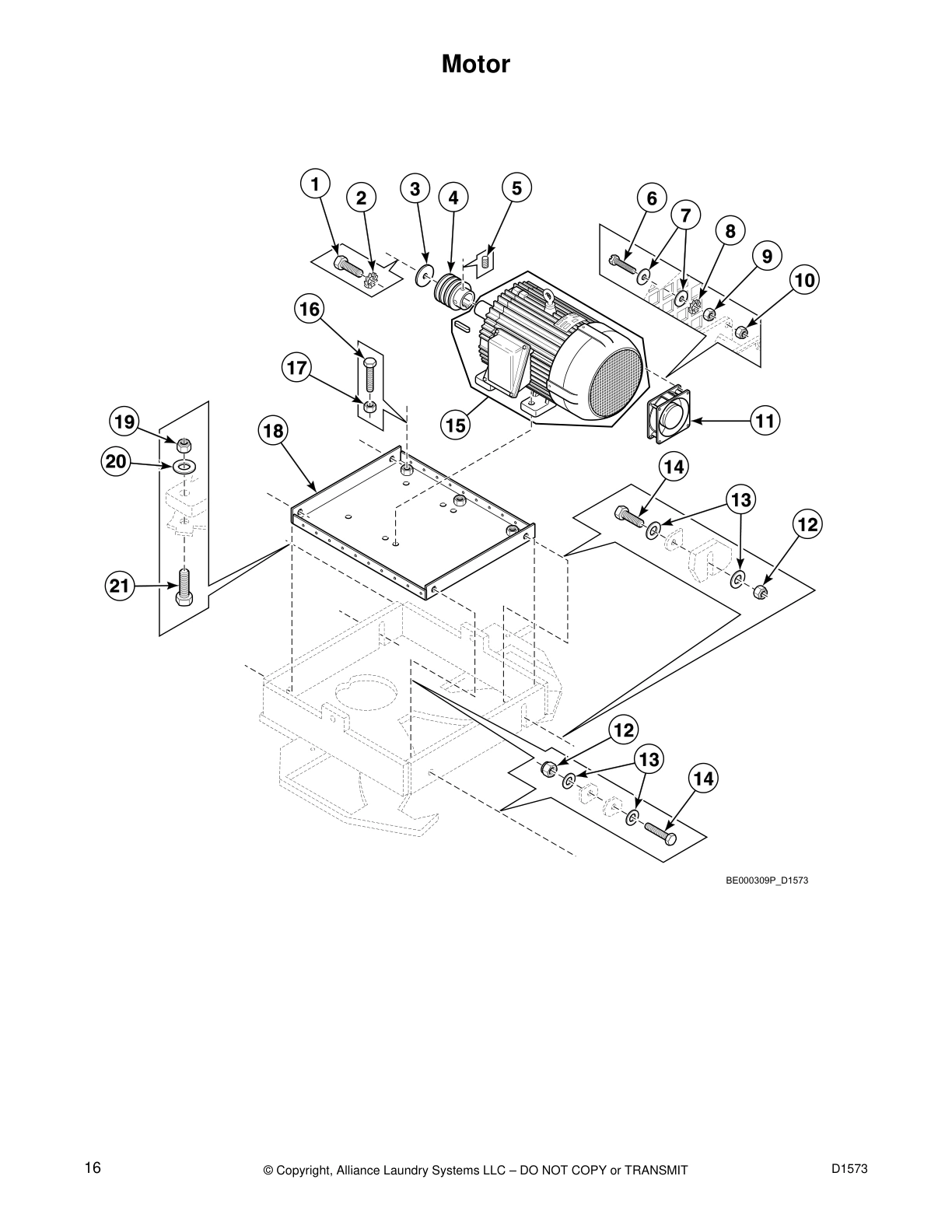

Motor

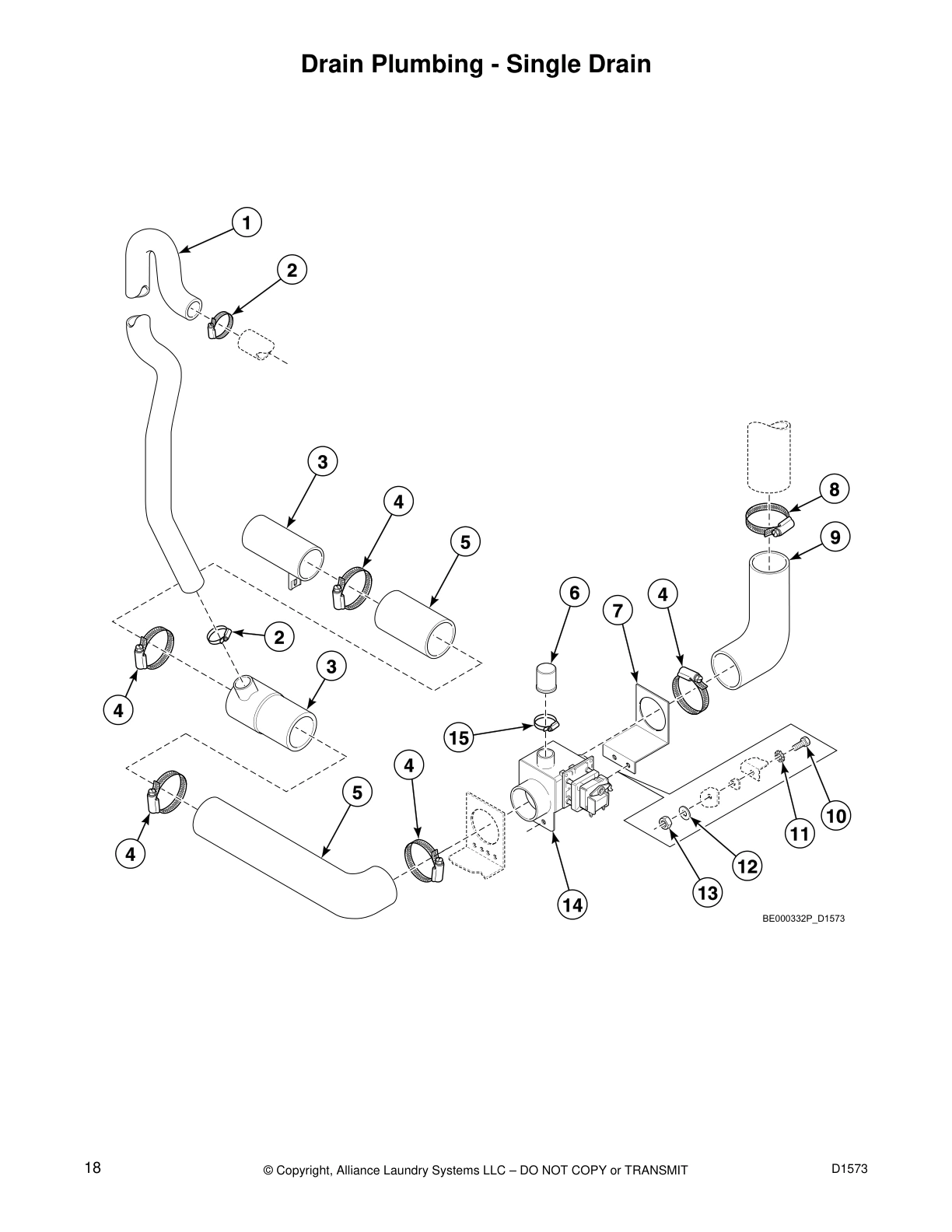

Drain Plumbing - Single Drain

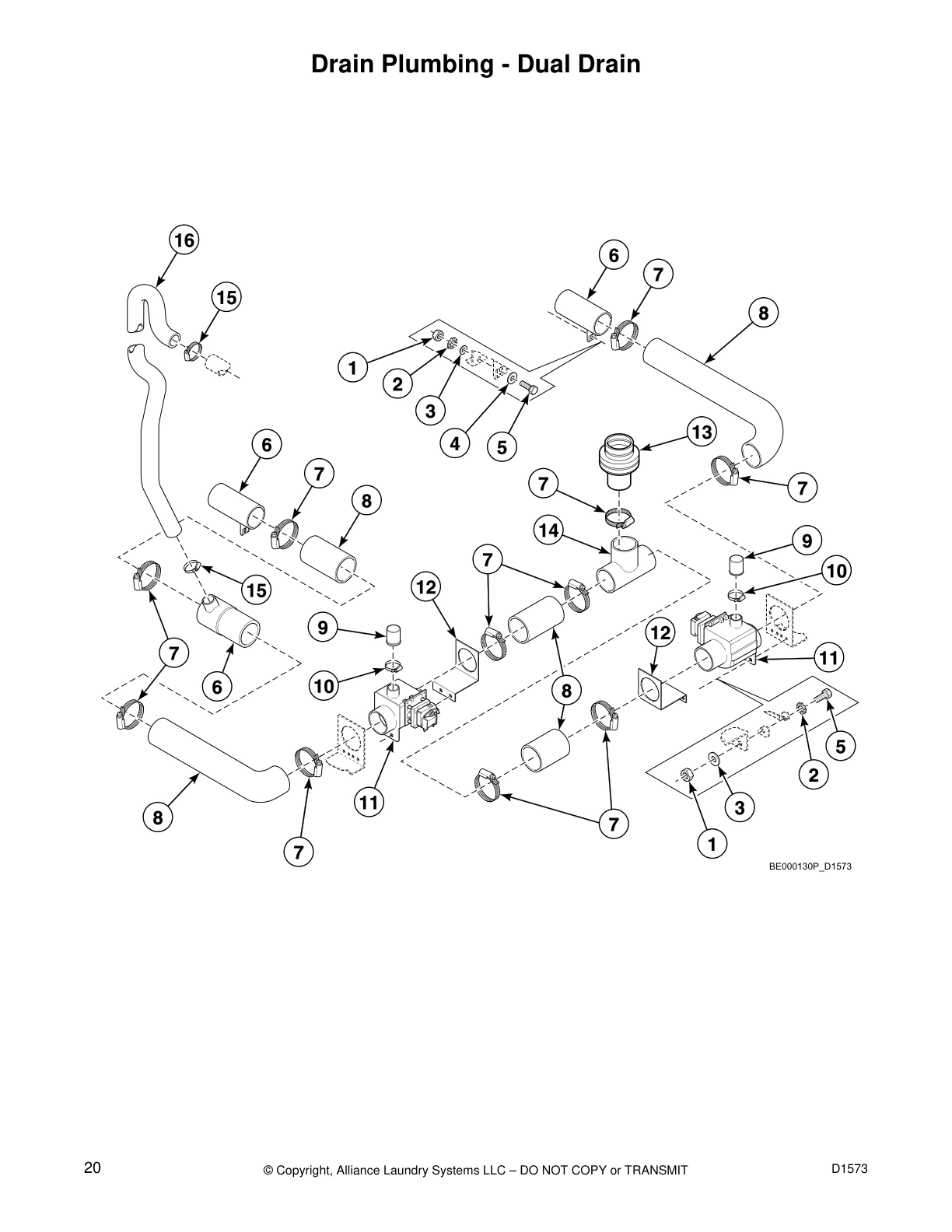

Drain Plumbing - Dual Drain

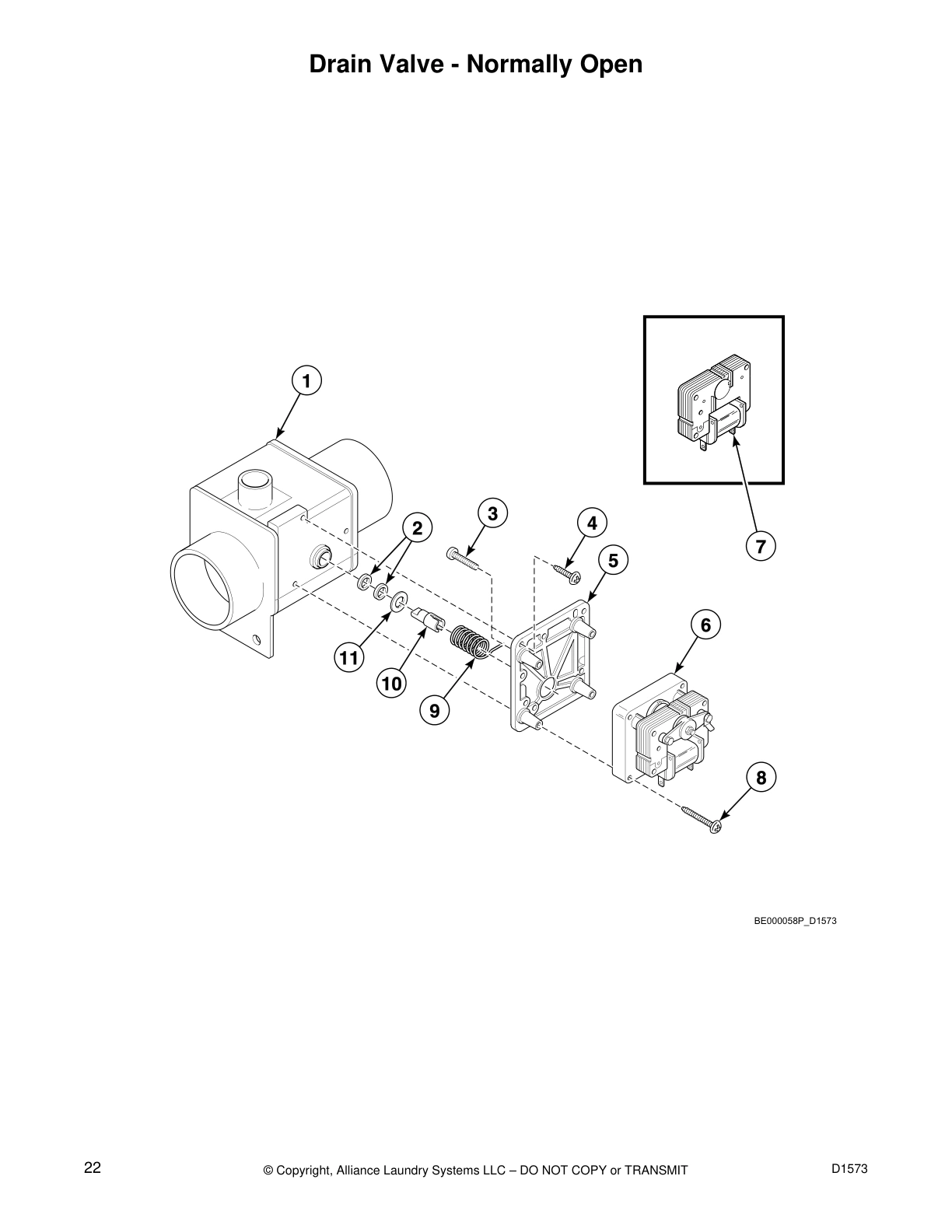

Drain Valve - Normally Open

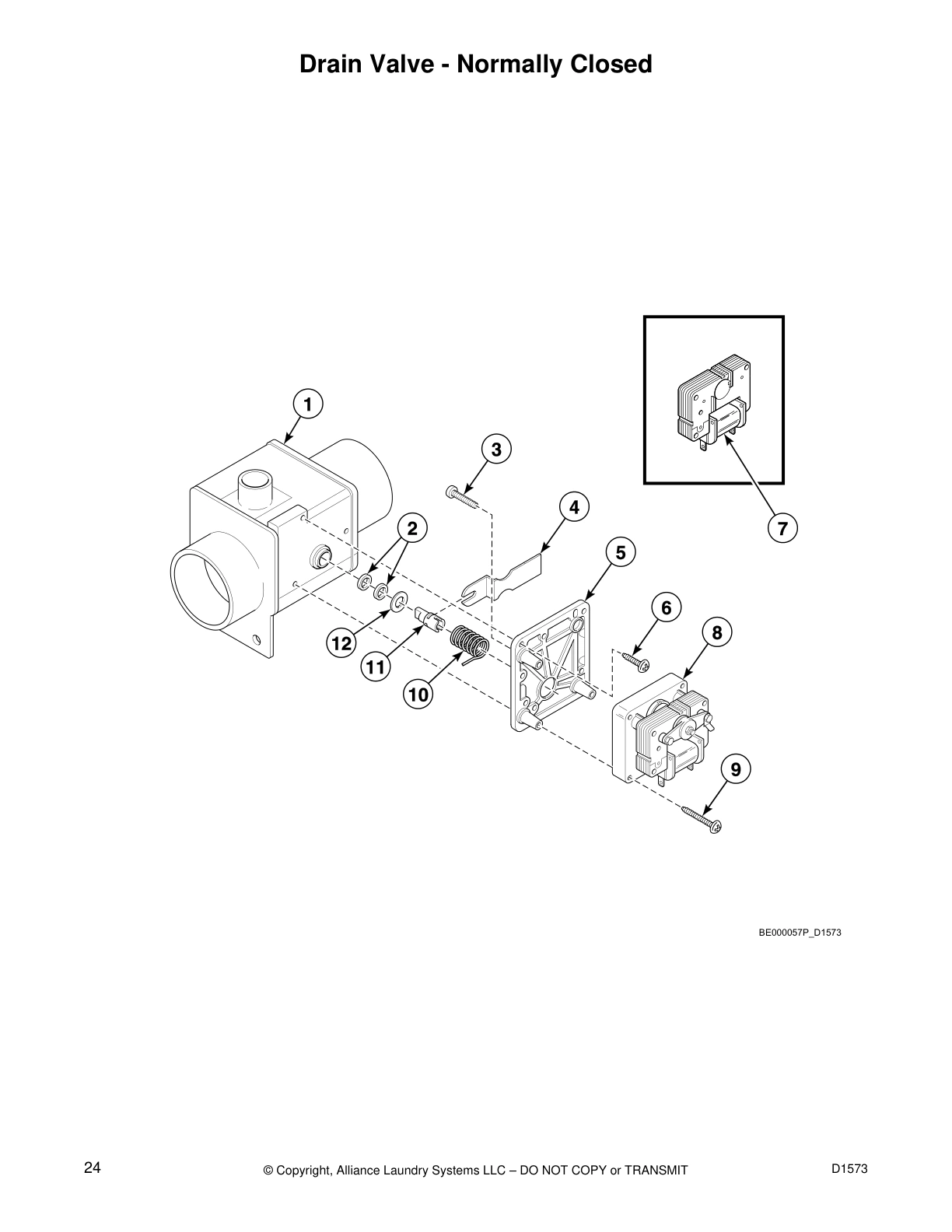

Drain Valve - Normally Closed

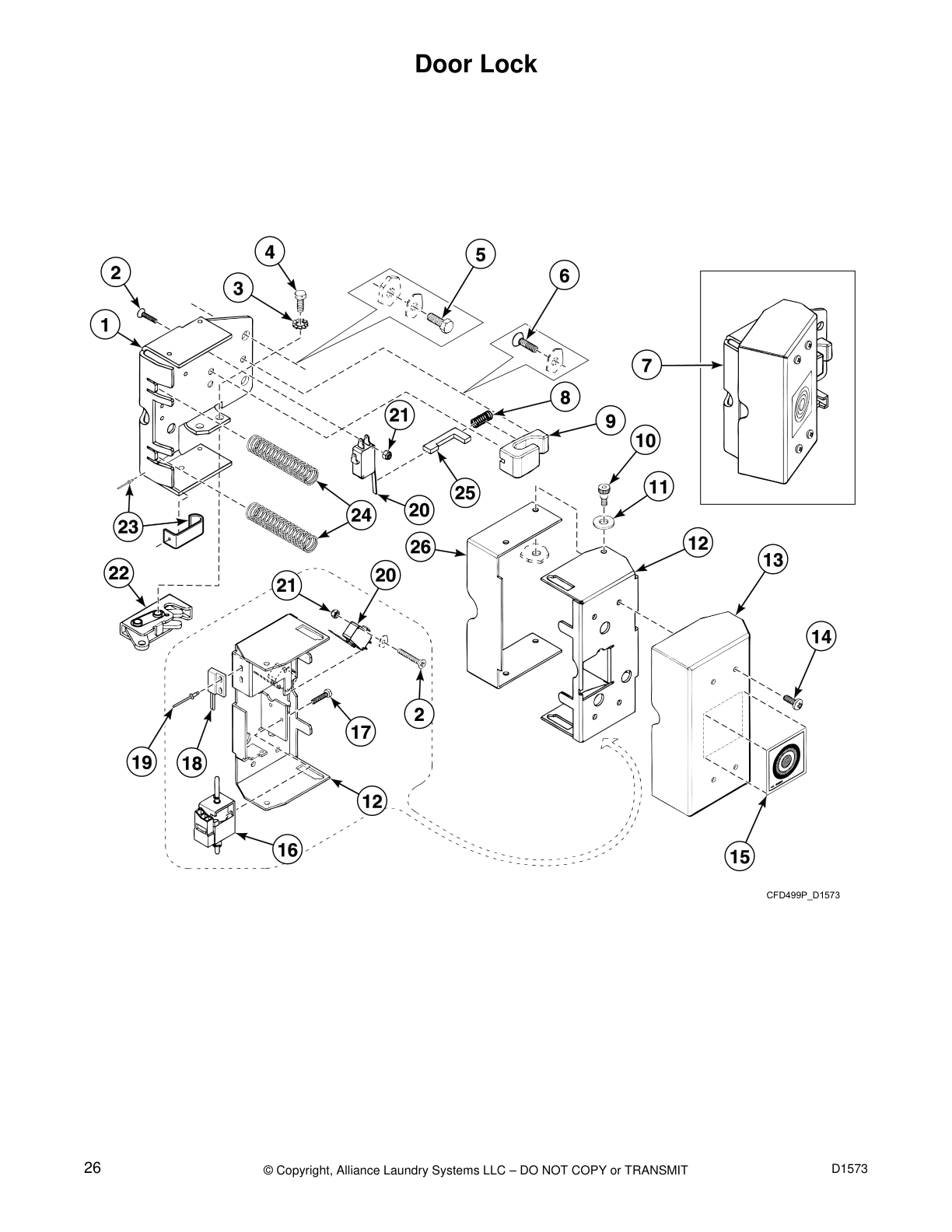

Door Lock

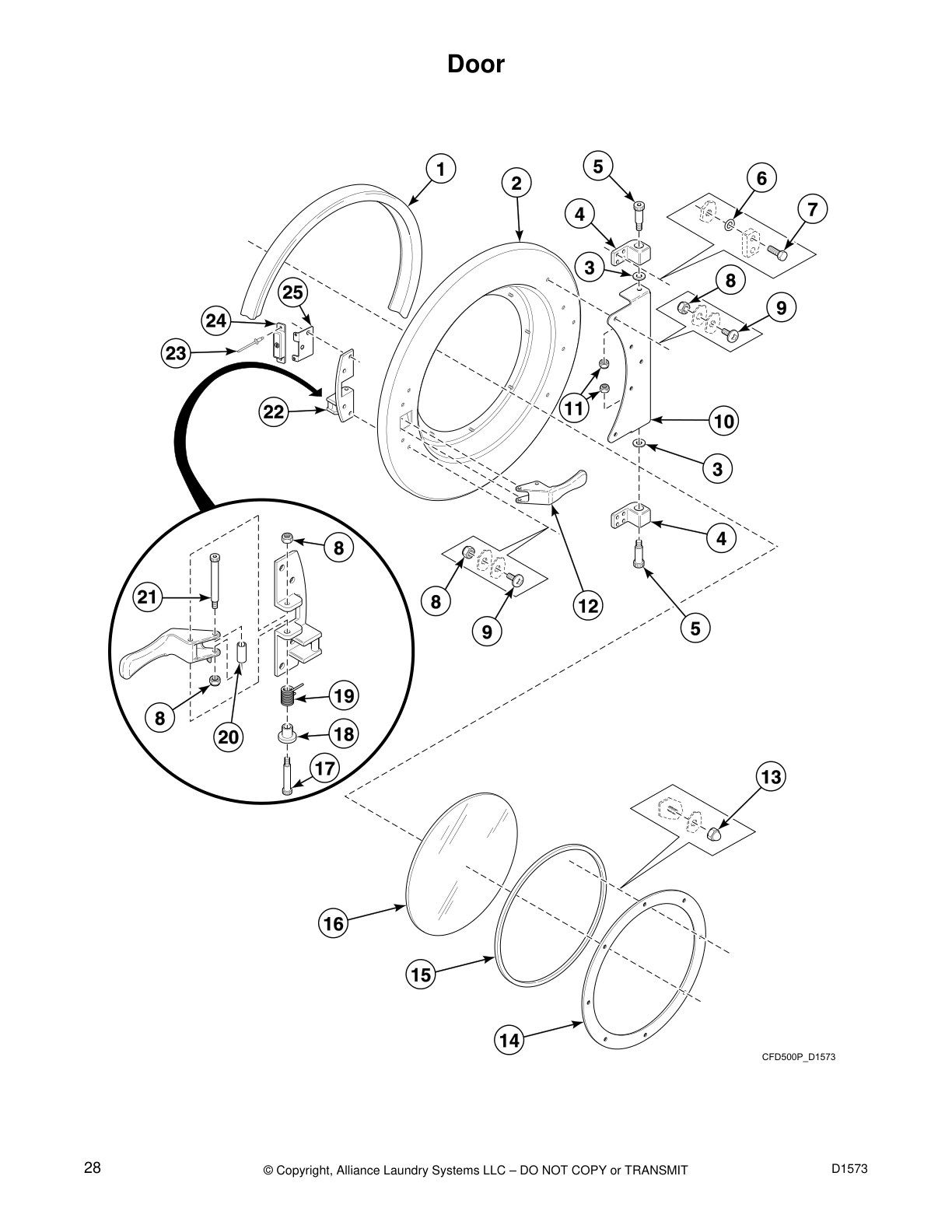

Door

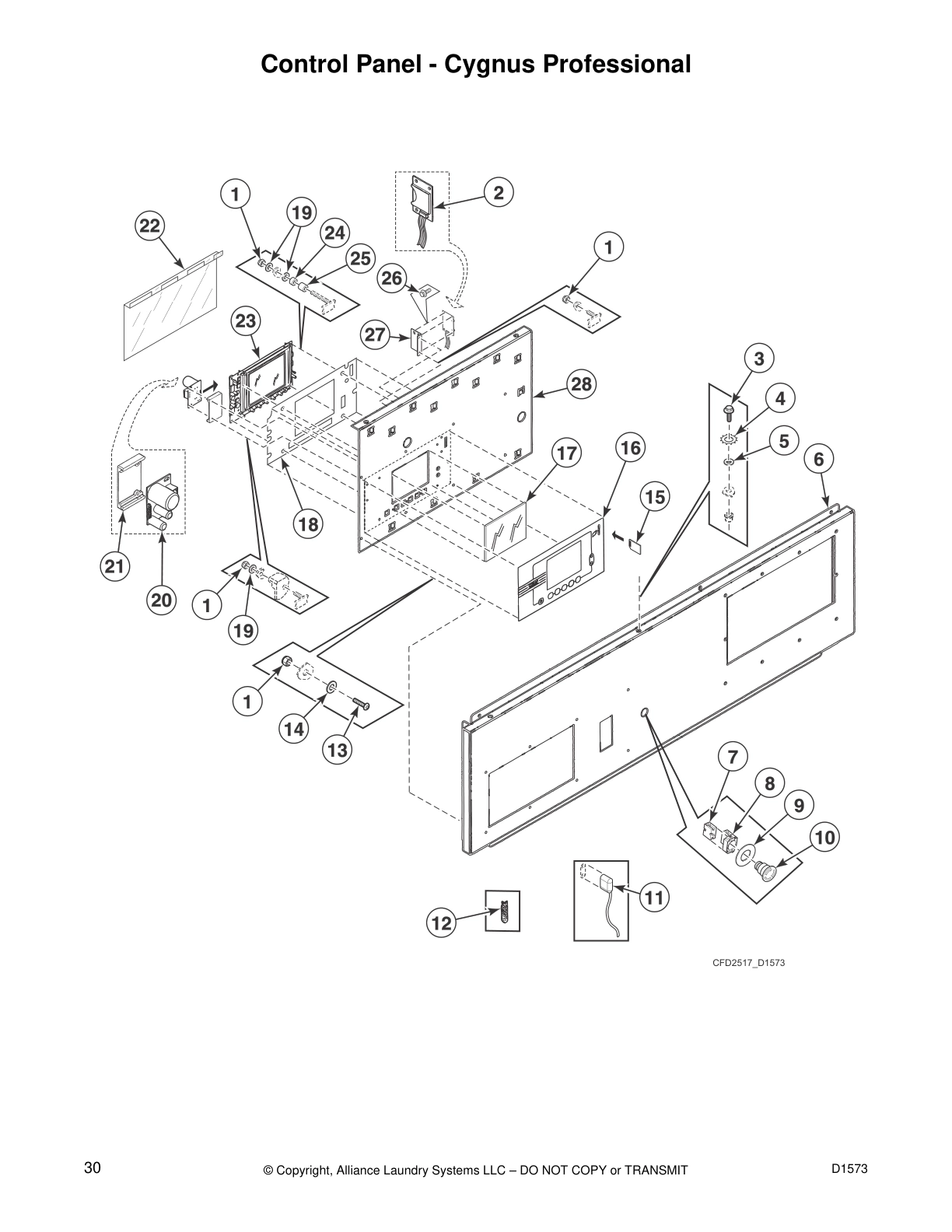

Control Panel - Cygnus Professional

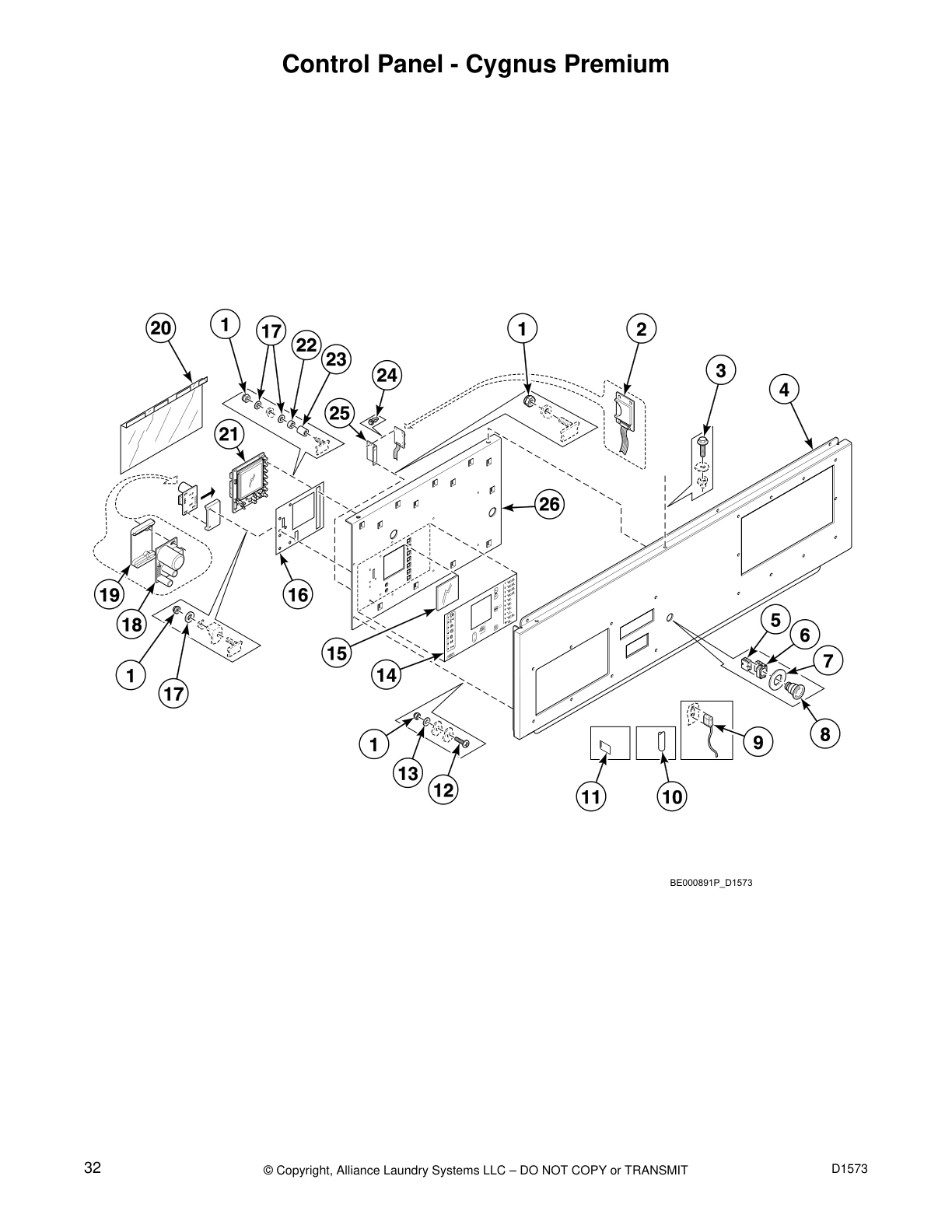

Control Panel - Cygnus Premium

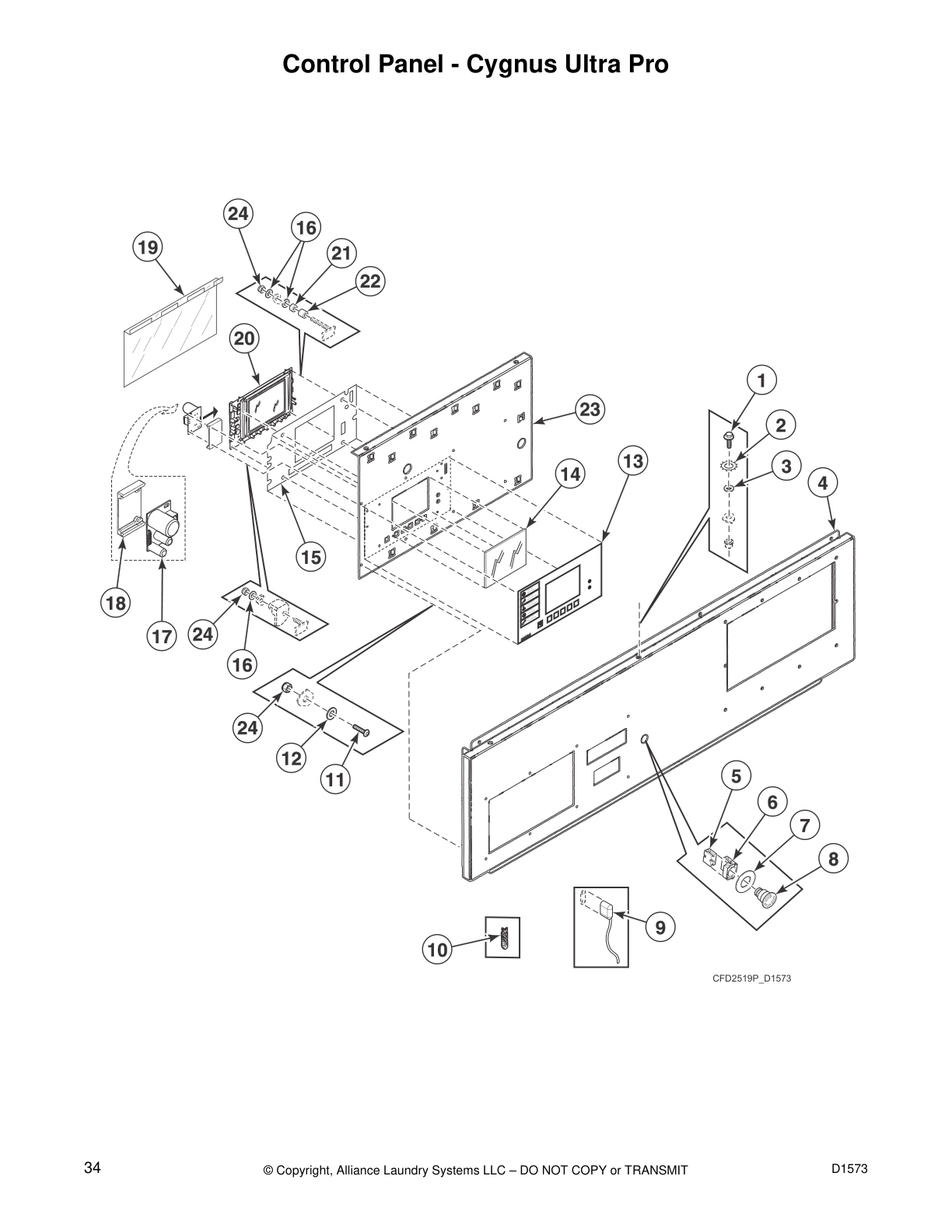

Control Panel - Cygnus Ultra Pro

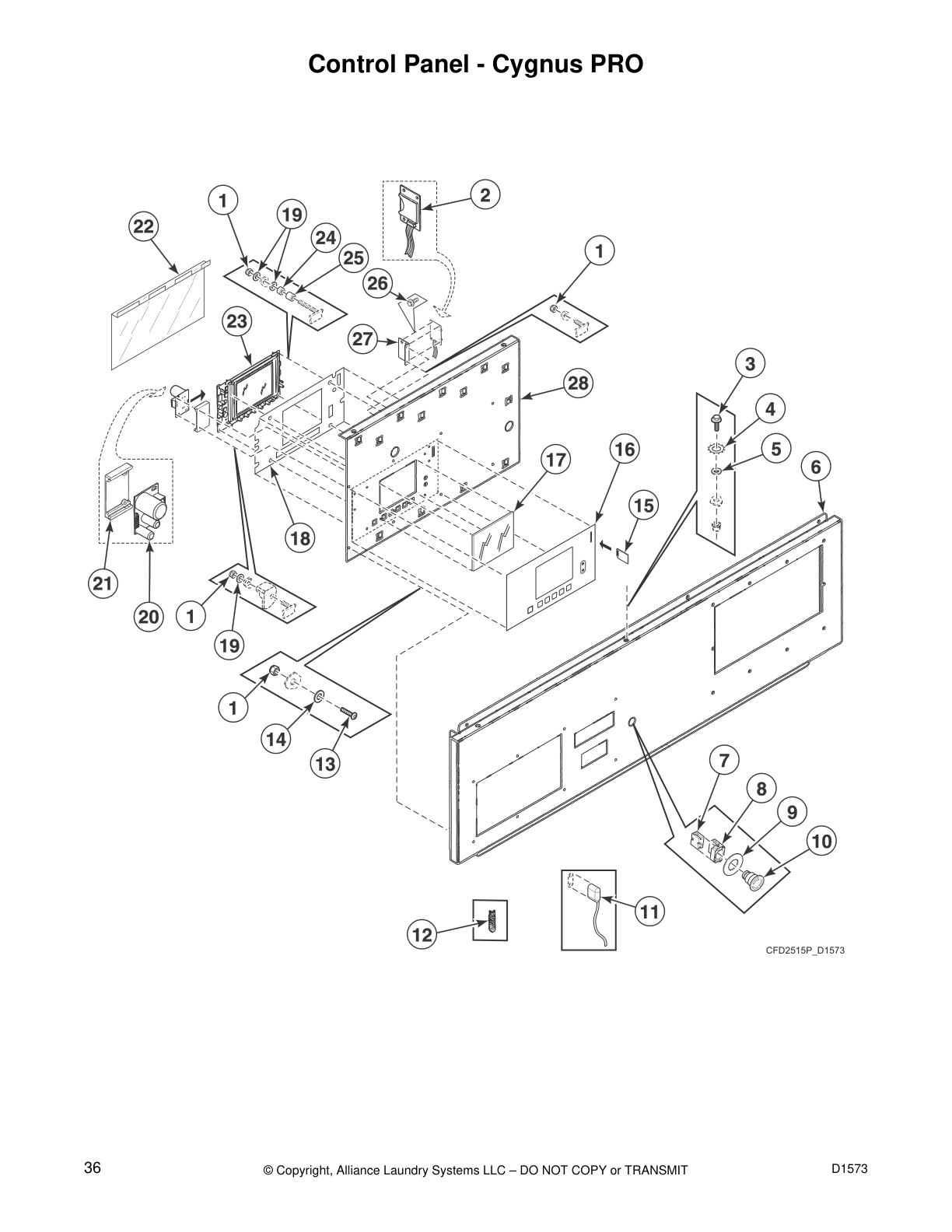

Control Panel - Cygnus PRO

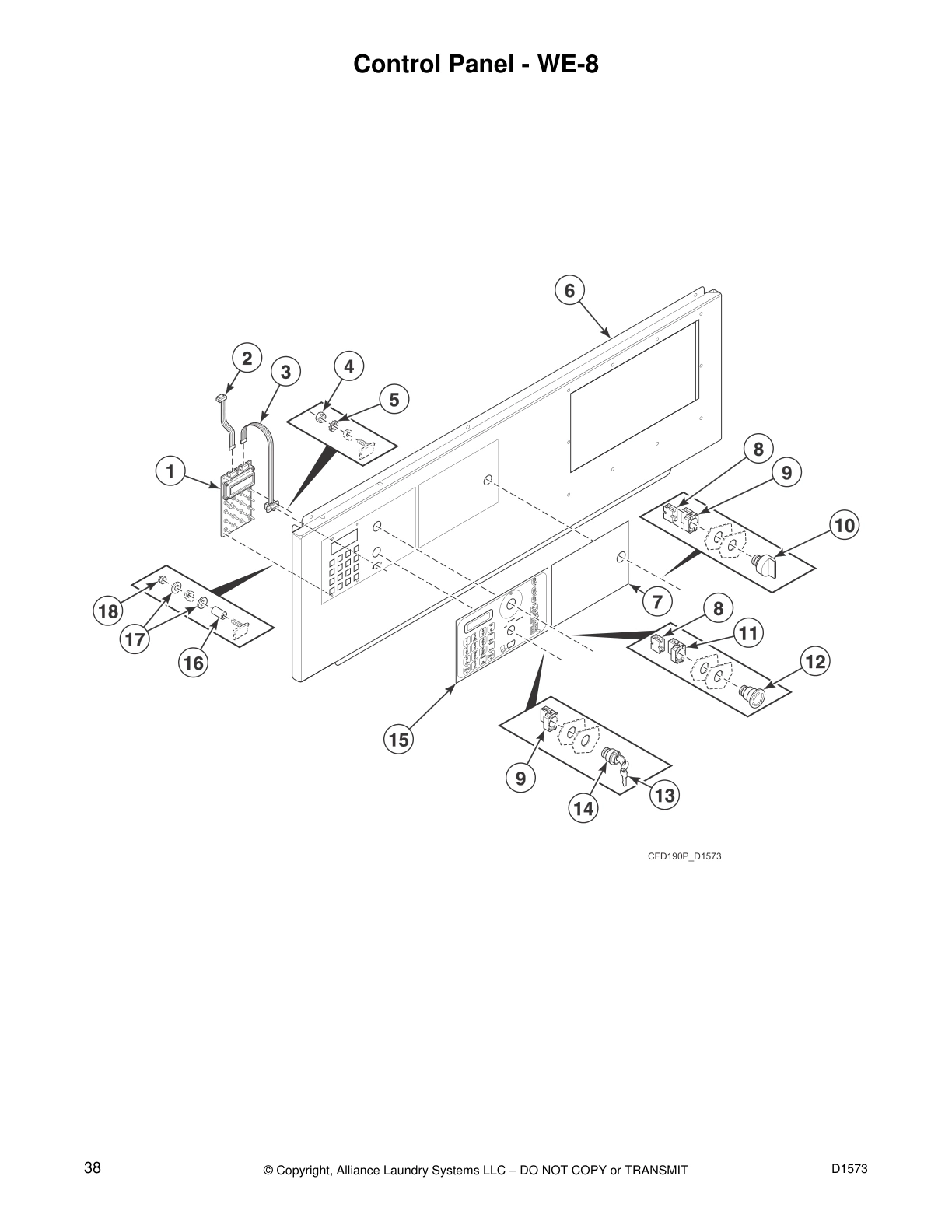

Control Panel - WE-8

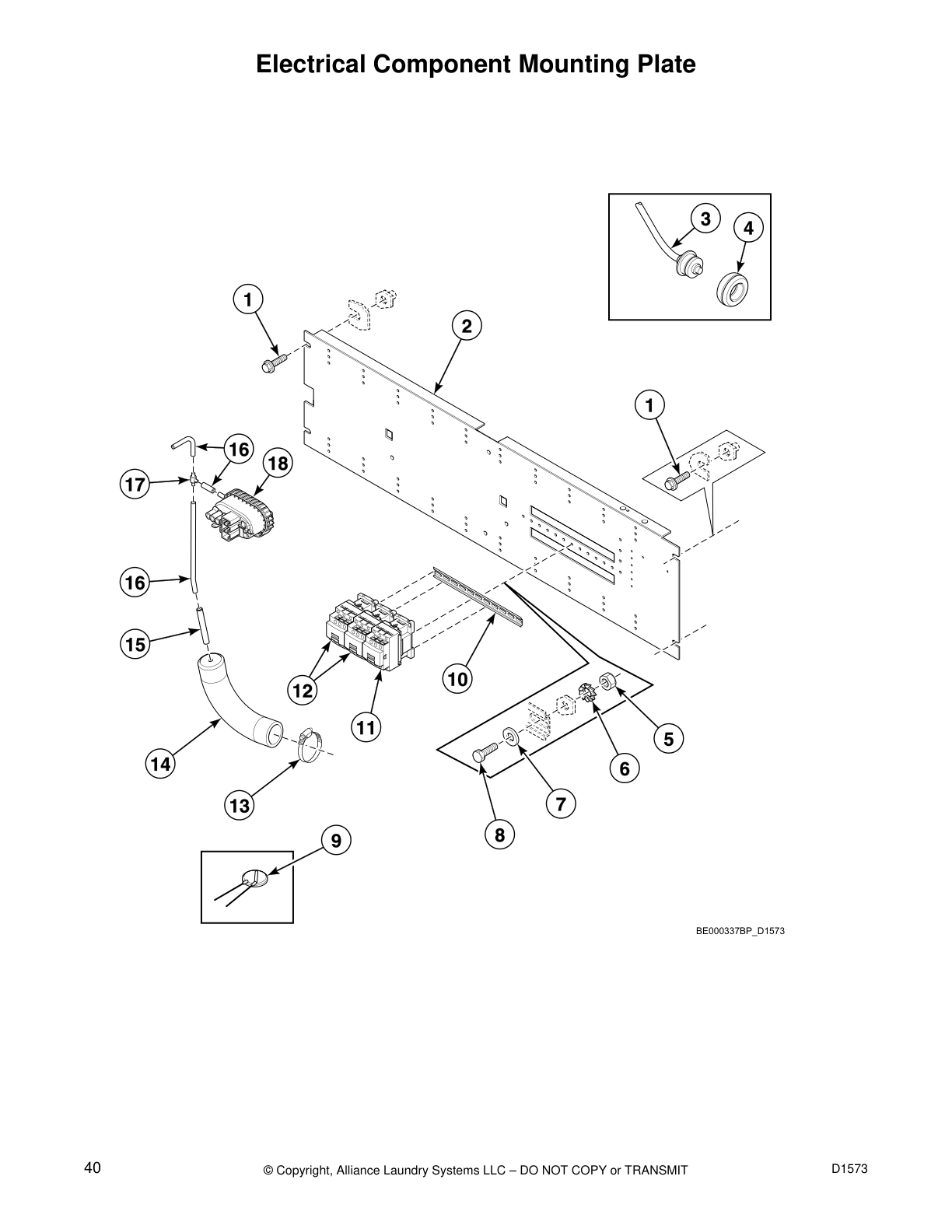

Electrical Component Mounting Plate

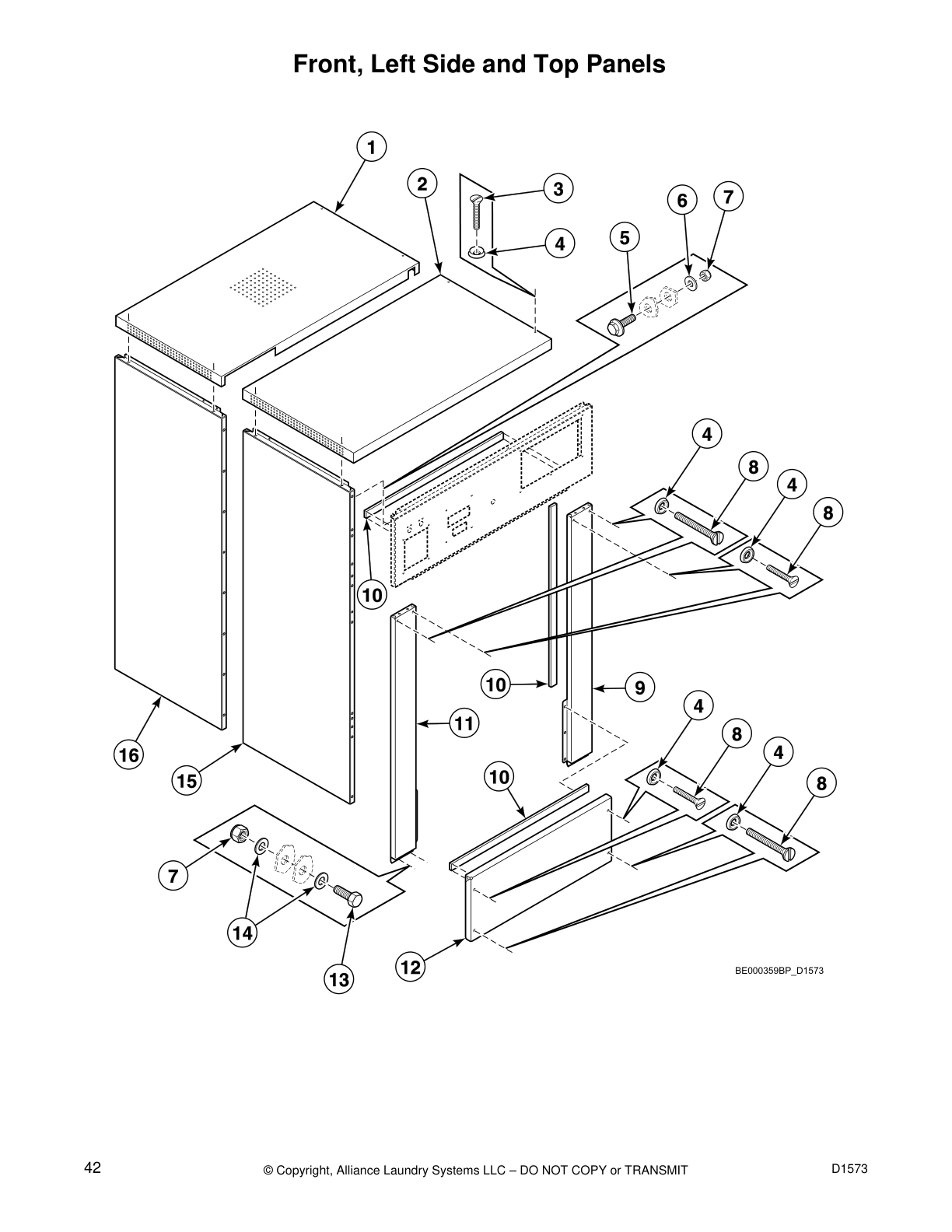

Front, Left Side and Top Panels

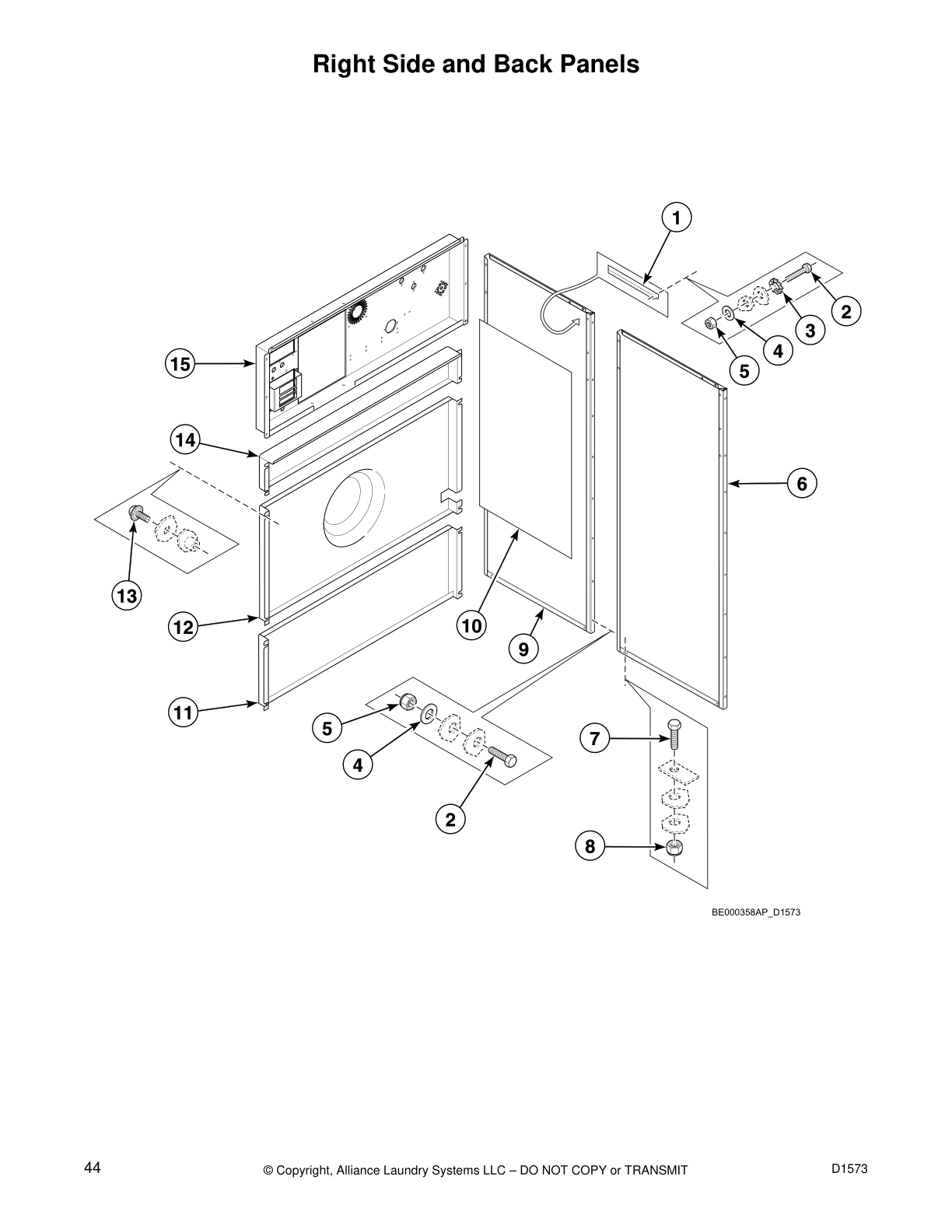

Right Side and Back Panels

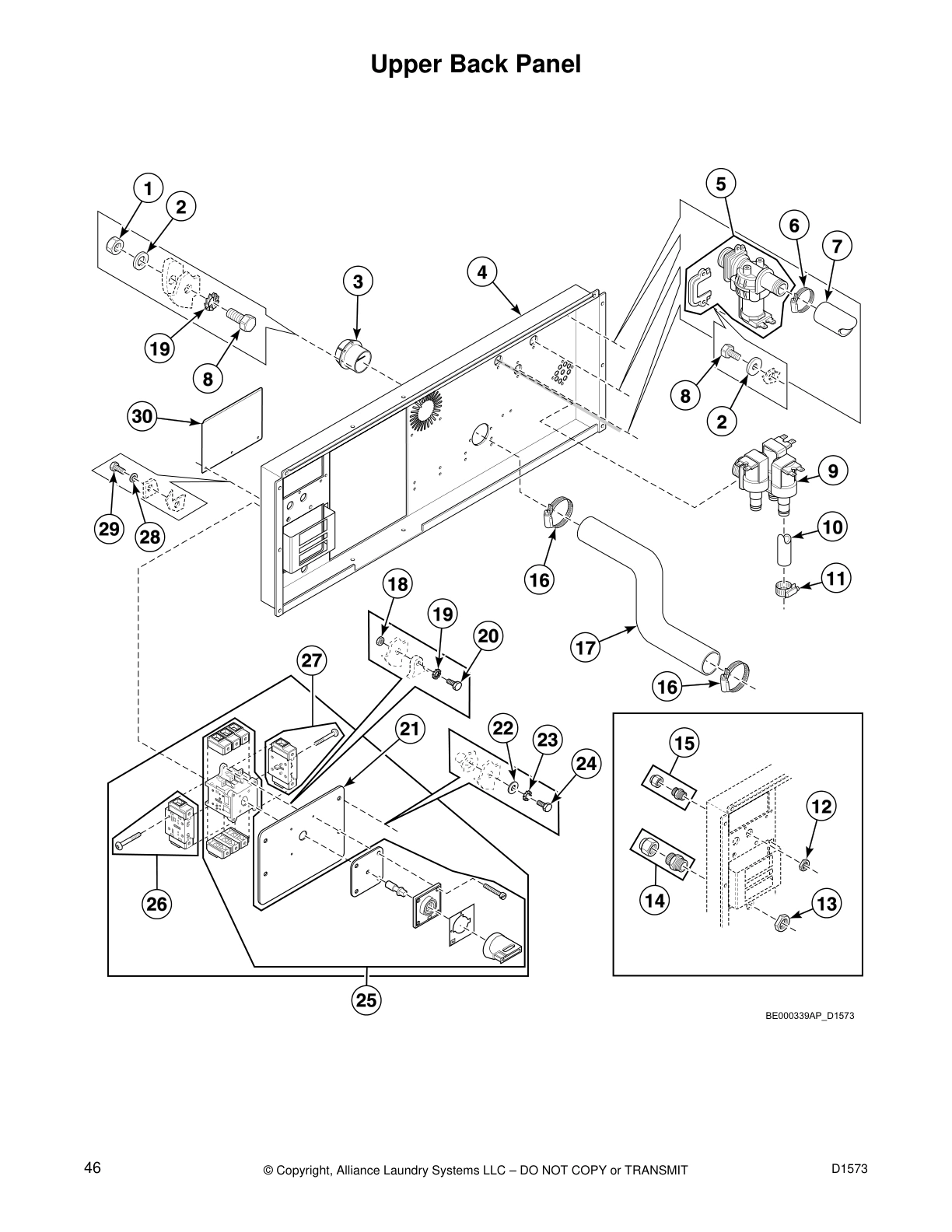

Upper Back Panel

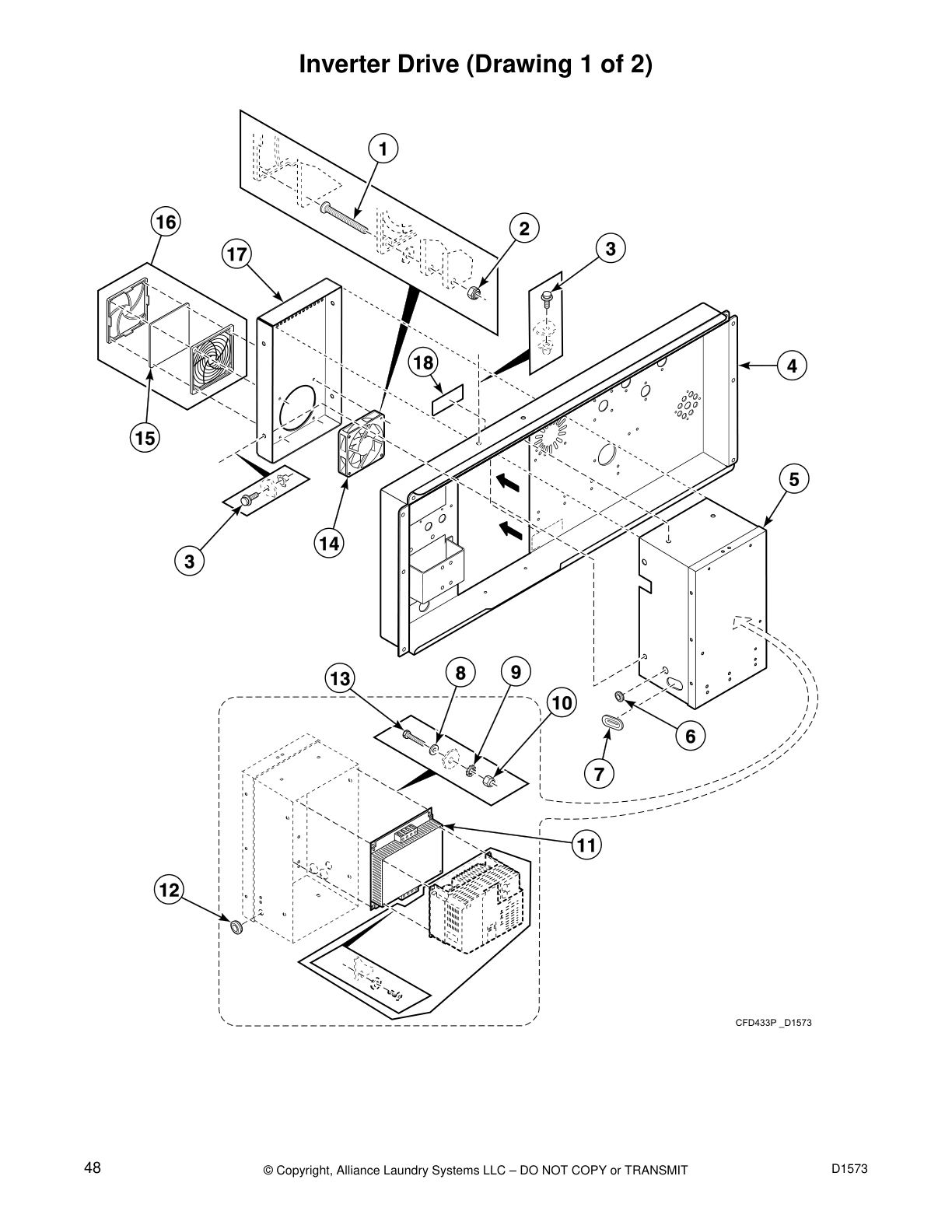

Inverter Drive (Drawing 1 of 2)

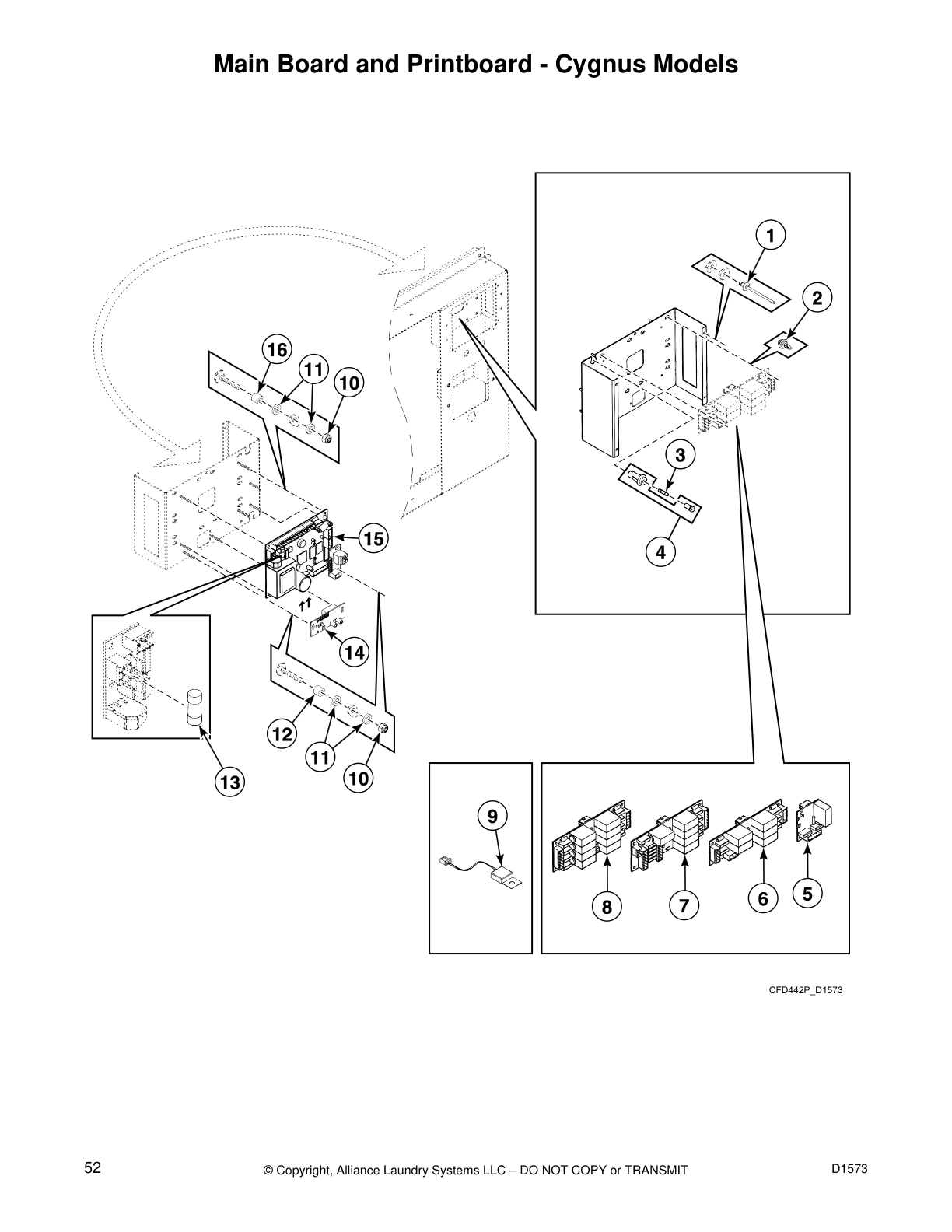

Main Board and Printboard - Cygnus Models

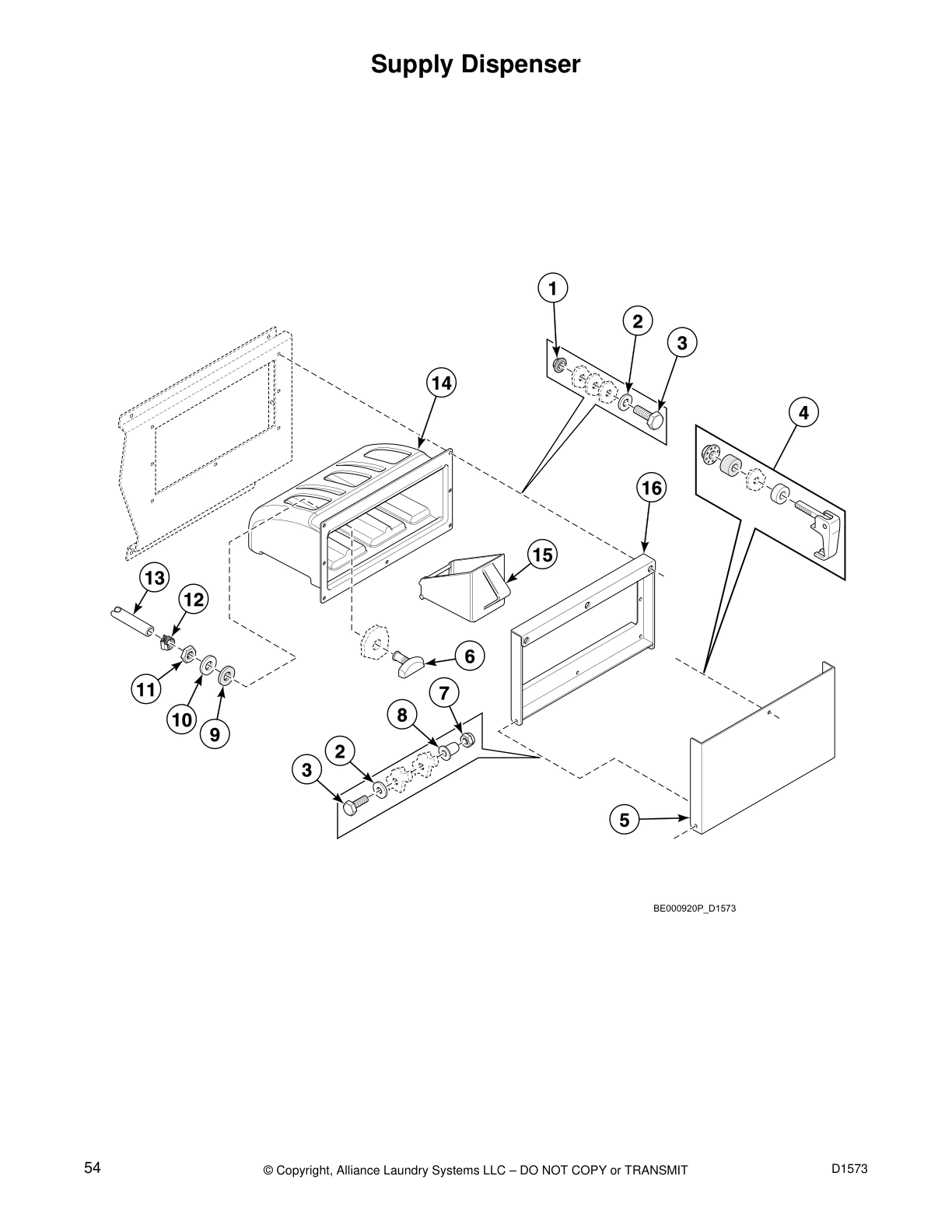

Supply Dispenser

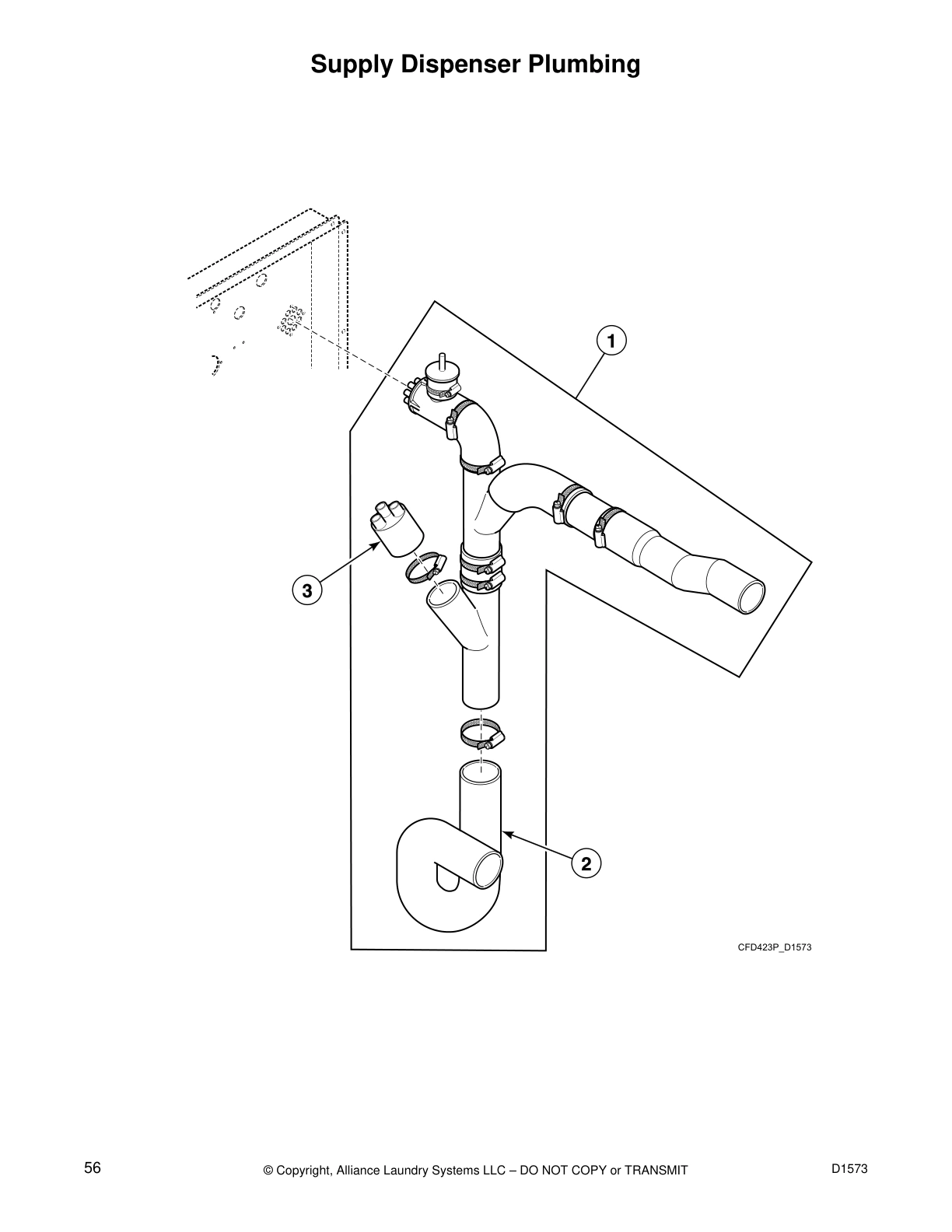

Supply Dispenser Plumbing

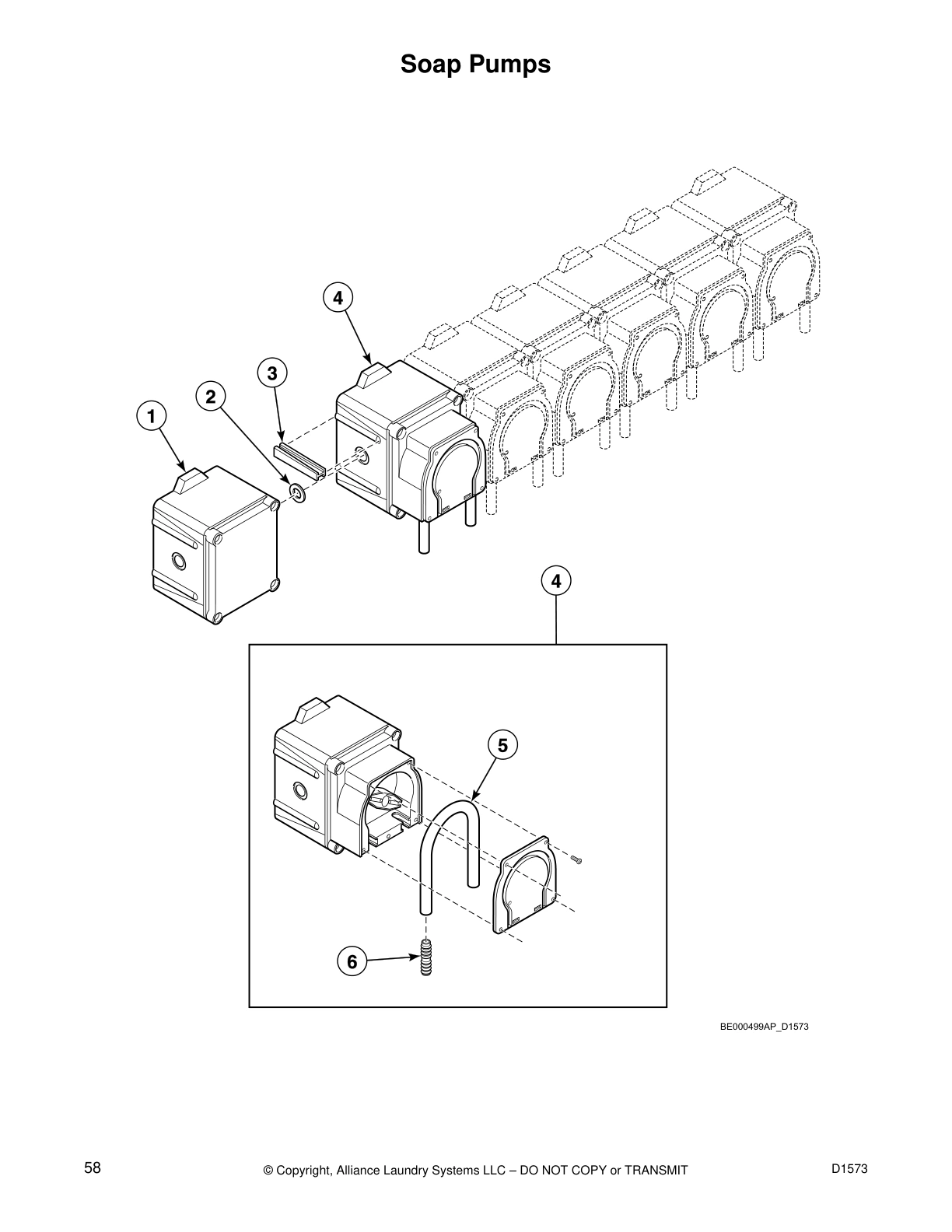

Soap Pumps

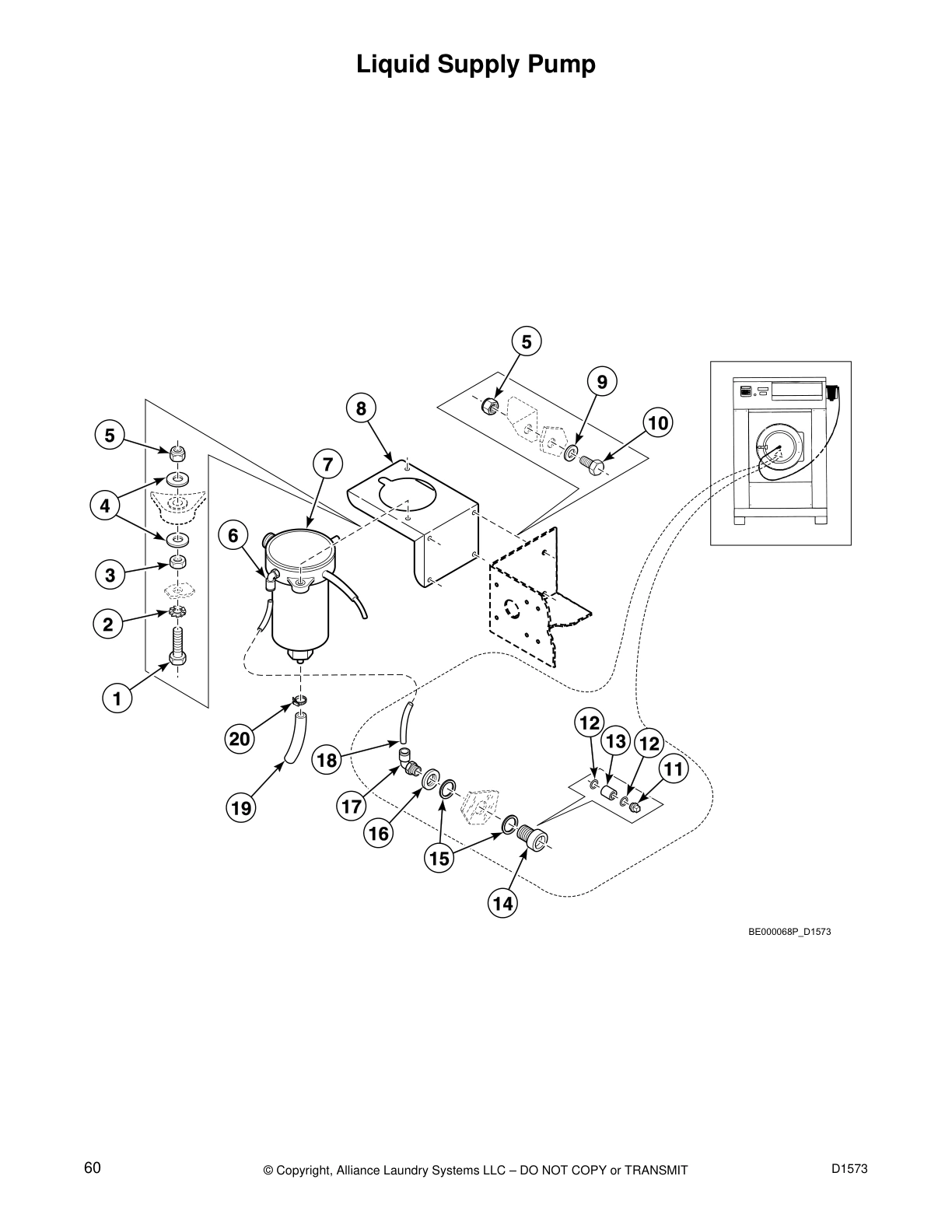

Liquid Supply Pump

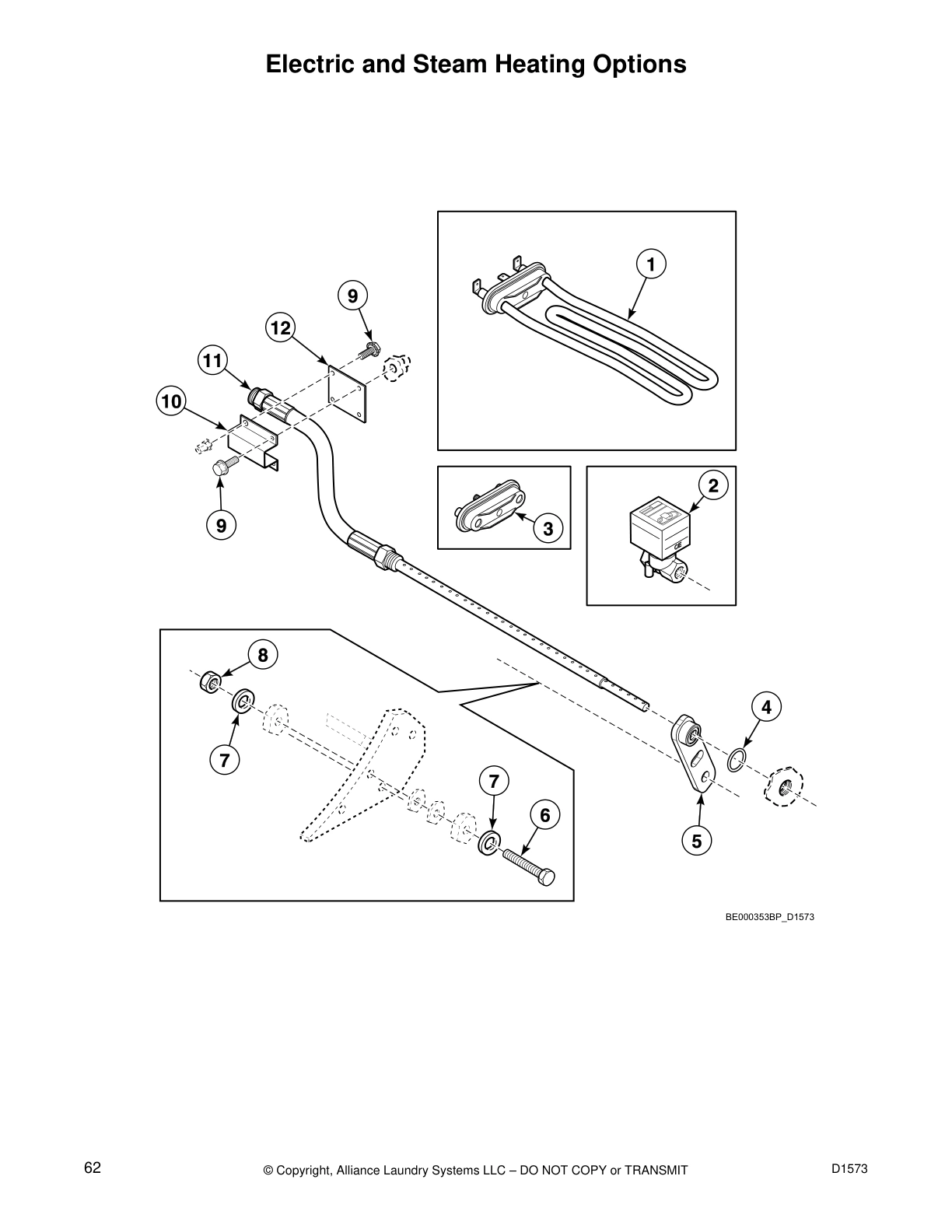

Electric and Steam Heating Options

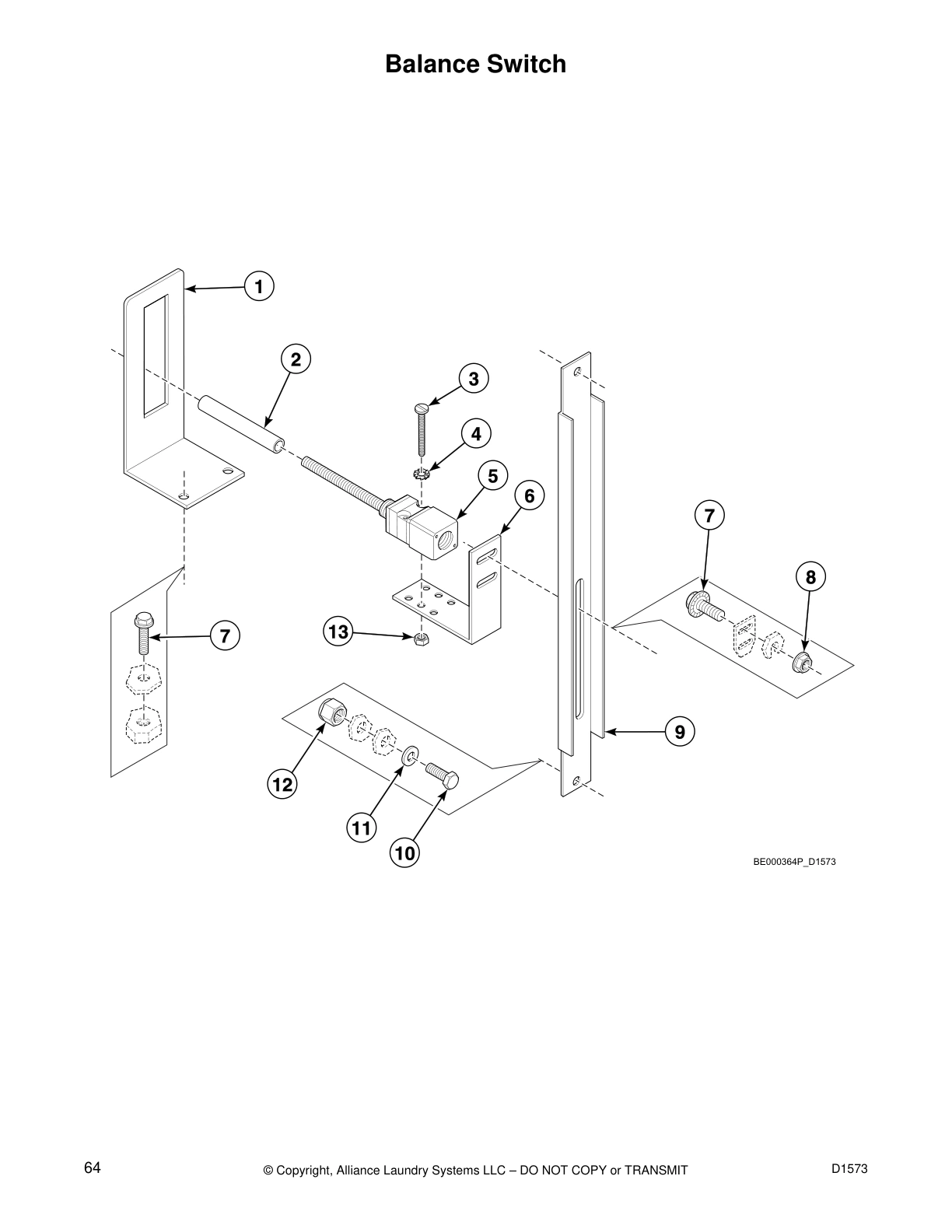

Balance Switch
Common parts from model Ipso IXR135R Washer
1
Seal SPQ B12378901 Contact Us For Availability
1
Bolt SPQ 206/00004/00 Contact Us For Availability
1
Nut SPQ 204/00004/00 Contact Us For Availability
1
Door Gasket SPQ 253/00162/01 Contact Us For Availability
1
Rear Cabinet Top SPQ 153/00034/02 Contact Us For Availability
1
Side Panel Support Assembly SPQ 153/00103/01 Contact Us For Availability
1
Feeding Liquid Soap D SPQ 209/00554/51 Contact Us For Availability
1
Bolt SPQ 205/00103/00 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
2
Tub Back Plate SPQ 153/00075/10 Contact Us For Availability
2
Seal Wear Plate SPQ 201/00202/00 Contact Us For Availability
2
Spacer SPQ B12378801 Contact Us For Availability
2
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
2
Nut SPQ 204/00114/00 Contact Us For Availability
2
Bolt SPQ 203/00003/00 Contact Us For Availability
2
Bolt SPQ 202/00004/00 Contact Us For Availability
2
Plate Assembly SPQ 153/00112/60 Contact Us For Availability
2
Soap Injector Elbow Coupling SPQ 203/00004/00 Contact Us For Availability
2
Soap Dispenser to Tub Hose SPQ 223/00187/00 Contact Us For Availability
2
Liquid Soap Dosing Pu SPQ 209/00554/52 Contact Us For Availability
2
Steam Valve SPQ 153/00051/11 Contact Us For Availability
2
Screw SPQ 223/00246/00 Contact Us For Availability
3
Retaining Ring SPQ 153/00121/00 Contact Us For Availability
3
Bushing SPQ 253/00125/00 Contact Us For Availability
3
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
3
Screw SPQ 209/00025/08 Contact Us For Availability
3
Thermostat SPQ 173/00013/10 Contact Us For Availability
3
Screw SPQ 207/00123/00 Contact Us For Availability
3
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
3
Prewash and Mainwash Nozzle SPQ 205/00104/00 Contact Us For Availability
3
SPQ 209/00533/00 SPQ 209/00533/00 Contact Us For Availability
3
Water Inlet Grid SPQ 223/00289/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 207/00018/00 Contact Us For Availability
4
V-Ring Se SPQ 253/00124/00 Contact Us For Availability
4
SPQ 253/00079/00 SPQ 253/00079/00 Contact Us For Availability
4
Tilt Switch Bracket SPQ 203/00006/00 Contact Us For Availability
4
SPQ 201/00010/00 SPQ 201/00010/00 Contact Us For Availability
4
Door Lock Catch SPQ 253/00158/567 Contact Us For Availability
4
Telem Sticker SPQ B12601501 Contact Us For Availability
4
Nut SPQ 208/00009/00 Contact Us For Availability
4
Side Panel SPQ 202/00110/00 Contact Us For Availability
4
SPQ 207/00110/00 SPQ 207/00110/00 Contact Us For Availability
4
Inverter Drive Box SPQ B12322001 Contact Us For Availability
4
Bushing SPQ 223/00392/00 Contact Us For Availability
4
O-Ring SPQ 209/00476/00 Contact Us For Availability
5
Grease Ring Holder SPQ 253/00182/00 Contact Us For Availability
5
Screw SPQ 253/00154/00 Contact Us For Availability
5
SPQ 206/00031/00 SPQ 206/00031/00 Contact Us For Availability
5
SPQ 206/00009/00 SPQ 206/00009/00 Contact Us For Availability
5
Drain Valve Motor Mounting Plate SPQ 209/00115/04 Contact Us For Availability
5
Door Lock Harness SPQ 205/00123/00 Contact Us For Availability
5
O-Ring SPQ F8549301 Contact Us For Availability
5
Telem Sticker SPQ B12300601 Contact Us For Availability
5
Nut SPQ 225/10004/00 Contact Us For Availability
5
Washer SPQ 111/01147/00 Contact Us For Availability
6
Nut SPQ 206/00122/00 Contact Us For Availability
6
Spacer SPQ 253/00131/00 Contact Us For Availability
6
Bolt SPQ 253/00026/01 Contact Us For Availability
6
Drain Valve Motor SPQ 209/00203/11 Contact Us For Availability
6
SPQ 223/00244/00 SPQ 223/00244/00 Contact Us For Availability
6
SPQ 153/00105/00 SPQ 153/00105/00 Contact Us For Availability
6
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
6
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
6
SPQ 223/00181/00 SPQ 223/00181/00 Contact Us For Availability
6
Bolt SPQ 223/00349/00 Contact Us For Availability
6
SPQ 111/00107/00 SPQ 111/00107/00 Contact Us For Availability
7
SPQ 224/00046/00 SPQ 224/00046/00 Contact Us For Availability
7
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
7
Bearing Kit SPQ 253/00155/00 Contact Us For Availability
7
SPQ 253/00078/00 SPQ 253/00078/00 Contact Us For Availability
7
SPQ 223/00071/00 SPQ 223/00071/00 Contact Us For Availability
7
Coil SPQ 209/00051/11 Contact Us For Availability
7
Coil SPQ 209/00203/21 Contact Us For Availability
7
SPQ 205/00122/00 SPQ 205/00122/00 Contact Us For Availability
7
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
7
SPQ 153/10027/90 SPQ 153/10027/90 Contact Us For Availability
7
Washer SPQ 206/00047/00 Contact Us For Availability
8
Nut SPQ 201/00001/00 Contact Us For Availability
8
Bearing Replacement Tool Kit SPQ B12360810 Contact Us For Availability
8
SPQ 206/00053/00 SPQ 206/00053/00 Contact Us For Availability
8
SPQ 201/00008/00 SPQ 201/00008/00 Contact Us For Availability
8
SPQ 223/00141/00 SPQ 223/00141/00 Contact Us For Availability
8
Drain Valve Motor SPQ 209/00203/12 Contact Us For Availability
8
SPQ 209/00099/20 SPQ 209/00099/20 Contact Us For Availability
8
SPQ 207/00102/00 SPQ 207/00102/00 Contact Us For Availability
8
SPQ 223/00011/00 SPQ 223/00011/00 Contact Us For Availability
8
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
8
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
8
SPQ 204/00301/00 SPQ 204/00301/00 Contact Us For Availability
9
Steam Kit SPQ 204/00113/00 Contact Us For Availability
9
SPQ 206/00147/00 SPQ 206/00147/00 Contact Us For Availability
9
SPQ 223/00133/00 SPQ 223/00133/00 Contact Us For Availability
9
Door Lock Kit SPQ C000185 Contact Us For Availability
9
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
9
SPQ 209/00520/00 SPQ 209/00520/00 Contact Us For Availability
9
SPQ 223/00001/07 SPQ 223/00001/07 Contact Us For Availability
10
Washer SPQ 201/00025/00 Contact Us For Availability
10
Hose Clamp SPQ 223/00012/00 Contact Us For Availability
10
Drain Valve Spring SPQ 209/00170/02 Contact Us For Availability
10
Bolt SPQ C000430 Contact Us For Availability
10
Hinge Plate SPQ 253/00176/50 Contact Us For Availability
10
Nut SPQ 204/00116/00 Contact Us For Availability
10
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
10
Washer SPQ 201/00002/00 Contact Us For Availability
10
Bolt SPQ 205/00107/00 Contact Us For Availability
10
Bracket SPQ 209/00581/10 Contact Us For Availability
11
Door Front Panel SPQ 153/10113/00 Contact Us For Availability
11
Belt SPQ 226/00155/00 Contact Us For Availability
11
Drain Valve Shaft SPQ 209/00170/10 Contact Us For Availability
11
Washer SPQ 223/00123/00 Contact Us For Availability
11
Front Left Panel SPQ 153/10115/50 Contact Us For Availability
11
Washer SPQ 202/00101/00 Contact Us For Availability
11
Noise Filter SPQ 227/00163/00 Contact Us For Availability
11
Water Hose SPQ 204/00201/00 Contact Us For Availability
11
Steam Injector SPQ 153/00051/10 Contact Us For Availability
12
Counterweight SPQ 253/10013/00 Contact Us For Availability
12
Pulley SPQ 253/00026/00 Contact Us For Availability
12
Drain Valve Plate Assembly SPQ 114/00010/00 Contact Us For Availability
12
Datacard Cover SPQ 223/00348/00 Contact Us For Availability
12
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
12
Nut SPQ 204/00009/00 Contact Us For Availability
12
Back Panel SPQ 153/00114/HD Contact Us For Availability
12
Strain Relief Connector SPQ 211/00170/00 Contact Us For Availability
12
Grommet SPQ 223/00198/00 Contact Us For Availability
12
Soap Injector Orifice Nipple SPQ 223/00177/00 Contact Us For Availability
12
Steam Injector Plate SPQ 153/00051/50 Contact Us For Availability
13
Leveling Leg SPQ 252/00006/00 Contact Us For Availability
13
Washer SPQ 203/00002/00 Contact Us For Availability
13
Key SPQ 253/00033/00 Contact Us For Availability
13
Out-of-Balance Switch Boot SPQ 204/00007/00 Contact Us For Availability
13
Hose Clamp SPQ 223/00223/00 Contact Us For Availability
13
Exhaust Valve Hose SPQ 223/00170/00 Contact Us For Availability
13
Bolt SPQ 206/00042/00 Contact Us For Availability
13
Supply Dispenser Box SPQ 223/00044/00 Contact Us For Availability
13
Bolt SPQ 205/00108/00 Contact Us For Availability
13
Soap Injector Coupling SPQ 211/00126/00 Contact Us For Availability
14
Bearing Cover Plate SPQ 153/00069/00 Contact Us For Availability
14
Screw SPQ 248/00114/00 Contact Us For Availability
14
Washer SPQ 202/00002/00 Contact Us For Availability
14
T-Piece SPQ 253/00006/00 Contact Us For Availability
14
Back Panel Support Assembly SPQ 153/00114/A1 Contact Us For Availability
14
Bolt SPQ 223/00345/01 Contact Us For Availability
15
Roller Bearing SPQ 253/00156/00 Contact Us For Availability
15
Overflow Hose SPQ 223/00013/00 Contact Us For Availability
15
Hose Barb SPQ 223/00016/00 Contact Us For Availability
15
Hose Clamp SPQ 211/00181/00 Contact Us For Availability
15
Filter SPQ 209/00287/21 Contact Us For Availability
15
Soap Injector Hose SPQ 223/00176/00 Contact Us For Availability
16
Washer SPQ 223/00184/00 Contact Us For Availability
16
Door Solenoid Assembly SPQ B12495102 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Washer SPQ 223/00014/00 Contact Us For Availability
17
Plexi Frame SPQ 225/00321/00 Contact Us For Availability
17
Pressure Hose SPQ 223/00182/00 Contact Us For Availability
18
Reed Switch Assembly SPQ C003000 Contact Us For Availability
18
Insulating Sticker SPQ 229/00268/00 Contact Us For Availability
18
Washer SPQ 223/00180/00 Contact Us For Availability
19
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
19
Nut SPQ 223/00179/10 Contact Us For Availability
20
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
21
SPQ 206/00142/00 SPQ 206/00142/00 Contact Us For Availability
21
Circuit Board Cover SPQ 223/00374/00 Contact Us For Availability
21
Main Switch SPQ 153/00027/22 Contact Us For Availability
22
Door Latch SPQ C001244 Contact Us For Availability
22
Printboard Separator SPQ 229/00289/00 Contact Us For Availability
23
Lock Spring Leaf SPQ 211/00072/00 Contact Us For Availability
23
Pop Rivet SPQ F431223 Contact Us For Availability
24
Magnet SPQ F8390801 Contact Us For Availability
24
Spring SPQ C000431 Contact Us For Availability
25
Door Magnet Mounting Bracket SPQ C002994 Contact Us For Availability
25
Backbridge SPQ 209/00532/00 Contact Us For Availability
27
SPQ 209/00526/00 SPQ 209/00526/00 Contact Us For Availability
29
SPQ 209/00528/00 SPQ 209/00528/00 Contact Us For Availability
NI
SPQ 3885P SPQ 3885P Contact Us For Availability
NI
SPQ 245/00054/01 SPQ 245/00054/01 Contact Us For Availability
NI
SPQ 203/00016/00 SPQ 203/00016/00 Contact Us For Availability
NI
SPQ 209/00052/11 SPQ 209/00052/11 Contact Us For Availability
NI
SPQ C003286 SPQ C003286 Contact Us For Availability
NI
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
NI
SPQ 209/00356/00 SPQ 209/00356/00 Contact Us For Availability
NI
SPQ 223/00059/00 SPQ 223/00059/00 Contact Us For Availability
NI
SPQ 809P3 SPQ 809P3 Contact Us For Availability
× ![]()
