Model IPSO IWF165MNM Washer – Common Parts & Diagrams
Frame
Bearing Housing - Models Through January 30, 2011

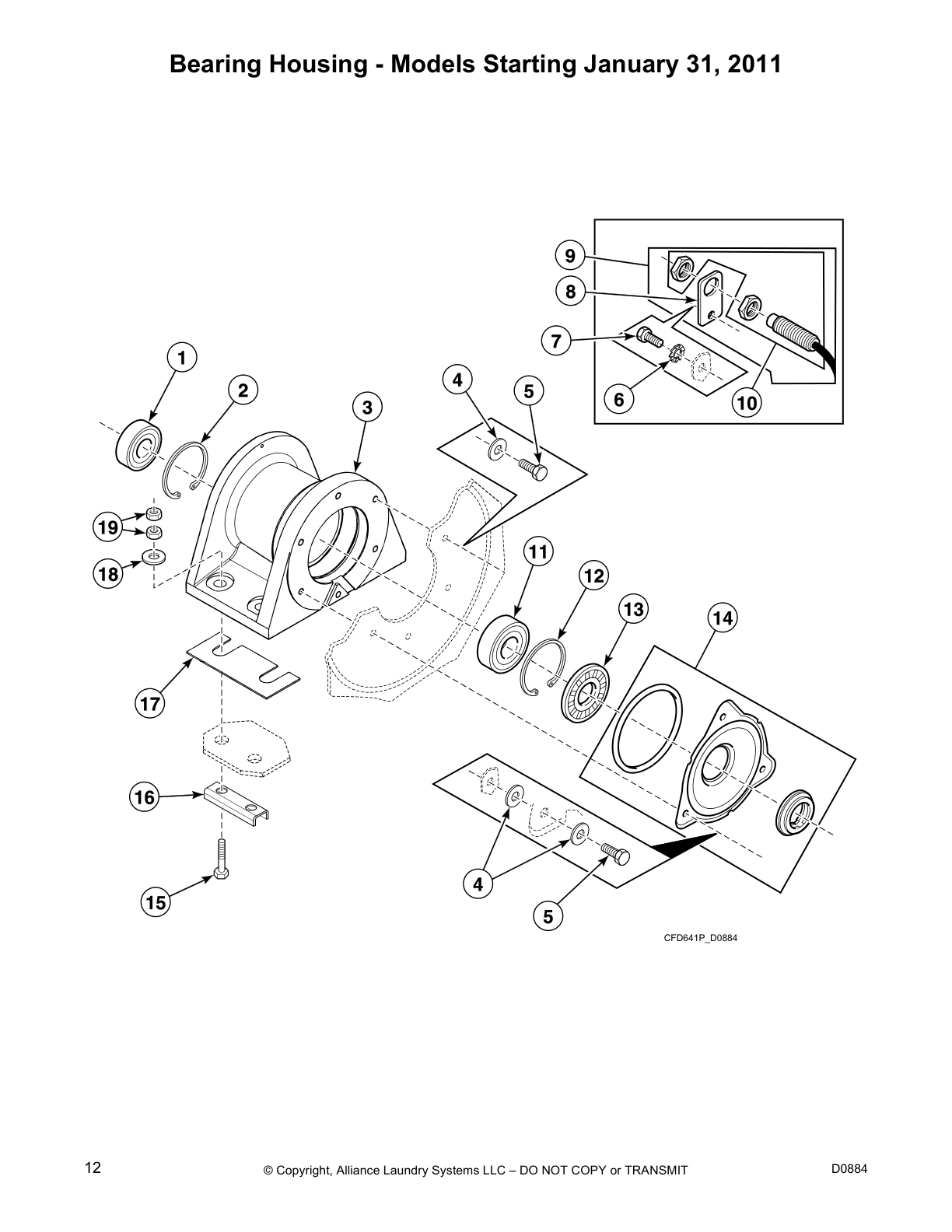

Bearing Housing - Models Starting January 31, 2011

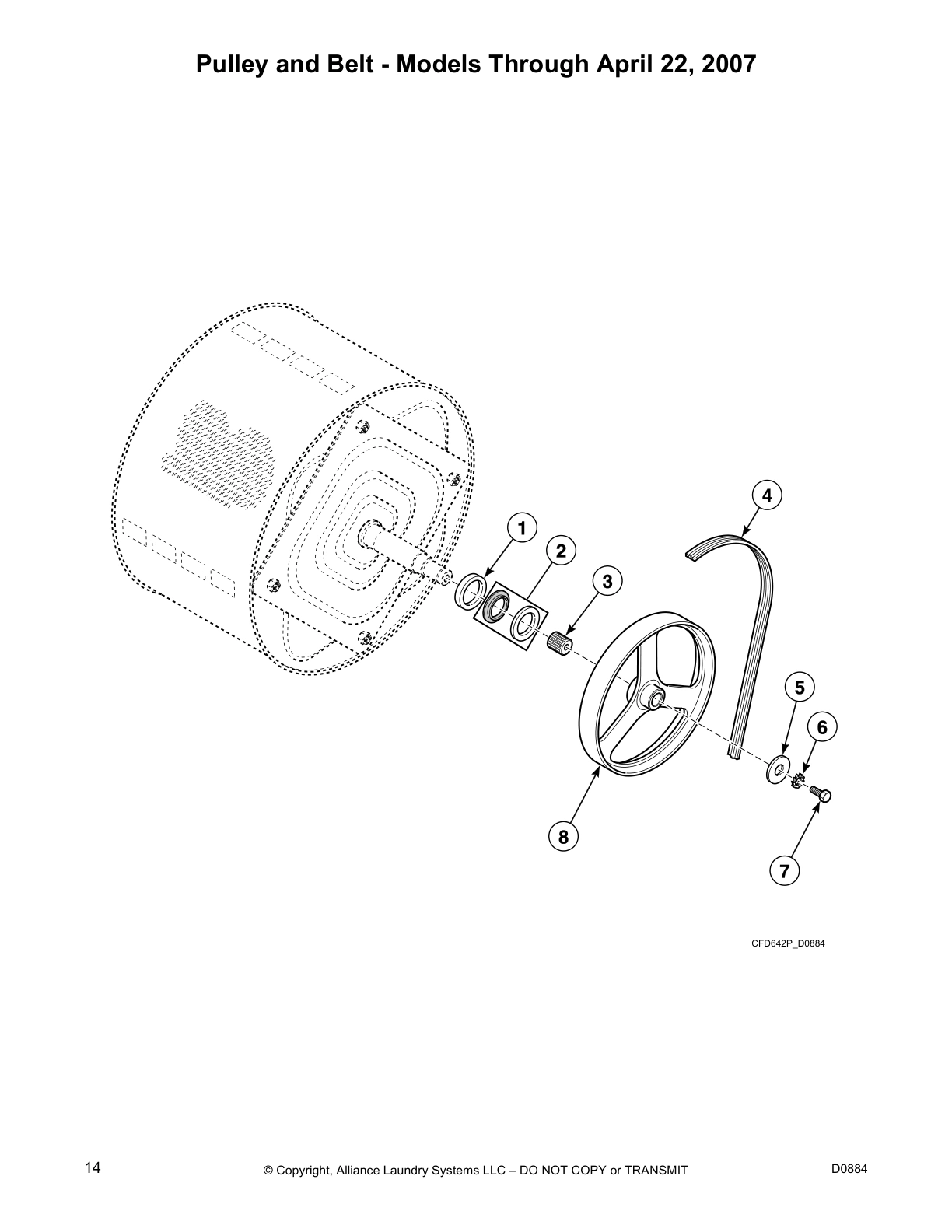

Pulley and Belt - Models Through April 22, 2007

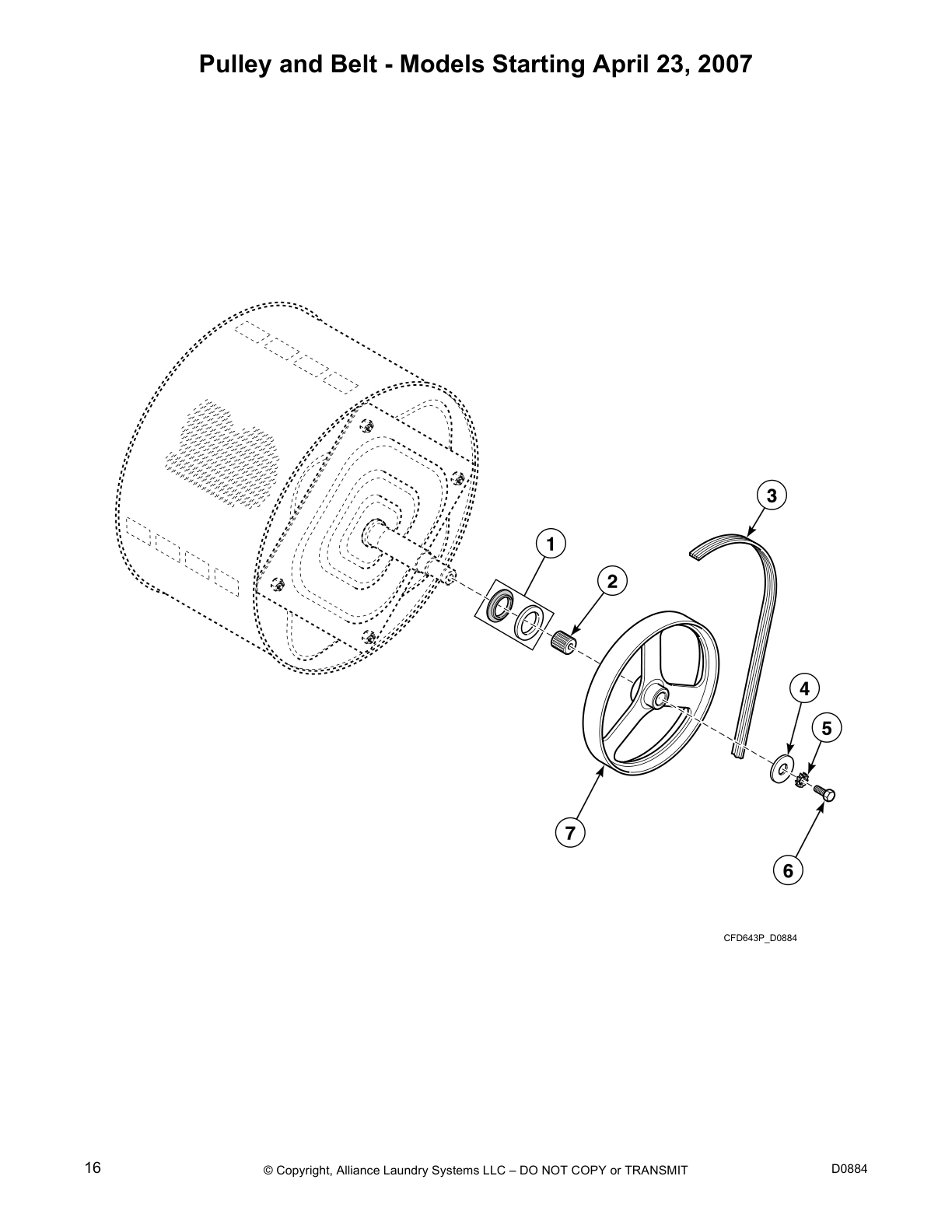

Pulley and Belt - Models Starting April 23, 2007

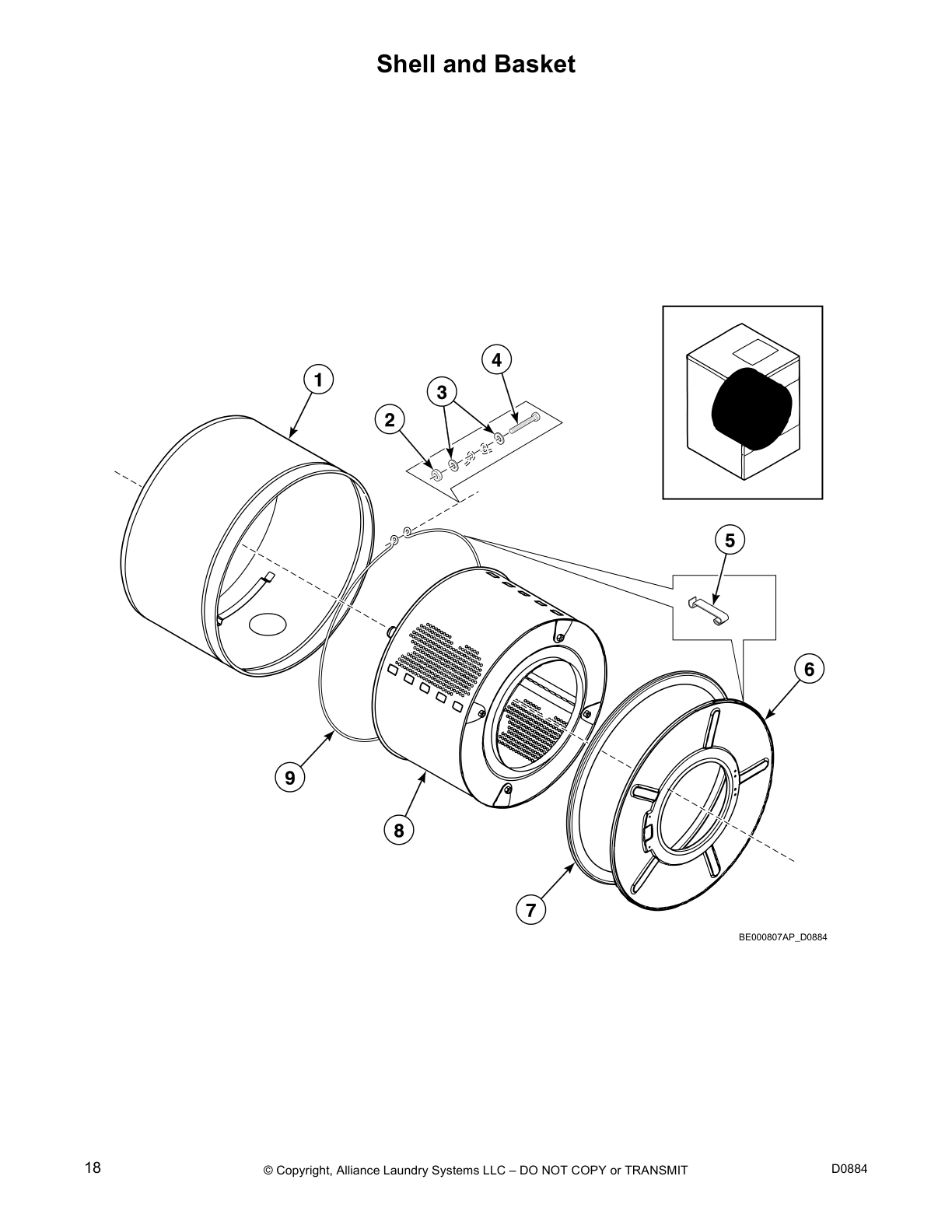

Shell and Basket

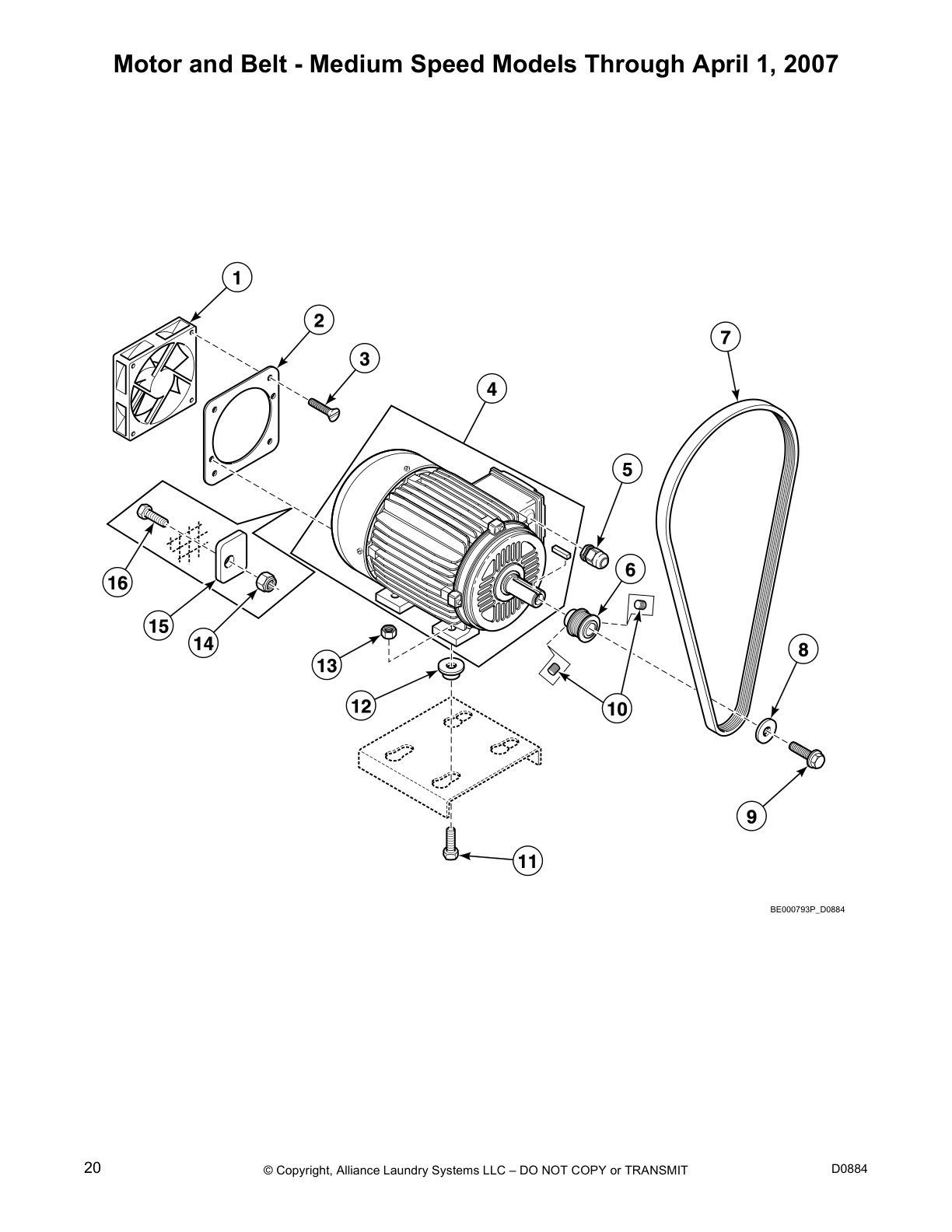

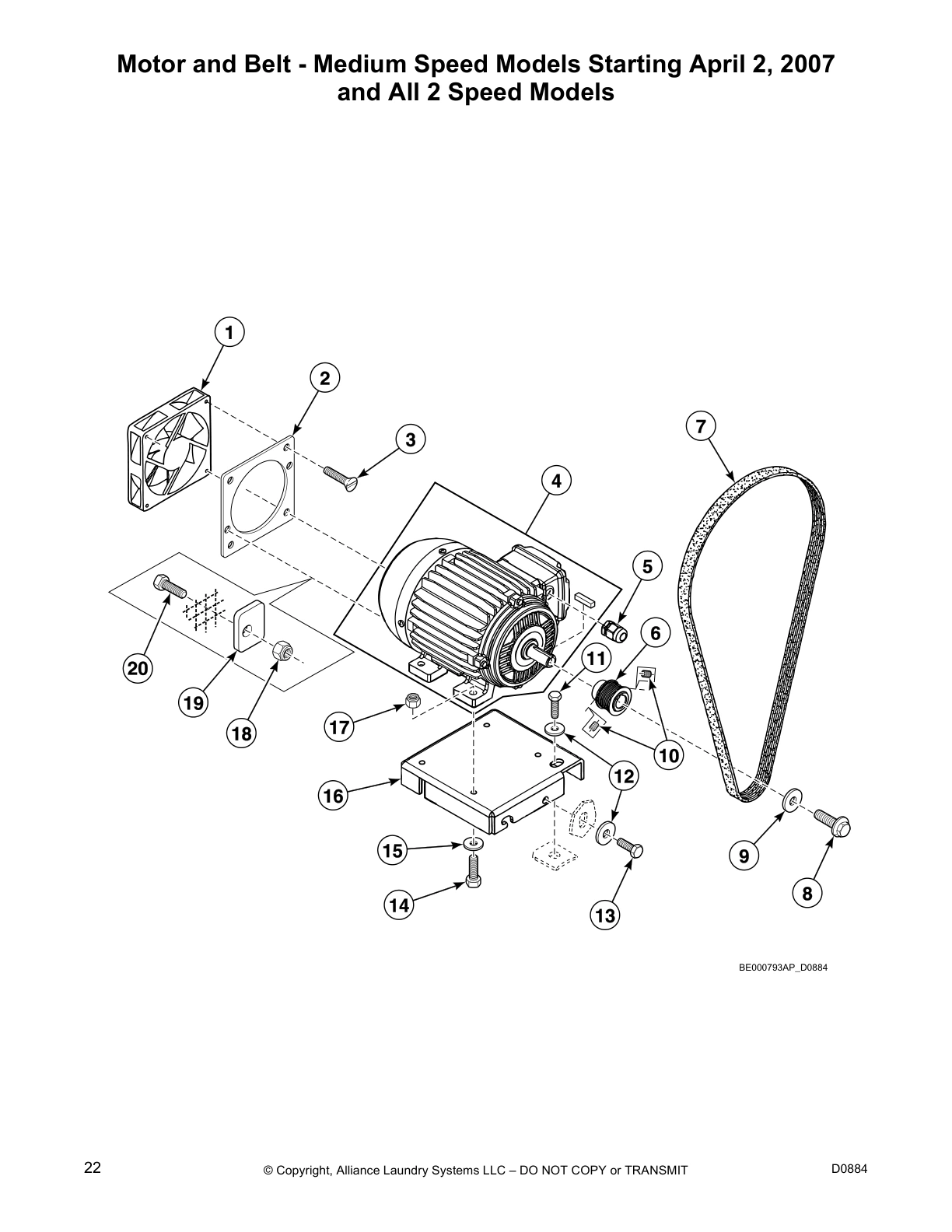

Motor and Belt - Medium Speed Models Through April 1, 2007
Motor and Belt - Medium Speed Models Starting April 2, 2007
and All 2 Speed Models

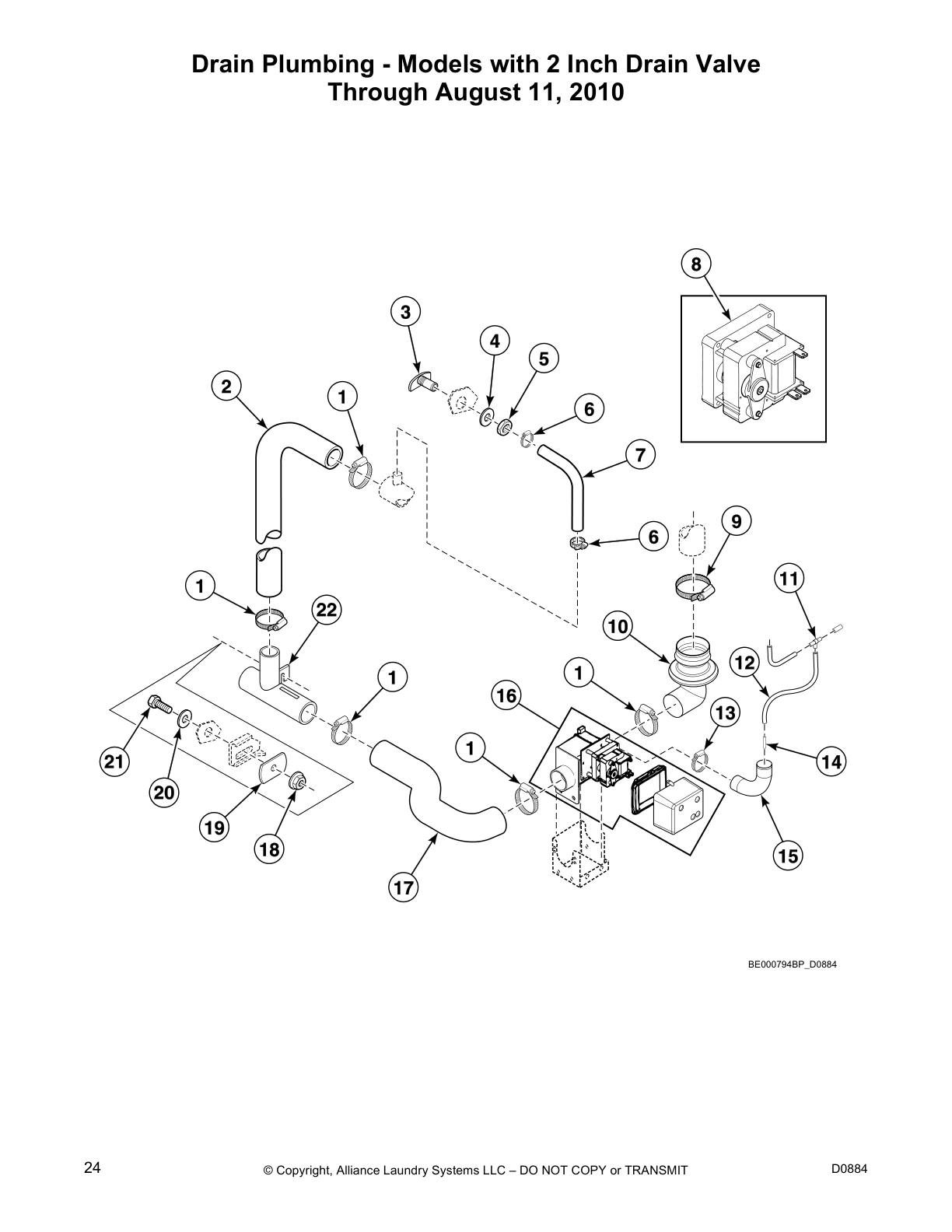

Drain Plumbing - Models with 2 Inch Drain Valve
Through August 11, 2010

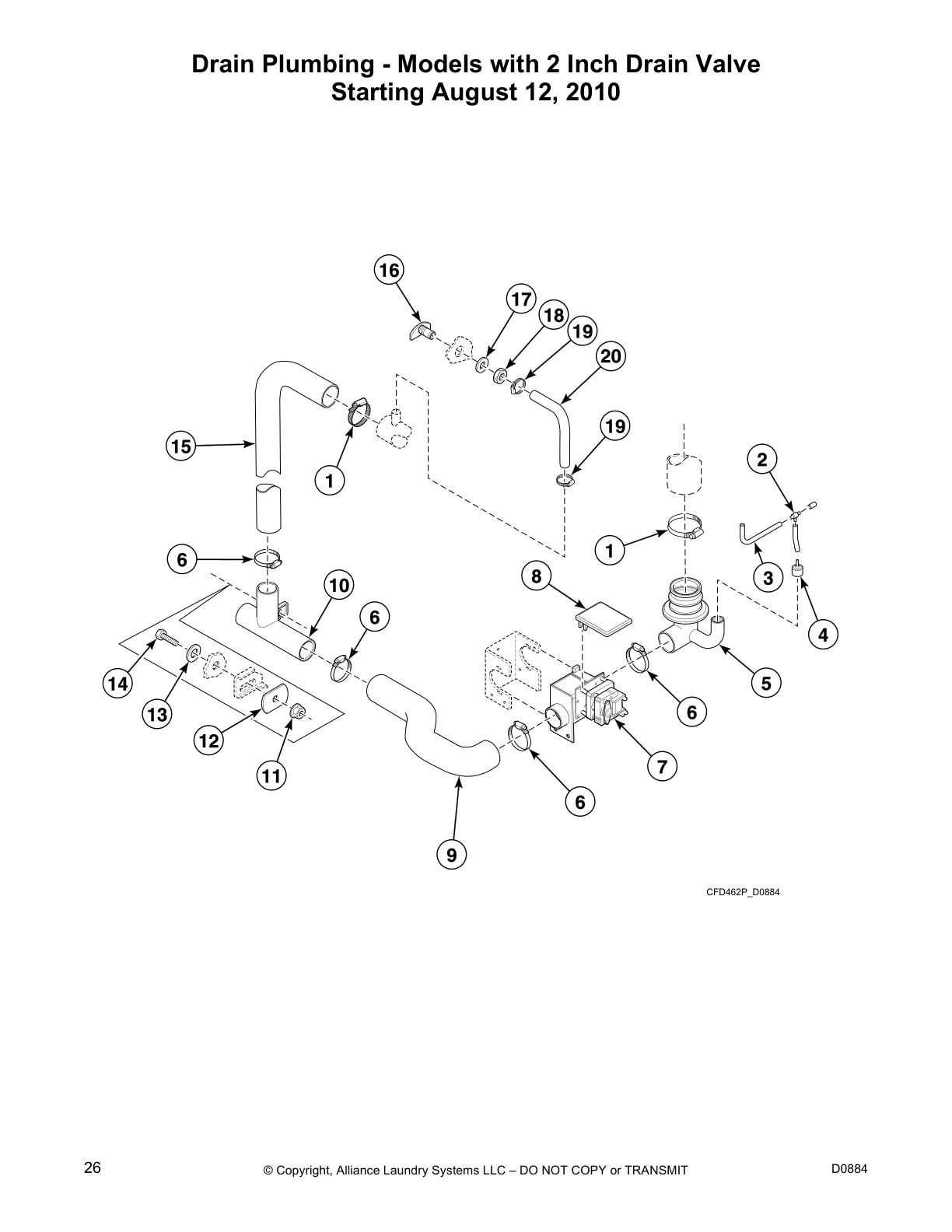

Drain Plumbing - Models with 2 Inch Drain Valve
Starting August 12, 2010
Drain Plumbing - *030 and *135 Models with 3 Inch Drain Valve

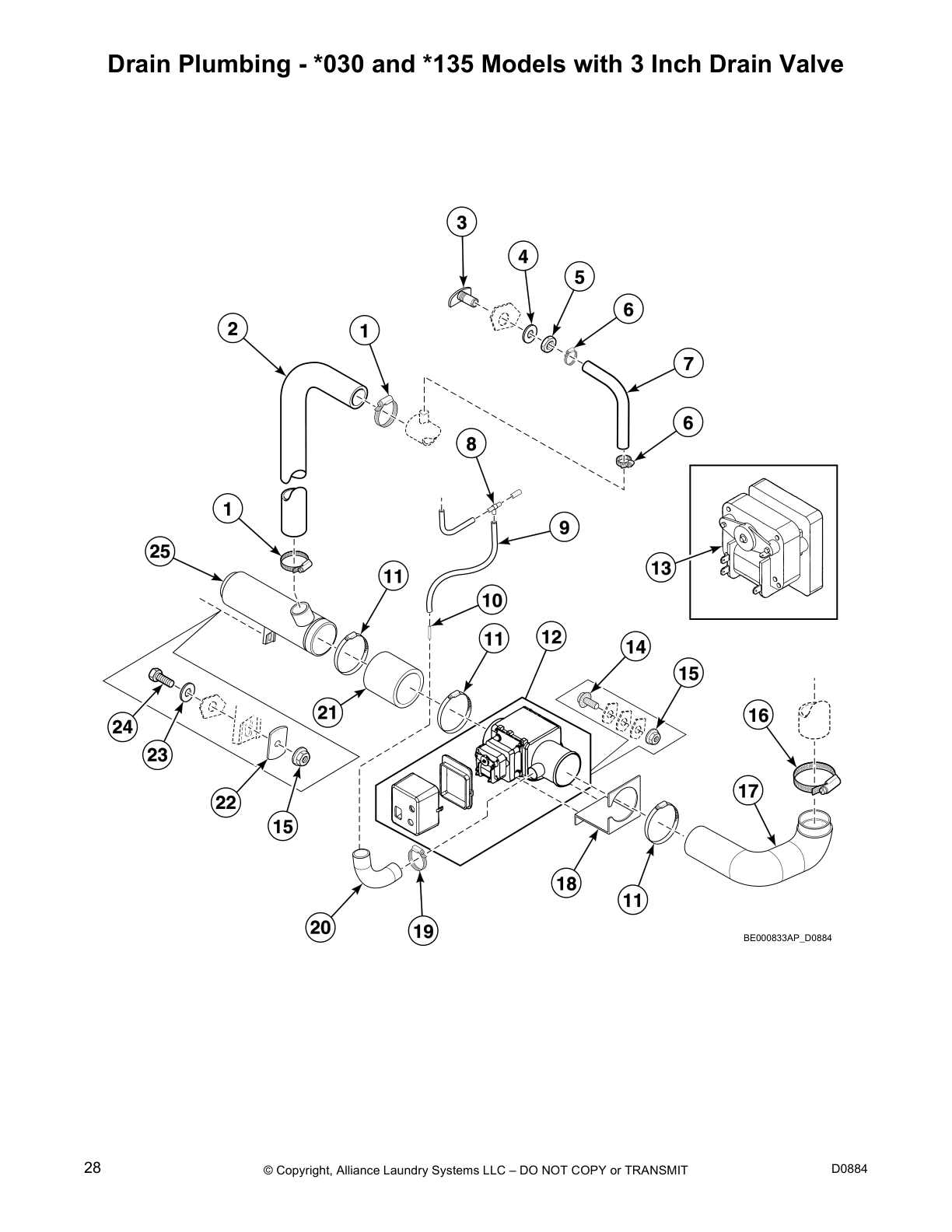

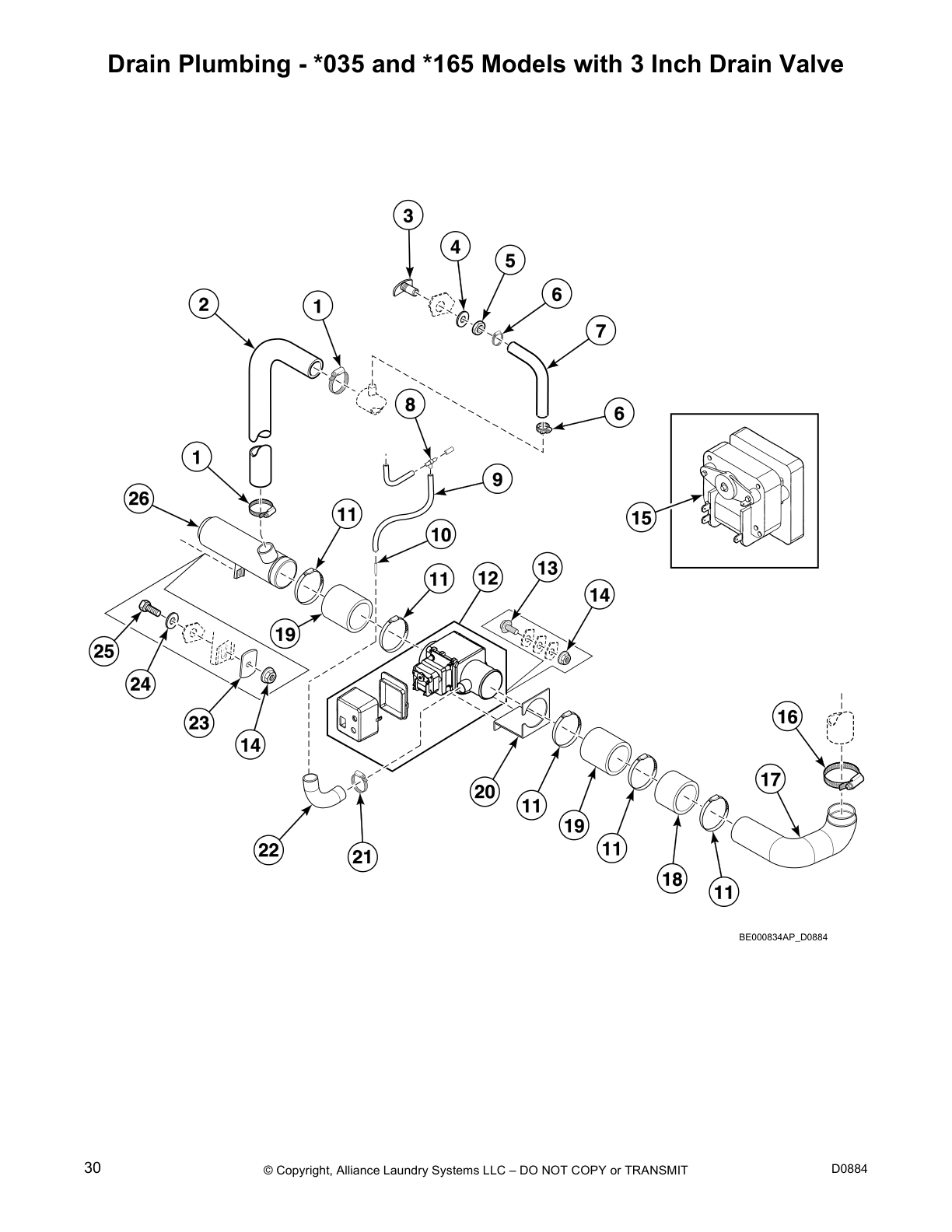

Drain Plumbing - *035 and *165 Models with 3 Inch Drain Valve

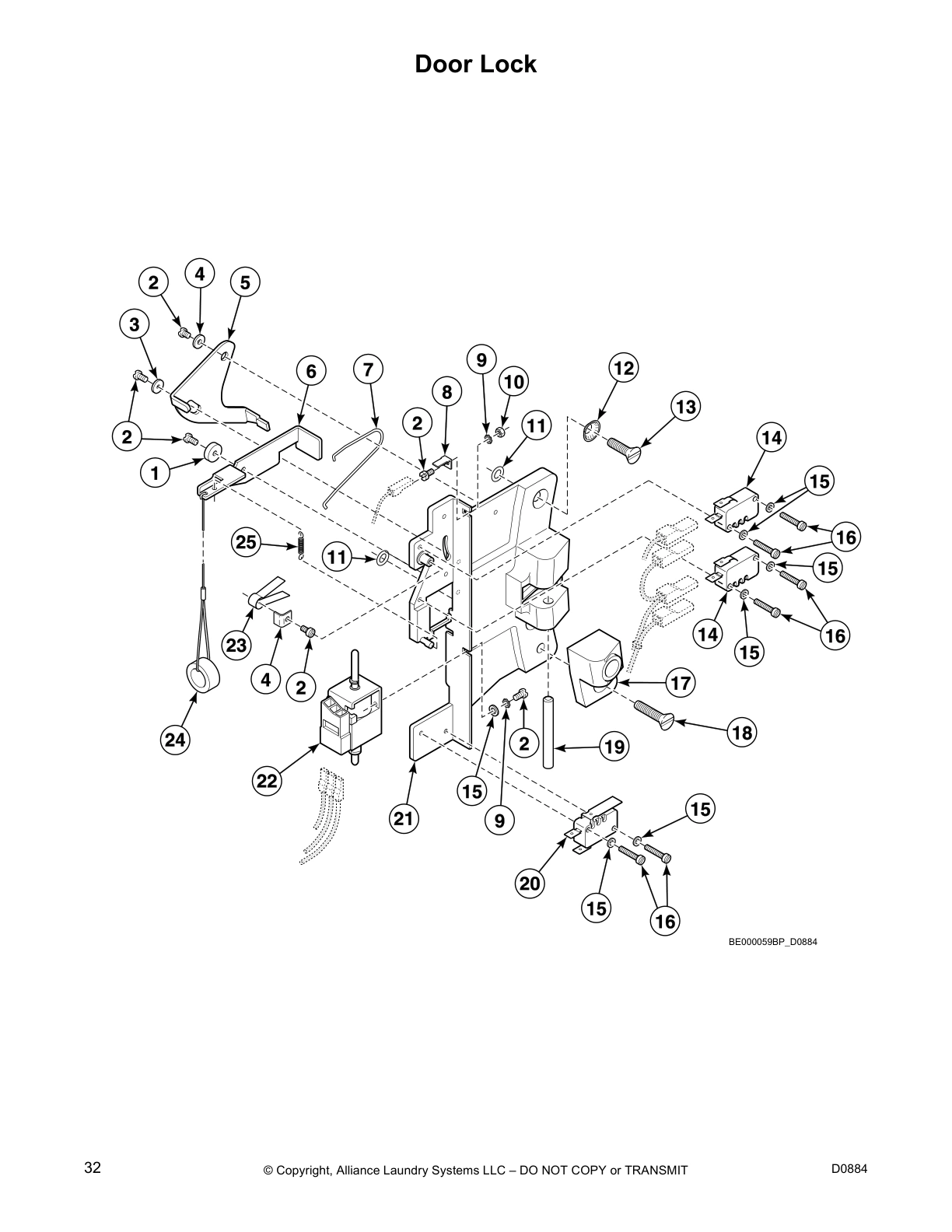

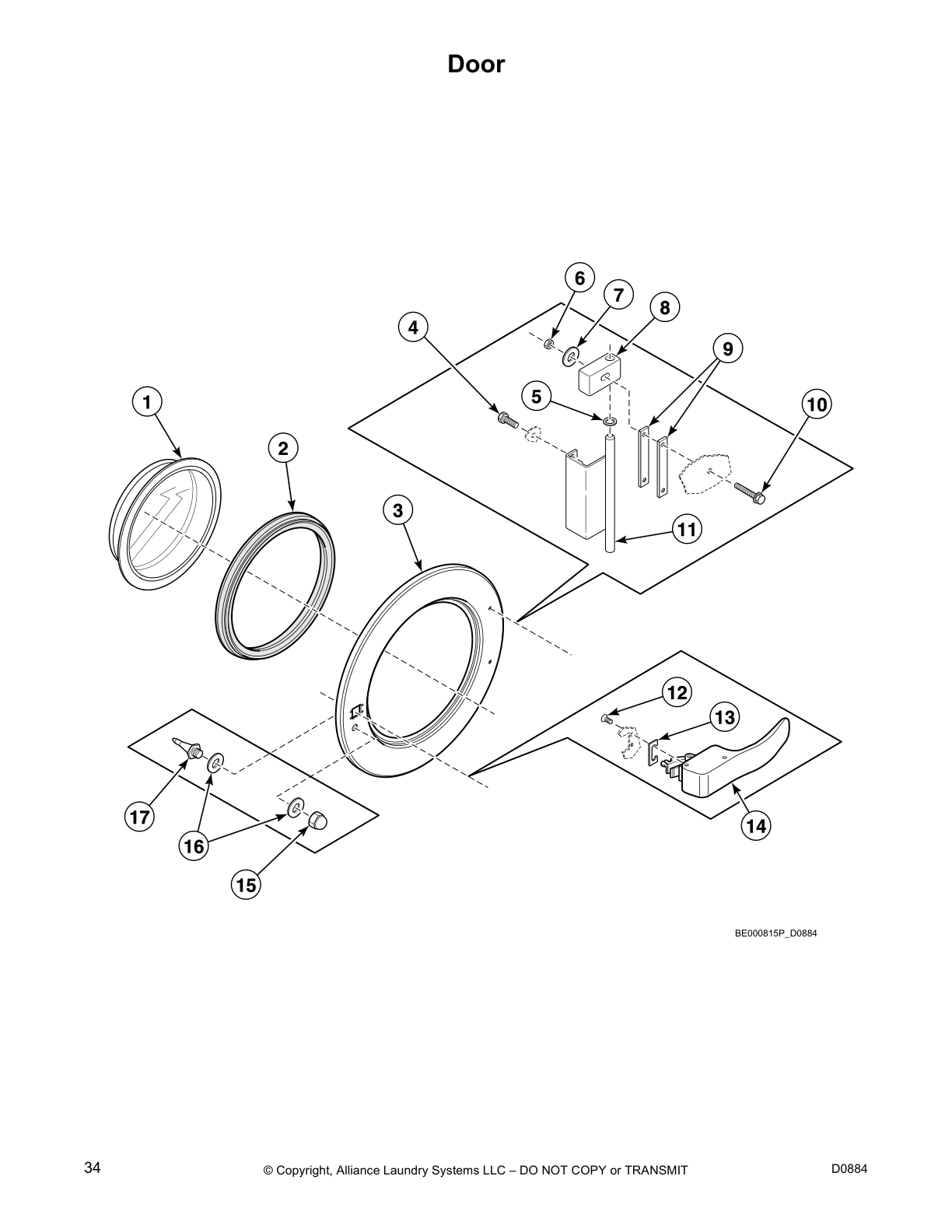

Door Lock
Door
Control Panel - Cygnus Professional

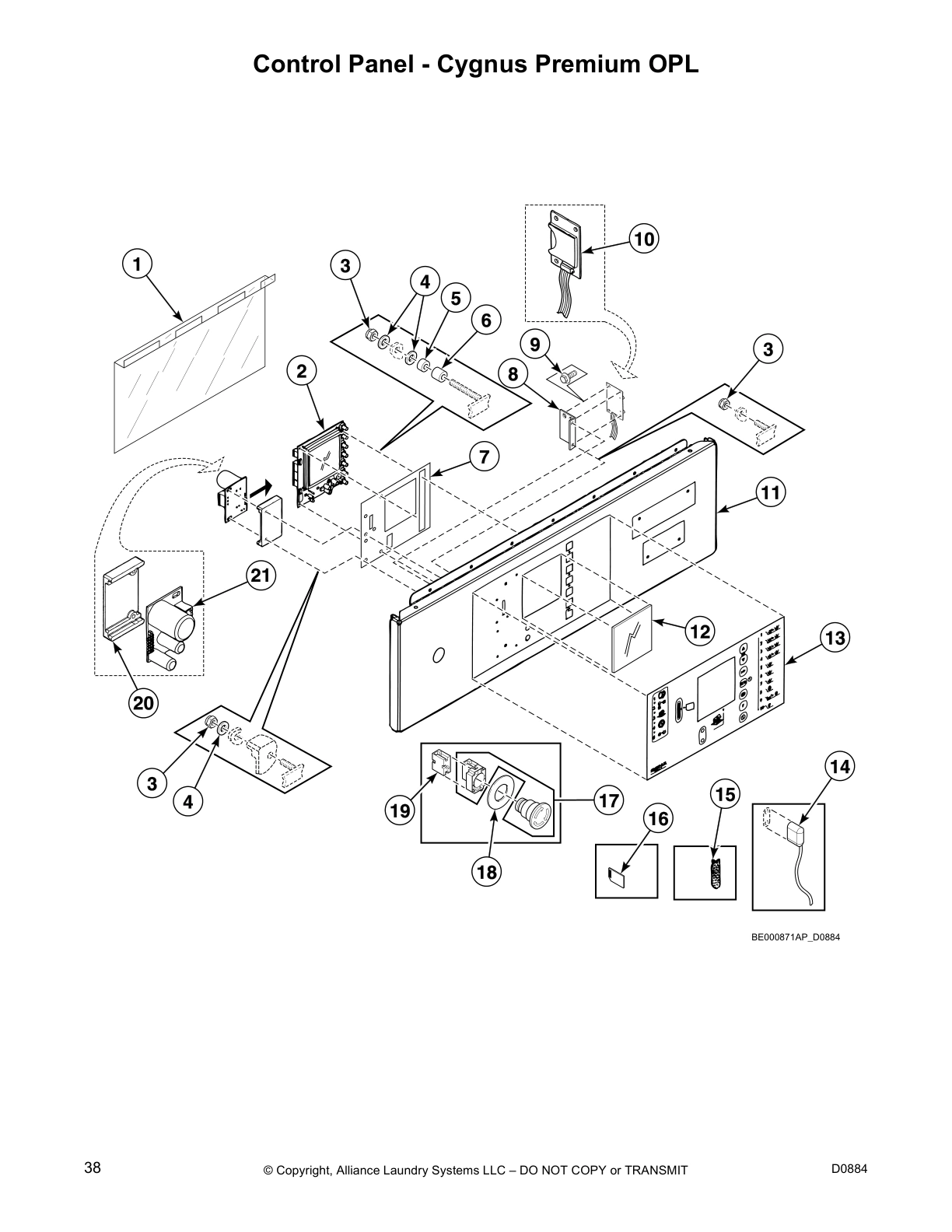

Control Panel - Cygnus Premium OPL
Control Panel - Cygnus Premium OPL

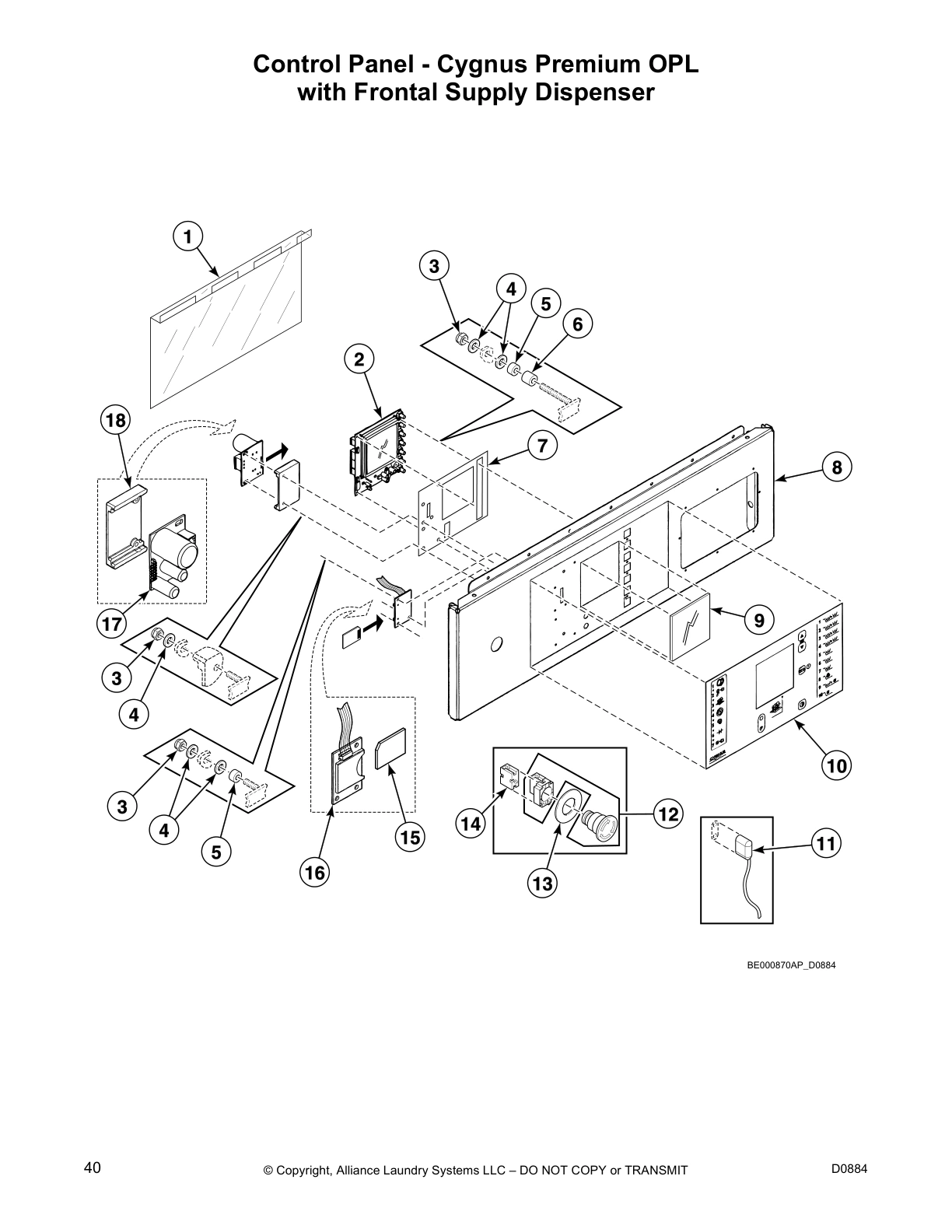

with Frontal Supply Dispenser

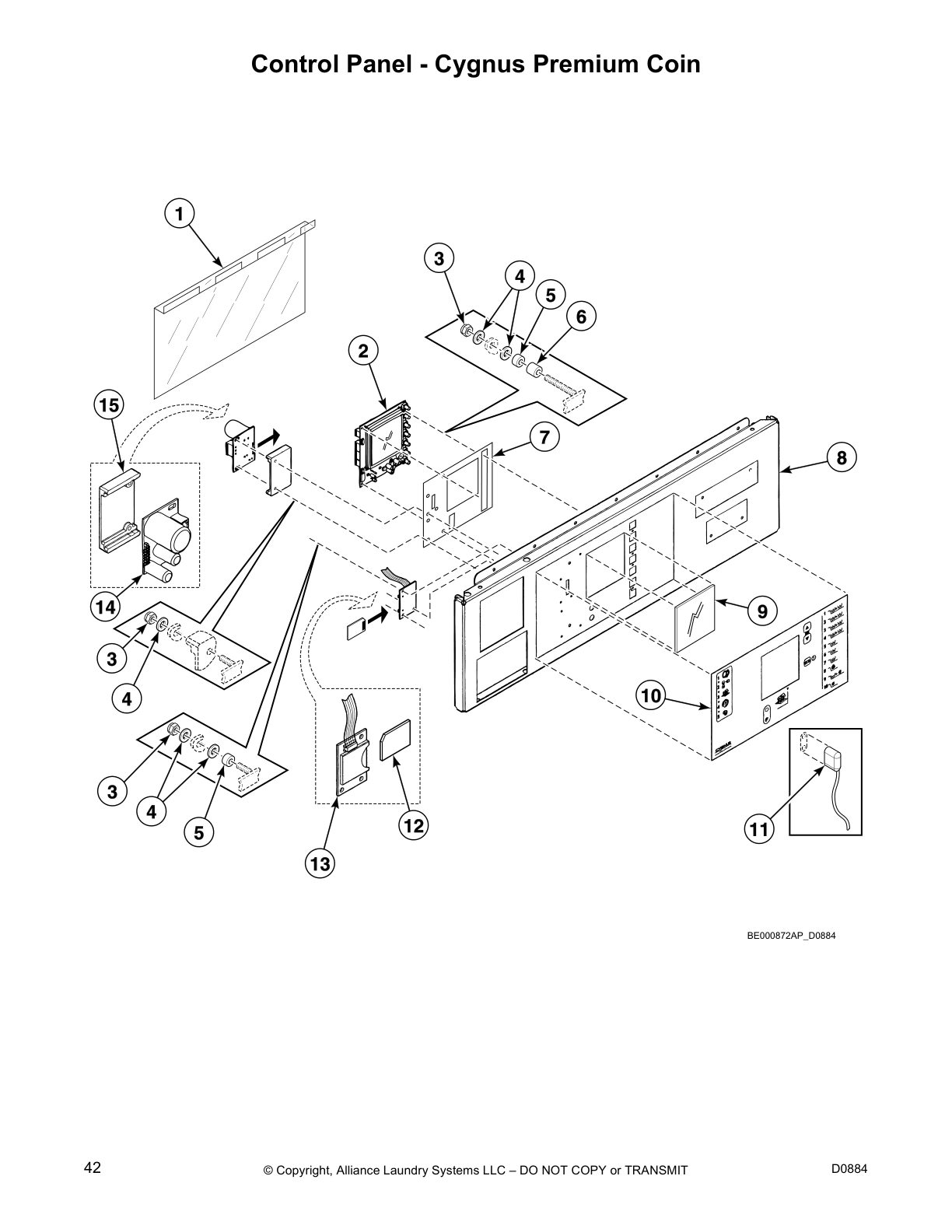

Control Panel - Cygnus Premium Coin

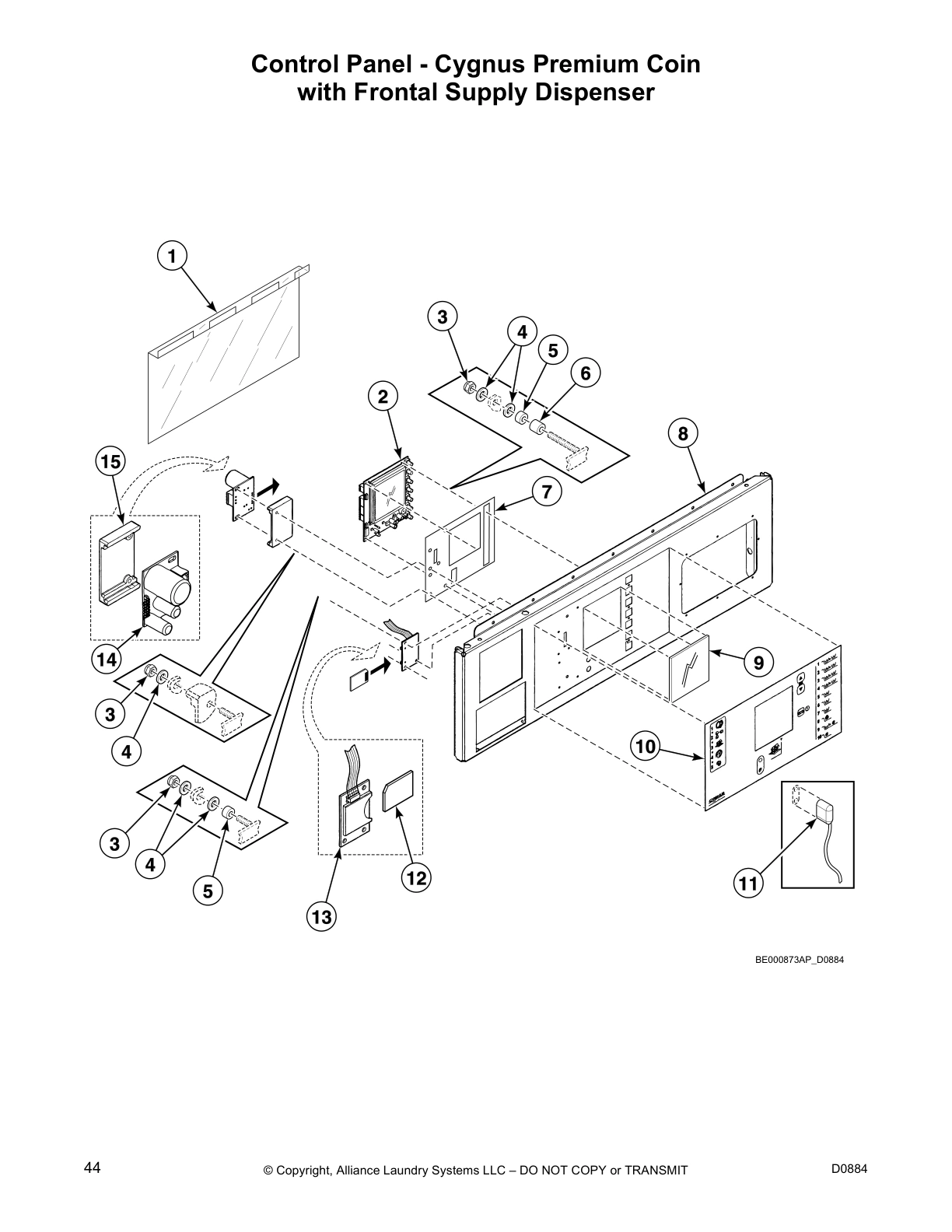

Control Panel - Cygnus Premium Coin
with Frontal Supply Dispenser

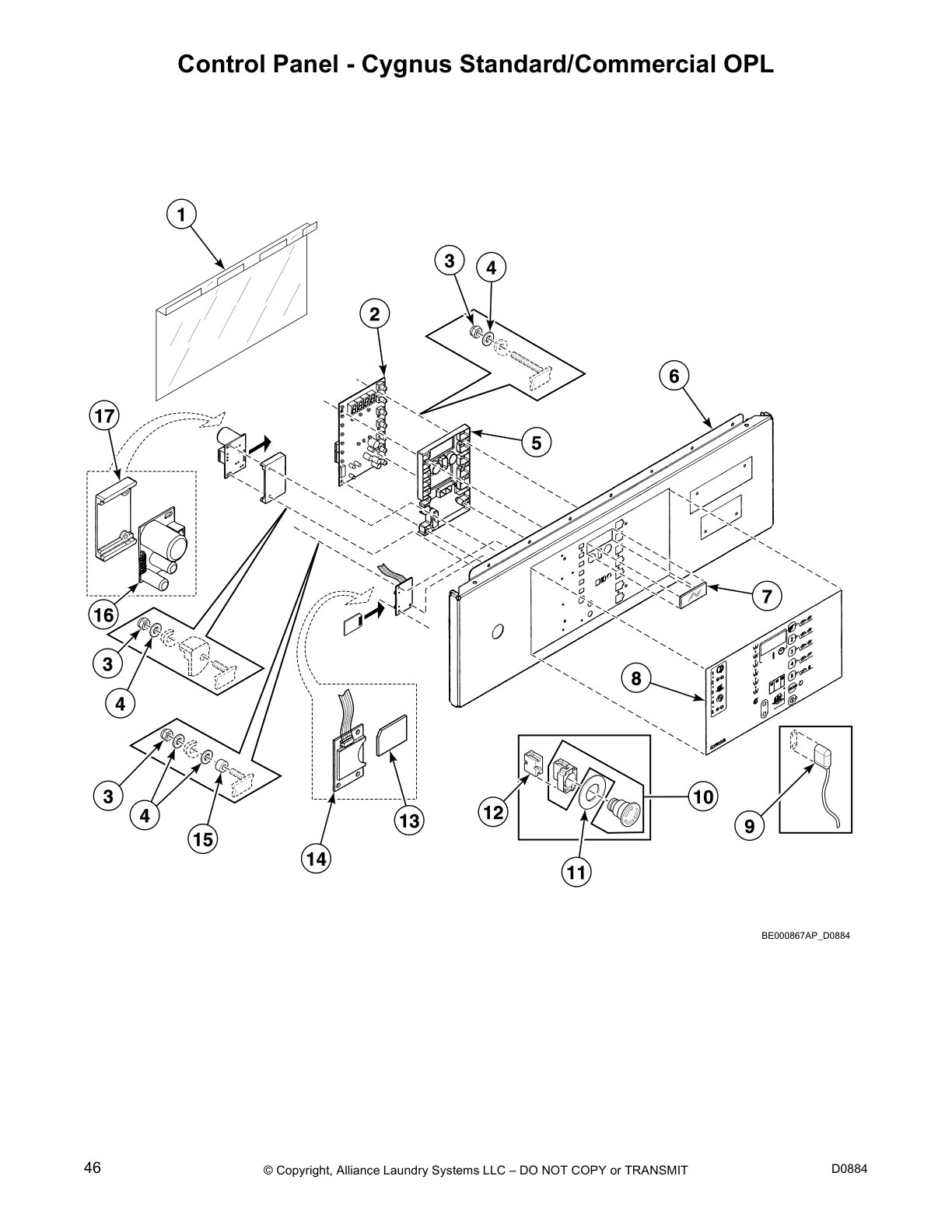

Control Panel - Cygnus Standard/Commercial OPL

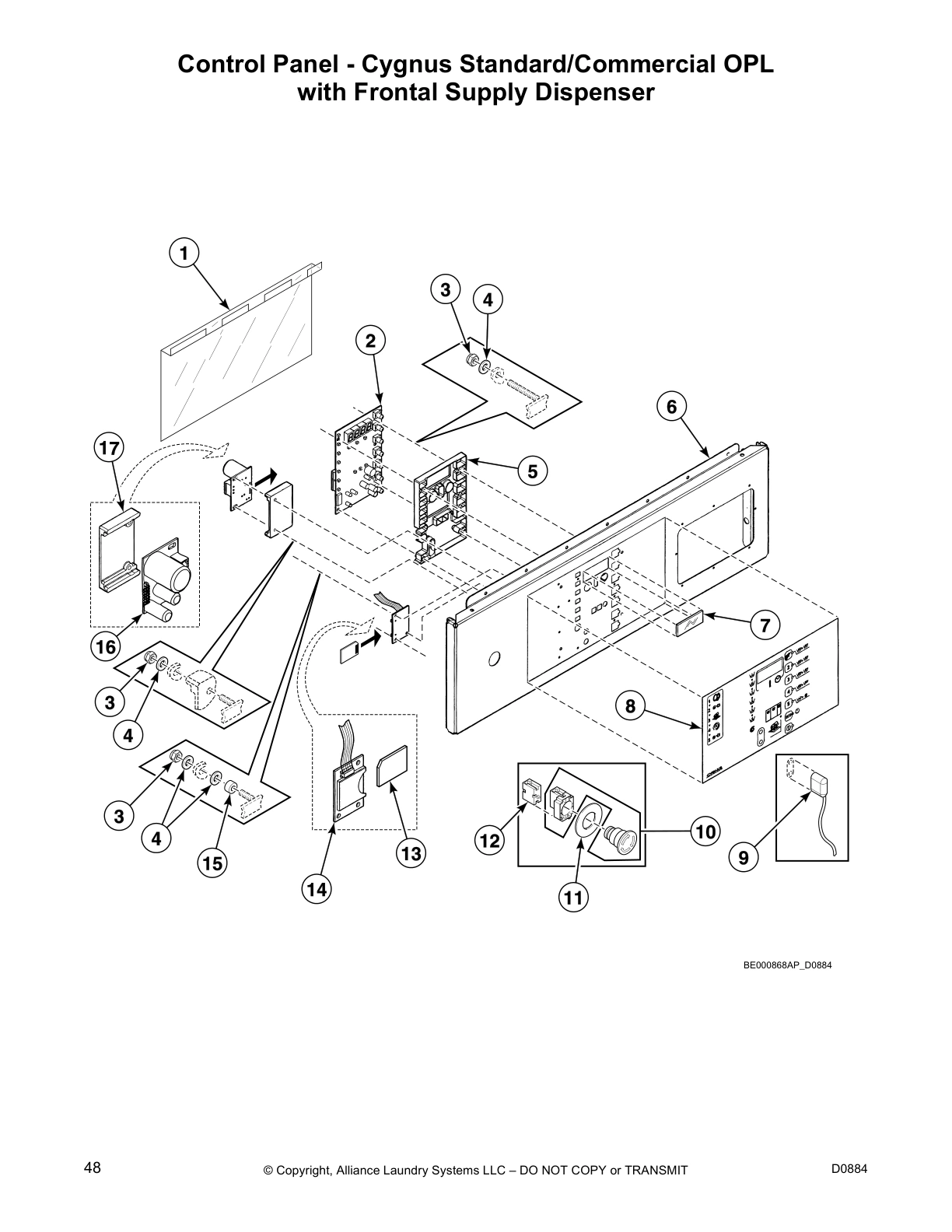

Control Panel - Cygnus Standard/Commercial OPL
with Frontal Supply Dispenser
Control Panel - Cygnus Standard/Commercial Coin

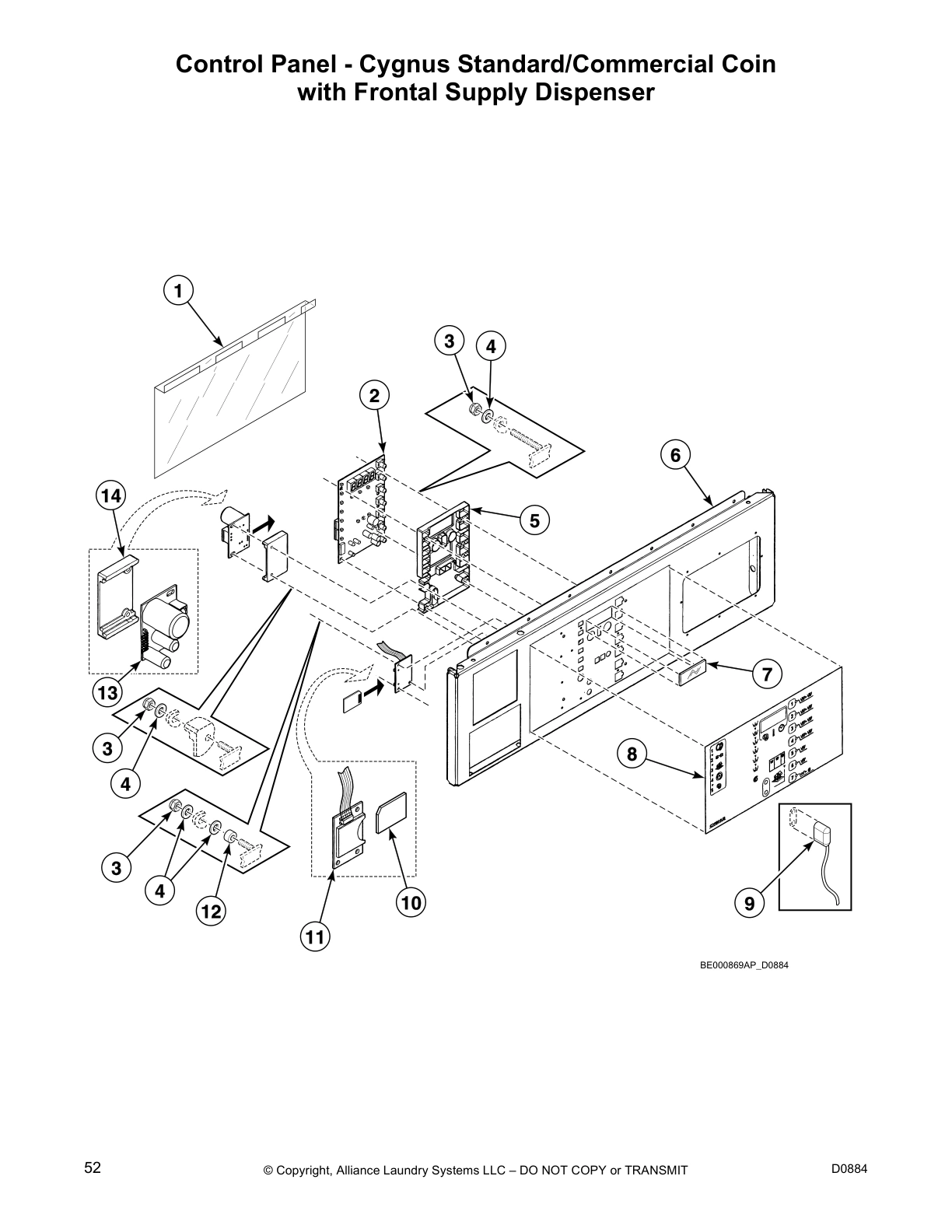

Control Panel - Cygnus Standard/Commercial Coin
with Frontal Supply Dispenser
Control Panel - Micro-20 OPL

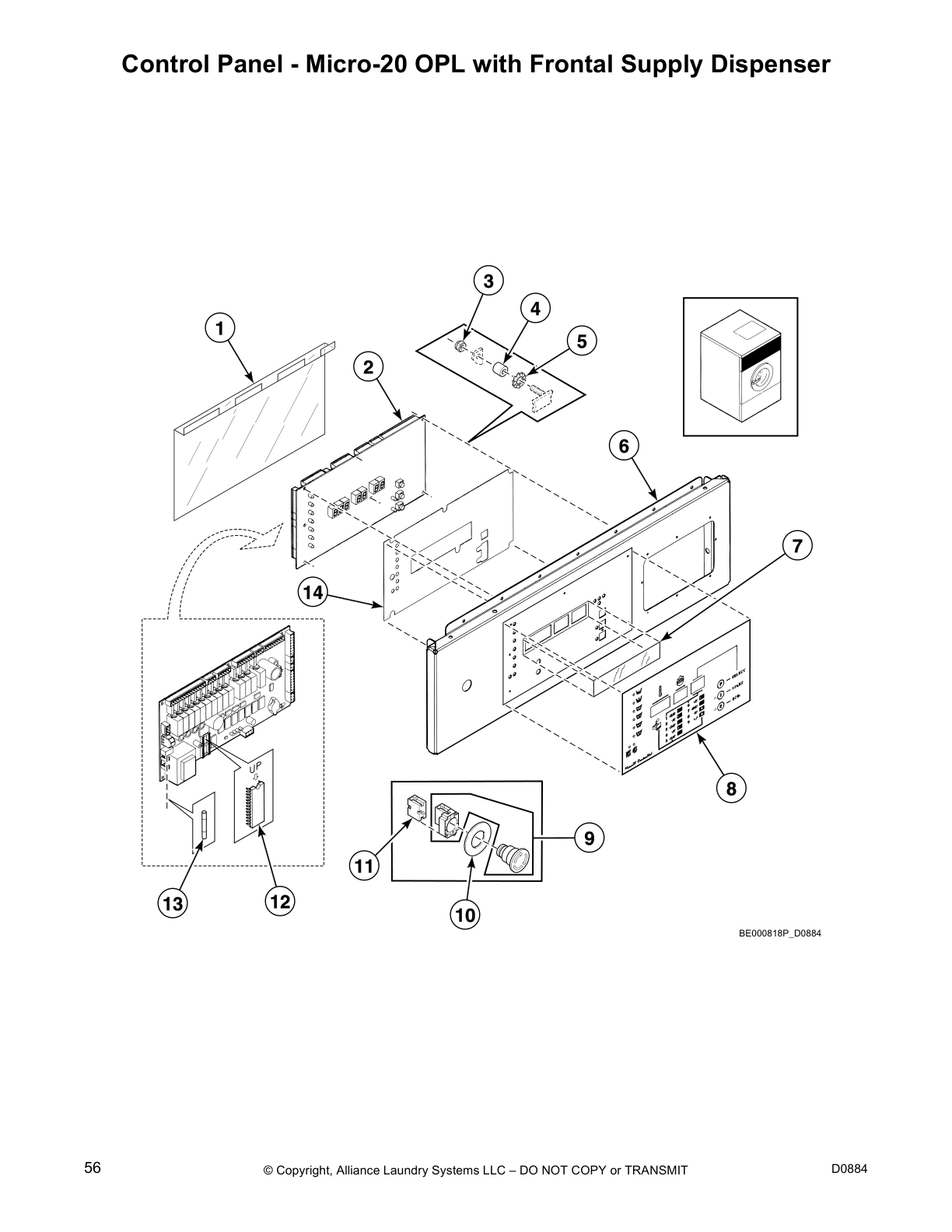

Control Panel - Micro-20 OPL with Frontal Supply Dispenser
Control Panel - Micro-20 Coin
Control Panel - Sigma OPL

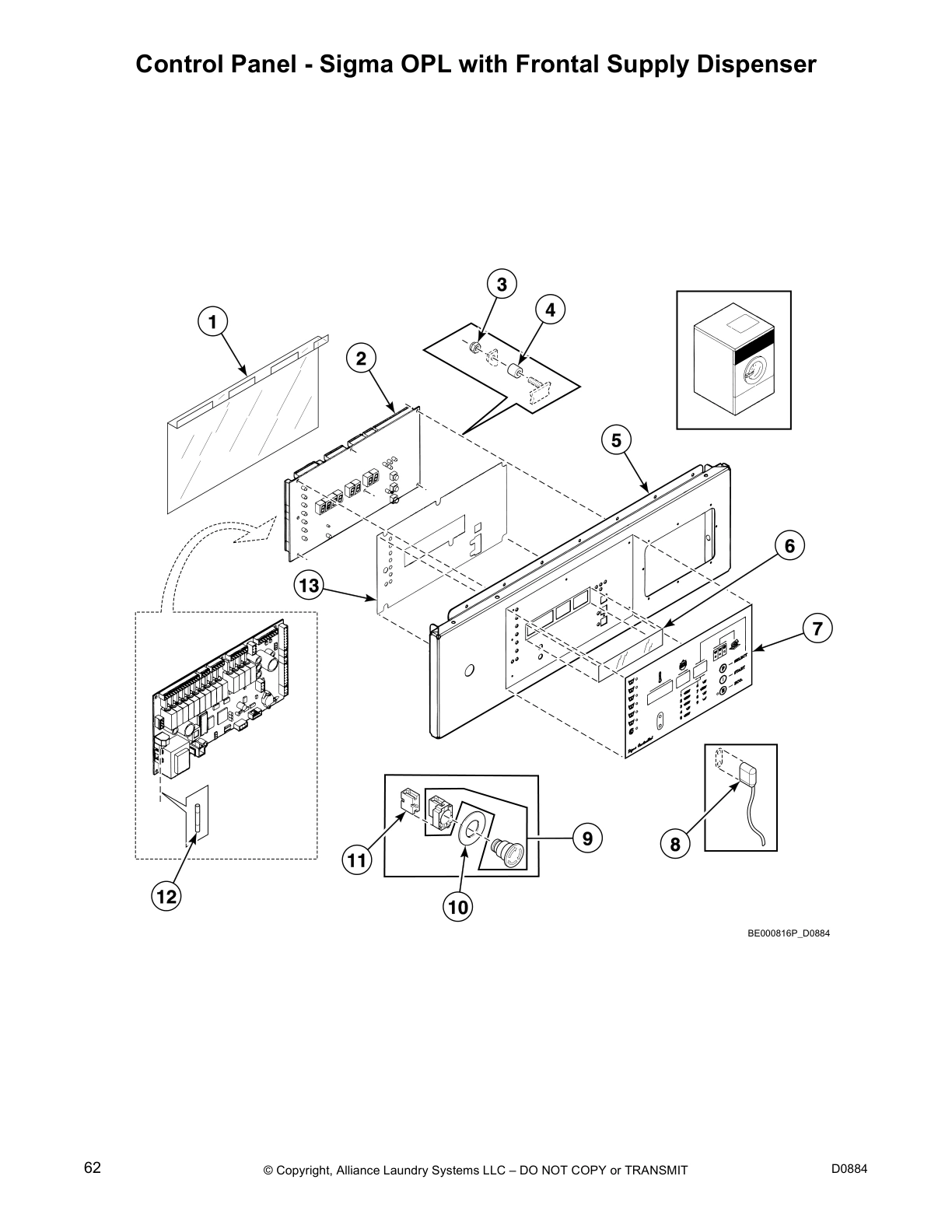

Control Panel - Sigma OPL with Frontal Supply Dispenser

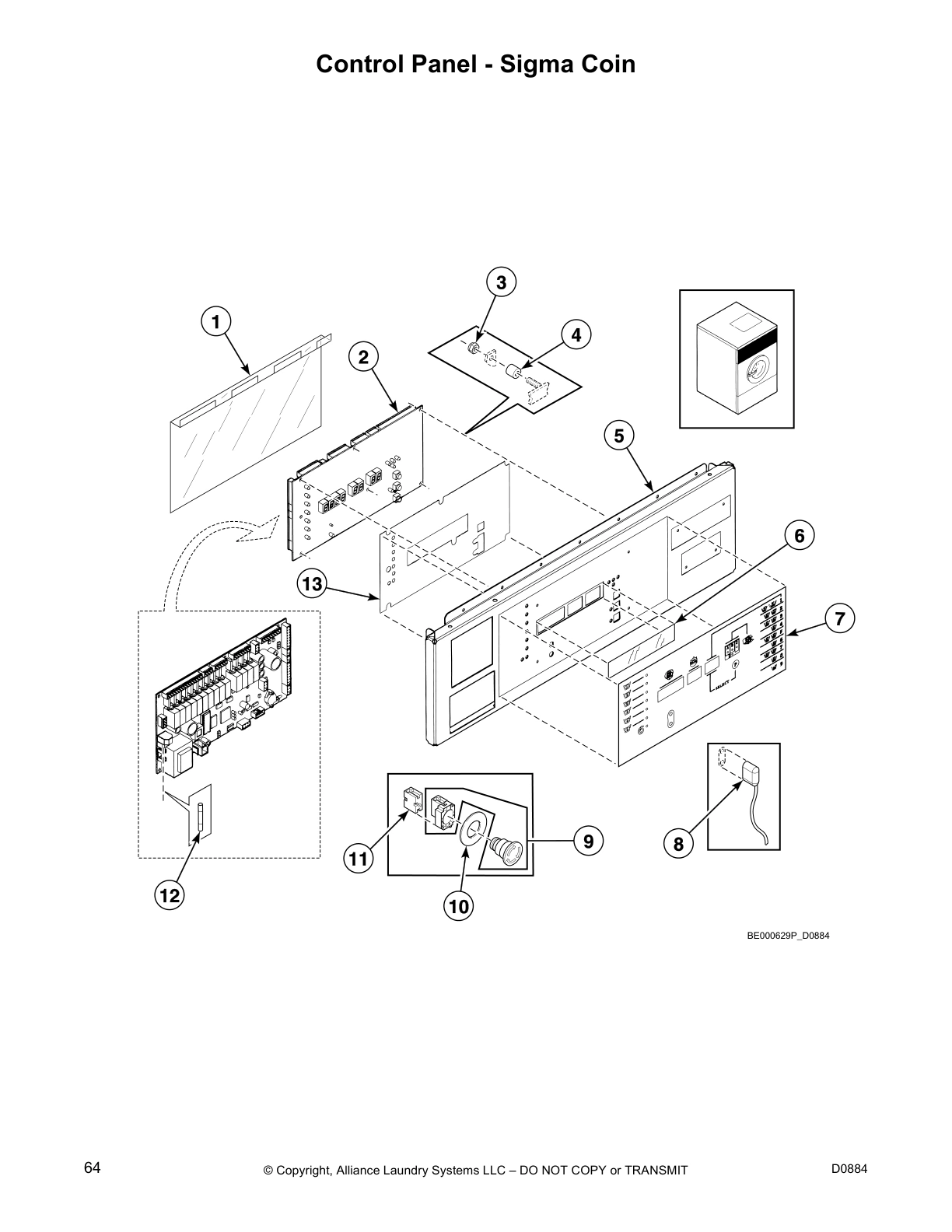

Control Panel - Sigma Coin

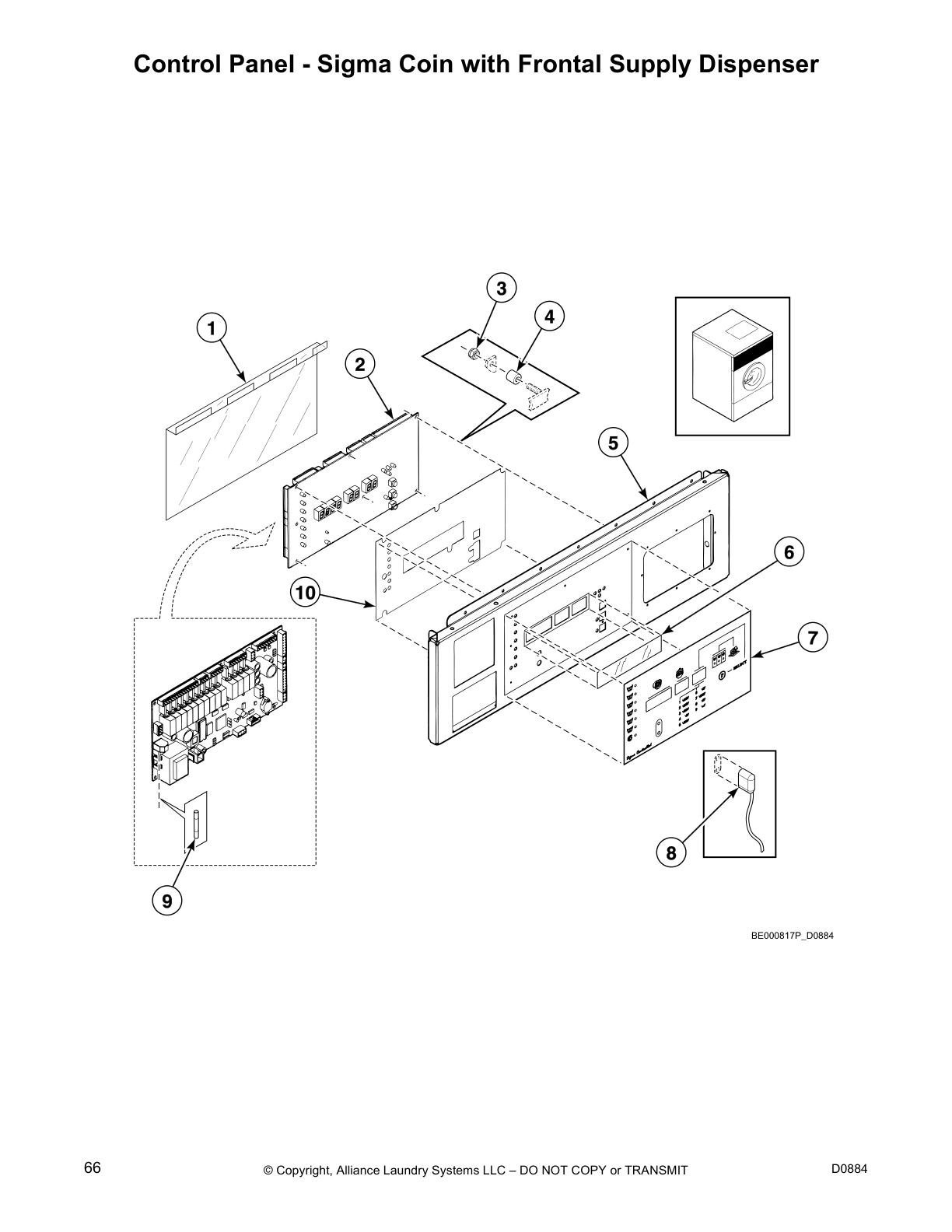

Control Panel - Sigma Coin with Frontal Supply Dispenser

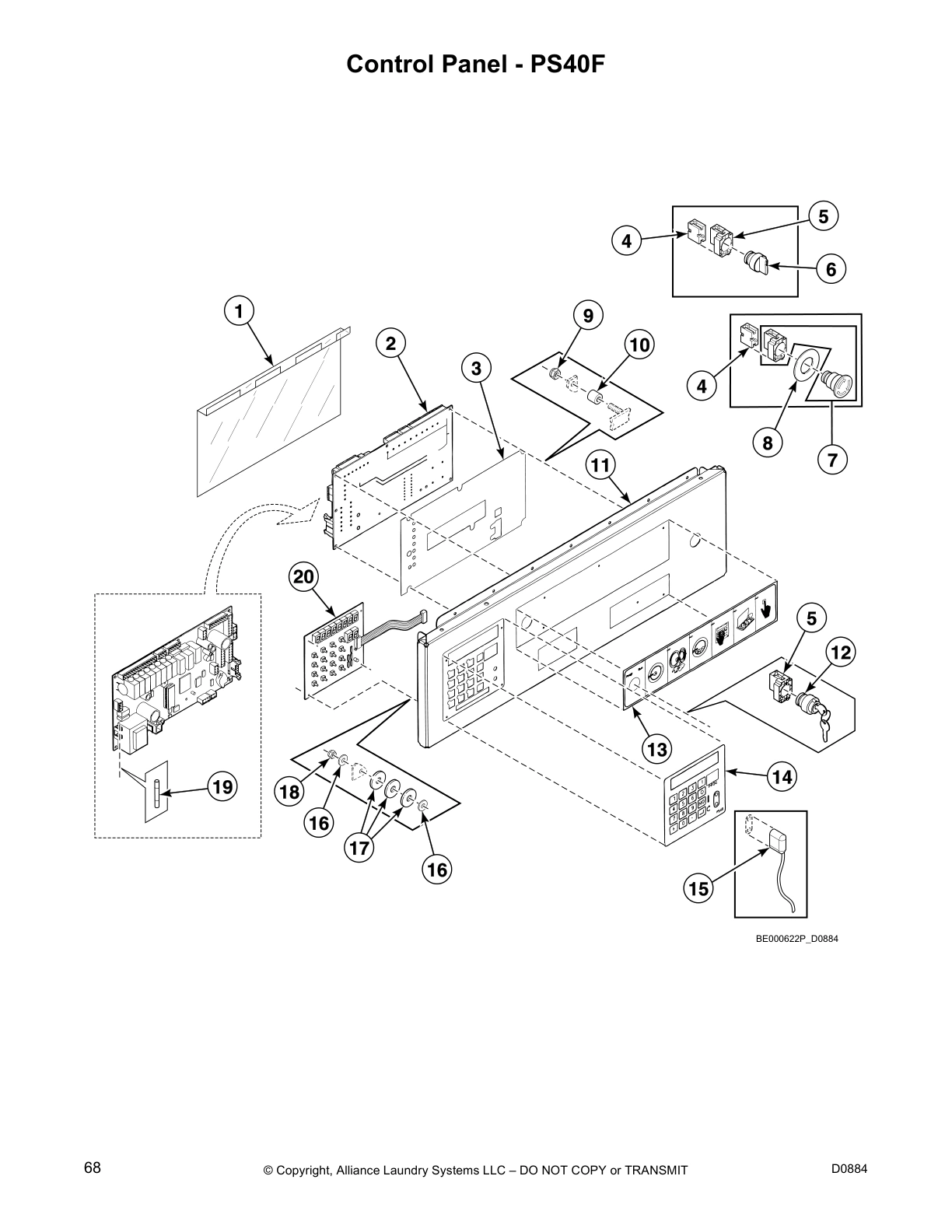

Control Panel - PS40F

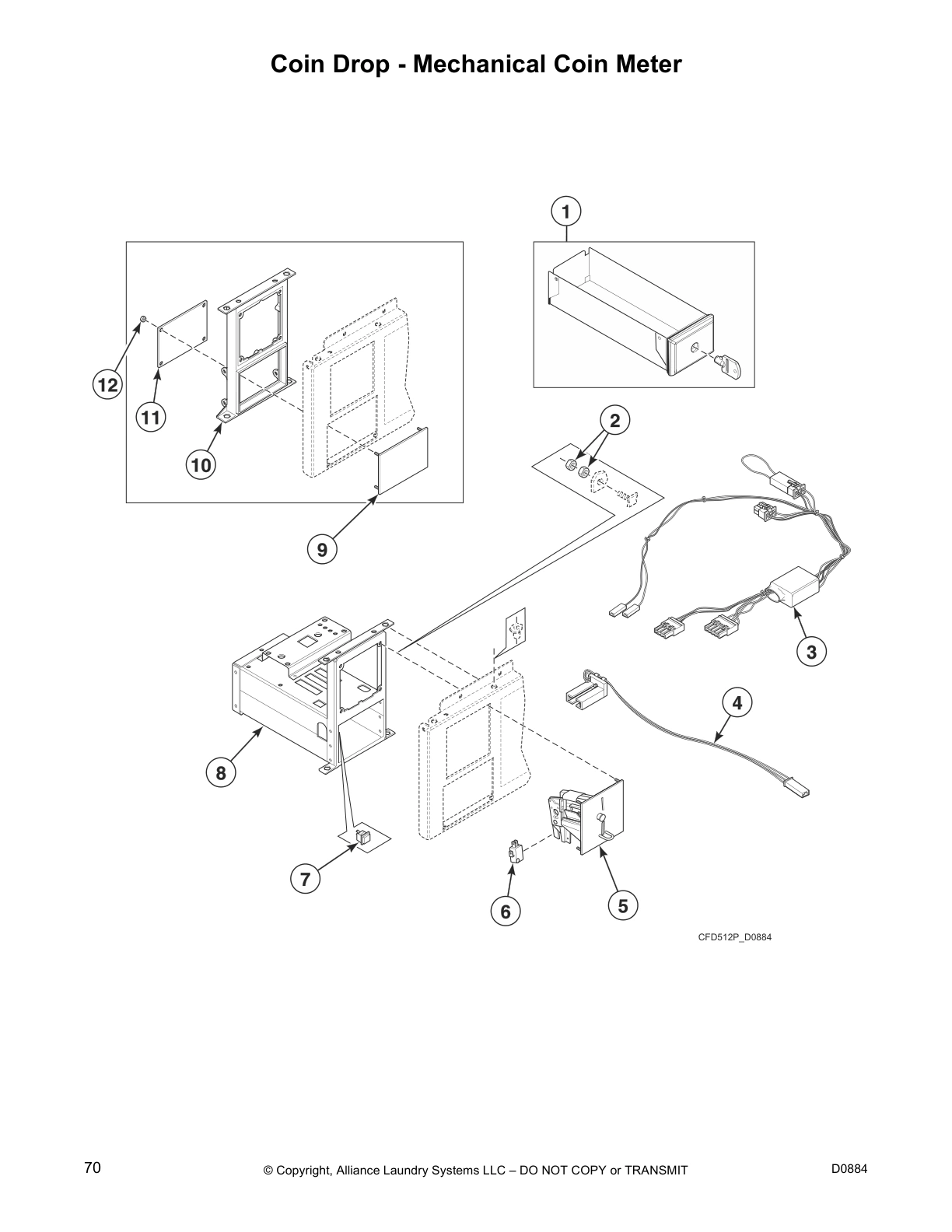

Coin Drop - Mechanical Coin Meter

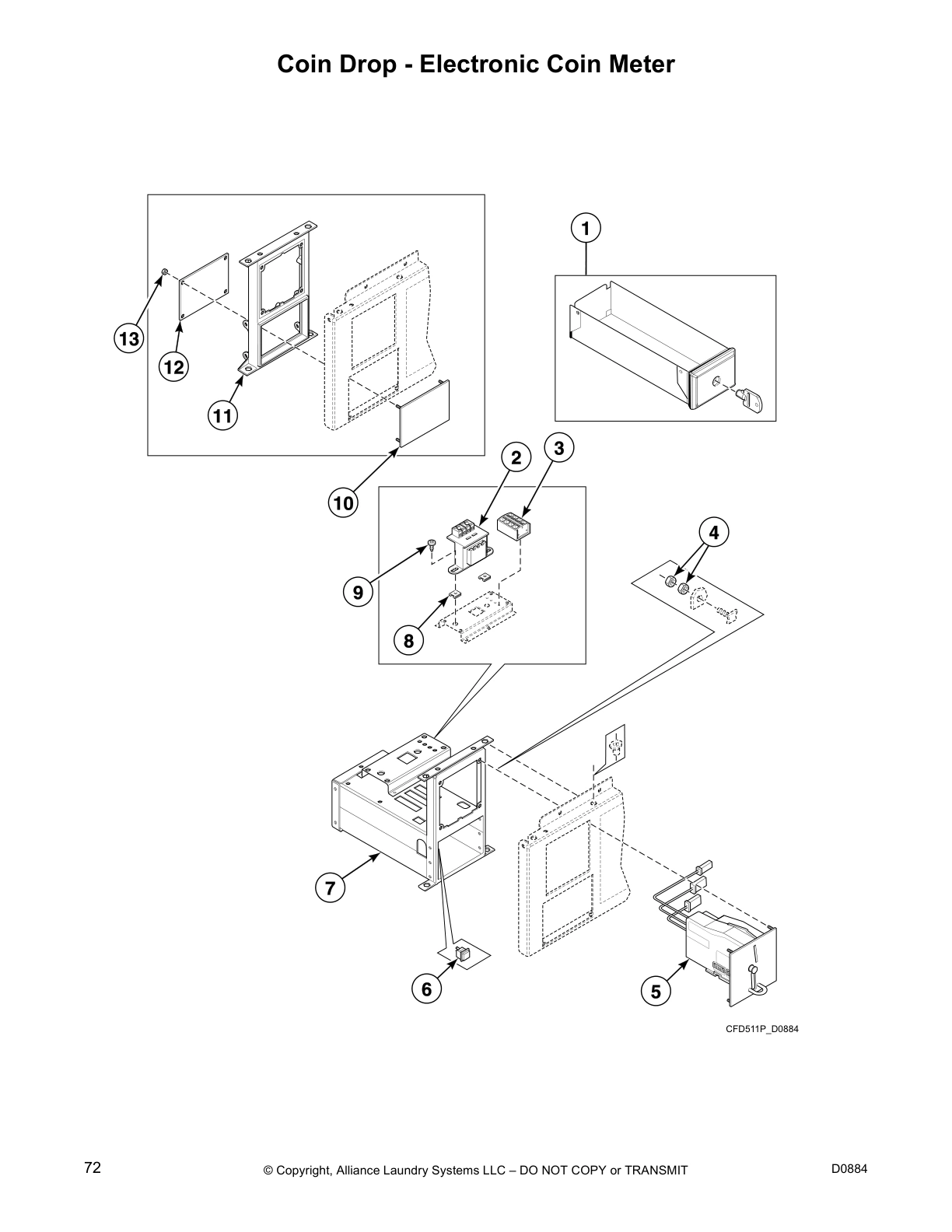

Coin Drop - Electronic Coin Meter

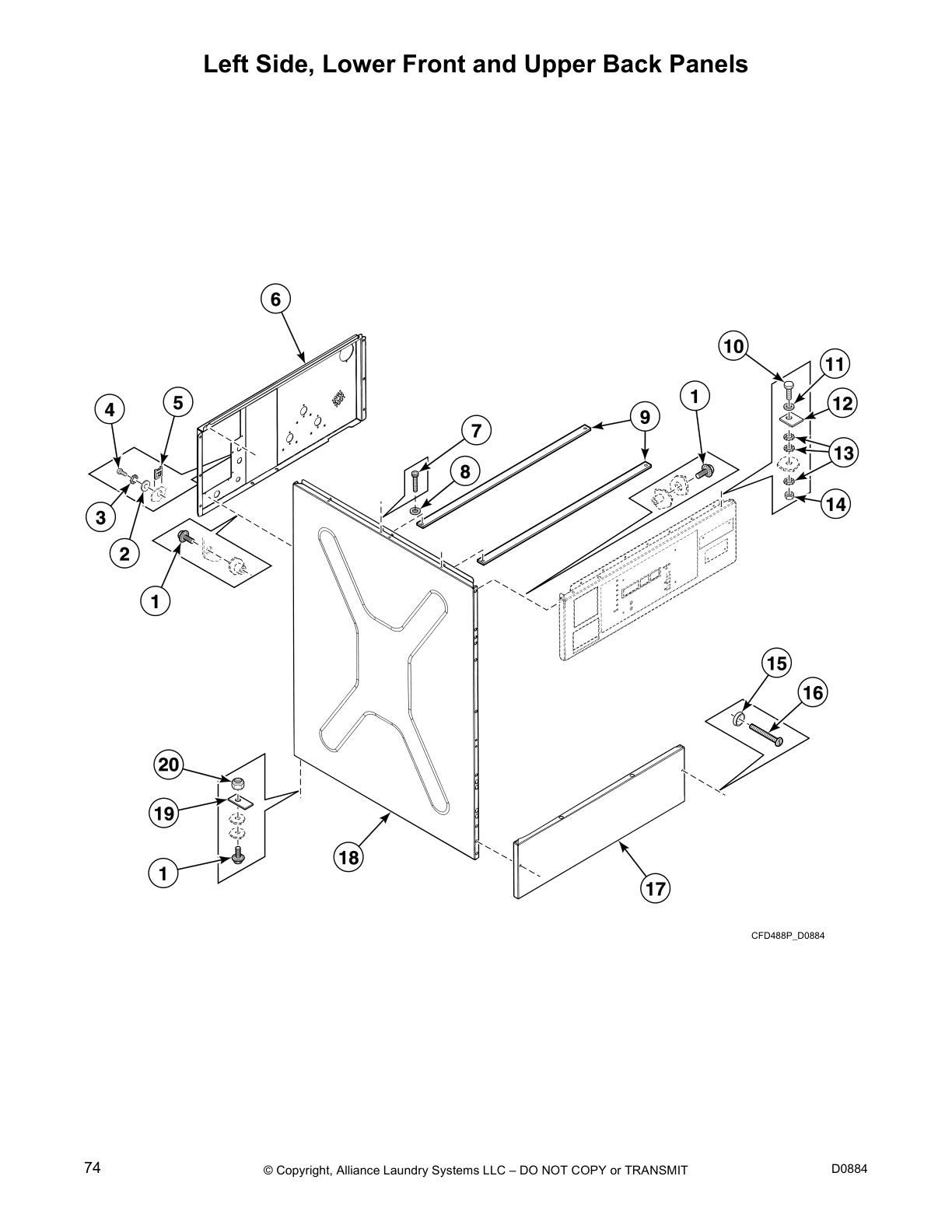

Left Side, Lower Front and Upper Back Panels

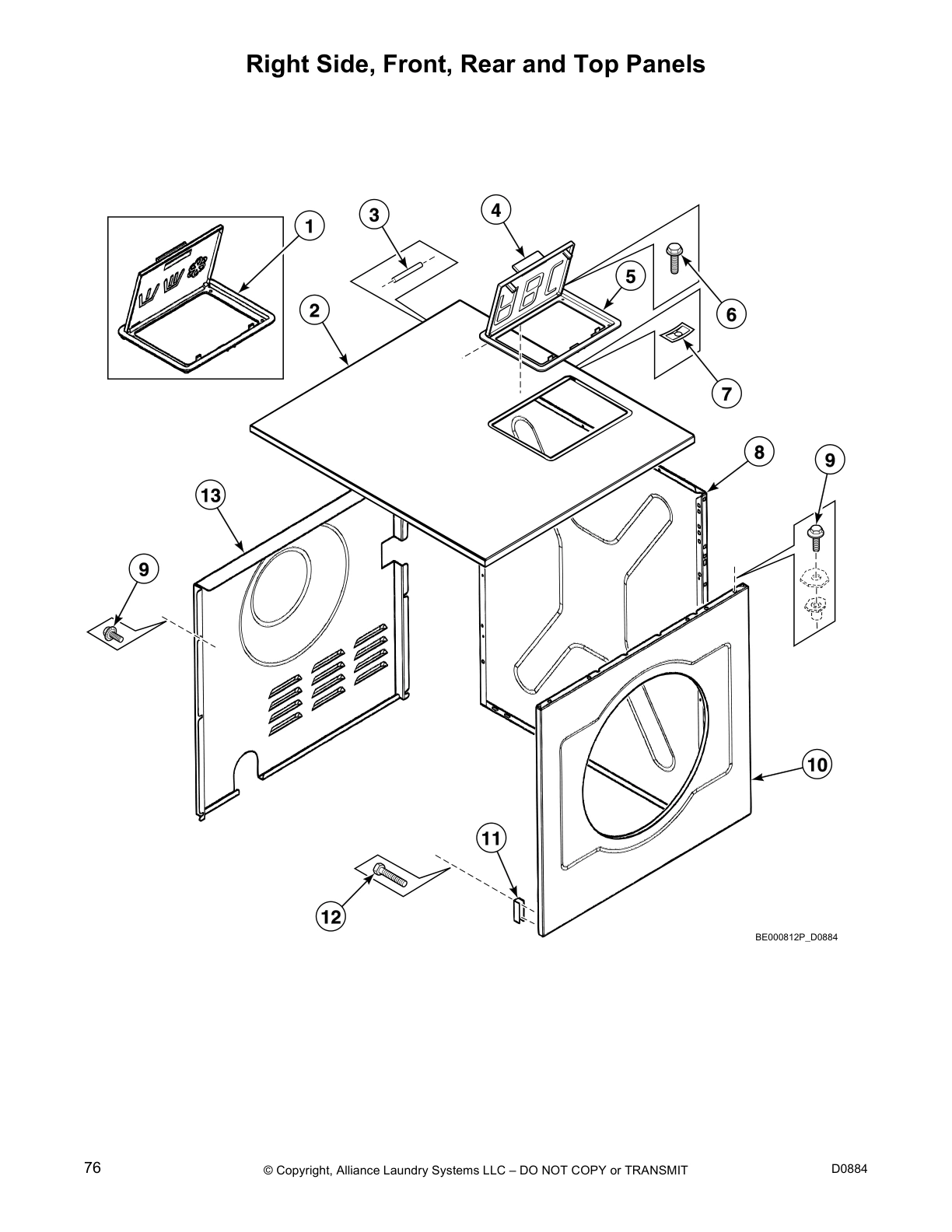

Right Side, Front, Rear and Top Panels

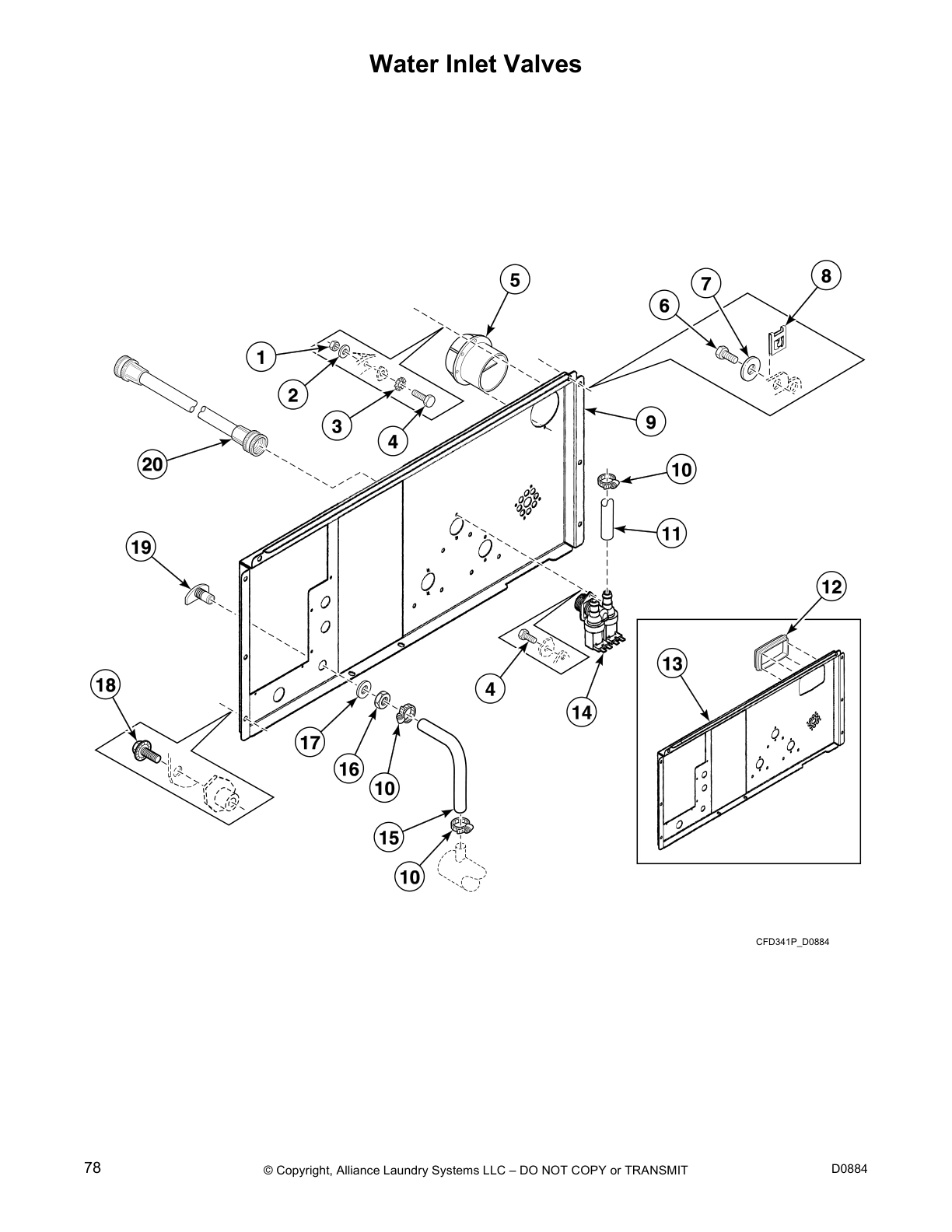

Water Inlet Valves

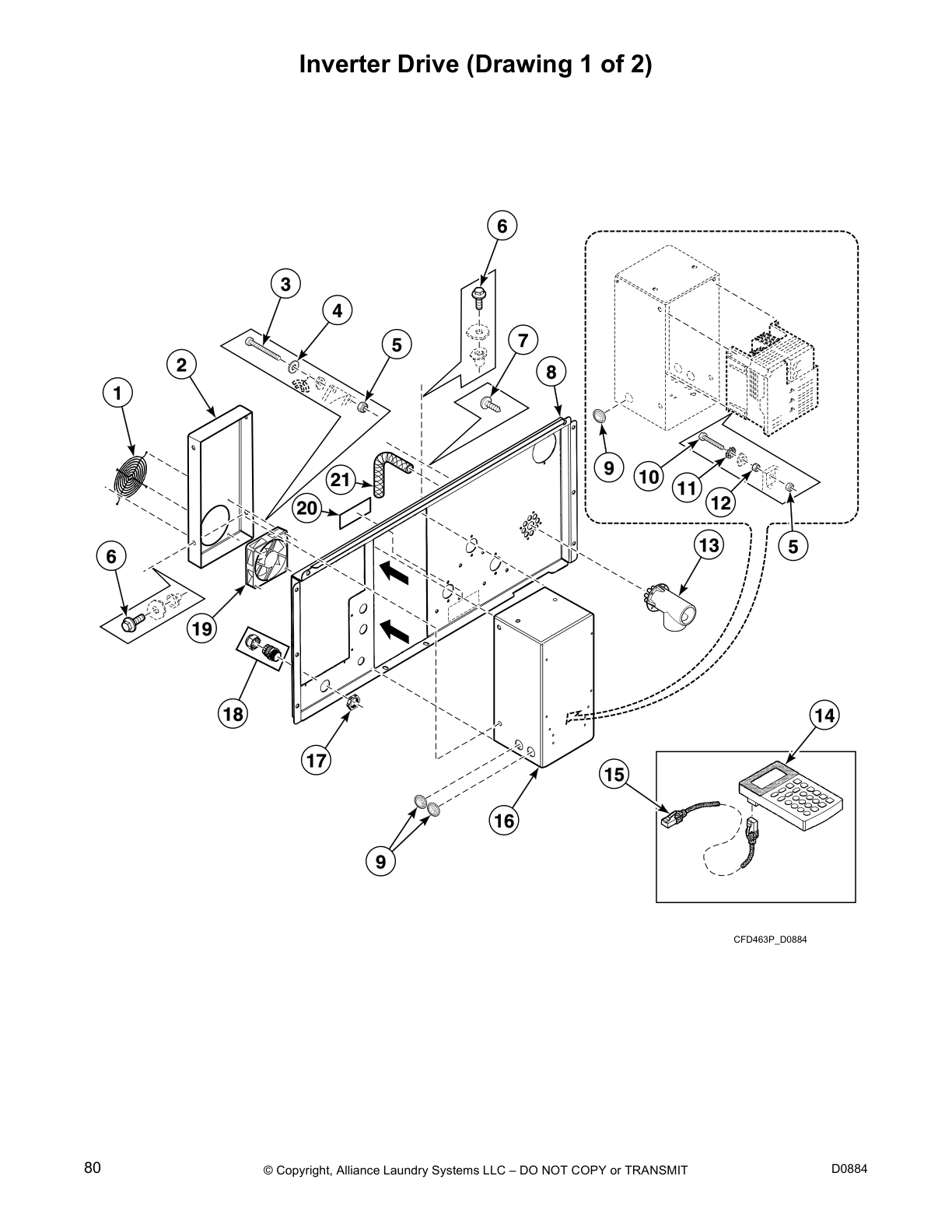

Inverter Drive (Drawing 1 of 2)

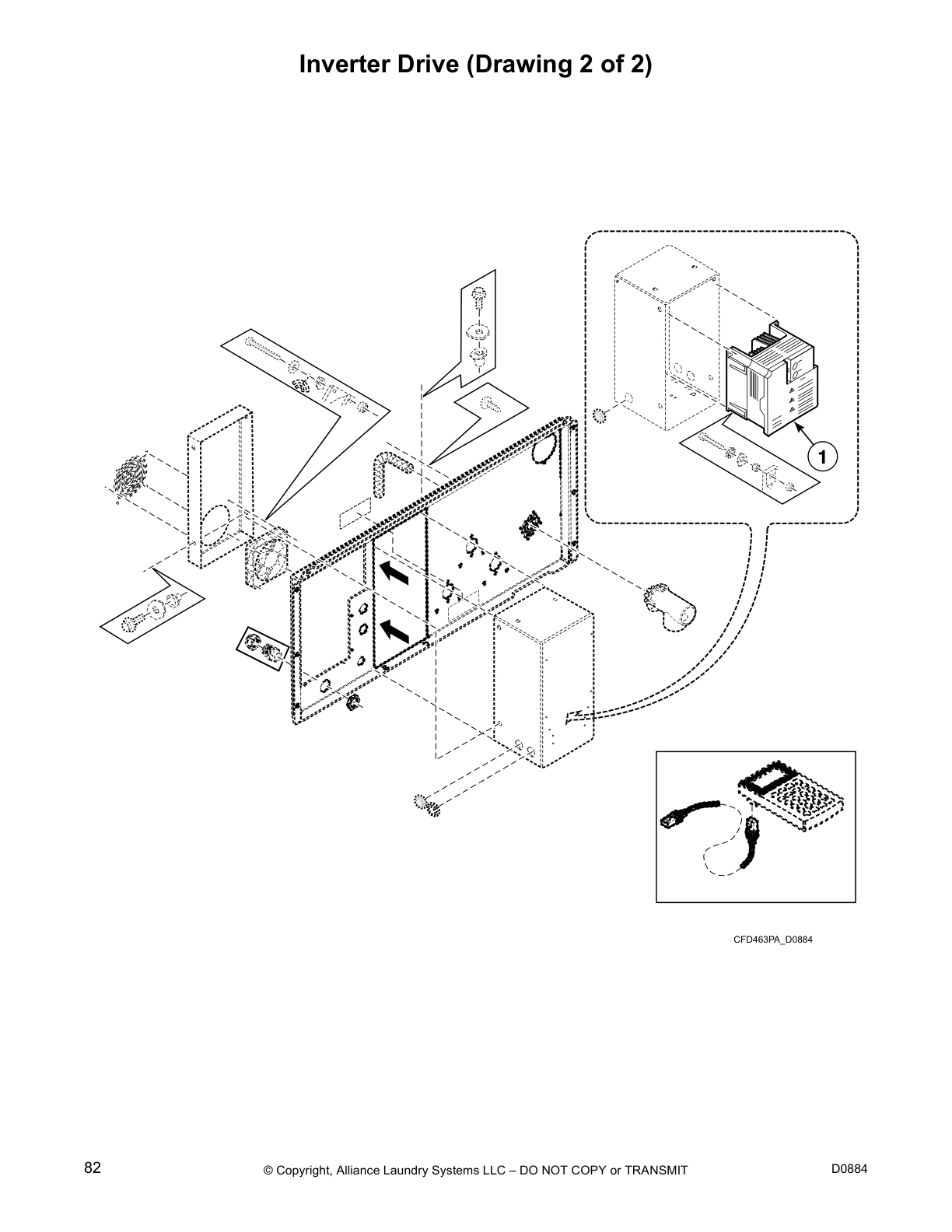

Inverter Drive (Drawing 2 of 2)

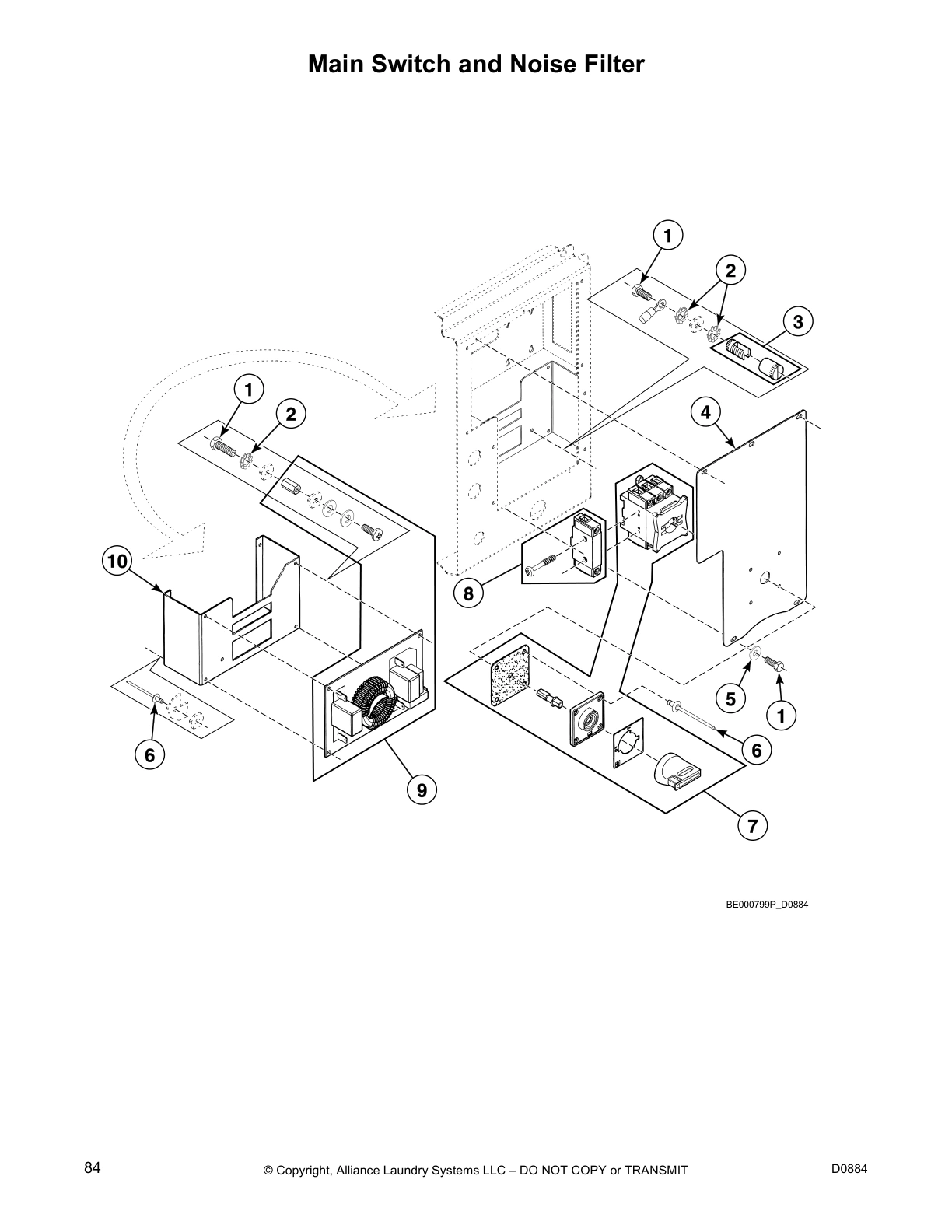

Main Switch and Noise Filter

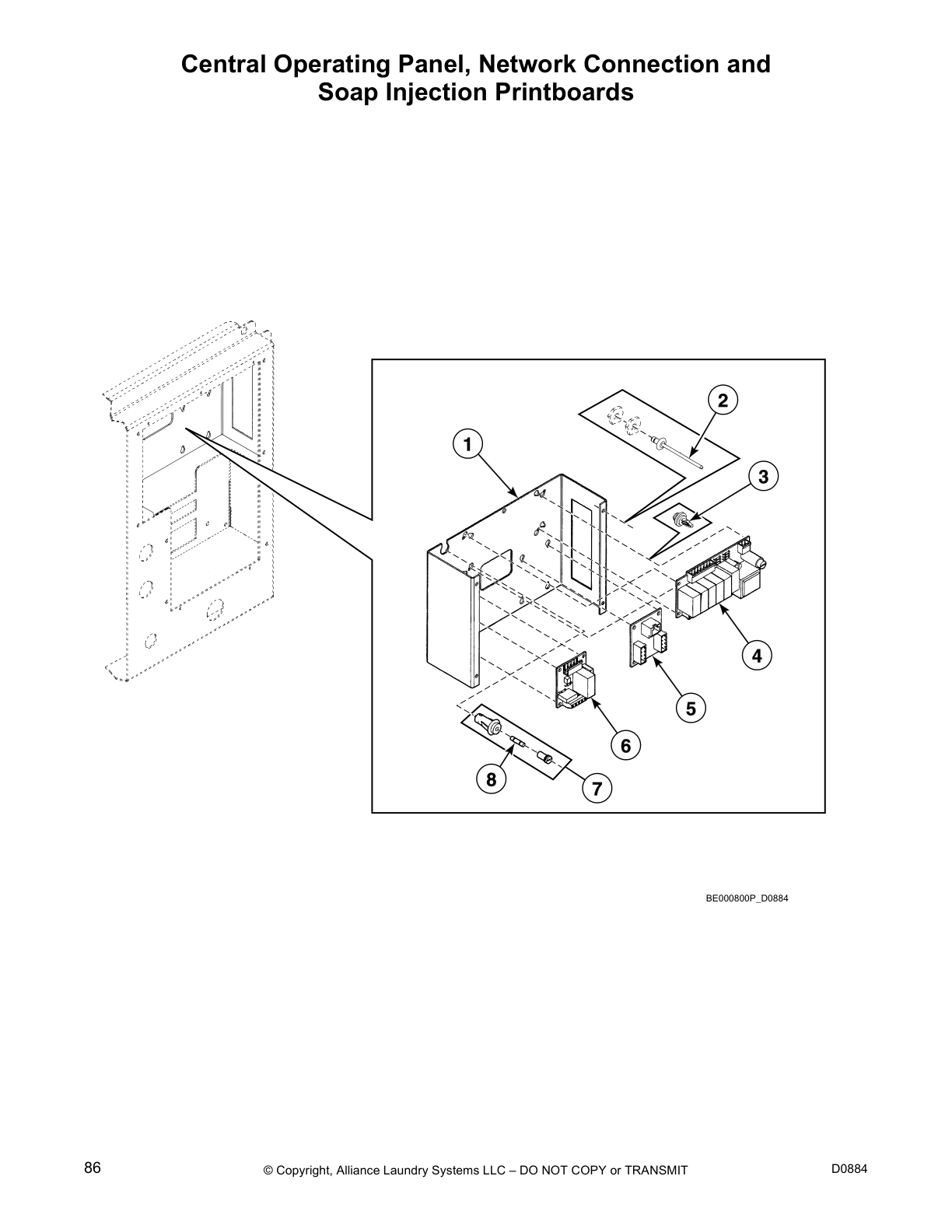

Central Operating Panel, Network Connection and
Soap Injection Printboards

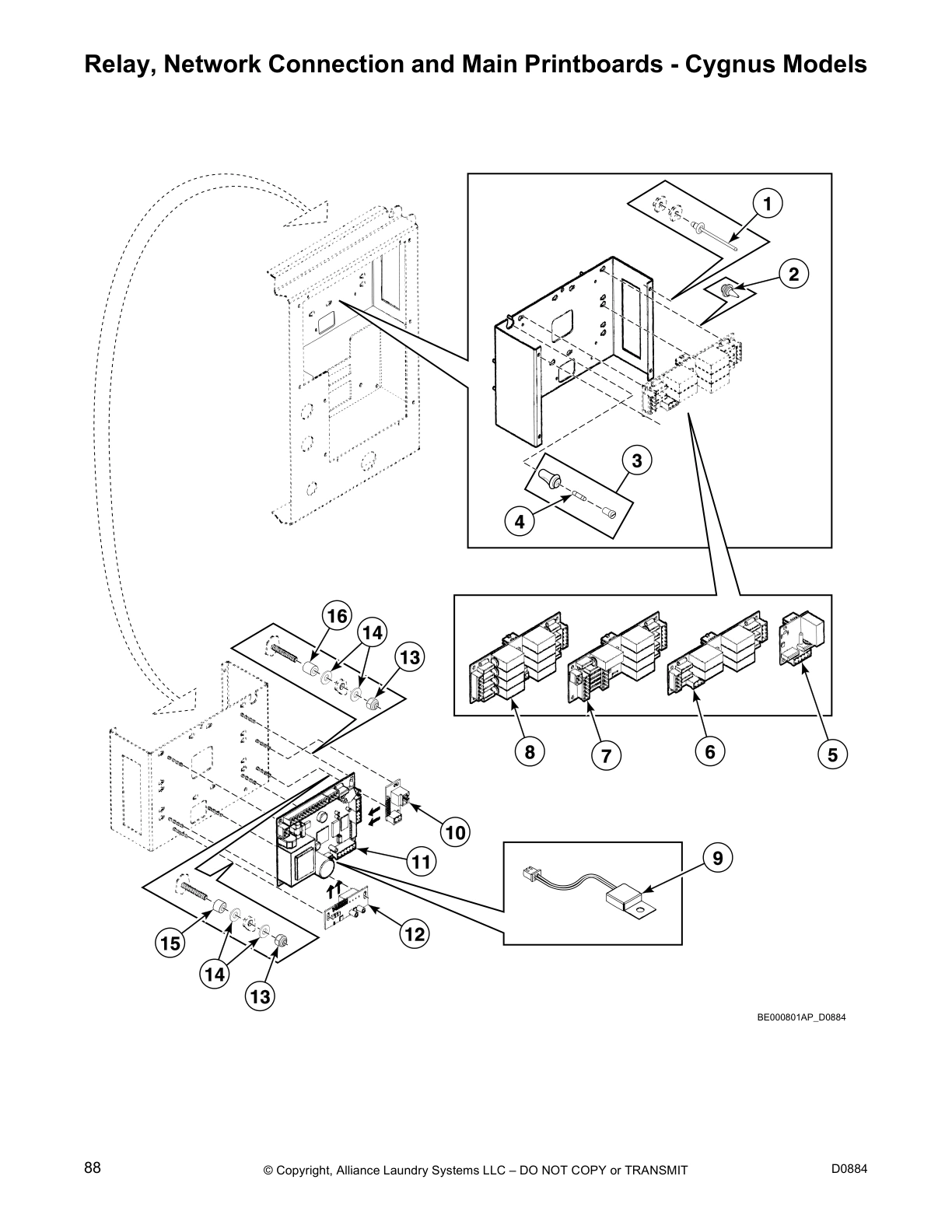

Relay, Network Connection and Main Printboards - Cygnus Models

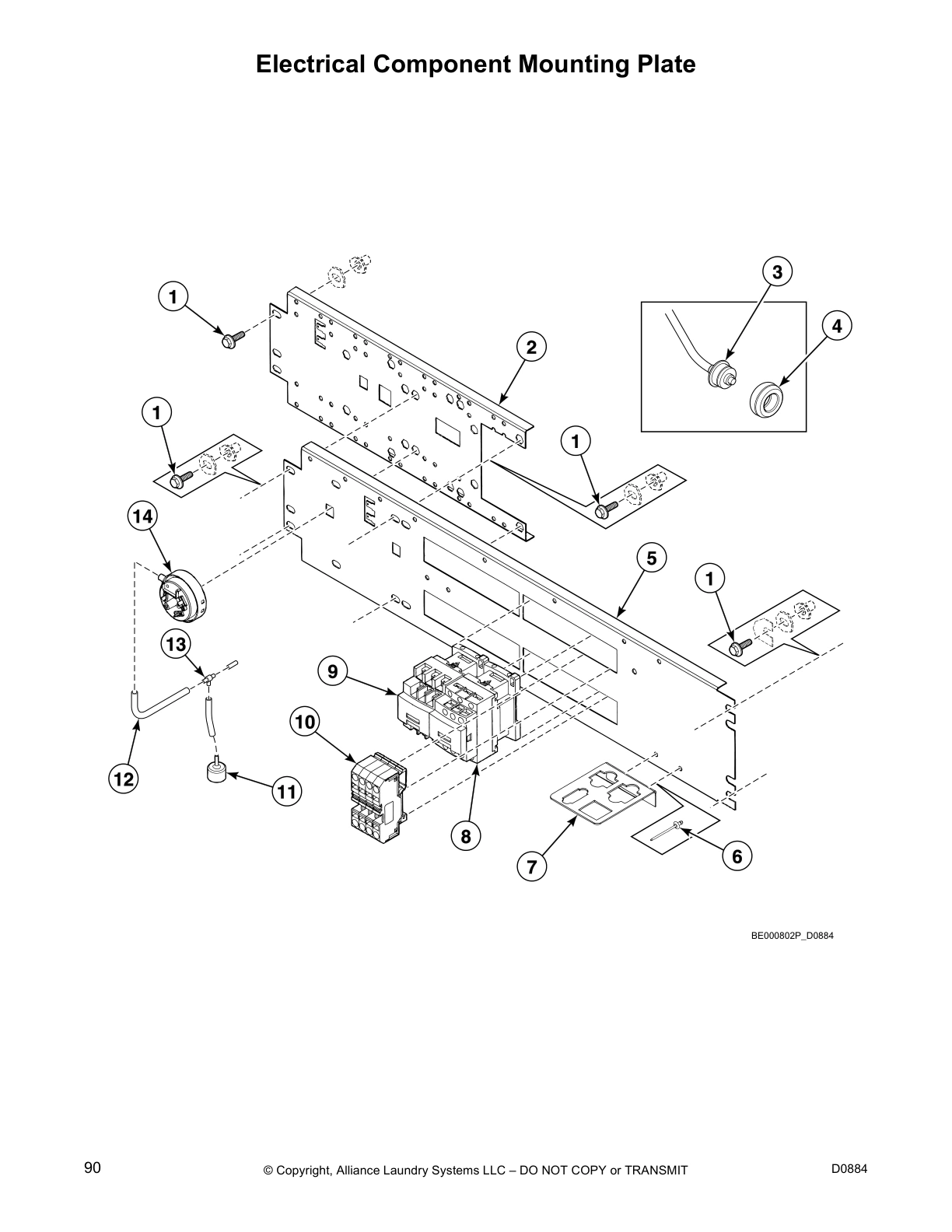

Electrical Component Mounting Plate

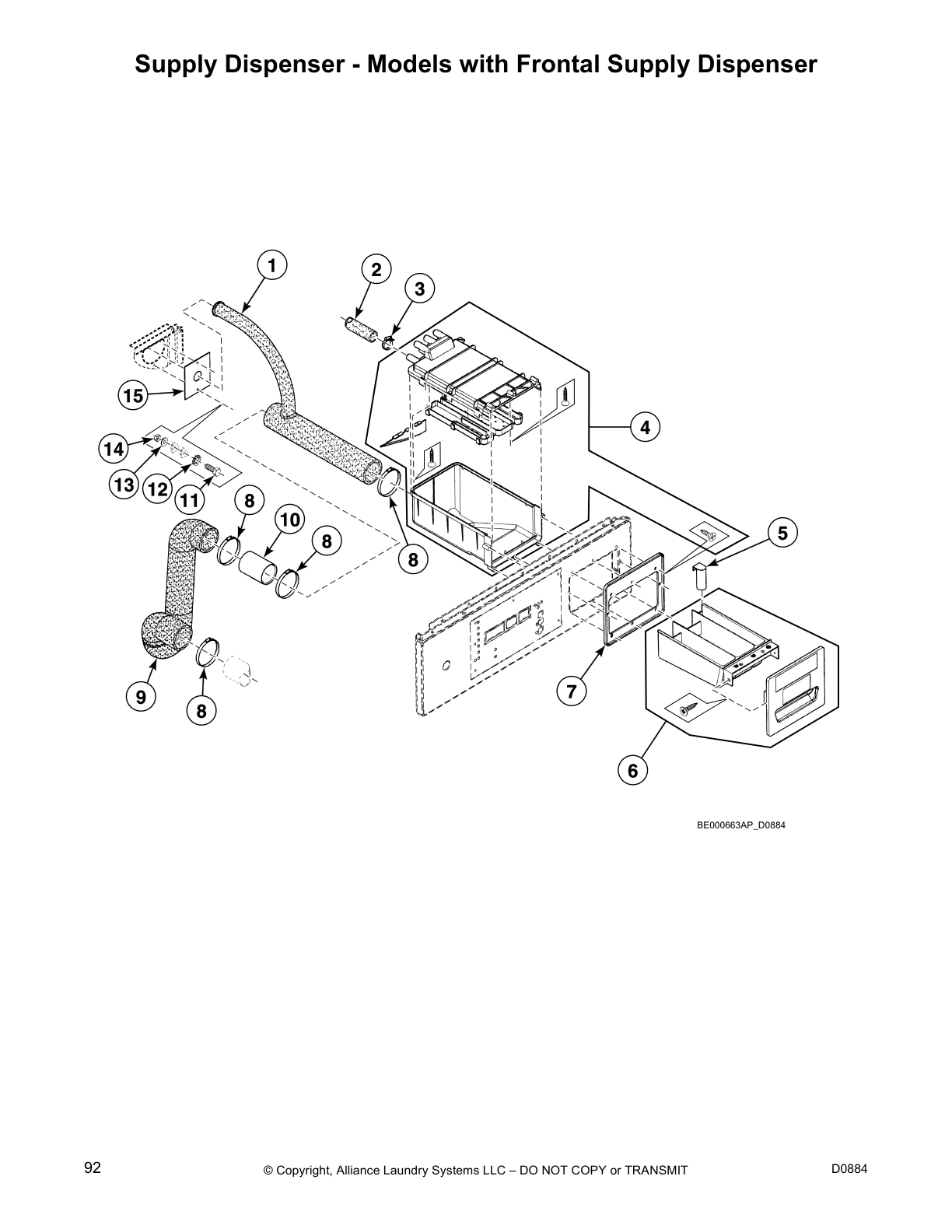

Supply Dispenser - Models with Frontal Supply Dispenser

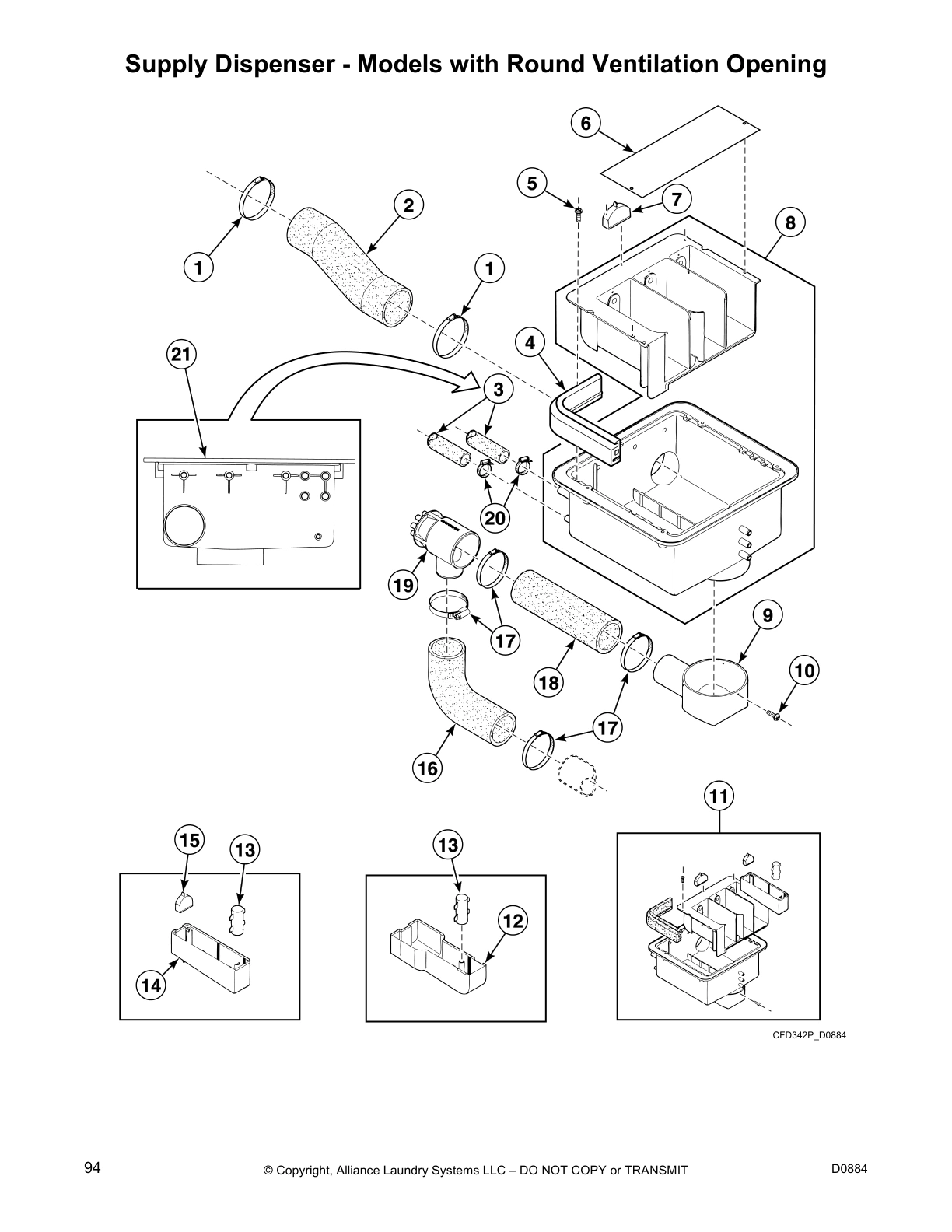

Supply Dispenser - Models with Round Ventilation Opening
Supply Dispenser - Models with Rectangular Ventilation Opening

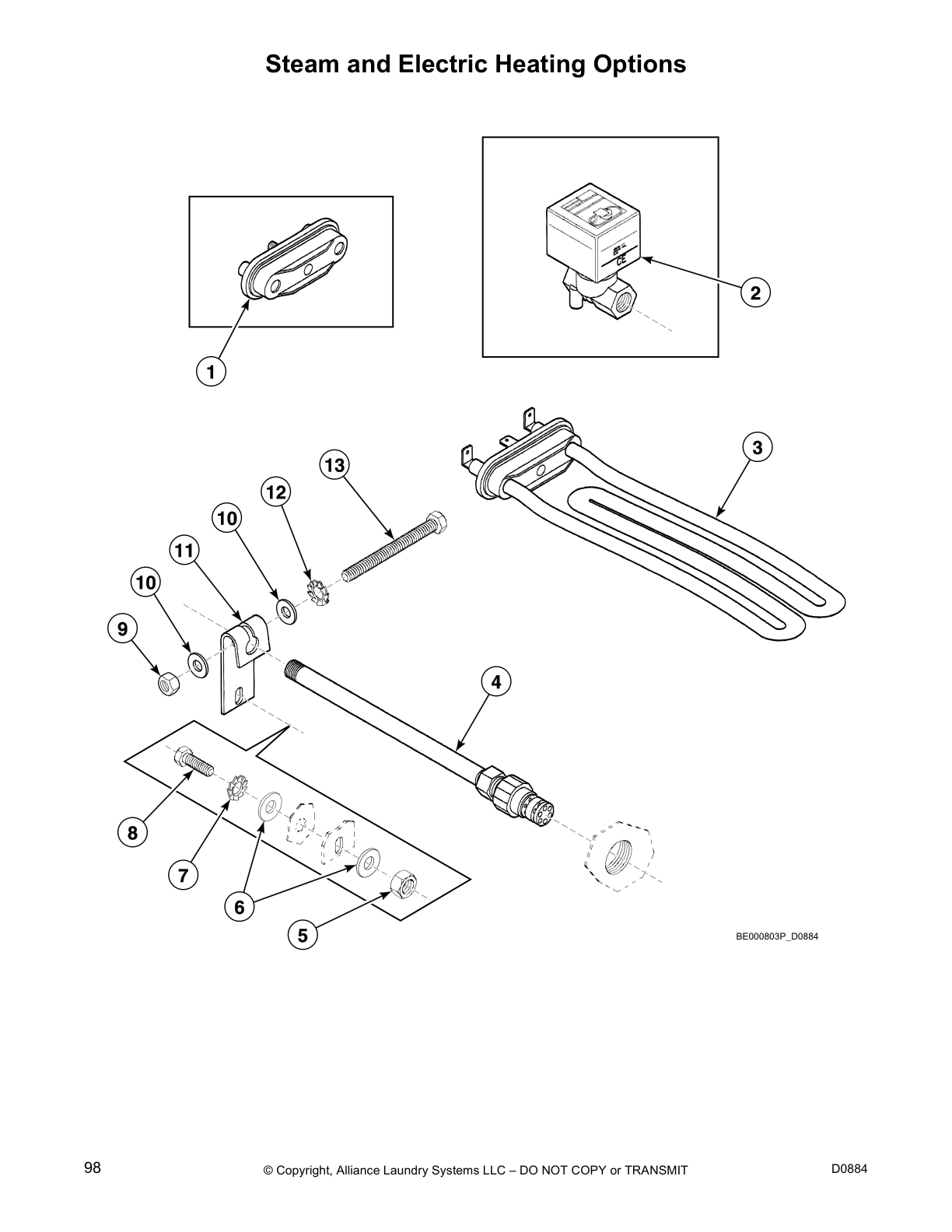

Steam and Electric Heating Options

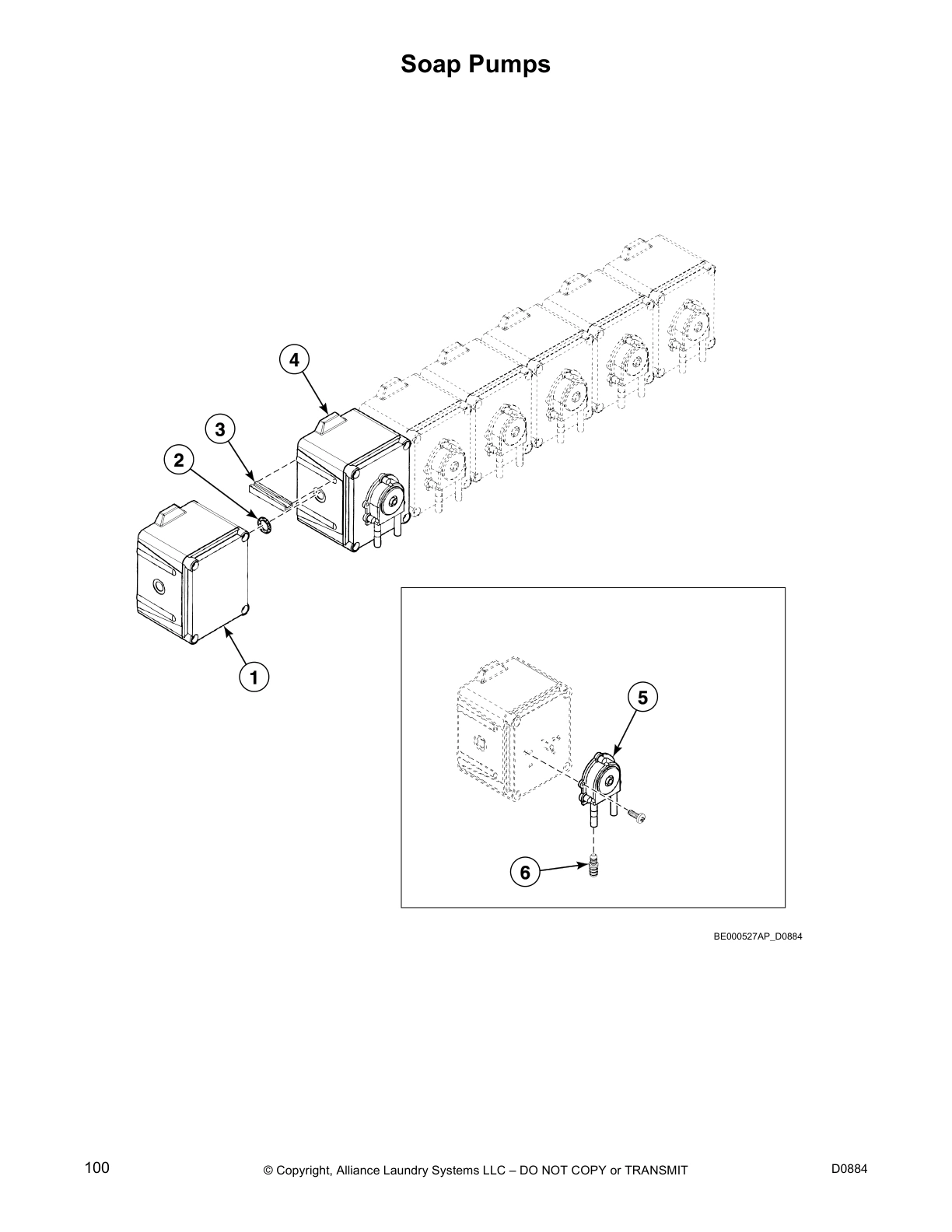

Soap Pumps
Common parts from model IPSO IWF165MNM Washer
SPQ 388P4 SPQ 388P4 Contact Us For Availability
SPQ F8420412 SPQ F8420412 Contact Us For Availability
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Bearing Spacer SPQ 217/00101/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Door Glass SPQ B12449701 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00289/00 Contact Us For Availability
1
Soap Dispenser Cover SPQ 223/00103/50 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Fan Grill SPQ 209/00287/01 Contact Us For Availability
1
Drive SPQ F8420512 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Hose SPQ 223/00286/00 Contact Us For Availability
1
Feeding Liquid Soap D SPQ 209/00554/51 Contact Us For Availability
2
Bearing Housing Assembly SPQ 204/00010/00 Contact Us For Availability
2
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
2
Belt SPQ 152/00044/03 Contact Us For Availability
2
Pressure Switch Elbow SPQ 223/00150/00 Contact Us For Availability
2
Door Frame SPQ 217/00015/00 Contact Us For Availability
2
Printboard SPQ 209/00440/80 Contact Us For Availability
2
Voltage Discharge Decal SPQ 271/35945/00 Contact Us For Availability
2
Fuse Holder SPQ 211/00146/00 Contact Us For Availability
2
Electrical Component Mountin SPQ 209/00027/10 Contact Us For Availability
2
Soap Dispenser Gasket SPQ 223/00107/01 Contact Us For Availability
2
Soap Dispenser SPQ 223/00222/04 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Speed Detector Bracket SPQ 212/00037/00 Contact Us For Availability
3
SPQ 207/00117/00 SPQ 207/00117/00 Contact Us For Availability
3
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
3
Bolt SPQ 118/00046/10 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
SPQ F200164 SPQ F200164 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Fuse SPQ 209/00202/01 Contact Us For Availability
3
Thermostat SPQ 111/10003/40 Contact Us For Availability
3
Soap Spray Nozzle SPQ 123/00103/06 Contact Us For Availability
3
Steam Injector SPQ 209/00563/20 Contact Us For Availability
4
Tub Fastening Ring SPQ 212/00114/00 Contact Us For Availability
4
Bearing Replacement Tool Kit SPQ 212/00101/00 Contact Us For Availability
4
Bolt SPQ 206/00032/00 Contact Us For Availability
4
SPQ 227/00193/00 SPQ 227/00193/00 Contact Us For Availability
4
Nut SPQ 204/00008/00 Contact Us For Availability
4
Door Hinge Spacer SPQ 205/00107/00 Contact Us For Availability
4
Screw SPQ 223/00179/10 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
4
Front Soapbox Siphon SPQ 223/00280/00 Contact Us For Availability
4
Outer and Inner Box Kit SPQ 223/00245/00 Contact Us For Availability
4
Nut SPQ 209/00581/10 Contact Us For Availability
5
Bolt SPQ 204/00002/00 Contact Us For Availability
5
SPQ 212/00101/01 SPQ 212/00101/01 Contact Us For Availability
5
Bolt SPQ 203/00002/00 Contact Us For Availability
5
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
5
SPQ 211/00168/00 SPQ 211/00168/00 Contact Us For Availability
5
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
5
SPQ 202/00104/00 SPQ 202/00104/00 Contact Us For Availability
5
Upper Front Panel SPQ 111/01816/00 Contact Us For Availability
5
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
5
Bolt SPQ 223/00103/03 Contact Us For Availability
5
Rivet SPQ 225/10004/00 Contact Us For Availability
5
Inner Soapbox SPQ 223/00280/03 Contact Us For Availability
5
Soap Dispenser Gasket SPQ B12347501 Contact Us For Availability
5
Steam Heat Kit SPQ 209/00564/20 Contact Us For Availability
5
Liquid Soap Dosing Pu SPQ 209/00554/05 Contact Us For Availability
6
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
6
SPQ 201/00201/00 SPQ 201/00201/00 Contact Us For Availability
6
Pulley SPQ 206/00005/00 Contact Us For Availability
6
Tub Front SPQ 135/00033/00 Contact Us For Availability
6
SPQ 226/00130/00 SPQ 226/00130/00 Contact Us For Availability
6
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
6
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
6
Grommet SPQ 204/00114/00 Contact Us For Availability
6
Nut SPQ 207/00125/00 Contact Us For Availability
6
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Support Connector SPQ 111/10003/30 Contact Us For Availability
6
Soapbox Handle SPQ 223/00280/20 Contact Us For Availability
6
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
6
SPQ 118/00084/00 SPQ 118/00084/00 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
7
SPQ 226/00132/00 SPQ 226/00132/00 Contact Us For Availability
7
SPQ 226/00126/00 SPQ 226/00126/00 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
7
SPQ 202/00108/00 SPQ 202/00108/00 Contact Us For Availability
7
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
7
SPQ 206/00166/00 SPQ 206/00166/00 Contact Us For Availability
7
Side Panel SPQ 208/00104/00 Contact Us For Availability
7
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
SPQ 223/00280/07 SPQ 223/00280/07 Contact Us For Availability
7
SPQ 223/00222/60 SPQ 223/00222/60 Contact Us For Availability
7
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
8
SPQ 206/00079/00 SPQ 206/00079/00 Contact Us For Availability
8
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
8
Basket and Shaft Assembly SPQ B12380601 Contact Us For Availability
8
SPQ 206/00042/00 SPQ 206/00042/00 Contact Us For Availability
8
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
8
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
8
Keypad Sticker SPQ 225/00407/00 Contact Us For Availability
8
Operating Sticker SPQ 225/00409/00 Contact Us For Availability
8
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
8
SPQ 111/60036/00 SPQ 111/60036/00 Contact Us For Availability
8
SPQ 208/00130/00 SPQ 208/00130/00 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
9
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
9
Tub Front Ring Clamp SPQ 217/00007/00 Contact Us For Availability
9
SPQ 223/00303/00 SPQ 223/00303/00 Contact Us For Availability
9
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
9
SPQ 117/00010/00 SPQ 117/00010/00 Contact Us For Availability
9
Fuse SPQ 209/00439/00 Contact Us For Availability
9
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
9
SPQ 111/01833/00 SPQ 111/01833/00 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
SPQ 223/00298/00 SPQ 223/00298/00 Contact Us For Availability
10
Chassis SPQ 212/00108/50 Contact Us For Availability
10
Screw SPQ 206/00056/00 Contact Us For Availability
10
Washer SPQ 202/00002/00 Contact Us For Availability
10
Drain Piece SPQ 223/00146/00 Contact Us For Availability
10
Water Hose SPQ 223/00044/00 Contact Us For Availability
10
Tub Exhaust SPQ 223/00382/00 Contact Us For Availability
10
Hose Barb SPQ 223/00016/00 Contact Us For Availability
10
Screw SPQ 207/00126/00 Contact Us For Availability
10
Washer SPQ 205/00106/00 Contact Us For Availability
10
Front Panel SPQ 111/00291/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Connection Clamp SPQ 209/00622/01 Contact Us For Availability
10
Tube SPQ 118/00118/03 Contact Us For Availability
11
Nut SPQ 206/00007/00 Contact Us For Availability
11
Bolt SPQ 206/00119/00 Contact Us For Availability
11
Hose Clamp SPQ 223/00010/00 Contact Us For Availability
11
Drain Valve SPQ 223/00071/00 Contact Us For Availability
11
O-Ring SPQ 217/00021/00 Contact Us For Availability
11
Hinge SPQ 221/00003/00 Contact Us For Availability
11
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
11
Reinforcement Plate SPQ 111/10089/01 Contact Us For Availability
11
Bolt SPQ 206/00027/00 Contact Us For Availability
11
Pressure Switch Cap SPQ 209/00619/01 Contact Us For Availability
11
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
11
Steam Injector Plate Assembly SPQ 113/00025/00 Contact Us For Availability
12
Bolt SPQ 203/00003/00 Contact Us For Availability
12
Retainer Ring SPQ 212/00006/00 Contact Us For Availability
12
Nut SPQ 117/00042/00 Contact Us For Availability
12
Washer SPQ 201/00010/00 Contact Us For Availability
12
Pressure Hose SPQ 223/00035/02 Contact Us For Availability
12
Bolt SPQ 209/00644/00 Contact Us For Availability
12
Washer SPQ 203/00010/00 Contact Us For Availability
12
Washer SPQ 203/00006/00 Contact Us For Availability
12
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
12
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
13
Nut SPQ 206/00006/00 Contact Us For Availability
13
Screw SPQ 203/00005/00 Contact Us For Availability
13
Nut SPQ 202/00004/00 Contact Us For Availability
13
Backbridge SPQ 111/01833/10 Contact Us For Availability
13
Screw SPQ B12350903 Contact Us For Availability
13
Soap Dispenser Rinse Siphon SPQ 223/00102/04 Contact Us For Availability
13
Heating Element SPQ 206/00035/00 Contact Us For Availability
14
O-Ring SPQ 217/00002/00 Contact Us For Availability
14
Seal Plate Assembly SPQ B12333701 Contact Us For Availability
14
Retaining Ring SPQ 206/00009/00 Contact Us For Availability
14
Siphon Break Hose SPQ 223/00013/00 Contact Us For Availability
14
Motor SPQ 206/00101/00 Contact Us For Availability
14
Lower Front Panel SPQ 204/00006/00 Contact Us For Availability
14
Pump Support SPQ 204/00007/00 Contact Us For Availability
14
Parameter Unit Assembly SPQ F8410901 Contact Us For Availability
14
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
15
Seal Cover SPQ 219/00001/00 Contact Us For Availability
15
Bolt SPQ 206/00093/00 Contact Us For Availability
15
Drain Hose SPQ 209/00644/11 Contact Us For Availability
15
Screw SPQ 201/00018/00 Contact Us For Availability
15
Side Panel SPQ 208/00009/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Hose Clamp SPQ 155/00161/00 Contact Us For Availability
15
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
15
Siphon Break Dispenser Hose SPQ B12310304 Contact Us For Availability
16
U-Piece Assembly SPQ 113/00066/00 Contact Us For Availability
16
Washer SPQ 204/00201/00 Contact Us For Availability
16
Drain Valve Hose SPQ 209/00643/00 Contact Us For Availability
16
Door Lock Bracket SPQ 207/00009/00 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Outlet Pipe Plate Assembly SPQ 207/00101/00 Contact Us For Availability
16
Inverter Drive Box SPQ 111/10425/50 Contact Us For Availability
16
Liquid Soap Manifold SPQ 223/00262/00 Contact Us For Availability
17
Bearing Housing Plate SPQ 113/00019/02 Contact Us For Availability
17
Motor SPQ 204/00109/00 Contact Us For Availability
17
Bolt SPQ 201/00002/00 Contact Us For Availability
17
Overflow Hose SPQ 223/00072/00 Contact Us For Availability
17
Lock Shaft SPQ 217/00052/11 Contact Us For Availability
17
Backbridge SPQ 111/01803/00 Contact Us For Availability
17
Rinsing Box SPQ 223/00250/00 Contact Us For Availability
18
Washer SPQ 113/00019/01 Contact Us For Availability
18
Cordlock SPQ 204/00115/00 Contact Us For Availability
18
Door Lock Assembly SPQ 207/00102/00 Contact Us For Availability
18
Inverter Box Cover SPQ 111/10425/00 Contact Us For Availability
18
Siphon Break SPQ 223/00222/05 Contact Us For Availability
19
Nut SPQ 201/00001/00 Contact Us For Availability
19
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
19
Hose Vent SPQ 223/00001/04 Contact Us For Availability
19
Drain Valve Plate Assembly SPQ 223/00263/00 Contact Us For Availability
19
Door Solenoid Assembly SPQ 217/00017/03 Contact Us For Availability
19
Softener Spray Nozzle SPQ 223/00229/00 Contact Us For Availability
20
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
20
SPQ 206/00054/00 SPQ 206/00054/00 Contact Us For Availability
20
Bolt SPQ 223/00100/00 Contact Us For Availability
20
Outlet Pipe Plate Assembly SPQ 114/00010/00 Contact Us For Availability
20
SPQ F200166 SPQ F200166 Contact Us For Availability
20
Pressure Hose SPQ 111/01174/01 Contact Us For Availability
20
Soap Box Assembly Plate SPQ 223/00222/03 Contact Us For Availability
21
Washer SPQ 223/00011/00 Contact Us For Availability
21
Bolt SPQ B12355001 Contact Us For Availability
21
Soap Spray Nozzle SPQ 223/00102/30 Contact Us For Availability
21
Shrink Fit SPQ 223/00222/00 Contact Us For Availability
22
Drain Pipe SPQ 223/00210/00 Contact Us For Availability
22
Interlock Lever SPQ B12495102 Contact Us For Availability
23
Lever Spring SPQ 224/00049/00 Contact Us For Availability
25
Pressure Switch Hose Tee SPQ 206/00033/00 Contact Us For Availability
25
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
26
Pressure Hose SPQ 223/00106/00 Contact Us For Availability
NI
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
NI
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
NI
SPQ 152/00055/00 SPQ 152/00055/00 Contact Us For Availability
NI
SPQ 381P3 SPQ 381P3 Contact Us For Availability
NI
SPQ 223/00190/00 SPQ 223/00190/00 Contact Us For Availability
NI
SPQ 209/00643/11 SPQ 209/00643/11 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
Inverter Kit SPQ F8420511 Contact Us For Availability
NI
SPQ F8420411 SPQ F8420411 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 227/00180/00 SPQ 227/00180/00 Contact Us For Availability
NI
SPQ 227/00179/00 SPQ 227/00179/00 Contact Us For Availability
NI
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
NI
SPQ 206/00013/00 SPQ 206/00013/00 Contact Us For Availability
NI
SPQ 919P3 SPQ 919P3 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
