Model IPSO IWF075SRM Washer – Common Parts & Diagrams
Frame - *55 and *235 Models Through 1/17/10
Frame - *55 and *235 Models Starting 1/18/10

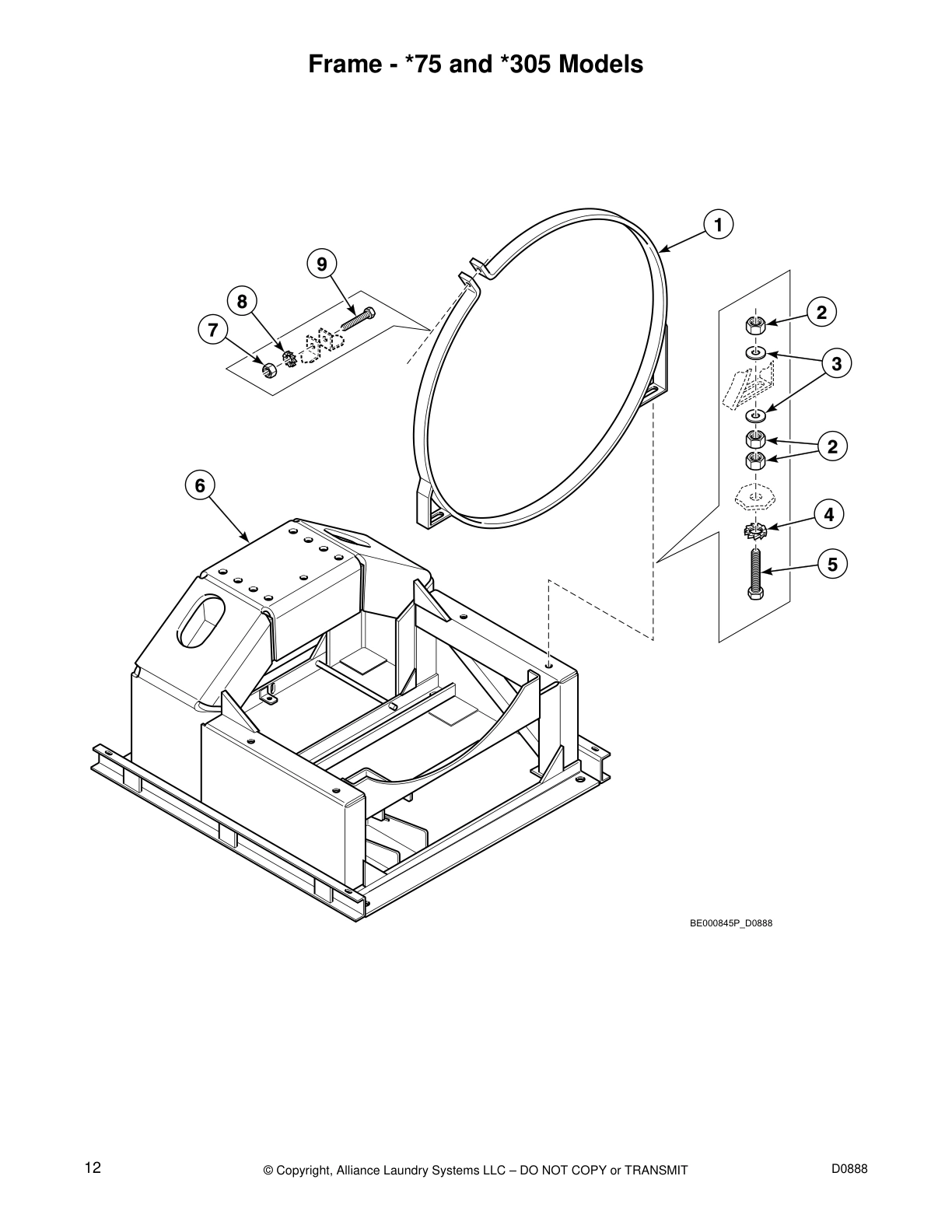

Frame - *75 and *305 Models

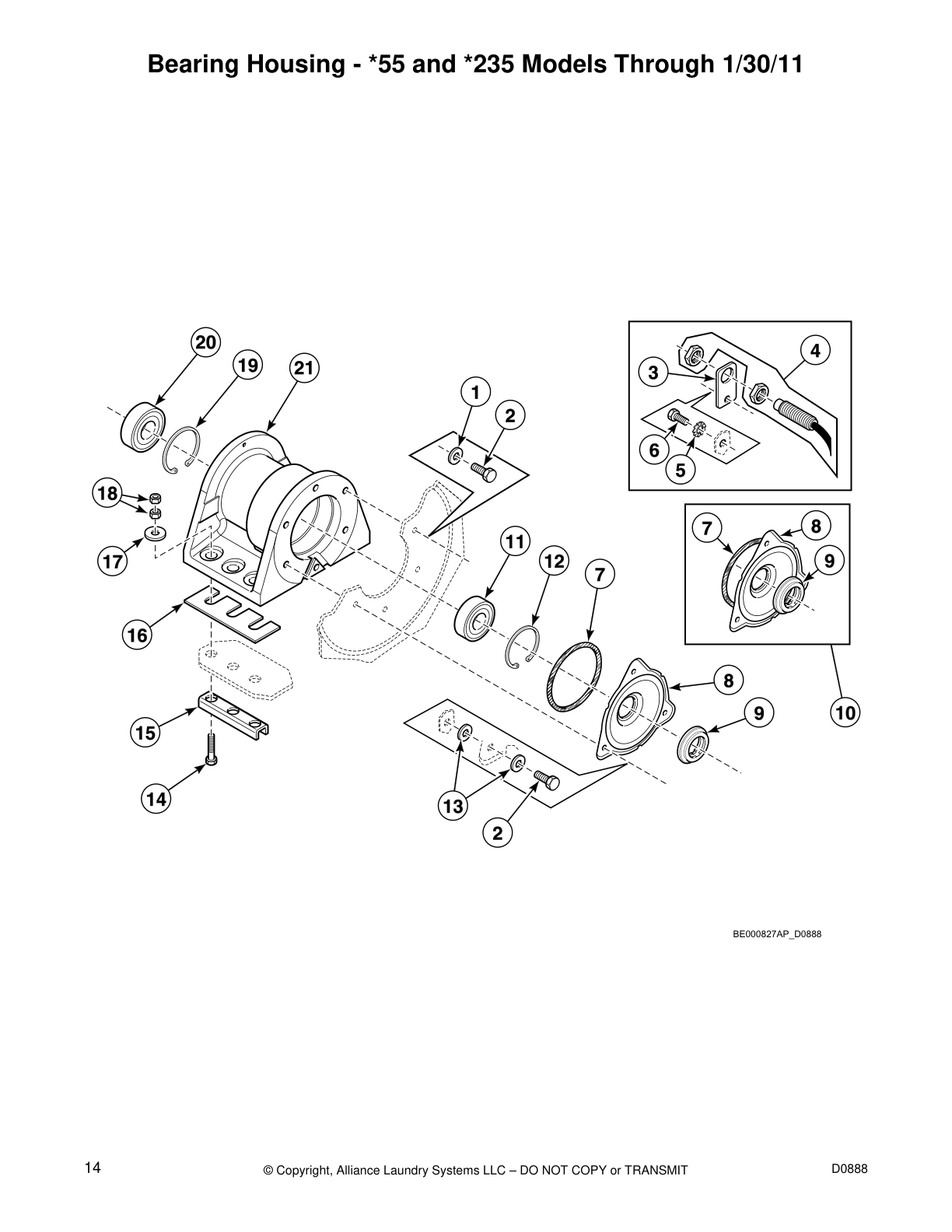

Bearing Housing - *55 and *235 Models Through 1/30/11

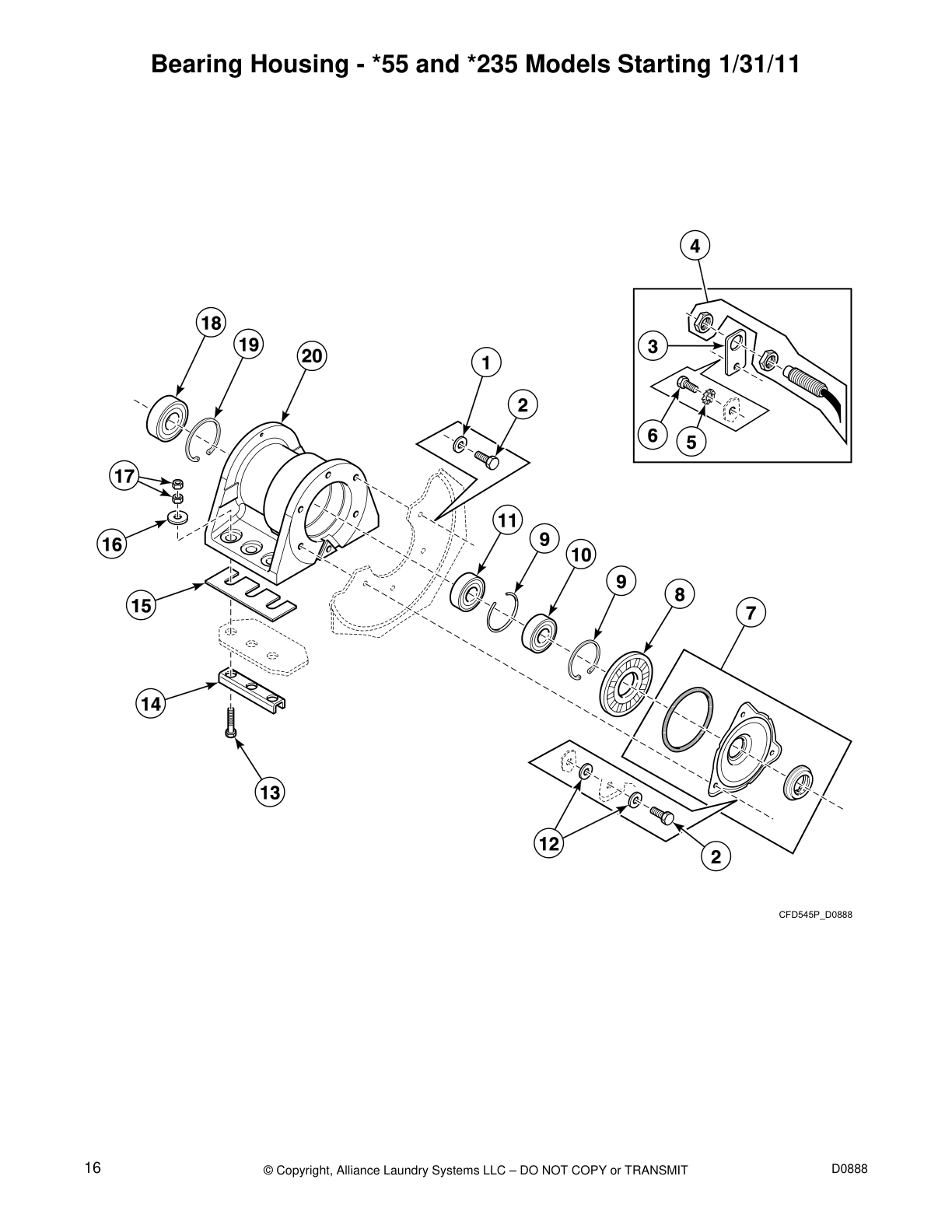

Bearing Housing - *55 and *235 Models Starting 1/31/11

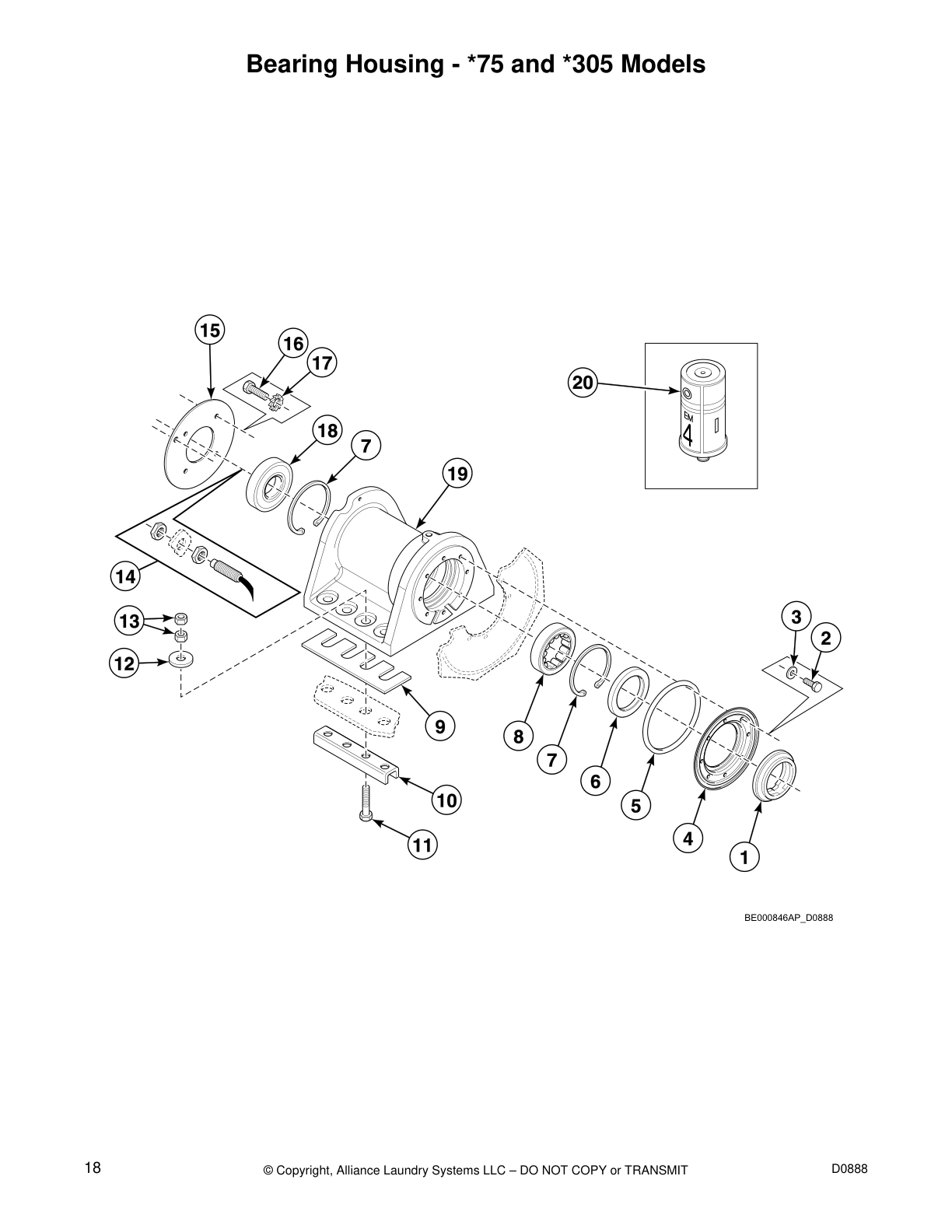

Bearing Housing - *75 and *305 Models

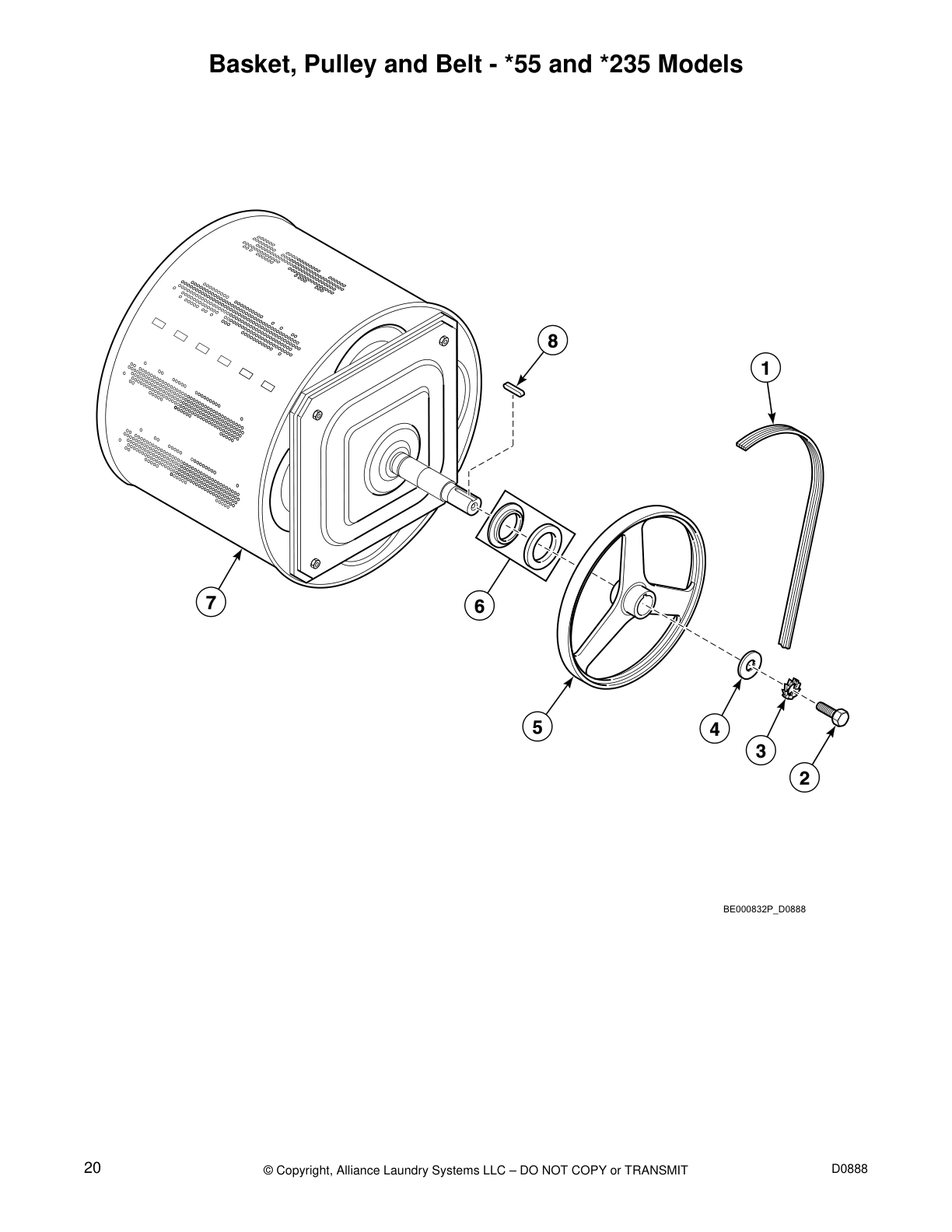

Basket, Pulley and Belt - *55 and *235 Models

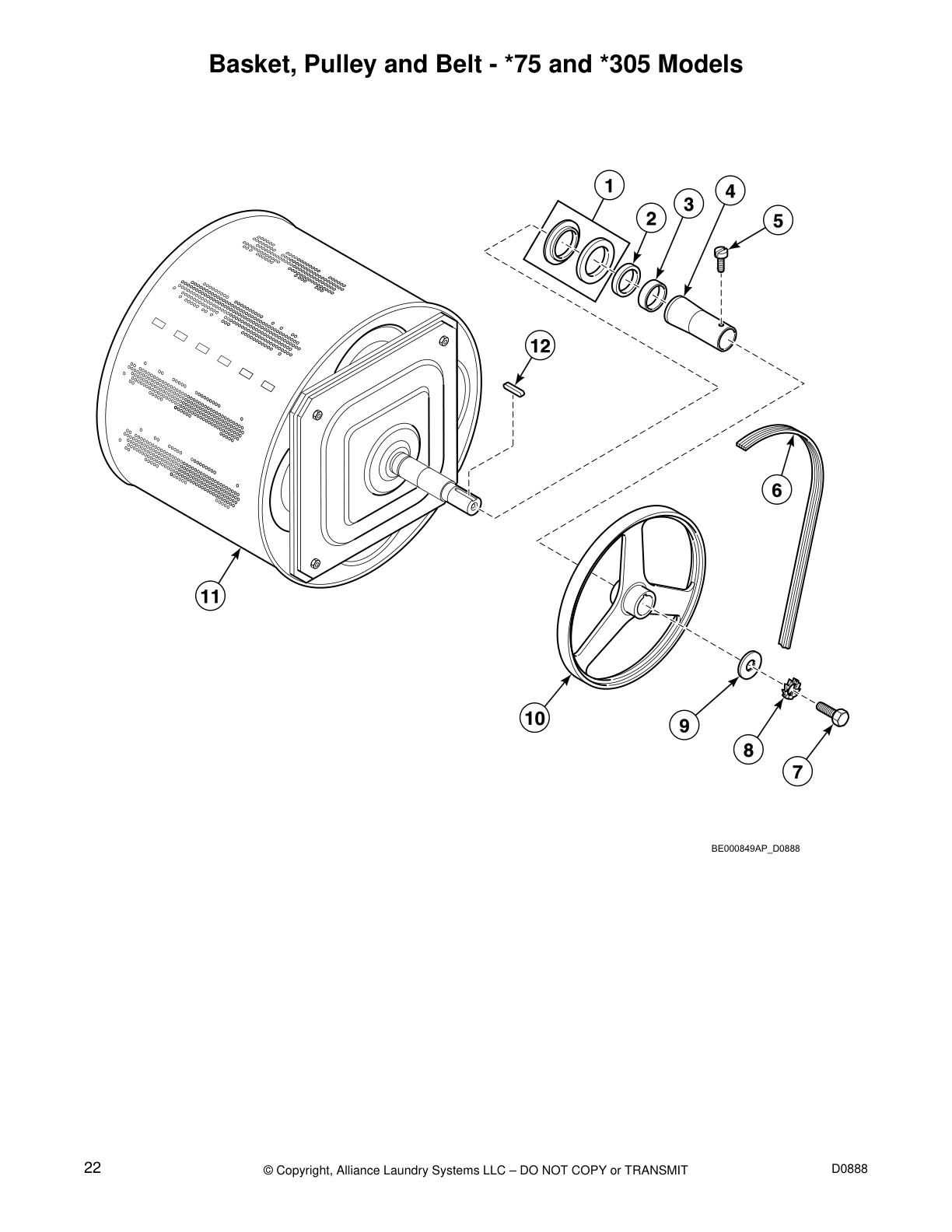

Basket, Pulley and Belt - *75 and *305 Models

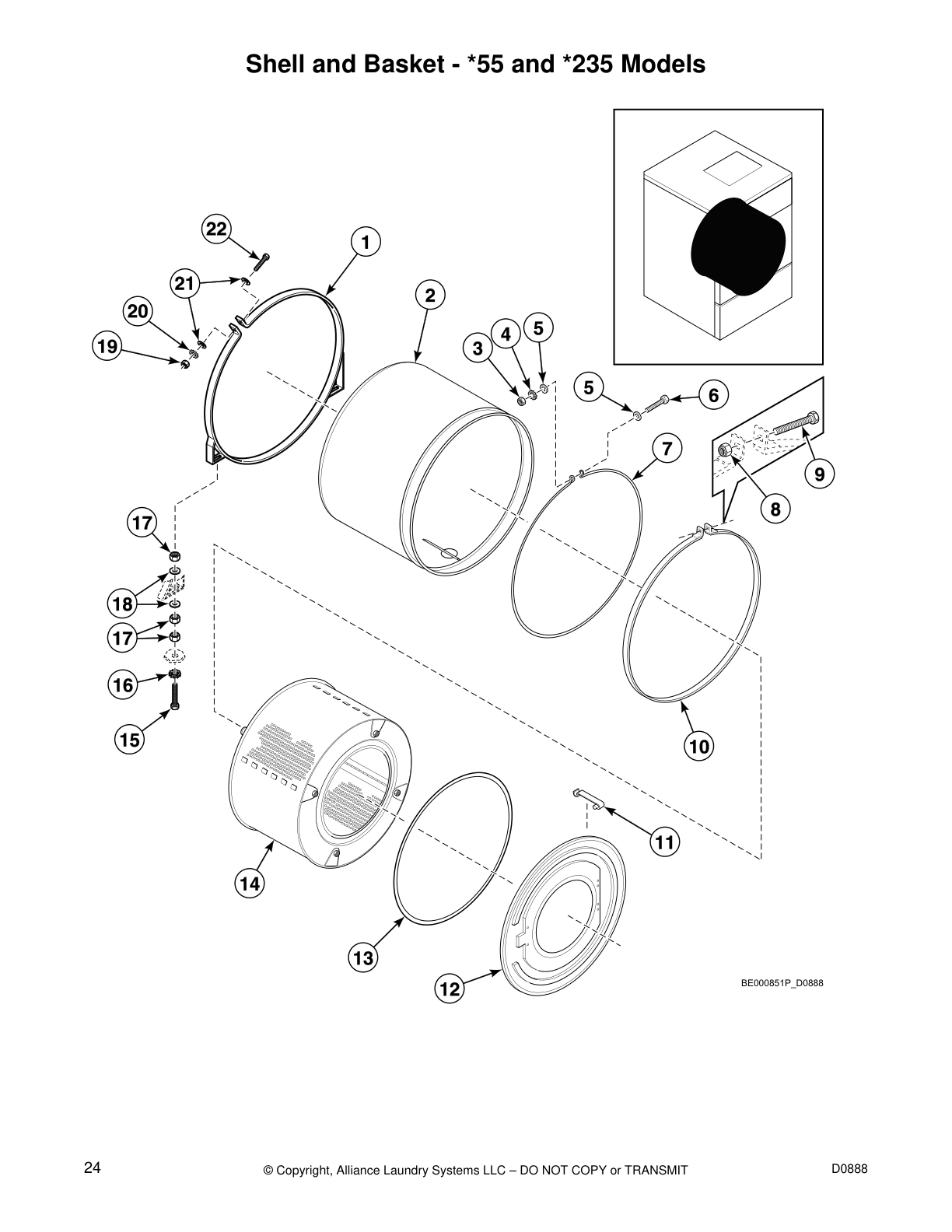

Shell and Basket - *55 and *235 Models
Shell and Basket - *75 and *305 Models

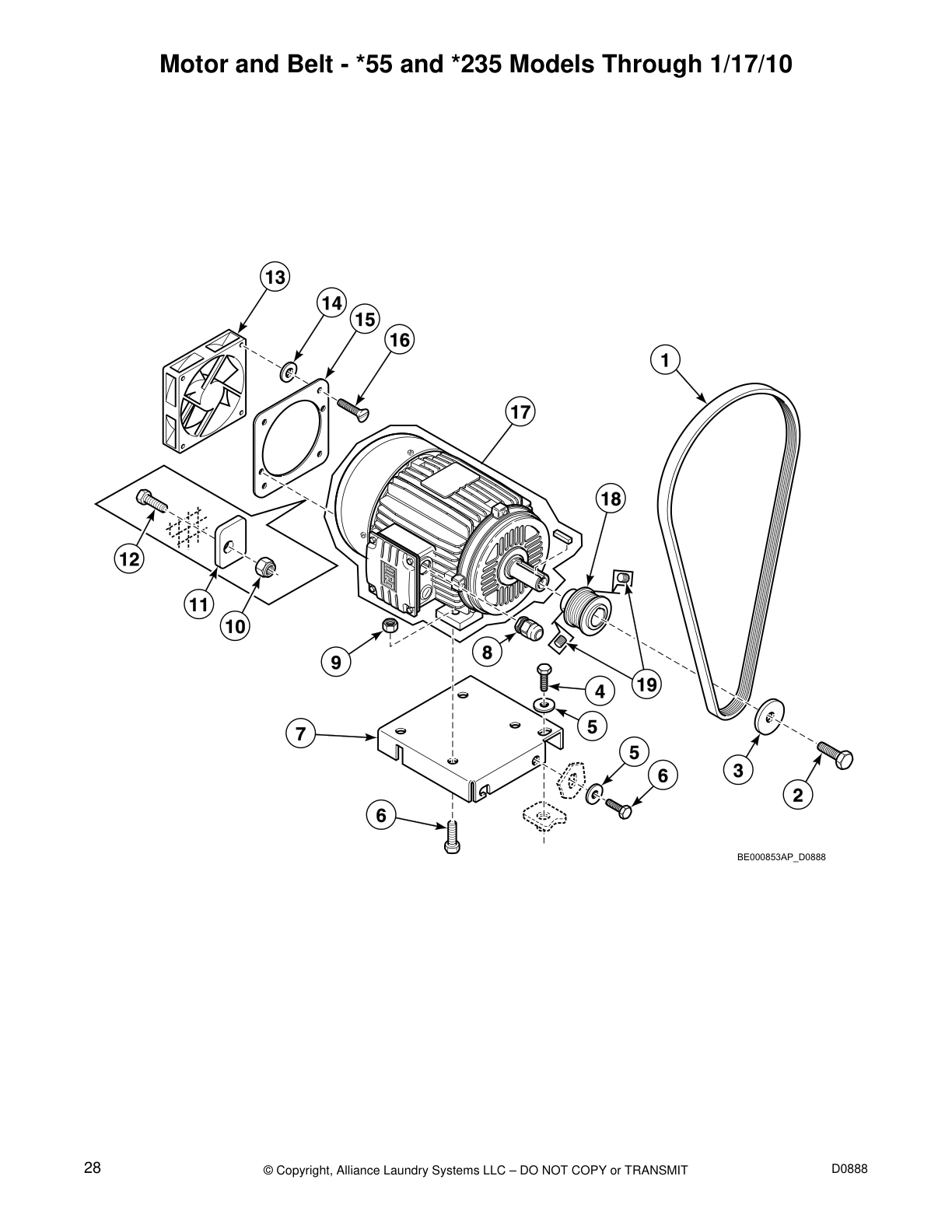

Motor and Belt - *55 and *235 Models Through 1/17/10

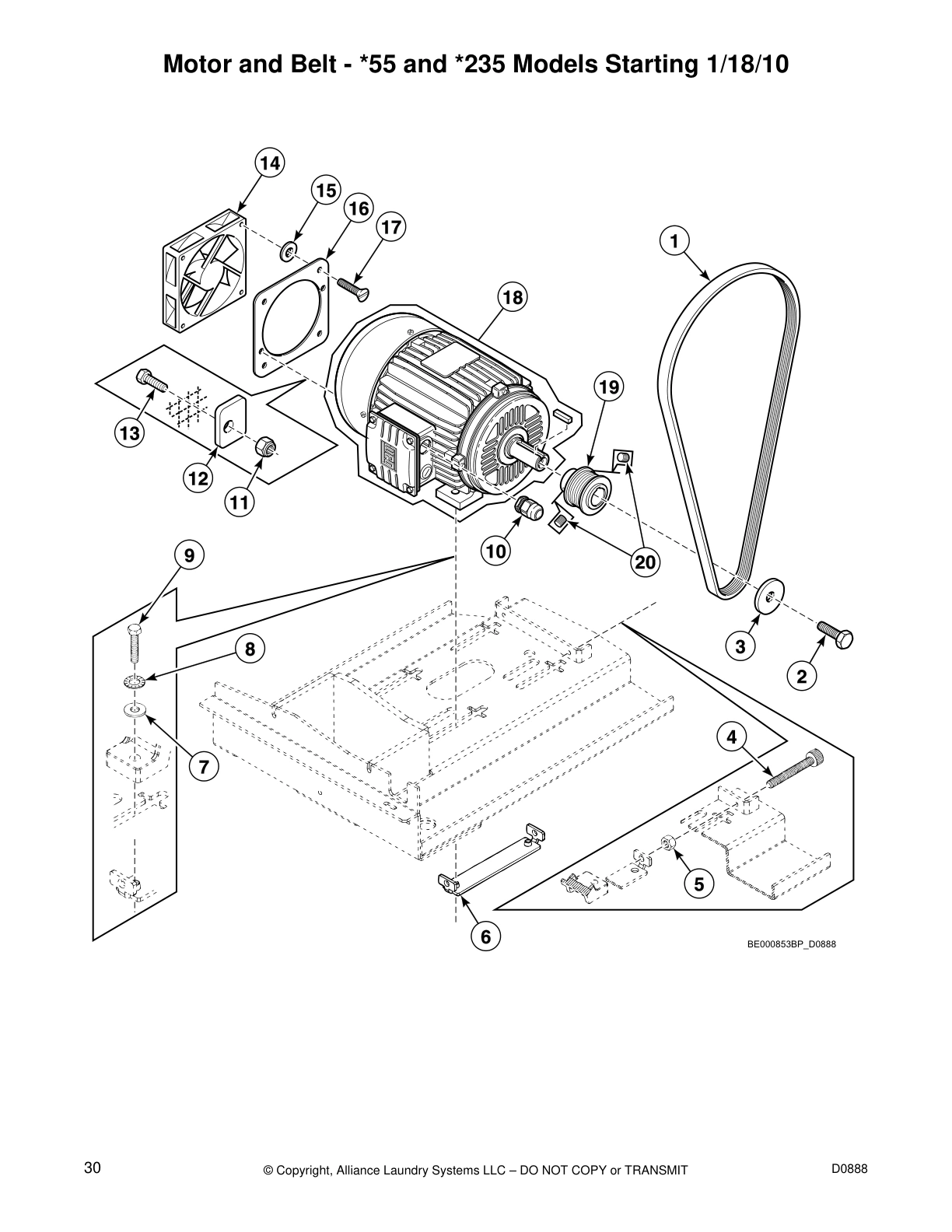

Motor and Belt - *55 and *235 Models Starting 1/18/10

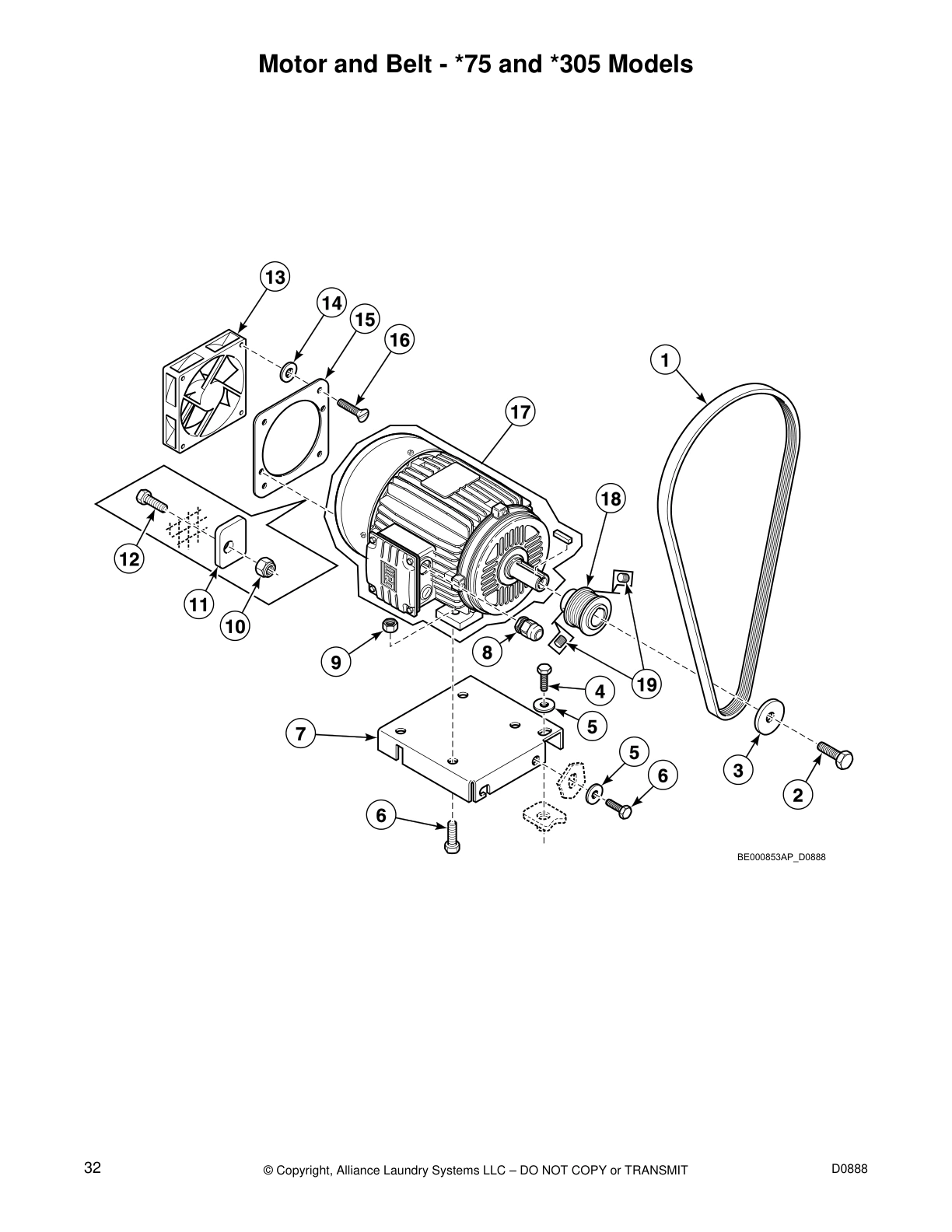

Motor and Belt - *75 and *305 Models

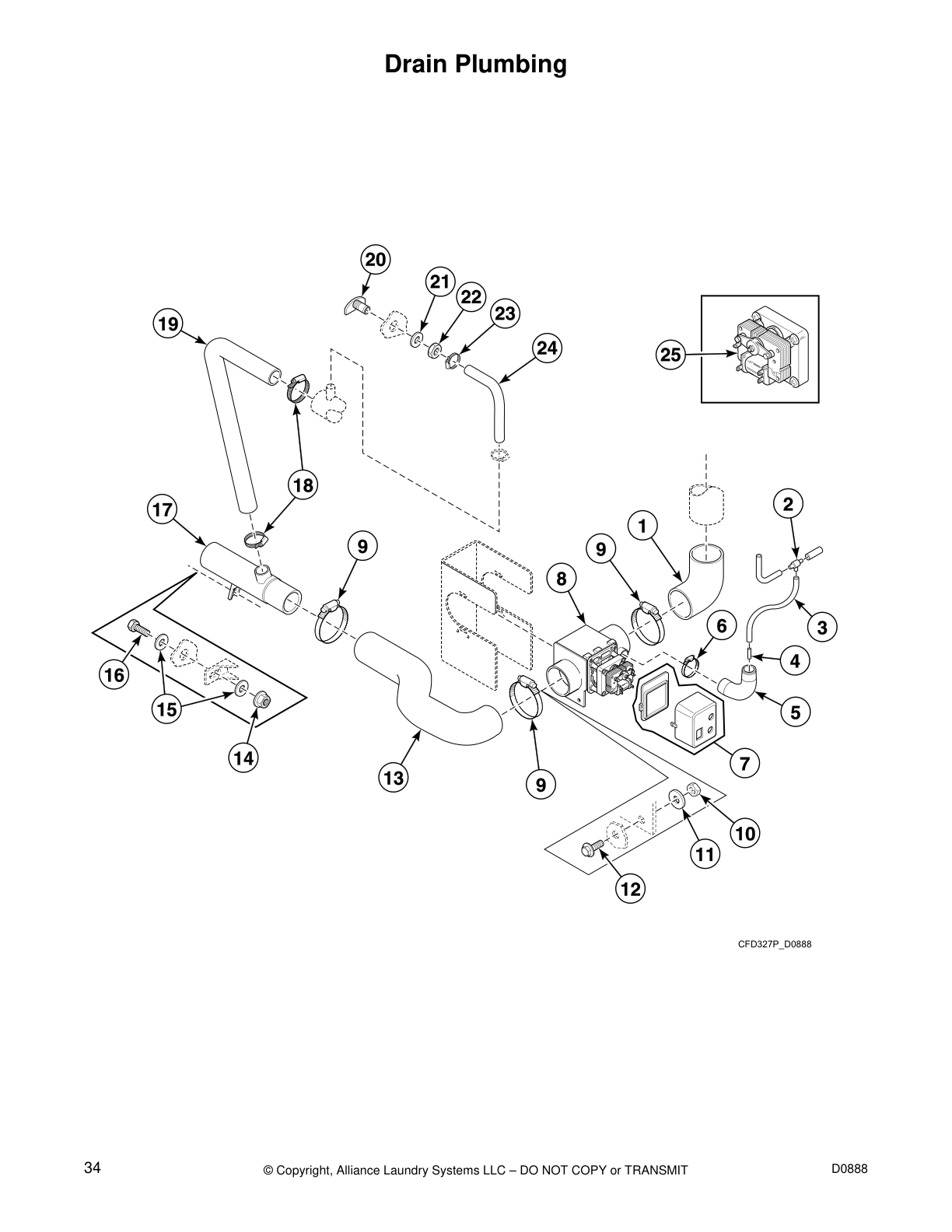

Drain Plumbing

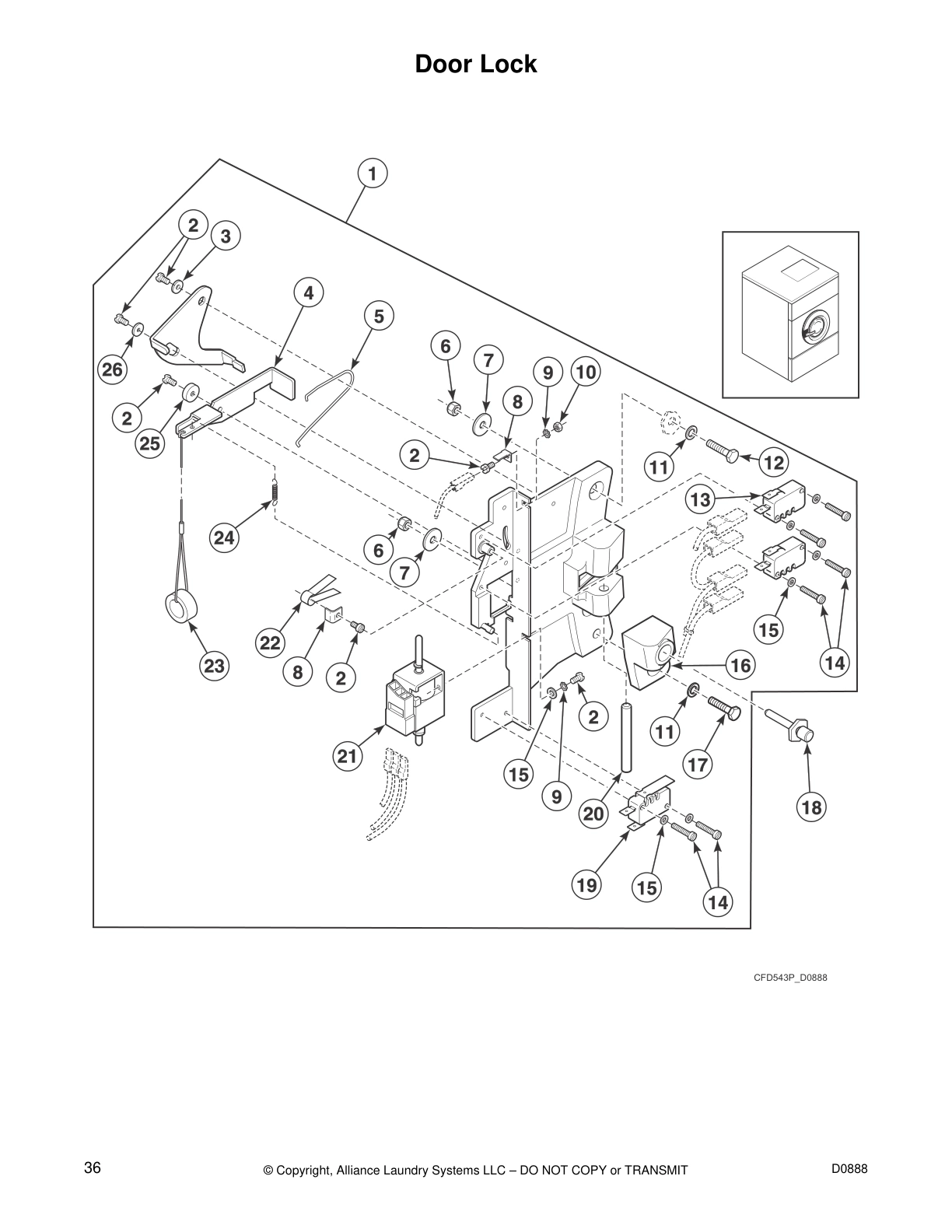

Door Lock

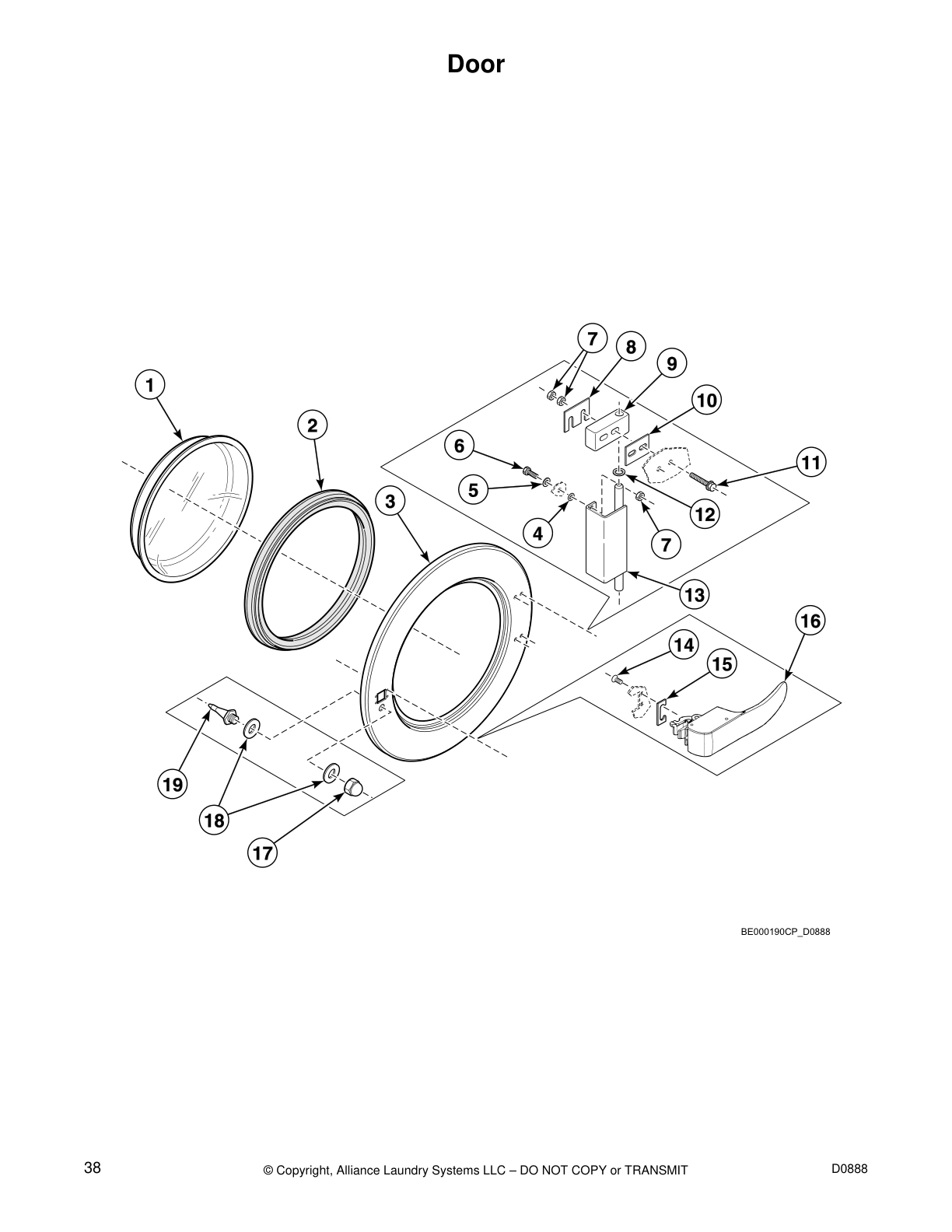

Door

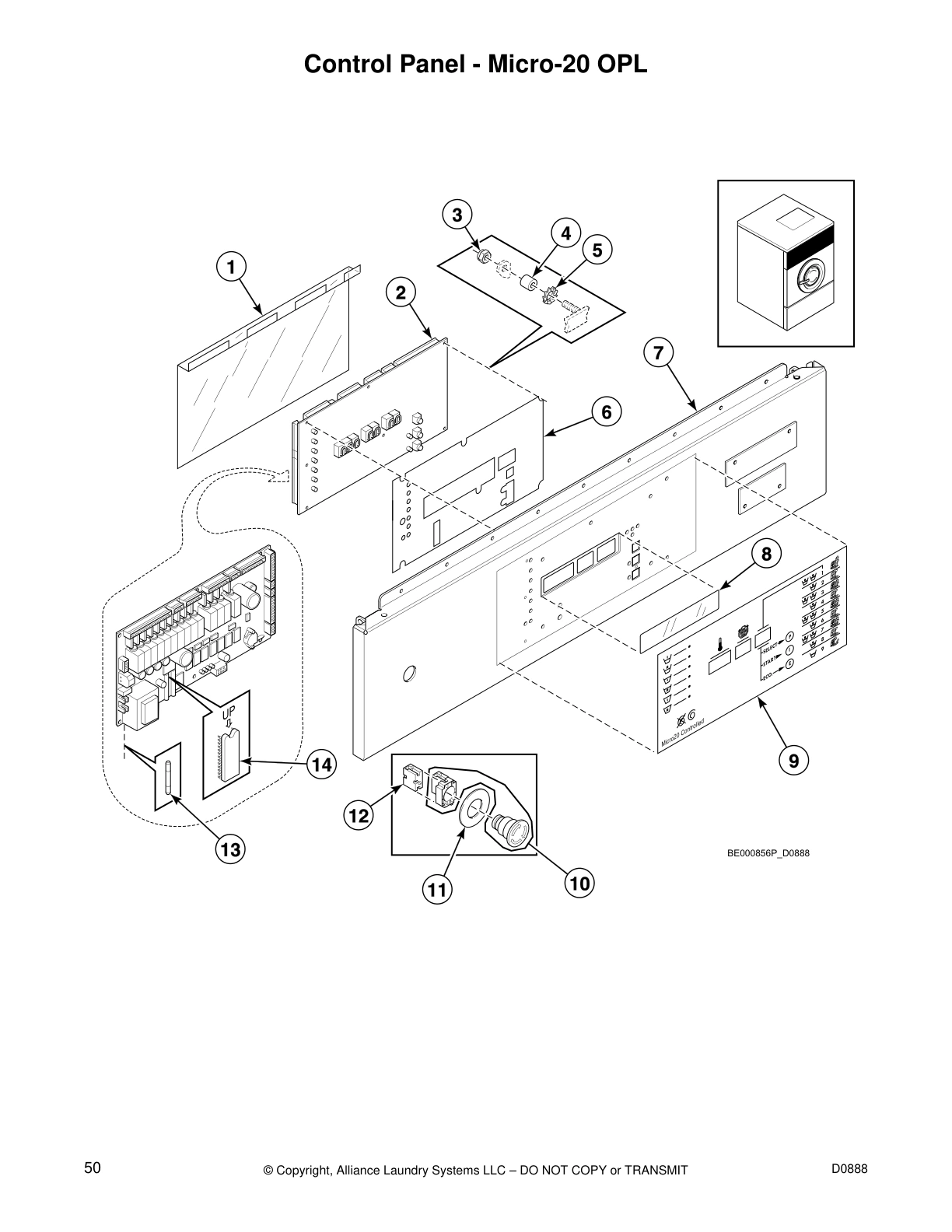

Control Panel - Micro-20 OPL

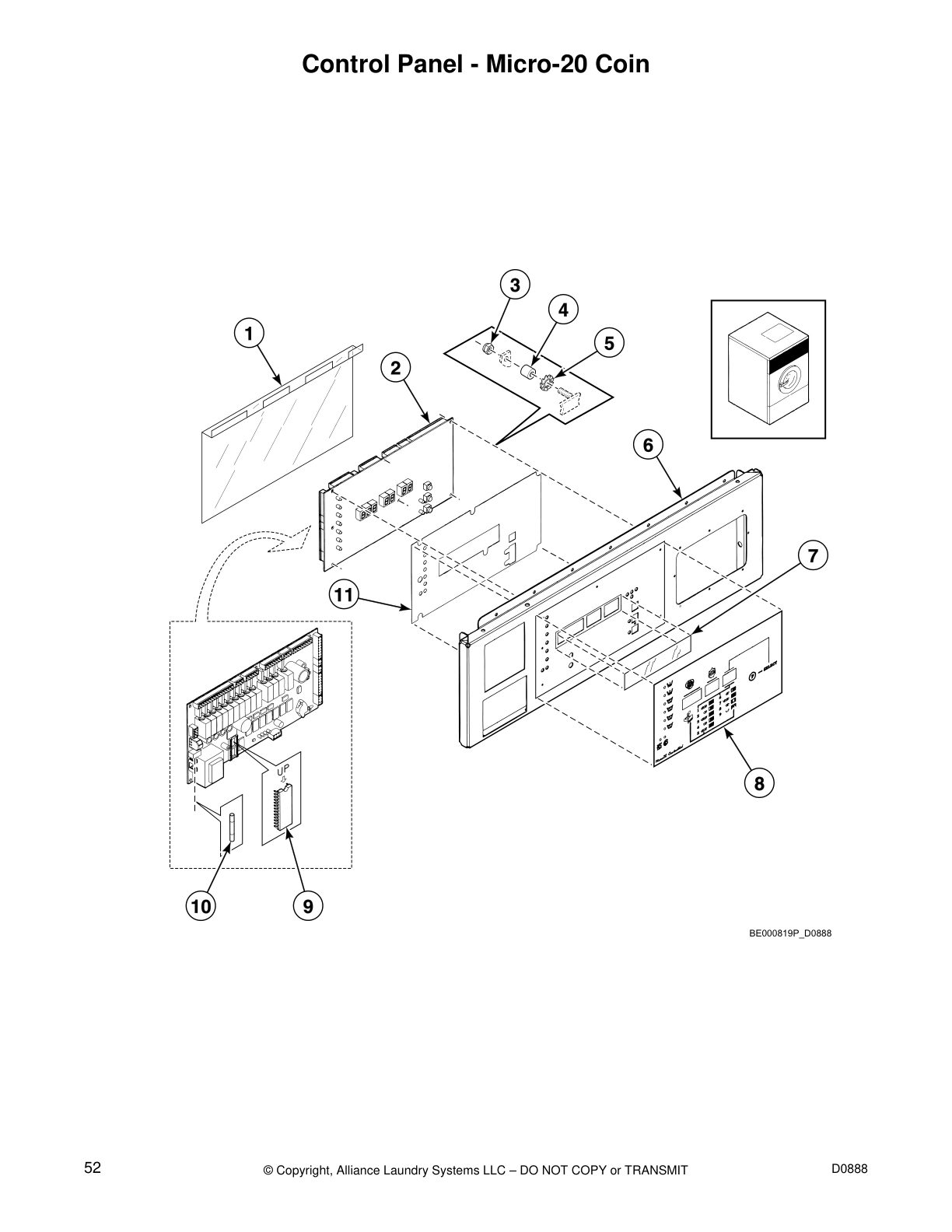

Control Panel - Micro-20 Coin

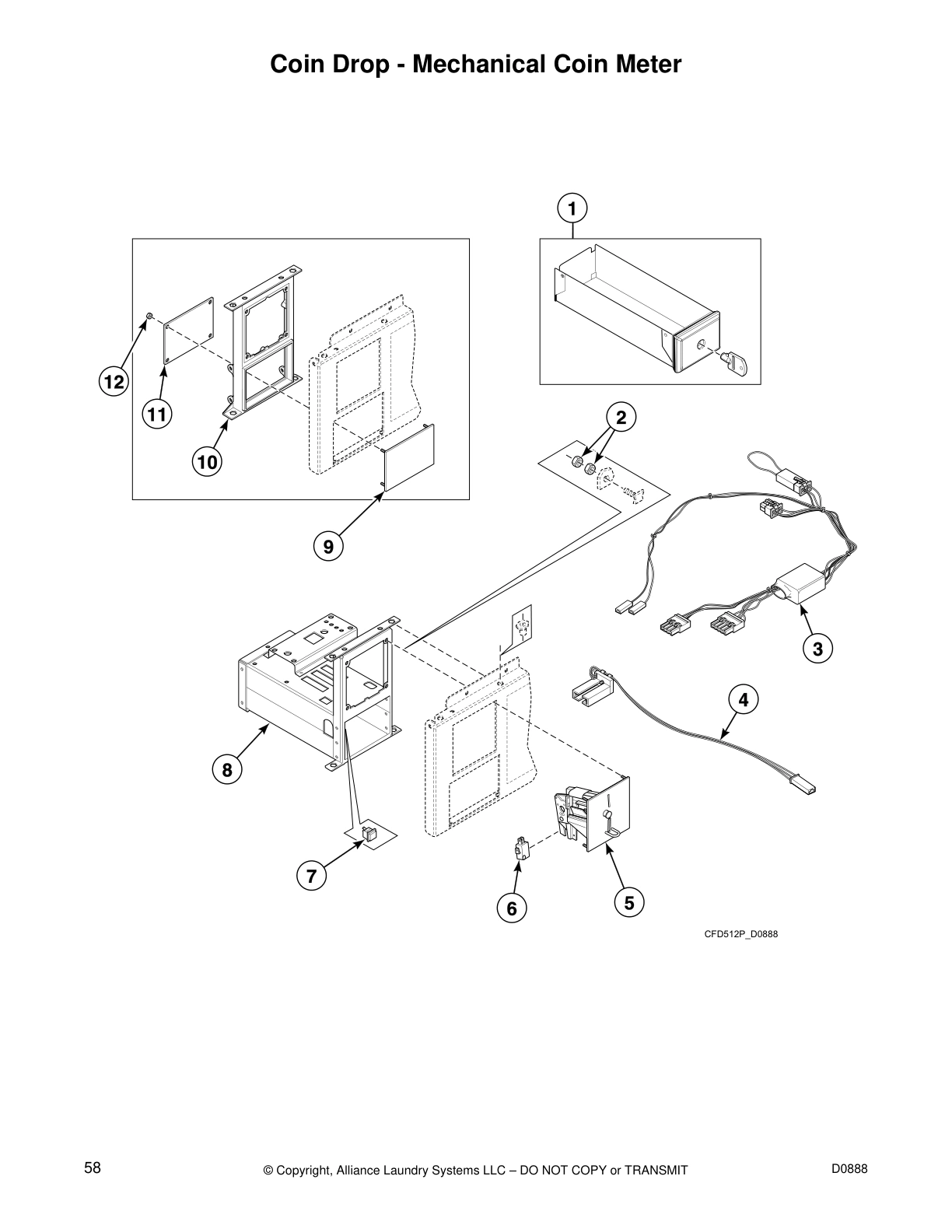

Coin Drop - Mechanical Coin Meter

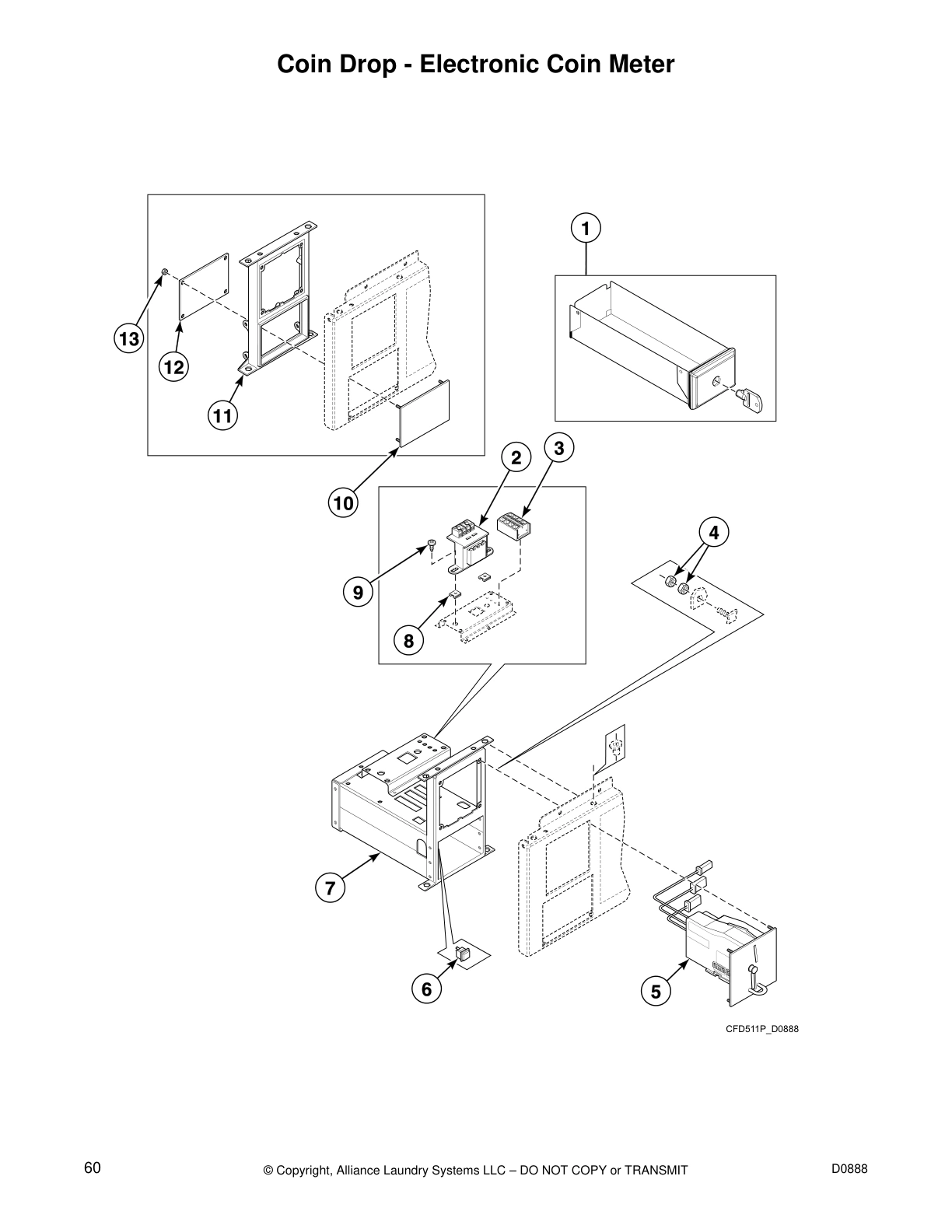

Coin Drop - Electronic Coin Meter

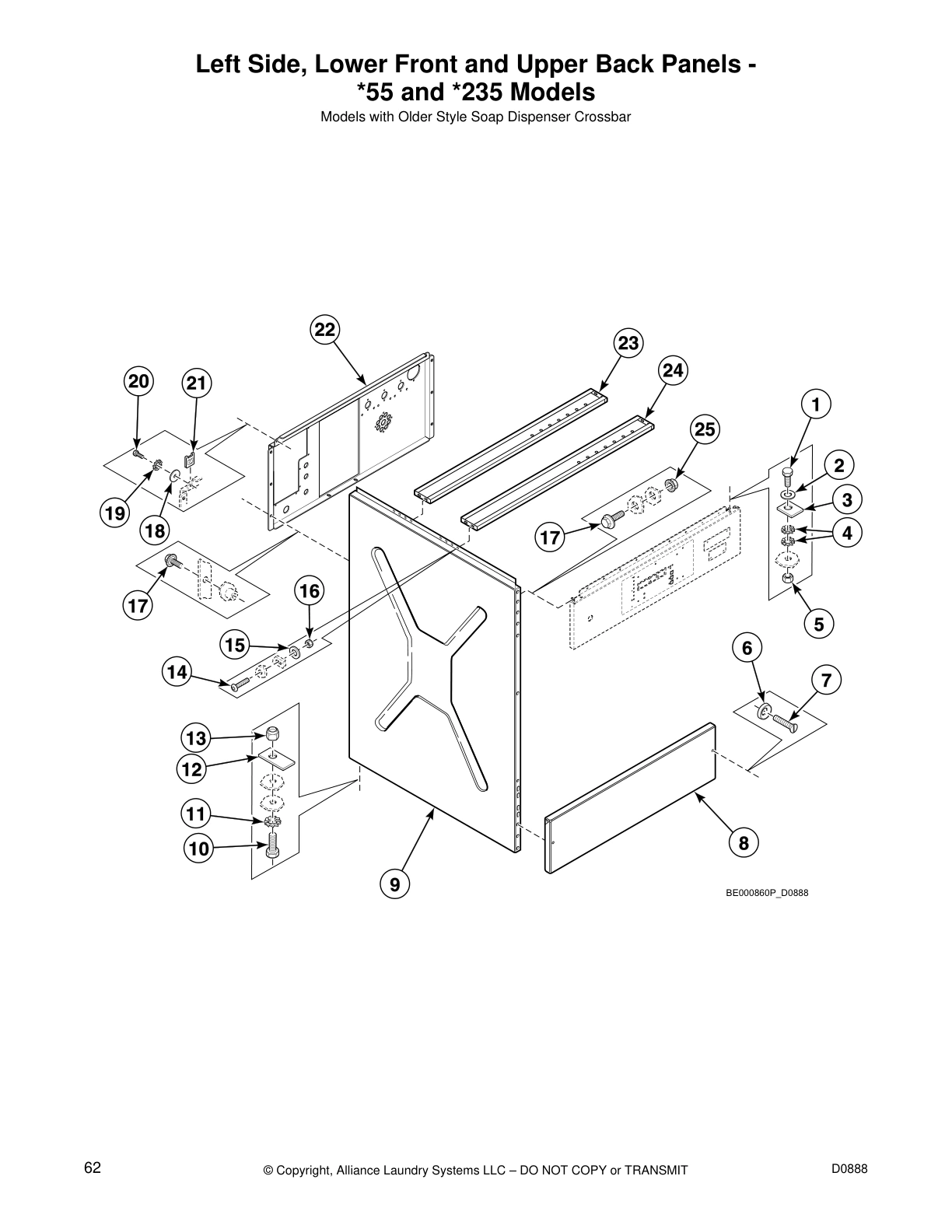

Left Side, Lower Front and Upper Back Panels -
*55 and *235 Models

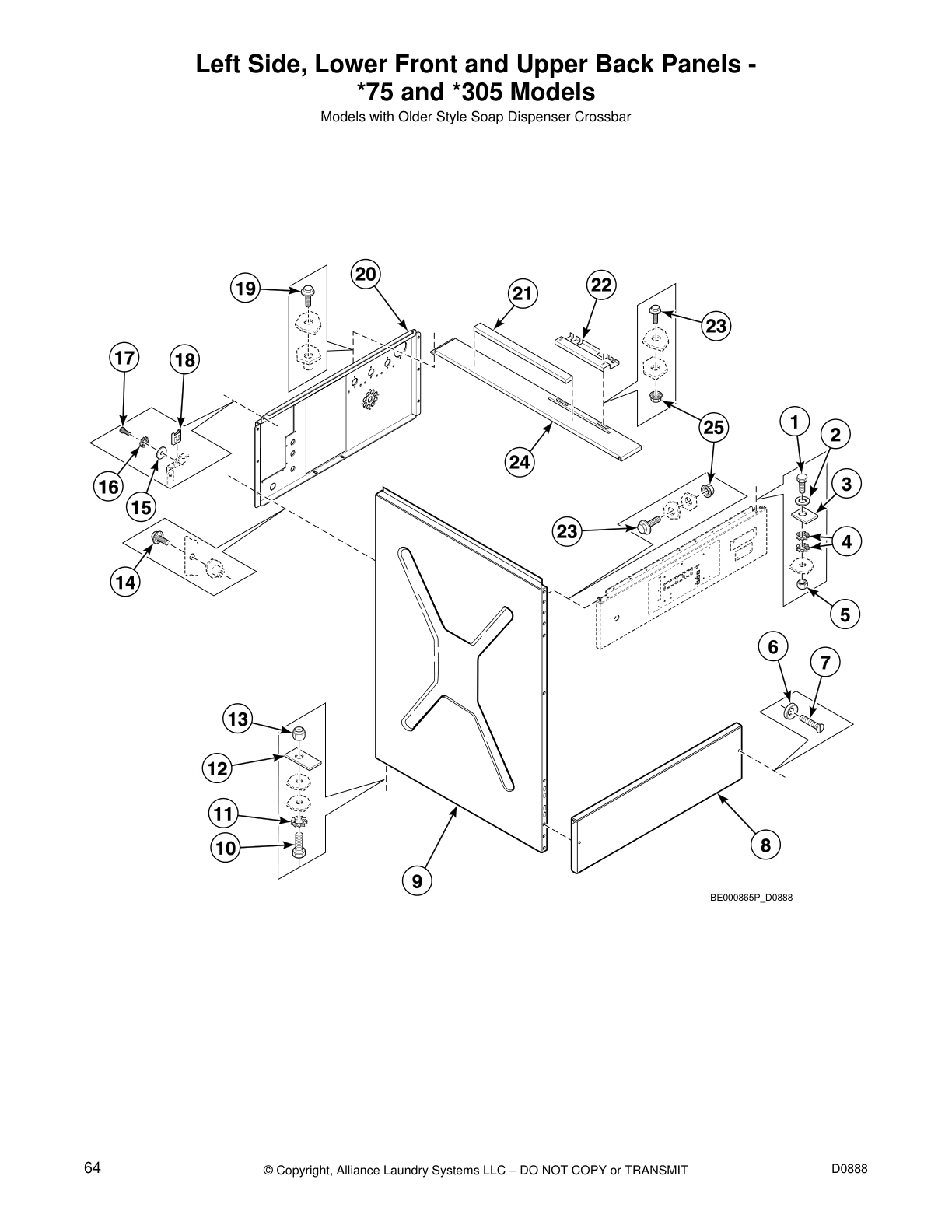

Left Side, Lower Front and Upper Back Panels -
*75 and *305 Models

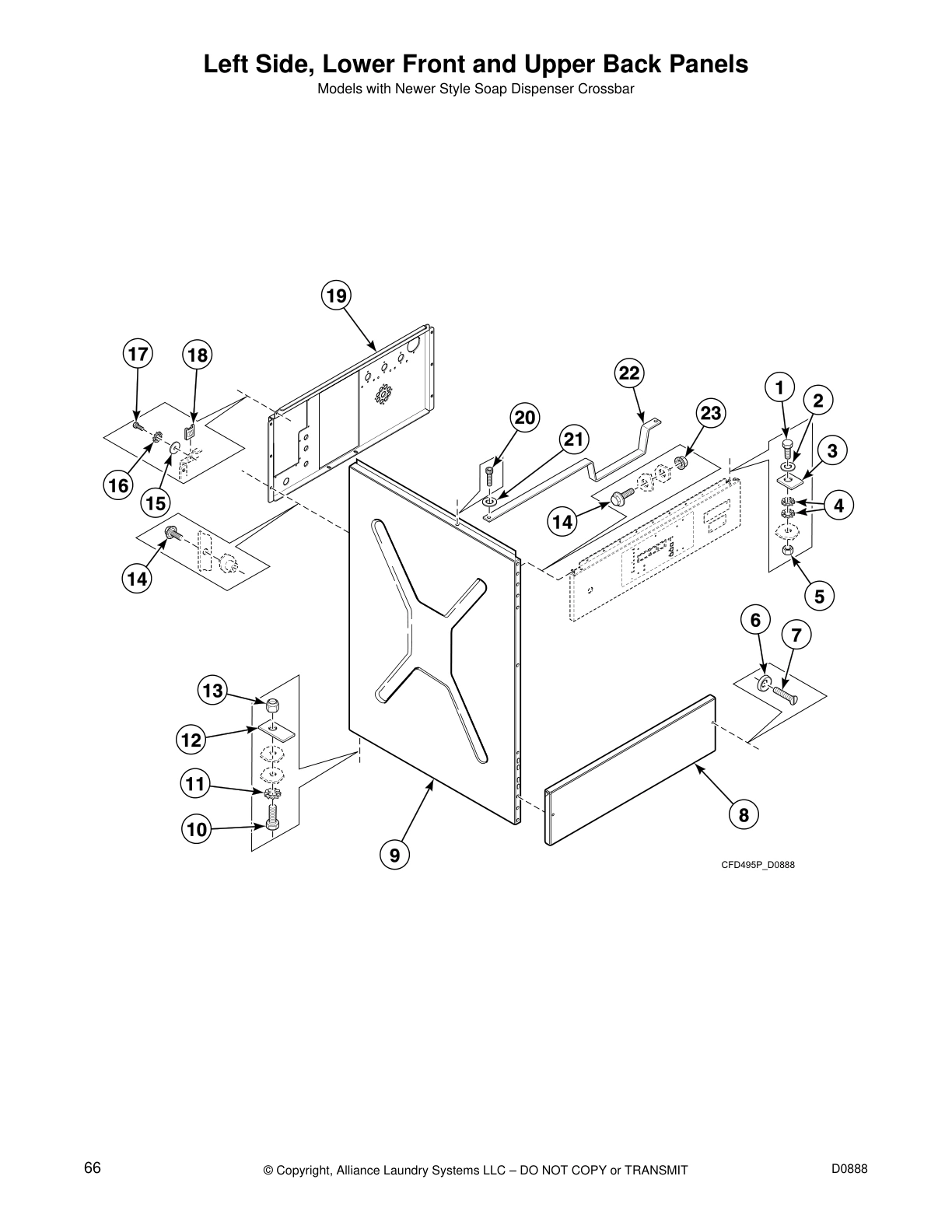

Left Side, Lower Front and Upper Back Panels

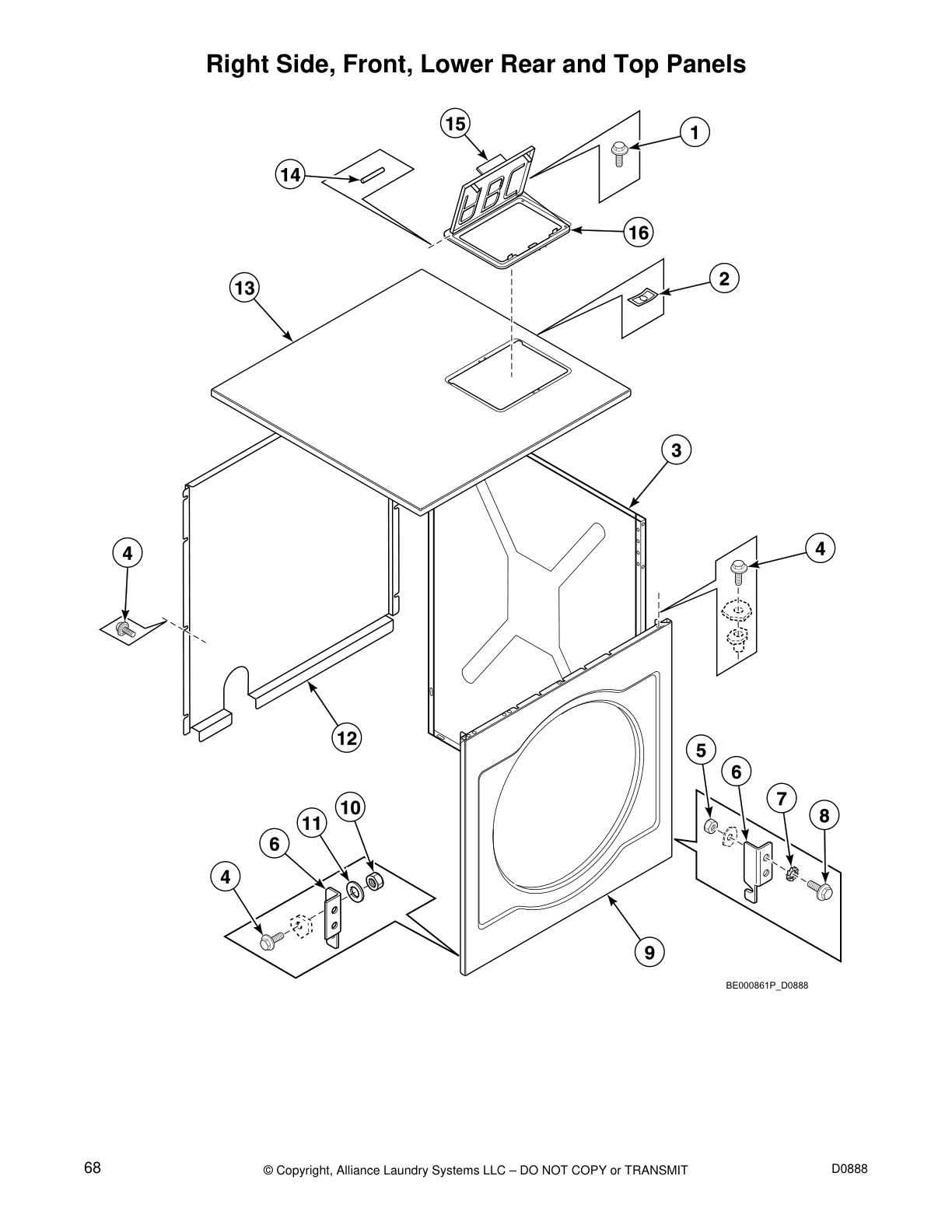

Right Side, Front, Lower Rear and Top Panels

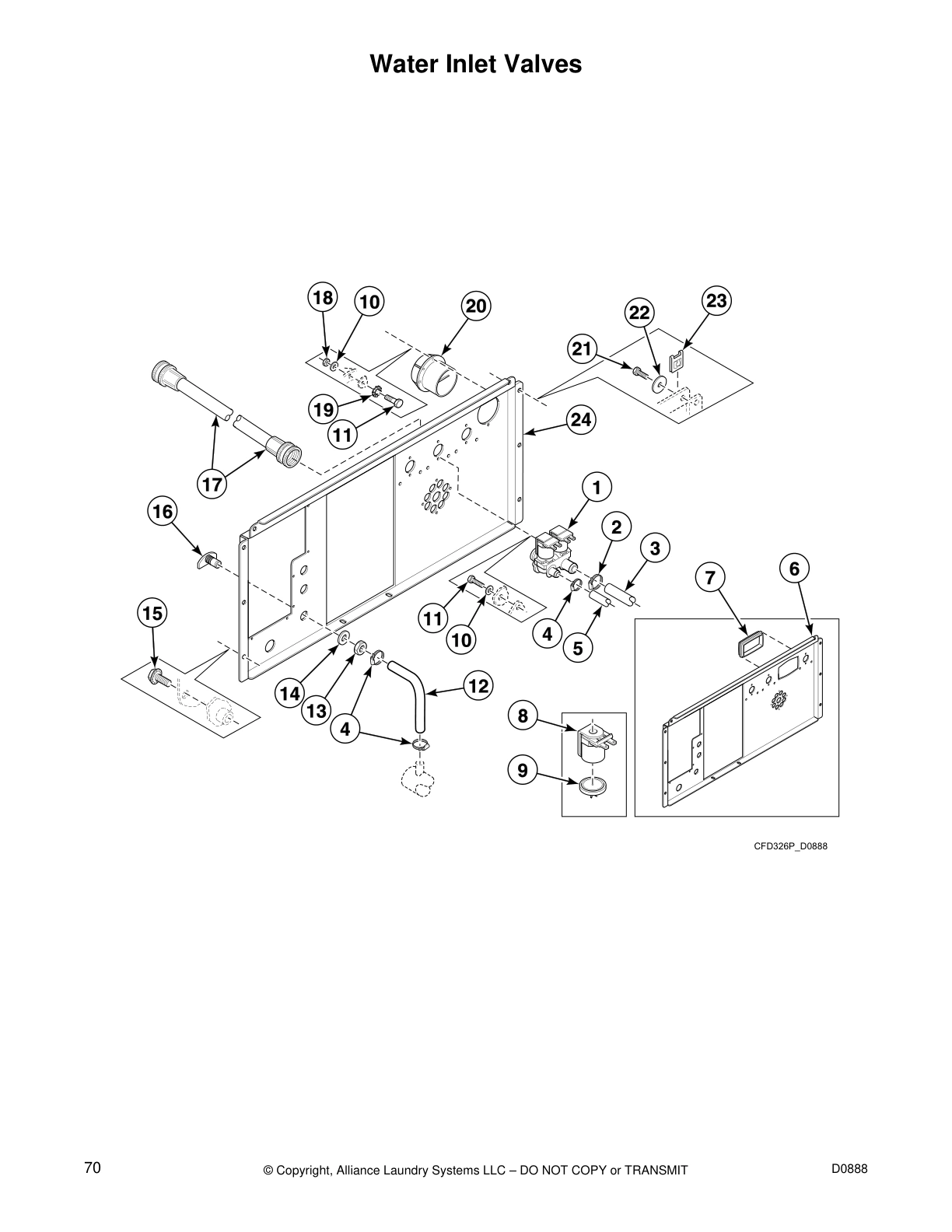

Water Inlet Valves

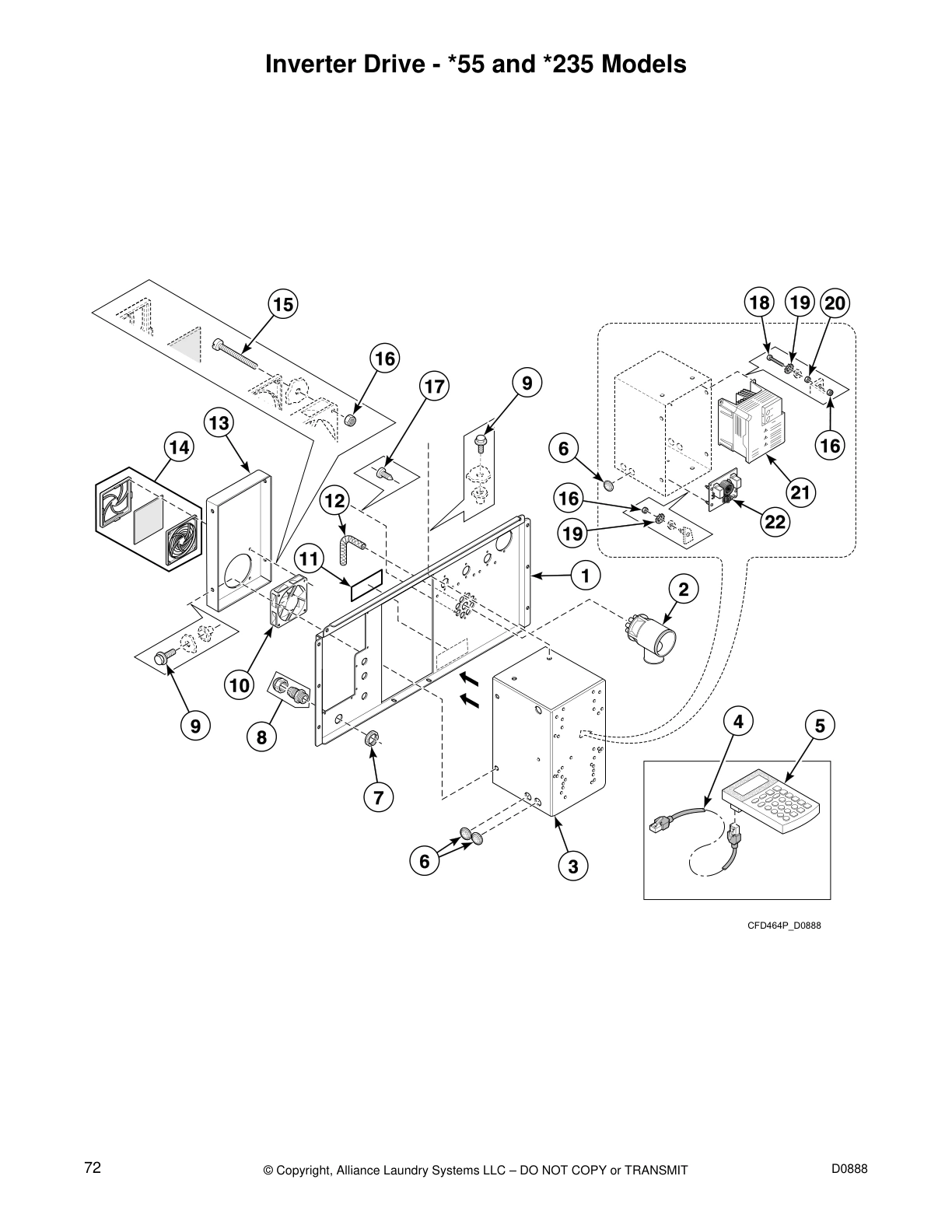

Inverter Drive - *55 and *235 Models

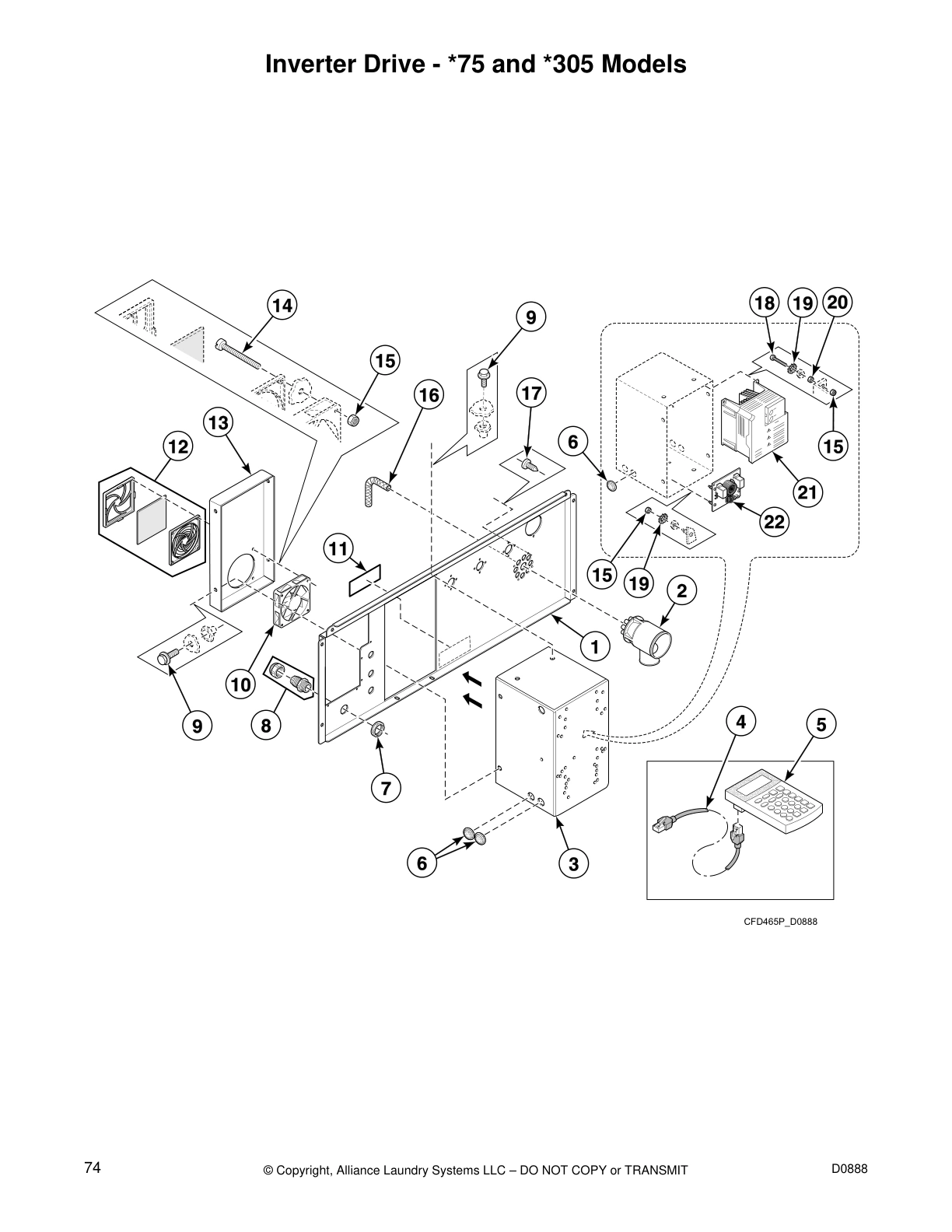

Inverter Drive - *75 and *305 Models

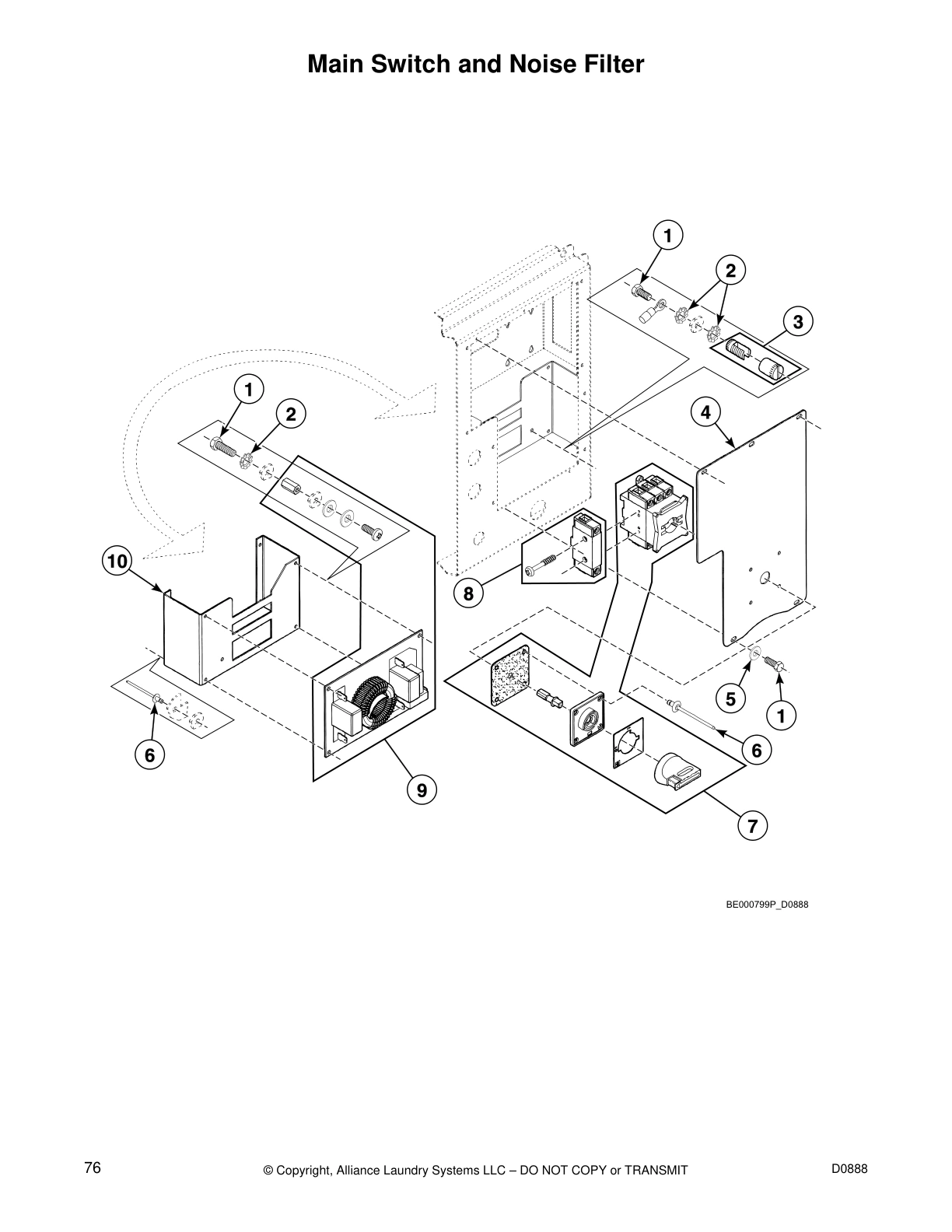

Main Switch and Noise Filter

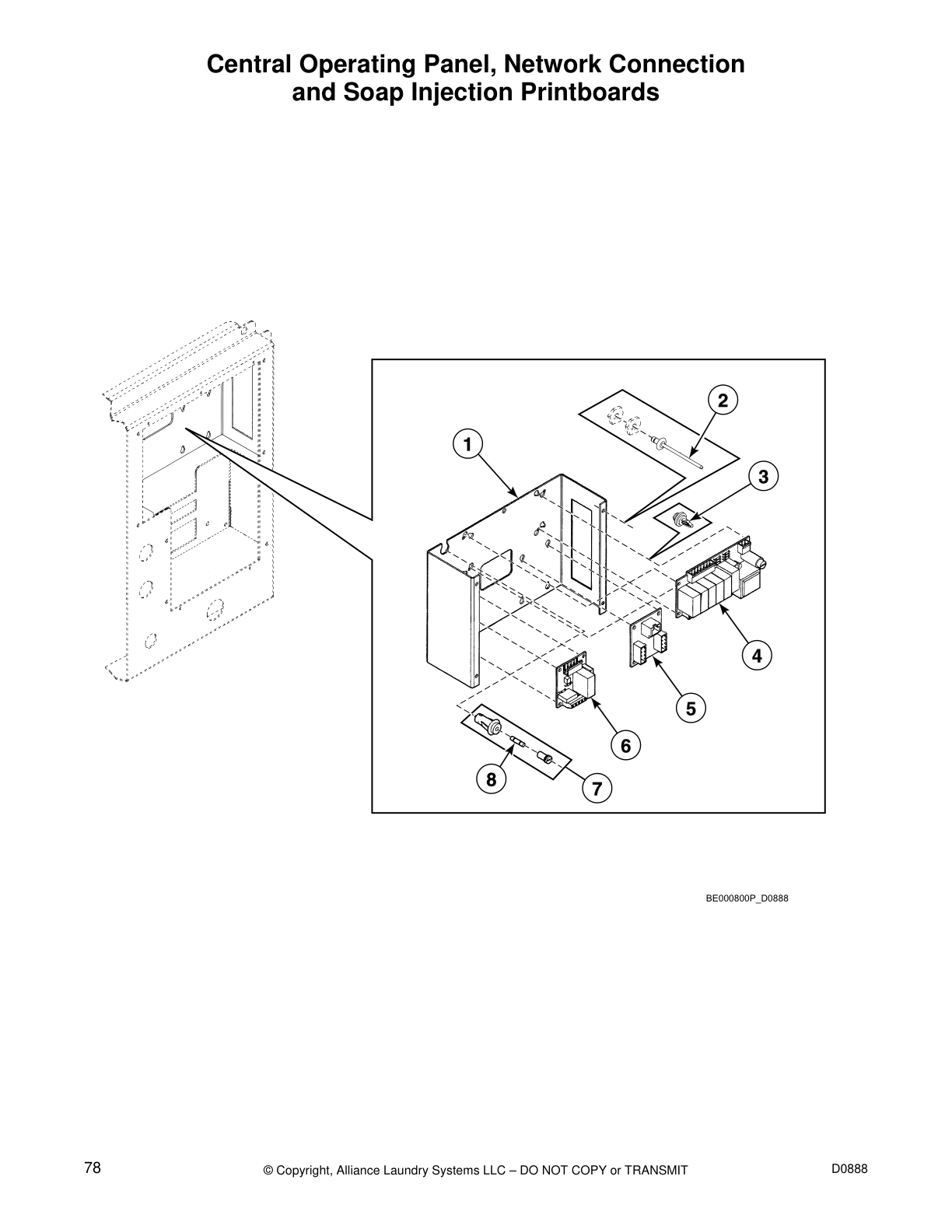

Central Operating Panel, Network Connection
and Soap Injection Printboards

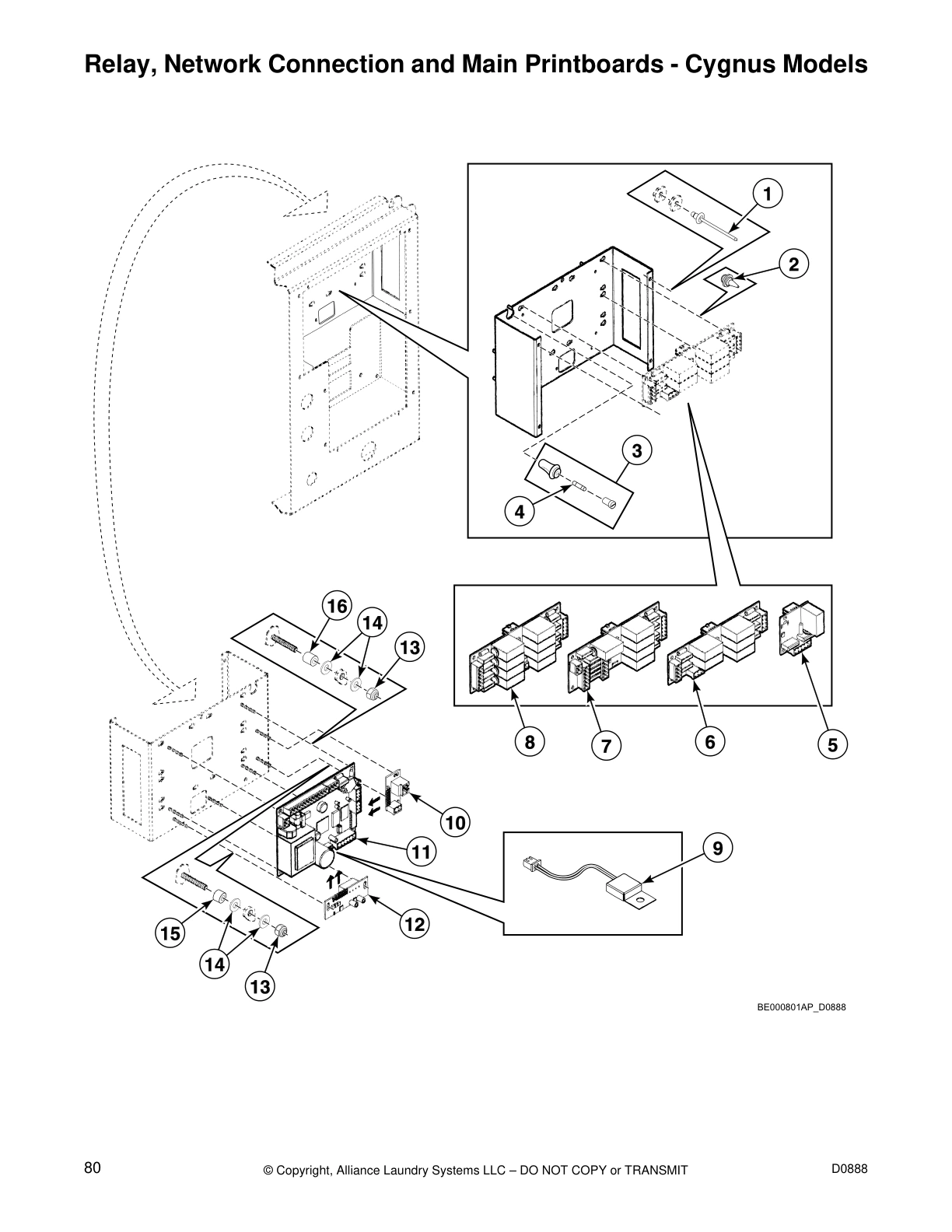

Relay, Network Connection and Main Printboards - Cygnus Models

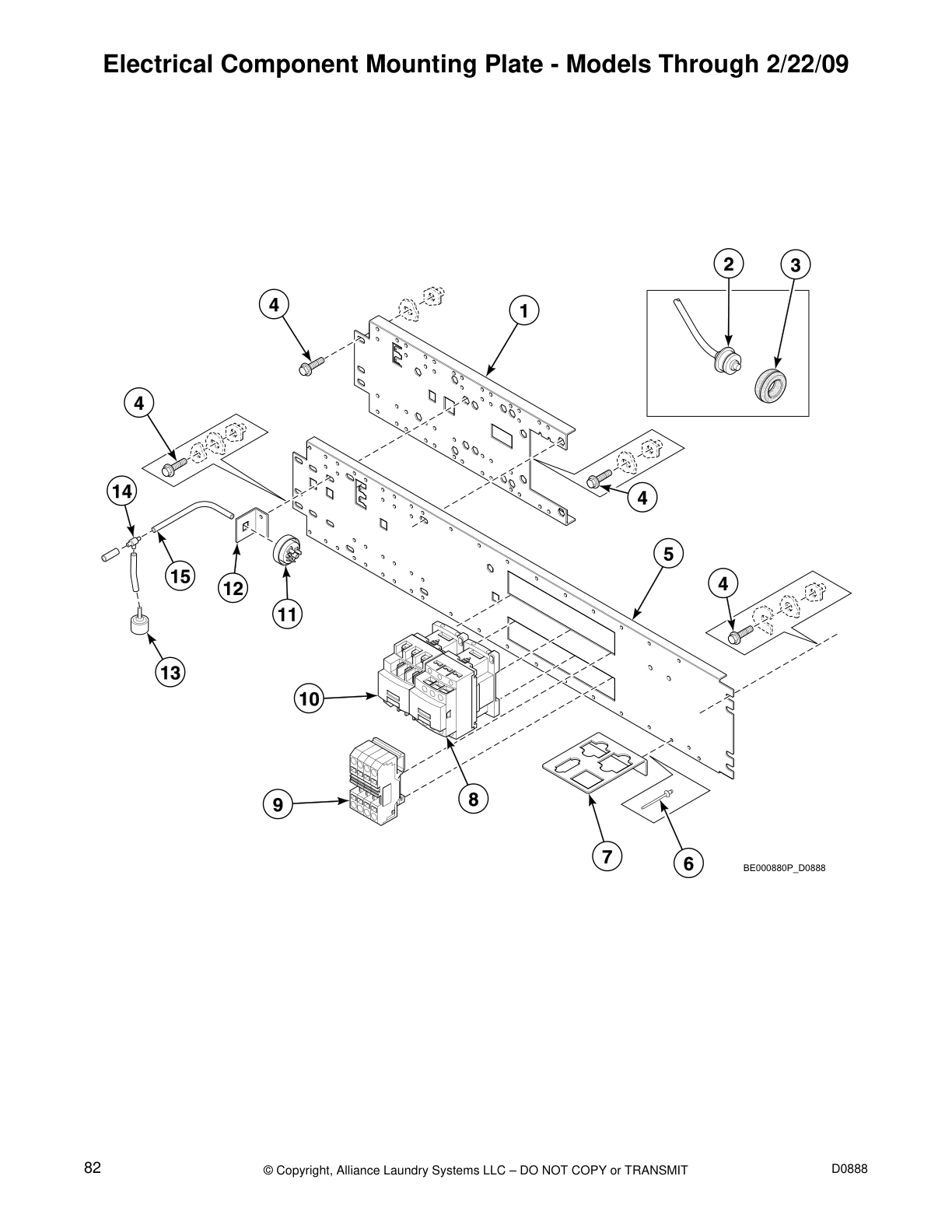

Electrical Component Mounting Plate - Models Through 2/22/09

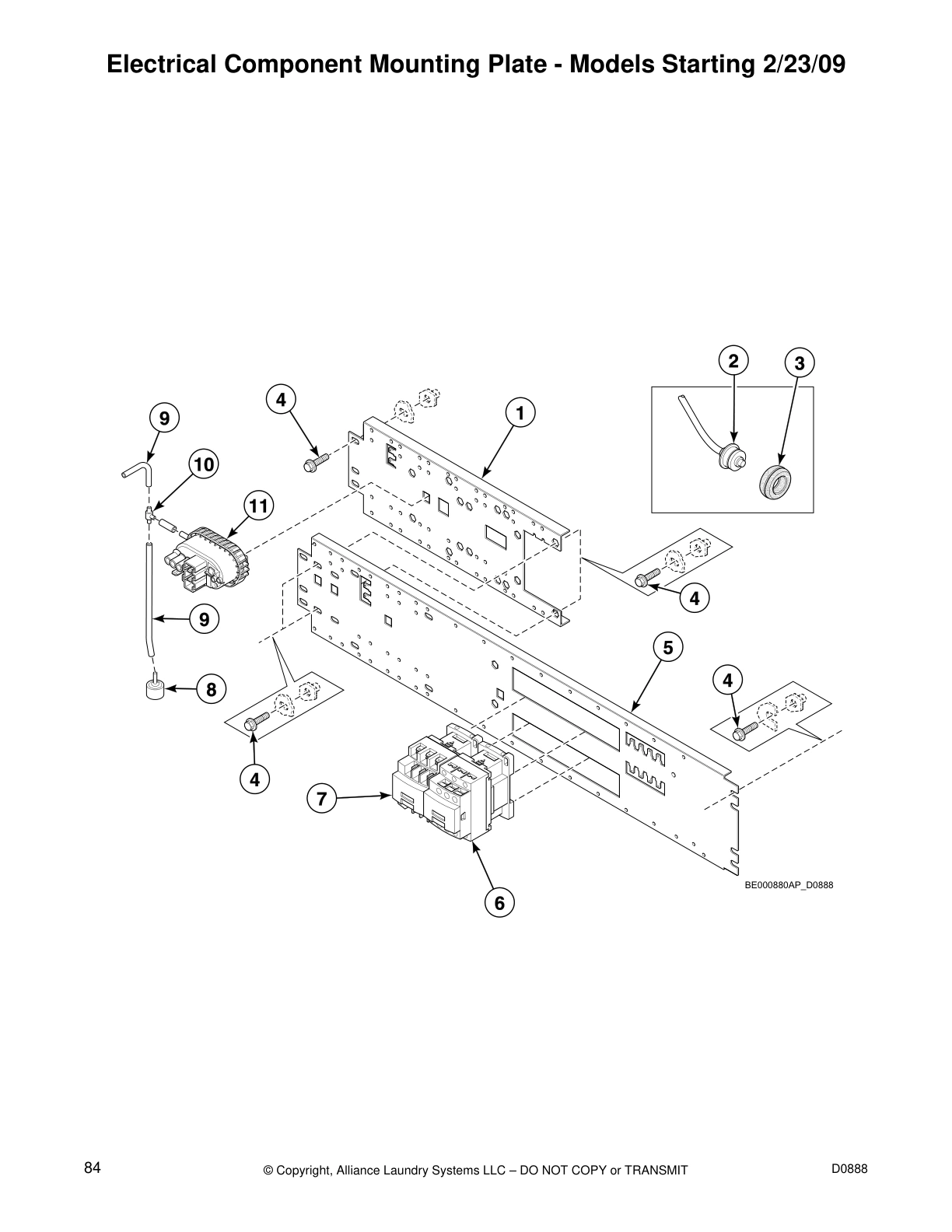

Electrical Component Mounting Plate - Models Starting 2/23/09

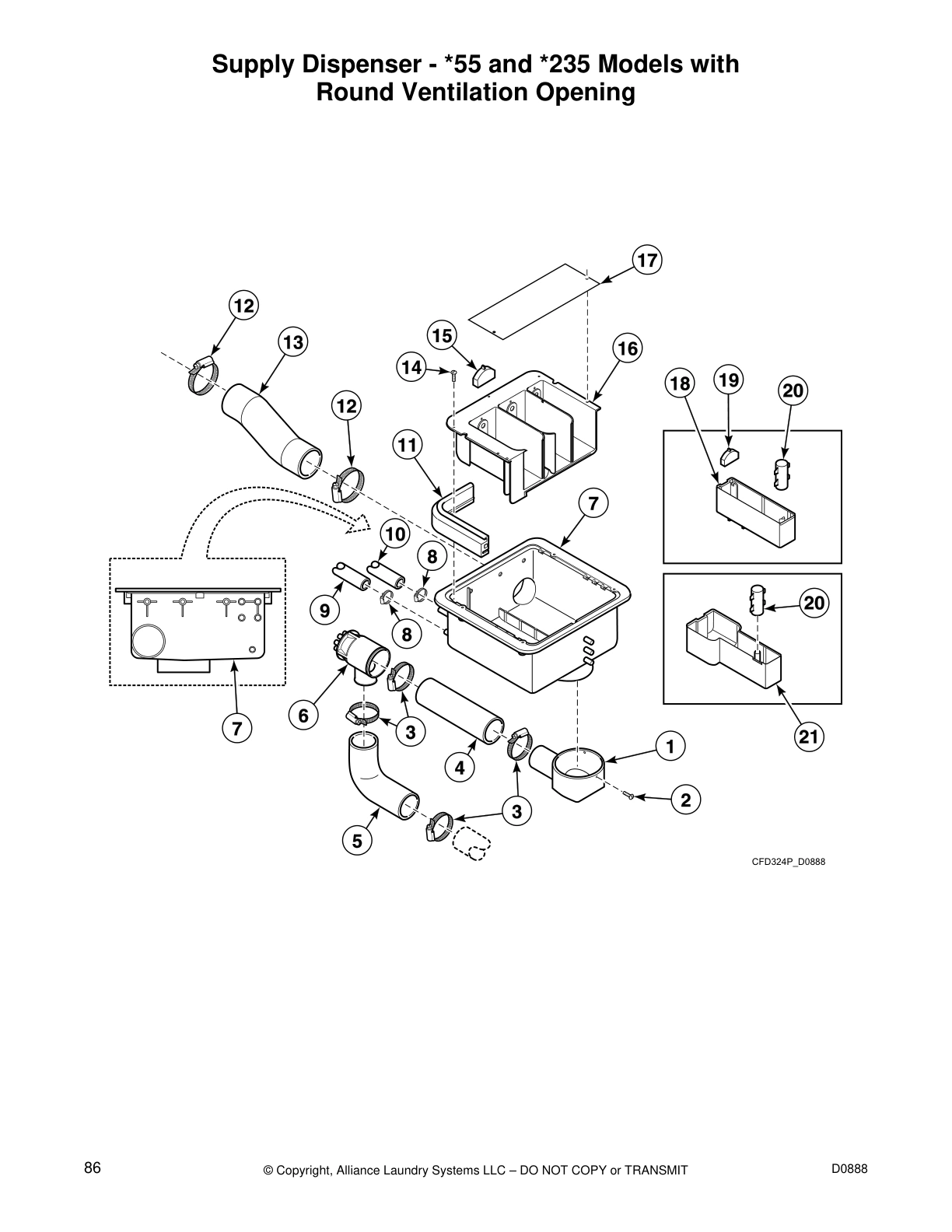

Supply Dispenser - *55 and *235 Models with
Round Ventilation Opening
Supply Dispenser - *75 and *305 Models with
Round Ventilation Opening

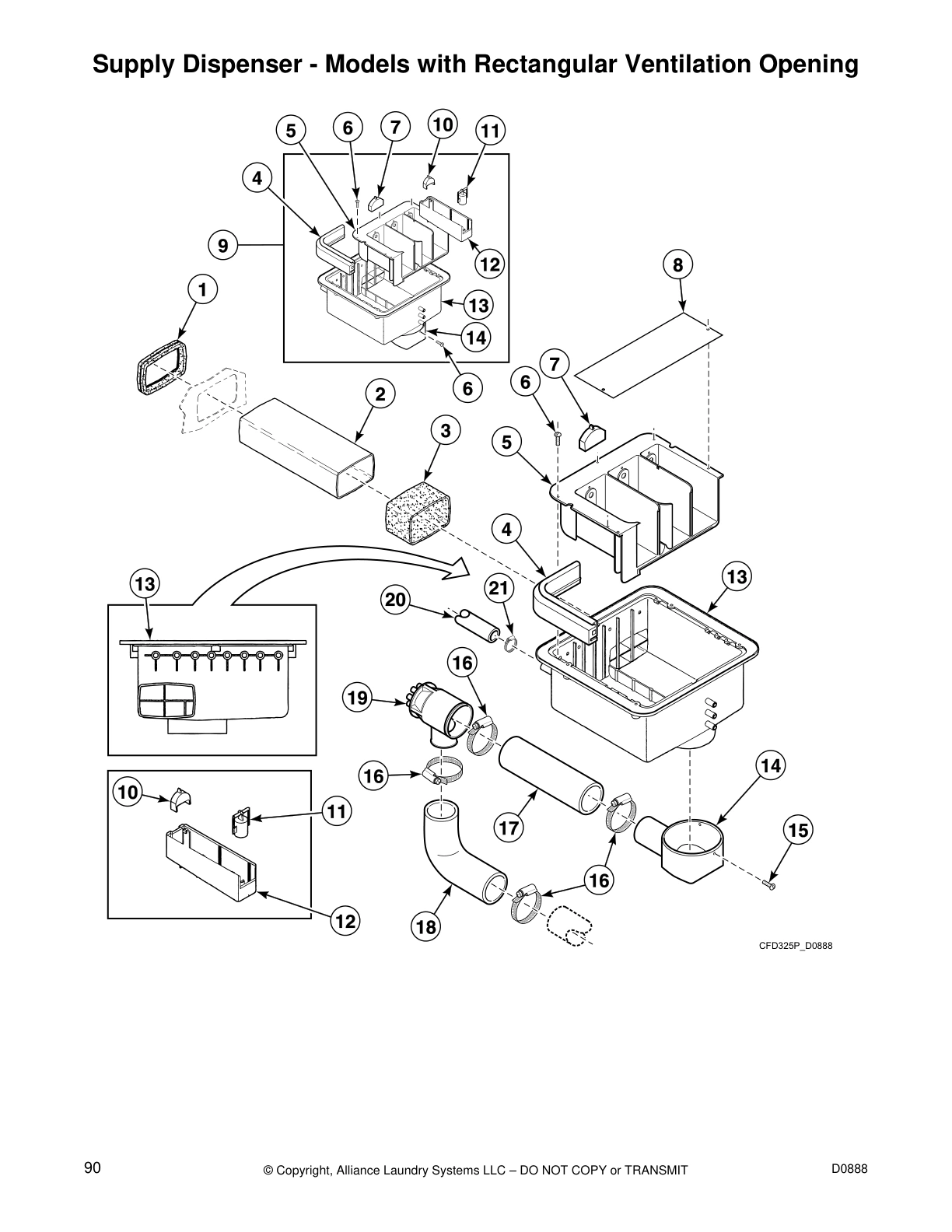

Supply Dispenser - Models with Rectangular Ventilation Opening

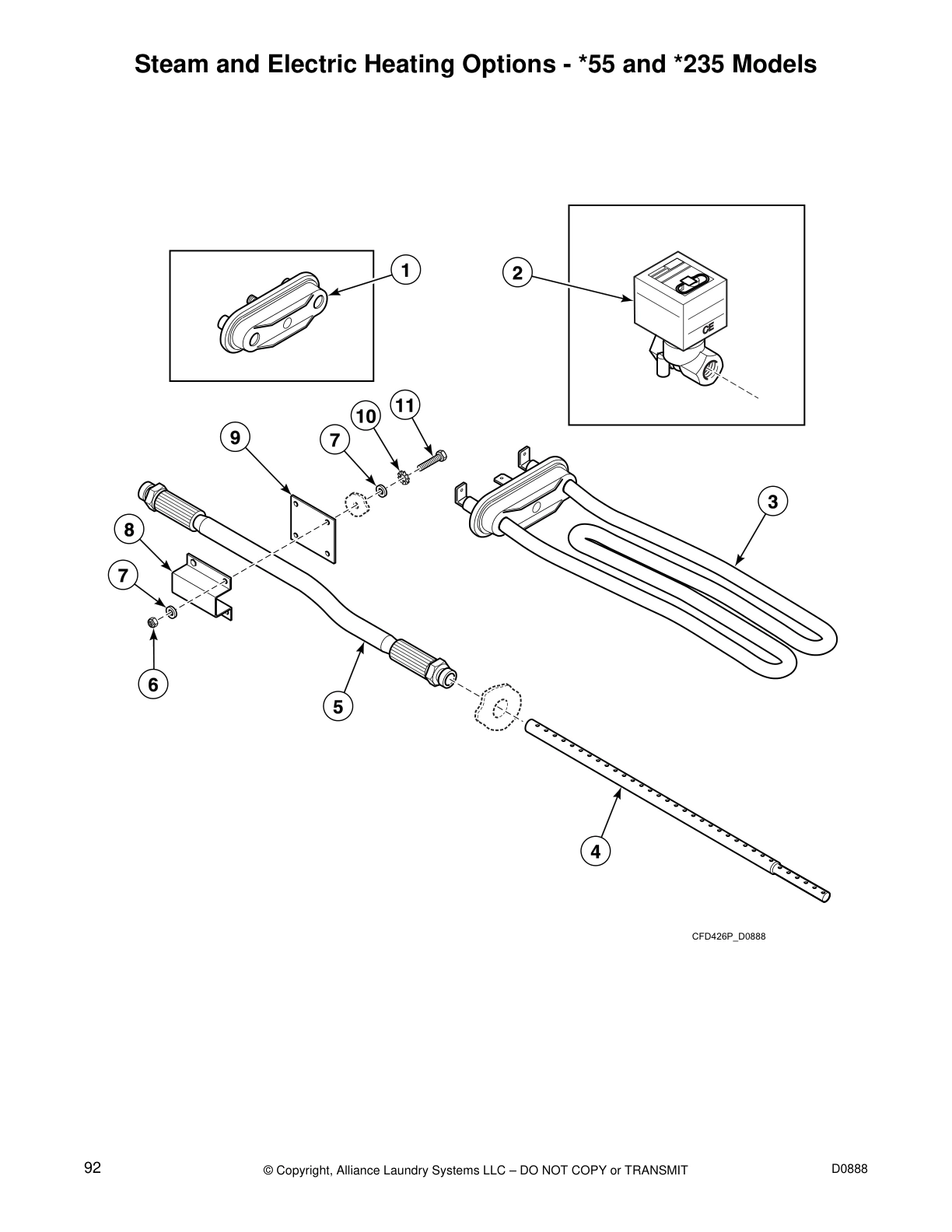

Steam and Electric Heating Options - *55 and *235 Models

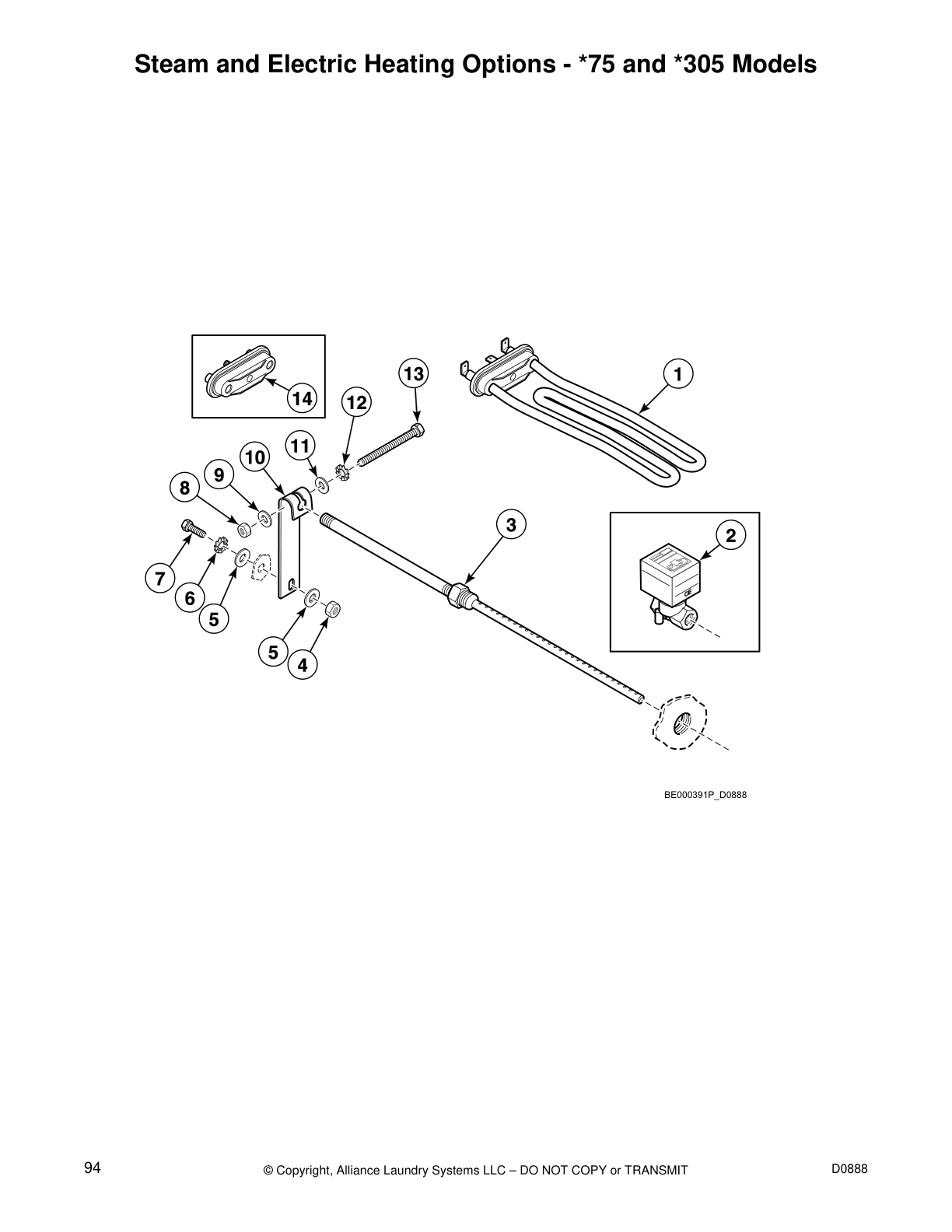

Steam and Electric Heating Options - *75 and *305 Models

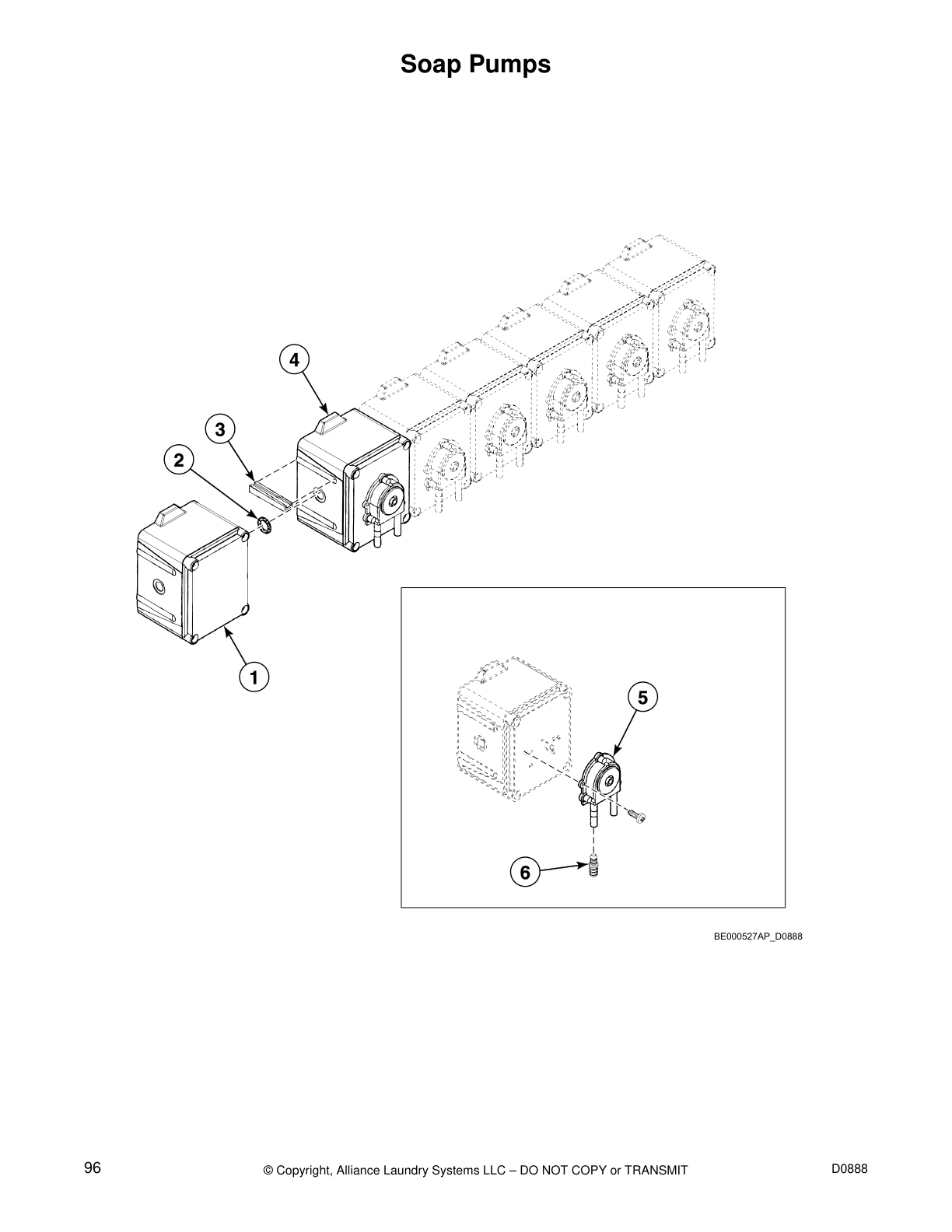

Soap Pumps
Common parts from model IPSO IWF075SRM Washer
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Tub Fastening Ring SPQ 212/00117/00 Contact Us For Availability
1
Shaft Seal SPQ 231/00037/00 Contact Us For Availability
1
Belt SPQ 226/00134/00 Contact Us For Availability
1
Tub to Drain Valve Hose SPQ 223/00327/00 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Backbridge SPQ 111/00304/00 Contact Us For Availability
1
Screw SPQ 207/00112/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Bolt SPQ 206/00027/00 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 111/10003/40 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
2
Seal Cover Plate SPQ 212/00103/01 Contact Us For Availability
2
Shaft Seal SPQ 132/00009/00 Contact Us For Availability
2
SPQ B12331601 SPQ B12331601 Contact Us For Availability
2
Steam Injector SPQ 202/00002/00 Contact Us For Availability
2
Washer SPQ 206/00005/00 Contact Us For Availability
2
Washer SPQ 203/00006/00 Contact Us For Availability
2
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
2
SPQ 111/00117/00 SPQ 111/00117/00 Contact Us For Availability
2
Side Panel SPQ 208/00104/00 Contact Us For Availability
2
Standoff SPQ 211/00146/00 Contact Us For Availability
2
Water Hose SPQ 223/00229/00 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
3
Nut SPQ 203/00003/00 Contact Us For Availability
3
Grease Ring SPQ 212/00002/00 Contact Us For Availability
3
Roller Bearing SPQ 212/00005/00 Contact Us For Availability
3
Motor Plate SPQ 201/00004/00 Contact Us For Availability
3
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
3
Bolt SPQ 118/00125/00 Contact Us For Availability
3
Bolt SPQ 111/60038/50 Contact Us For Availability
3
Inverter Kit SPQ F8420517 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Fuse Holder SPQ 209/00202/01 Contact Us For Availability
3
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
3
Outer and Inner Box Kit SPQ 223/00245/00 Contact Us For Availability
4
Bolt SPQ 206/00099/00 Contact Us For Availability
4
Retainer Ring SPQ 201/00202/00 Contact Us For Availability
4
SPQ 206/00052/00 SPQ 206/00052/00 Contact Us For Availability
4
SPQ 206/00110/00 SPQ 206/00110/00 Contact Us For Availability
4
Door Hinge Plate Assembly SPQ 217/00021/00 Contact Us For Availability
4
SPQ 223/00016/00 SPQ 223/00016/00 Contact Us For Availability
4
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
4
Nut SPQ 204/00008/00 Contact Us For Availability
4
Noise Filter SPQ F8420418 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
Fuse SPQ 209/00468/00 Contact Us For Availability
4
Soap Spray Nozzle SPQ 223/00109/00 Contact Us For Availability
4
Steam Heat Kit SPQ 206/00035/00 Contact Us For Availability
5
Chassis SPQ 206/00079/00 Contact Us For Availability
5
Roller Bearing SPQ 131/00035/00 Contact Us For Availability
5
Screw SPQ 207/00004/00 Contact Us For Availability
5
SPQ 201/00010/00 SPQ 201/00010/00 Contact Us For Availability
5
SPQ 223/00210/00 SPQ 223/00210/00 Contact Us For Availability
5
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
5
Door Hinge Block SPQ 202/00101/00 Contact Us For Availability
5
SPQ 204/00006/00 SPQ 204/00006/00 Contact Us For Availability
5
Rivet SPQ 202/00004/00 Contact Us For Availability
5
Front Panel SPQ 204/00107/00 Contact Us For Availability
5
Inverter Drive Box SPQ F8420417 Contact Us For Availability
5
Electrical Component Bridge SPQ 111/10005/00 Contact Us For Availability
5
Anti-Splash Plate SPQ 223/00222/60 Contact Us For Availability
5
SPQ 209/00476/00 SPQ 209/00476/00 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
6
Screw SPQ 212/00112/50 Contact Us For Availability
6
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
6
Bearing Housing Plate SPQ 231/00036/00 Contact Us For Availability
6
SPQ 115/10305/00 SPQ 115/10305/00 Contact Us For Availability
6
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
6
SPQ 111/10089/01 SPQ 111/10089/01 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Soap Dispenser SPQ B12347501 Contact Us For Availability
6
SPQ 119/00089/00 SPQ 119/00089/00 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
Bearing Replacement Kit SPQ 212/00007/00 Contact Us For Availability
7
Bolt SPQ 206/00004/00 Contact Us For Availability
7
SPQ 271/35945/00 SPQ 271/35945/00 Contact Us For Availability
7
SPQ 209/00643/01 SPQ 209/00643/01 Contact Us For Availability
7
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
7
SPQ 207/00101/00 SPQ 207/00101/00 Contact Us For Availability
7
Parameter Unit Assembly SPQ 111/01149/00 Contact Us For Availability
7
Support Connector SPQ 208/00017/00 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
SPQ 223/00102/40 SPQ 223/00102/40 Contact Us For Availability
7
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
7
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
8
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
8
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
8
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
8
SPQ 204/00110/00 SPQ 204/00110/00 Contact Us For Availability
8
SPQ 209/00644/00 SPQ 209/00644/00 Contact Us For Availability
8
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
8
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
8
SPQ 111/00333/00 SPQ 111/00333/00 Contact Us For Availability
8
SPQ 206/00016/00 SPQ 206/00016/00 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
8
SPQ 223/00102/60 SPQ 223/00102/60 Contact Us For Availability
8
SPQ 123/00107/00 SPQ 123/00107/00 Contact Us For Availability
9
SPQ 206/00007/00 SPQ 206/00007/00 Contact Us For Availability
9
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
9
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
9
SPQ 231/00010/00 SPQ 231/00010/00 Contact Us For Availability
9
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
9
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
9
SPQ 111/60038/00 SPQ 111/60038/00 Contact Us For Availability
9
SPQ 111/00332/00 SPQ 111/00332/00 Contact Us For Availability
9
Grommet SPQ 227/00171/10 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
SPQ 223/00240/00 SPQ 223/00240/00 Contact Us For Availability
10
U-Piece Assembly SPQ 113/00068/00 Contact Us For Availability
10
Drum Pulley SPQ 226/00127/00 Contact Us For Availability
10
Tub Strap SPQ 131/00010/00 Contact Us For Availability
10
Nut SPQ 204/00115/00 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Door Hinge Spacer SPQ 118/00124/00 Contact Us For Availability
10
Washer SPQ 205/00105/00 Contact Us For Availability
10
Water Hose SPQ 223/00059/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Connection Clamp SPQ 209/00622/01 Contact Us For Availability
10
Softener Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
10
Steam Injector Bracket SPQ 209/00562/20 Contact Us For Availability
11
Bolt SPQ 206/00093/00 Contact Us For Availability
11
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
11
Screw SPQ 207/00126/00 Contact Us For Availability
11
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
11
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
11
Siphon Break SPQ 223/00222/04 Contact Us For Availability
11
Washer SPQ 209/00581/10 Contact Us For Availability
12
Washer SPQ 201/00001/00 Contact Us For Availability
12
Key SPQ 212/00026/00 Contact Us For Availability
12
Front Panel SPQ 131/00002/00 Contact Us For Availability
12
Bolt SPQ 206/00054/00 Contact Us For Availability
12
Bolt SPQ 205/00103/00 Contact Us For Availability
12
Washer SPQ 202/00104/00 Contact Us For Availability
12
Nut SPQ 101/00007/00 Contact Us For Availability
12
Back Panel SPQ 111/00335/00 Contact Us For Availability
12
Filter SPQ 209/00287/21 Contact Us For Availability
12
Terminal Block SPQ 209/00619/01 Contact Us For Availability
12
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
12
Rinsing Box SPQ 223/00222/05 Contact Us For Availability
12
Bolt SPQ 209/00564/20 Contact Us For Availability
13
Nut SPQ 204/00010/00 Contact Us For Availability
13
Screw SPQ 204/00009/00 Contact Us For Availability
13
Tub Front Gasket SPQ 223/00242/00 Contact Us For Availability
13
Drain Valve to Drain Tube Hose SPQ 223/00328/00 Contact Us For Availability
13
Nut SPQ 204/00201/00 Contact Us For Availability
13
Electrical Component Plate SPQ 209/01625/00 Contact Us For Availability
13
Vent Hose SPQ 223/00388/00 Contact Us For Availability
13
Steam Valve SPQ 113/00028/00 Contact Us For Availability
14
Drum SPQ B12327301 Contact Us For Availability
14
Prewash and Mainwash Nozzle SPQ 201/00002/00 Contact Us For Availability
14
Screw SPQ 207/00009/00 Contact Us For Availability
14
Pressure Switch Cap SPQ 111/10004/00 Contact Us For Availability
14
Dispenser Drain Funnel SPQ 223/00196/00 Contact Us For Availability
15
Bearing Cover SPQ 112/00003/00 Contact Us For Availability
15
Bolt SPQ 206/00029/00 Contact Us For Availability
15
Intermediate Fan Motor Plate SPQ 111/00243/00 Contact Us For Availability
15
Door Lock Bracket SPQ 201/00018/00 Contact Us For Availability
15
Inverter Box Cover SPQ 111/01158/11 Contact Us For Availability
15
Screw SPQ B12350903 Contact Us For Availability
16
Washer SPQ 203/00001/00 Contact Us For Availability
16
Ball Bearing SPQ 206/00010/00 Contact Us For Availability
16
Hose Clamp SPQ 223/00071/00 Contact Us For Availability
16
Overflow Hose SPQ 206/00033/00 Contact Us For Availability
16
Hose Vent SPQ 223/00001/04 Contact Us For Availability
16
Microswitch SPQ 217/00052/11 Contact Us For Availability
16
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
16
Nut SPQ 204/00114/00 Contact Us For Availability
16
Soap Dispenser Assembly SPQ 223/00102/30 Contact Us For Availability
17
Nut SPQ 204/00002/00 Contact Us For Availability
17
Motor SPQ B12510901 Contact Us For Availability
17
Pressure Switch Hose Tee SPQ 223/00106/00 Contact Us For Availability
17
Lock Shaft SPQ 205/00115/00 Contact Us For Availability
17
Screw SPQ F200166 Contact Us For Availability
17
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
17
Siphon Break Dispenser Hose SPQ 223/00264/00 Contact Us For Availability
18
Tub SPQ 201/00009/00 Contact Us For Availability
18
Motor Pulley SPQ 226/00131/00 Contact Us For Availability
18
Prewash and Mainwash Nozzle SPQ 223/00013/00 Contact Us For Availability
18
Side Panel SPQ 208/00025/00 Contact Us For Availability
18
Backbridge SPQ F200164 Contact Us For Availability
18
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
19
Lubricator SPQ 212/00103/00 Contact Us For Availability
19
Tub Front Ring Clamp SPQ 204/00003/00 Contact Us For Availability
19
Water Hose SPQ 223/00131/00 Contact Us For Availability
19
Screw SPQ 208/00130/00 Contact Us For Availability
19
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
20
SPQ B12331501 SPQ B12331501 Contact Us For Availability
20
SPQ 223/00011/00 SPQ 223/00011/00 Contact Us For Availability
20
Shrink Fit SPQ 223/00044/00 Contact Us For Availability
20
Interlock Coil Spring SPQ 217/00017/03 Contact Us For Availability
20
SPQ 206/00166/00 SPQ 206/00166/00 Contact Us For Availability
20
Liquid Soap Dispenser Insert SPQ 223/00102/04 Contact Us For Availability
21
SPQ B12331401 SPQ B12331401 Contact Us For Availability
21
Soap Dispenser Gasket SPQ 223/00010/00 Contact Us For Availability
21
Interlock Lever SPQ 209/00703/50 Contact Us For Availability
21
Drive SPQ 204/00007/00 Contact Us For Availability
21
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
21
Siphon Break Dispenser Hose SPQ 223/00102/08 Contact Us For Availability
22
SPQ 203/00002/00 SPQ 203/00002/00 Contact Us For Availability
22
Lever Spring SPQ 224/00049/00 Contact Us For Availability
22
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
22
SPQ 111/00156/00 SPQ 111/00156/00 Contact Us For Availability
22
Inverter Kit SPQ F8420518 Contact Us For Availability
23
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
23
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
24
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
24
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
25
SPQ 209/00644/11 SPQ 209/00644/11 Contact Us For Availability
26
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
NI
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
NI
SPQ 381P3 SPQ 381P3 Contact Us For Availability
NI
SPQ 113/00018/02 SPQ 113/00018/02 Contact Us For Availability
NI
SPQ 113/00018/01 SPQ 113/00018/01 Contact Us For Availability
NI
SPQ 892P3 SPQ 892P3 Contact Us For Availability
NI
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
NI
SPQ 206/00066/00 SPQ 206/00066/00 Contact Us For Availability
NI
Bolt SPQ F8410901 Contact Us For Availability
NI
SPQ 211/00171/00 SPQ 211/00171/00 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 227/00180/00 SPQ 227/00180/00 Contact Us For Availability
NI
SPQ 227/00179/00 SPQ 227/00179/00 Contact Us For Availability
NI
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
NI
SPQ 206/00013/00 SPQ 206/00013/00 Contact Us For Availability
NI
SPQ 923P3 SPQ 923P3 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
