Model IPSO IWE050MC2 Washer – Common Parts & Diagrams
Frame

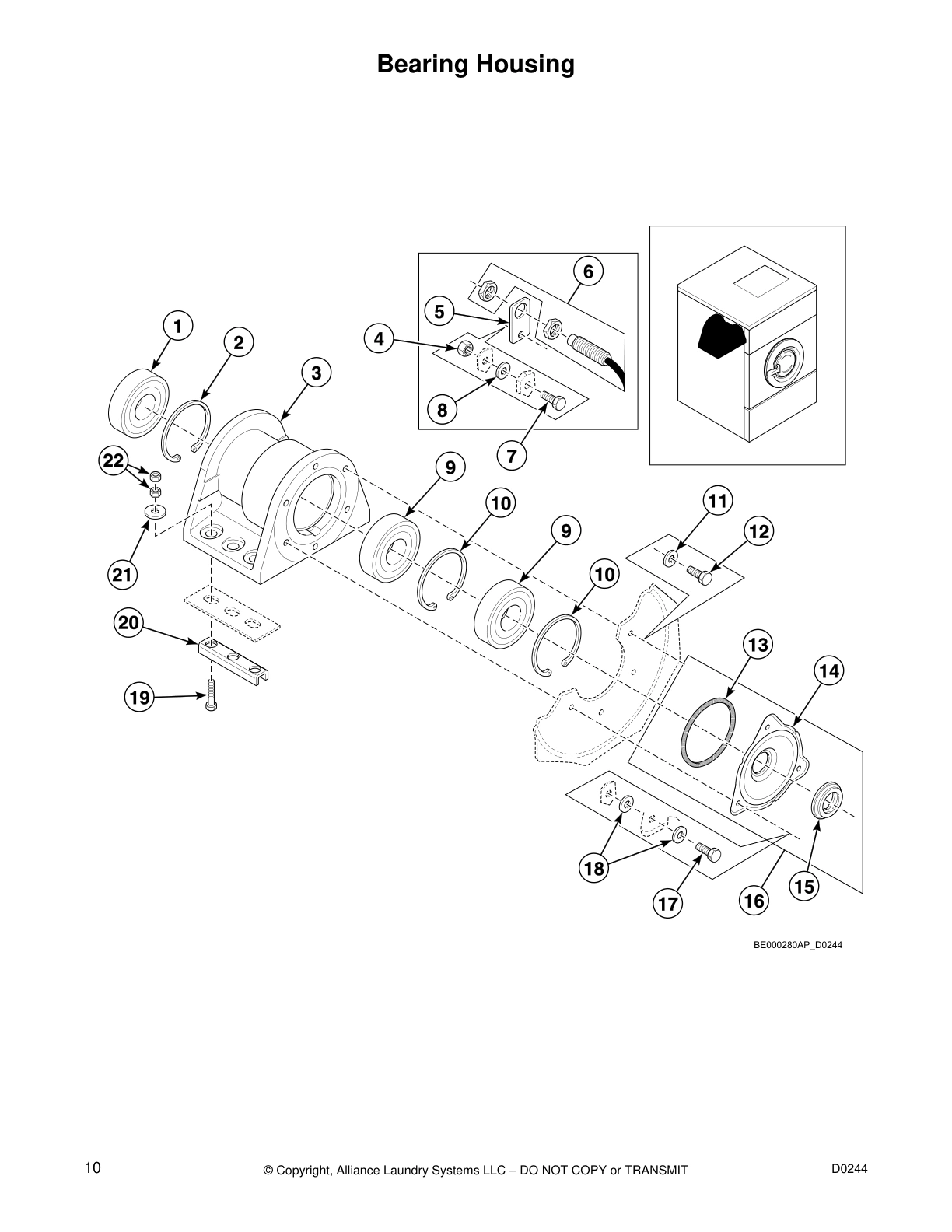

Bearing Housing

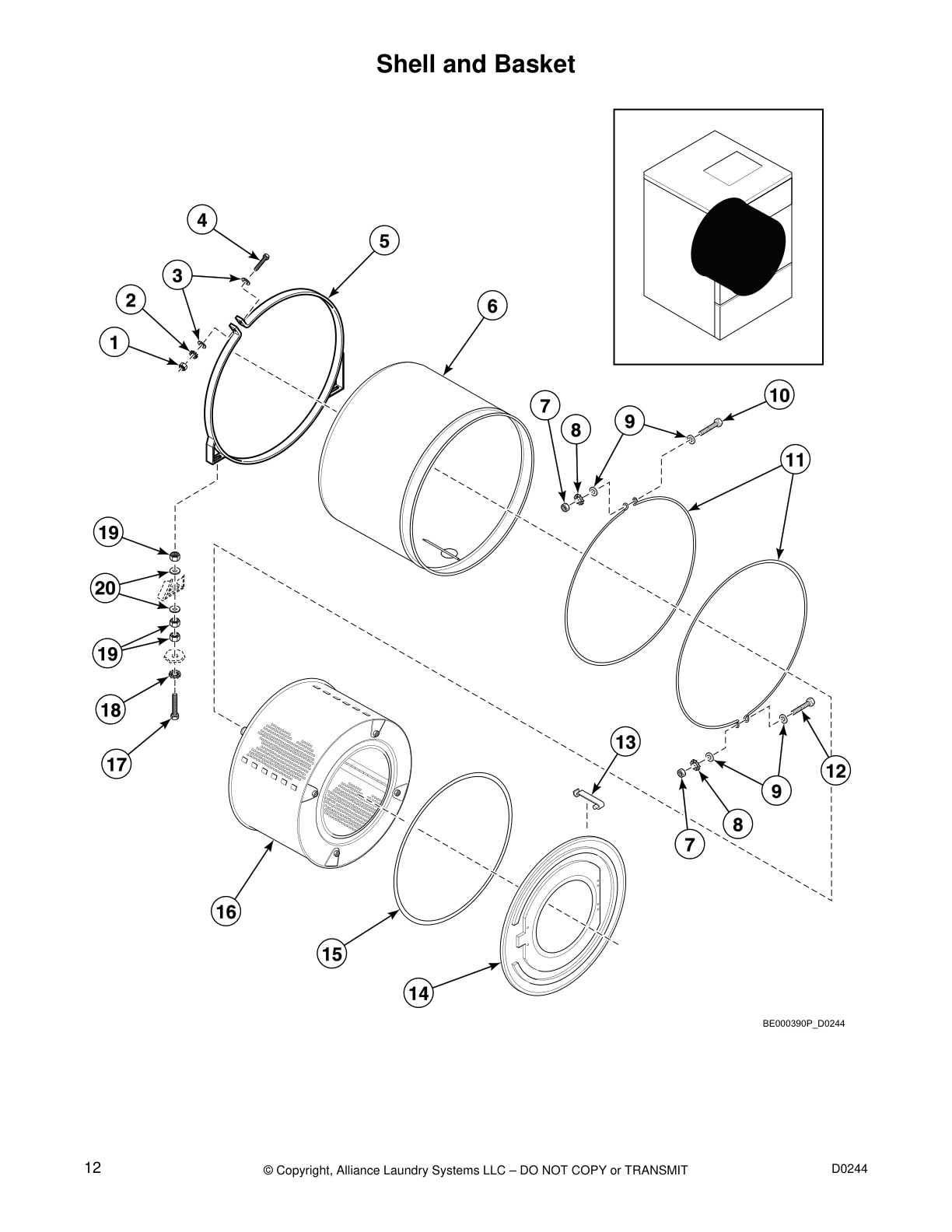

Shell and Basket

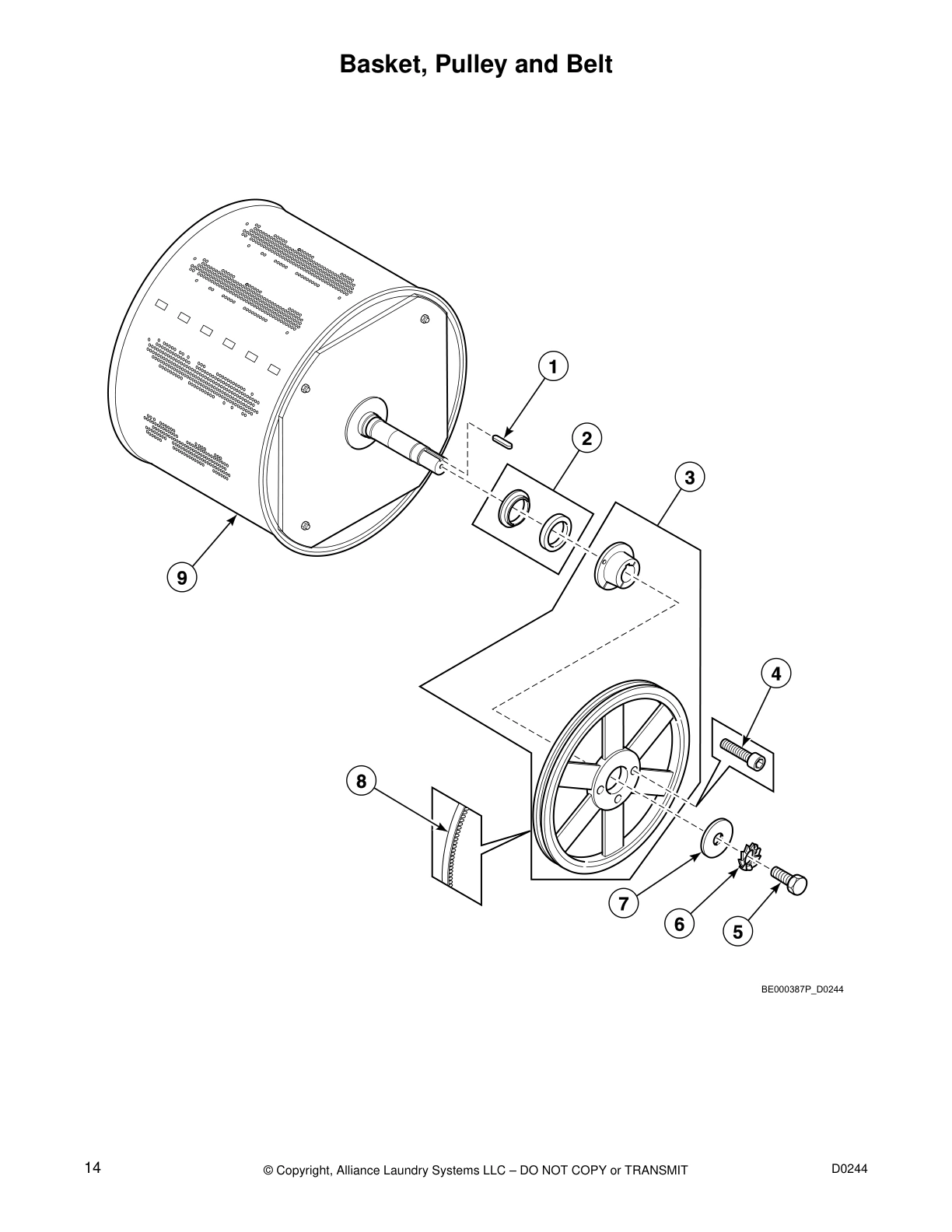

Basket, Pulley and Belt

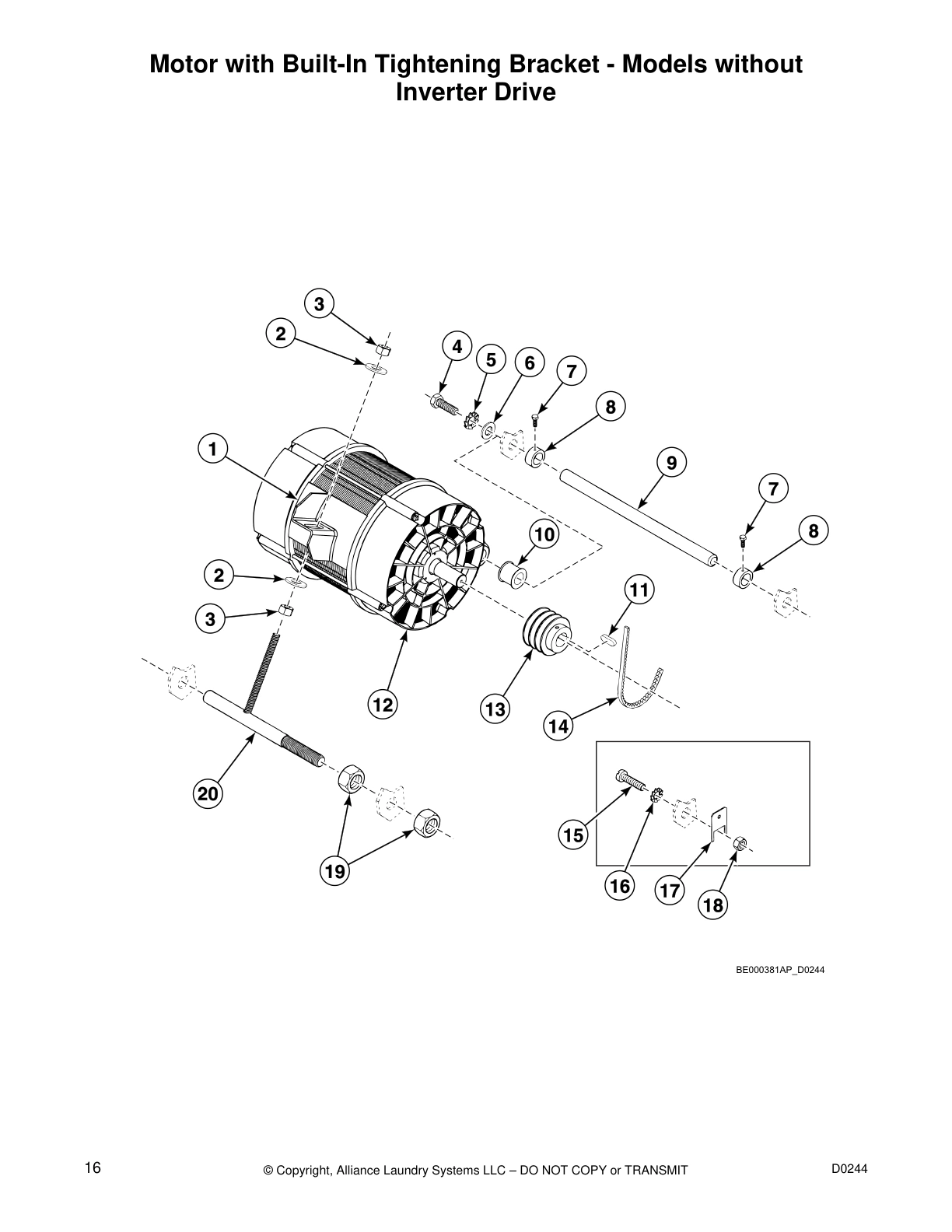

Motor with Built-In Tightening Bracket - Models without
Inverter Drive

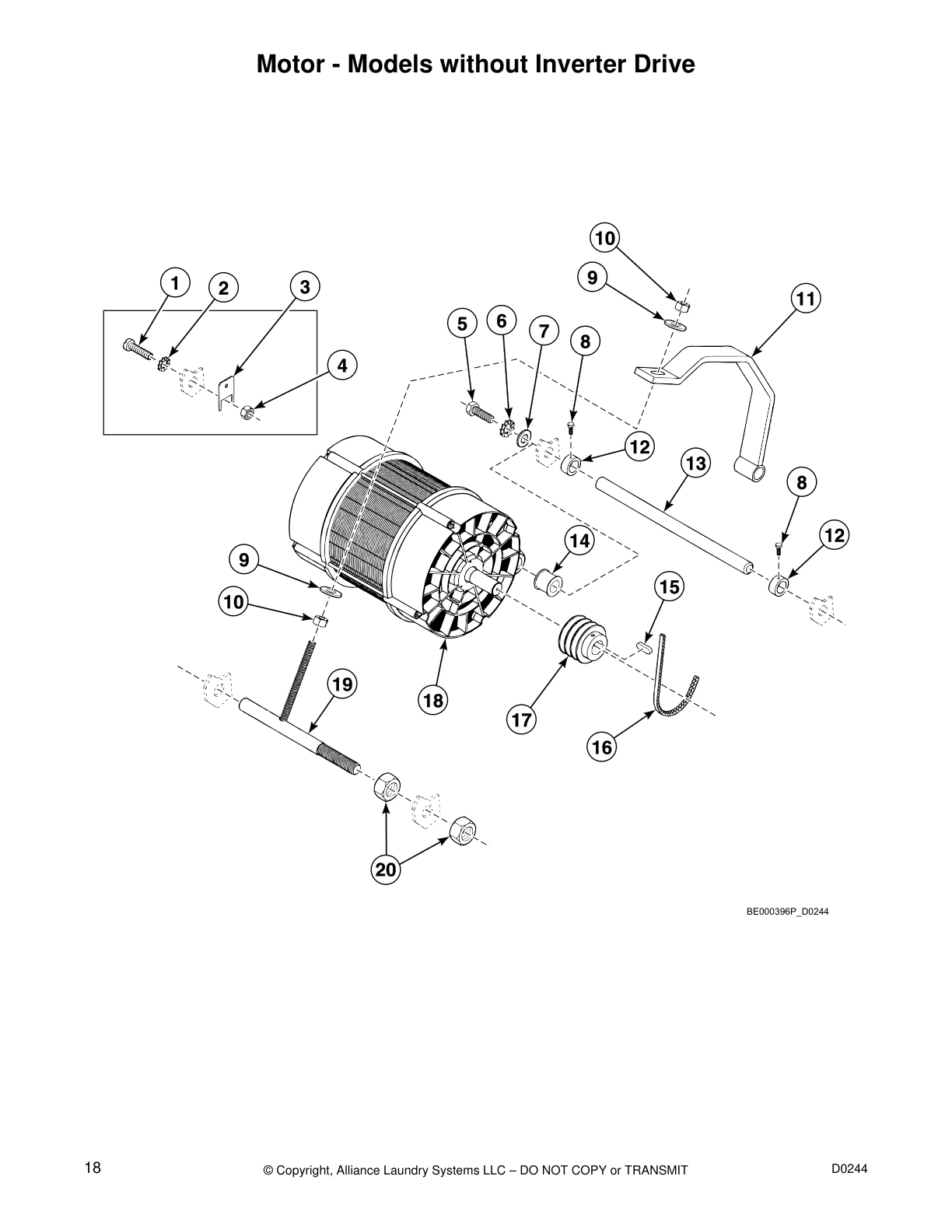

Motor - Models without Inverter Drive

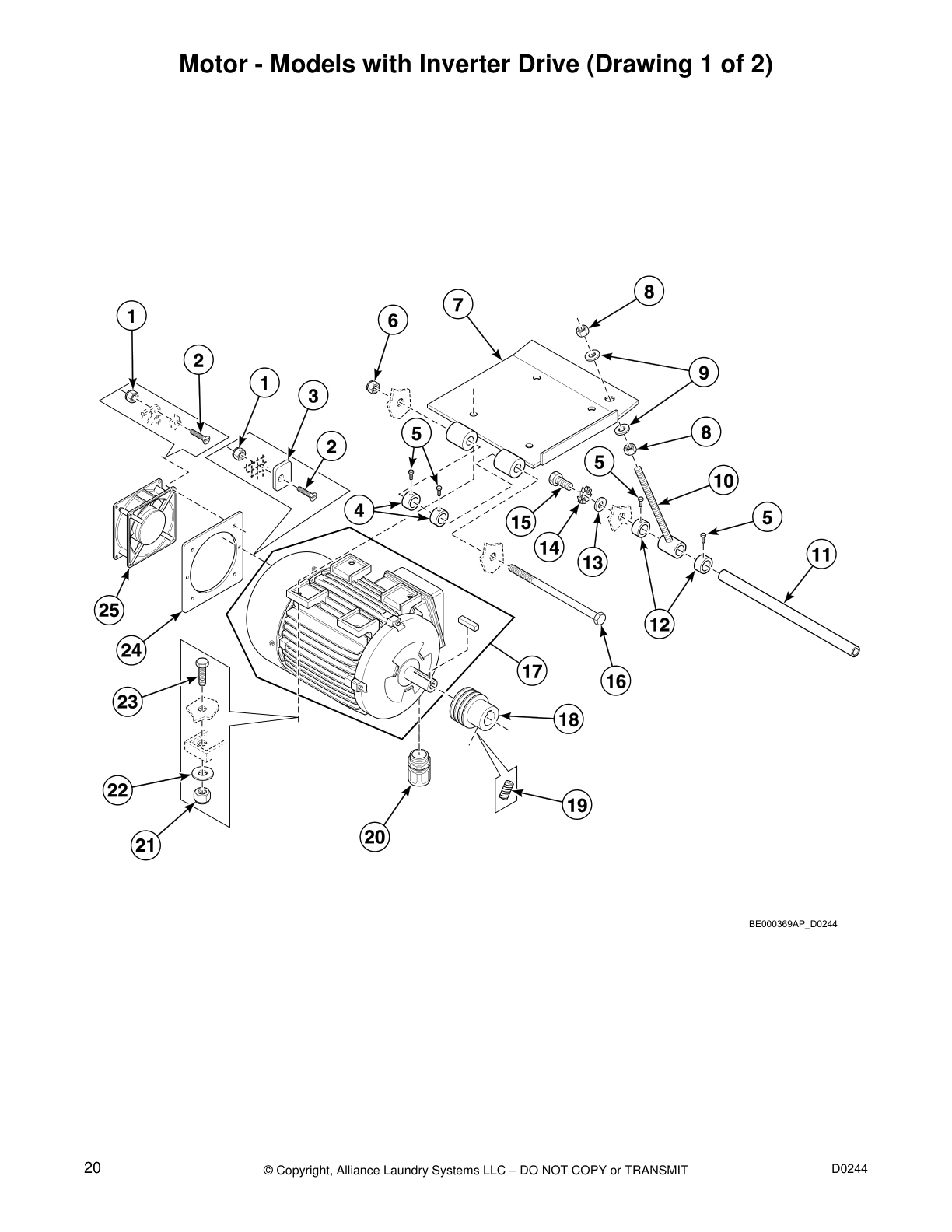

Motor - Models with Inverter Drive (Drawing 1 of 2)

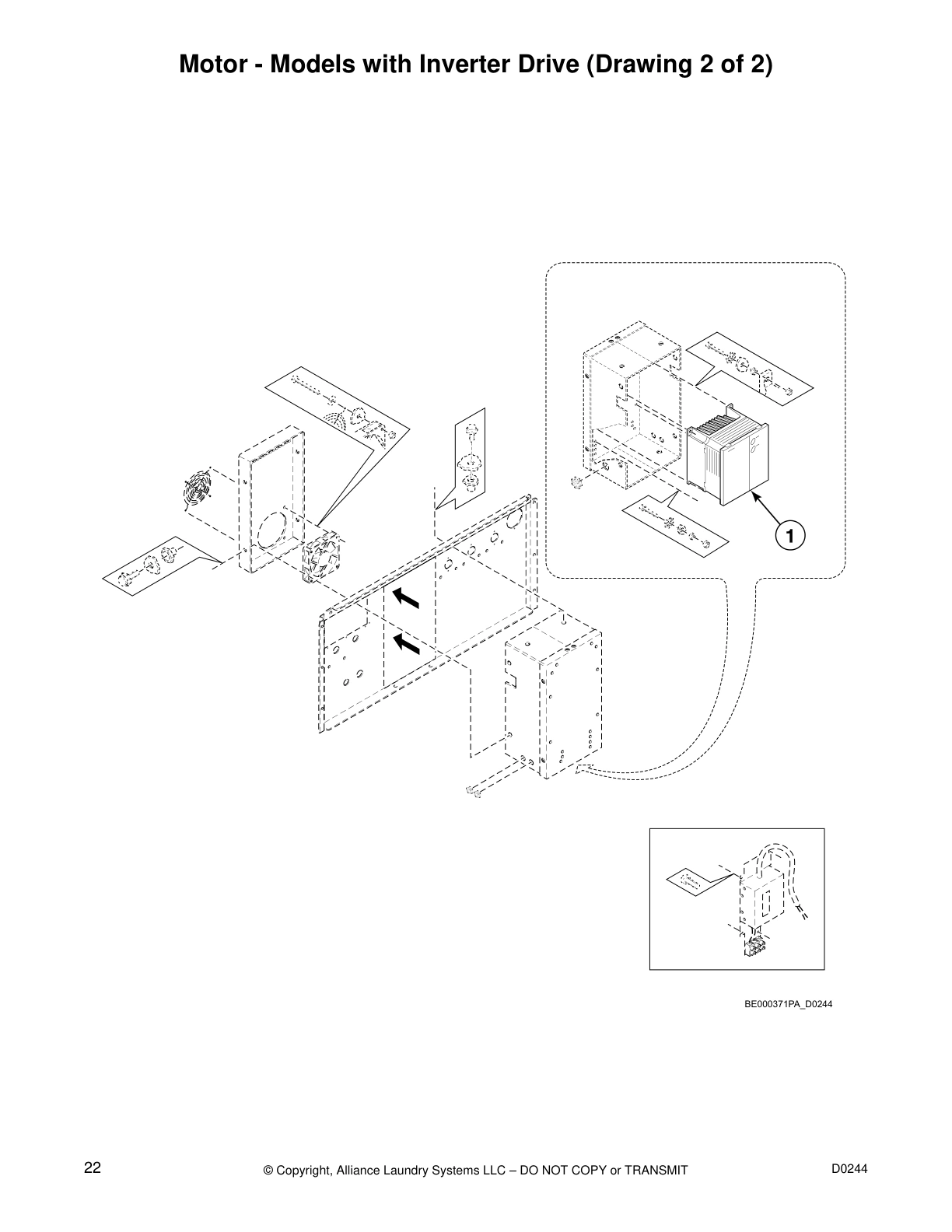

Motor - Models with Inverter Drive (Drawing 2 of 2)

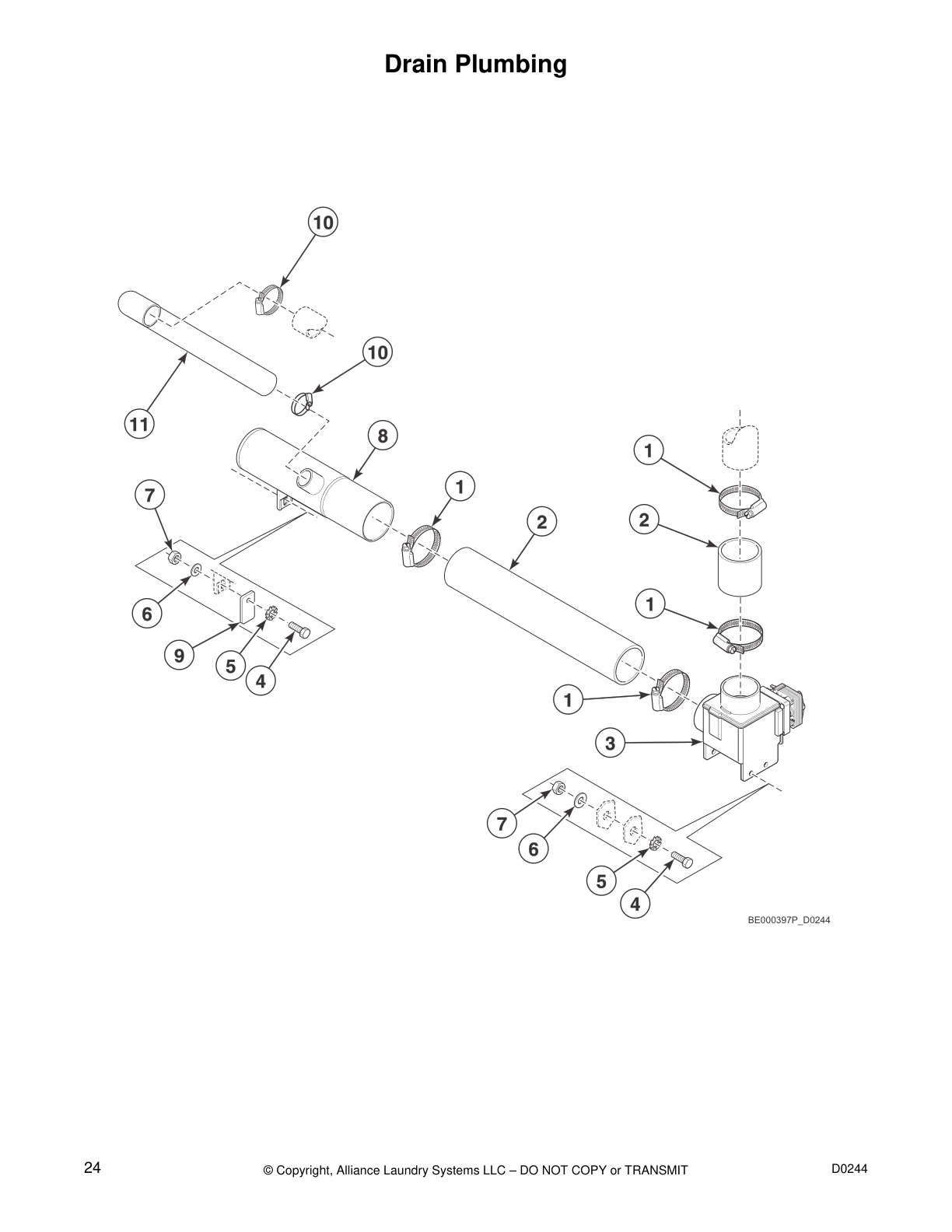

Drain Plumbing

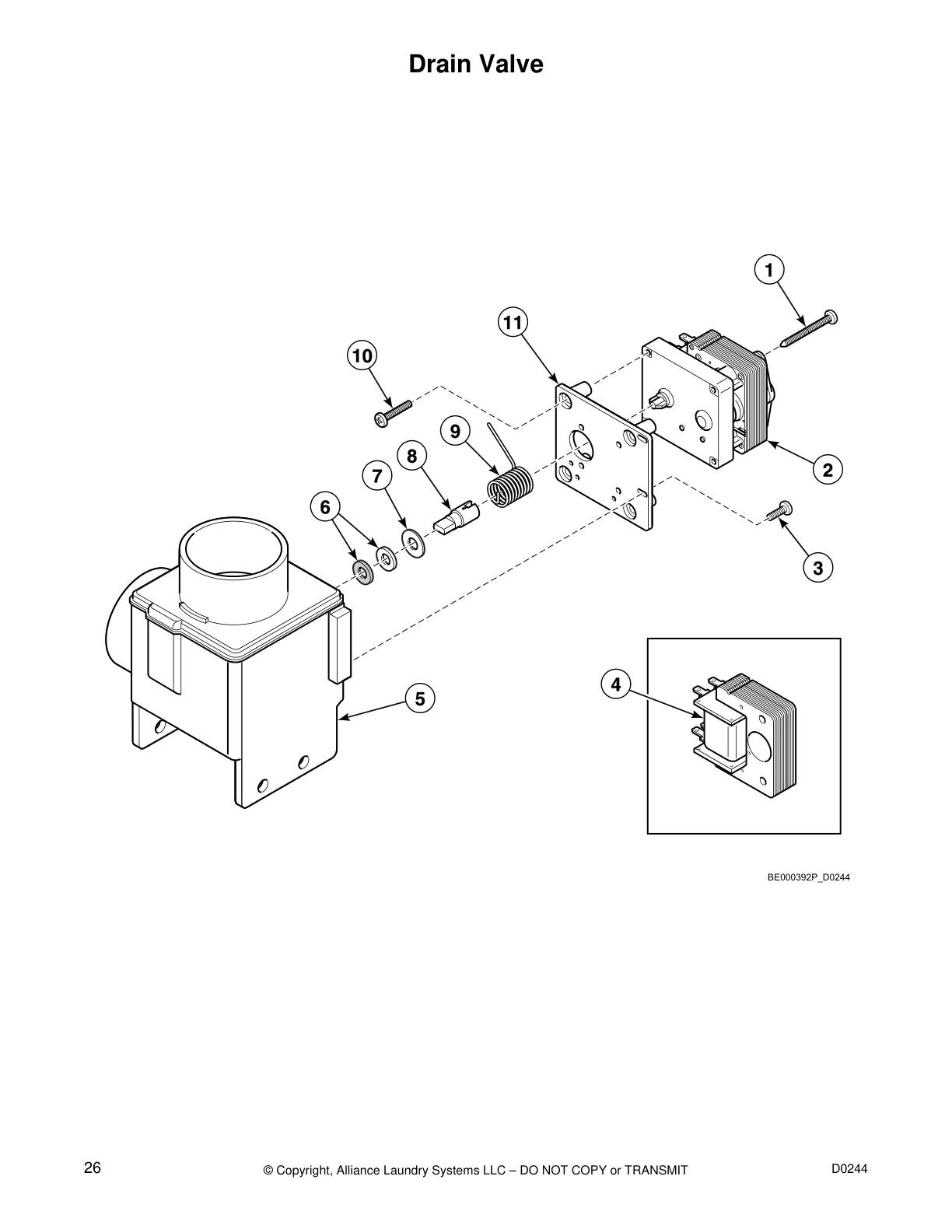

Drain Valve

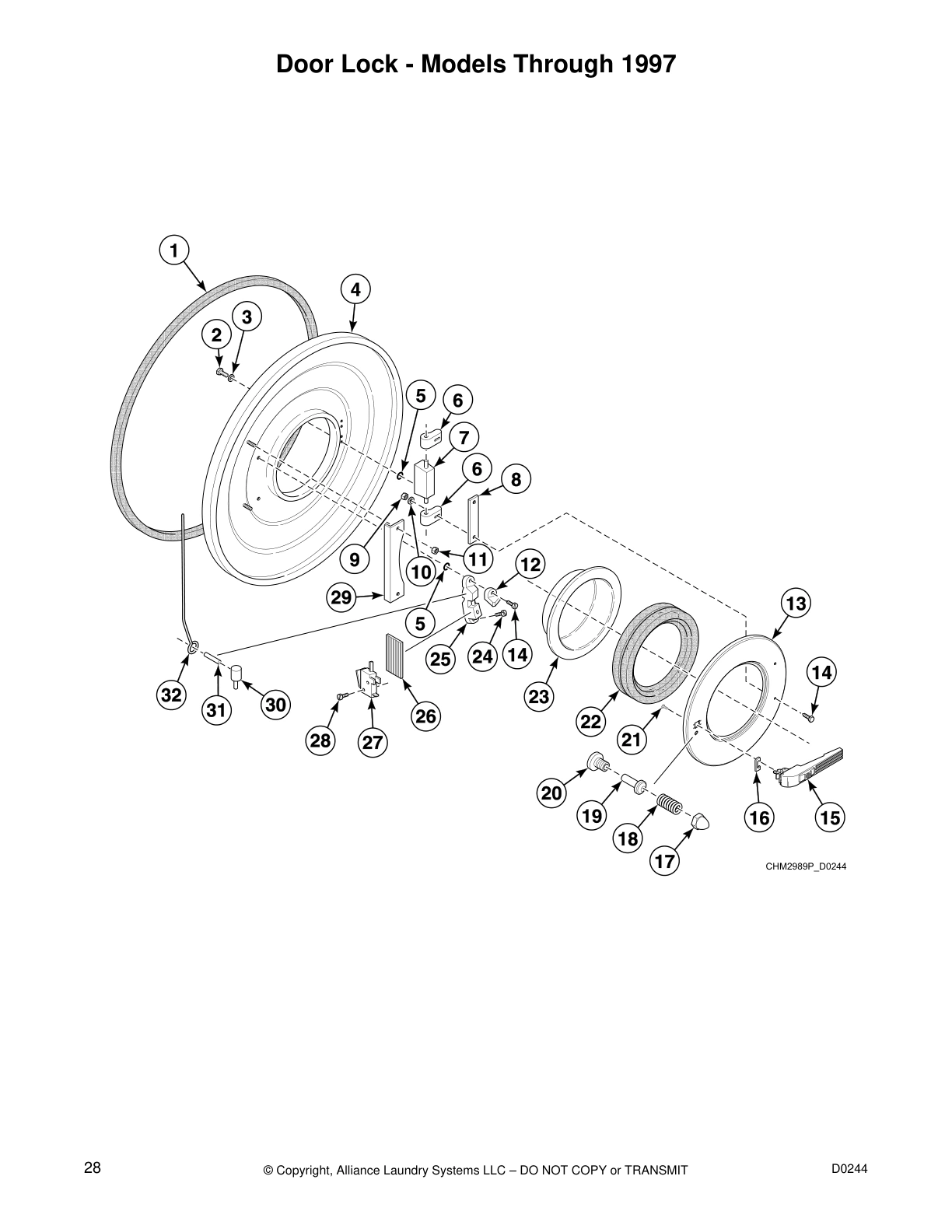

Door Lock - Models Through 1997

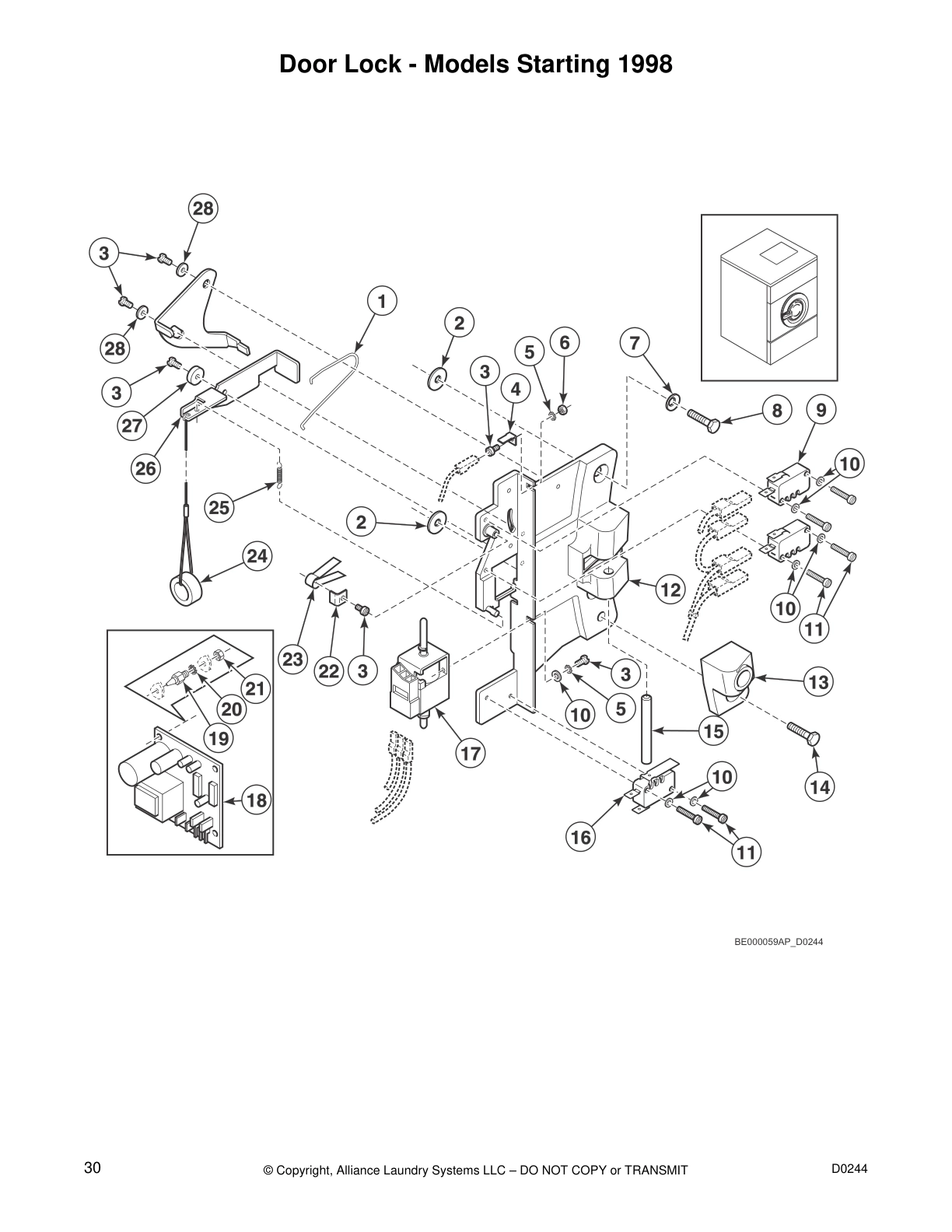

Door Lock - Models Starting 1998

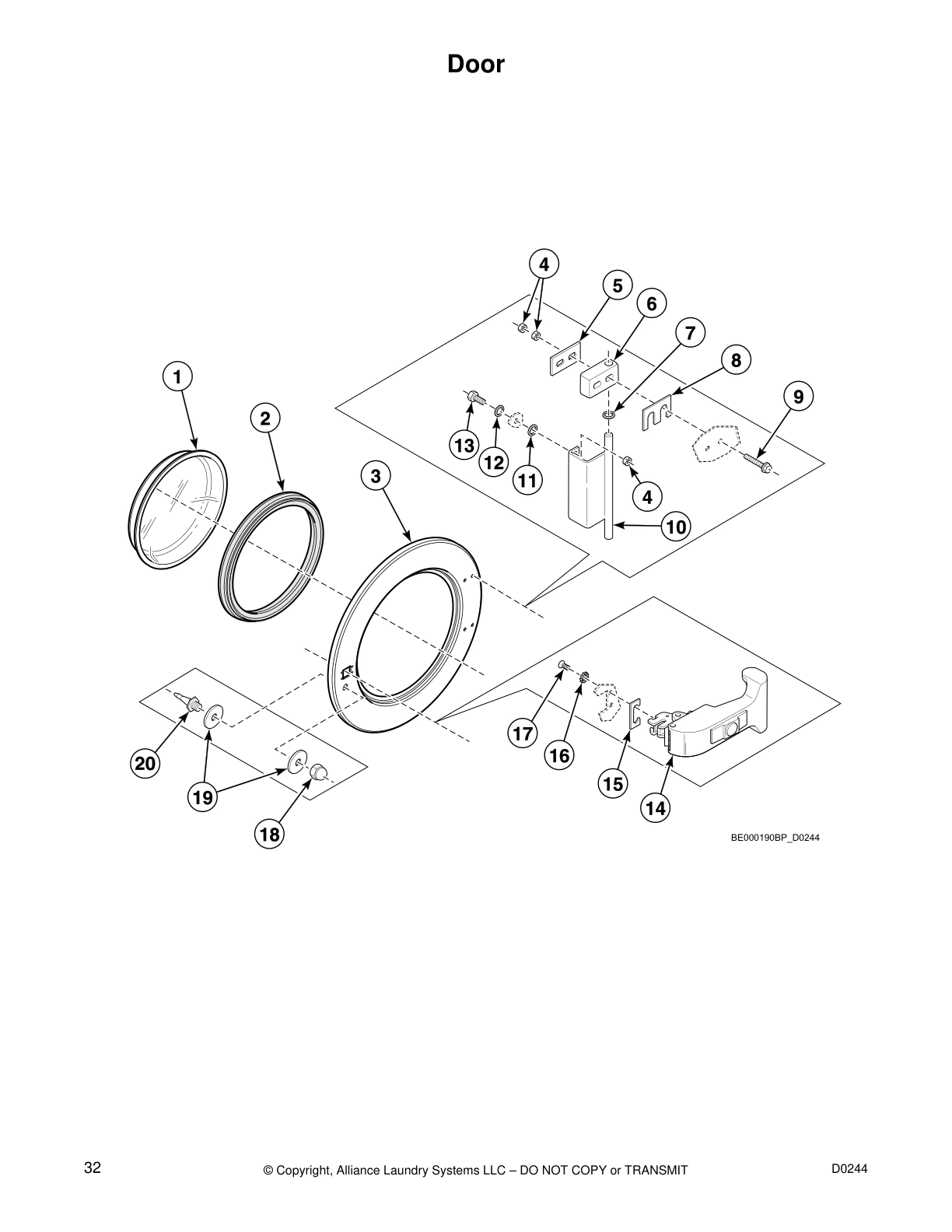

Door

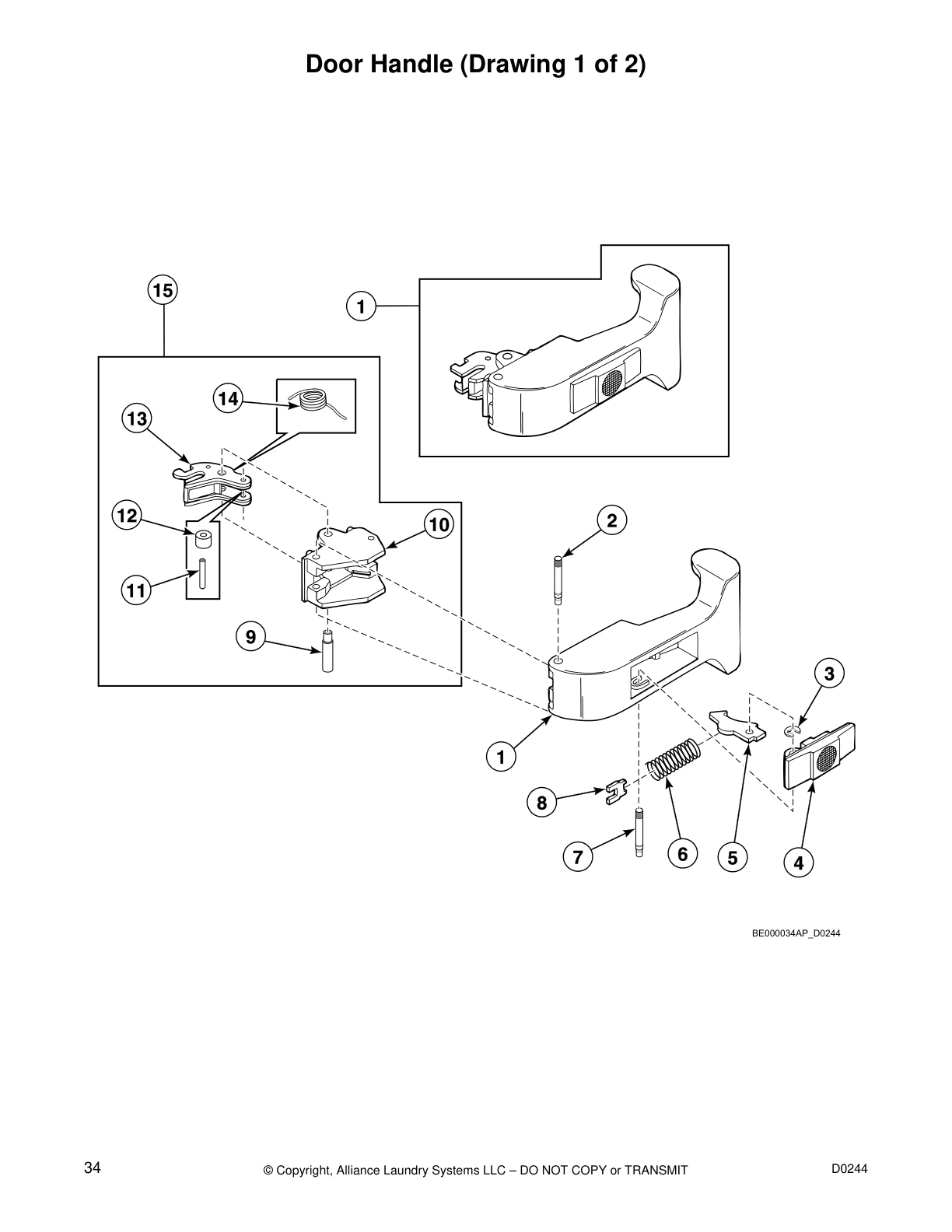

Door Handle (Drawing 1 of 2)

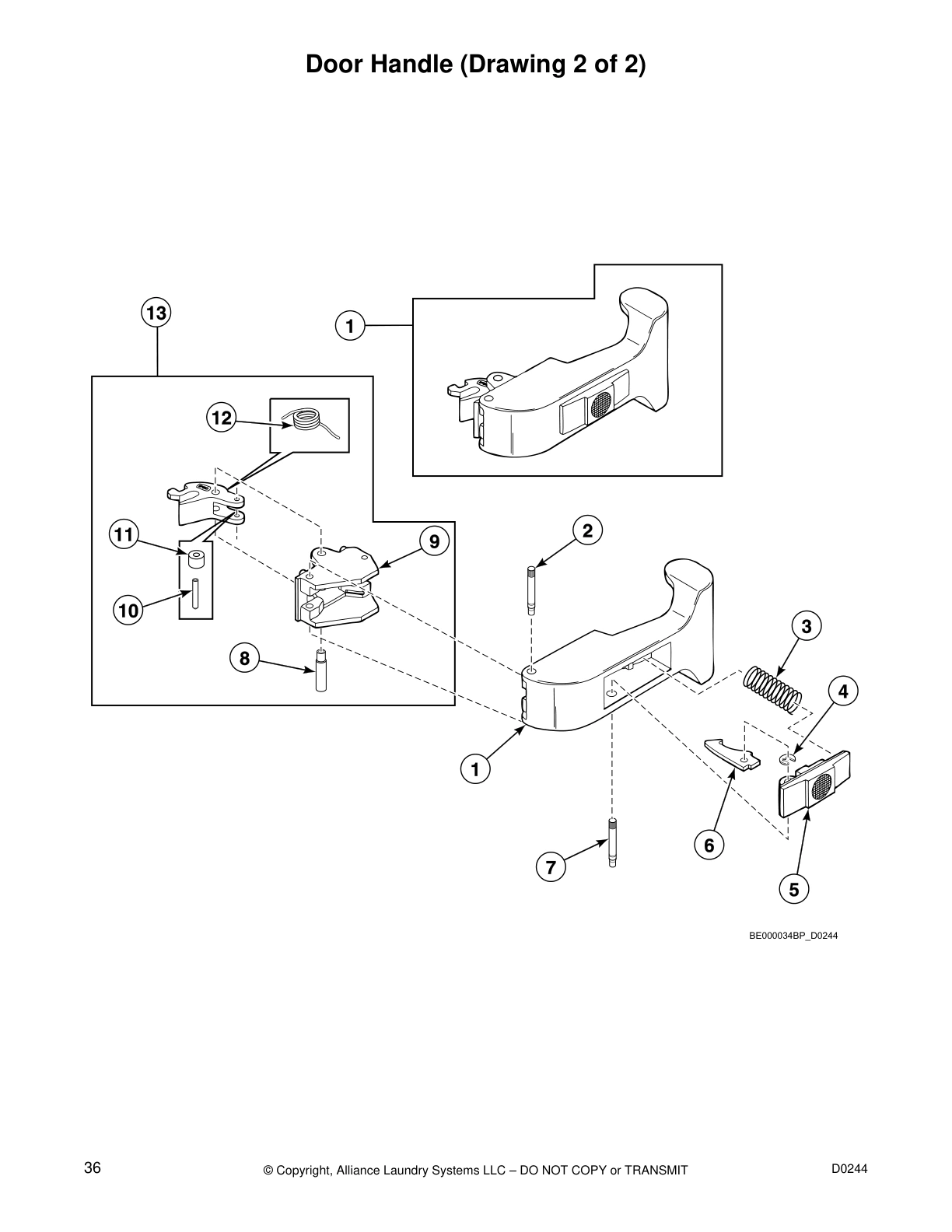

Door Handle (Drawing 2 of 2)

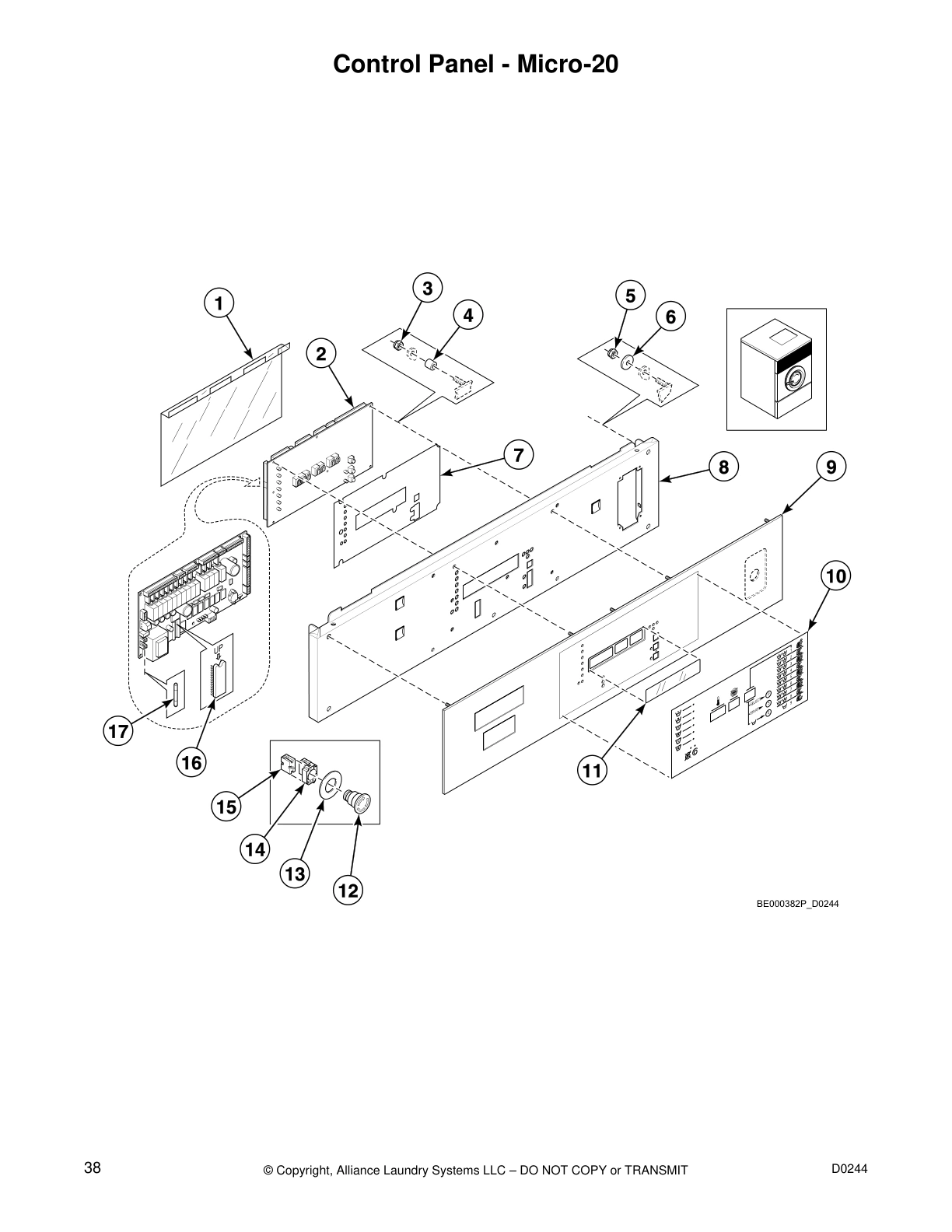

Control Panel - Micro-20

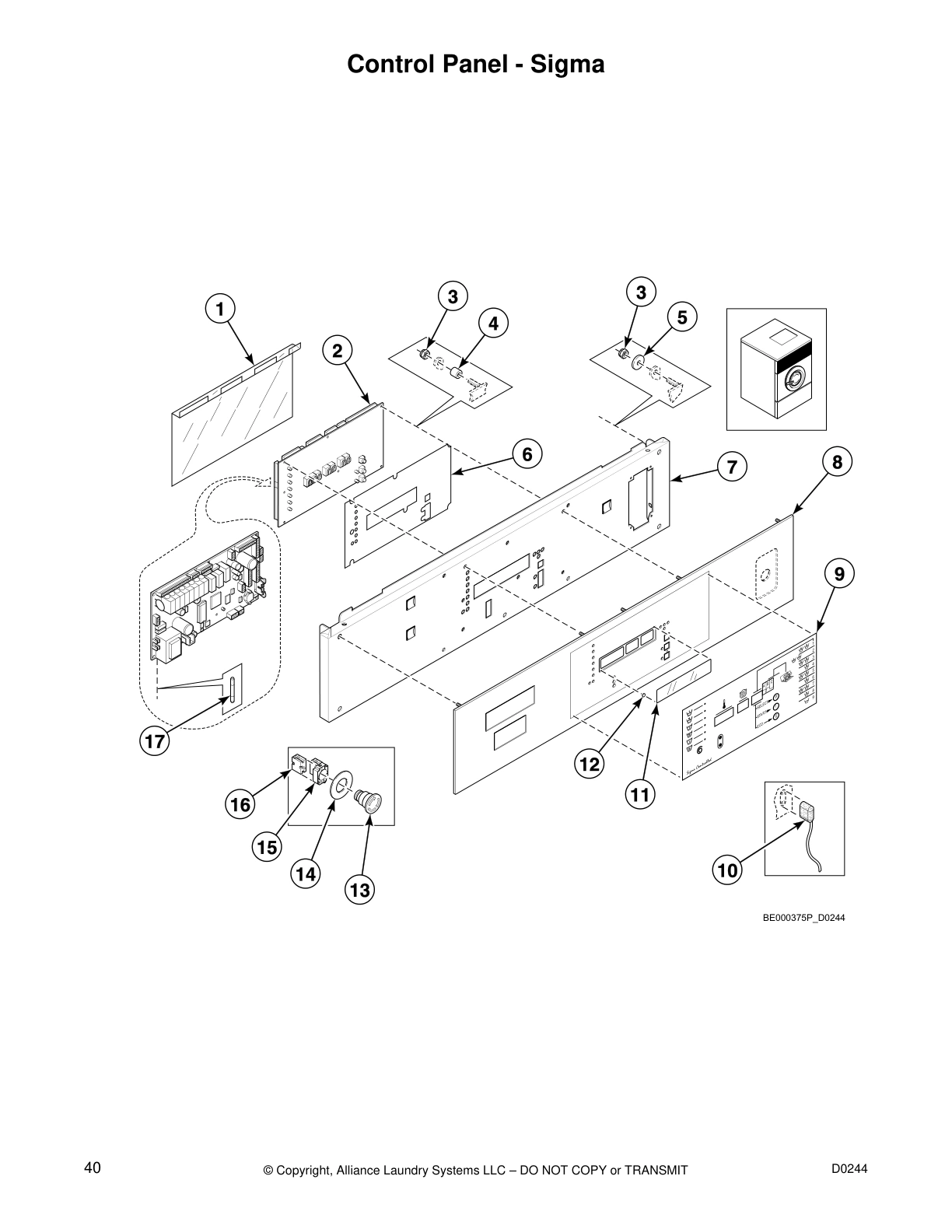

Control Panel - Sigma

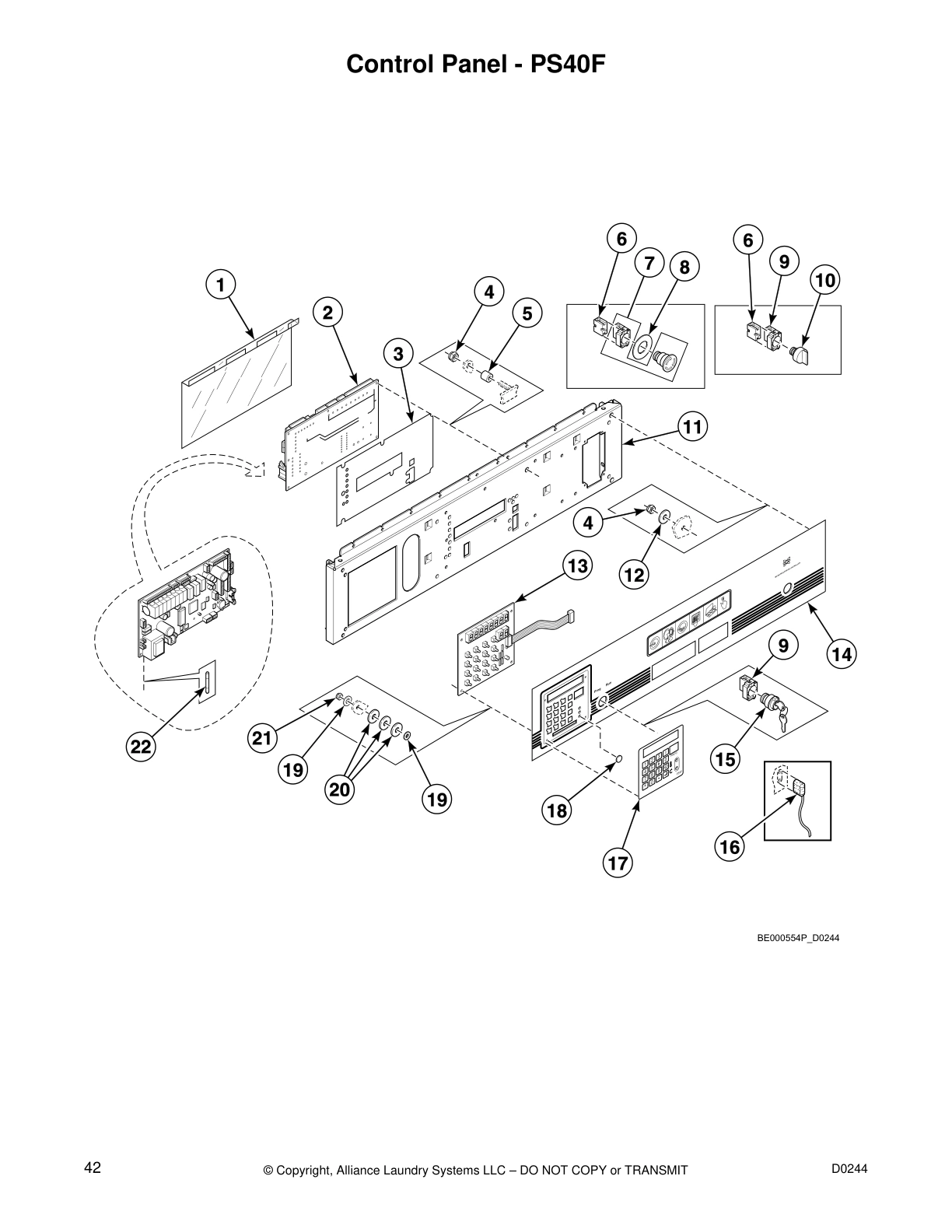

Control Panel - PS40F

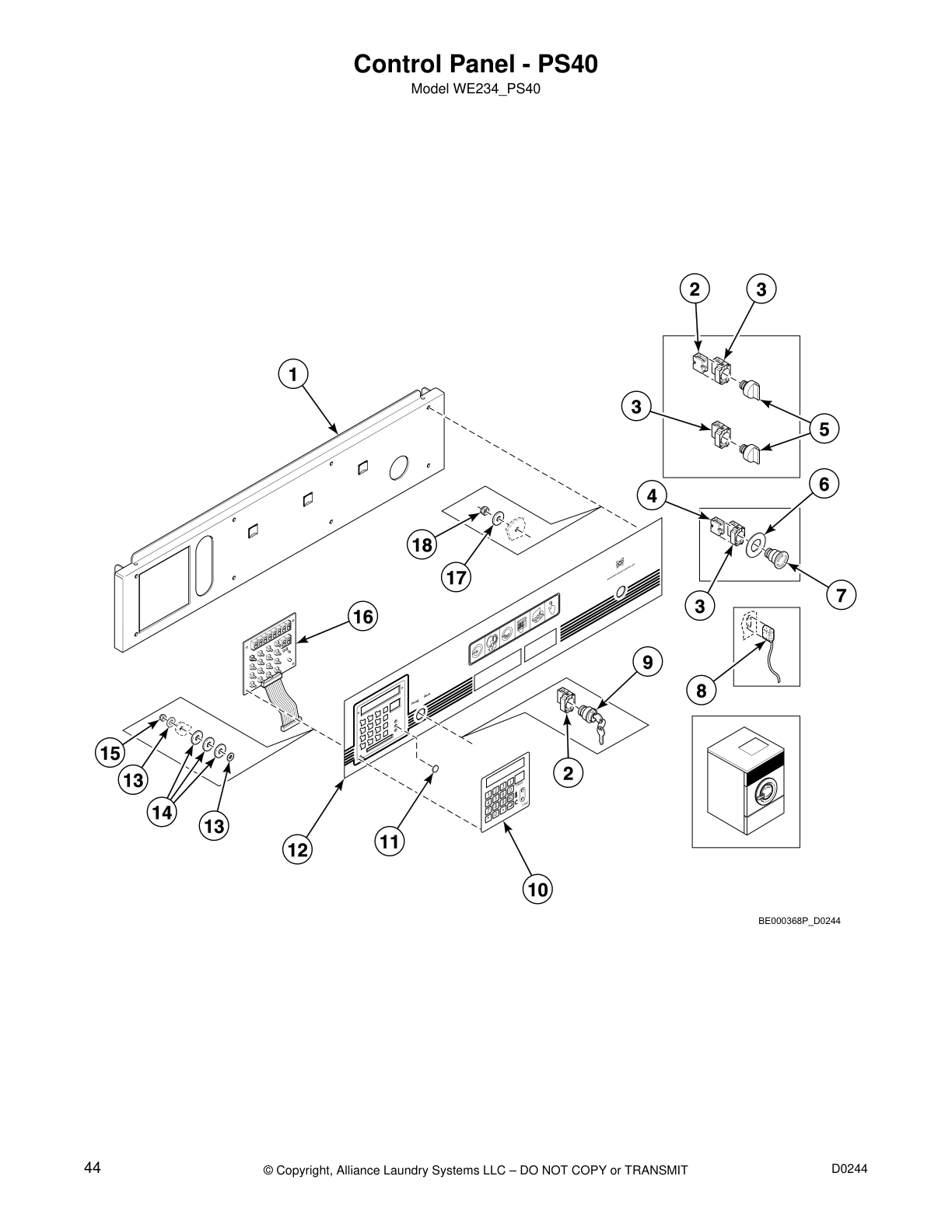

Control Panel - PS40

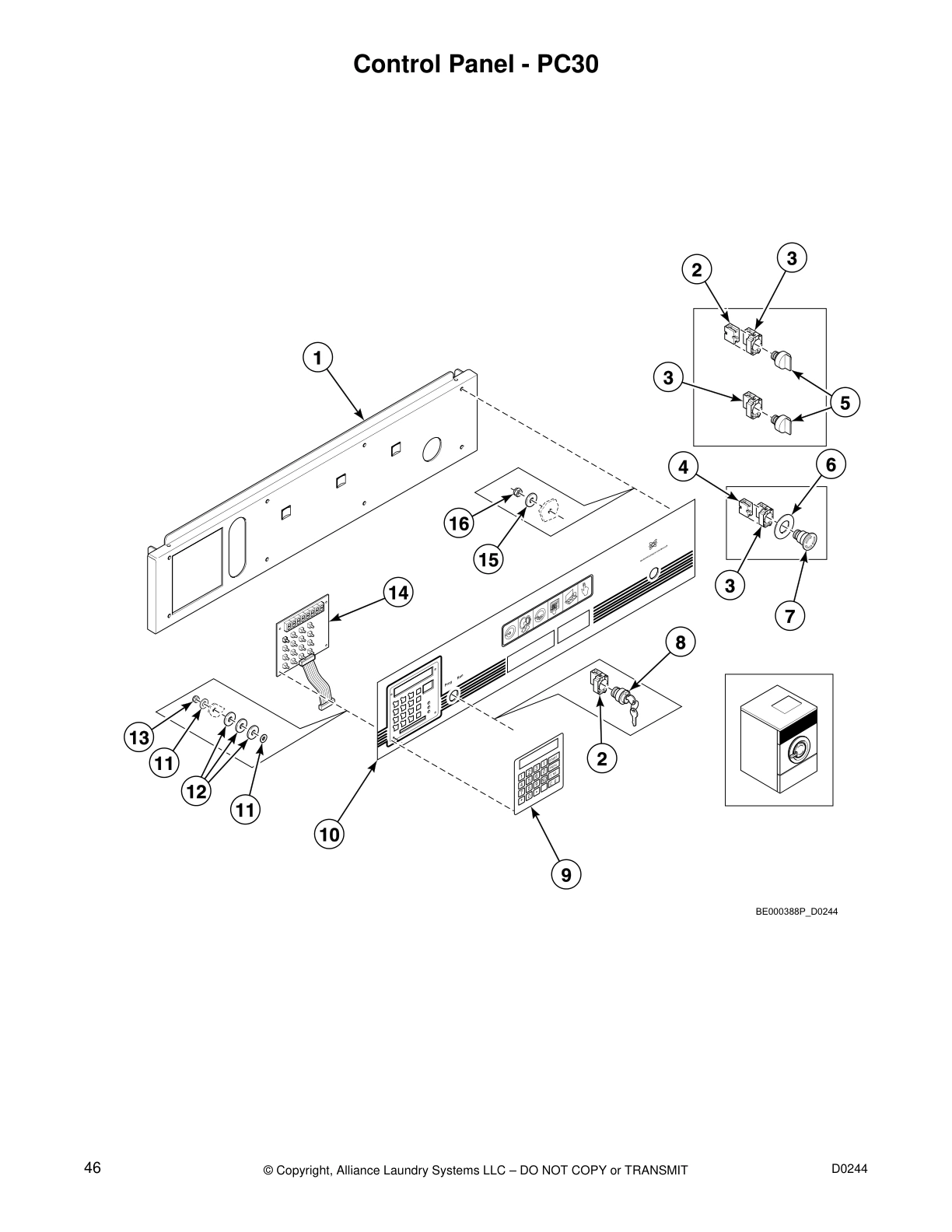

Control Panel - PC30

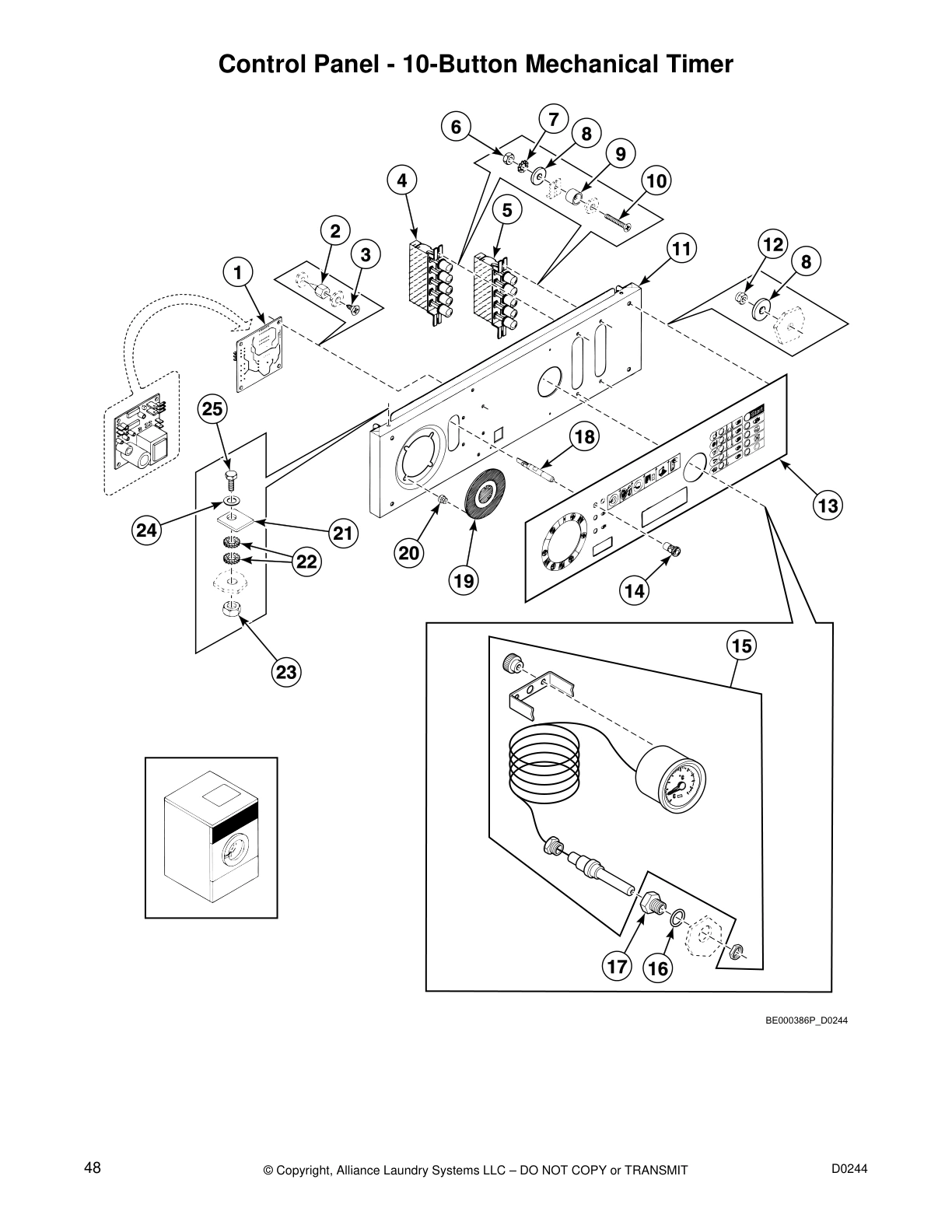

Control Panel - 10-Button Mechanical Timer

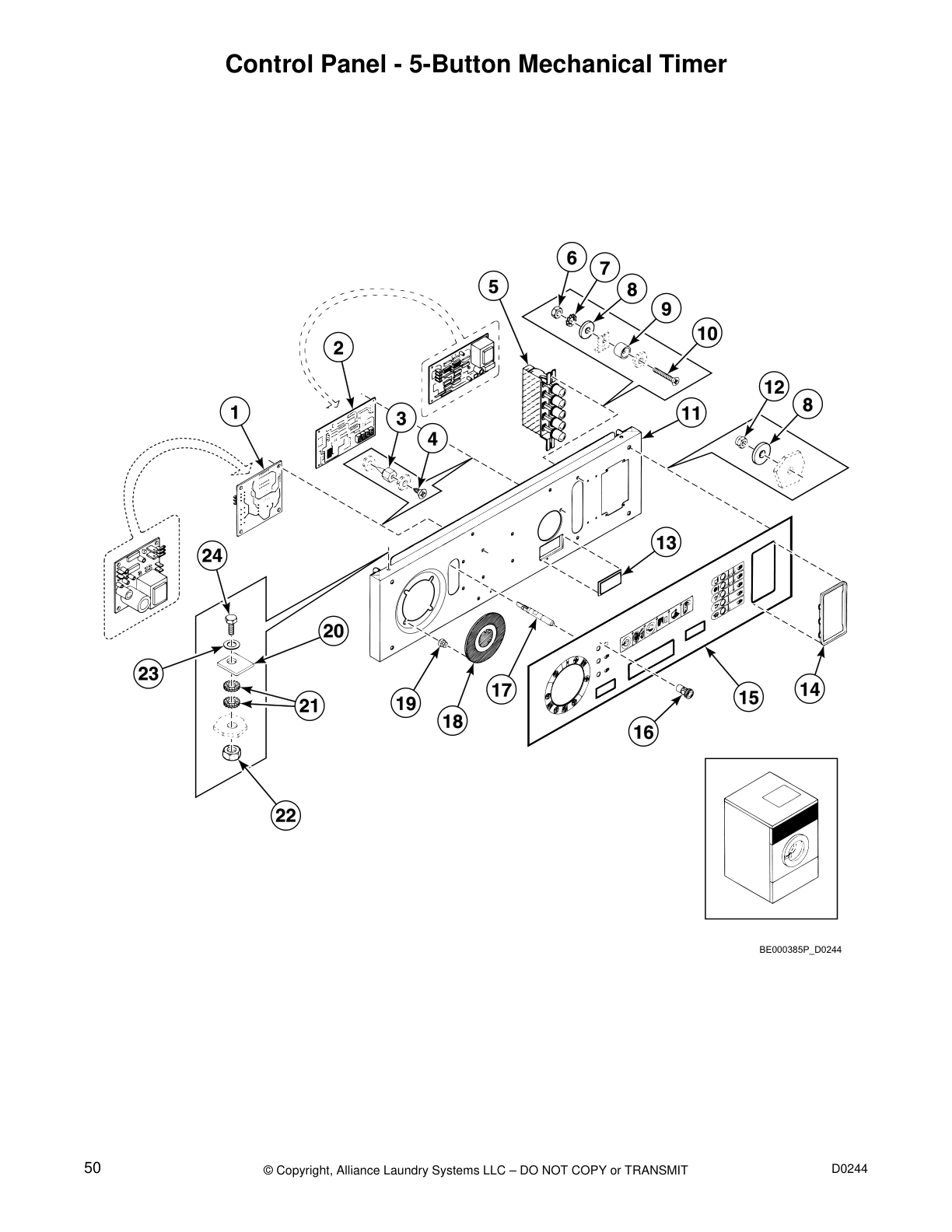

Control Panel - 5-Button Mechanical Timer

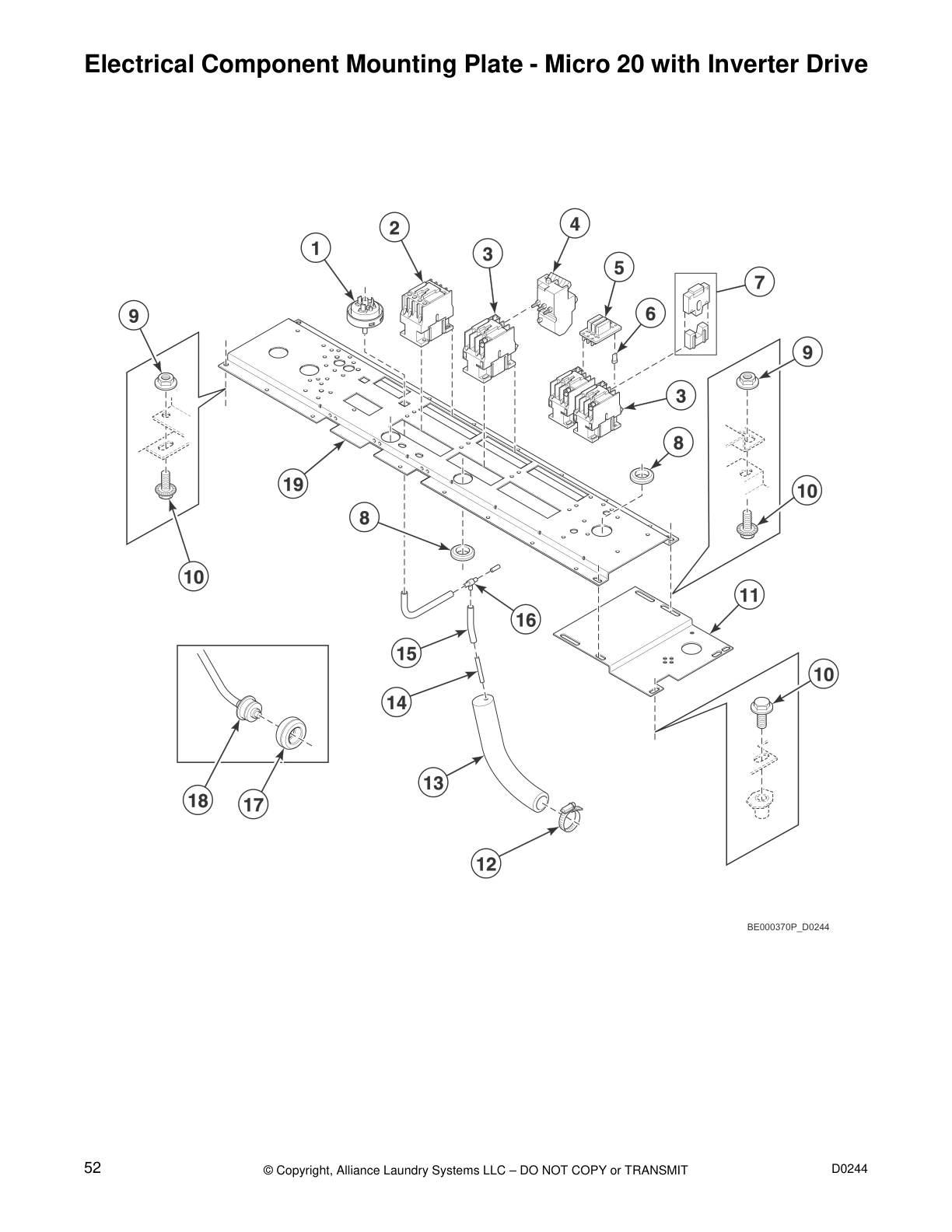

Electrical Component Mounting Plate - Micro 20 with Inverter Drive

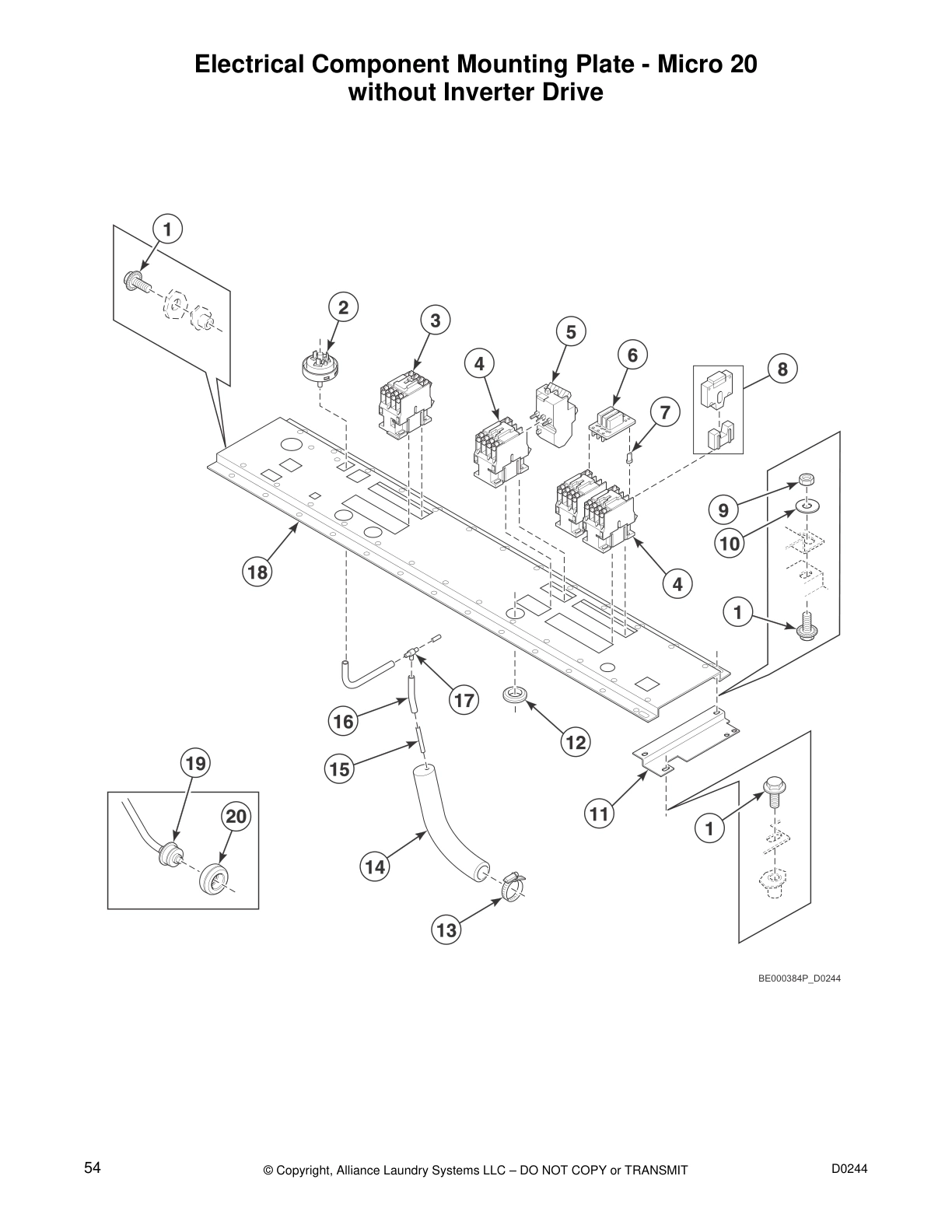

Electrical Component Mounting Plate - Micro 20
without Inverter Drive

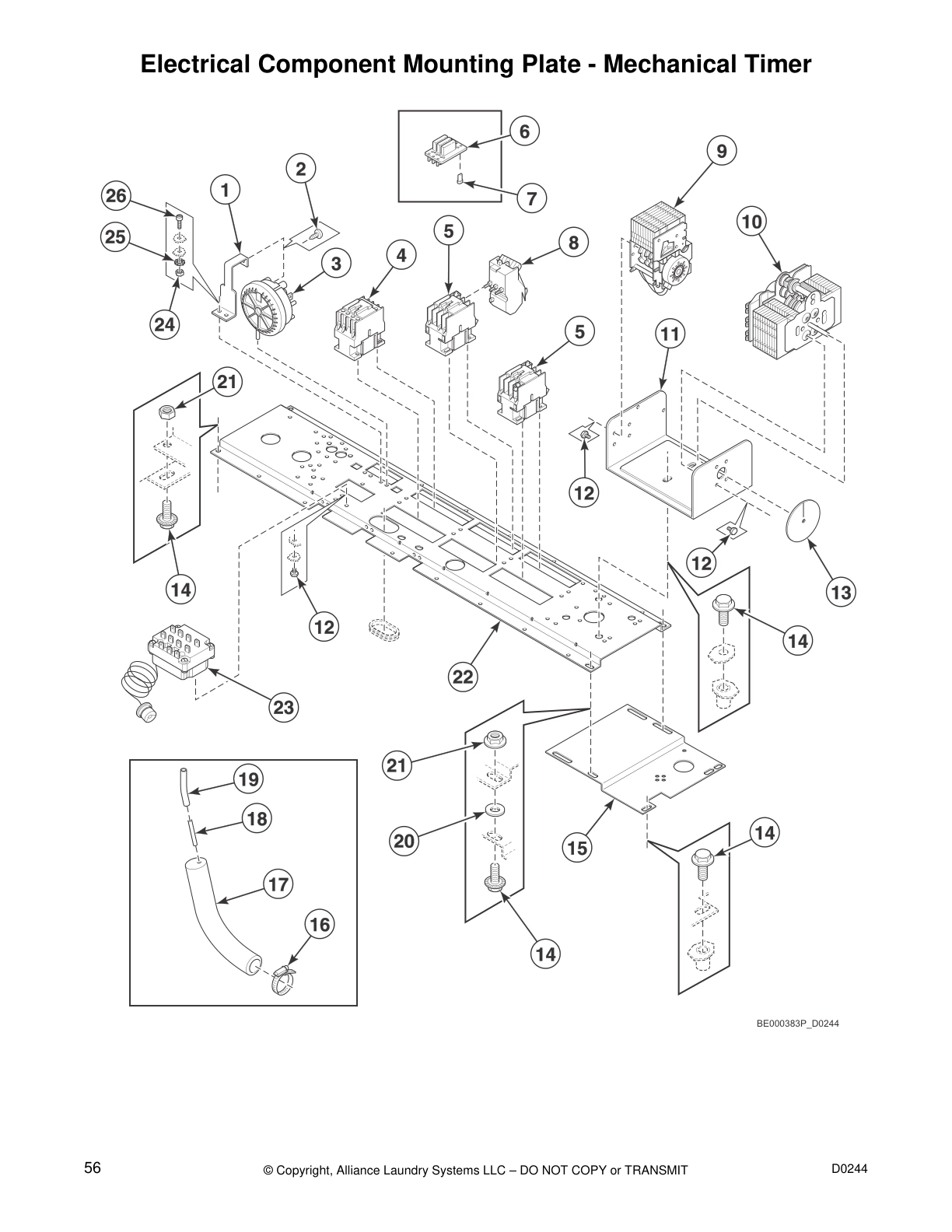

Electrical Component Mounting Plate - Mechanical Timer

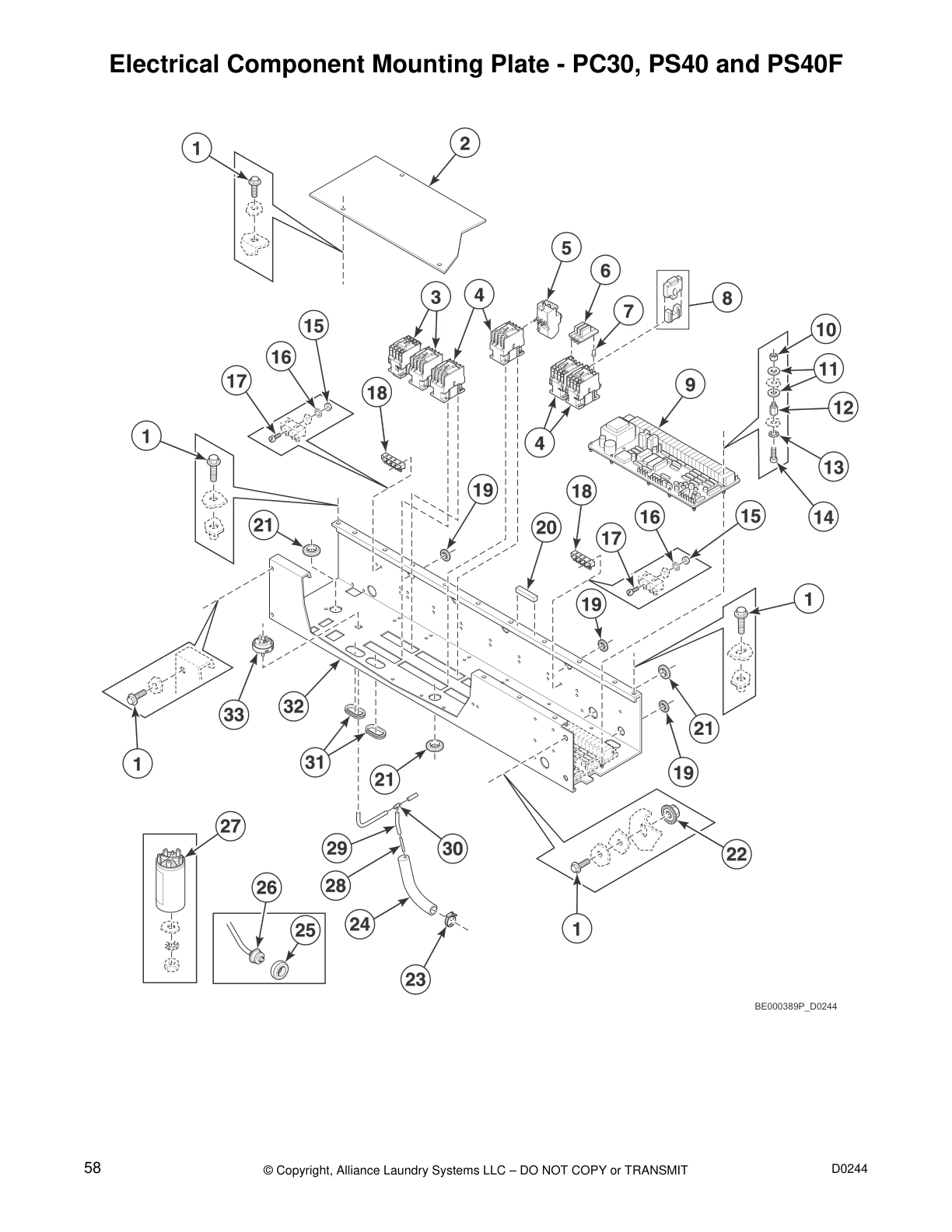

Electrical Component Mounting Plate - PC30, PS40 and PS40F

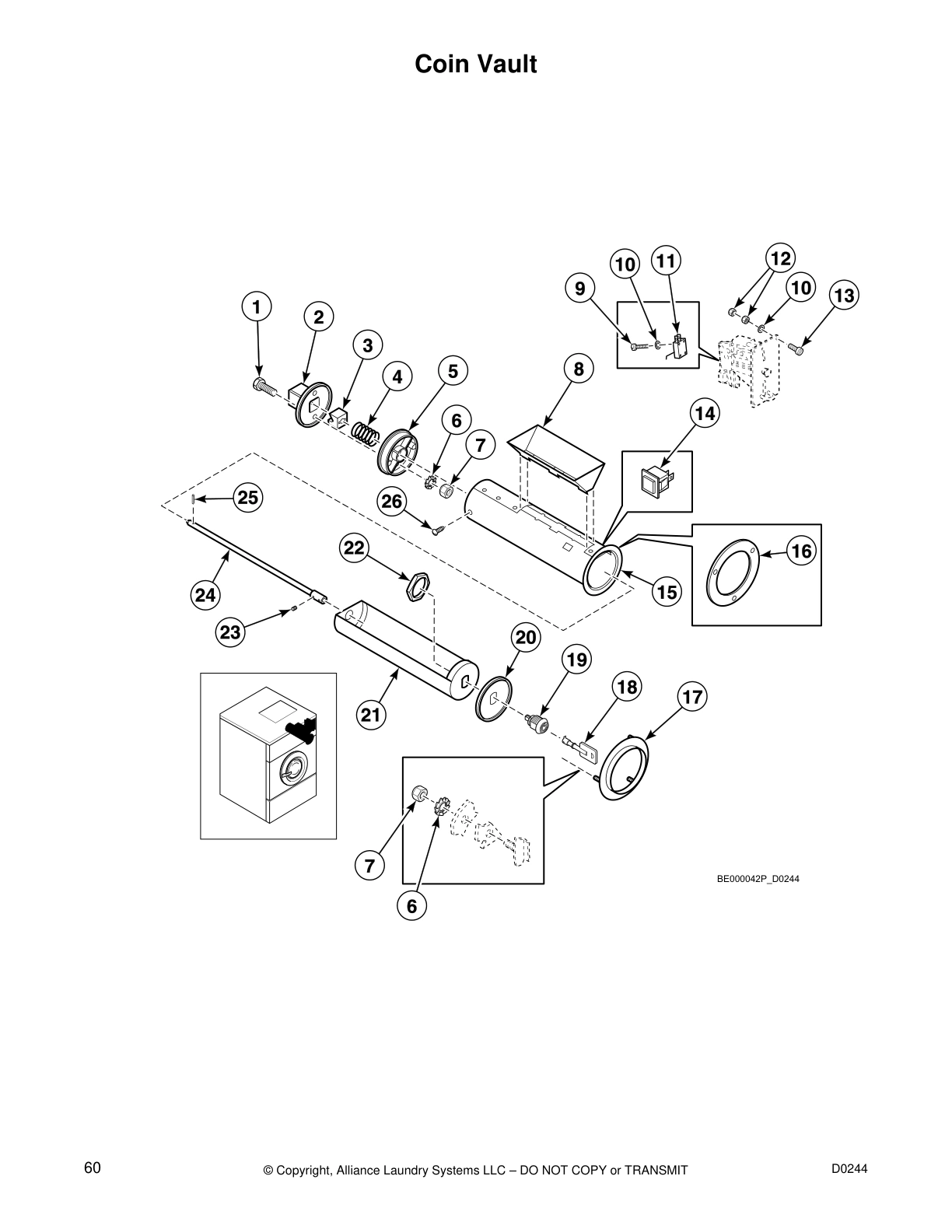

Coin Vault

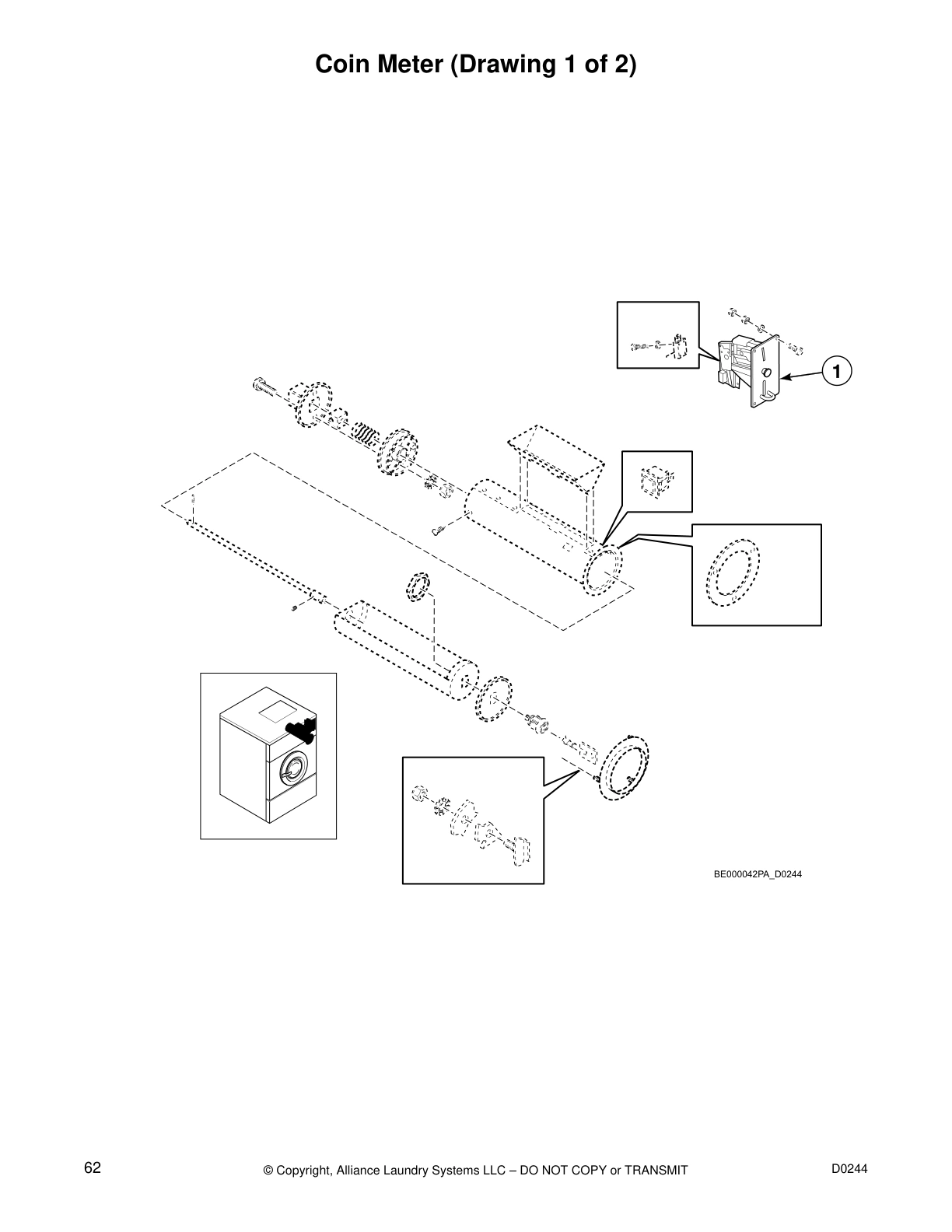

Coin Meter (Drawing 1 of 2)
Coin Meter (Drawing 2 of 2)

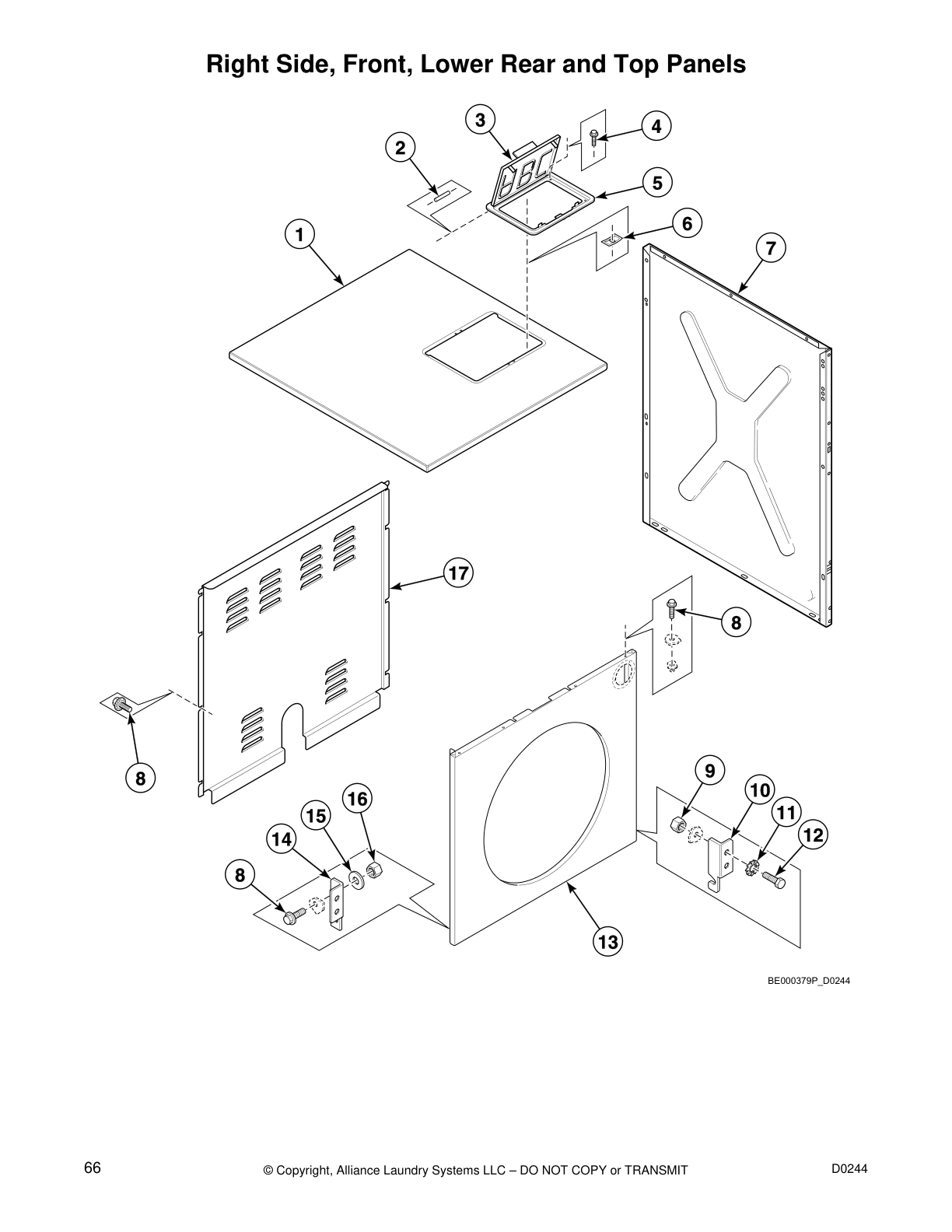

Right Side, Front, Lower Rear and Top Panels

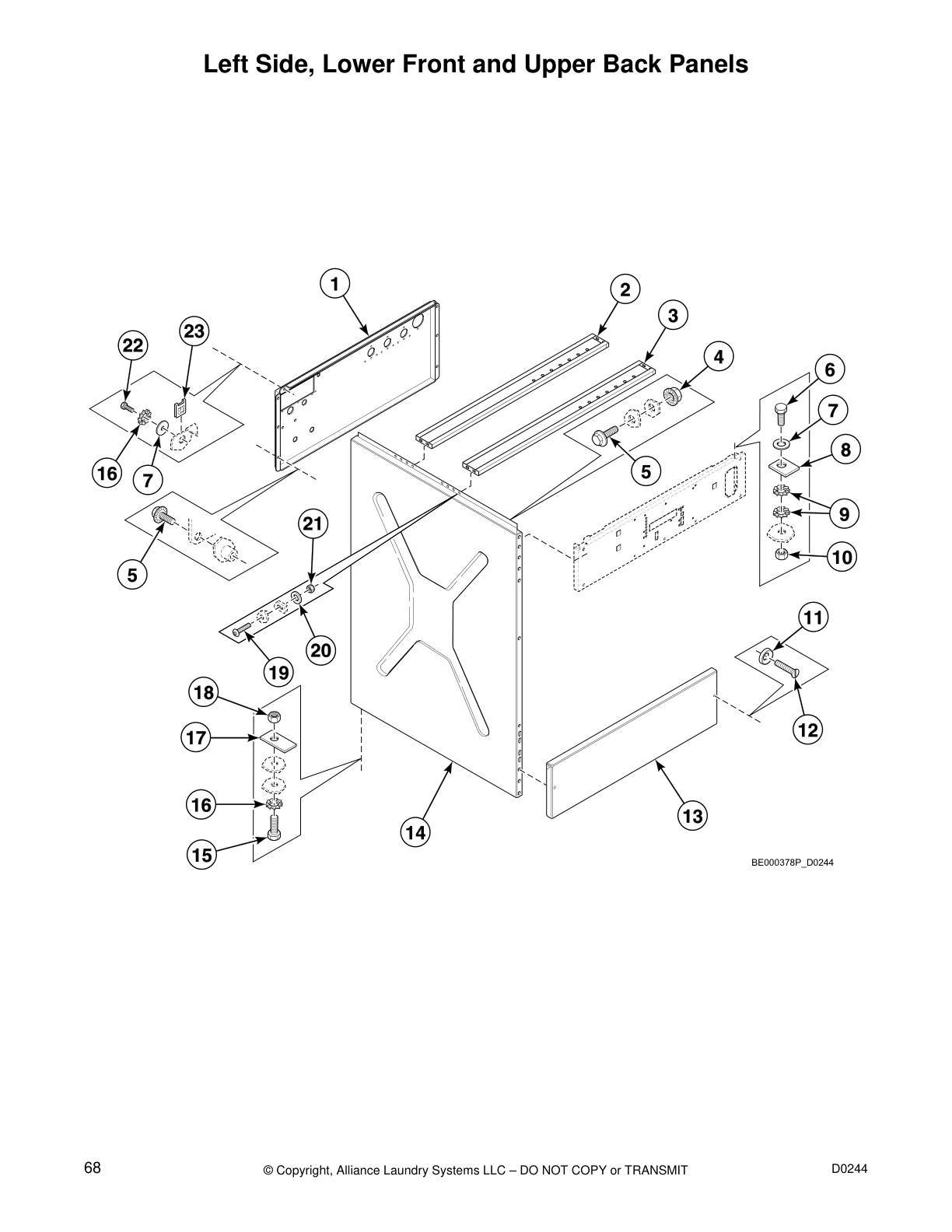

Left Side, Lower Front and Upper Back Panels

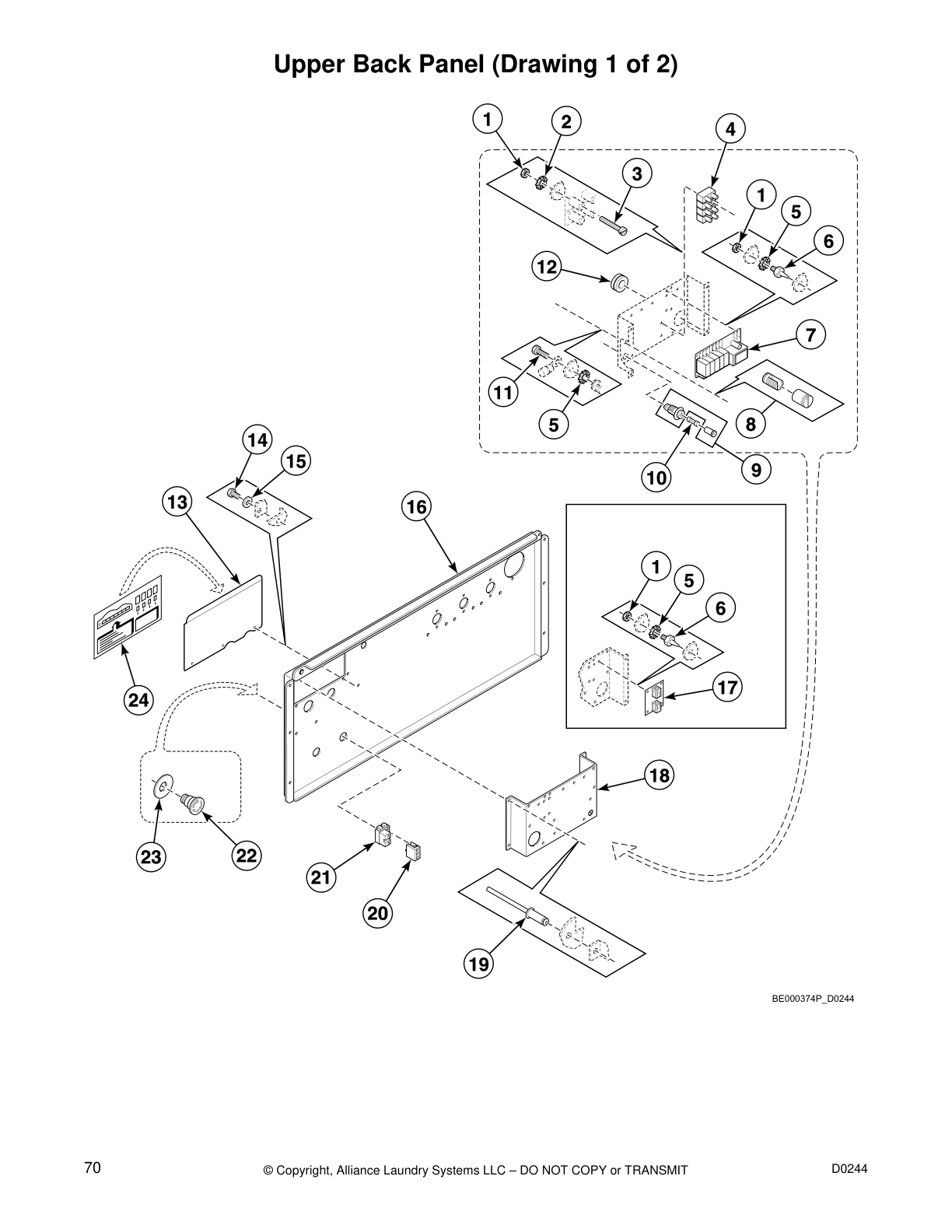

Upper Back Panel (Drawing 1 of 2)

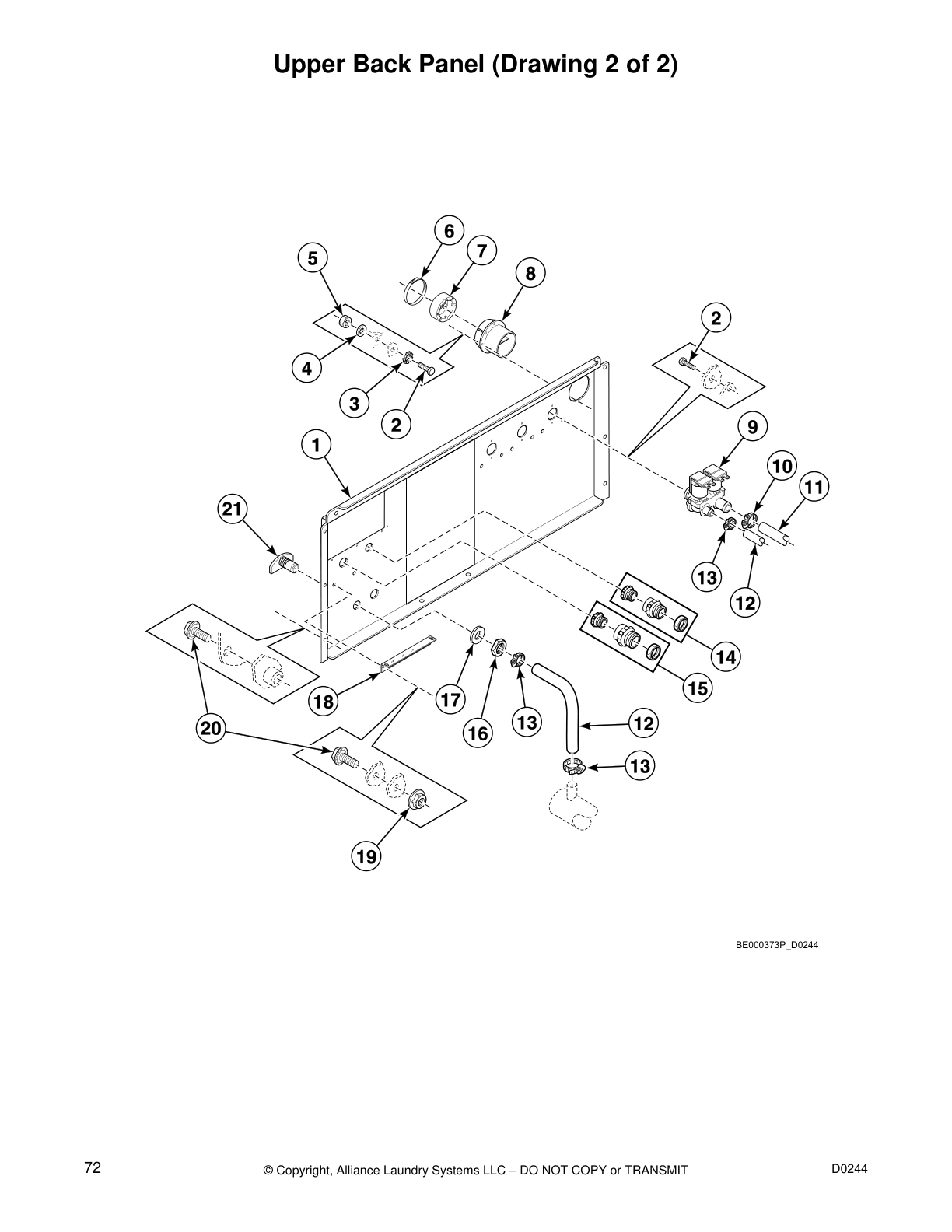

Upper Back Panel (Drawing 2 of 2)

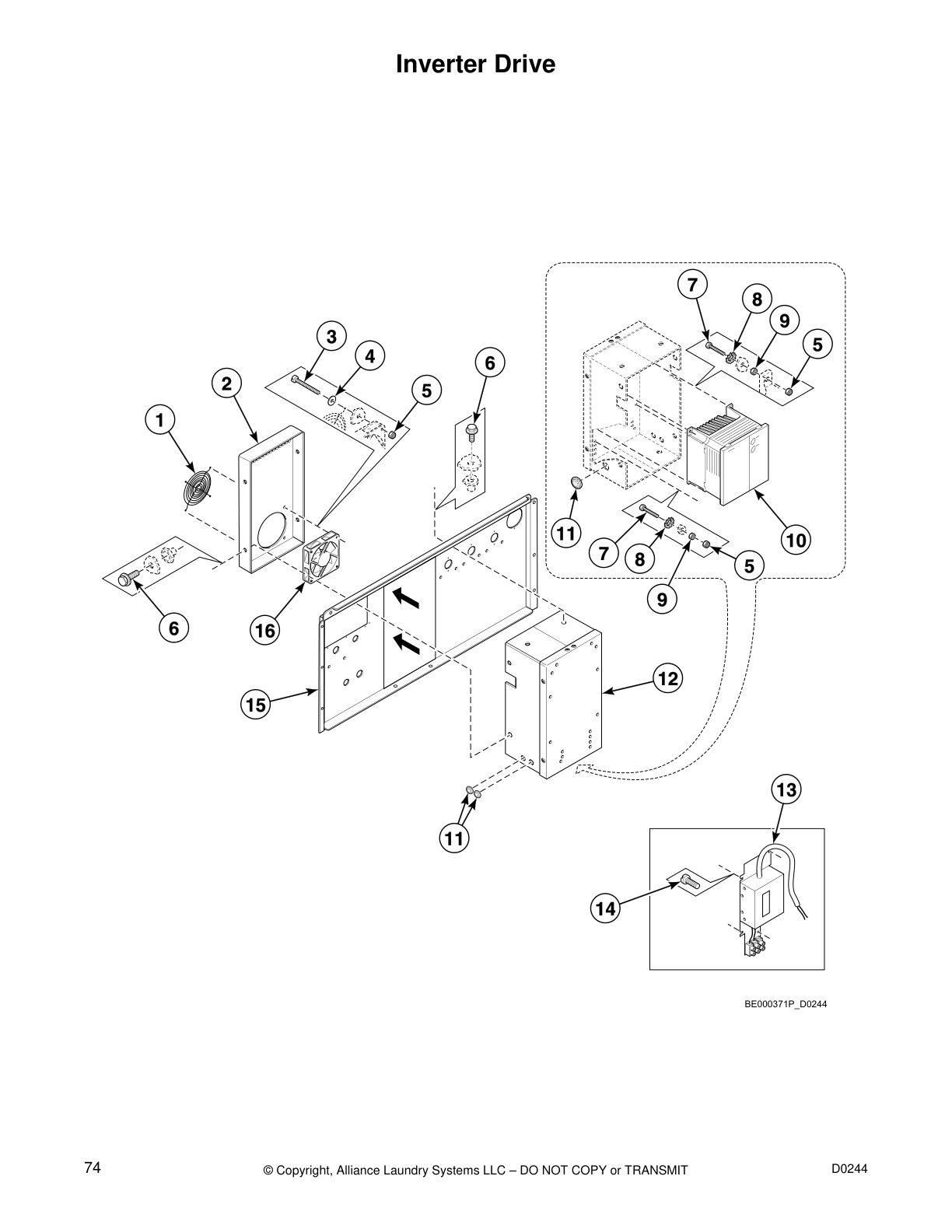

Inverter Drive

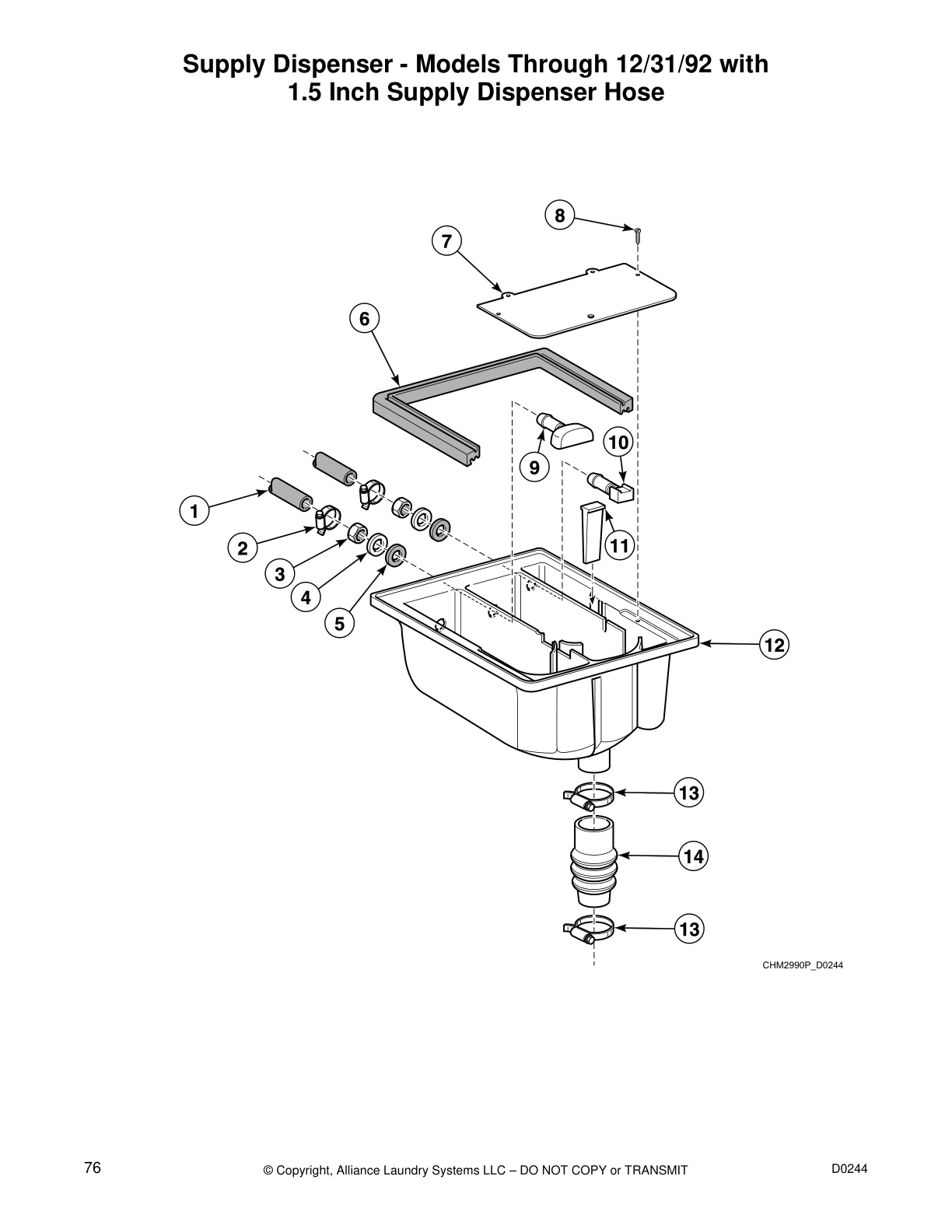

Supply Dispenser - Models Through 12/31/92 with
1.5 Inch Supply Dispenser Hose

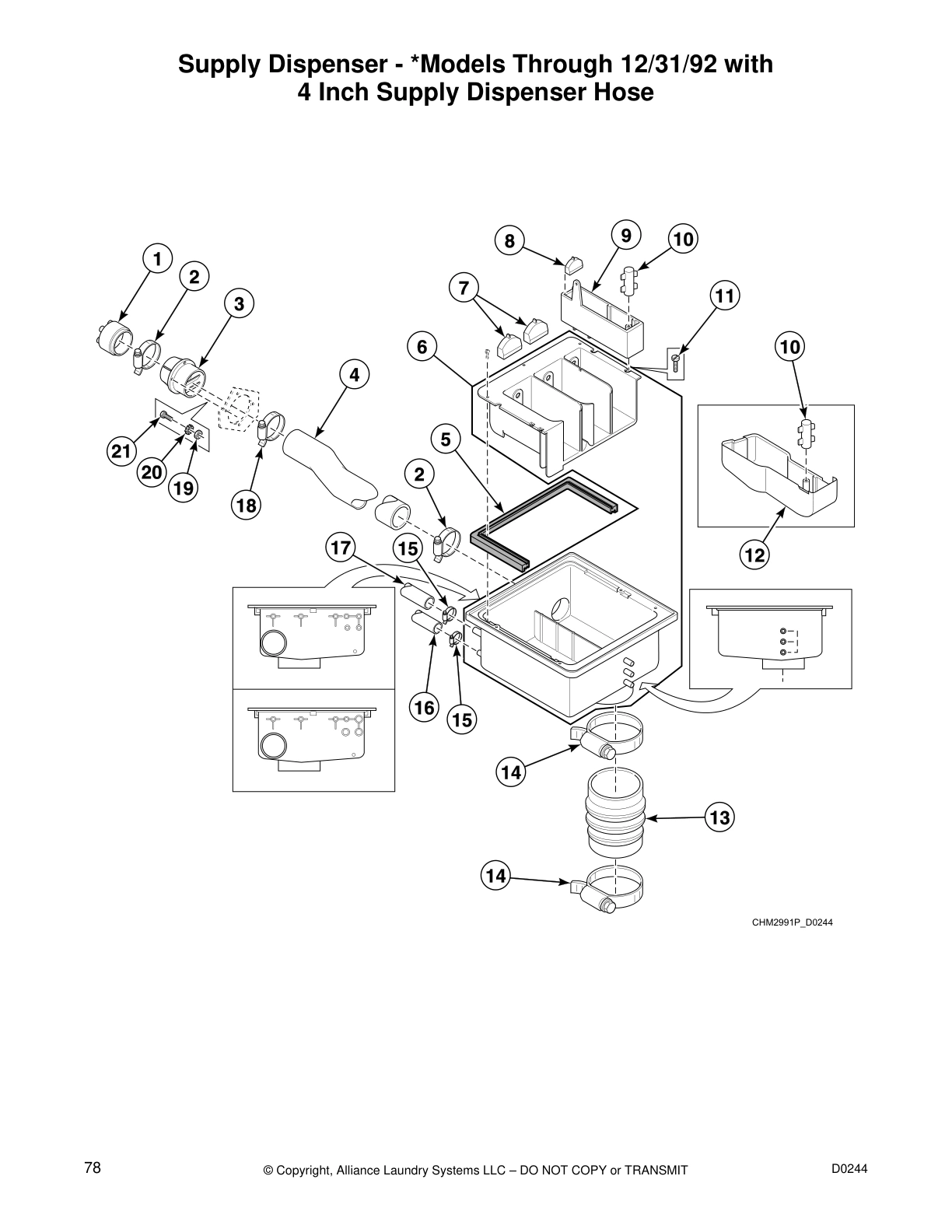

Supply Dispenser - *Models Through 12/31/92 with
4 Inch Supply Dispenser Hose

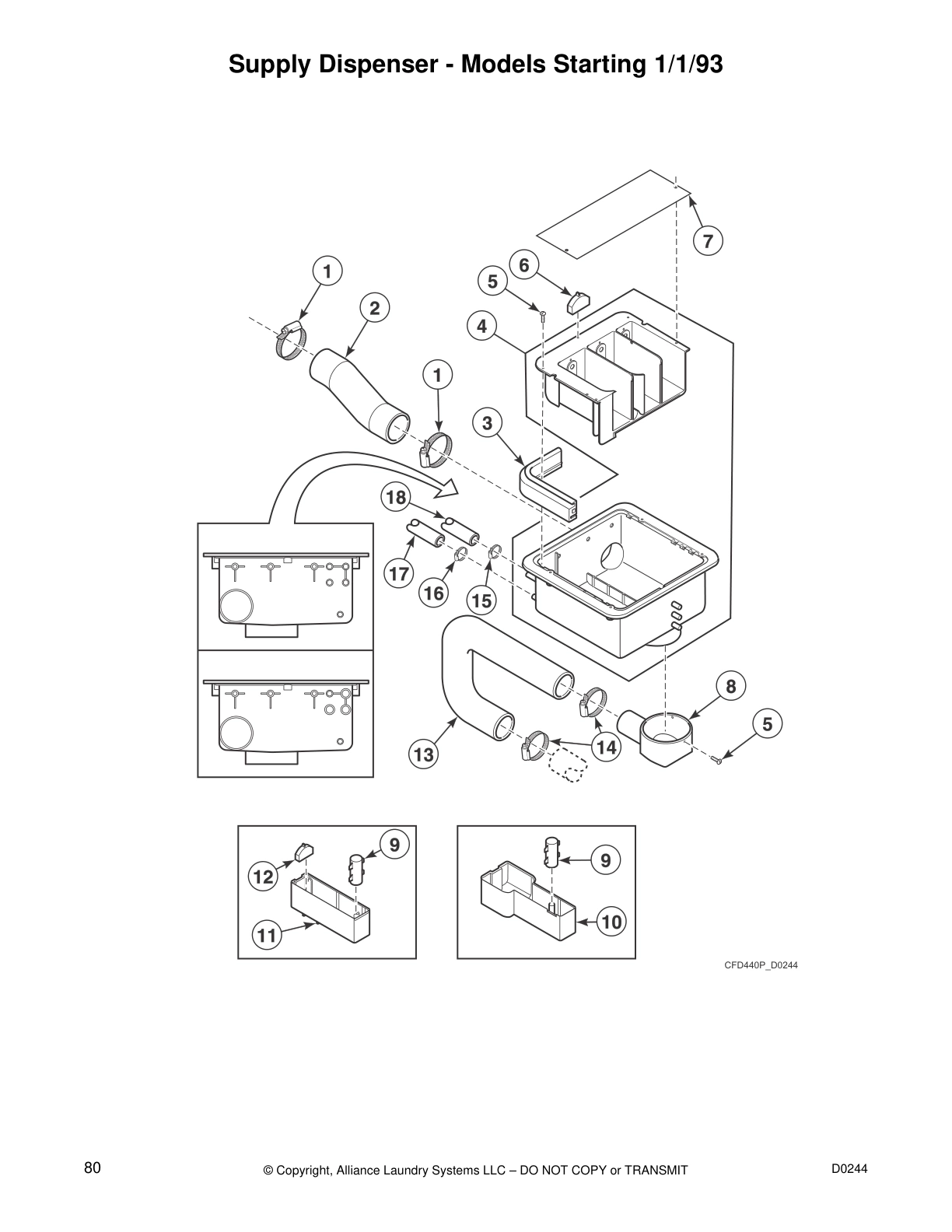

Supply Dispenser - Models Starting 1/1/93

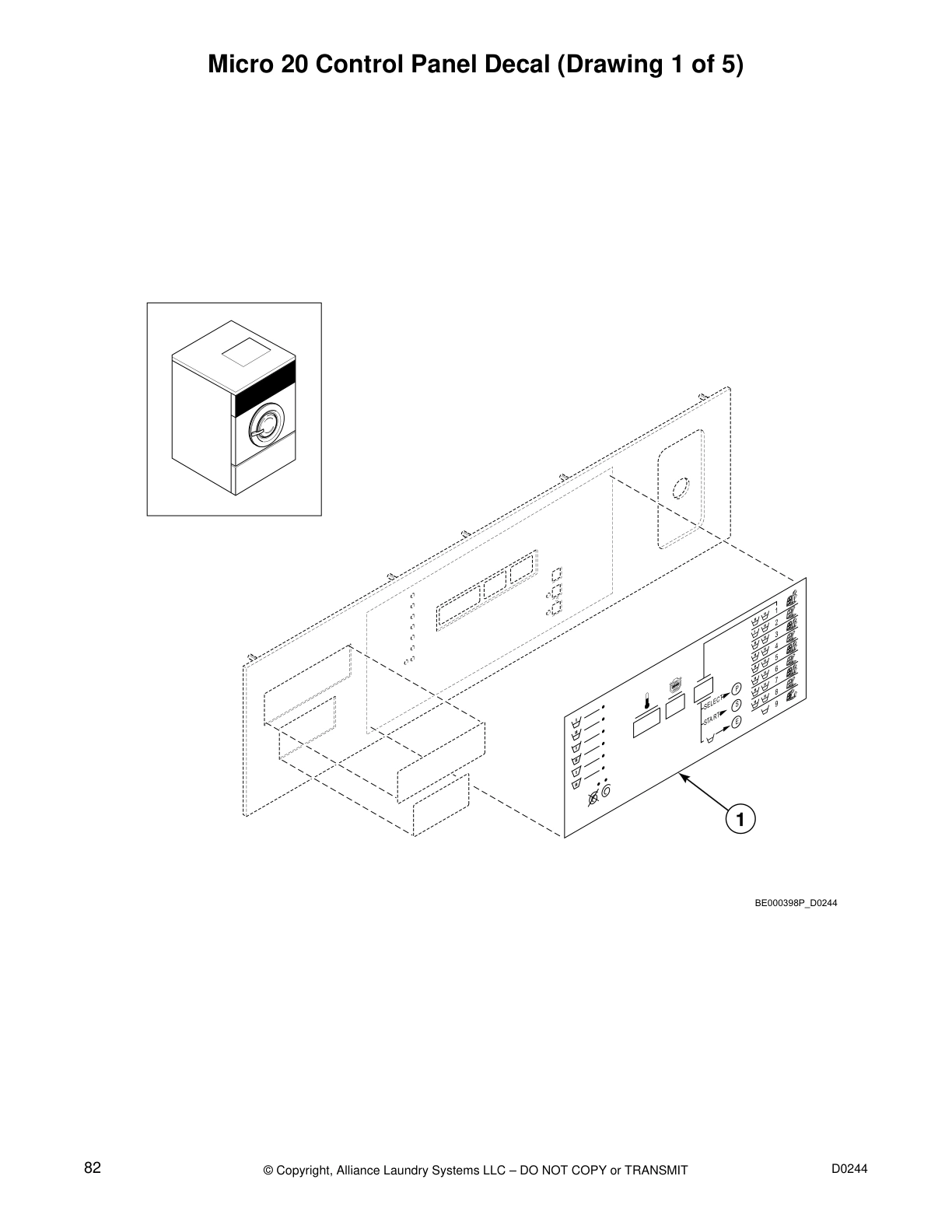

Micro 20 Control Panel Decal (Drawing 1 of 5)
Micro 20 Control Panel Decal (Drawing 2 of 5)
Micro 20 Control Panel Decal (Drawing 3 of 5)
Micro 20 Control Panel Decal (Drawing 4 of 5)

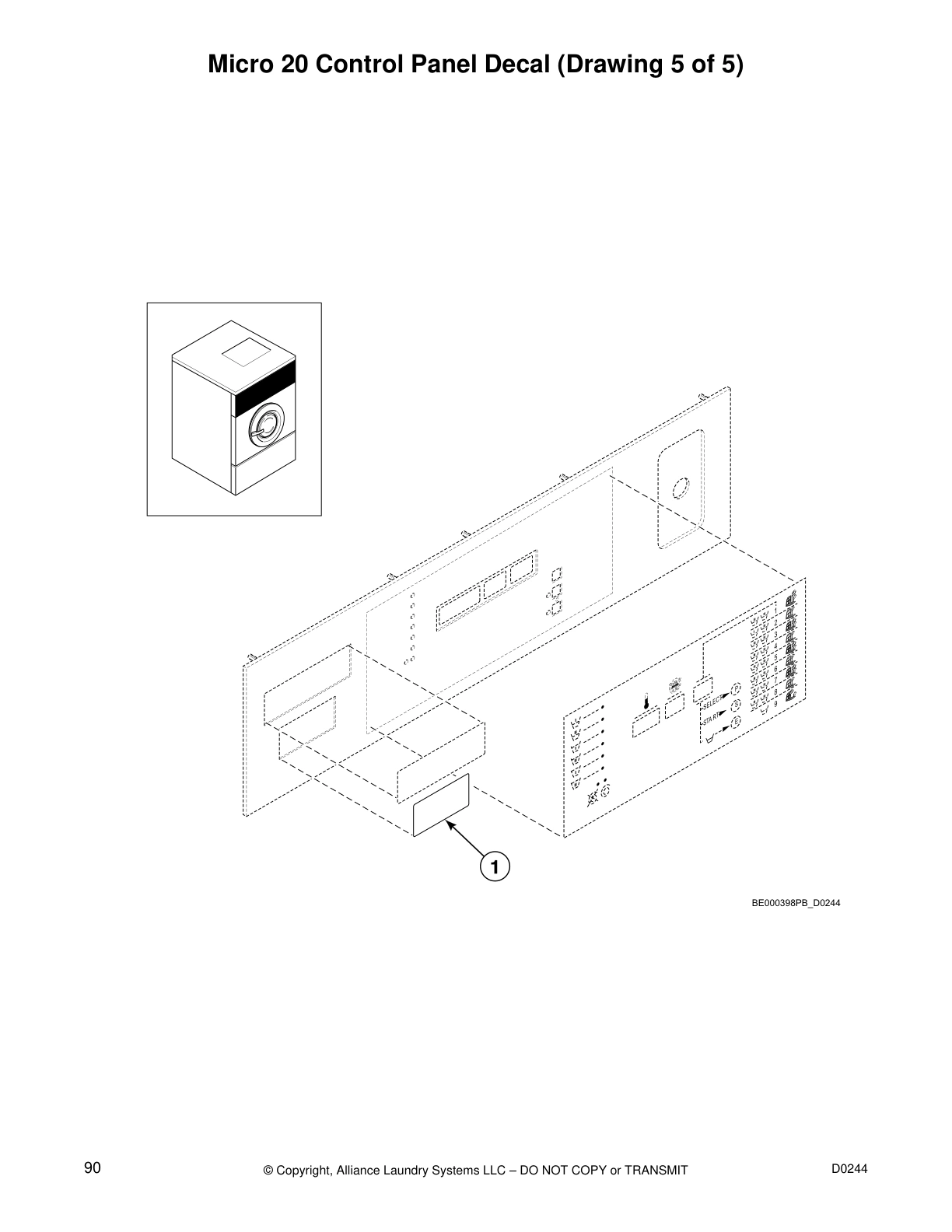

Micro 20 Control Panel Decal (Drawing 5 of 5)

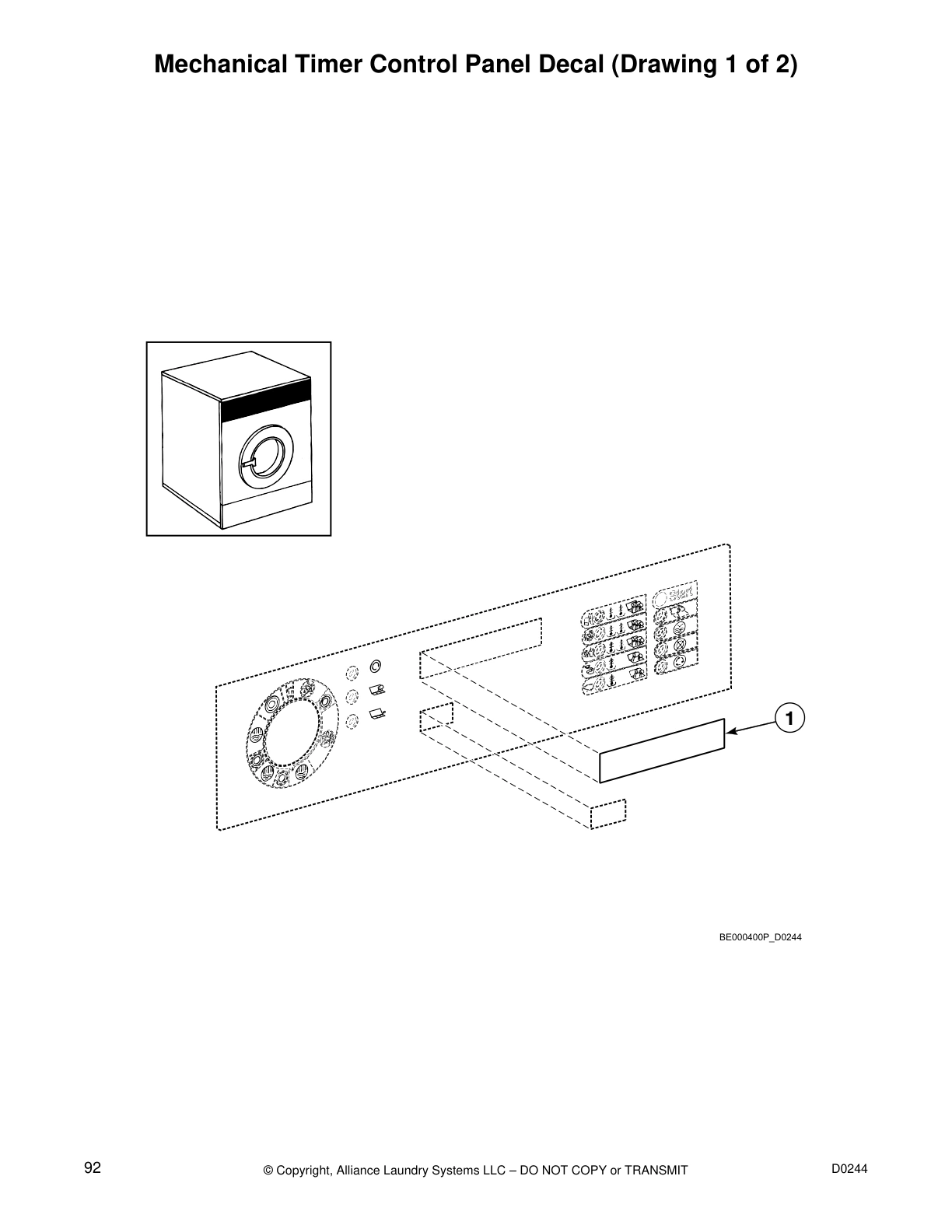

Mechanical Timer Control Panel Decal (Drawing 1 of 2)

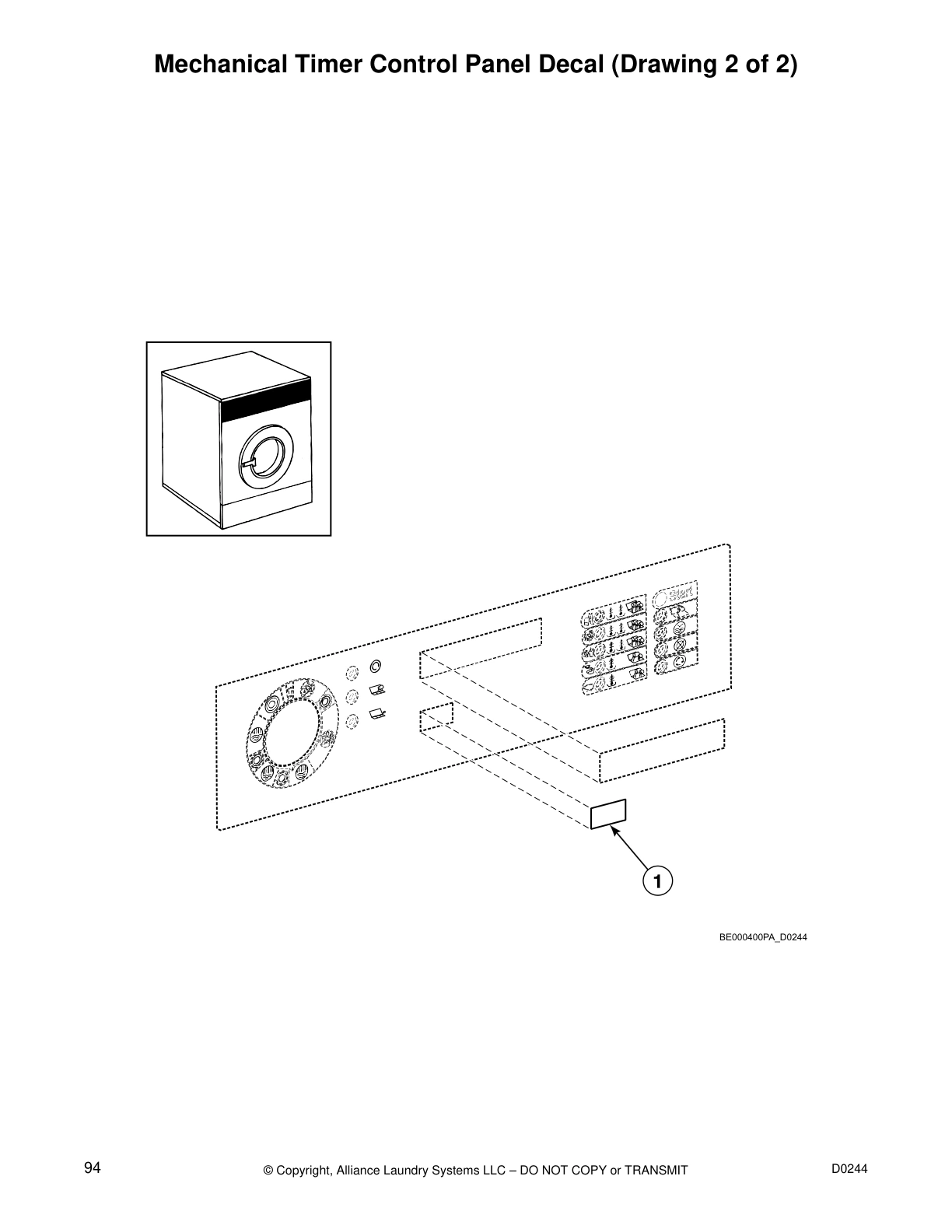

Mechanical Timer Control Panel Decal (Drawing 2 of 2)

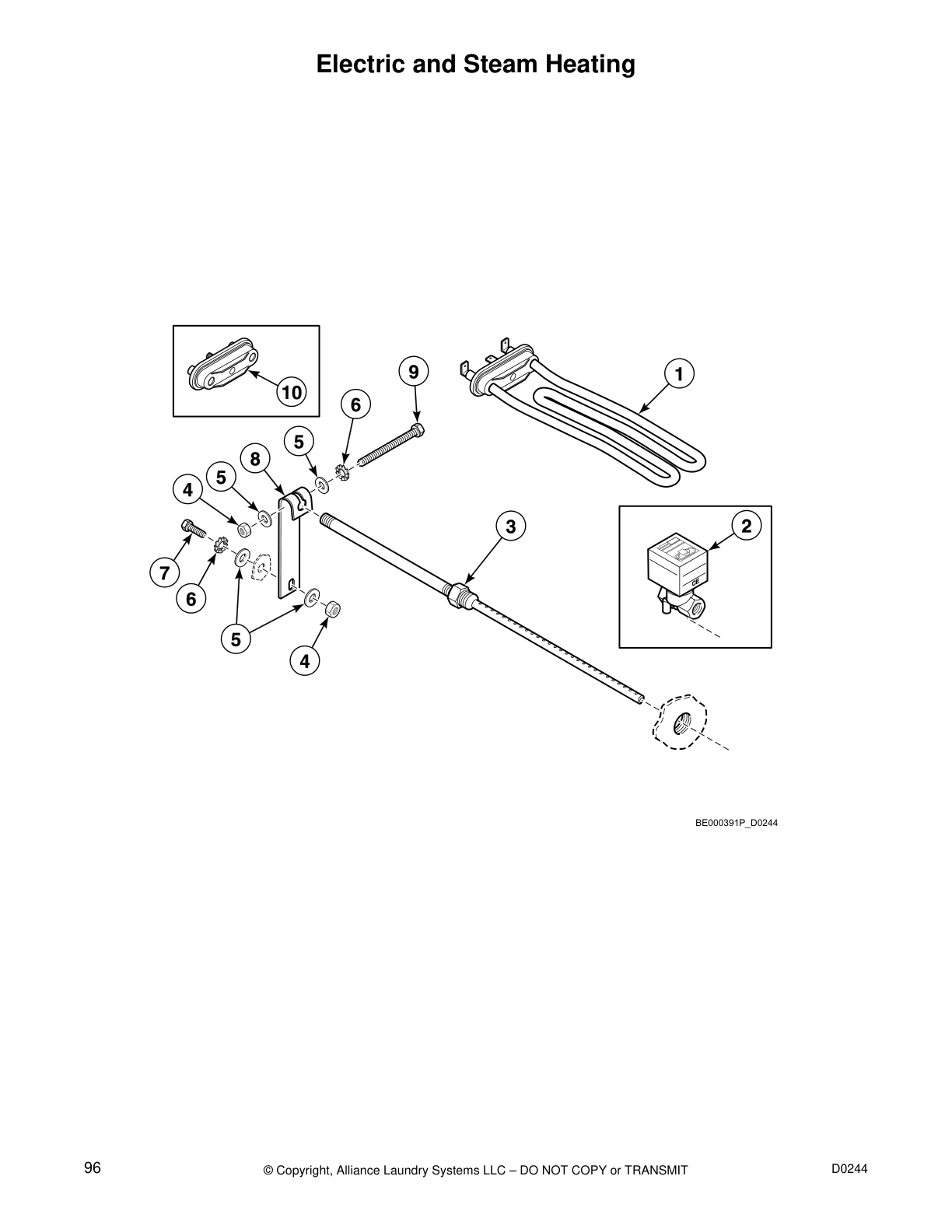

Electric and Steam Heating

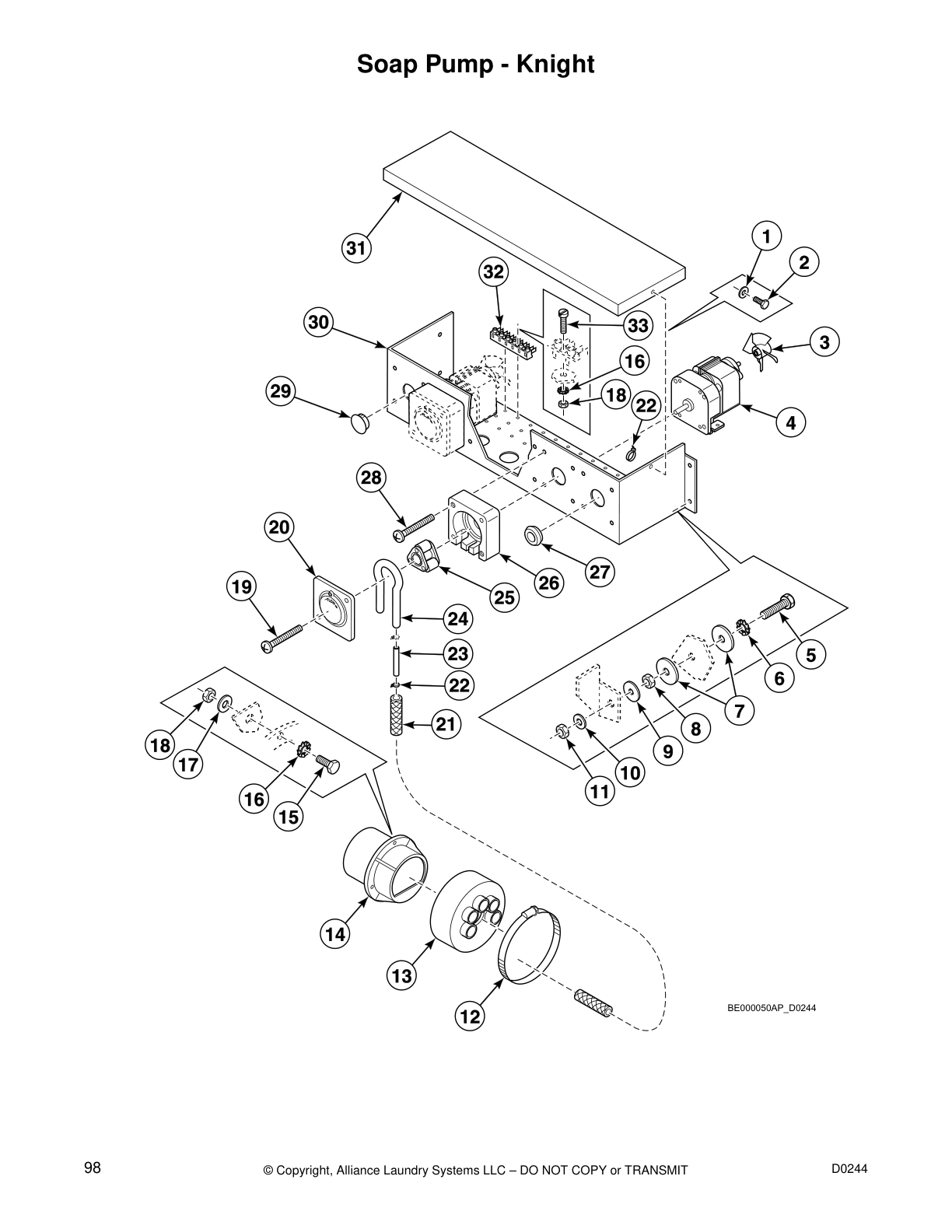

Soap Pump - Knight

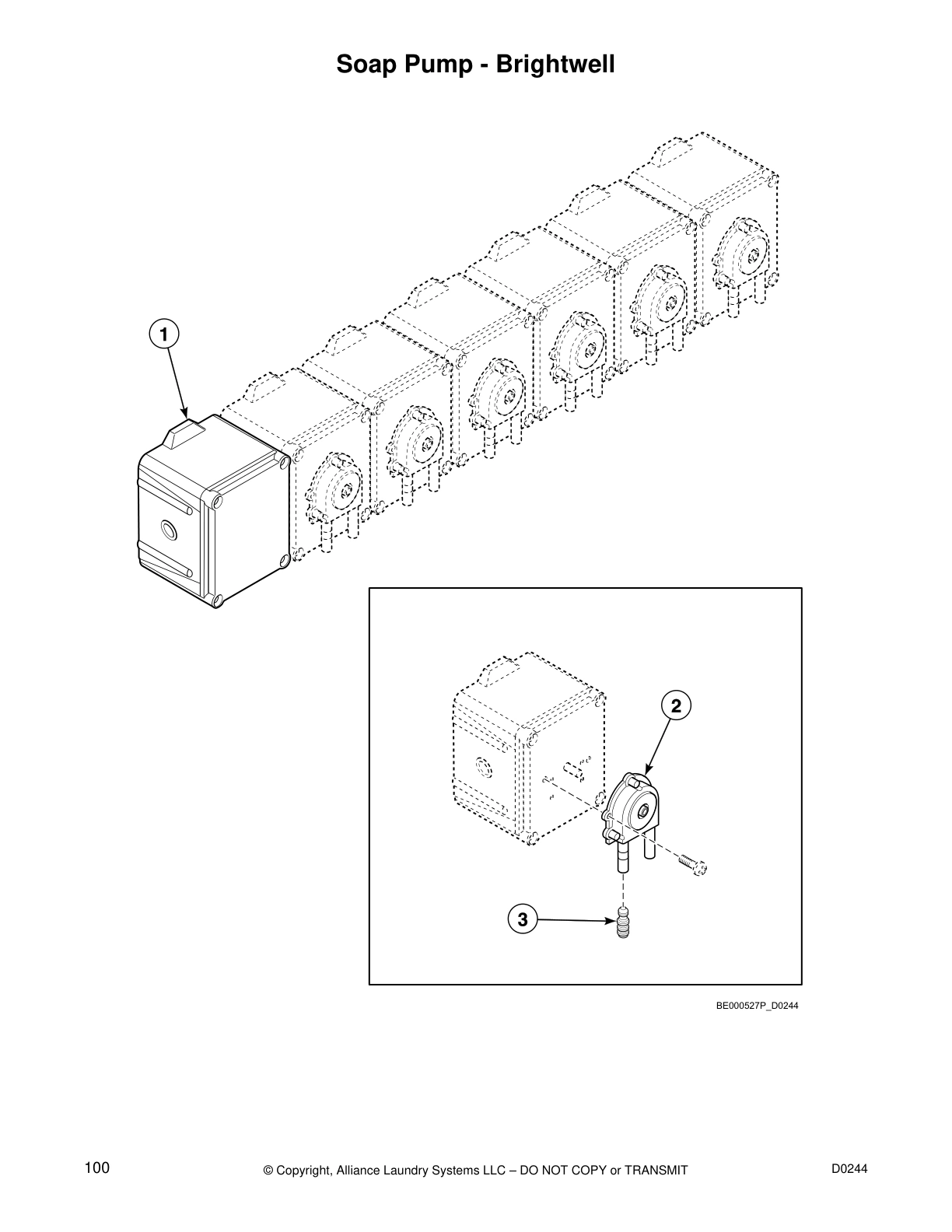

Soap Pump - Brightwell
Common parts from model IPSO IWE050MC2 Washer
SPQ B12543201 SPQ B12543201 Contact Us For Availability
SPQ 225/00308/00 SPQ 225/00308/00 Contact Us For Availability
SPQ 209/00402/03 SPQ 209/00402/03 Contact Us For Availability
SPQ 209/00229/00 SPQ 209/00229/00 Contact Us For Availability
SPQ 209/00111/10 SPQ 209/00111/10 Contact Us For Availability
SPQ 209/00576/00 SPQ 209/00576/00 Contact Us For Availability
SPQ 209/00388/00 SPQ 209/00388/00 Contact Us For Availability
SPQ 209/00120/00 SPQ 209/00120/00 Contact Us For Availability
SPQ 209/00402/01 SPQ 209/00402/01 Contact Us For Availability
SPQ 209/00278/00 SPQ 209/00278/00 Contact Us For Availability
SPQ 209/00156/00 SPQ 209/00156/00 Contact Us For Availability
SPQ 209/00070/00 SPQ 209/00070/00 Contact Us For Availability
SPQ 209/00060/00 SPQ 209/00060/00 Contact Us For Availability
SPQ 209/00061/00 SPQ 209/00061/00 Contact Us For Availability
SPQ 209/00069/00 SPQ 209/00069/00 Contact Us For Availability
SPQ 225/00419/00 SPQ 225/00419/00 Contact Us For Availability
SPQ 225/00342/00 SPQ 225/00342/00 Contact Us For Availability
SPQ 225/10111/00 SPQ 225/10111/00 Contact Us For Availability
SPQ 225/10161/00 SPQ 225/10161/00 Contact Us For Availability
SPQ 225/10053/00 SPQ 225/10053/00 Contact Us For Availability
SPQ 225/10114/00 SPQ 225/10114/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
1
Base SPQ 237/00001/50 Contact Us For Availability
1
Nut SPQ 204/00003/00 Contact Us For Availability
1
Key SPQ 212/00026/00 Contact Us For Availability
1
Nut SPQ 204/00115/00 Contact Us For Availability
1
Screw SPQ 209/00025/08 Contact Us For Availability
1
Tub Front Gasket SPQ 223/00242/00 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Lever Spring SPQ 224/00040/00 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
1
Pressure Switch Bracket SPQ 111/00424/00 Contact Us For Availability
1
Bolt SPQ 206/00033/00 Contact Us For Availability
1
Coin Meter SPQ 209/00442/00 Contact Us For Availability
1
Coin Meter SPQ 209/00553/00 Contact Us For Availability
1
Fan Grill SPQ 209/00287/01 Contact Us For Availability
1
Sticker SPQ 225/00341/00 Contact Us For Availability
1
Front Label SPQ 225/10158/00 Contact Us For Availability
1
Front Label SPQ 225/10162/00 Contact Us For Availability
1
Front Label SPQ 225/10090/00 Contact Us For Availability
1
Front Label SPQ 225/10154/00 Contact Us For Availability
1
Label SPQ 225/00073/00 Contact Us For Availability
1
Heating Element SPQ 209/00581/00 Contact Us For Availability
1
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
2
Coin Box SPQ 240/00001/50 Contact Us For Availability
2
Ball Bearing SPQ 212/00037/00 Contact Us For Availability
2
Washer SPQ 226/00072/00 Contact Us For Availability
2
Drain Valve SPQ 223/00183/00 Contact Us For Availability
2
Coil SPQ 209/00051/11 Contact Us For Availability
2
Print Display SPQ 209/00151/00 Contact Us For Availability
2
Telem Sticker SPQ 204/00006/00 Contact Us For Availability
2
Outer Cabinet Lock SPQ 211/00070/01 Contact Us For Availability
2
Plug SPQ 205/00113/00 Contact Us For Availability
2
Backbridge SPQ 227/00165/00 Contact Us For Availability
2
Soap Spray Nozzle SPQ 223/00107/06 Contact Us For Availability
2
Hose SPQ 209/00554/05 Contact Us For Availability
3
Bolt SPQ 137/00003/00 Contact Us For Availability
3
SPQ 204/00112/00 SPQ 204/00112/00 Contact Us For Availability
3
Pulley SPQ 239/00013/00 Contact Us For Availability
3
Spindle SPQ 137/00002/00 Contact Us For Availability
3
Bolt SPQ 209/00399/00 Contact Us For Availability
3
Washer SPQ 209/00052/11 Contact Us For Availability
3
Door Hinge Block SPQ 118/00125/00 Contact Us For Availability
3
Door Handle Spring SPQ 217/00013/14 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
SPQ 211/00070/02 SPQ 211/00070/02 Contact Us For Availability
3
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
3
Washer SPQ 204/00201/00 Contact Us For Availability
3
Inverter Box Cover SPQ 207/00004/00 Contact Us For Availability
3
Soap Box Assembly Plate SPQ 223/00109/00 Contact Us For Availability
3
Hose Connector SPQ 209/00554/03 Contact Us For Availability
4
SPQ 212/10104/00 SPQ 212/10104/00 Contact Us For Availability
4
SPQ 201/00009/00 SPQ 201/00009/00 Contact Us For Availability
4
Bolt SPQ 206/00130/00 Contact Us For Availability
4
SPQ 204/00014/00 SPQ 204/00014/00 Contact Us For Availability
4
Washer SPQ 206/00013/00 Contact Us For Availability
4
Drain Valve Shaft SPQ 209/00170/05 Contact Us For Availability
4
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
4
Standoff SPQ 209/00440/02 Contact Us For Availability
4
SPQ 211/00125/00 SPQ 211/00125/00 Contact Us For Availability
4
SPQ 211/00070/04 SPQ 211/00070/04 Contact Us For Availability
4
SPQ 207/00131/00 SPQ 207/00131/00 Contact Us For Availability
4
SPQ 111/10101/00 SPQ 111/10101/00 Contact Us For Availability
4
Ground Terminal SPQ 209/00058/00 Contact Us For Availability
4
Bolt SPQ 111/01158/30 Contact Us For Availability
4
Lid Seal SPQ 201/00002/00 Contact Us For Availability
4
Softener Spray Nozzle SPQ 223/00107/01 Contact Us For Availability
4
Dispenser Drain Funnel SPQ 223/00102/70 Contact Us For Availability
4
Nut SPQ F360202 Contact Us For Availability
4
SPQ 209/00413/06 SPQ 209/00413/06 Contact Us For Availability
5
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
5
Screw SPQ 206/00053/00 Contact Us For Availability
5
SPQ 206/00014/00 SPQ 206/00014/00 Contact Us For Availability
5
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
5
Door Handle SPQ 217/00013/12 Contact Us For Availability
5
Door Handle Hook SPQ 217/00013/13 Contact Us For Availability
5
Standoff SPQ 211/00122/00 Contact Us For Availability
5
SPQ 208/00024/00 SPQ 208/00024/00 Contact Us For Availability
5
SPQ 209/00176/00 SPQ 209/00176/00 Contact Us For Availability
5
SPQ 209/00265/00 SPQ 209/00265/00 Contact Us For Availability
5
SPQ 211/00070/03 SPQ 211/00070/03 Contact Us For Availability
5
SPQ 223/00103/03 SPQ 223/00103/03 Contact Us For Availability
5
SPQ 205/00103/00 SPQ 205/00103/00 Contact Us For Availability
5
Washer SPQ 111/01158/11 Contact Us For Availability
5
Mounting Plate SPQ 223/00001/07 Contact Us For Availability
5
Soap Dispenser Rinse Siphon SPQ B12347501 Contact Us For Availability
5
Washer SPQ 204/00004/00 Contact Us For Availability
6
SPQ 206/00052/00 SPQ 206/00052/00 Contact Us For Availability
6
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
6
Washer SPQ 206/00004/00 Contact Us For Availability
6
SPQ 204/00113/00 SPQ 204/00113/00 Contact Us For Availability
6
SPQ 211/00120/00 SPQ 211/00120/00 Contact Us For Availability
6
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
6
Door Handle Catch SPQ 217/00051/13 Contact Us For Availability
6
SPQ 209/00175/00 SPQ 209/00175/00 Contact Us For Availability
6
SPQ 208/00104/00 SPQ 208/00104/00 Contact Us For Availability
6
Nut SPQ 206/00136/00 Contact Us For Availability
6
Screw SPQ 223/00003/00 Contact Us For Availability
6
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
6
Bolt SPQ 202/00002/00 Contact Us For Availability
7
Belt SPQ 203/00001/00 Contact Us For Availability
7
SPQ 137/00004/00 SPQ 137/00004/00 Contact Us For Availability
7
SPQ 137/00010/00 SPQ 137/00010/00 Contact Us For Availability
7
SPQ 209/00203/21 SPQ 209/00203/21 Contact Us For Availability
7
SPQ 217/00009/01 SPQ 217/00009/01 Contact Us For Availability
7
SPQ 203/00010/00 SPQ 203/00010/00 Contact Us For Availability
7
SPQ 202/00104/00 SPQ 202/00104/00 Contact Us For Availability
7
Upper Front Panel SPQ 111/00221/00 Contact Us For Availability
7
SPQ 205/00106/00 SPQ 205/00106/00 Contact Us For Availability
7
SPQ 209/00452/02 SPQ 209/00452/02 Contact Us For Availability
7
Prewash and Mainwash Nozzle SPQ 223/00001/06 Contact Us For Availability
7
SPQ 123/00103/06 SPQ 123/00103/06 Contact Us For Availability
7
Mounting Plate SPQ 203/00003/00 Contact Us For Availability
7
SPQ 202/00108/00 SPQ 202/00108/00 Contact Us For Availability
8
SPQ 205/00115/00 SPQ 205/00115/00 Contact Us For Availability
8
SPQ 119/00228/00 SPQ 119/00228/00 Contact Us For Availability
8
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
8
Basket SPQ 201/00011/00 Contact Us For Availability
8
SPQ 223/00106/00 SPQ 223/00106/00 Contact Us For Availability
8
SPQ 209/00025/12 SPQ 209/00025/12 Contact Us For Availability
8
SPQ 117/00010/00 SPQ 117/00010/00 Contact Us For Availability
8
SPQ 207/00112/00 SPQ 207/00112/00 Contact Us For Availability
8
SPQ 118/00124/00 SPQ 118/00124/00 Contact Us For Availability
8
Facia Panel SPQ 225/00306/AOL Contact Us For Availability
8
SPQ 209/00279/00 SPQ 209/00279/00 Contact Us For Availability
8
SPQ 211/00071/00 SPQ 211/00071/00 Contact Us For Availability
8
SPQ 202/00110/00 SPQ 202/00110/00 Contact Us For Availability
8
SPQ 209/00006/01 SPQ 209/00006/01 Contact Us For Availability
8
SPQ 223/00196/00 SPQ 223/00196/00 Contact Us For Availability
8
SPQ 206/00009/00 SPQ 206/00009/00 Contact Us For Availability
9
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
9
SPQ 201/00001/00 SPQ 201/00001/00 Contact Us For Availability
9
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
9
SPQ 207/00009/00 SPQ 207/00009/00 Contact Us For Availability
9
SPQ 207/00126/00 SPQ 207/00126/00 Contact Us For Availability
9
Door Locking Grip SPQ 217/00013/07 Contact Us For Availability
9
SPQ 204/00114/00 SPQ 204/00114/00 Contact Us For Availability
9
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
9
SPQ 223/00102/04 SPQ 223/00102/04 Contact Us For Availability
9
SPQ 131/00008/00 SPQ 131/00008/00 Contact Us For Availability
9
SPQ 202/00106/00 SPQ 202/00106/00 Contact Us For Availability
10
Nut SPQ 204/00002/00 Contact Us For Availability
10
Retainer Ring SPQ 212/00006/00 Contact Us For Availability
10
Bolt SPQ 206/00011/00 Contact Us For Availability
10
Inverter Drive SPQ F8421312 Contact Us For Availability
10
Drain Valve Motor Mounting Plate SPQ 209/00025/07 Contact Us For Availability
10
Washer SPQ 202/00101/00 Contact Us For Availability
10
Washer SPQ 203/00007/00 Contact Us For Availability
10
Washer SPQ 201/00018/00 Contact Us For Availability
10
Door Axle Roller SPQ 217/00013/05 Contact Us For Availability
10
Screw SPQ 207/00032/00 Contact Us For Availability
10
Nut SPQ 204/00107/00 Contact Us For Availability
10
Hook SPQ 111/00002/00 Contact Us For Availability
10
Fuse SPQ 209/00468/00 Contact Us For Availability
10
Injector SPQ 223/00001/05 Contact Us For Availability
10
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
10
Heating Element Plug SPQ 209/00563/30 Contact Us For Availability
11
Nut SPQ 204/00009/00 Contact Us For Availability
11
Tub Clamp Ring SPQ 238/00011/00 Contact Us For Availability
11
Spindle SPQ 126/00051/00 Contact Us For Availability
11
Tightening Bracket SPQ 137/00009/00 Contact Us For Availability
11
Inverter Drive Kit SPQ F8421311 Contact Us For Availability
11
Drain Hose SPQ 223/00100/00 Contact Us For Availability
11
Drain Valve Motor SPQ 209/00203/11 Contact Us For Availability
11
O-Ring SPQ 217/00021/00 Contact Us For Availability
11
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
11
Front Panel SPQ 111/00217/02 Contact Us For Availability
11
Washer SPQ 208/00009/00 Contact Us For Availability
11
Separator Plate SPQ 223/00001/03 Contact Us For Availability
11
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
12
Screw SPQ 205/00101/00 Contact Us For Availability
12
Tub Front Panel Clip SPQ 206/00034/00 Contact Us For Availability
12
Safety Ring SPQ 226/00054/00 Contact Us For Availability
12
Motor SPQ 241/00002/00 Contact Us For Availability
12
Grommet SPQ F8421211 Contact Us For Availability
12
Protection Block SPQ 217/00017/02 Contact Us For Availability
12
Nut SPQ 204/00008/00 Contact Us For Availability
12
Screw SPQ 206/00021/00 Contact Us For Availability
12
Bolt SPQ 206/00016/00 Contact Us For Availability
12
Screw SPQ 207/00101/00 Contact Us For Availability
12
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
12
Soap Dispenser SPQ 223/00001/01 Contact Us For Availability
12
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
13
Washer SPQ 201/00010/00 Contact Us For Availability
13
O-Ring SPQ 217/00002/00 Contact Us For Availability
13
Tub Front Panel Gasket SPQ 217/00008/00 Contact Us For Availability
13
Inverter Drive Box SPQ F8421212 Contact Us For Availability
13
Bolt SPQ 205/00104/00 Contact Us For Availability
13
Display SPQ 223/10066/00 Contact Us For Availability
13
Program Indicator SPQ 225/00001/00 Contact Us For Availability
13
Screw SPQ 207/00108/00 Contact Us For Availability
13
Front Panel SPQ 140/00006/01 Contact Us For Availability
13
Lower Panel SPQ 140/00008/00 Contact Us For Availability
13
Electrical Connection Plate SPQ 111/00094/10 Contact Us For Availability
13
Liquid Soap Hose SPQ 223/00160/00 Contact Us For Availability
13
Hose SPQ 223/00115/00 Contact Us For Availability
13
Soap Dispenser Hose SPQ 223/00220/00 Contact Us For Availability
14
Bolt SPQ 203/00002/00 Contact Us For Availability
14
Stopper SPQ 223/00087/00 Contact Us For Availability
14
Hose Clamp SPQ 223/00023/00 Contact Us For Availability
14
Lock Shaft SPQ 207/00102/00 Contact Us For Availability
14
Noise Filter SPQ 223/00174/00 Contact Us For Availability
14
Pushbutton SPQ 209/00396/00 Contact Us For Availability
14
Nut SPQ 111/00001/00 Contact Us For Availability
14
Hose Vent SPQ 223/00102/07 Contact Us For Availability
14
Washer SPQ 211/00123/00 Contact Us For Availability
14
Hose SPQ 223/00007/00 Contact Us For Availability
14
Water Hose SPQ 223/00071/00 Contact Us For Availability
15
Soap Dispenser Cover Hinge R SPQ 201/00007/00 Contact Us For Availability
15
Basket SPQ 223/00242/40 Contact Us For Availability
15
Pulley SPQ 206/00006/00 Contact Us For Availability
15
Motor Key SPQ 227/00127/01 Contact Us For Availability
15
Microswitch SPQ 217/00017/03 Contact Us For Availability
15
Electrical Component Extension Plate SPQ 140/00021/00 Contact Us For Availability
15
Vent Hose SPQ 223/00011/00 Contact Us For Availability
15
Outer Coin Box SPQ 211/00100/00 Contact Us For Availability
15
Bolt SPQ 206/00027/00 Contact Us For Availability
15
Bolt SPQ 205/00105/00 Contact Us For Availability
15
Bolt SPQ 211/00138/00 Contact Us For Availability
15
Screw SPQ 111/01149/00 Contact Us For Availability
15
Clamp SPQ 223/00009/00 Contact Us For Availability
16
Seal Plate Assembly SPQ B12333701 Contact Us For Availability
16
Belt SPQ 226/00028/00 Contact Us For Availability
16
Soap Injector Hose SPQ 203/00006/00 Contact Us For Availability
16
Screw SPQ 206/00127/00 Contact Us For Availability
16
Lens Cover SPQ 209/00154/00 Contact Us For Availability
16
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
16
Coin Box Ring Assembly SPQ 111/00100/00 Contact Us For Availability
16
Network Connection Printboard SPQ 111/01158/80 Contact Us For Availability
16
Soap Dispenser Gasket SPQ 223/00010/00 Contact Us For Availability
17
Pulley SPQ 226/00073/00 Contact Us For Availability
17
Hose Clamp SPQ 207/00008/00 Contact Us For Availability
17
Fuse SPQ 209/00439/00 Contact Us For Availability
17
Lamp SPQ 209/00152/00 Contact Us For Availability
17
Elbow SPQ 223/00015/00 Contact Us For Availability
17
Coin Box Ring SPQ 111/00066/00 Contact Us For Availability
17
Hose SPQ 202/00004/00 Contact Us For Availability
17
Rivet SPQ 209/00540/00 Contact Us For Availability
17
Soap Dispenser SPQ 223/00059/00 Contact Us For Availability
18
Nut SPQ 201/00201/00 Contact Us For Availability
18
Grommet SPQ 204/00007/00 Contact Us For Availability
18
Cordlock SPQ 226/00092/00 Contact Us For Availability
18
Nut SPQ 223/00013/00 Contact Us For Availability
18
Pin SPQ 217/00020/00 Contact Us For Availability
18
Lamp SPQ 223/00065/00 Contact Us For Availability
18
Screw SPQ 223/00044/00 Contact Us For Availability
19
Bearing Housing Assembly SPQ 206/00045/00 Contact Us For Availability
19
Outer Tub SPQ 206/00029/00 Contact Us For Availability
19
Intermediate Fan Motor Plate SPQ 206/00056/00 Contact Us For Availability
19
Retaining Ring SPQ 204/00106/00 Contact Us For Availability
19
Bolt SPQ 211/00105/00 Contact Us For Availability
19
Hose Vent SPQ 206/00101/00 Contact Us For Availability
19
Thermostat Assembly SPQ 209/00309/02 Contact Us For Availability
19
Coin Box Lock SPQ 211/00065/00 Contact Us For Availability
19
Contact Switch SPQ 208/00017/00 Contact Us For Availability
19
Washer SPQ 204/00105/00 Contact Us For Availability
20
Retaining Ring SPQ 211/00117/00 Contact Us For Availability
20
Nut SPQ 201/00006/00 Contact Us For Availability
20
Door Glass Seal SPQ 217/00019/00 Contact Us For Availability
20
Terminal Block SPQ 209/00099/06 Contact Us For Availability
20
Retaining Ring SPQ 209/00281/00 Contact Us For Availability
20
Front Plate SPQ 111/00068/00 Contact Us For Availability
20
SPQ 111/10102/00 SPQ 111/10102/00 Contact Us For Availability
21
Bearing Replacement Kit SPQ 201/00012/00 Contact Us For Availability
21
Mounting Plate SPQ 204/00111/00 Contact Us For Availability
21
Coin Box SPQ 211/00101/00 Contact Us For Availability
21
Soap Dispenser Gasket SPQ 207/00106/00 Contact Us For Availability
21
Connection SPQ 223/00179/00 Contact Us For Availability
22
SPQ 204/00001/00 SPQ 204/00001/00 Contact Us For Availability
22
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
22
Spindle SPQ 211/00065/01 Contact Us For Availability
23
SPQ 206/00003/00 SPQ 206/00003/00 Contact Us For Availability
23
Interlock Lever SPQ 224/00049/00 Contact Us For Availability
23
Standoff SPQ 209/00520/00 Contact Us For Availability
23
Lug Holder SPQ 209/00243/00 Contact Us For Availability
23
Roll Pin SPQ 206/00038/00 Contact Us For Availability
23
SPQ 208/00001/00 SPQ 208/00001/00 Contact Us For Availability
24
Selector Switch SPQ 202/00003/00 Contact Us For Availability
24
SPQ 111/00243/00 SPQ 111/00243/00 Contact Us For Availability
24
Spring SPQ 111/00069/00 Contact Us For Availability
24
Screw SPQ 209/00413/03 Contact Us For Availability
25
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
25
Protector SPQ 225/10004/00 Contact Us For Availability
25
Inner Coin Box SPQ 208/00013/00 Contact Us For Availability
26
O-Ring SPQ 217/00038/00 Contact Us For Availability
26
Door Lock Microswitch SPQ 217/00052/04 Contact Us For Availability
26
SPQ 208/00007/00 SPQ 208/00007/00 Contact Us For Availability
27
Door Hinge SPQ 209/00023/00 Contact Us For Availability
27
Fan Motor SPQ 223/00198/00 Contact Us For Availability
28
Door Hinge Spacer SPQ 207/00109/00 Contact Us For Availability
28
Lug Holder SPQ 223/00016/00 Contact Us For Availability
29
SPQ 211/00087/00 SPQ 211/00087/00 Contact Us For Availability
30
SPQ 224/00003/00 SPQ 224/00003/00 Contact Us For Availability
31
SPQ 208/00004/00 SPQ 208/00004/00 Contact Us For Availability
32
SPQ 210/10007/00 SPQ 210/10007/00 Contact Us For Availability
33
SPQ 207/00003/00 SPQ 207/00003/00 Contact Us For Availability
NI
SPQ KBRGWE234 SPQ KBRGWE234 Contact Us For Availability
NI
SPQ B12380901 SPQ B12380901 Contact Us For Availability
NI
SPQ B12381001 SPQ B12381001 Contact Us For Availability
NI
SPQ 209/00170/10 SPQ 209/00170/10 Contact Us For Availability
NI
SPQ 201/00008/00 SPQ 201/00008/00 Contact Us For Availability
NI
Label SPQ 225/00309/00 Contact Us For Availability
NI
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
NI
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
NI
SPQ 209/00414/00 SPQ 209/00414/00 Contact Us For Availability
NI
SPQ 209/00389/00 SPQ 209/00389/00 Contact Us For Availability
NI
SPQ 209/00119/00 SPQ 209/00119/00 Contact Us For Availability
NI
SPQ 209/00065/00 SPQ 209/00065/00 Contact Us For Availability
NI
SPQ 209/00390/00 SPQ 209/00390/00 Contact Us For Availability
NI
SPQ 209/00387/00 SPQ 209/00387/00 Contact Us For Availability
NI
SPQ 209/00064/00 SPQ 209/00064/00 Contact Us For Availability
NI
SPQ 209/00375/00 SPQ 209/00375/00 Contact Us For Availability
NI
SPQ 209/00166/00 SPQ 209/00166/00 Contact Us For Availability
NI
Coin Drop SPQ 209/00522/00 Contact Us For Availability
NI
SPQ 209/00216/00 SPQ 209/00216/00 Contact Us For Availability
NI
SPQ 209/00121/00 SPQ 209/00121/00 Contact Us For Availability
NI
SPQ 209/00062/00 SPQ 209/00062/00 Contact Us For Availability
NI
SPQ 209/00068/00 SPQ 209/00068/00 Contact Us For Availability
NI
SPQ 209/00469/00 SPQ 209/00469/00 Contact Us For Availability
NI
SPQ 209/00072/00 SPQ 209/00072/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
SPQ 225/00311/00 SPQ 225/00311/00 Contact Us For Availability
NI
SPQ 225/00382/00 SPQ 225/00382/00 Contact Us For Availability
NI
SPQ 225/00310/00 SPQ 225/00310/00 Contact Us For Availability
NI
SPQ 225/10038/00 SPQ 225/10038/00 Contact Us For Availability
NI
SPQ 225/10113/00 SPQ 225/10113/00 Contact Us For Availability
NI
SPQ 225/10049/00 SPQ 225/10049/00 Contact Us For Availability
NI
SPQ 225/10115/00 SPQ 225/10115/00 Contact Us For Availability
NI
SPQ 225/10159/00 SPQ 225/10159/00 Contact Us For Availability
NI
SPQ 225/10112/00 SPQ 225/10112/00 Contact Us For Availability
NI
SPQ 225/10110/00 SPQ 225/10110/00 Contact Us For Availability
NI
SPQ 206/00035/00 SPQ 206/00035/00 Contact Us For Availability
NI
SPQ 209/00554/02 SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
