Model Whirlpool INS22F8H REFRIGERATOR – Common Parts & Diagrams

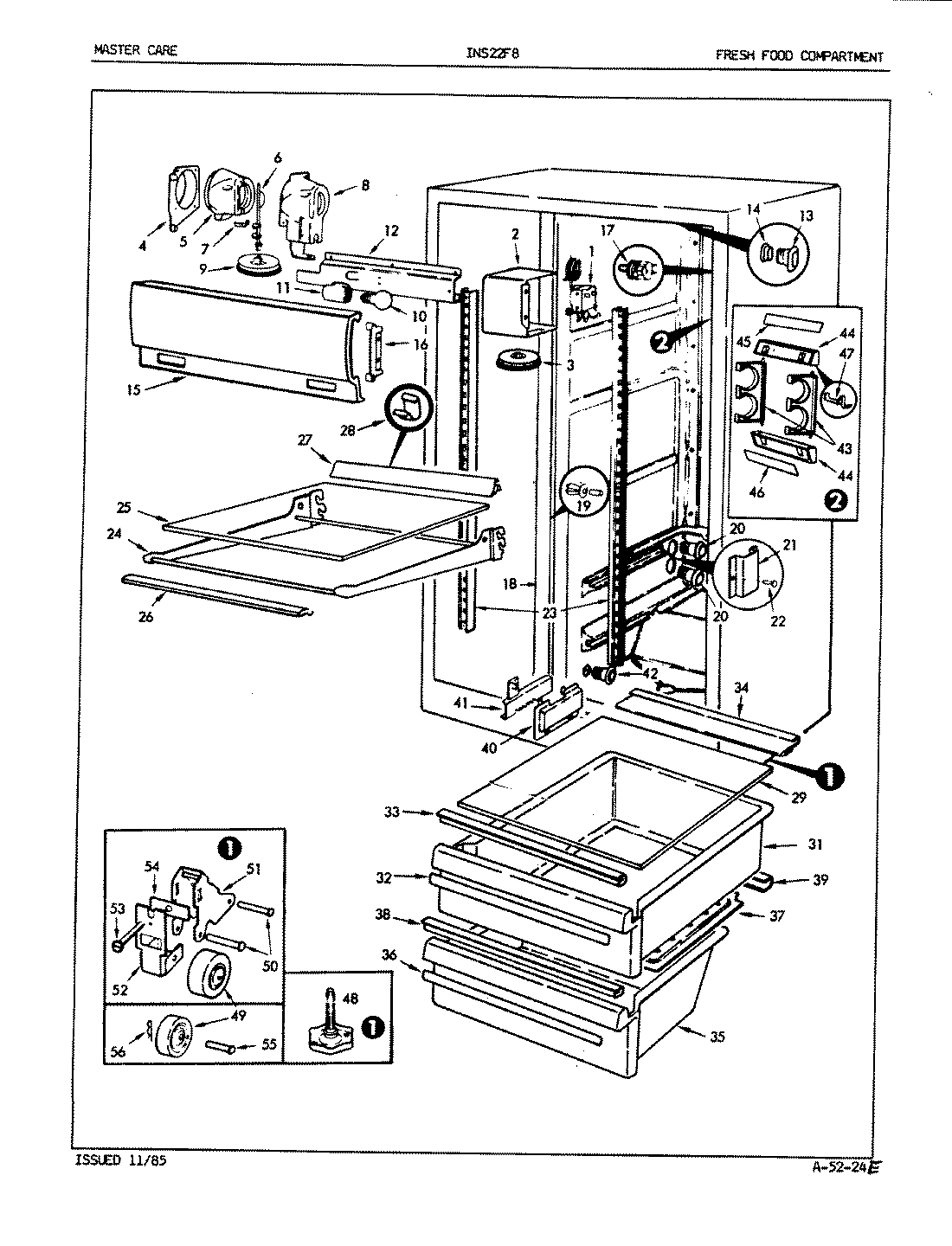

02 - FRESH FOOD COMPARTMENT

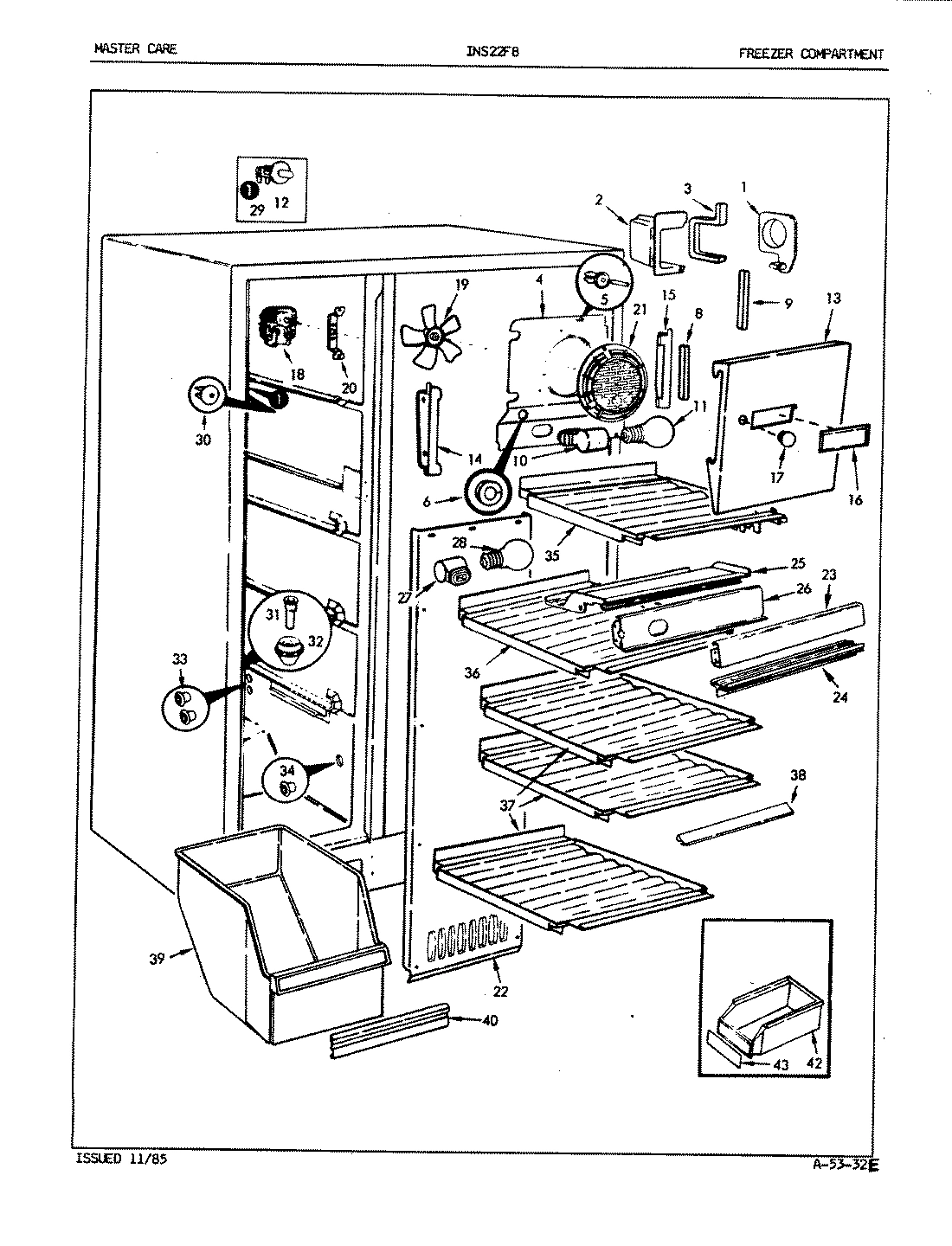

01 - FREEZER COMPARTMENT

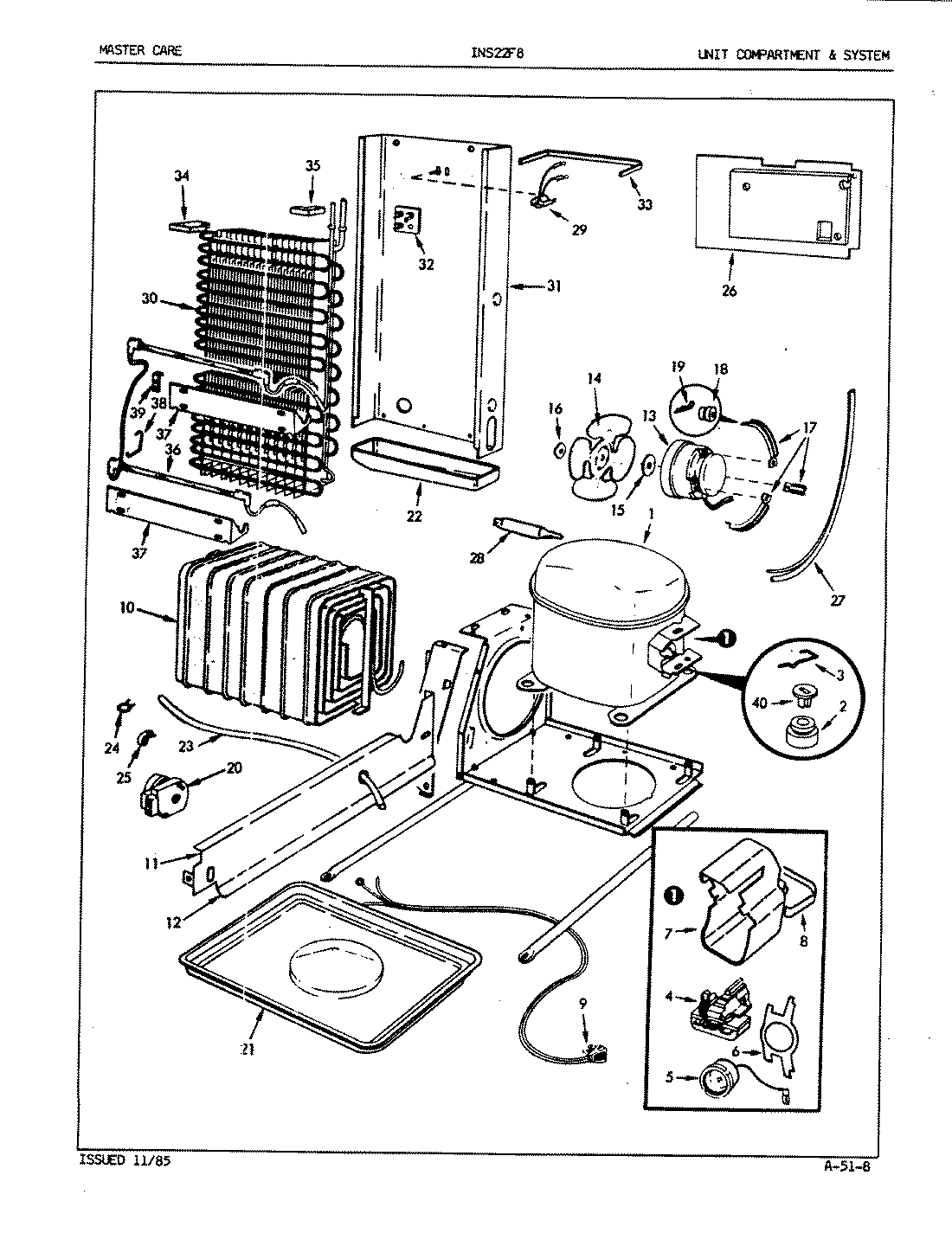

03 - UNIT COMPARTMENT & SYSTEM

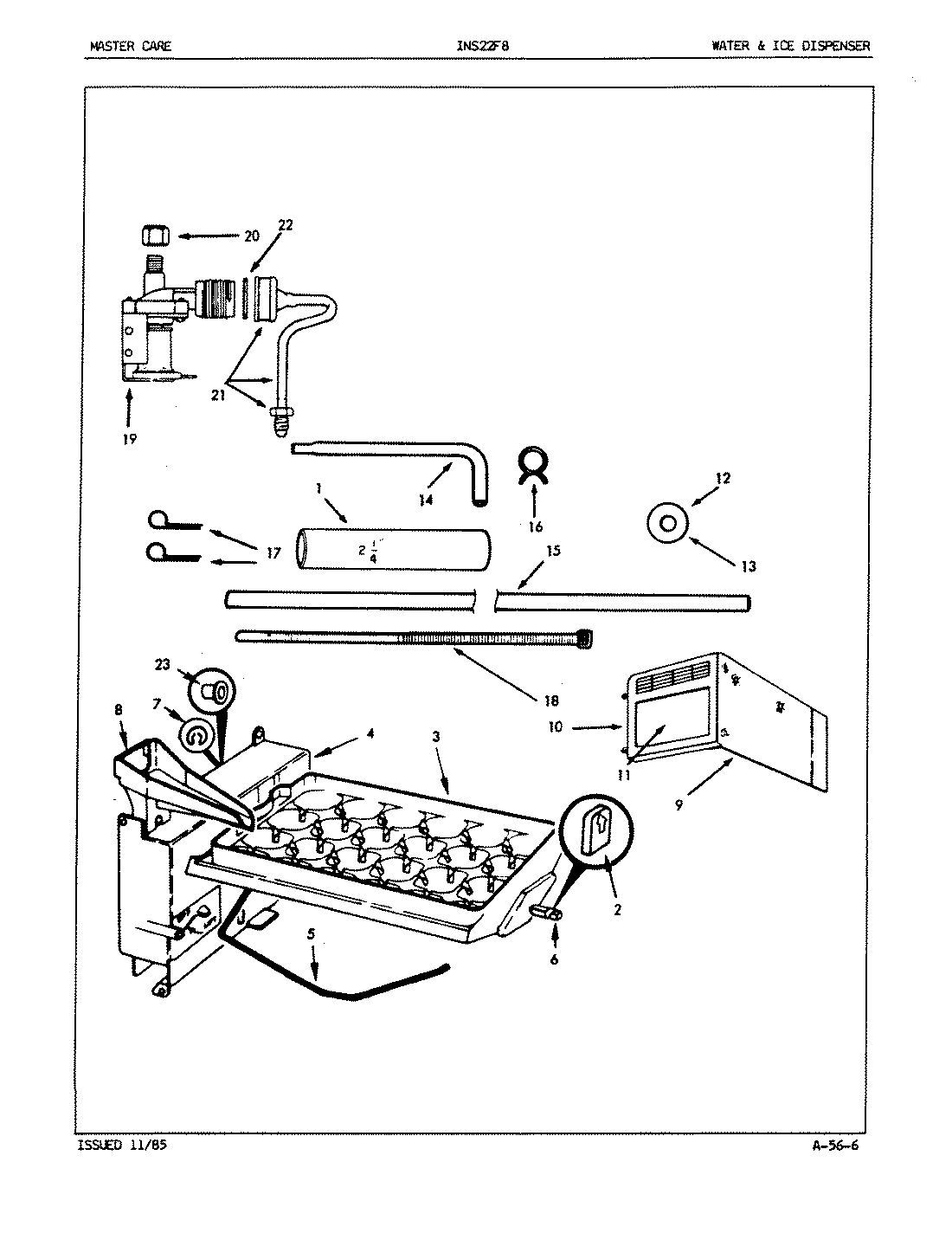

04 - WATER & ICE DISPENSER
Common parts from model Whirlpool INS22F8H REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
SCREW WPL 4000221 Contact Us For Availability
1
COMPRESSOR WPL RA990 Contact Us For Availability
1
TUBE, FILL WPL 584614 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 4000211 Contact Us For Availability
2
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
SUB 62165-1 WPL 527781 Contact Us For Availability
3
TRAY, ICE WPL 596881 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269035 Contact Us For Availability
4
RELAY WPL 9286106 Contact Us For Availability
4
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
OVERLOAD WPL 5306772 Contact Us For Availability
5
ARM, SENSOR WPL 523072 Contact Us For Availability
6
DAMPER WPL 525871 Contact Us For Availability
6
PLUG WPL 539331 Contact Us For Availability
6
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
6
SHAFT, DRIVE WPL 653191 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
COVER, TERMINAL WPL 651891 Contact Us For Availability
7
RING, RETAINER WPL 587061 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
8
SCREW WPL 400024103 Contact Us For Availability
8
SCREW WPL 405009103 Contact Us For Availability
8
SPOUT, FILL WPL 537481 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
IM SIDE WPL 593151 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
10
FRONT WPL 650691 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
11
SCREW WPL 400018103 Contact Us For Availability
11
SCREW WPL 402019103 Contact Us For Availability
11
INSERT WPL 593215 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
12
SEAL WPL 655181 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
WASHER WPL 420051900 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
SHIELD, LIGHT WPL 656541 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SCREW WPL 641391 Contact Us For Availability
13
WASHER WPL 420052900 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
TUBE WPL 561253 Contact Us For Availability
15
SHIELD, LIGHT WPL 655782 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
TUBE WPL 5560215 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
IM DUCT WPL 656531 Contact Us For Availability
16
CLAMP, SPRING WPL 603331 Contact Us For Availability
17
PLUG WPL 495032900 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
SCREW WPL 4000161 Contact Us For Availability
17
CLAMP, TUBING WPL 535168 Contact Us For Availability
18
MULLION WPL 590262HW Contact Us For Availability
18
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
WIRE TIE WPL 575763 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
19
STUD, (ALM) WPL 599209 Contact Us For Availability
19
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
VALVE WPL 559963 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
20
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 657021 Contact Us For Availability
20
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
FAN GRID WPL 626891 Contact Us For Availability
21
PAN, DRAIN WPL 298394 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
22
COVER, COIL WPL 652243 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
22
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
22
SCREW WPL 4010181 Contact Us For Availability
22
BUSHING WPL 590901 Contact Us For Availability
22
INLET ASSEMBLY WPL 634591 Contact Us For Availability
22
TUBING WPL 6500143 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
HEATER WPL 571177 Contact Us For Availability
23
DIVIDER WPL 574924HW Contact Us For Availability
23
SCREW WPL 9986111 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
SPACER WPL 653171 Contact Us For Availability
24
FRAME, SHELF WPL 656182 Contact Us For Availability
24
GASKET WPL 573691 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
GLASS SHELF WPL 6559814 Contact Us For Availability
25
BREAKER FRAME WPL 540365 Contact Us For Availability
25
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
TRIM WPL 656142 Contact Us For Availability
26
SCREW WPL 400017103 Contact Us For Availability
26
COVER WPL 574025 Contact Us For Availability
26
COVER WPL 654921 Contact Us For Availability
27
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
27
TRIM WPL 6527614 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA436451 Contact Us For Availability
28
CLIP WPL 653581 Contact Us For Availability
28
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
29
SWITCH WPL 564322 Contact Us For Availability
29
SPACER WPL 655121 Contact Us For Availability
29
SHELF, CRISPER WPL 656872 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
30
NUT WPL 538211 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
31
PAN, CRISPER WPL 655742 Contact Us For Availability
31
DRAIN TUBE WPL 265275 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
32
INSERT WPL 6558310 Contact Us For Availability
32
GROMMET WPL 525261 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
SEAL WPL 655932 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
34
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
34
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
PAN, MEAT WPL 655752 Contact Us For Availability
35
SHELF, FRZ. WPL 656513 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
INSERT WPL 6558312 Contact Us For Availability
36
SHELF, FRZ. WPL 656512 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
37
COVER, MEAT PAN WPL 656082 Contact Us For Availability
37
SHELF, FRZ. No.2,3,4 WPL 656511 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
38
TRIM WPL 655681 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
39
DRAWER, FRZ. WPL 655771 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
CONTROL HOUSING WPL 657371 Contact Us For Availability
40
INSERT WPL 6558315 Contact Us For Availability
40
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
40
WIRE HARNESS WPL 599401 Contact Us For Availability
40
WIRE HARNESS WPL 650443 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
42
PAN, ICE WPL 657181 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
43
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
43
INSERT WPL 606143 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
INSERT WPL 657535 Contact Us For Availability
46
INSERT WPL 657536 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
SCREW WPL 4000171 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
56
WIRE HARNESS WPL 558814 Contact Us For Availability
56
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
56
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
× ![]()
