Model IPSO IHF100ZNH Washer – Common Parts & Diagrams
Frame
Shock Absorber
Shell

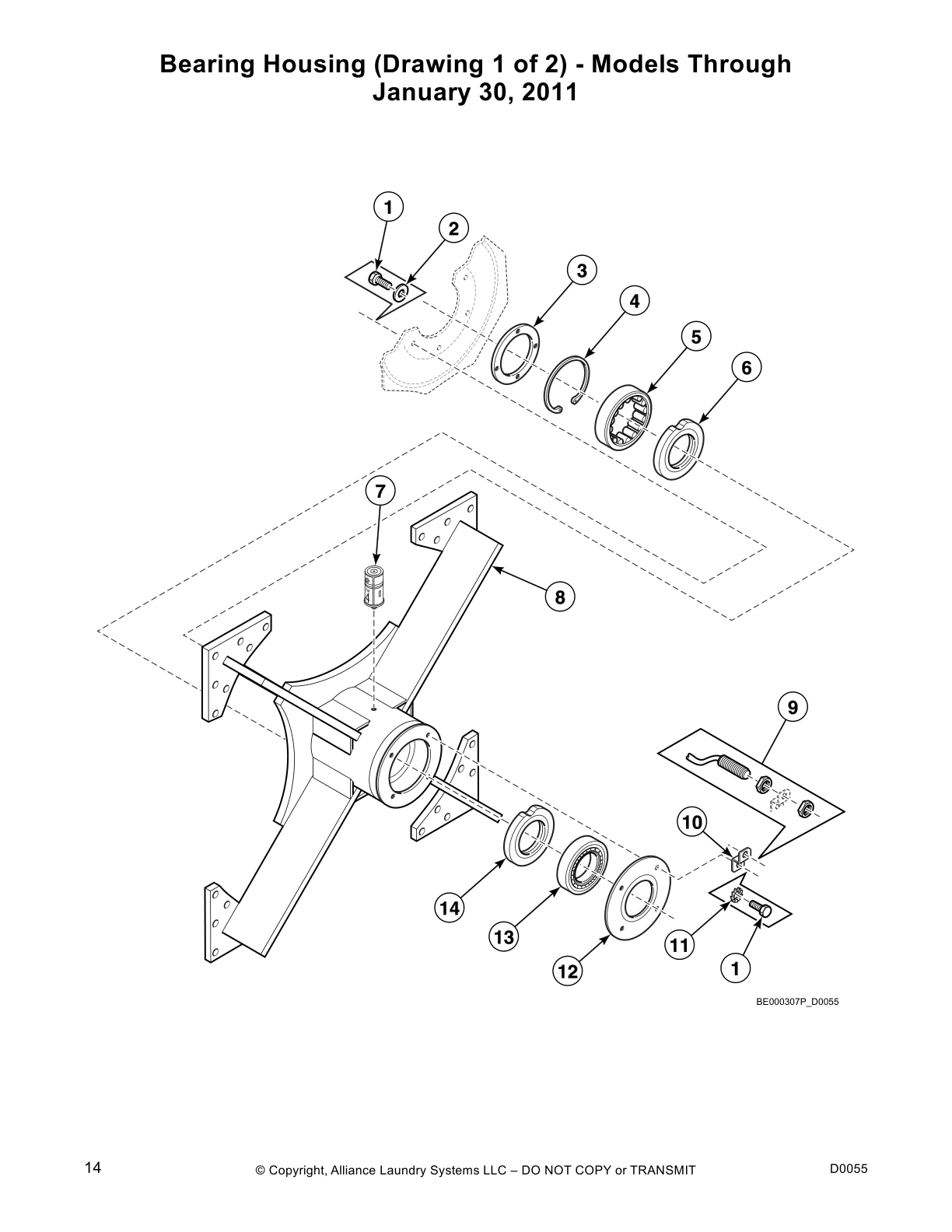

Bearing Housing (Drawing 1 of 2) - Models Through
January 30, 2011

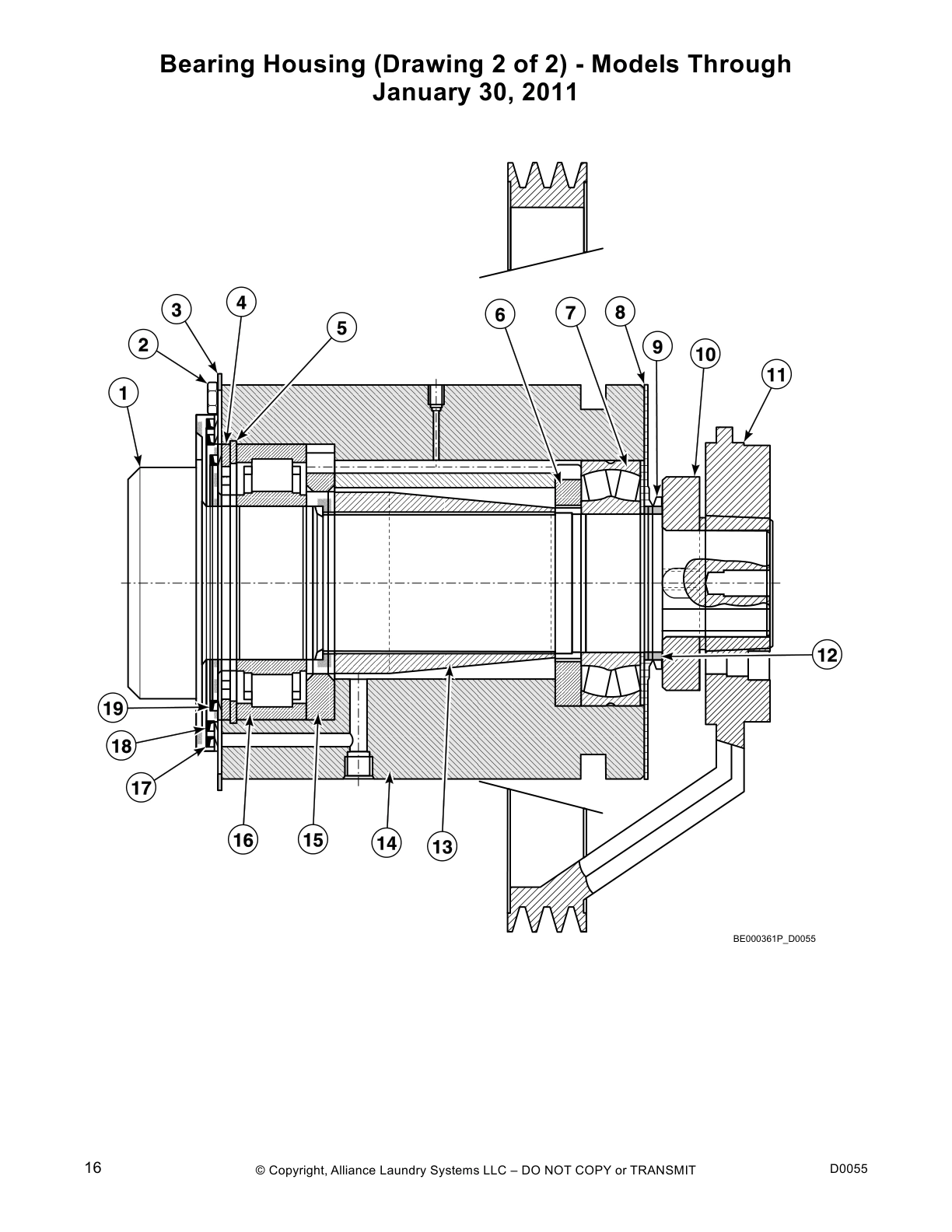

Bearing Housing (Drawing 2 of 2) - Models Through
January 30, 2011

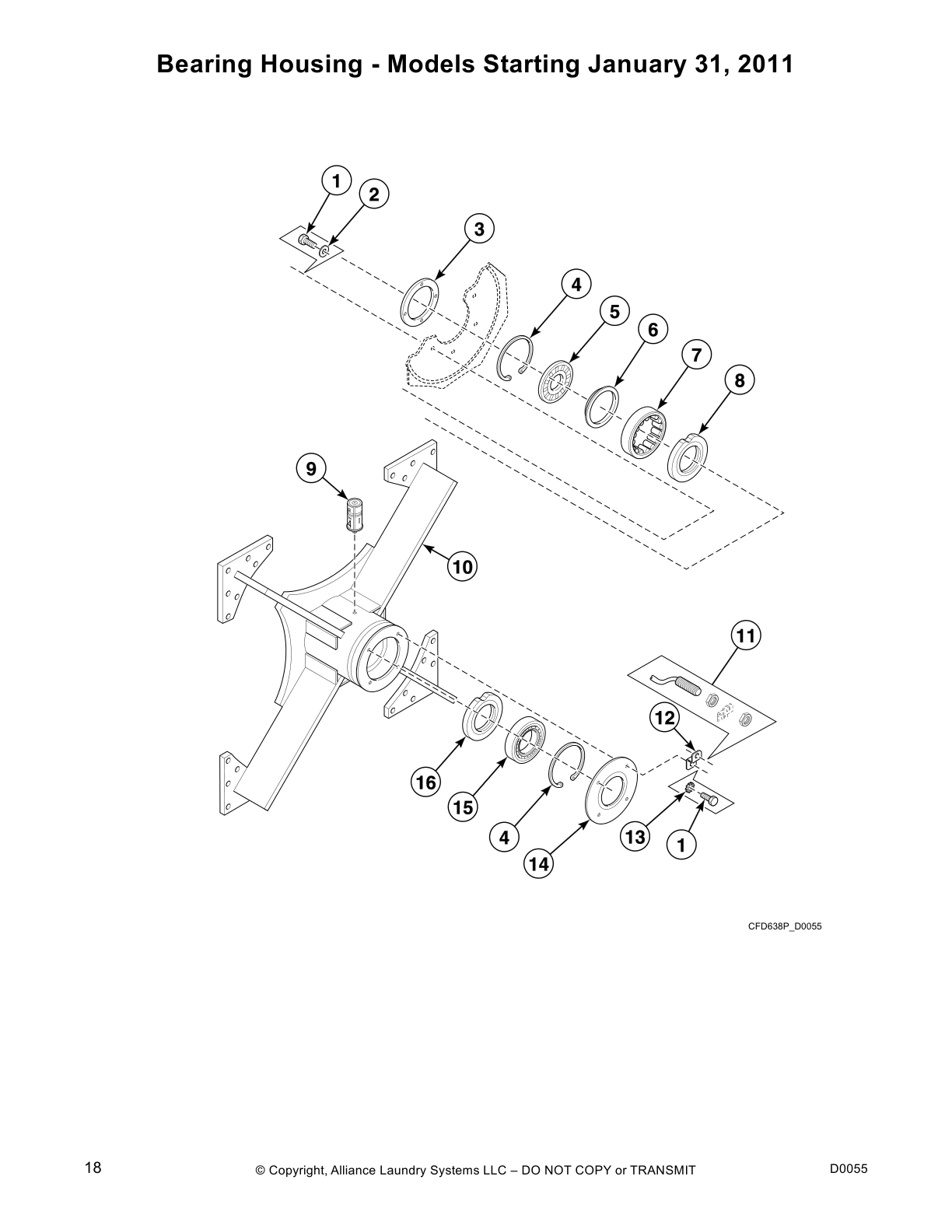

Bearing Housing - Models Starting January 31, 2011

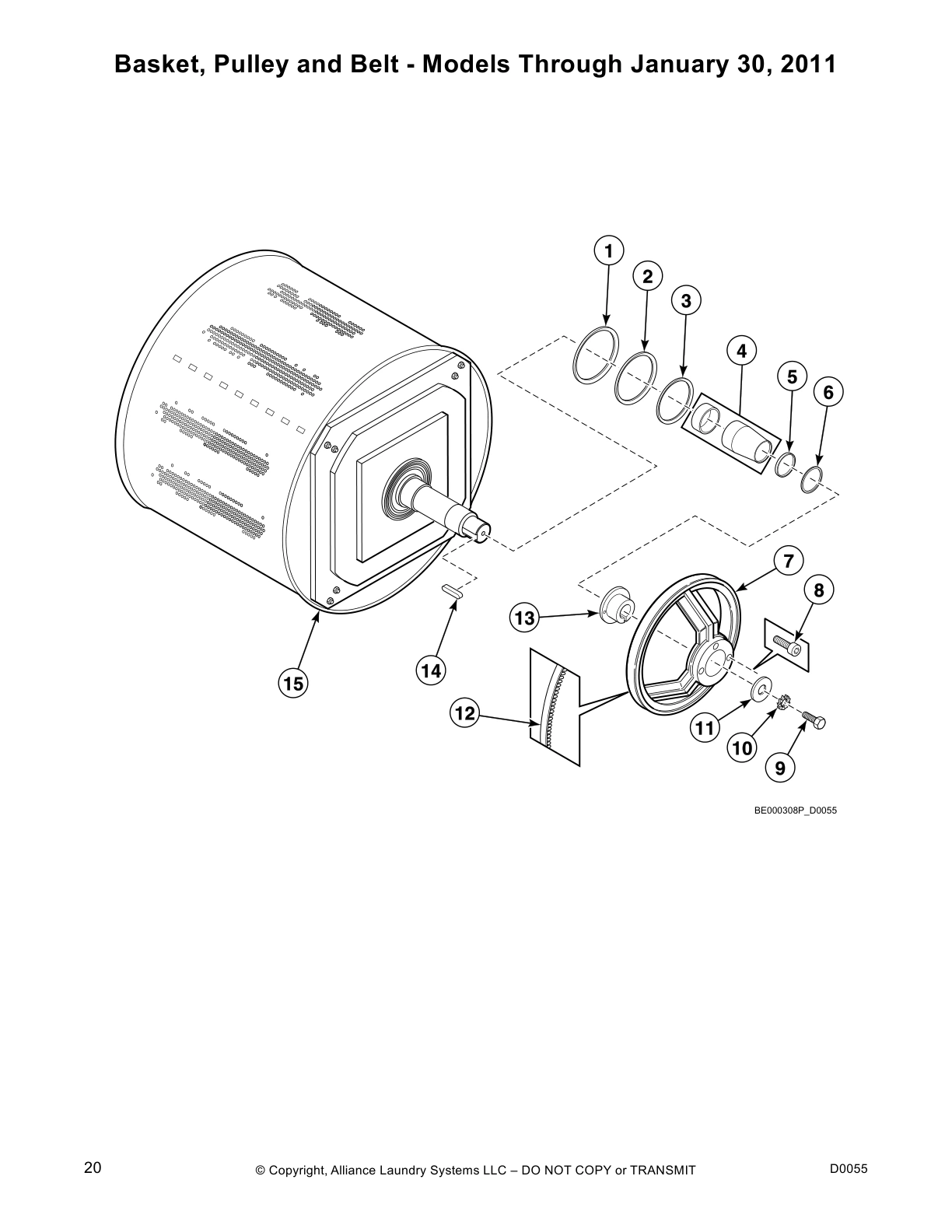

Basket, Pulley and Belt - Models Through January 30, 2011
Basket, Pulley and Belt - Models Starting January 31, 2011

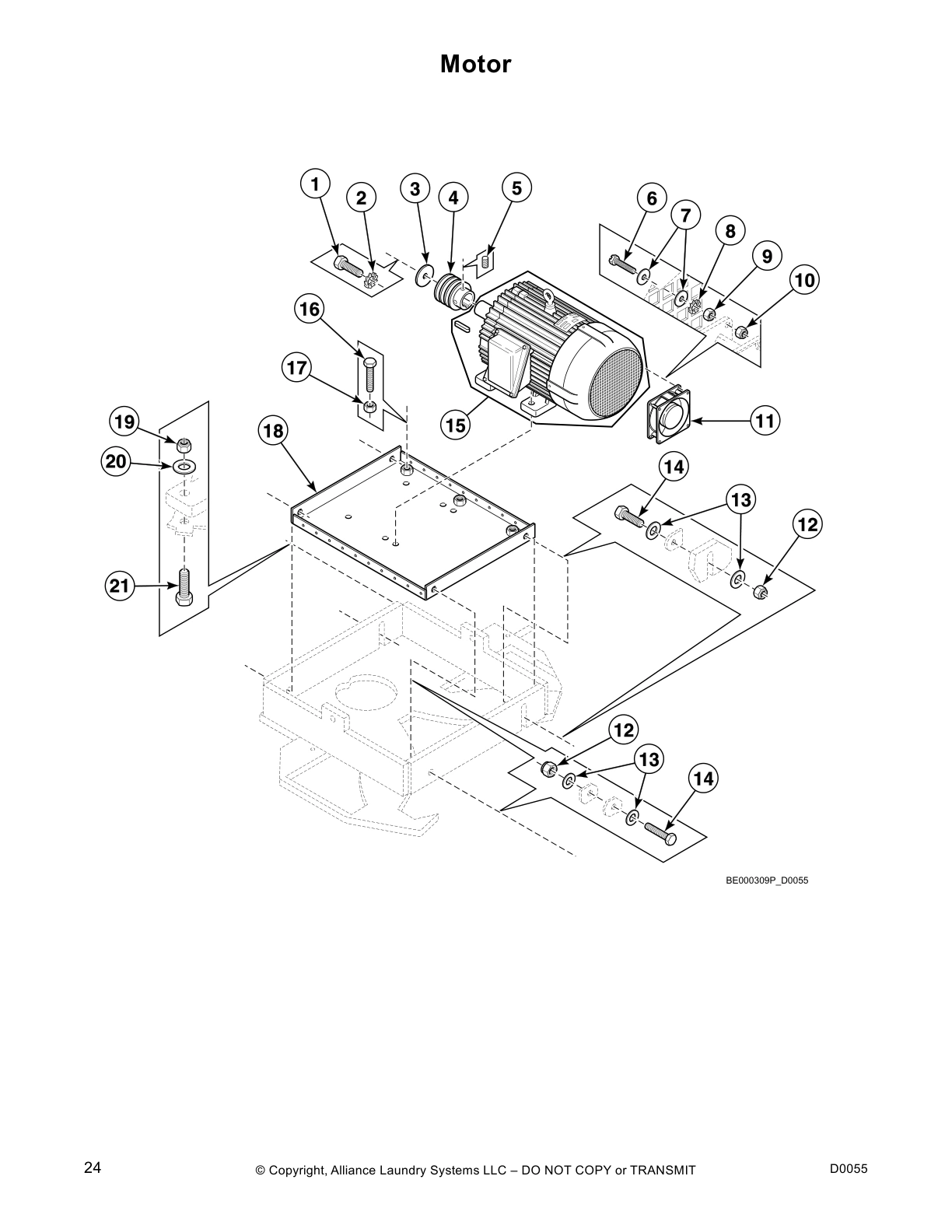

Motor

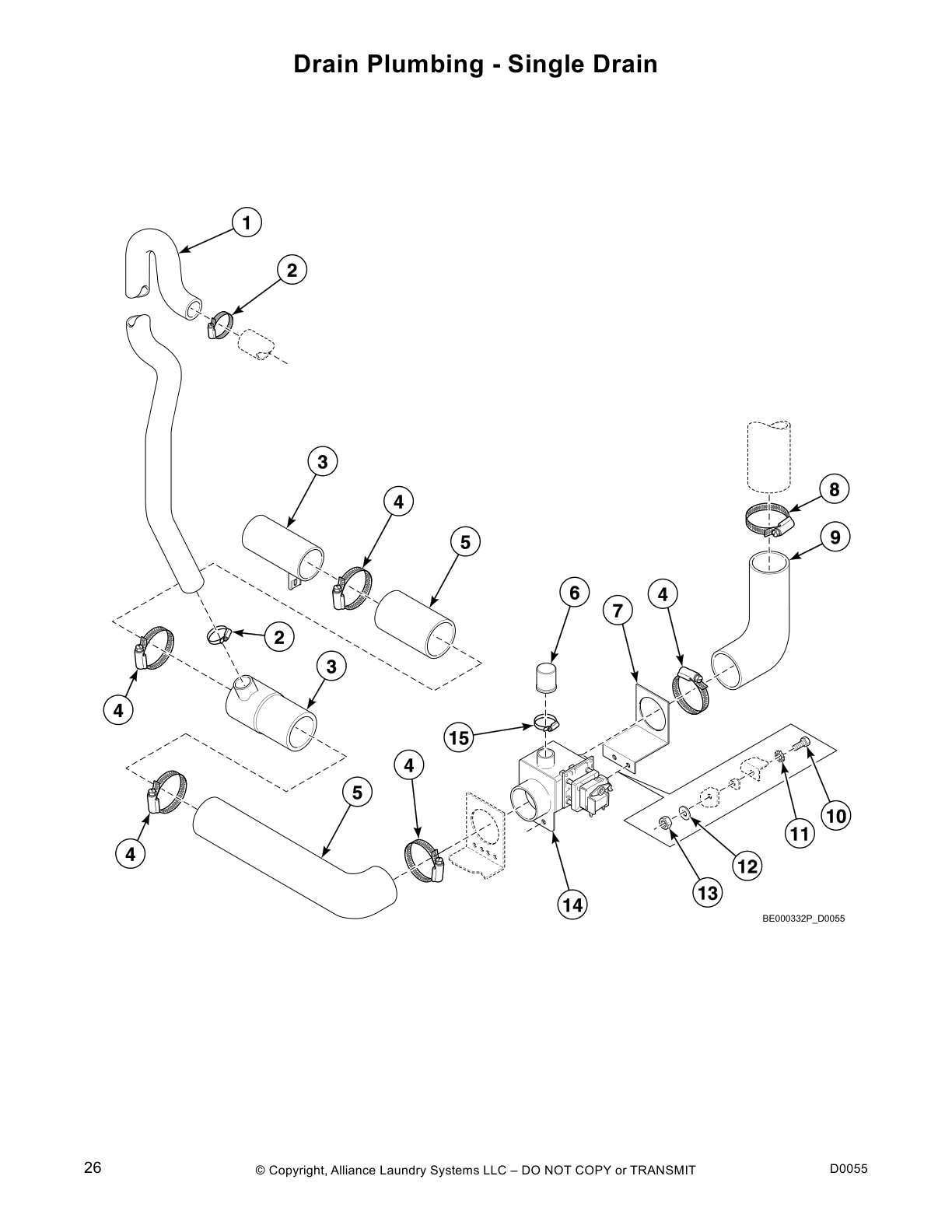

Drain Plumbing - Single Drain

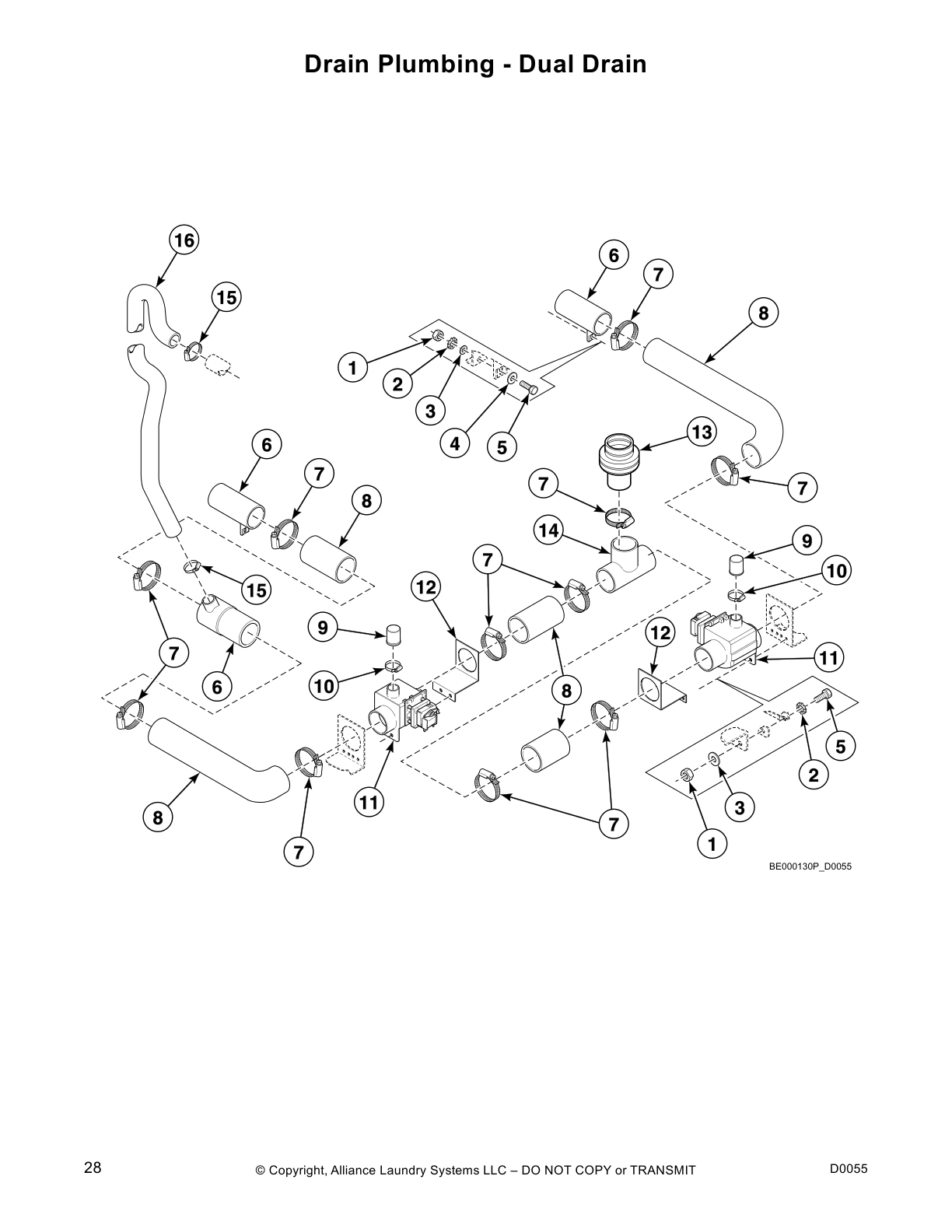

Drain Plumbing - Dual Drain
Drain Valve - Normally Open
Drain Valve - Normally Closed

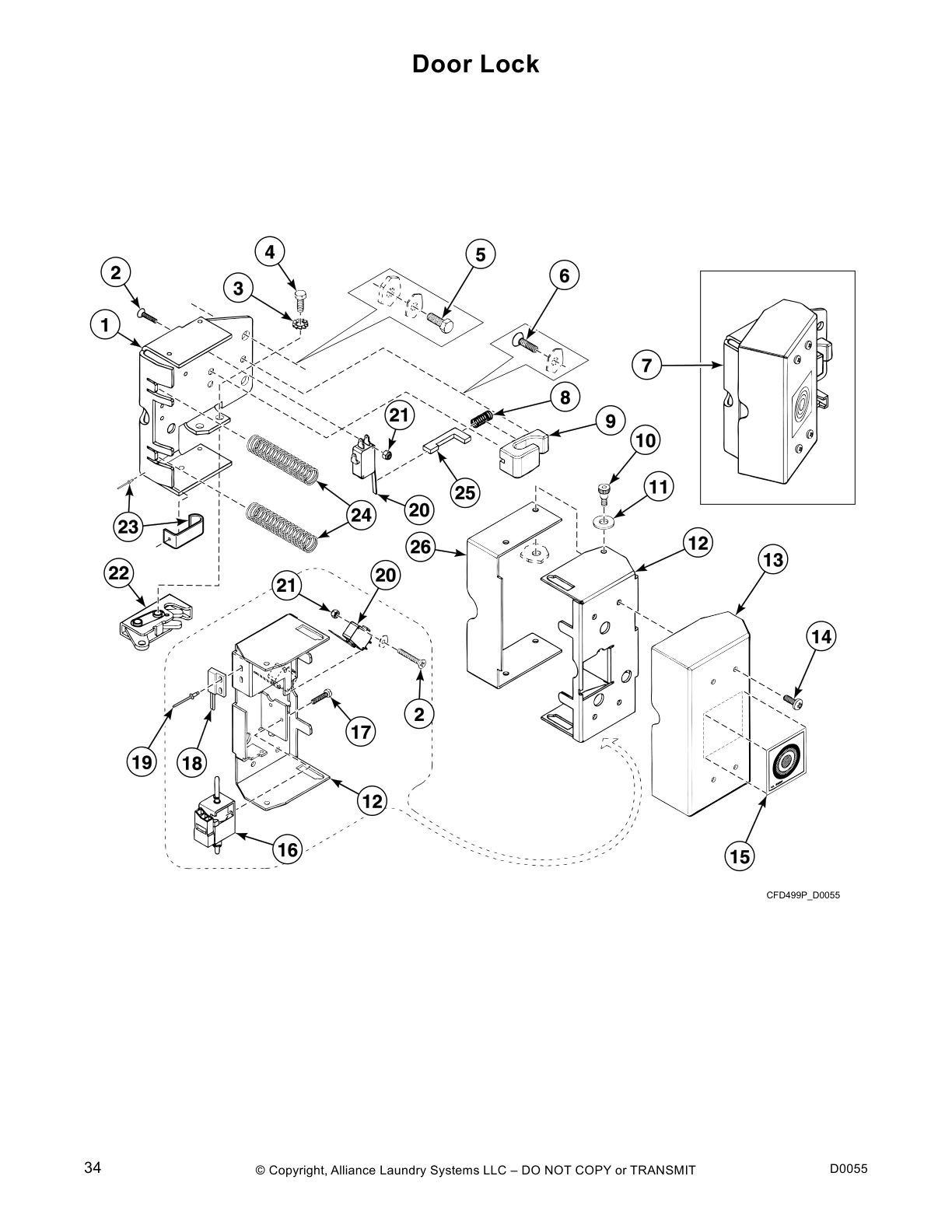

Door Lock

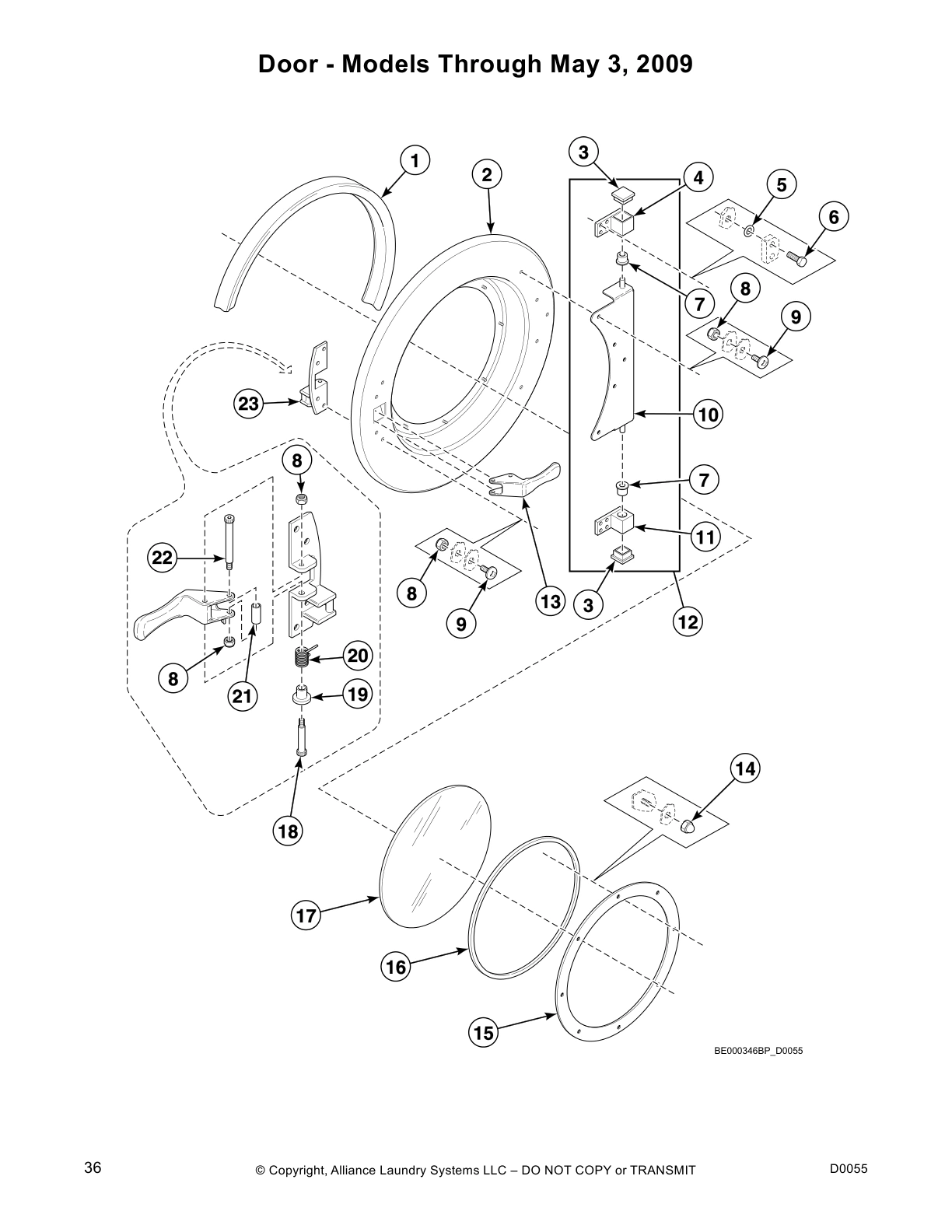

Door - Models Through May 3, 2009

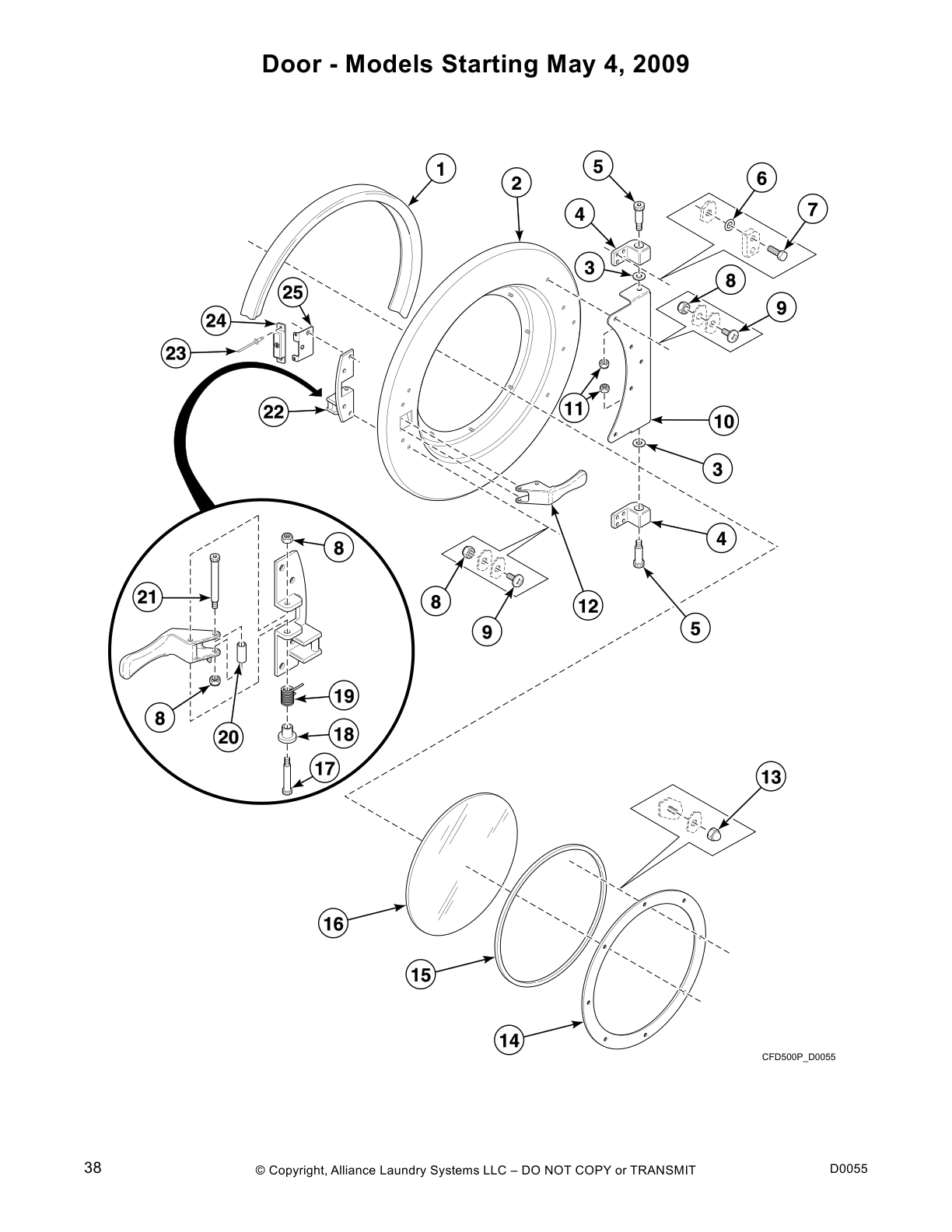

Door - Models Starting May 4, 2009

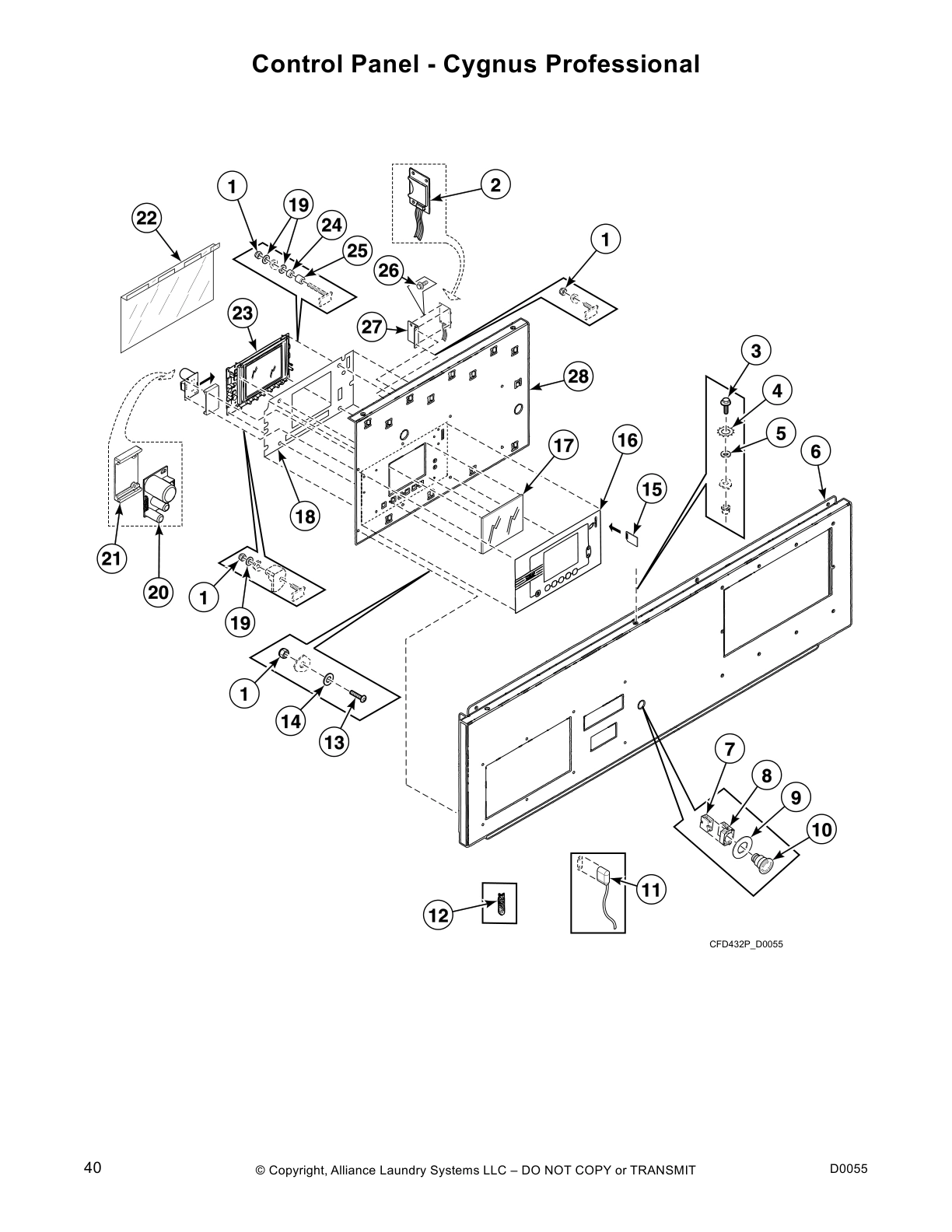

Control Panel - Cygnus Professional
Control Panel - PRO

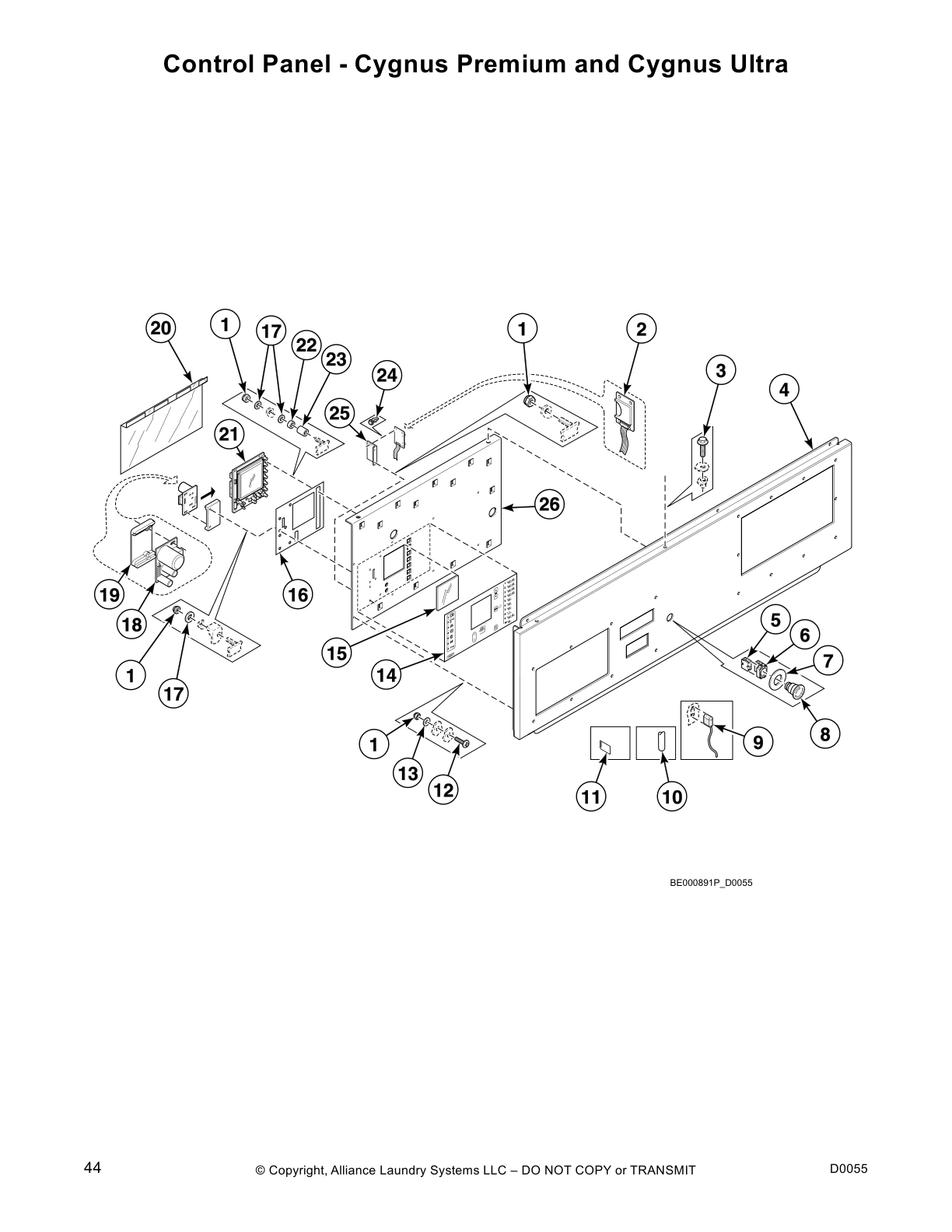

Control Panel - Cygnus Premium and Cygnus Ultra

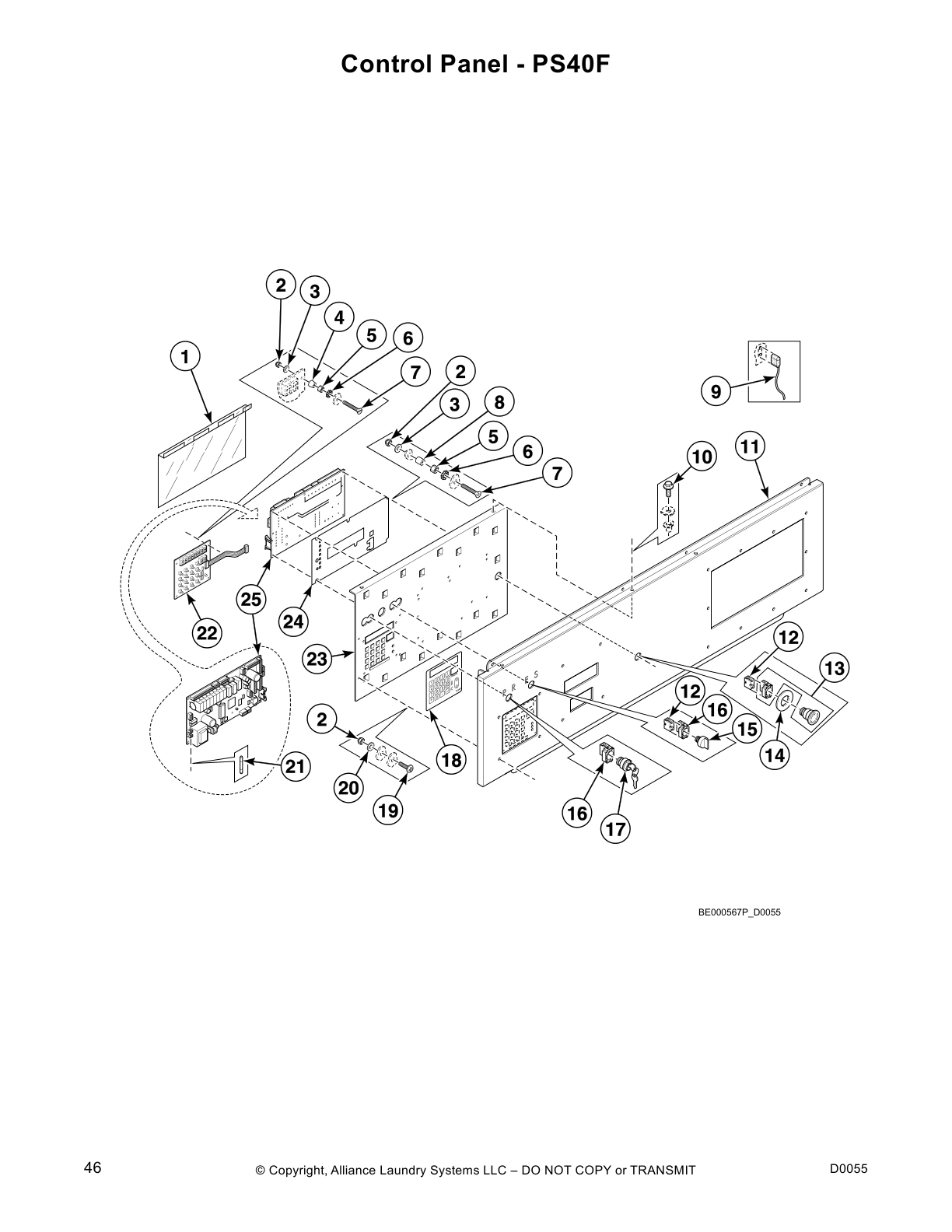

Control Panel - PS40F

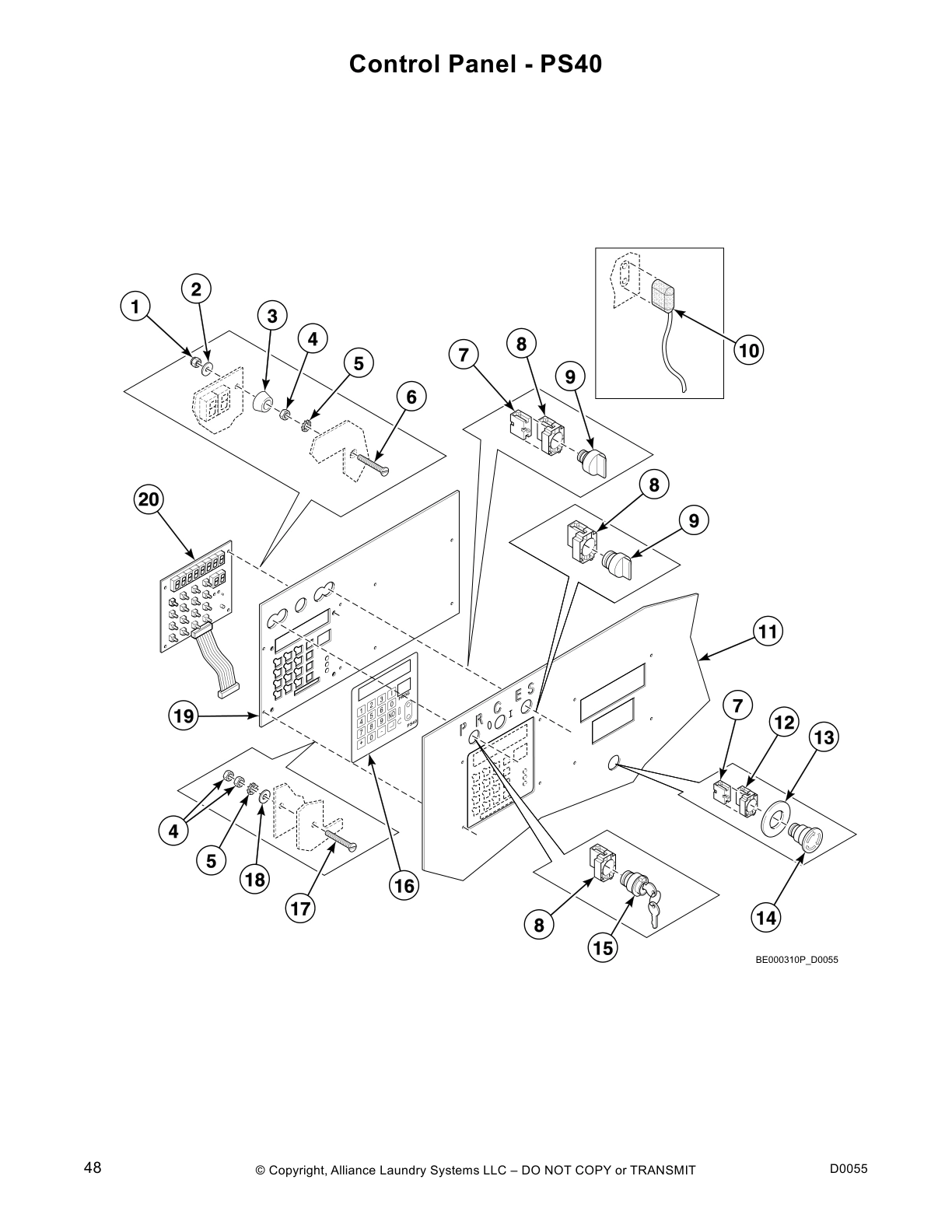

Control Panel - PS40

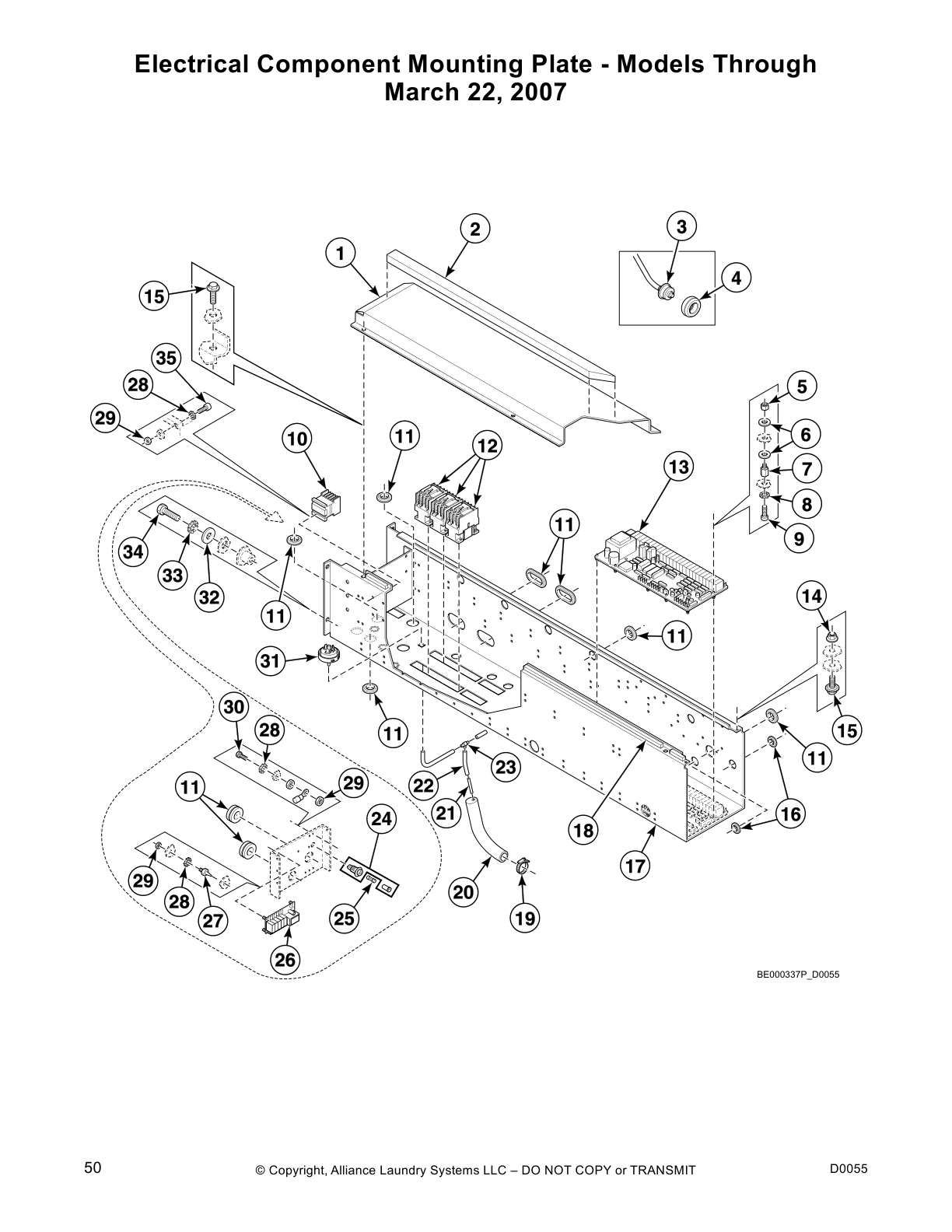

Electrical Component Mounting Plate - Models Through
March 22, 2007

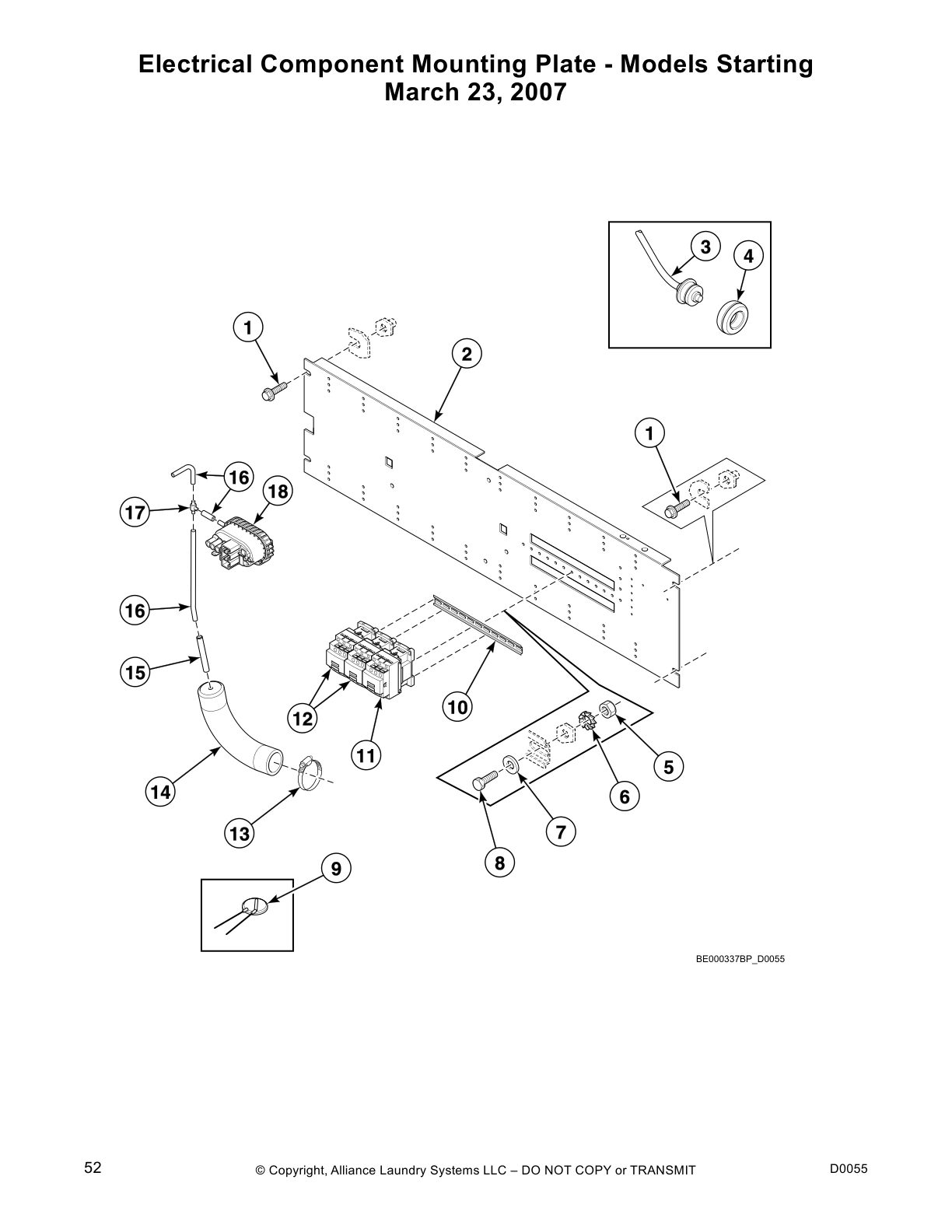

Electrical Component Mounting Plate - Models Starting
March 23, 2007
Front, Left Side and Top Panels

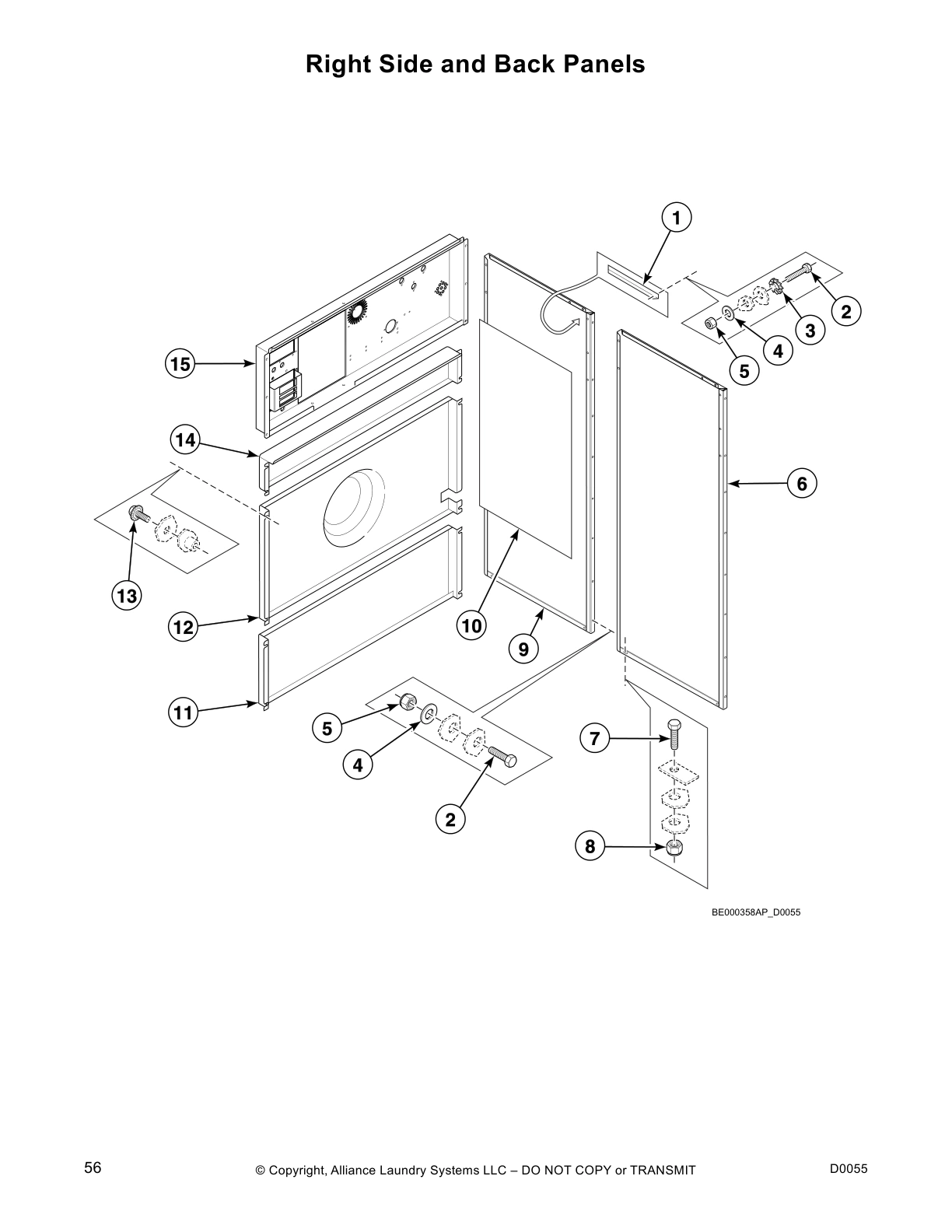

Right Side and Back Panels

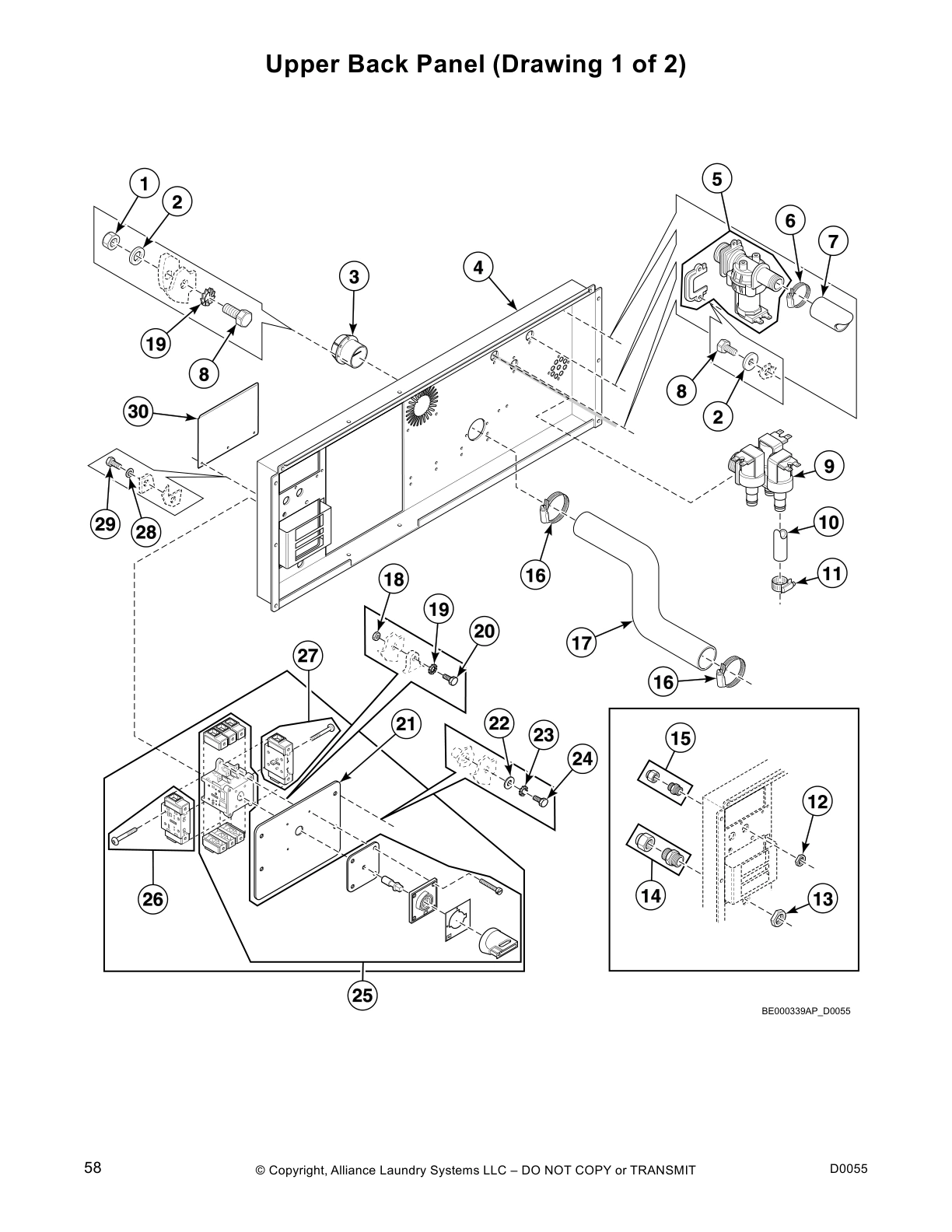

Upper Back Panel (Drawing 1 of 2)

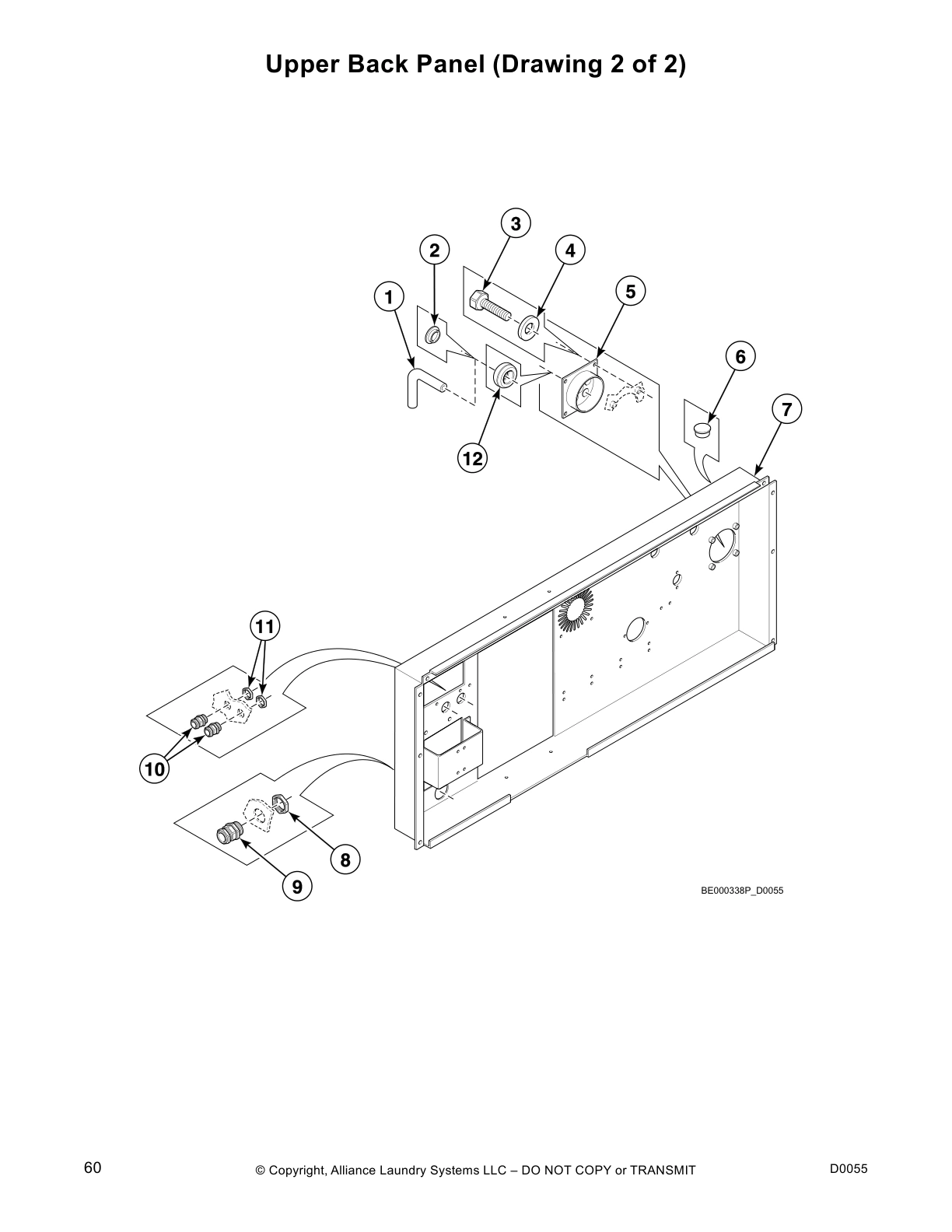

Upper Back Panel (Drawing 2 of 2)

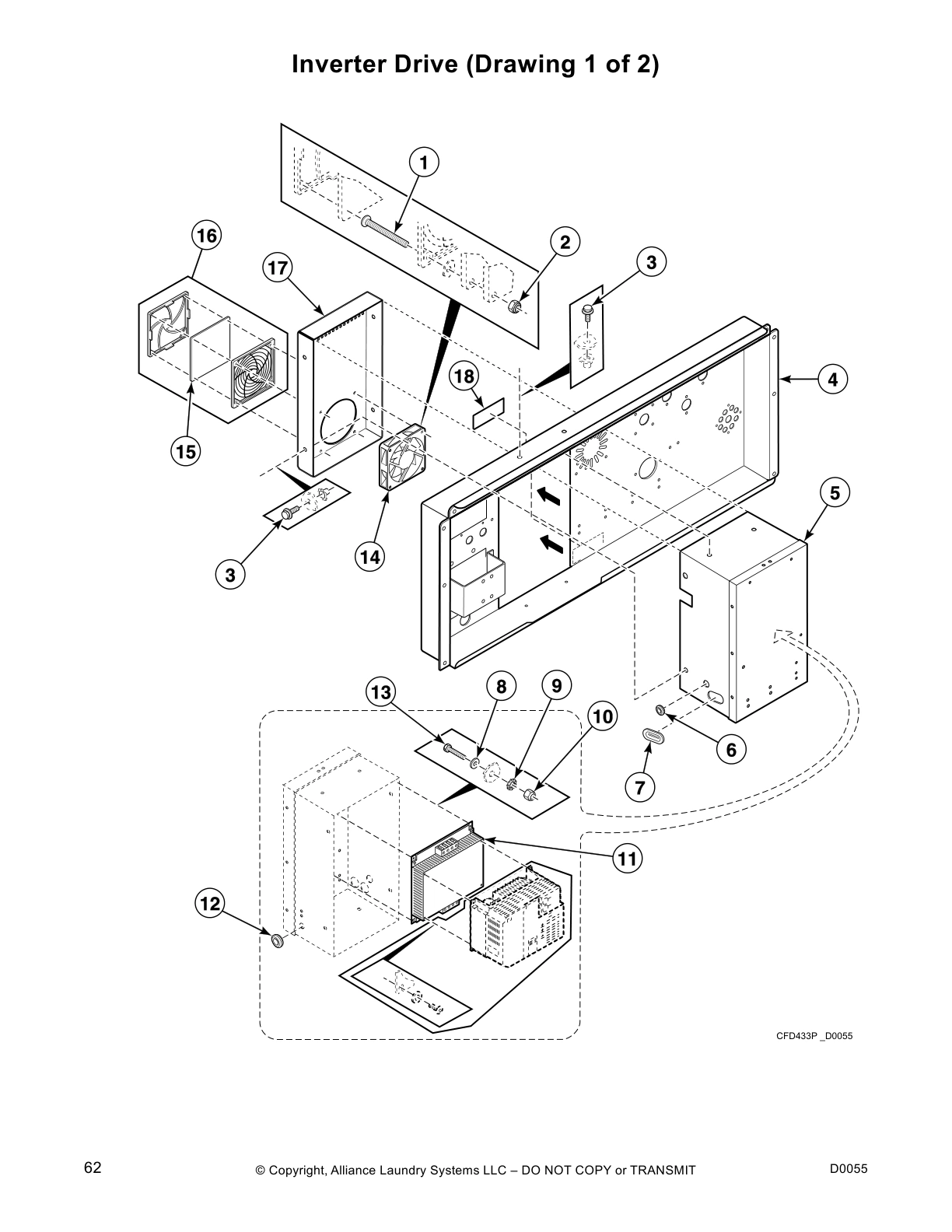

Inverter Drive (Drawing 1 of 2)

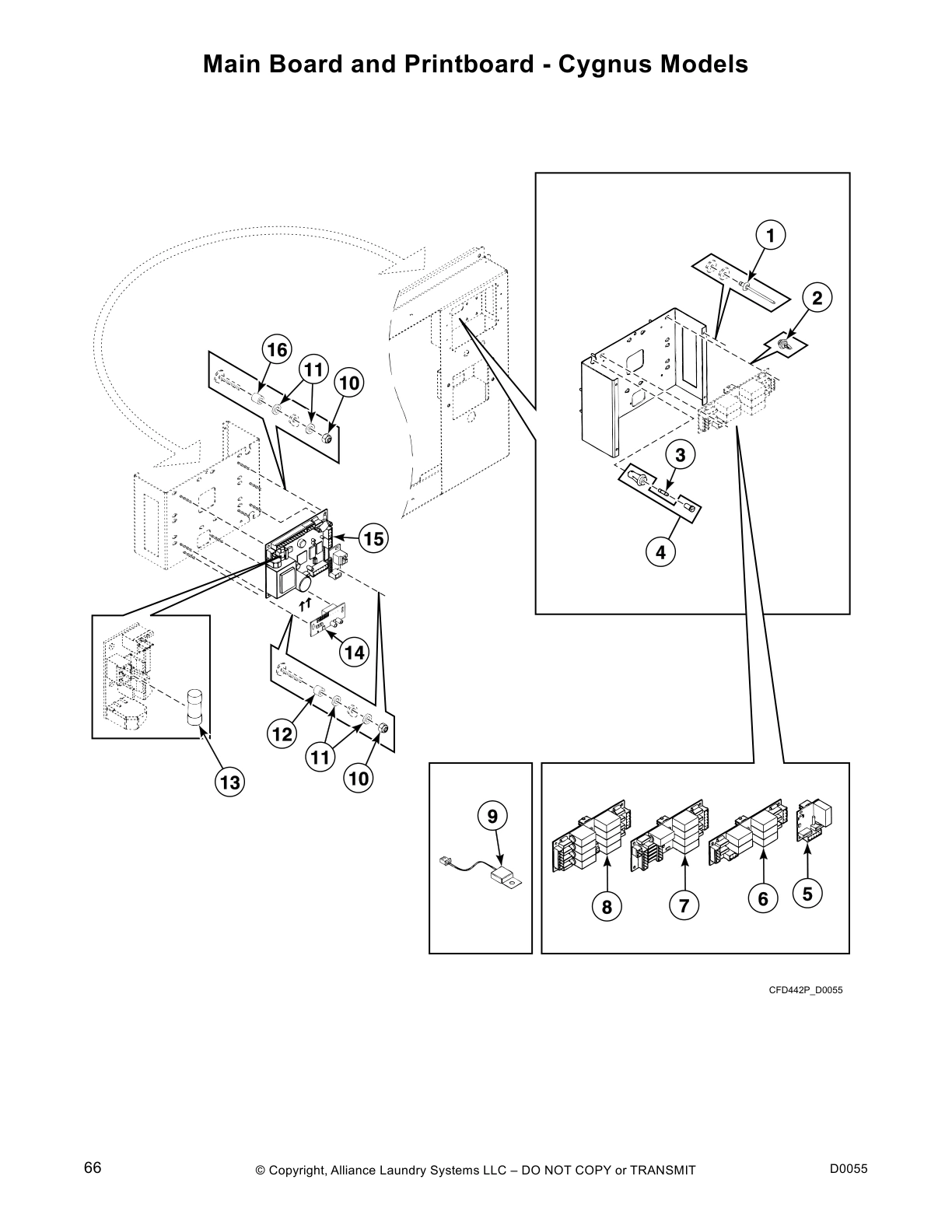

Main Board and Printboard - Cygnus Models

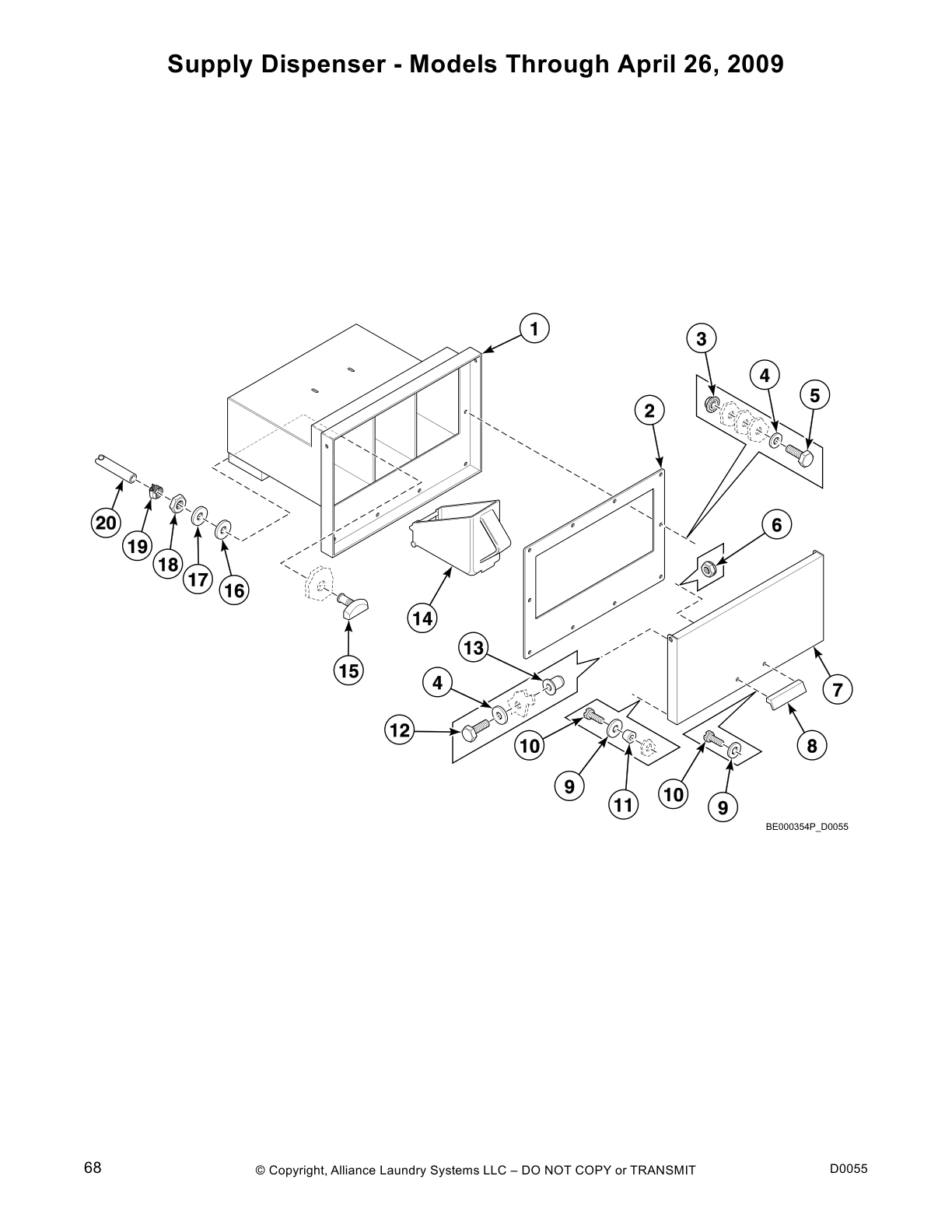

Supply Dispenser - Models Through April 26, 2009

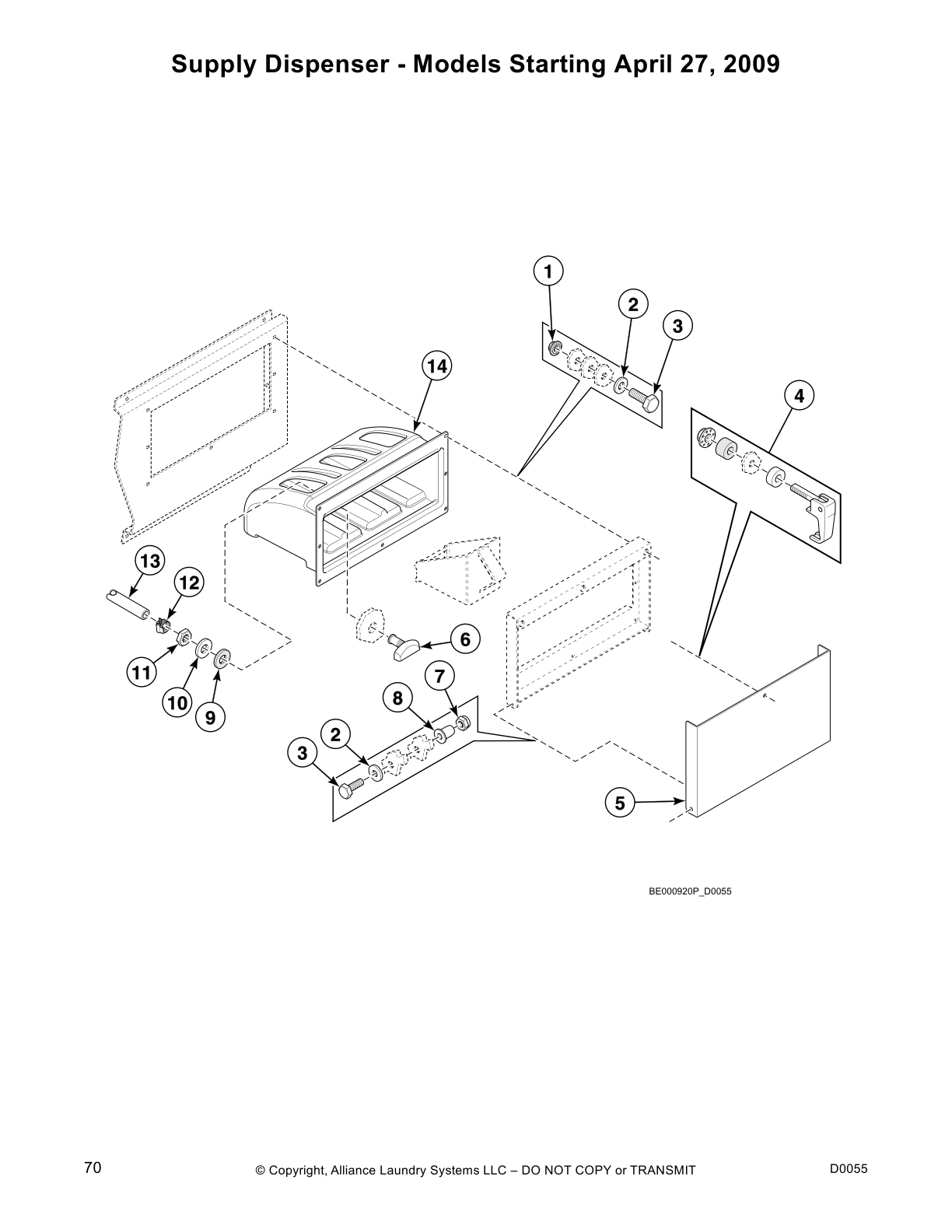

Supply Dispenser - Models Starting April 27, 2009

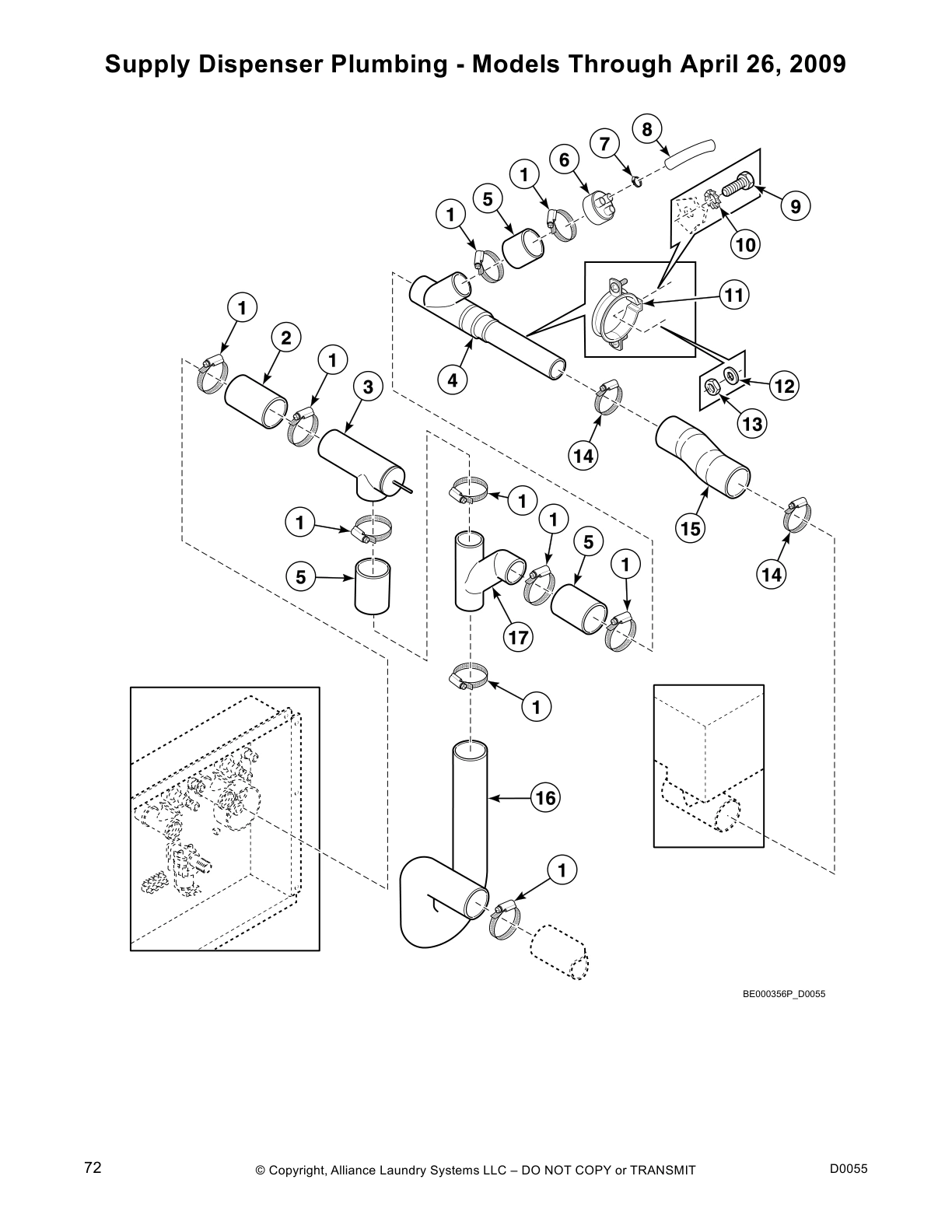

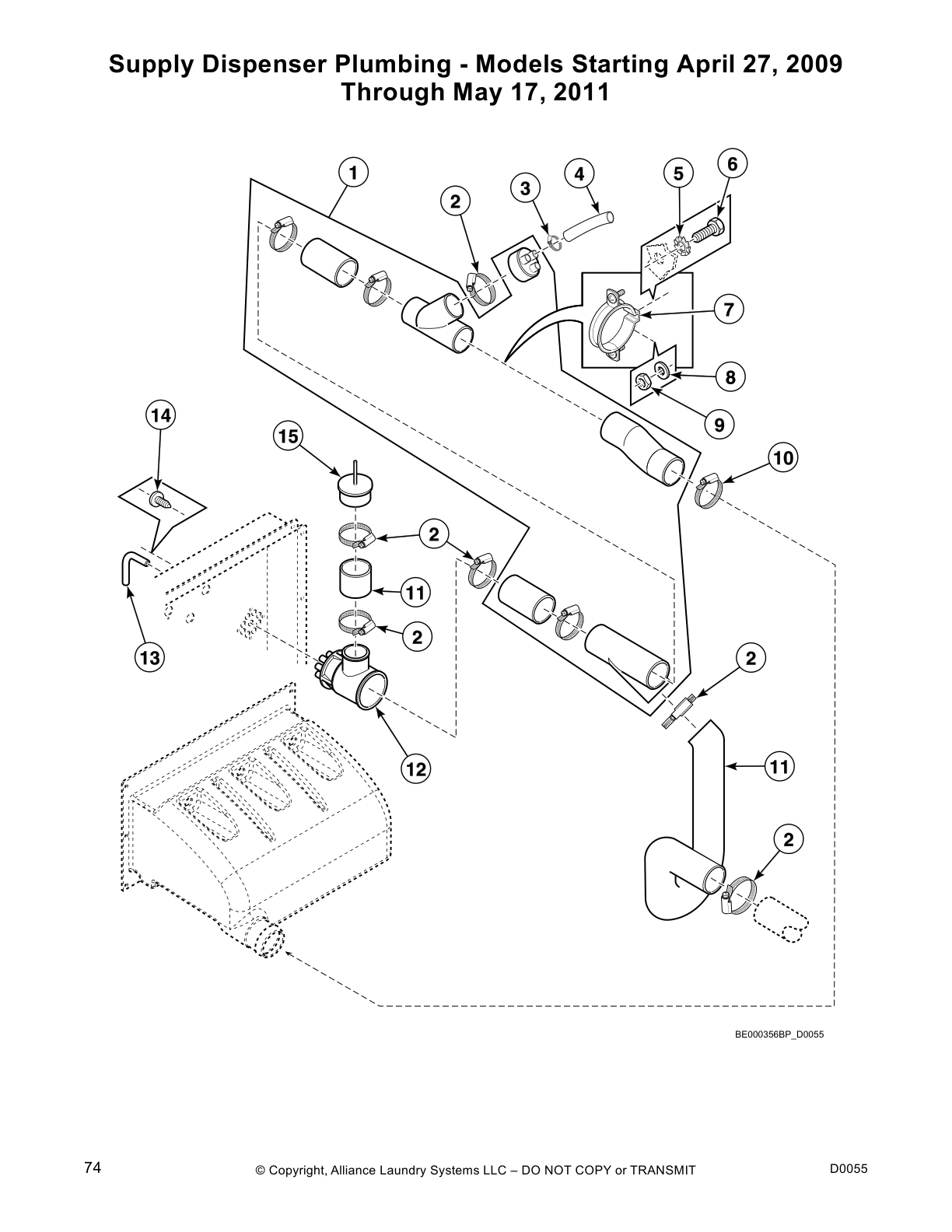

Supply Dispenser Plumbing - Models Through April 26, 2009
Supply Dispenser Plumbing - Models Starting April 27, 2009
Through May 17, 2011

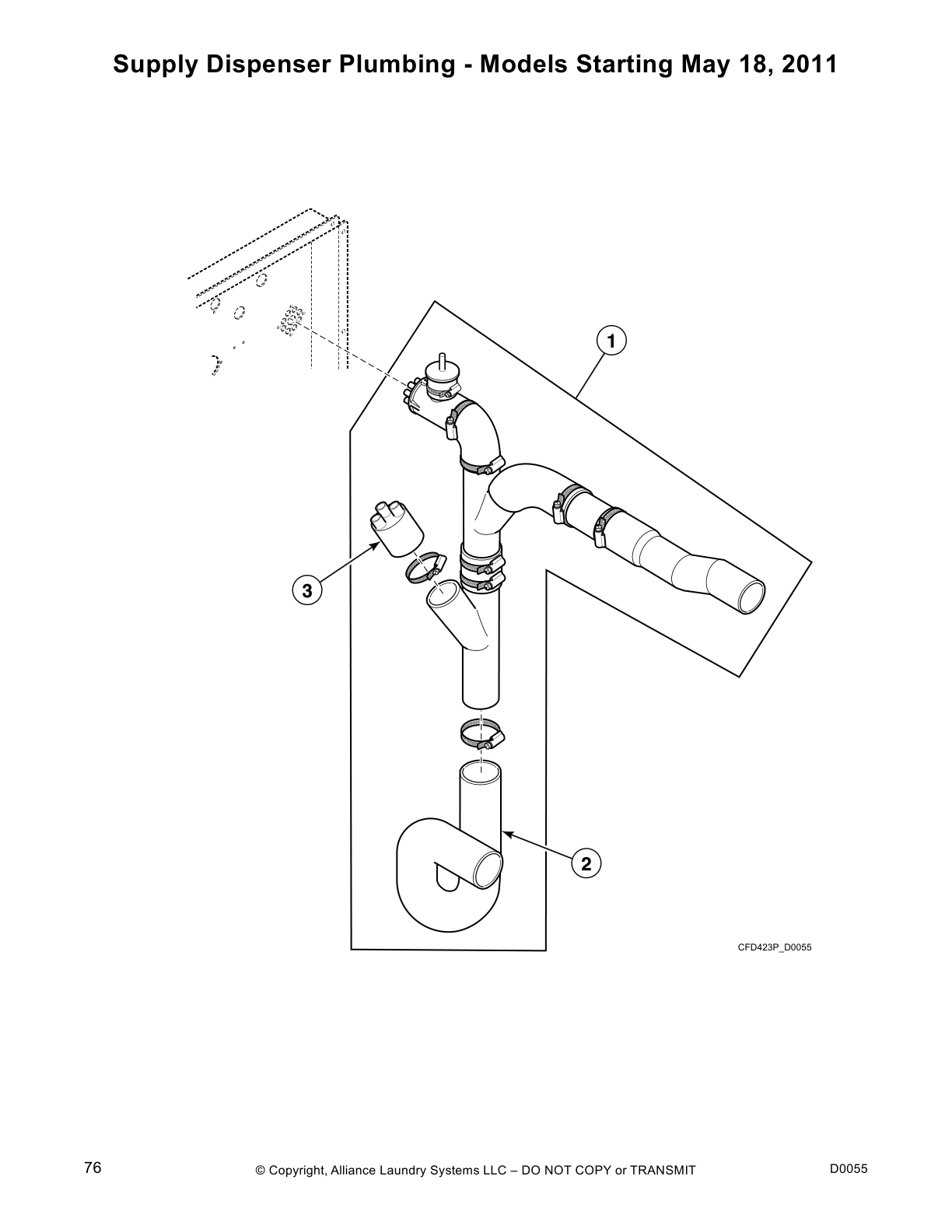

Supply Dispenser Plumbing - Models Starting May 18, 2011
Soap Pumps

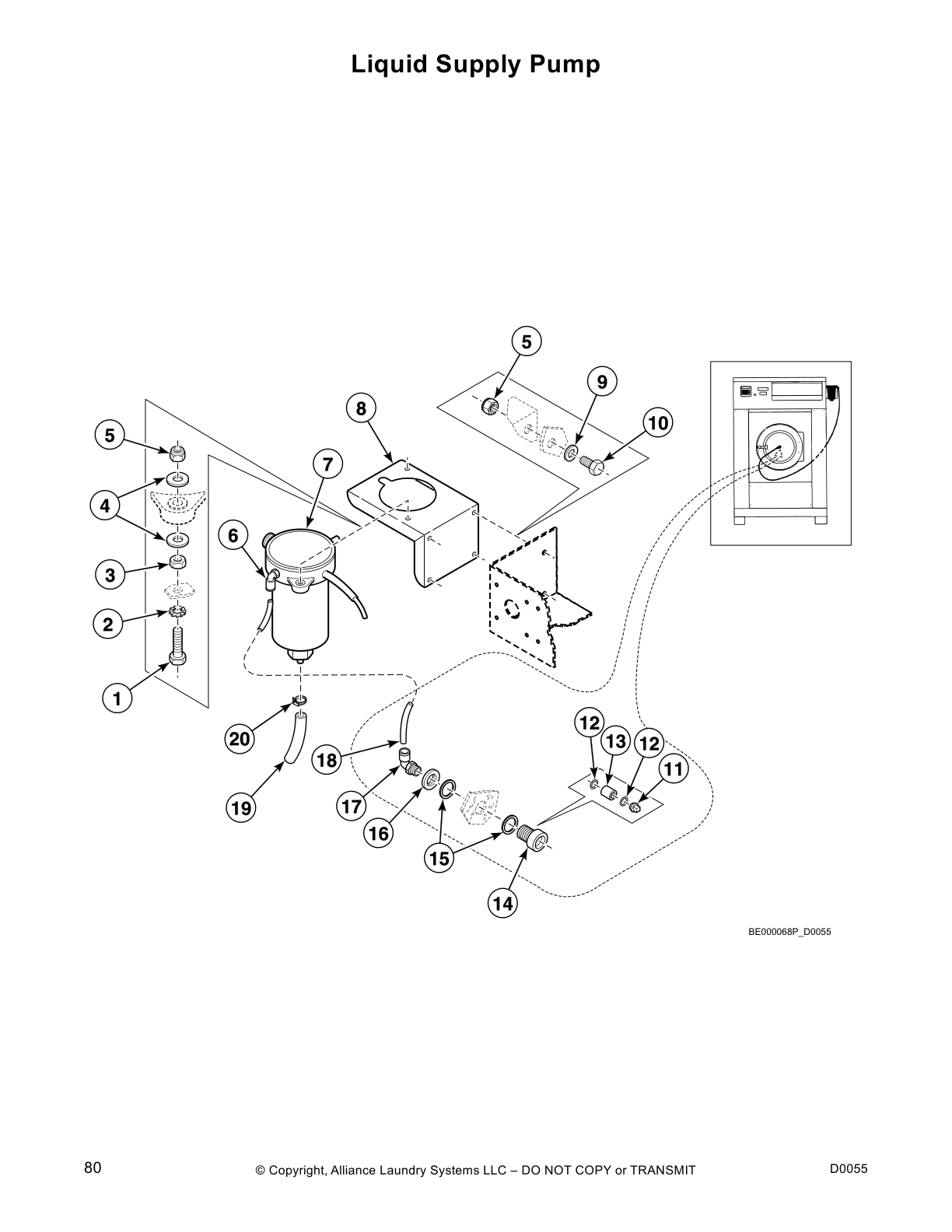

Liquid Supply Pump

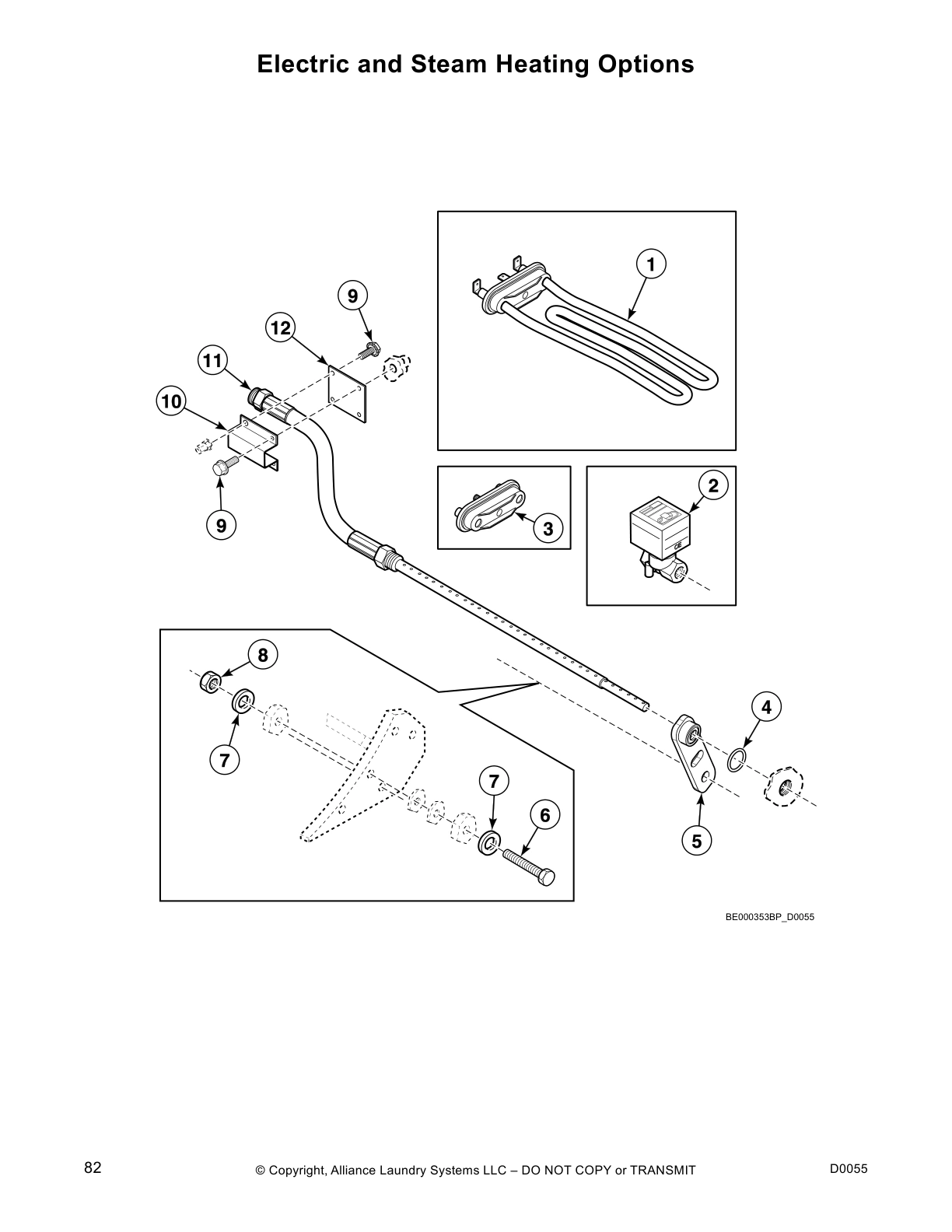

Electric and Steam Heating Options
Balance Switch
Common parts from model IPSO IHF100ZNH Washer
1
Bolt SPQ 206/00071/00 Contact Us For Availability
1
Seal SPQ B12378901 Contact Us For Availability
1
Bolt SPQ 206/00004/00 Contact Us For Availability
1
Nut SPQ 204/00004/00 Contact Us For Availability
1
Door Gasket SPQ 253/00162/01 Contact Us For Availability
1
Top Cover Plate SPQ 153/00111/01 Contact Us For Availability
1
Rear Cabinet Top SPQ 153/00033/02 Contact Us For Availability
1
Side Panel Support Assembly SPQ 153/00103/01 Contact Us For Availability
1
Rivet SPQ 206/00017/00 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
1
Bolt SPQ 205/00103/00 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
1
Out-of-Balance Detector Plate SPQ 153/00046/00 Contact Us For Availability
2
Tub Back Plate SPQ 153/00075/10 Contact Us For Availability
2
Seal Wear Plate SPQ 201/00202/00 Contact Us For Availability
2
Bushing SPQ B12543301 Contact Us For Availability
2
Spacer SPQ B12378801 Contact Us For Availability
2
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
2
Backbridge SPQ 204/00114/00 Contact Us For Availability
2
Water Hose SPQ 223/00071/00 Contact Us For Availability
2
Bolt SPQ 203/00003/00 Contact Us For Availability
2
Circuit Board Cover SPQ B12305201 Contact Us For Availability
2
Terminal Block SPQ 202/00004/00 Contact Us For Availability
2
Soap Injector Elbow Coupling SPQ 203/00004/00 Contact Us For Availability
2
Plate Assembly SPQ 153/00112/60 Contact Us For Availability
2
Screw SPQ 153/00033/01 Contact Us For Availability
2
Fuse Holder SPQ 211/00146/00 Contact Us For Availability
2
Bolt SPQ 153/00071/00 Contact Us For Availability
2
Drain Valve to Drain Pipe Hose SPQ 223/00219/00 Contact Us For Availability
2
Soap Dispenser to Tub Hose SPQ 223/00187/00 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00555/02 Contact Us For Availability
2
Steam Valve SPQ 153/00051/11 Contact Us For Availability
2
Screw SPQ 223/00246/00 Contact Us For Availability
3
Bolt SPQ 153/00076/10 Contact Us For Availability
3
Retaining Ring SPQ 153/00121/00 Contact Us For Availability
3
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
3
Screw SPQ 209/00025/08 Contact Us For Availability
3
O-Ring SPQ 223/00396/00 Contact Us For Availability
3
Washer SPQ 223/00011/00 Contact Us For Availability
3
Relay PC-Board SPQ 209/00468/00 Contact Us For Availability
3
Nut SPQ 207/00123/00 Contact Us For Availability
3
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
3
Supply Dispenser Cover SPQ 205/00104/00 Contact Us For Availability
3
SPQ 209/00533/00 SPQ 209/00533/00 Contact Us For Availability
3
Water Inlet Grid SPQ 253/00029/00 Contact Us For Availability
3
Water Inlet Grid SPQ 223/00289/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 207/00018/00 Contact Us For Availability
4
SPQ 253/10127/00 SPQ 253/10127/00 Contact Us For Availability
4
Bushing SPQ 253/00155/00 Contact Us For Availability
4
SPQ 253/00147/00 SPQ 253/00147/00 Contact Us For Availability
4
Tilt Switch Bracket SPQ 203/00006/00 Contact Us For Availability
4
Drain Valve to Drain Pipe Hose SPQ 201/00010/00 Contact Us For Availability
4
Door Lock Catch SPQ 253/00158/567 Contact Us For Availability
4
SPQ 253/00178/00 SPQ 253/00178/00 Contact Us For Availability
4
Telem Sticker SPQ 153/10108/20 Contact Us For Availability
4
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
4
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
4
Washer SPQ 153/10027/90 Contact Us For Availability
4
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
4
Bolt SPQ 223/00059/00 Contact Us For Availability
4
ID Chip SPQ 209/00202/01 Contact Us For Availability
4
Prewash and Mainwash Nozzle SPQ 223/00392/00 Contact Us For Availability
4
O-Ring SPQ 209/00476/00 Contact Us For Availability
5
Tub SPQ 223/00168/00 Contact Us For Availability
5
V-Ring Seal SPQ 253/00125/00 Contact Us For Availability
5
Grease Ring Holder SPQ 253/00182/00 Contact Us For Availability
5
SPQ 206/00031/00 SPQ 206/00031/00 Contact Us For Availability
5
Water Hose SPQ 223/00141/00 Contact Us For Availability
5
Drain Valve Overflow Plug SPQ 206/00009/00 Contact Us For Availability
5
Drain Valve Motor SPQ 209/00025/07 Contact Us For Availability
5
Drain Valve Motor Mounting Plate SPQ 209/00115/04 Contact Us For Availability
5
Door Lock Harness SPQ 205/00123/00 Contact Us For Availability
5
O-Ring SPQ F8549301 Contact Us For Availability
5
SPQ B12300601 SPQ B12300601 Contact Us For Availability
5
Plug SPQ 153/00043/00 Contact Us For Availability
5
Parameter Unit Assembly SPQ 111/01147/00 Contact Us For Availability
5
SPQ 209/02016/00 SPQ 209/02016/00 Contact Us For Availability
5
Bushing SPQ 153/00089/00 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/52 Contact Us For Availability
5
Connecting Piece SPQ 223/00349/00 Contact Us For Availability
6
SPQ 204/00016/00 SPQ 204/00016/00 Contact Us For Availability
6
Nut SPQ 153/00077/00 Contact Us For Availability
6
Screw SPQ 253/00124/00 Contact Us For Availability
6
Lubricator SPQ 253/00131/00 Contact Us For Availability
6
SPQ 223/00106/00 SPQ 223/00106/00 Contact Us For Availability
6
Coil SPQ 209/00170/05 Contact Us For Availability
6
Coil SPQ 209/00203/11 Contact Us For Availability
6
SPQ 223/00244/00 SPQ 223/00244/00 Contact Us For Availability
6
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
6
SPQ 209/00099/20 SPQ 209/00099/20 Contact Us For Availability
6
SPQ 153/00103/00 SPQ 153/00103/00 Contact Us For Availability
6
SPQ 140/00010/01 SPQ 140/00010/01 Contact Us For Availability
6
SPQ 211/00087/00 SPQ 211/00087/00 Contact Us For Availability
6
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
6
Dosing Pump Hose SPQ 209/00555/98 Contact Us For Availability
6
SPQ 223/00181/00 SPQ 223/00181/00 Contact Us For Availability
6
Bolt SPQ B12365603 Contact Us For Availability
6
SPQ 111/00107/00 SPQ 111/00107/00 Contact Us For Availability
7
SPQ 224/00046/00 SPQ 224/00046/00 Contact Us For Availability
7
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
7
SPQ 206/00122/00 SPQ 206/00122/00 Contact Us For Availability
7
SPQ 253/00154/00 SPQ 253/00154/00 Contact Us For Availability
7
Noise Suppressor SPQ 201/00008/00 Contact Us For Availability
7
SPQ 209/00051/11 SPQ 209/00051/11 Contact Us For Availability
7
Drain Valve Motor SPQ 209/00203/21 Contact Us For Availability
7
SPQ 205/00122/00 SPQ 205/00122/00 Contact Us For Availability
7
SPQ 253/10528/00 SPQ 253/10528/00 Contact Us For Availability
7
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
7
SPQ 153/00070/00 SPQ 153/00070/00 Contact Us For Availability
7
Washer SPQ 206/00047/00 Contact Us For Availability
8
Nut SPQ 201/00001/00 Contact Us For Availability
8
SPQ B12456301 SPQ B12456301 Contact Us For Availability
8
SPQ B12522101 SPQ B12522101 Contact Us For Availability
8
SPQ 253/00026/01 SPQ 253/00026/01 Contact Us For Availability
8
SPQ 209/00203/12 SPQ 209/00203/12 Contact Us For Availability
8
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
8
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
8
SPQ 207/00102/00 SPQ 207/00102/00 Contact Us For Availability
8
SPQ 202/00110/00 SPQ 202/00110/00 Contact Us For Availability
8
SPQ 211/00097/00 SPQ 211/00097/00 Contact Us For Availability
8
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
8
SPQ 223/00008/05 SPQ 223/00008/05 Contact Us For Availability
8
SPQ 204/00301/00 SPQ 204/00301/00 Contact Us For Availability
9
Steam Kit SPQ 204/00113/00 Contact Us For Availability
9
Bearing Replacement Tool Kit SPQ 212/00002/00 Contact Us For Availability
9
SPQ 253/00078/00 SPQ 253/00078/00 Contact Us For Availability
9
SPQ 223/00086/00 SPQ 223/00086/00 Contact Us For Availability
9
SPQ 223/00133/00 SPQ 223/00133/00 Contact Us For Availability
9
Door Lock Kit SPQ C000185 Contact Us For Availability
9
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
9
SPQ 208/00132/00 SPQ 208/00132/00 Contact Us For Availability
9
SPQ C000561 SPQ C000561 Contact Us For Availability
9
SPQ 209/00356/00 SPQ 209/00356/00 Contact Us For Availability
9
SPQ 153/00104/00 SPQ 153/00104/00 Contact Us For Availability
9
SPQ 211/00097/01 SPQ 211/00097/01 Contact Us For Availability
9
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
9
SPQ 209/02020/00 SPQ 209/02020/00 Contact Us For Availability
9
SPQ 223/00001/07 SPQ 223/00001/07 Contact Us For Availability
10
Washer SPQ 202/00105/00 Contact Us For Availability
10
Bolt SPQ 206/00147/00 Contact Us For Availability
10
Hose Clamp SPQ 223/00012/00 Contact Us For Availability
10
Drain Valve Spring SPQ 209/00170/02 Contact Us For Availability
10
Bolt SPQ C000430 Contact Us For Availability
10
Hinge Plate SPQ 253/00177/00 Contact Us For Availability
10
Hinge Plate SPQ 253/00176/50 Contact Us For Availability
10
Nut SPQ 204/00116/00 Contact Us For Availability
10
Datacard Cover SPQ 223/00348/00 Contact Us For Availability
10
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
10
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
10
Screw SPQ 207/00110/00 Contact Us For Availability
10
Cordlock SPQ 211/00117/00 Contact Us For Availability
10
Nut SPQ 204/00006/00 Contact Us For Availability
10
Washer SPQ 201/00002/00 Contact Us For Availability
10
Bolt SPQ 205/00107/00 Contact Us For Availability
10
Bracket SPQ 209/00581/10 Contact Us For Availability
11
Door Front Panel SPQ 153/10113/00 Contact Us For Availability
11
Washer SPQ 203/00016/00 Contact Us For Availability
11
Drain Valve Shaft SPQ 209/00170/10 Contact Us For Availability
11
Hinge Block SPQ 253/00178/10 Contact Us For Availability
11
Datacard SPQ 209/02022/00 Contact Us For Availability
11
Washer SPQ 223/00123/00 Contact Us For Availability
11
Handle Grommet SPQ 223/00008/01 Contact Us For Availability
11
Back Panel Support Assembly SPQ 153/00114/C0 Contact Us For Availability
11
Washer SPQ 202/00101/00 Contact Us For Availability
11
Grommet SPQ 211/00118/00 Contact Us For Availability
11
Noise Filter SPQ 227/00163/00 Contact Us For Availability
11
Hose Clamp SPQ 204/00201/00 Contact Us For Availability
11
Clamp SPQ 253/00019/00 Contact Us For Availability
11
Steam Injector SPQ 153/00051/10 Contact Us For Availability
12
Counterweight SPQ 253/10013/00 Contact Us For Availability
12
Speed Sensor Bracket SPQ 153/00041/02 Contact Us For Availability
12
Pulley SPQ 201/00025/00 Contact Us For Availability
12
Drain Valve Plate Assembly SPQ 114/00010/00 Contact Us For Availability
12
Washer SPQ 209/00025/12 Contact Us For Availability
12
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
12
Grommet SPQ 223/00198/00 Contact Us For Availability
12
Kickplate SPQ 153/10117/00 Contact Us For Availability
12
Nut SPQ 204/00009/00 Contact Us For Availability
12
Back Panel SPQ 153/00114/HD Contact Us For Availability
12
Water Hose SPQ 223/00010/00 Contact Us For Availability
12
Strain Relief Connector SPQ 211/00170/00 Contact Us For Availability
12
Bushing SPQ 207/00126/00 Contact Us For Availability
12
Soap Injector Orifice Nipple SPQ 223/00177/00 Contact Us For Availability
12
Steam Injector Plate SPQ 153/00051/50 Contact Us For Availability
13
Leveling Leg SPQ 252/00006/00 Contact Us For Availability
13
Washer SPQ 203/00002/00 Contact Us For Availability
13
Out-of-Balance Switch Boot SPQ 204/00007/00 Contact Us For Availability
13
Hose Clamp SPQ 223/00223/00 Contact Us For Availability
13
Exhaust Valve Hose SPQ 223/00170/00 Contact Us For Availability
13
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
13
Printboard SPQ 209/00505/02 Contact Us For Availability
13
Bolt SPQ 206/00042/00 Contact Us For Availability
13
Supply Dispenser Box SPQ 223/00044/00 Contact Us For Availability
13
Bolt SPQ 205/00108/00 Contact Us For Availability
13
Fuse SPQ 209/00766/00 Contact Us For Availability
13
Soap Injector Coupling SPQ 211/00126/00 Contact Us For Availability
14
Bearing Cover Plate SPQ 153/00069/00 Contact Us For Availability
14
Key SPQ 253/00026/00 Contact Us For Availability
14
Motor Plate SPQ 248/00114/00 Contact Us For Availability
14
Washer SPQ 202/00002/00 Contact Us For Availability
14
T-Piece SPQ 253/00006/00 Contact Us For Availability
14
Door Glass Retainer SPQ 253/00158/607 Contact Us For Availability
14
Elbow SPQ 223/00210/00 Contact Us For Availability
14
Backbridge SPQ 153/00114/A1 Contact Us For Availability
14
Network Connection Printboard SPQ 209/02007/00 Contact Us For Availability
14
Prewash and Mainwash Nozzle SPQ 253/00012/02 Contact Us For Availability
14
Bolt SPQ 223/00345/01 Contact Us For Availability
14
Screw SPQ B12347501 Contact Us For Availability
15
V-Ring Seal SPQ 253/10120/00 Contact Us For Availability
15
Roller Bearing SPQ 253/00156/00 Contact Us For Availability
15
Basket SPQ 253/00033/00 Contact Us For Availability
15
Spacer SPQ B12543401 Contact Us For Availability
15
Overflow Hose SPQ 223/00013/00 Contact Us For Availability
15
Door Glass SPQ 253/10128/00 Contact Us For Availability
15
Hose Barb SPQ 223/00016/00 Contact Us For Availability
15
Washer SPQ 211/00181/00 Contact Us For Availability
15
Filter SPQ 209/00287/21 Contact Us For Availability
15
Microprocessor SPQ 209/02025/00 Contact Us For Availability
15
Y Pipe SPQ 223/00107/03 Contact Us For Availability
15
Soap Injector Hose SPQ 223/00176/00 Contact Us For Availability
16
Bearing Spacer SPQ B12360807 Contact Us For Availability
16
Roller Bearing SPQ B12472401 Contact Us For Availability
16
Pulley SPQ 206/00125/00 Contact Us For Availability
16
Washer SPQ 223/00184/00 Contact Us For Availability
16
Door Solenoid Assembly SPQ B12495102 Contact Us For Availability
16
Operating Sticker SPQ 225/10313/00 Contact Us For Availability
16
Insulating Sticker SPQ 229/00268/00 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Electrical Plate Assembly SPQ 223/00174/00 Contact Us For Availability
17
Bolt SPQ 217/00102/00 Contact Us For Availability
17
Plexi Frame SPQ 225/00321/00 Contact Us For Availability
17
Gasket SPQ 153/00111/10 Contact Us For Availability
17
Elbow SPQ 253/00030/00 Contact Us For Availability
17
Pressure Hose SPQ 223/00182/00 Contact Us For Availability
18
SPQ B12369701 SPQ B12369701 Contact Us For Availability
18
Reed Switch Assembly SPQ C003000 Contact Us For Availability
18
Hose Clamp SPQ 246/00092/00 Contact Us For Availability
18
Water Level Switch SPQ B12548601 Contact Us For Availability
18
Bolt SPQ 204/00105/00 Contact Us For Availability
18
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
18
Washer SPQ 223/00180/00 Contact Us For Availability
19
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
19
Memory Card PC-Board SPQ 223/00374/00 Contact Us For Availability
19
Nut SPQ 223/00179/10 Contact Us For Availability
20
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
20
Printboard Separator SPQ 229/00289/00 Contact Us For Availability
21
SPQ 206/00142/00 SPQ 206/00142/00 Contact Us For Availability
21
Screw SPQ 153/00027/22 Contact Us For Availability
22
Door Latch SPQ C001244 Contact Us For Availability
23
Pop Rivet SPQ F431223 Contact Us For Availability
23
Printboard Separator SPQ 209/02002/ZO2 Contact Us For Availability
23
Fuse SPQ 223/00035/01 Contact Us For Availability
24
Magnet SPQ F8390801 Contact Us For Availability
24
Spring SPQ C000431 Contact Us For Availability
24
Bolt SPQ 211/00145/00 Contact Us For Availability
25
Door Magnet Mounting Bracket SPQ C002994 Contact Us For Availability
25
Upper Front Panel SPQ 111/01893/00 Contact Us For Availability
25
SPQ 209/00532/00 SPQ 209/00532/00 Contact Us For Availability
26
SPQ 209/00526/00 SPQ 209/00526/00 Contact Us For Availability
27
Washer SPQ 211/00120/00 Contact Us For Availability
27
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
28
Emergency Switch Pushbutton SPQ 173/00013/20 Contact Us For Availability
29
SPQ 209/00528/00 SPQ 209/00528/00 Contact Us For Availability
35
SPQ 207/00003/00 SPQ 207/00003/00 Contact Us For Availability
NI
SPQ 894P3 SPQ 894P3 Contact Us For Availability
NI
SPQ 245/00054/00 SPQ 245/00054/00 Contact Us For Availability
NI
SPQ 3885P SPQ 3885P Contact Us For Availability
NI
SPQ 206/00053/00 SPQ 206/00053/00 Contact Us For Availability
NI
SPQ 209/00052/11 SPQ 209/00052/11 Contact Us For Availability
NI
SPQ 209/00052/12 SPQ 209/00052/12 Contact Us For Availability
NI
SPQ C003286 SPQ C003286 Contact Us For Availability
NI
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
Dosing Pump Hose Connector SPQ 209/00555/99 Contact Us For Availability
NI
SPQ 809P3 SPQ 809P3 Contact Us For Availability
× ![]()
