Model IPSO IHF045SDH Washer – Common Parts & Diagrams
Frame
Shock and Spring Assembly

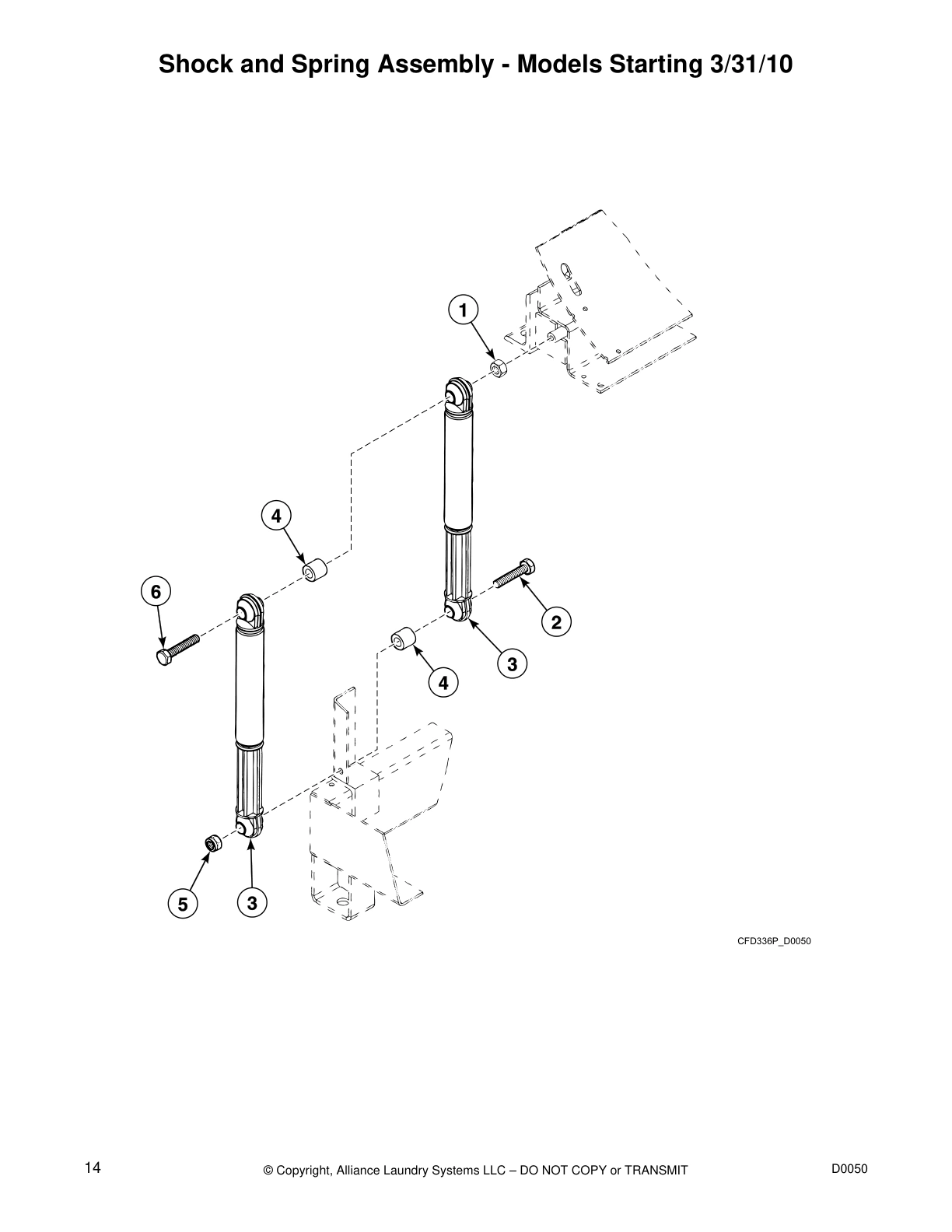

Shock and Spring Assembly - Models Starting 3/31/10

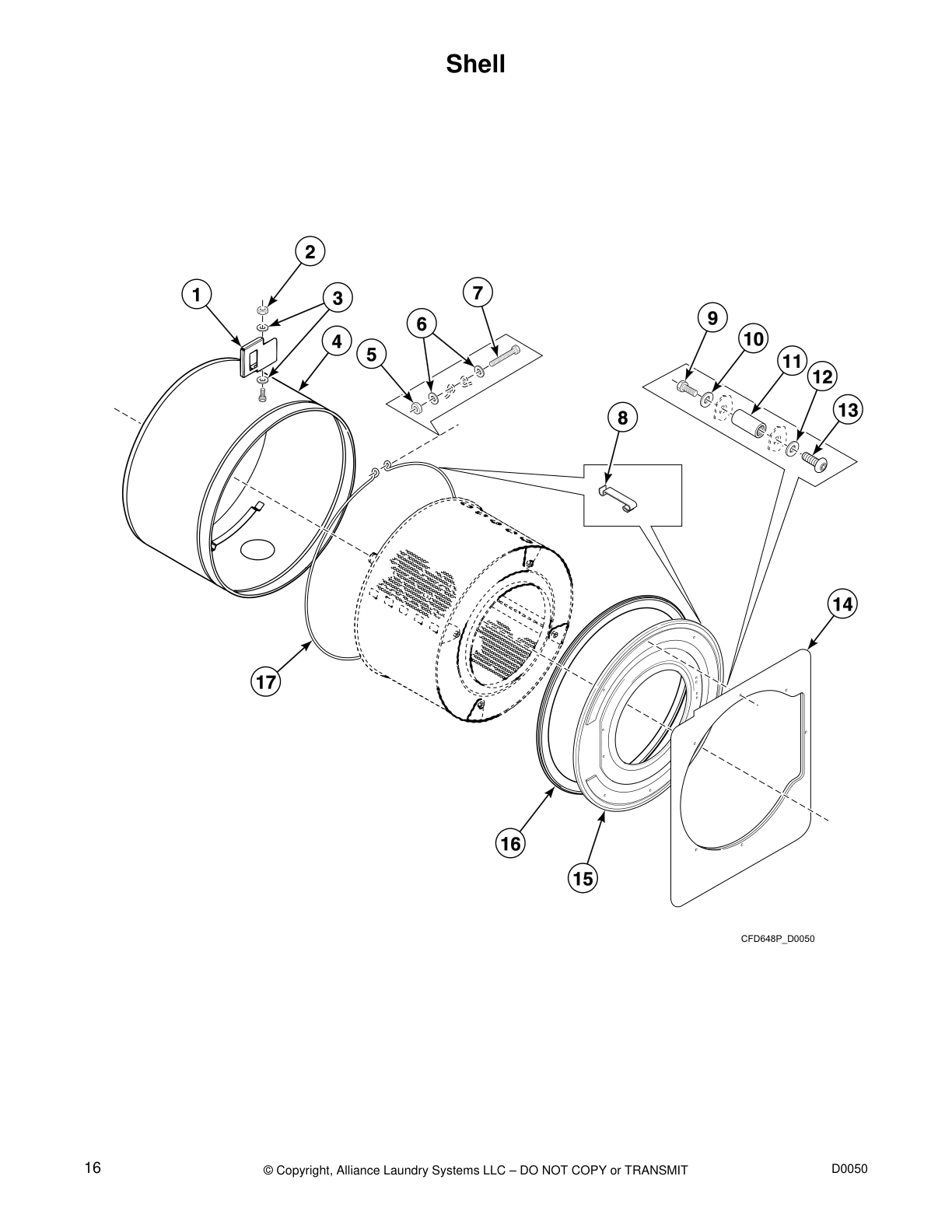

Shell

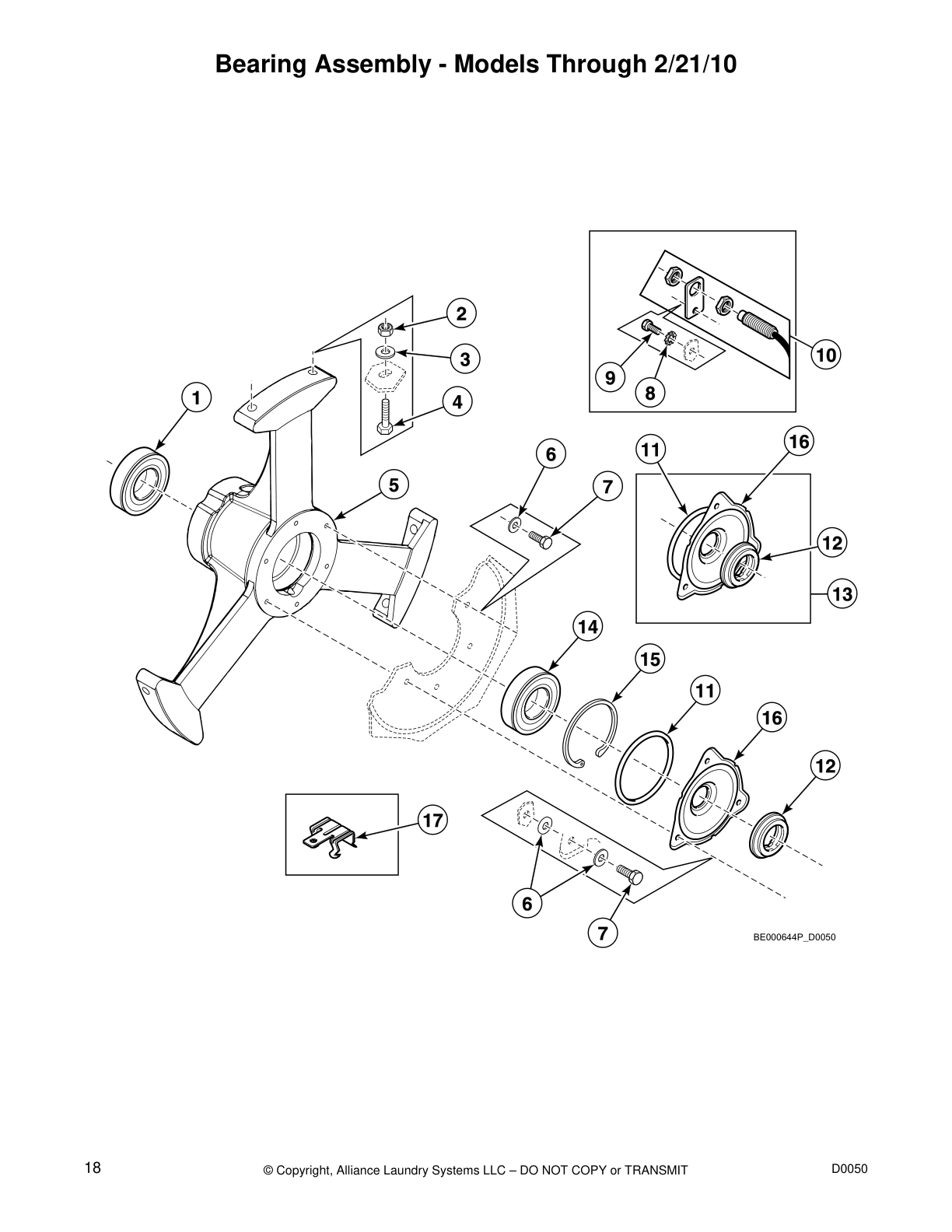

Bearing Assembly - Models Through 2/21/10

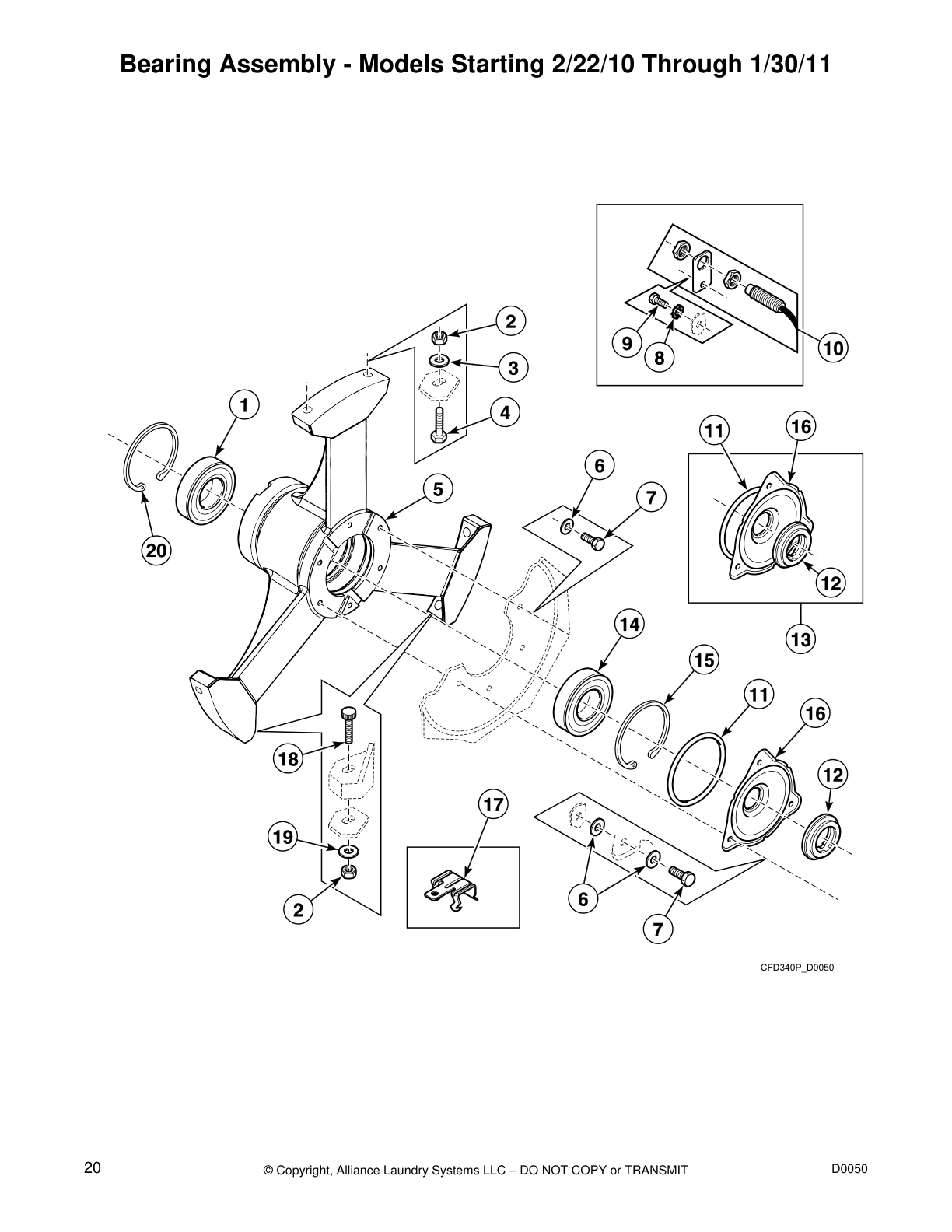

Bearing Assembly - Models Starting 2/22/10 Through 1/30/11

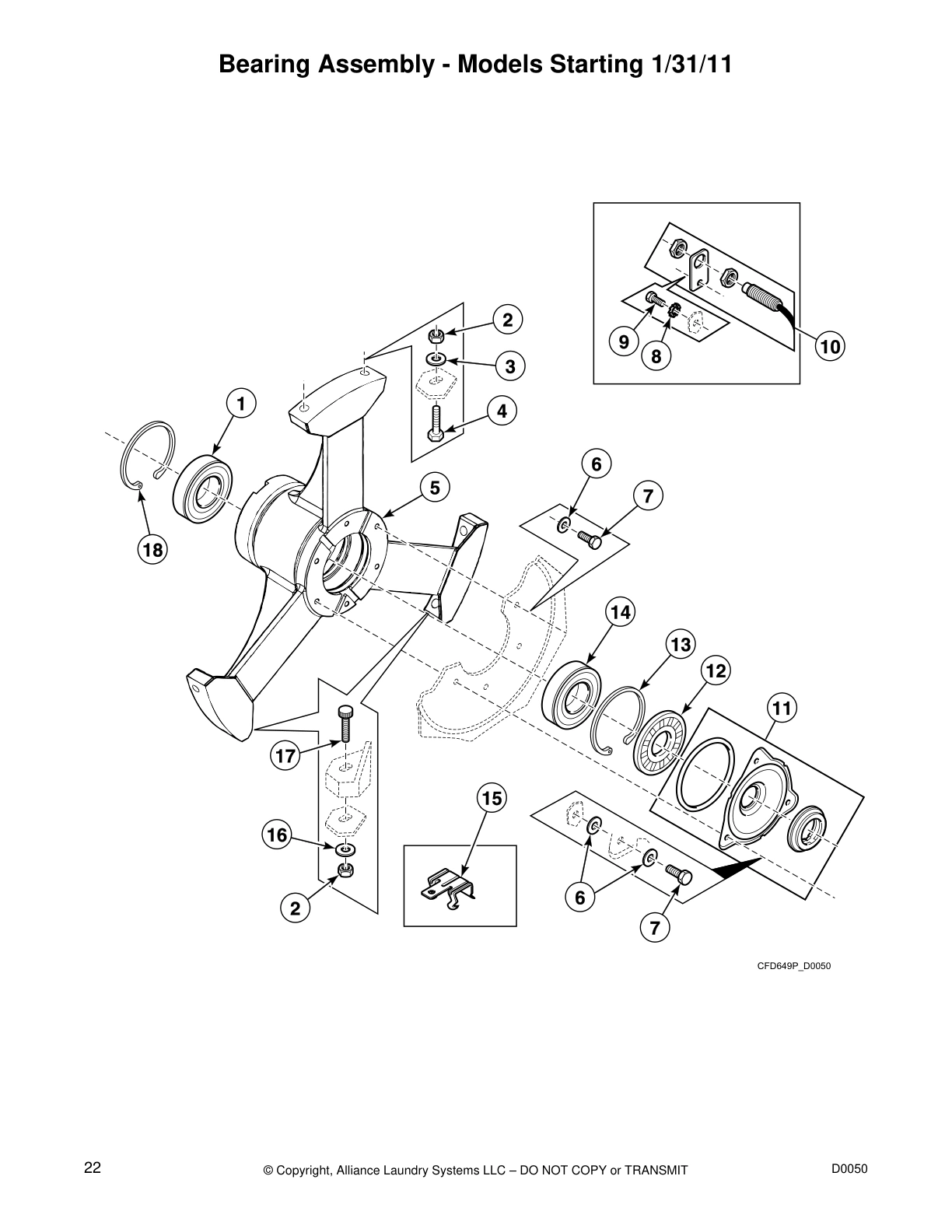

Bearing Assembly - Models Starting 1/31/11
Basket, Pulley and Belt

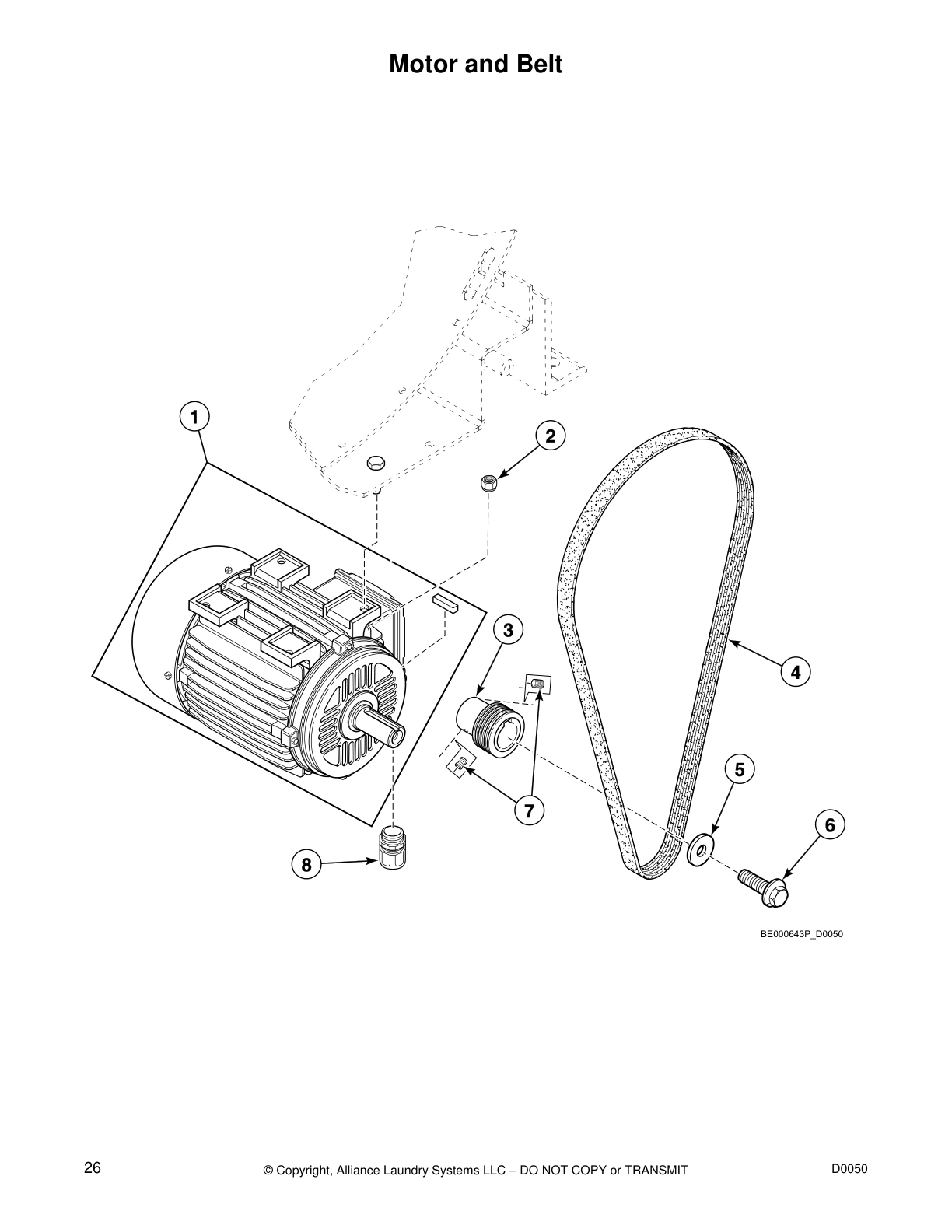

Motor and Belt

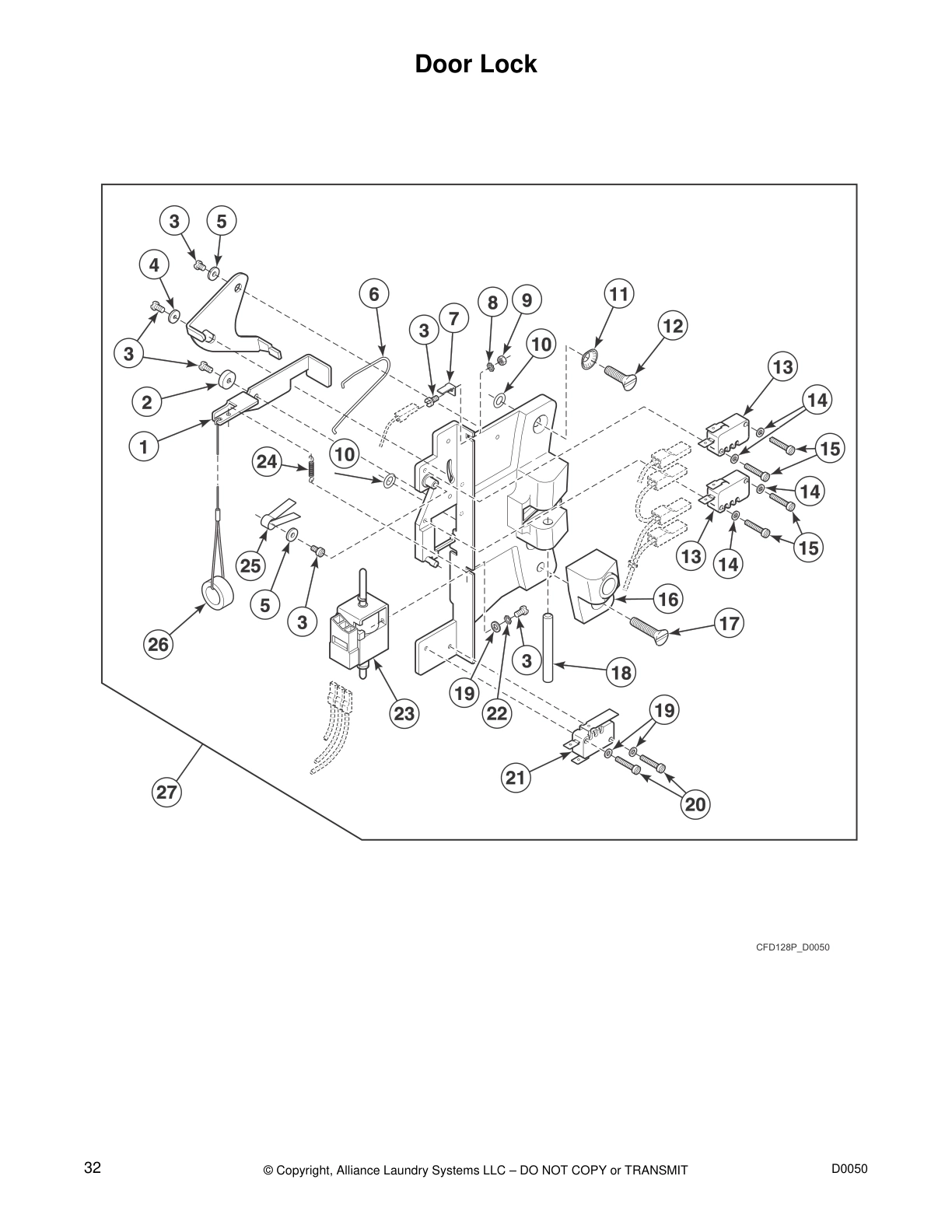

Door Lock

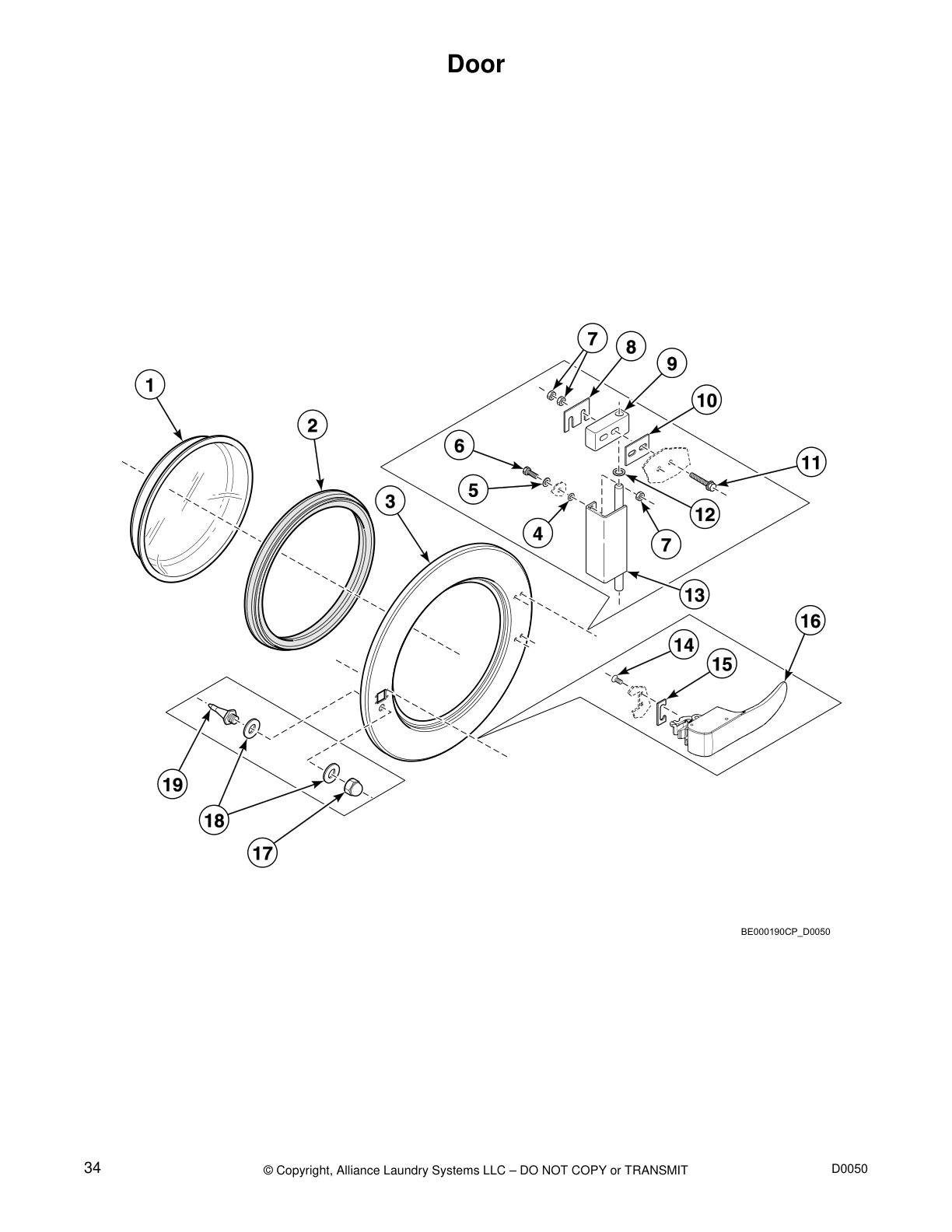

Door

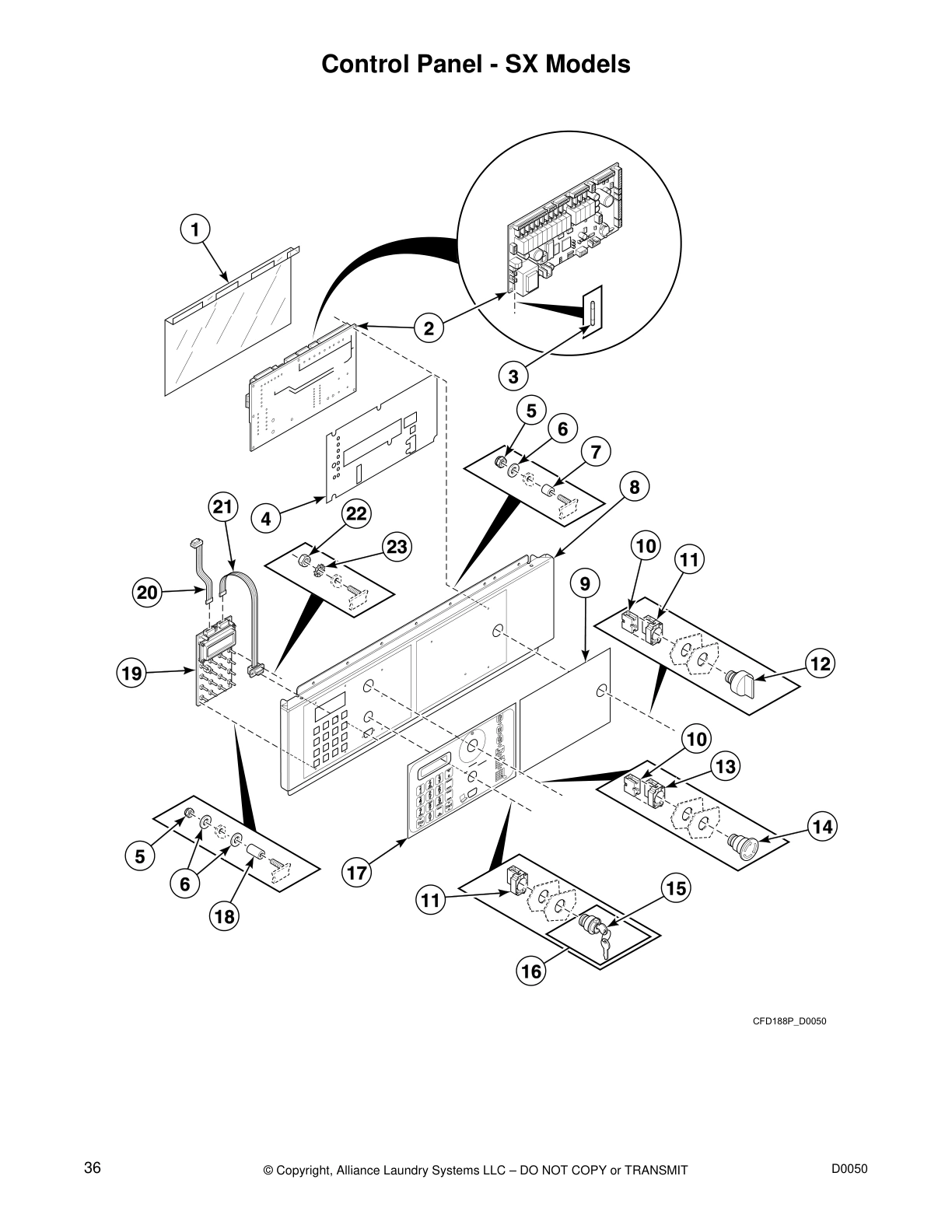

Control Panel - SX Models

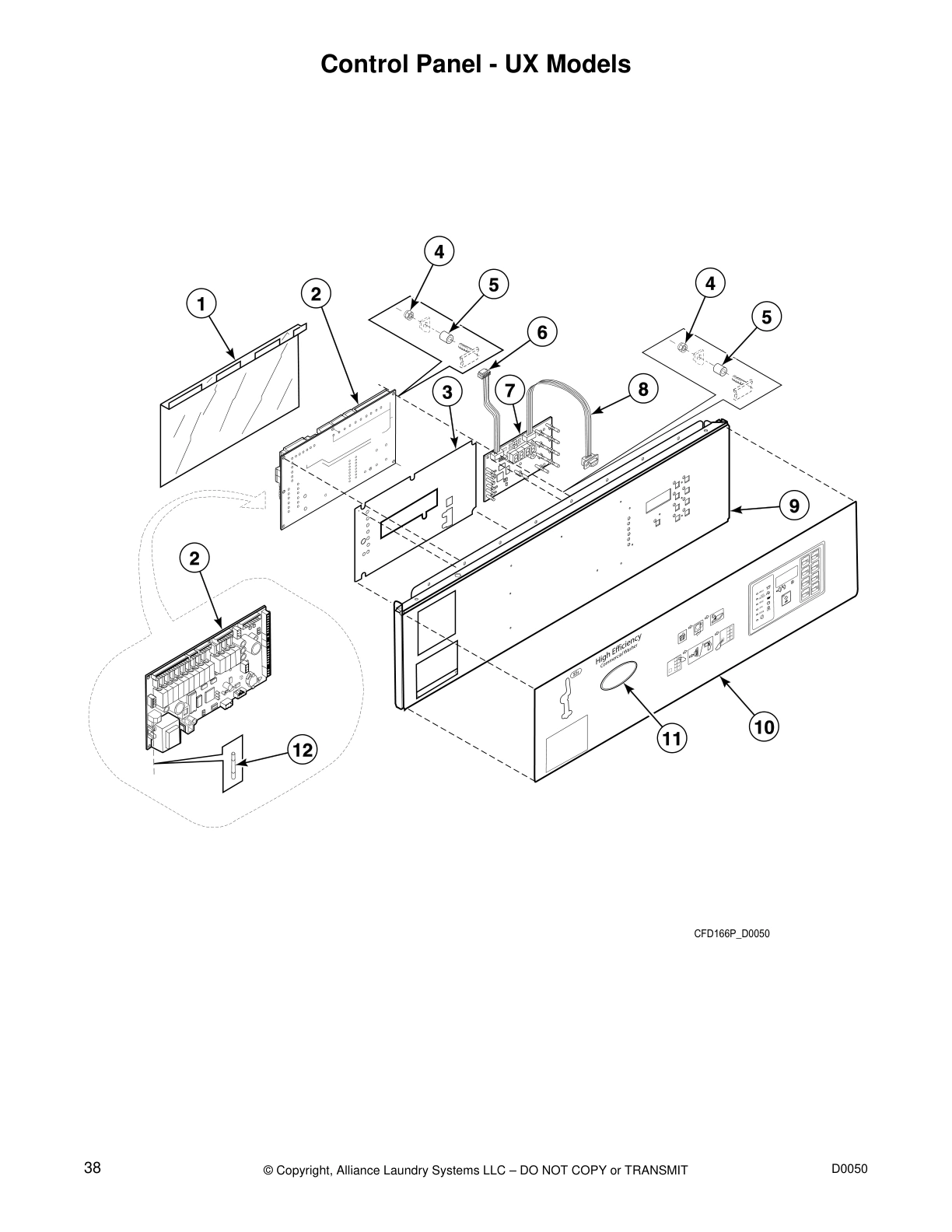

Control Panel - UX Models

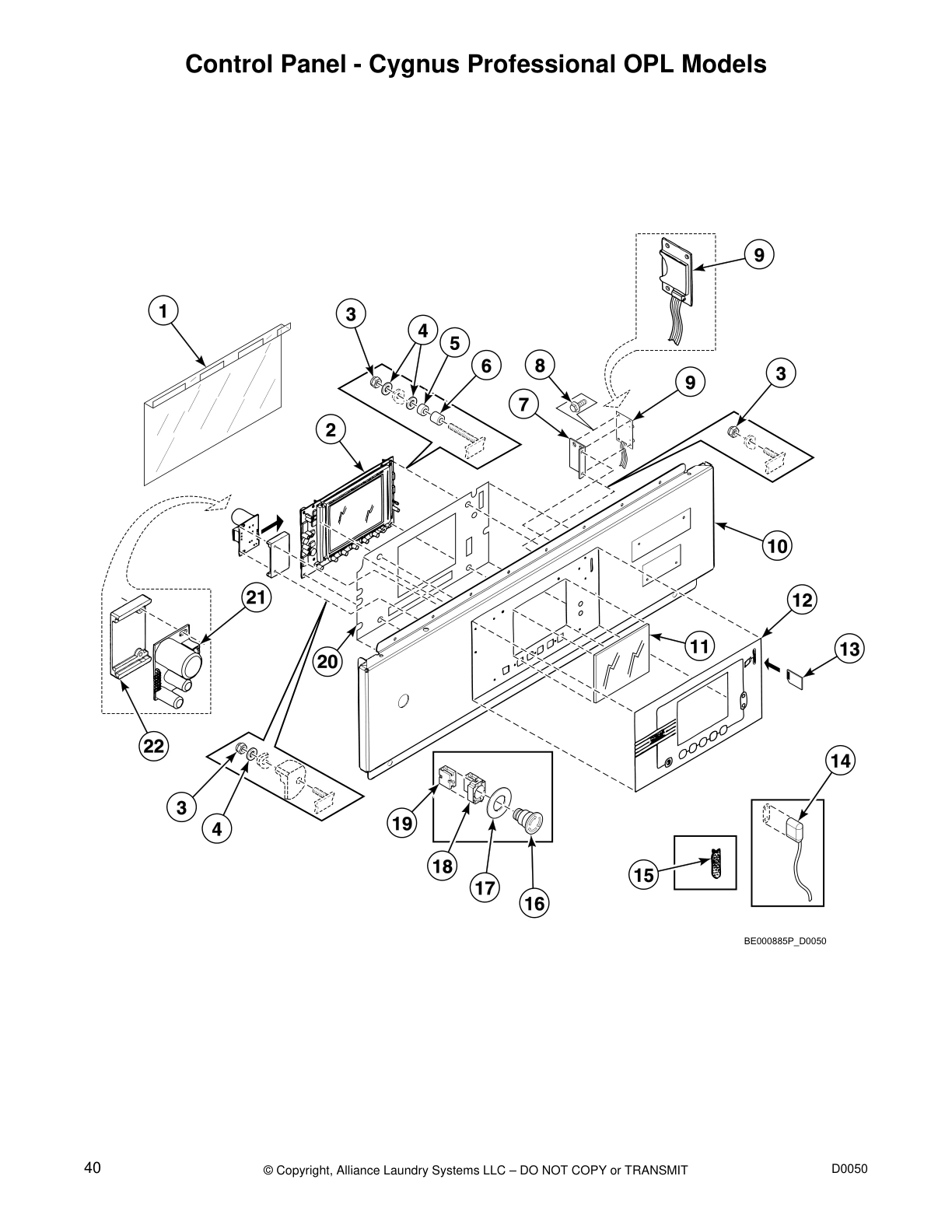

Control Panel - Cygnus Professional OPL Models

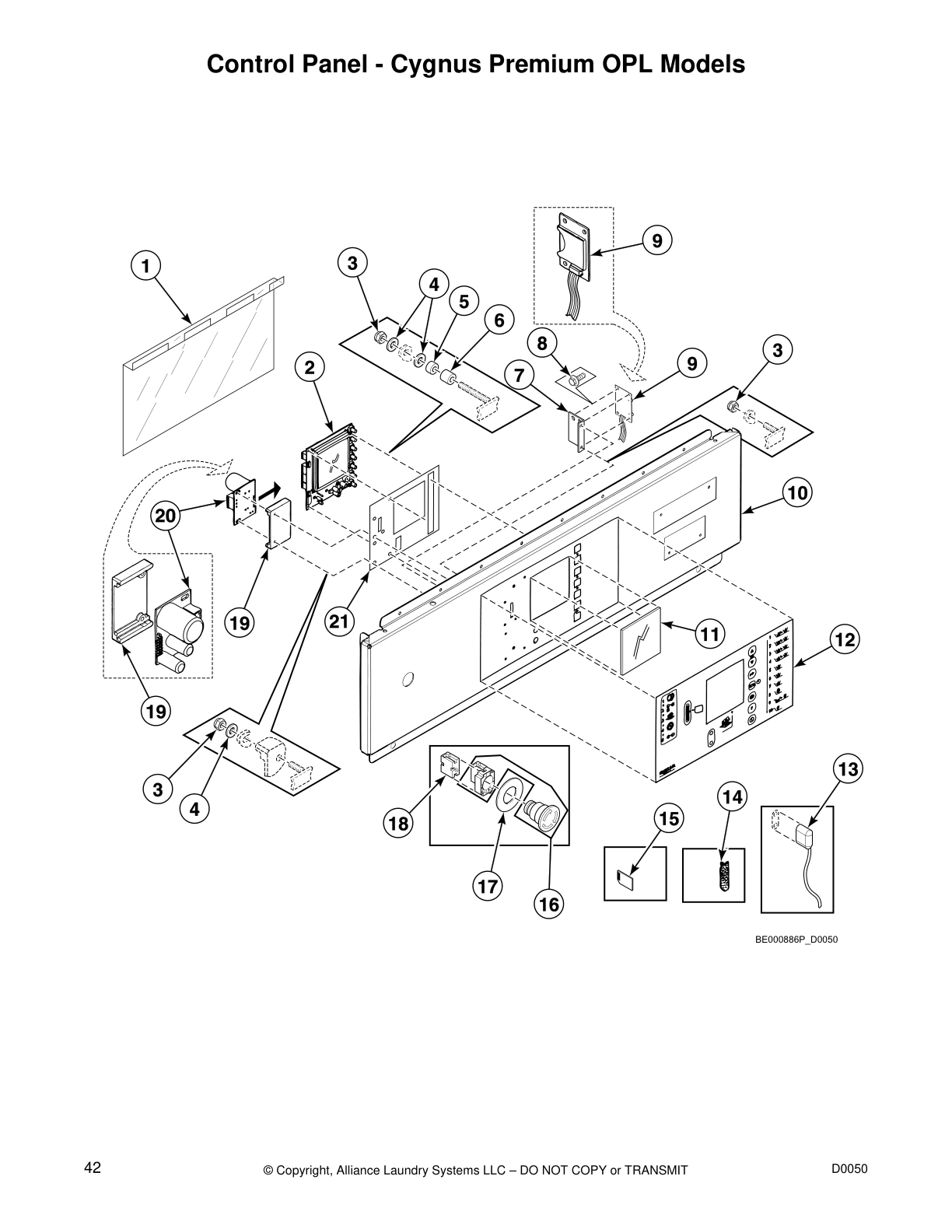

Control Panel - Cygnus Premium OPL Models

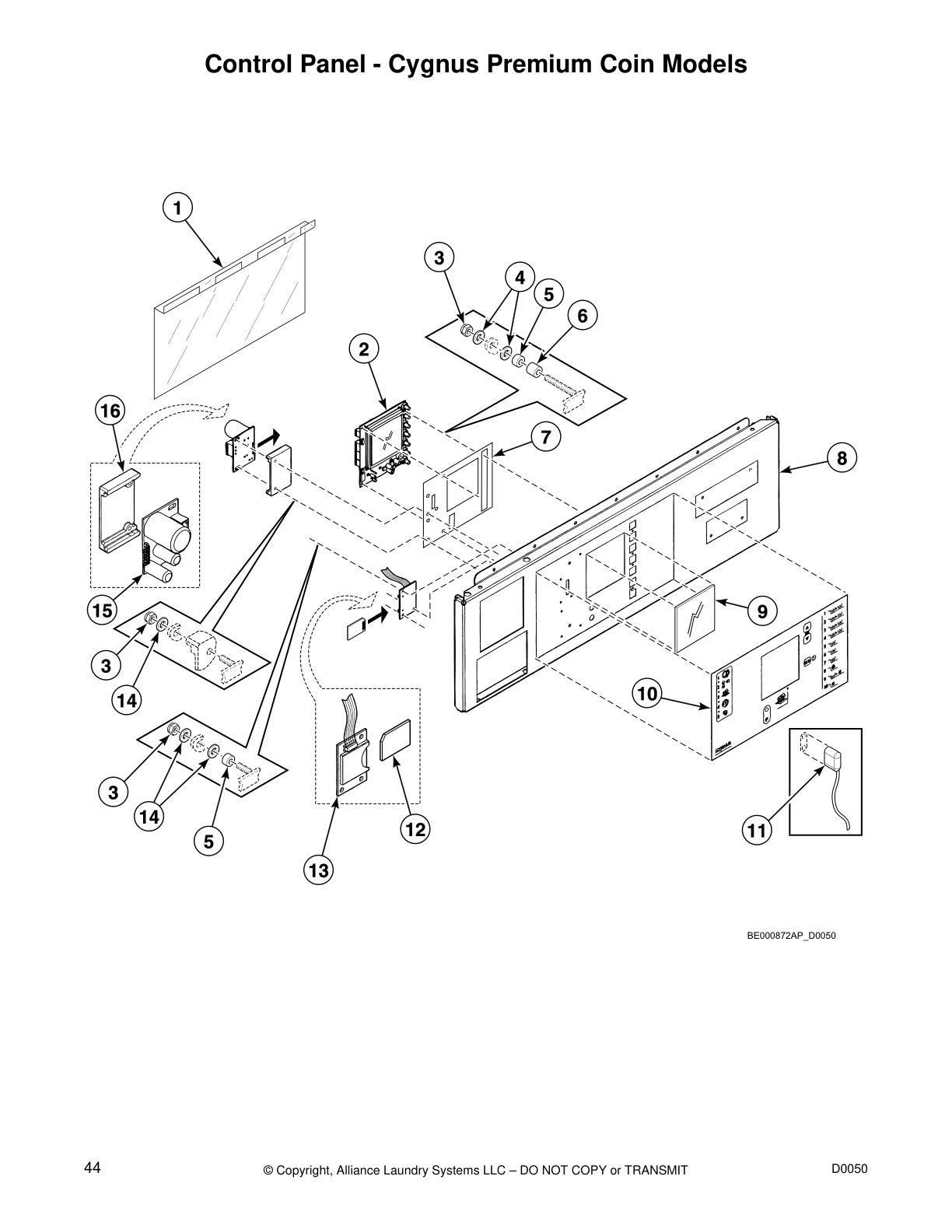

Control Panel - Cygnus Premium Coin Models

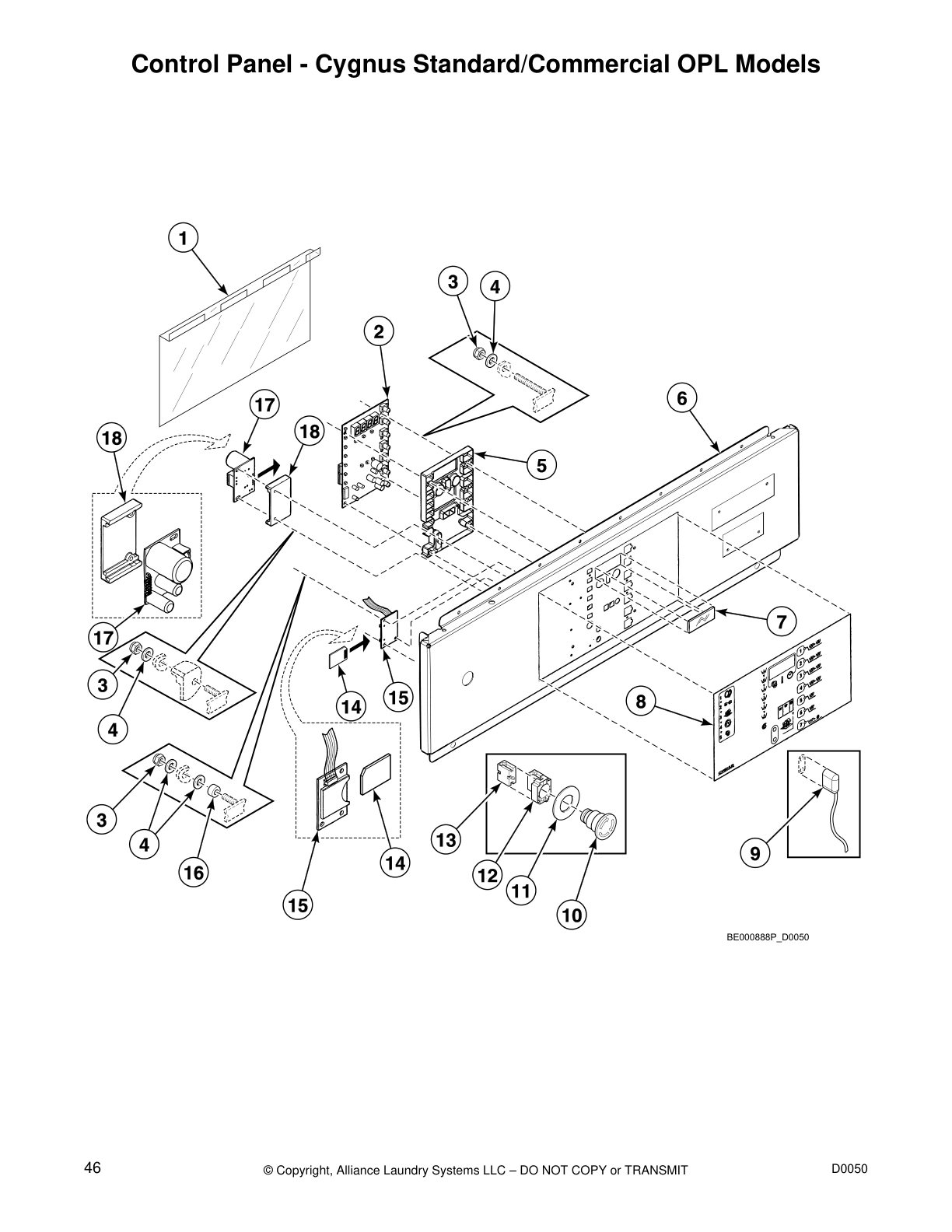

Control Panel - Cygnus Standard/Commercial OPL Models

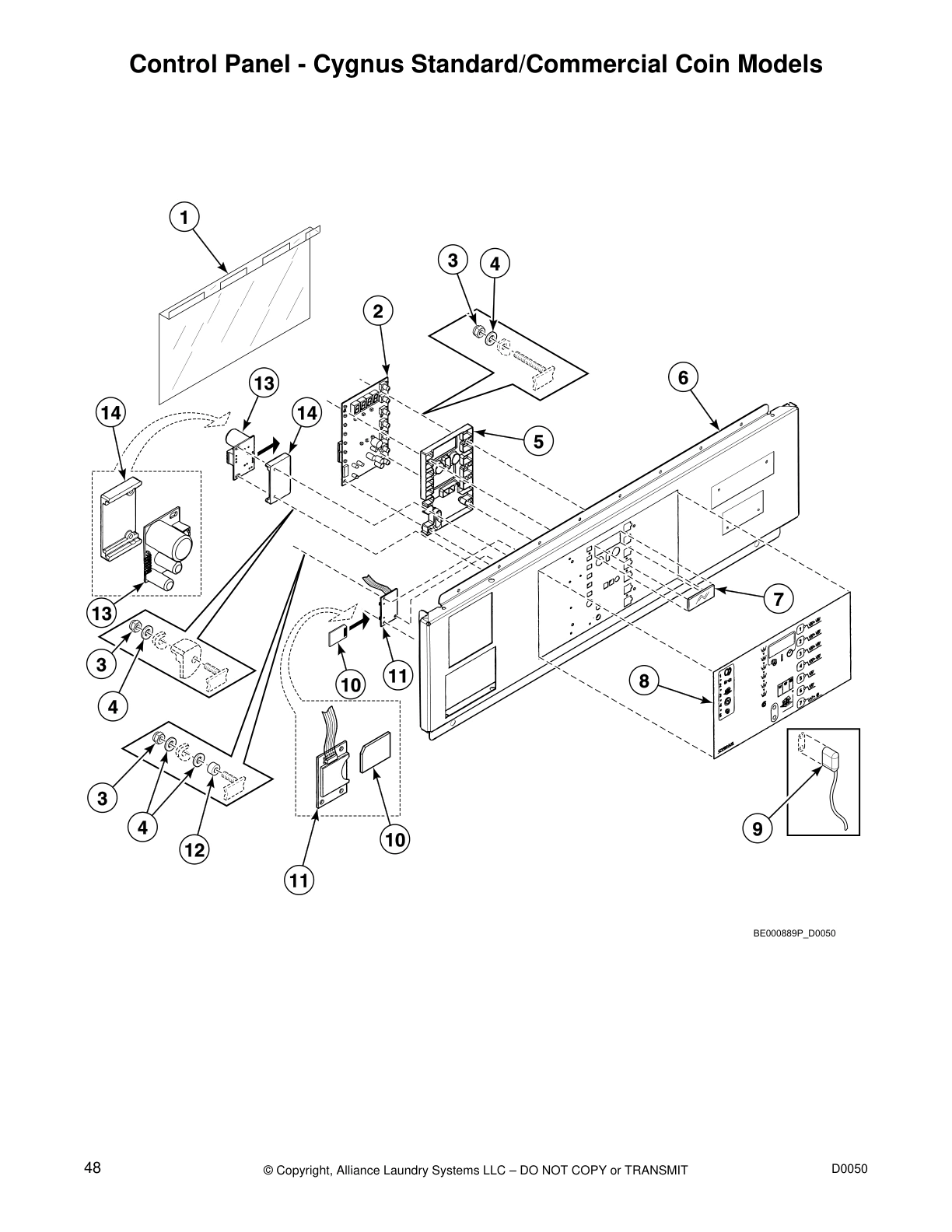

Control Panel - Cygnus Standard/Commercial Coin Models

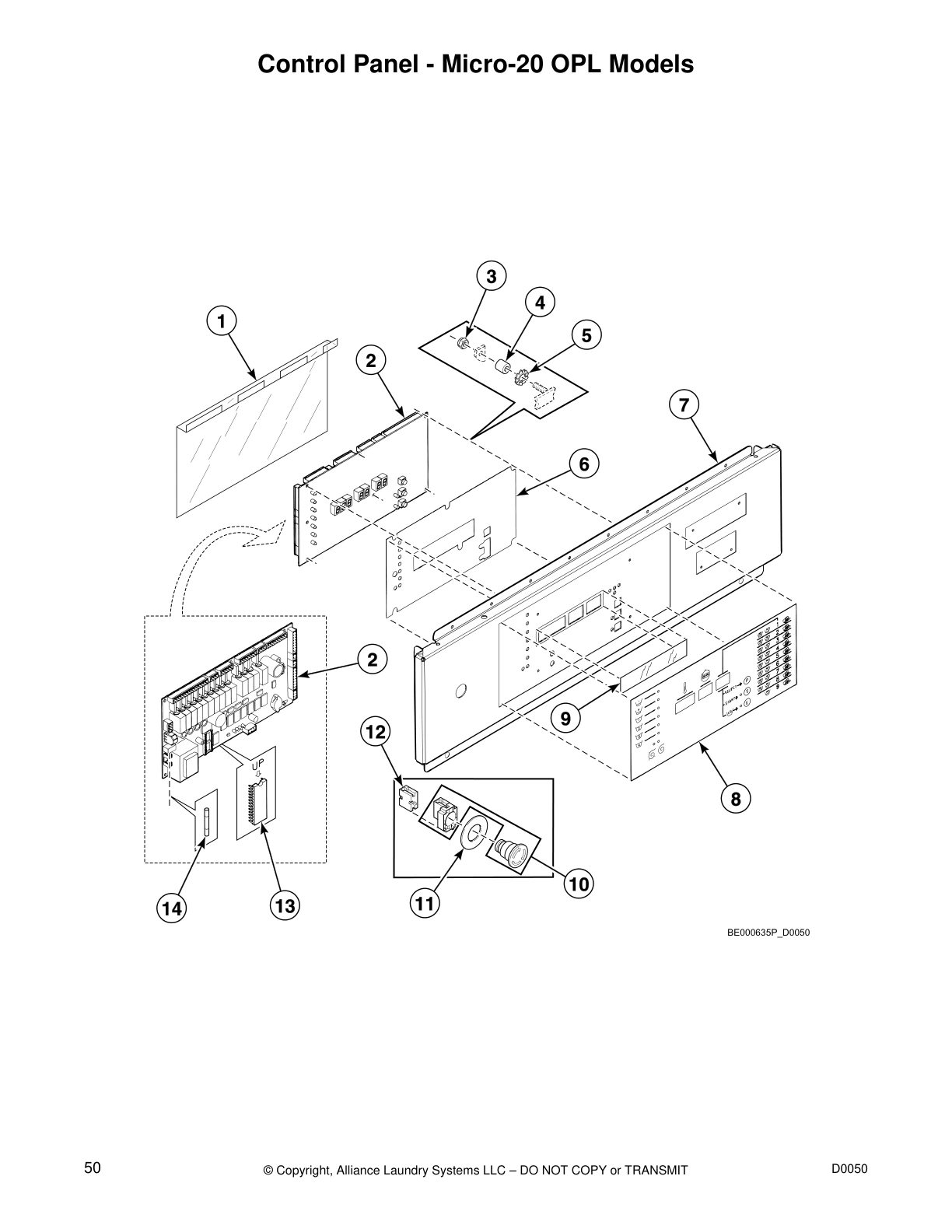

Control Panel - Micro-20 OPL Models

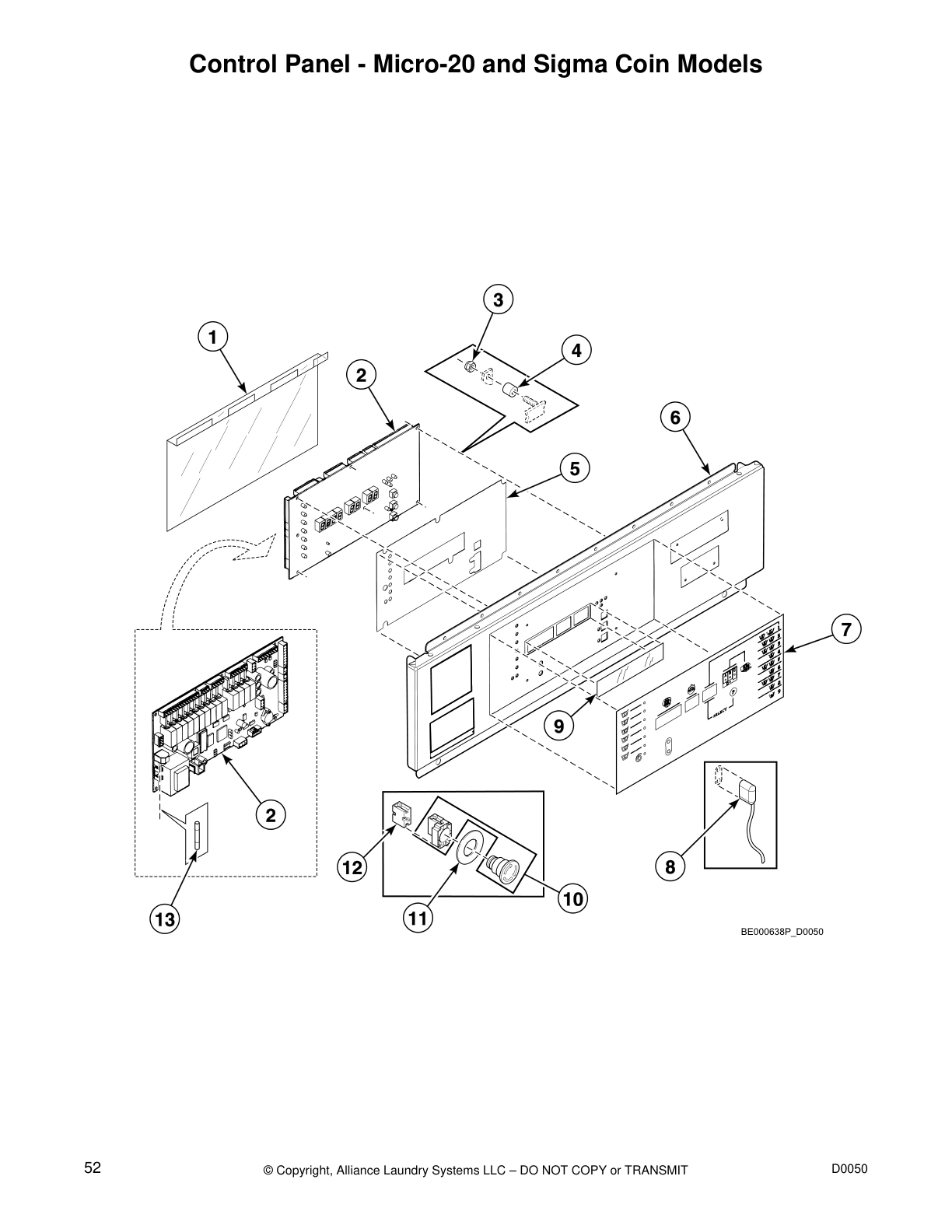

Control Panel - Micro-20 and Sigma Coin Models

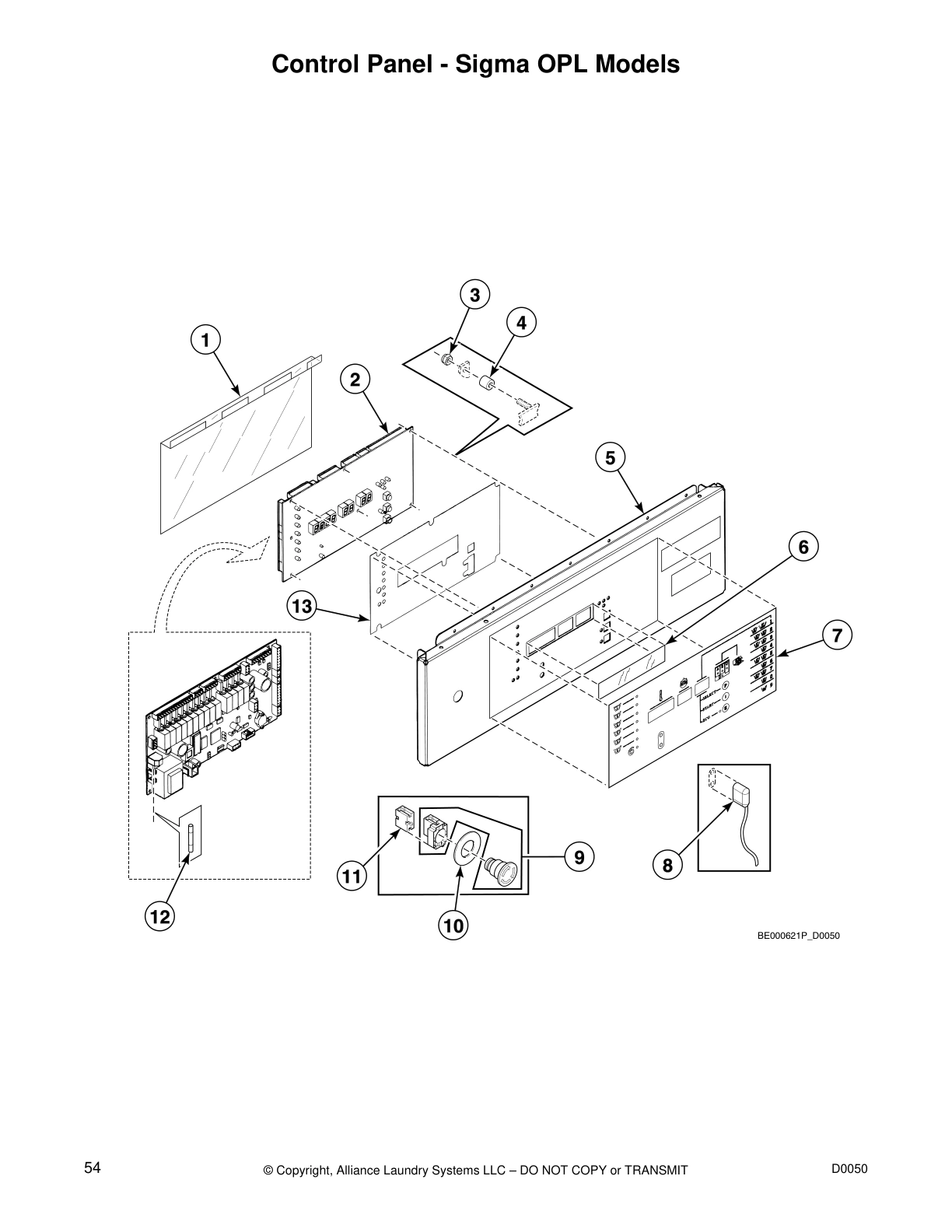

Control Panel - Sigma OPL Models

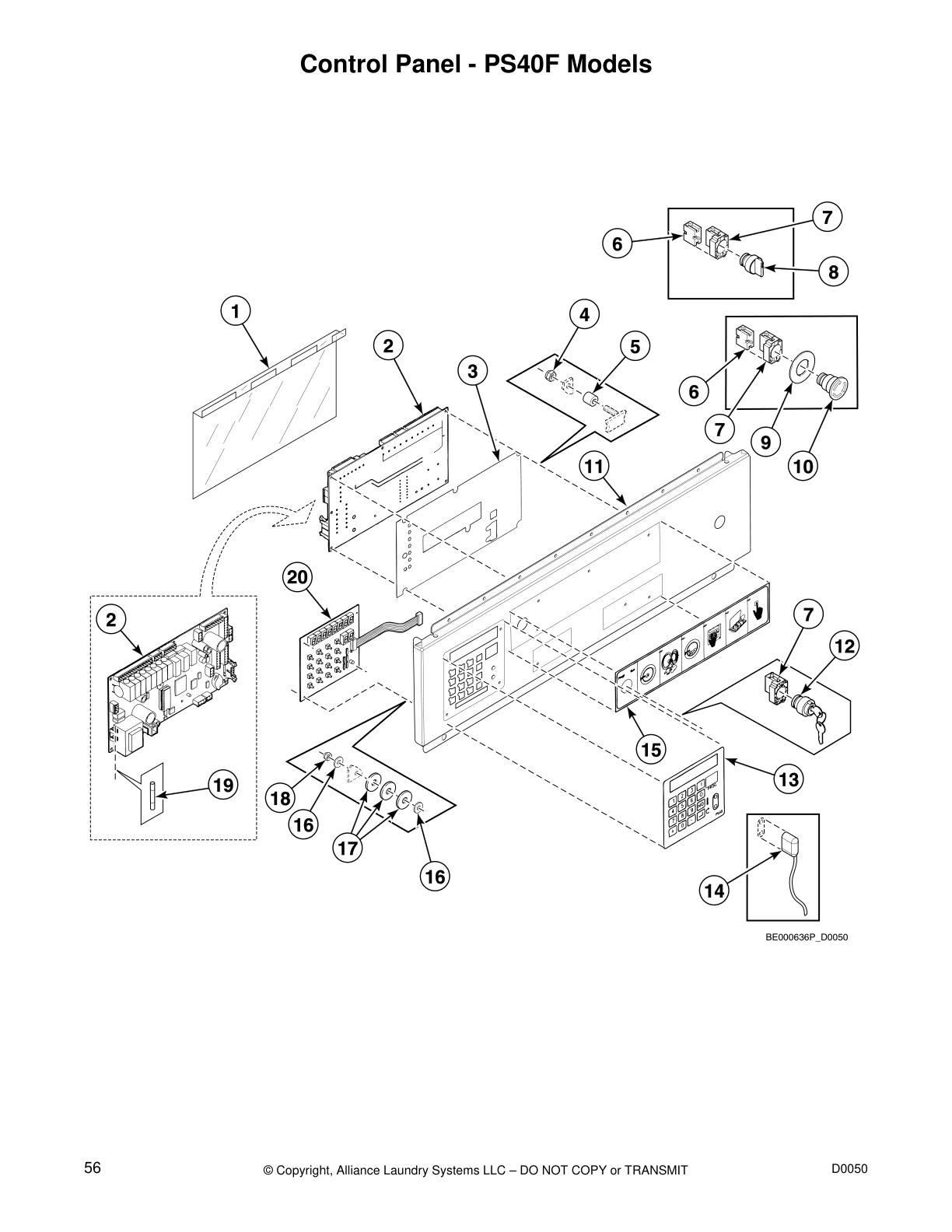

Control Panel - PS40F Models

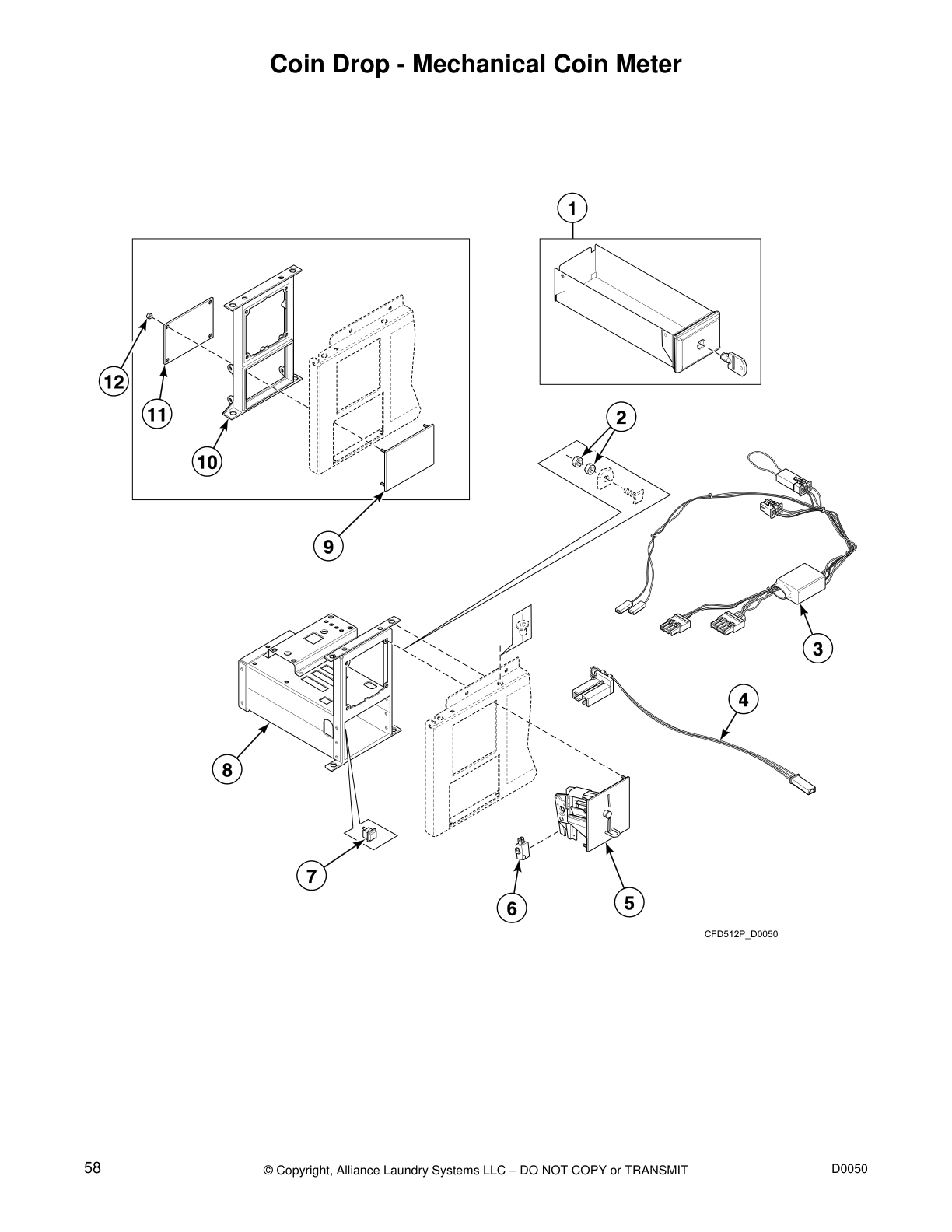

Coin Drop - Mechanical Coin Meter

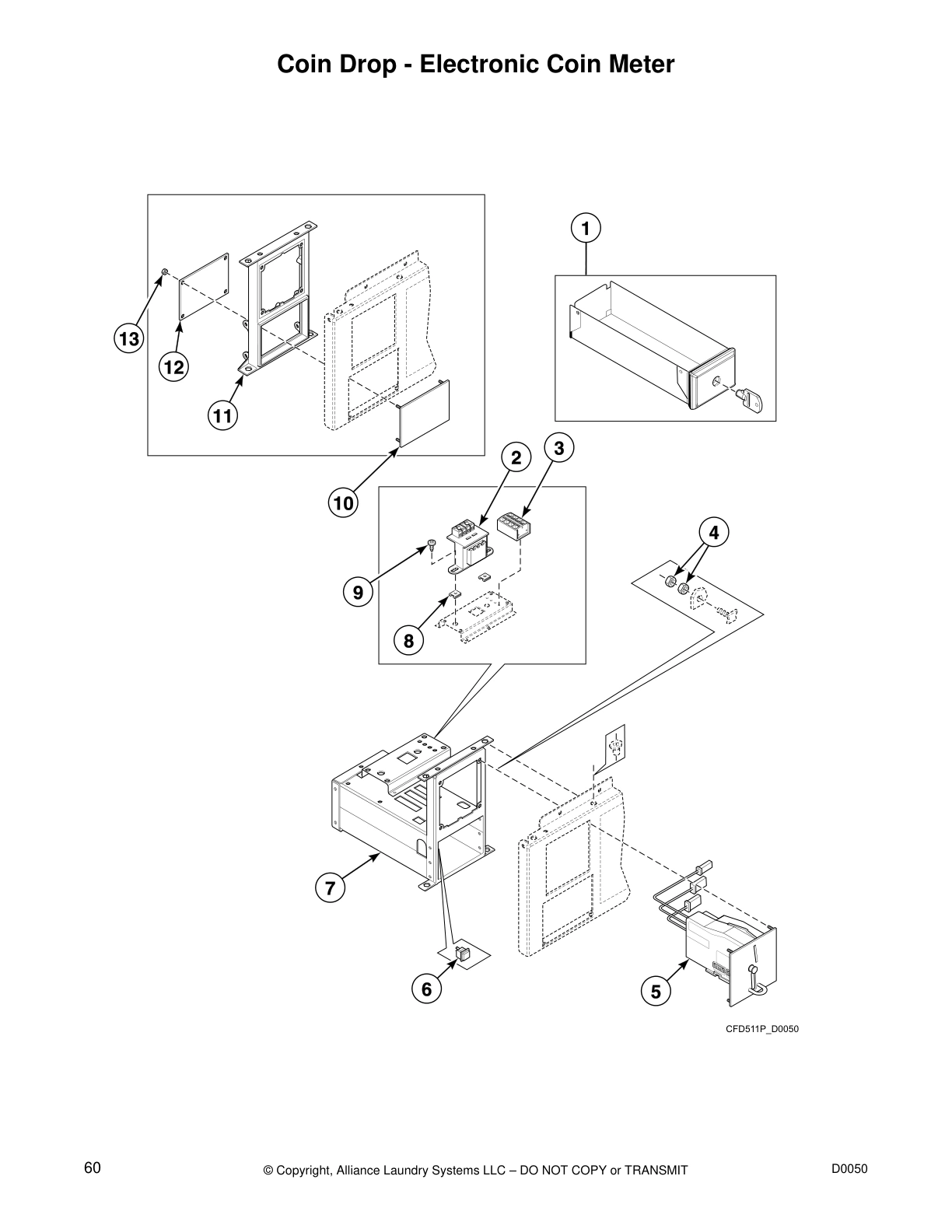

Coin Drop - Electronic Coin Meter

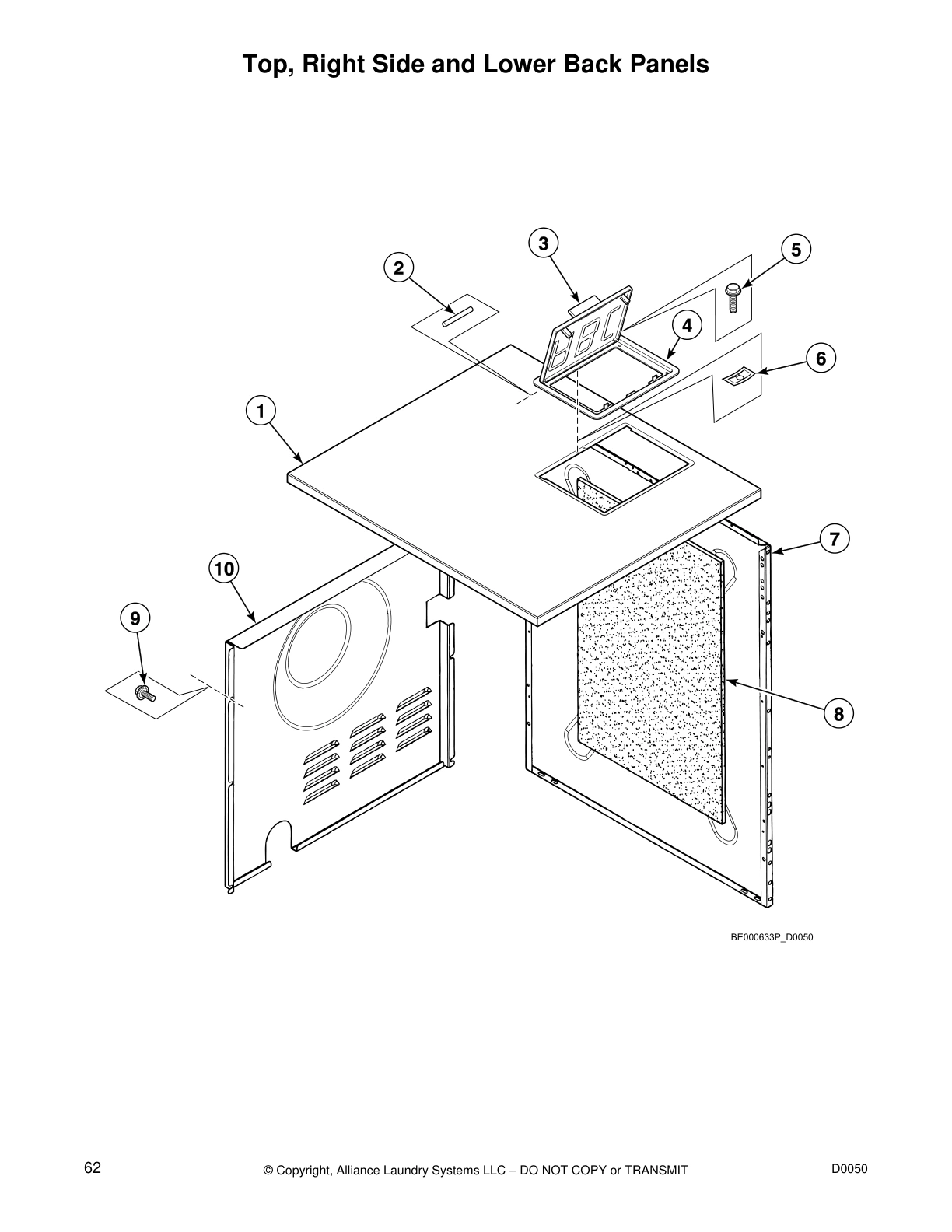

Top, Right Side and Lower Back Panels

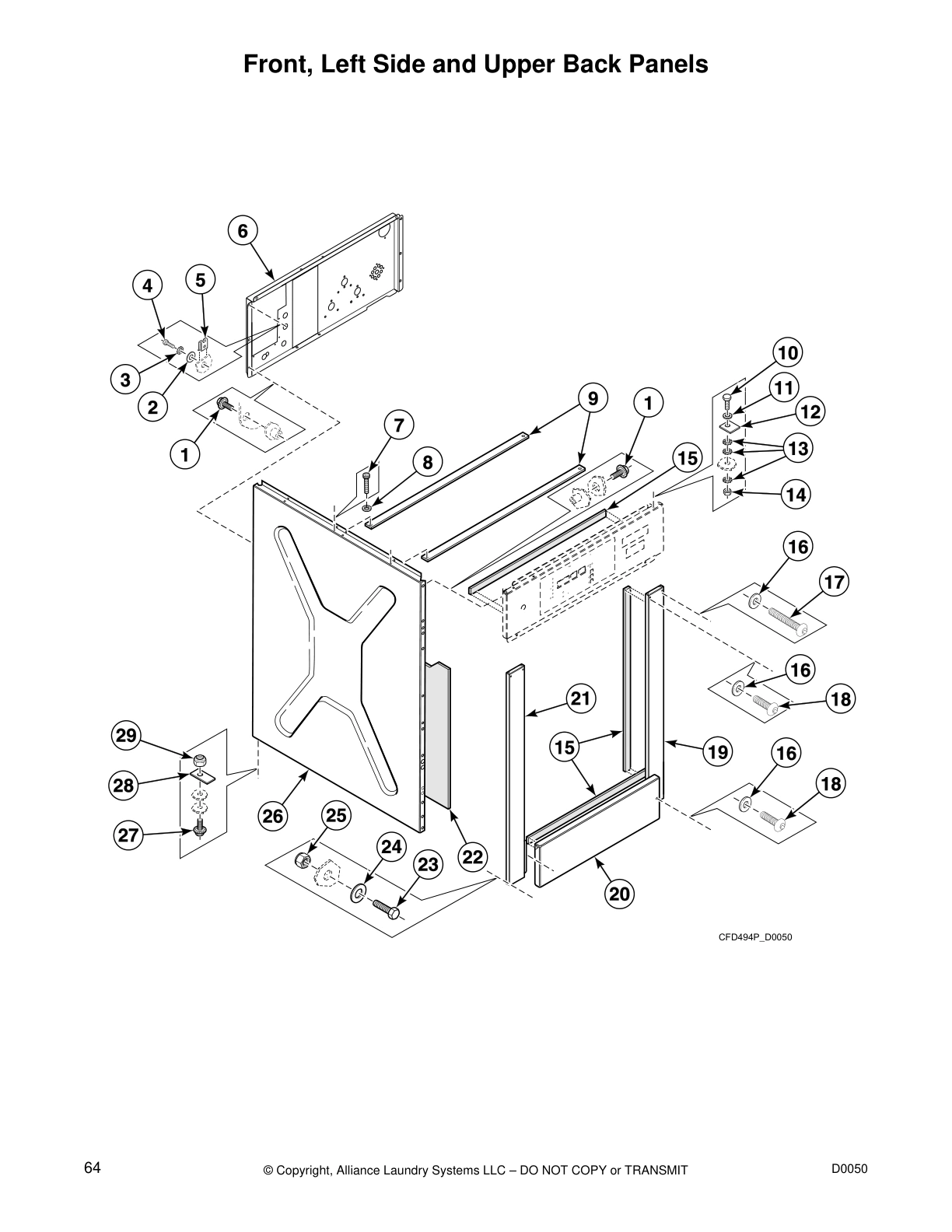

Front, Left Side and Upper Back Panels

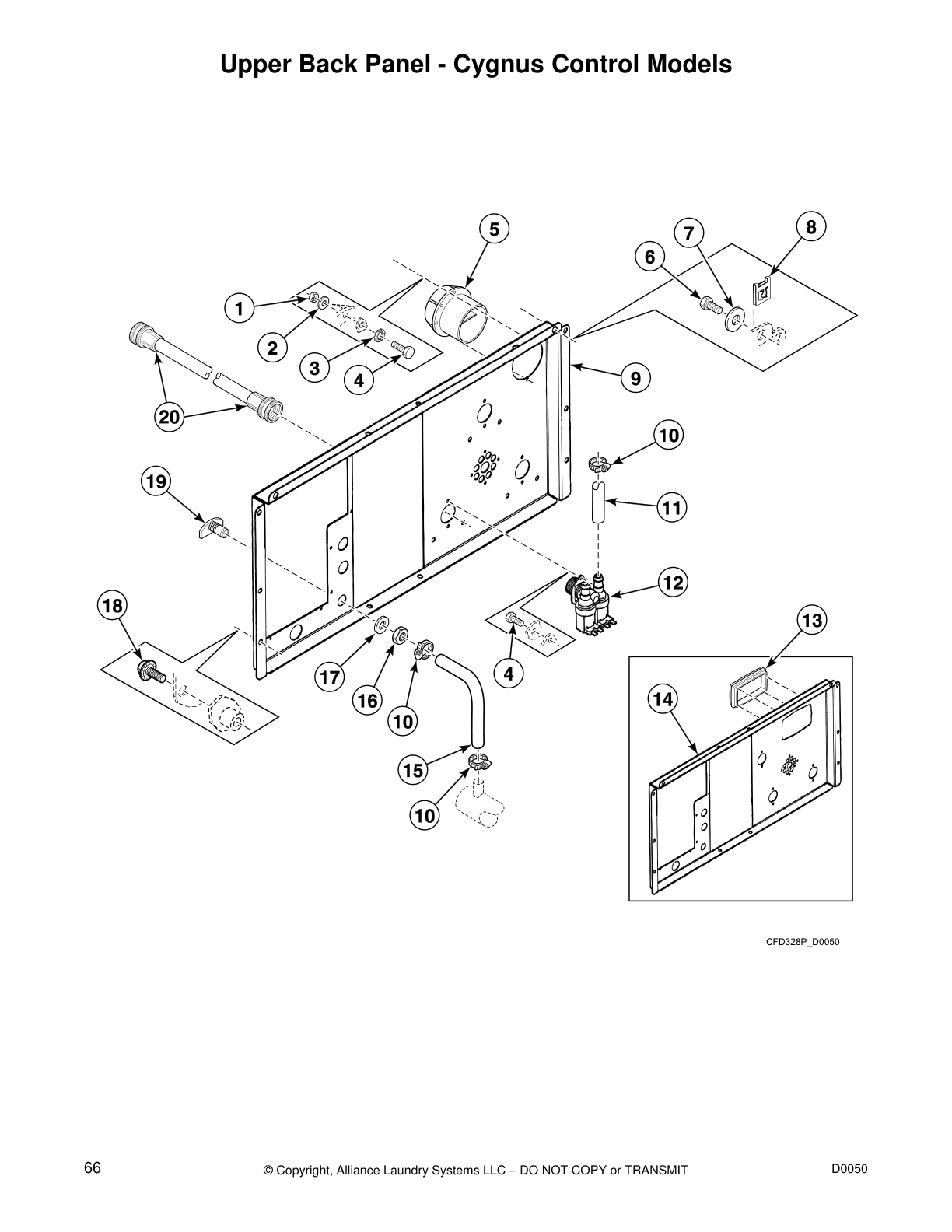

Upper Back Panel - Cygnus Control Models

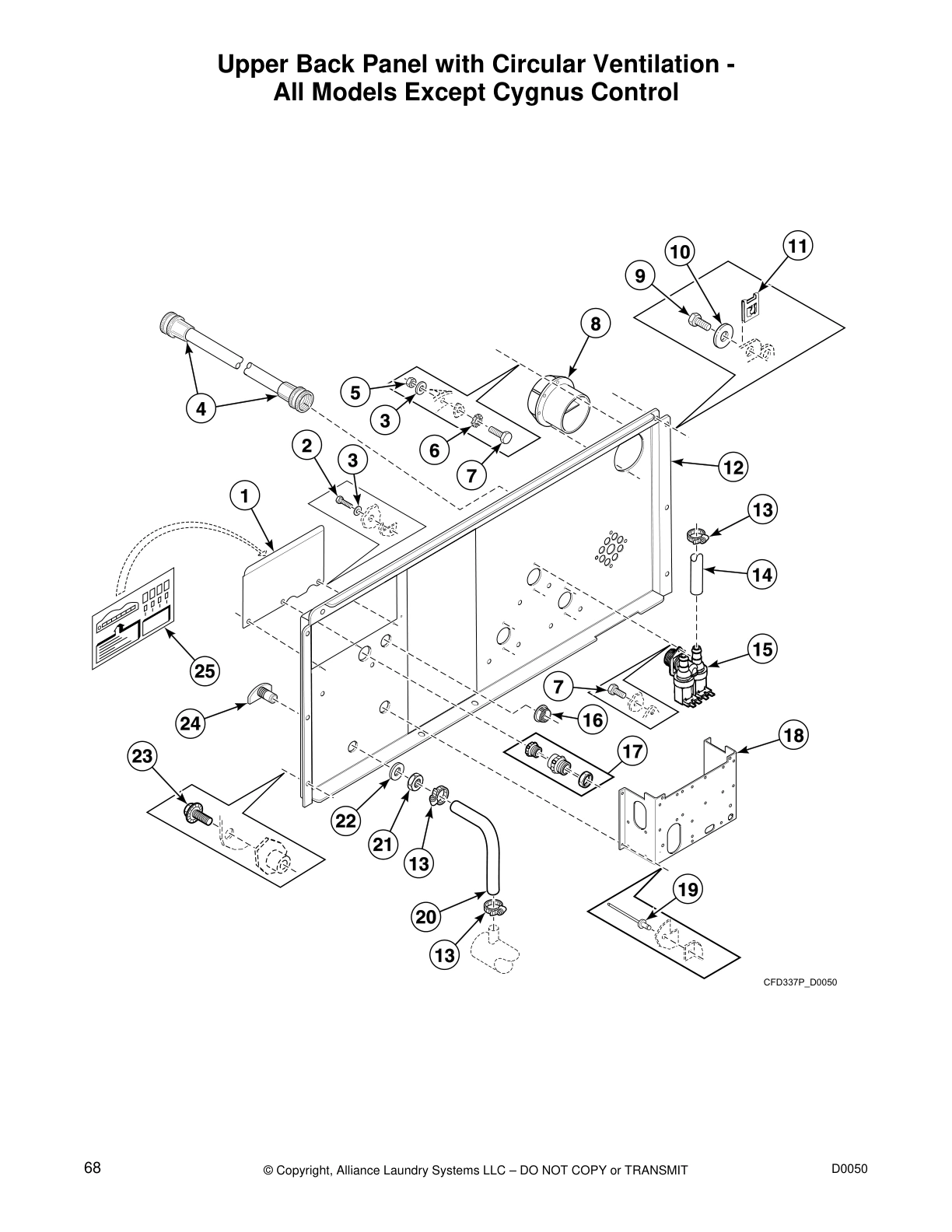

Upper Back Panel with Circular Ventilation -
All Models Except Cygnus Control

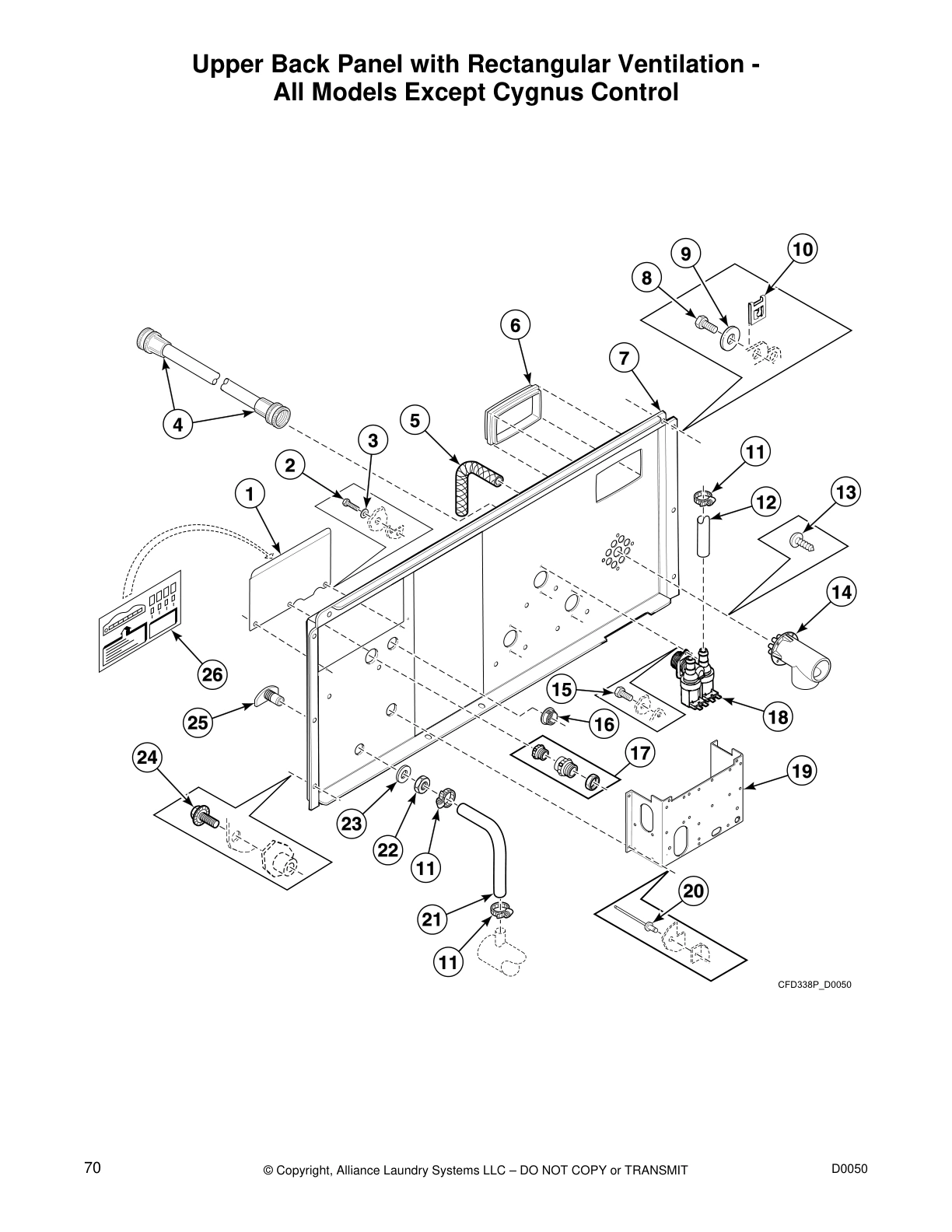

Upper Back Panel with Rectangular Ventilation -
All Models Except Cygnus Control

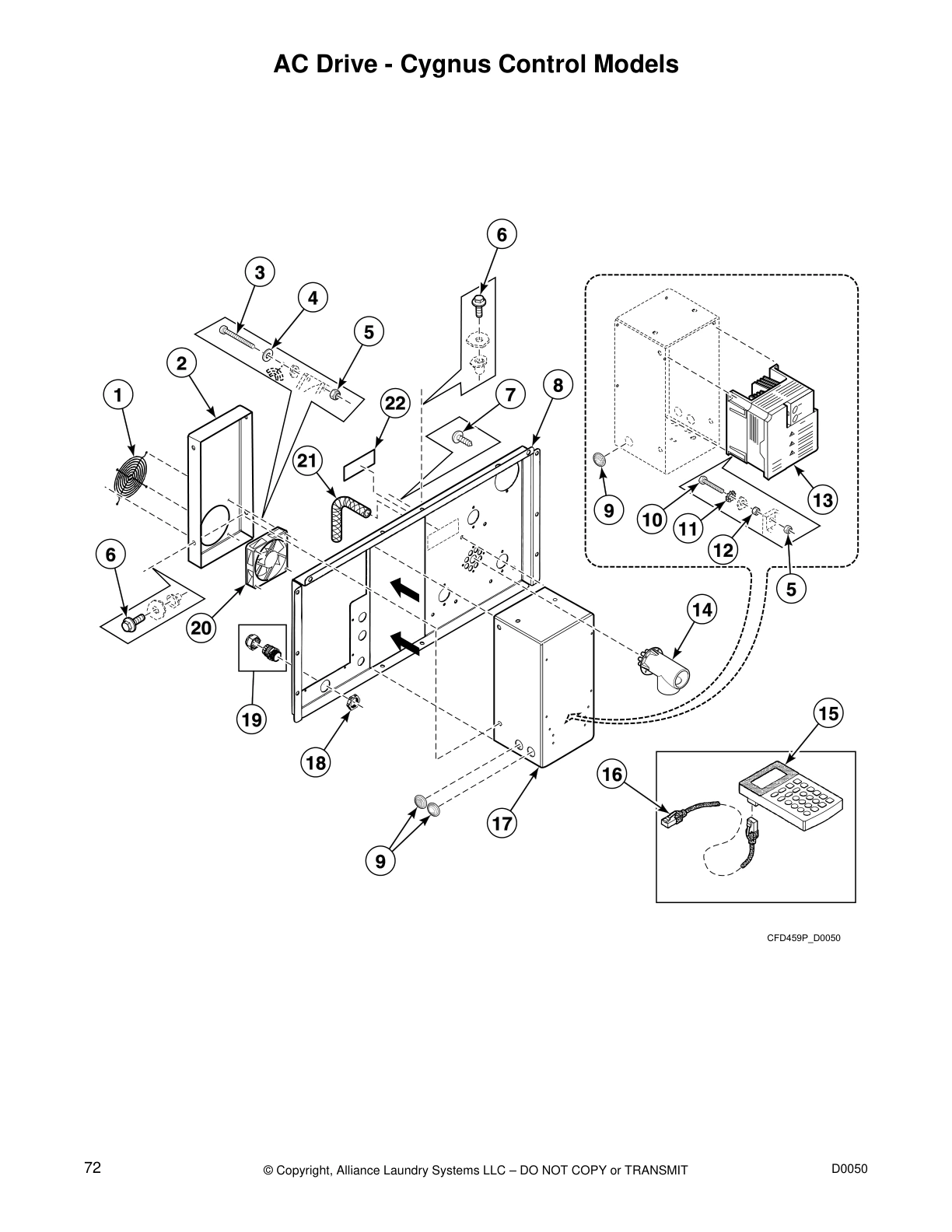

AC Drive - Cygnus Control Models

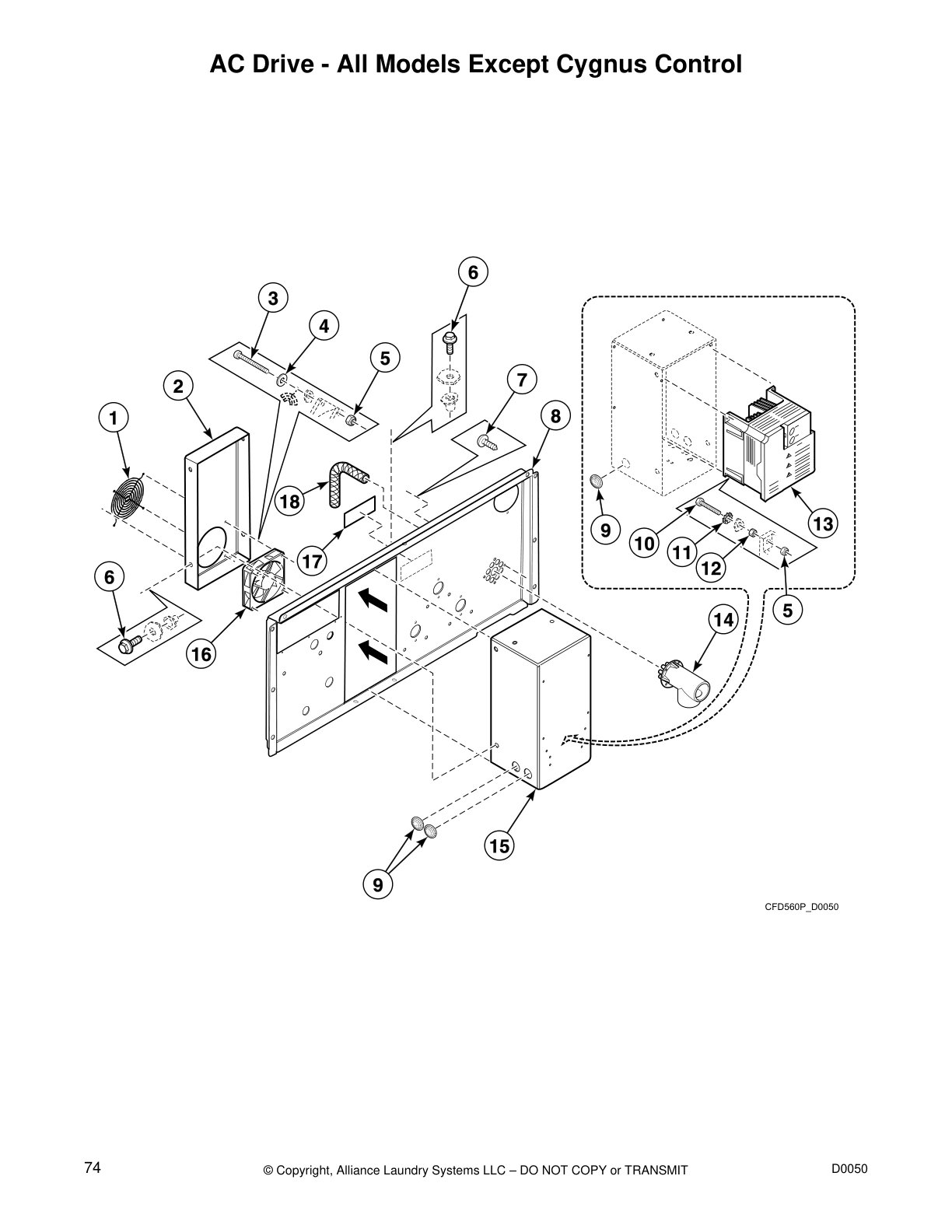

AC Drive - All Models Except Cygnus Control

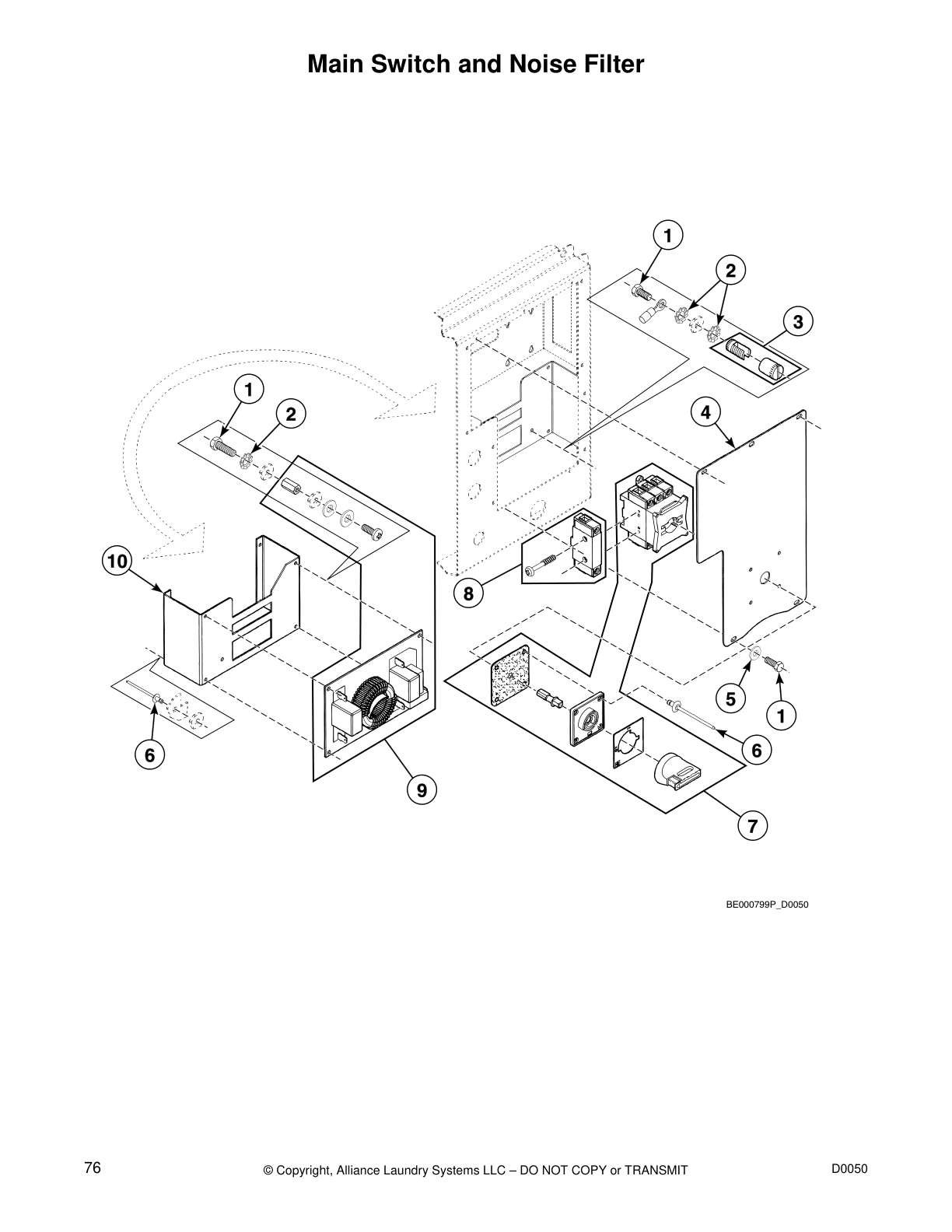

Main Switch and Noise Filter

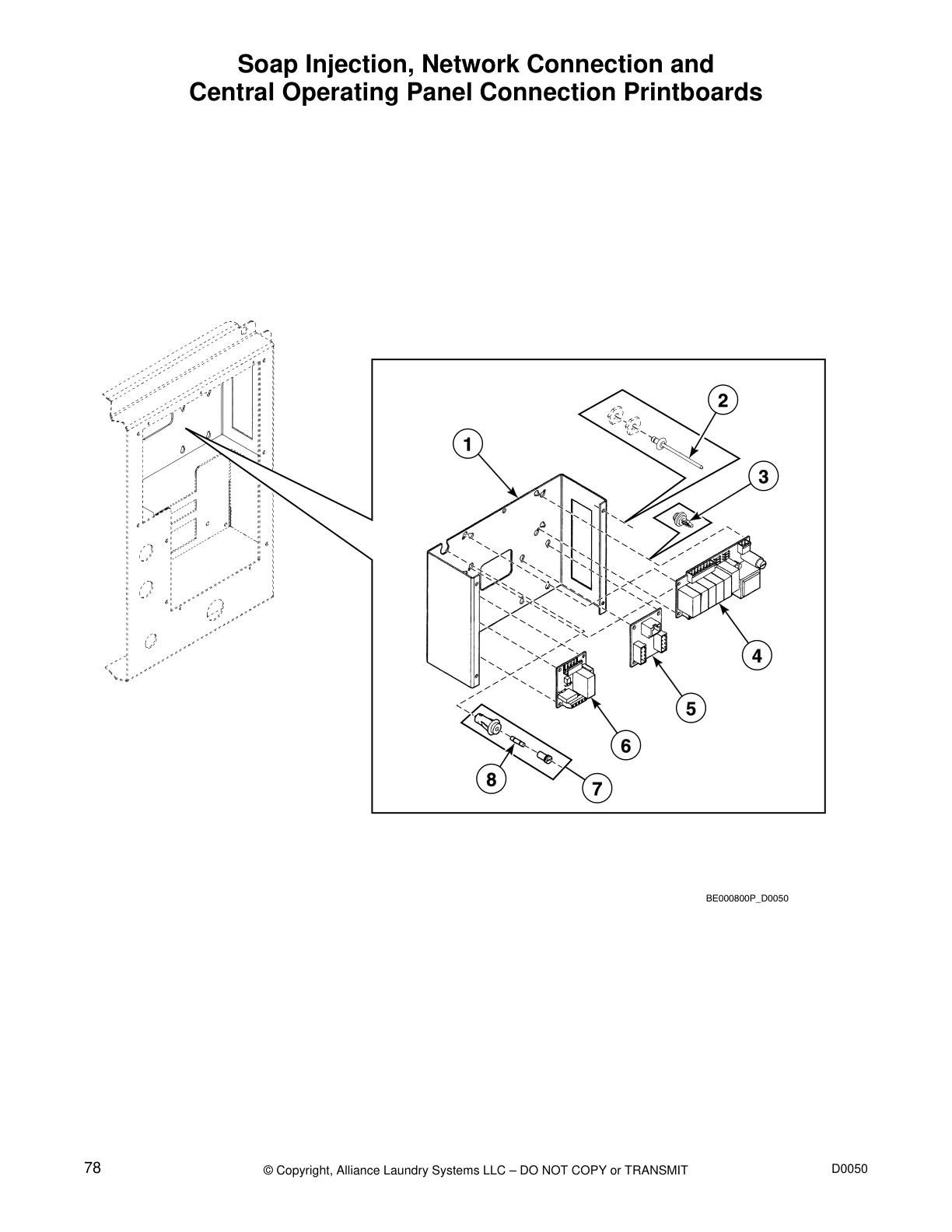

Soap Injection, Network Connection and
Central Operating Panel Connection Printboards

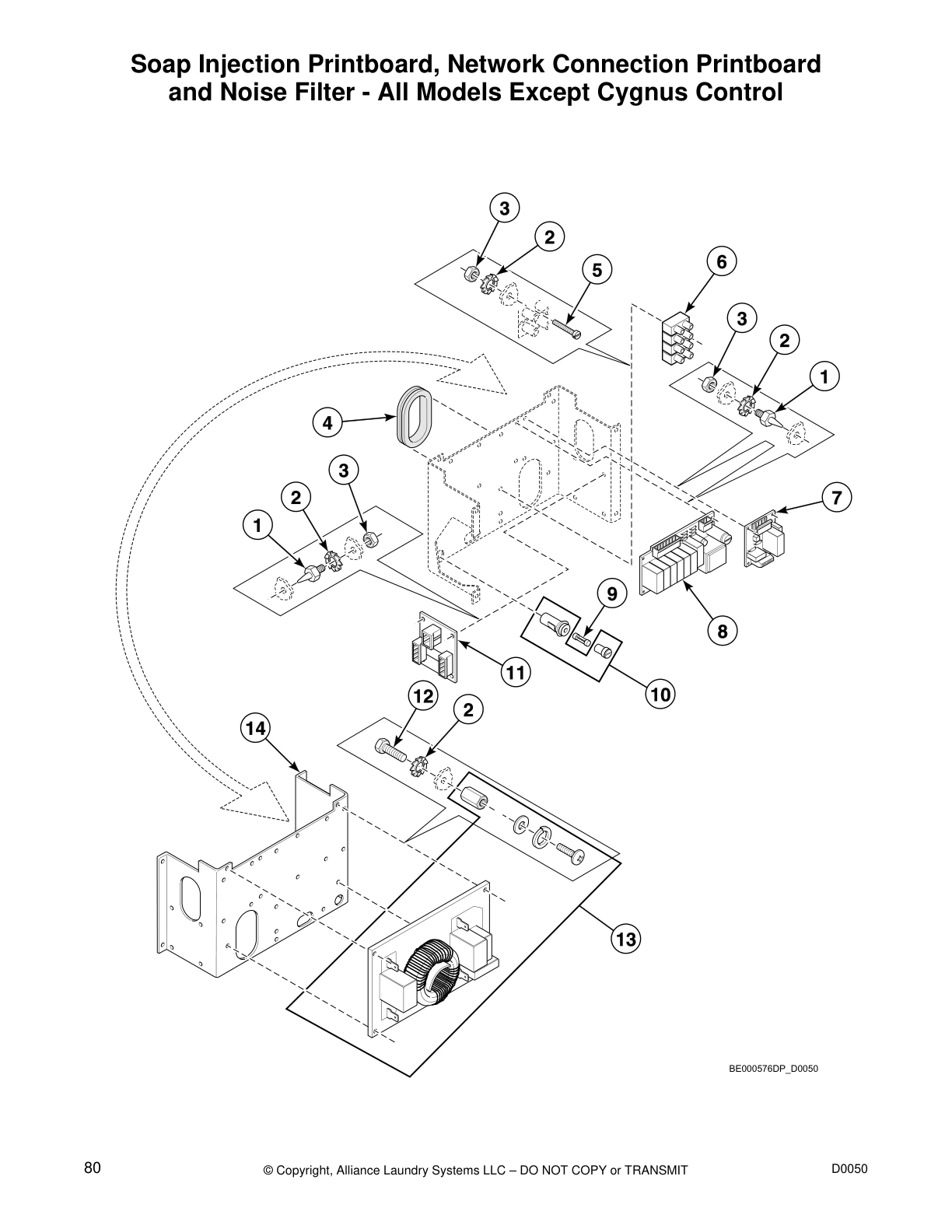

Soap Injection Printboard, Network Connection Printboard
and Noise Filter - All Models Except Cygnus Control

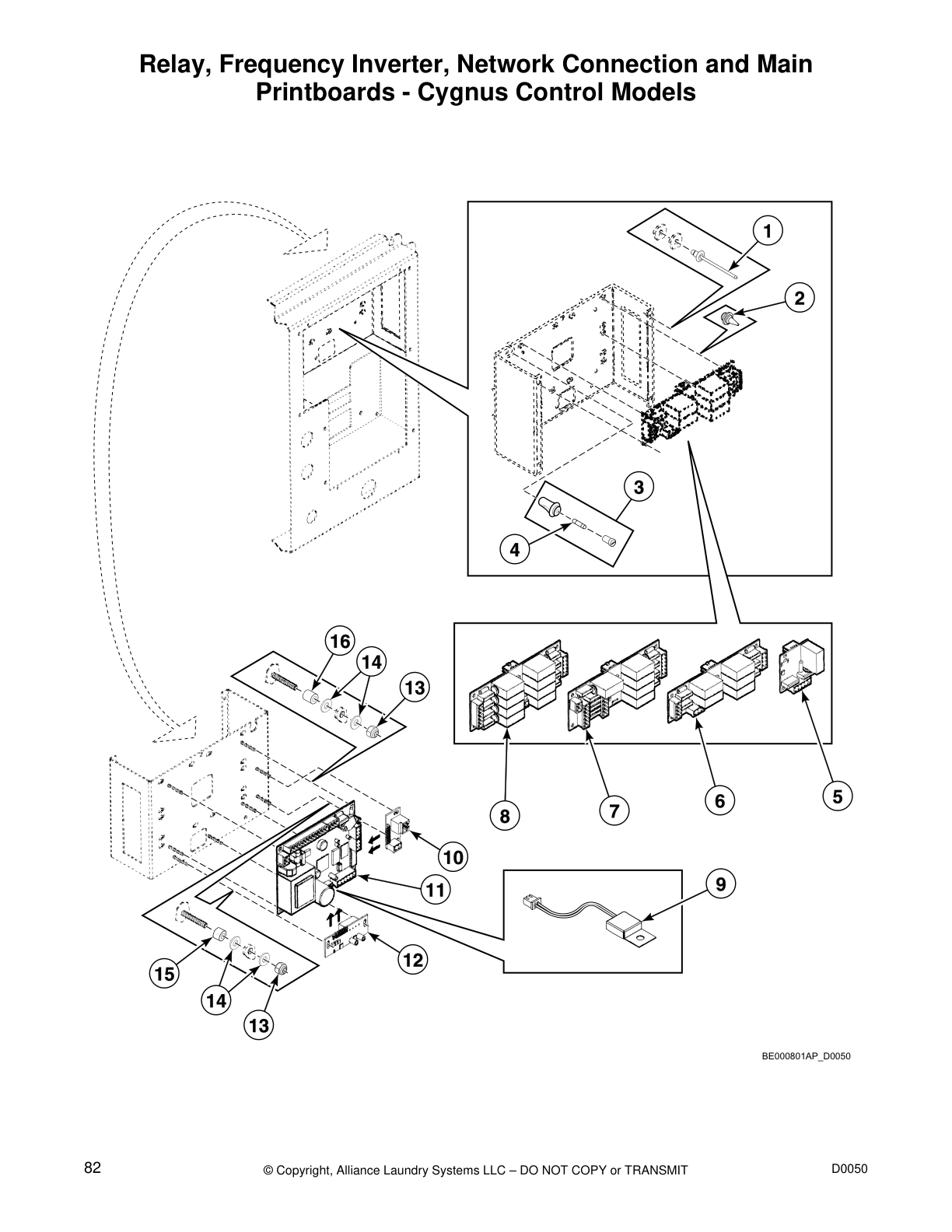

Relay, Frequency Inverter, Network Connection and Main
Printboards - Cygnus Control Models

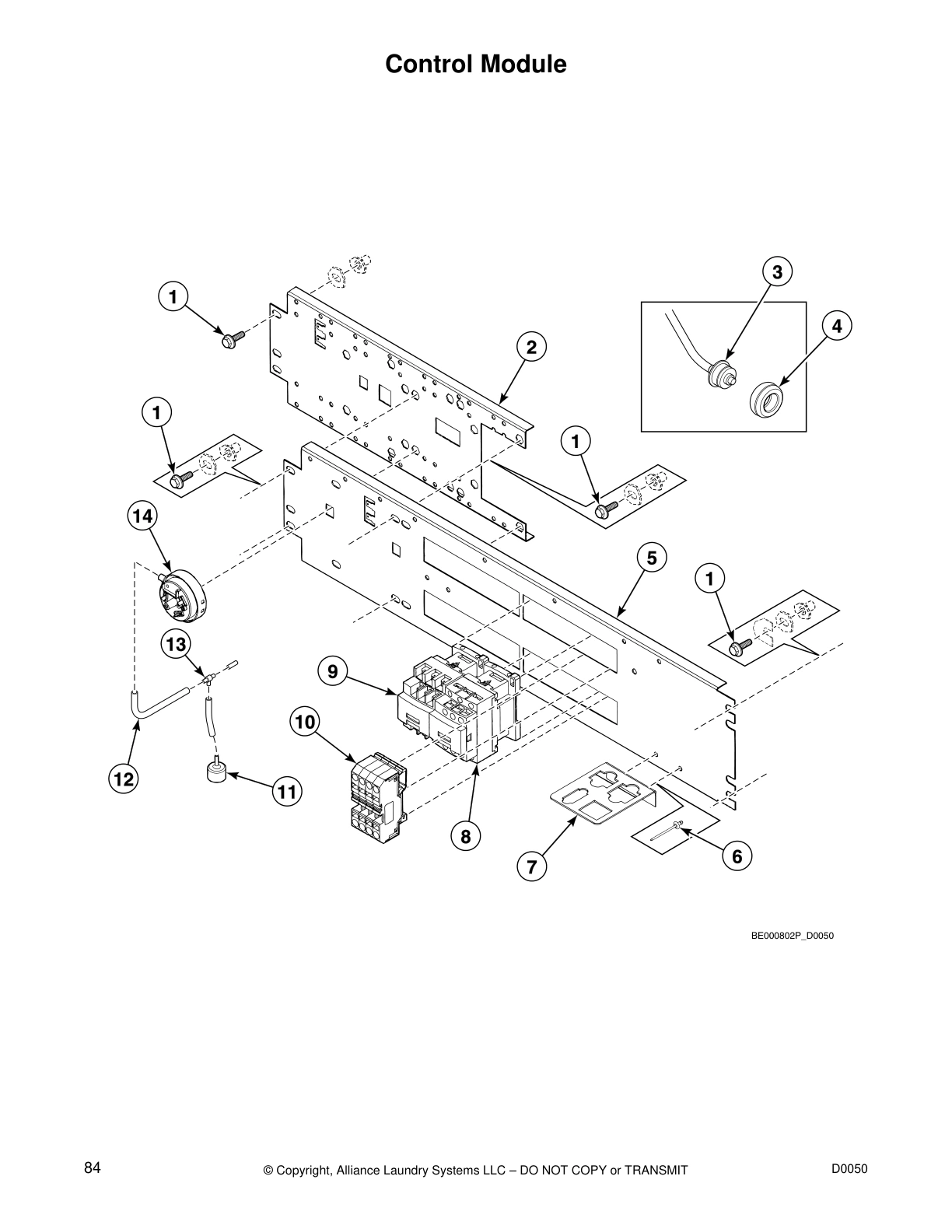

Control Module

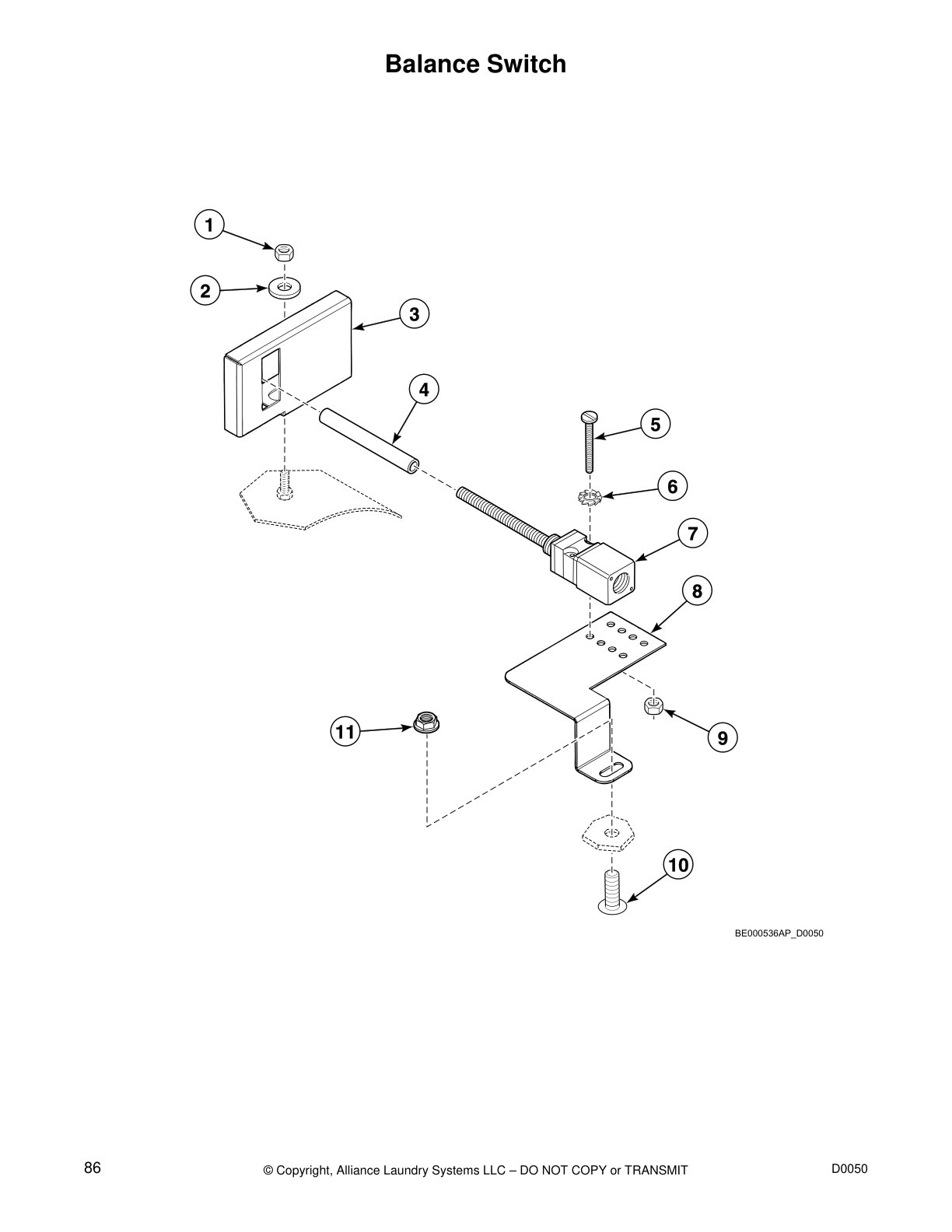

Balance Switch

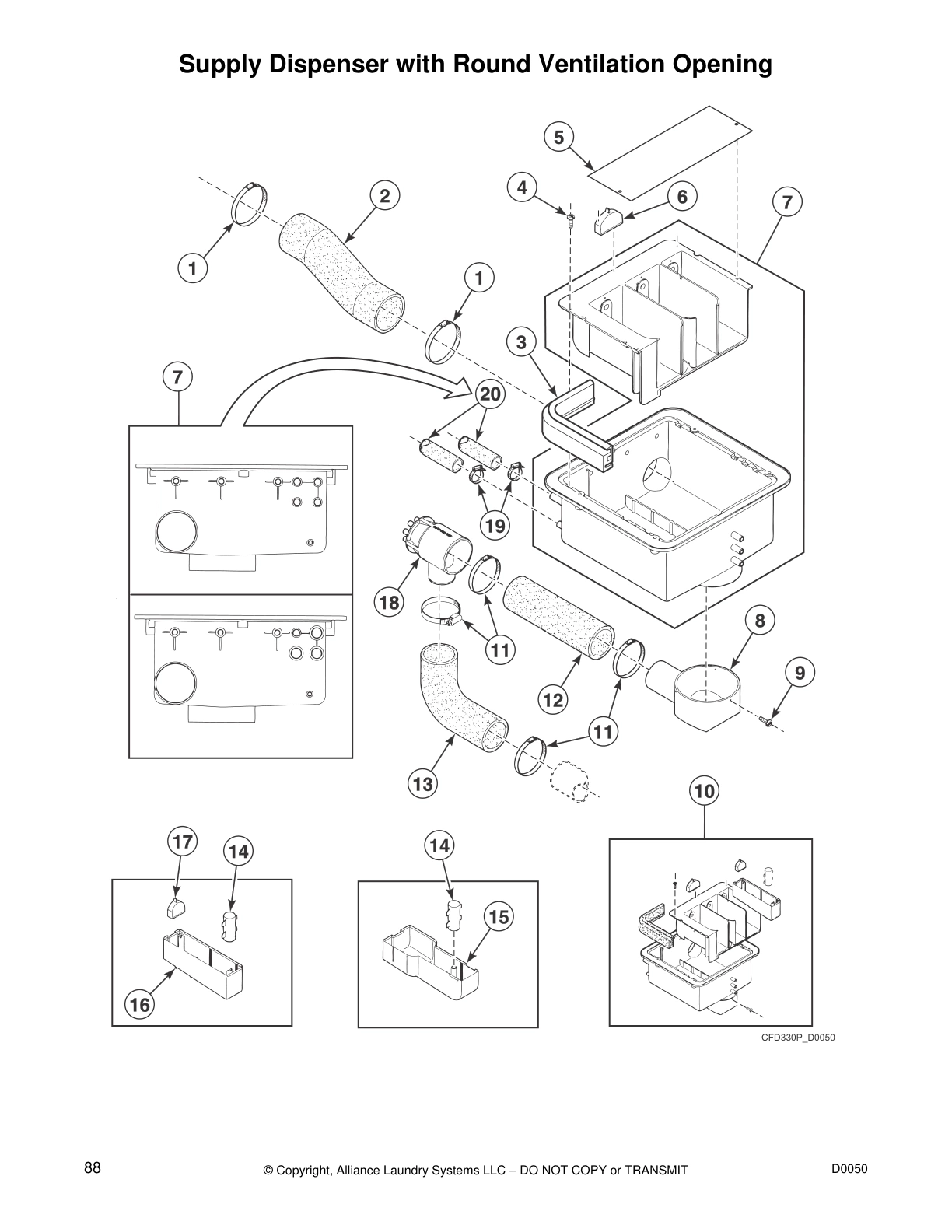

Supply Dispenser with Round Ventilation Opening

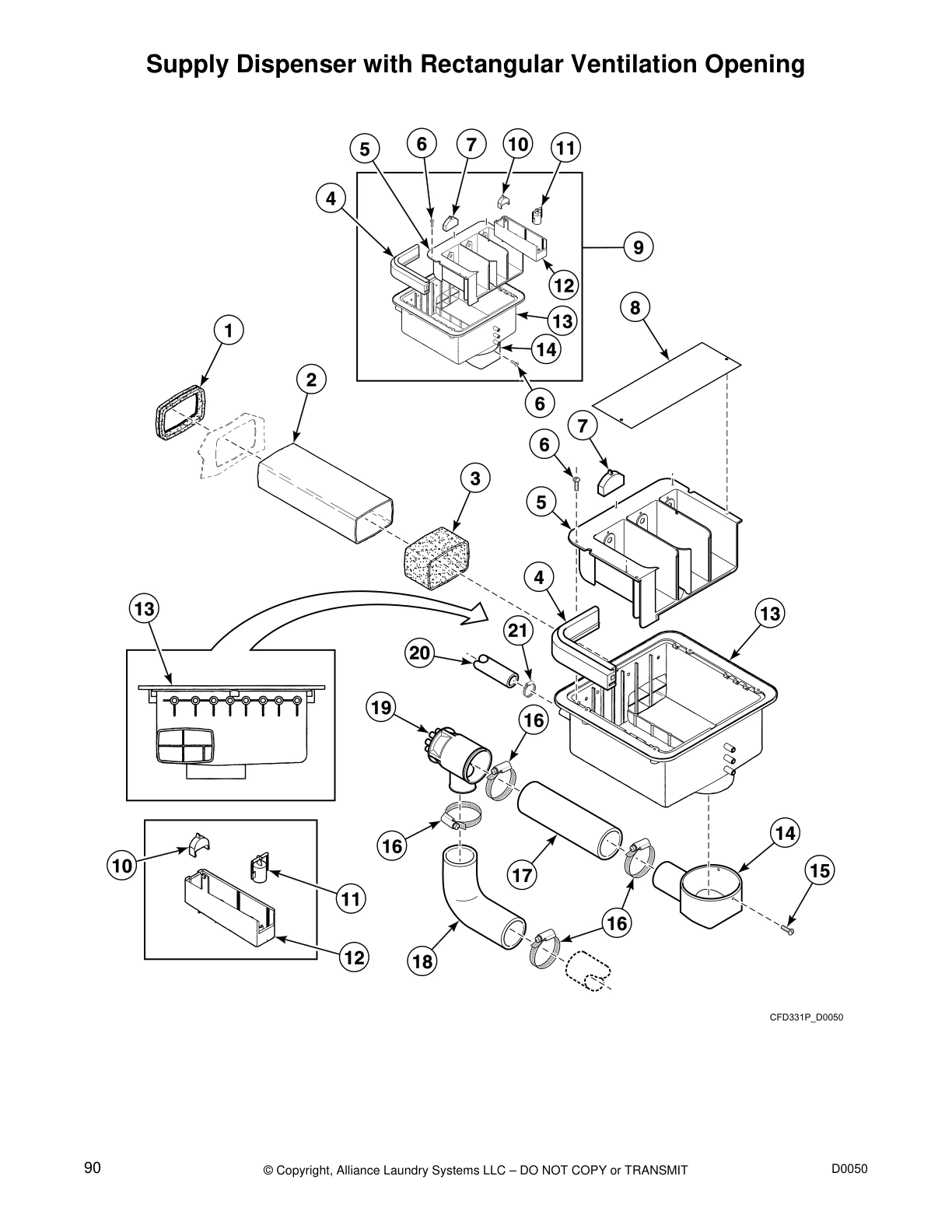

Supply Dispenser with Rectangular Ventilation Opening

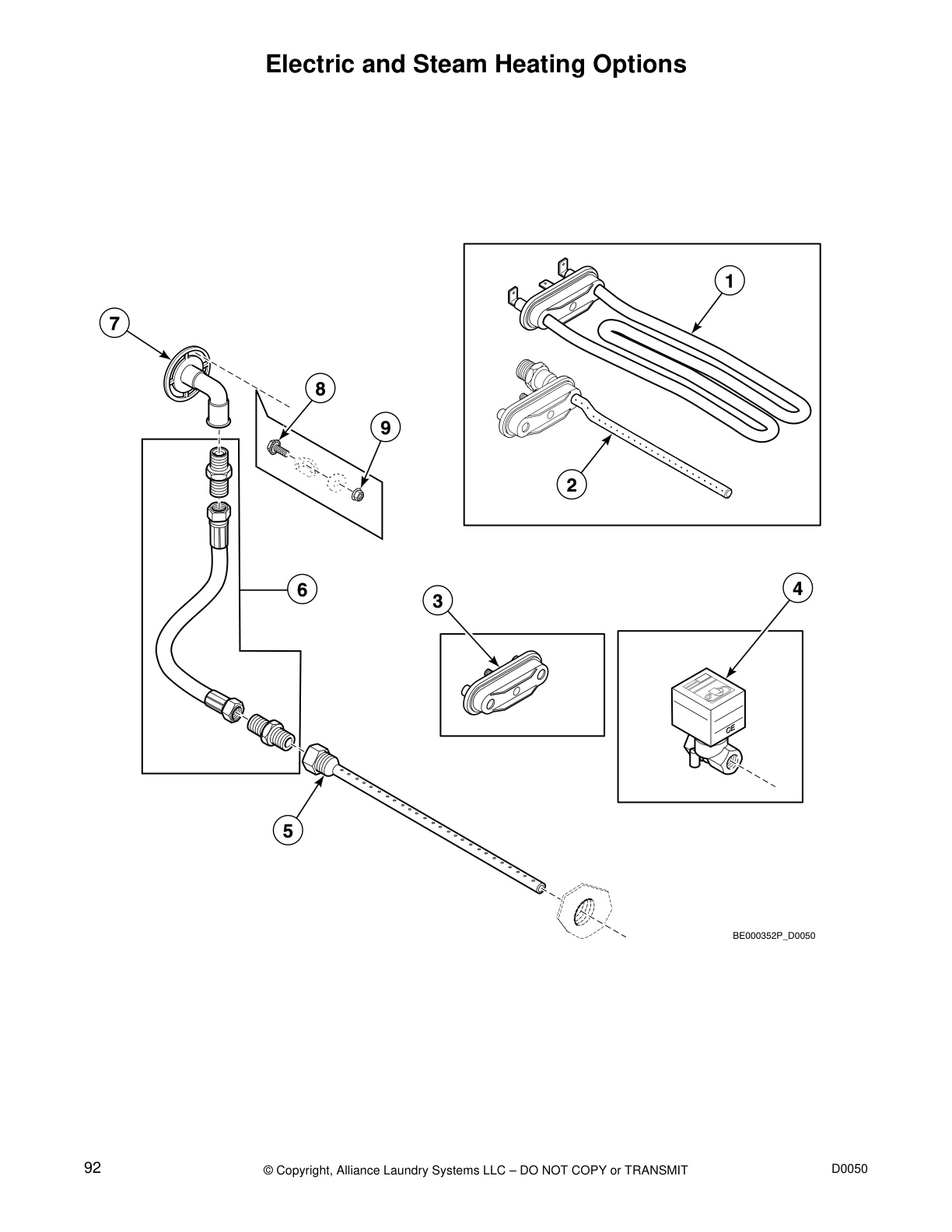

Electric and Steam Heating Options

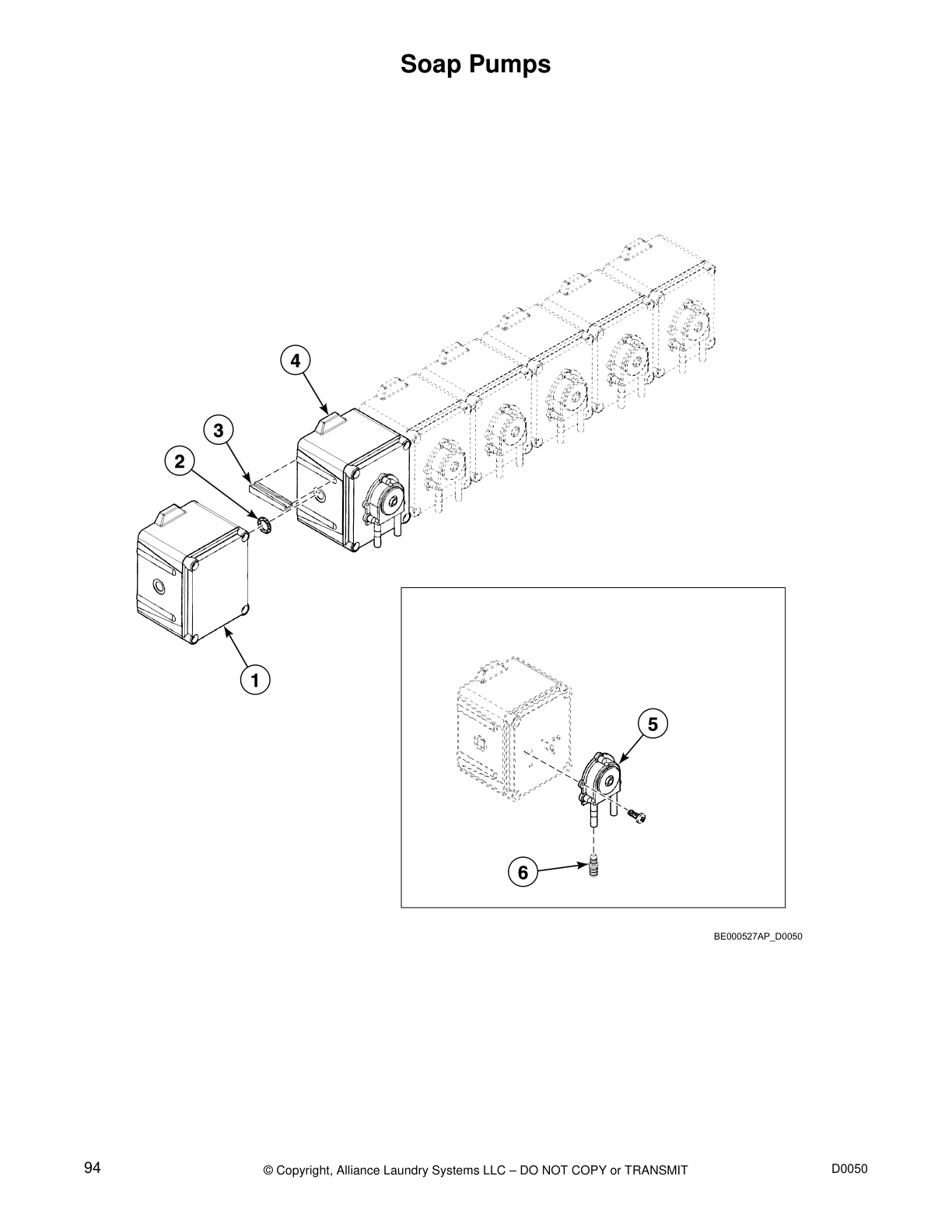

Soap Pumps

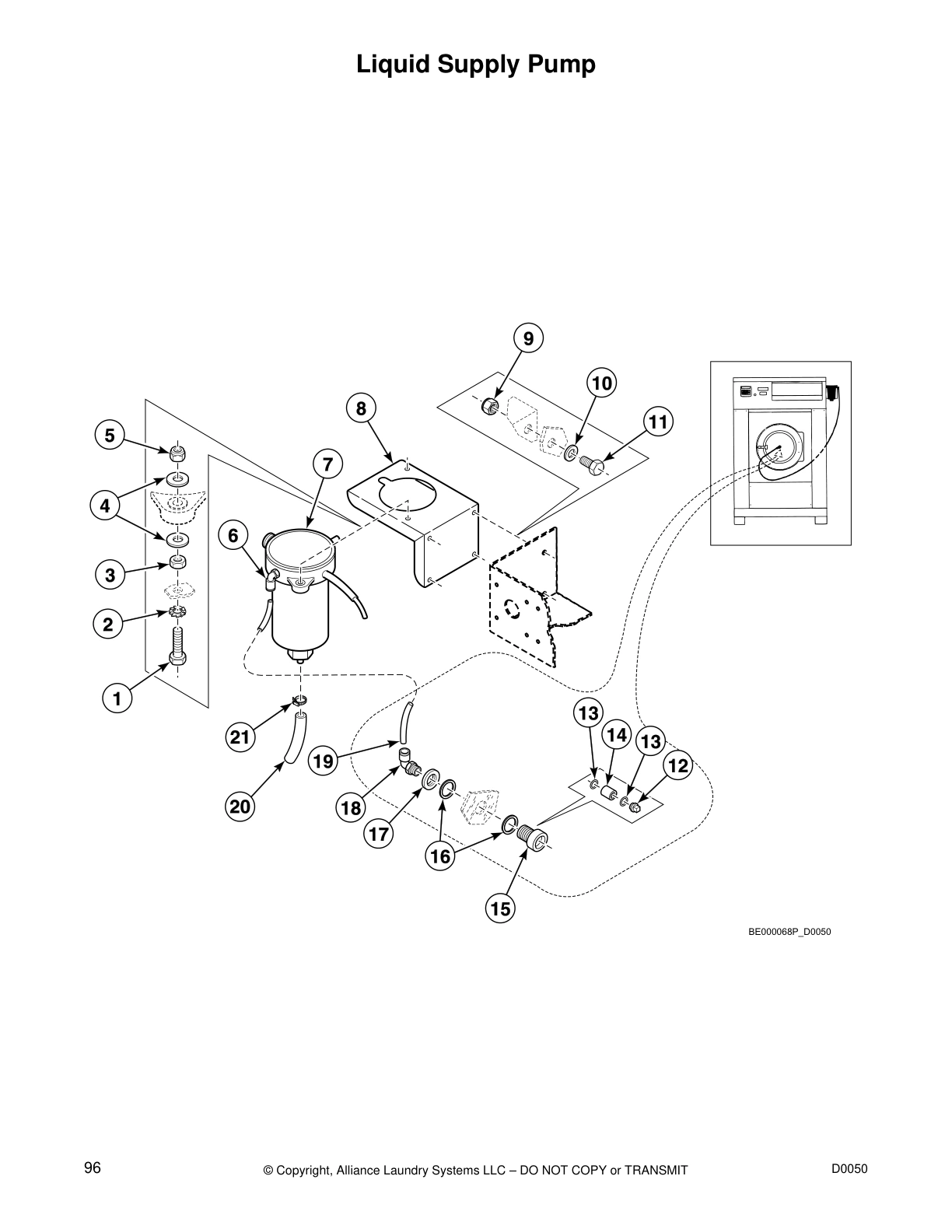

Liquid Supply Pump
Common parts from model IPSO IHF045SDH Washer
SPQ B12311224 SPQ B12311224 Contact Us For Availability
SPQ B12311221 SPQ B12311221 Contact Us For Availability
SPQ B12311219 SPQ B12311219 Contact Us For Availability
SPQ B12311212 SPQ B12311212 Contact Us For Availability
SPQ B12311210 SPQ B12311210 Contact Us For Availability
SPQ B12311205 SPQ B12311205 Contact Us For Availability
SPQ B12311202 SPQ B12311202 Contact Us For Availability
SPQ B12311247 SPQ B12311247 Contact Us For Availability
SPQ B12311301 SPQ B12311301 Contact Us For Availability
SPQ B12311302 SPQ B12311302 Contact Us For Availability
SPQ B12388102 SPQ B12388102 Contact Us For Availability
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Bolt SPQ 206/00037/00 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Nut SPQ 204/00003/00 Contact Us For Availability
1
Tilt Detector Plate SPQ 111/01854/00 Contact Us For Availability
1
Bearing SPQ F100134 Contact Us For Availability
1
Drum SPQ B12380801 Contact Us For Availability
1
Interlock Lever SPQ 217/00052/04 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
1
Key SPQ 254/00077/02 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Electrical Connection Plate SPQ 111/00094/10 Contact Us For Availability
1
Fan Grill SPQ 209/00287/01 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Standoff SPQ 211/00120/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap D SPQ 209/00554/51 Contact Us For Availability
1
Bolt SPQ 205/00103/00 Contact Us For Availability
2
Washer SPQ 201/00005/00 Contact Us For Availability
2
Bolt SPQ 206/00052/00 Contact Us For Availability
2
Tilt Detector Plate SPQ 201/00010/00 Contact Us For Availability
2
Nut SPQ 203/00004/00 Contact Us For Availability
2
Bearing Housing SPQ 212/00037/00 Contact Us For Availability
2
Washer SPQ 206/00014/00 Contact Us For Availability
2
Inverter Drive Box SPQ 111/01174/00 Contact Us For Availability
2
Filter SPQ 227/00180/00 Contact Us For Availability
2
Fuse SPQ 211/00146/00 Contact Us For Availability
2
Soap Dispenser Gasket SPQ 223/00107/01 Contact Us For Availability
2
Water Hose SPQ 223/00229/00 Contact Us For Availability
2
Steam Injector SPQ 209/00562/20 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Washer SPQ 204/00111/00 Contact Us For Availability
3
Screw SPQ 203/00001/00 Contact Us For Availability
3
Shock Absorber SPQ F250500 Contact Us For Availability
3
Bolt SPQ 204/00112/00 Contact Us For Availability
3
Basket Kit SPQ B12543101 Contact Us For Availability
3
Pulley SPQ 185/00086/00 Contact Us For Availability
3
Bolt SPQ 118/00125/00 Contact Us For Availability
3
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
SPQ F200166 SPQ F200166 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Washer SPQ 227/00179/00 Contact Us For Availability
3
Fuse Holder SPQ 209/00468/00 Contact Us For Availability
3
Electrical Component Mounting Plate SPQ 209/00027/10 Contact Us For Availability
3
Out-of-Balance Switch Boot SPQ 111/00108/01 Contact Us For Availability
3
Soap Spray Nozzle SPQ 223/00245/00 Contact Us For Availability
3
Heating Element Plug SPQ 209/00564/10 Contact Us For Availability
4
SPQ 206/00053/00 SPQ 206/00053/00 Contact Us For Availability
4
Separator SPQ 224/00054/00 Contact Us For Availability
4
Suspension Spring SPQ 247/00010/01 Contact Us For Availability
4
Tub Front Panel Clip SPQ B12329801 Contact Us For Availability
4
SPQ 202/00101/00 SPQ 202/00101/00 Contact Us For Availability
4
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
4
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
4
Door Hinge Plate Assembly SPQ 217/00021/00 Contact Us For Availability
4
Input Block SPQ 209/00683/00 Contact Us For Availability
4
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
4
SPQ F200164 SPQ F200164 Contact Us For Availability
4
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
SPQ 209/00202/01 SPQ 209/00202/01 Contact Us For Availability
4
Thermostat SPQ 111/10003/40 Contact Us For Availability
4
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
4
Anti-Splash Plate SPQ 223/00109/00 Contact Us For Availability
5
SPQ B12330001 SPQ B12330001 Contact Us For Availability
5
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
5
SPQ 201/00012/00 SPQ 201/00012/00 Contact Us For Availability
5
Bearing Housing SPQ 206/00057/00 Contact Us For Availability
5
Washer SPQ 201/00004/00 Contact Us For Availability
5
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
5
Contact Block SPQ 44018901 Contact Us For Availability
5
Bolt SPQ 207/00125/00 Contact Us For Availability
5
Rivet SPQ 202/00004/00 Contact Us For Availability
5
Tilt Switch Bracket SPQ 207/00018/00 Contact Us For Availability
5
Soap Dispenser SPQ B12347501 Contact Us For Availability
5
Steam Inlet SPQ 209/00581/10 Contact Us For Availability
5
Liquid Soap Dosing Pu SPQ 209/00554/05 Contact Us For Availability
6
SPQ 204/00016/00 SPQ 204/00016/00 Contact Us For Availability
6
SPQ 206/00060/00 SPQ 206/00060/00 Contact Us For Availability
6
SPQ B12328801 SPQ B12328801 Contact Us For Availability
6
SPQ 150/10118/00 SPQ 150/10118/00 Contact Us For Availability
6
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
6
Pulley SPQ 255/00117/00 Contact Us For Availability
6
Bolt SPQ 206/00006/00 Contact Us For Availability
6
Pushbutton SPQ 204/00008/00 Contact Us For Availability
6
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
6
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
6
Upper Front Panel SPQ 150/01811/00 Contact Us For Availability
6
Switch SPQ B12323401 Contact Us For Availability
6
Nut SPQ 208/00104/00 Contact Us For Availability
6
Inverter Box Cover SPQ 111/01174/01 Contact Us For Availability
6
Rivet SPQ 225/10004/00 Contact Us For Availability
6
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
6
SPQ 223/00181/00 SPQ 223/00181/00 Contact Us For Availability
7
SPQ 224/00046/00 SPQ 224/00046/00 Contact Us For Availability
7
SPQ 201/00201/00 SPQ 201/00201/00 Contact Us For Availability
7
Screw SPQ 206/00056/00 Contact Us For Availability
7
Decal SPQ 225/00403/00 Contact Us For Availability
7
Electronic Coin Meter Housing SPQ 209/00396/00 Contact Us For Availability
7
Pushbutton SPQ B12311252 Contact Us For Availability
7
SPQ 206/00113/00 SPQ 206/00113/00 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
Support Connector SPQ 111/10003/30 Contact Us For Availability
7
SPQ 123/00107/00 SPQ 123/00107/00 Contact Us For Availability
7
SPQ 223/00102/30 SPQ 223/00102/30 Contact Us For Availability
7
Bolt SPQ 118/00105/01 Contact Us For Availability
8
SPQ 204/00019/00 SPQ 204/00019/00 Contact Us For Availability
8
Bolt SPQ 203/00002/00 Contact Us For Availability
8
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
8
Mechanical Coin Meter Housing SPQ B12311241 Contact Us For Availability
8
Screw SPQ 152/00112/50 Contact Us For Availability
8
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
8
SPQ 111/01833/00 SPQ 111/01833/00 Contact Us For Availability
8
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
8
Screw SPQ 204/00114/00 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
SPQ 111/00107/01 SPQ 111/00107/01 Contact Us For Availability
8
SPQ 223/00222/00 SPQ 223/00222/00 Contact Us For Availability
8
Nut SPQ F360202 Contact Us For Availability
9
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
9
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
9
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
9
SPQ 111/00969/00 SPQ 111/00969/00 Contact Us For Availability
9
SPQ 204/00007/00 SPQ 204/00007/00 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
Central Control Board SPQ 209/00058/00 Contact Us For Availability
9
SPQ 119/00082/00 SPQ 119/00082/00 Contact Us For Availability
10
Washer SPQ 201/00007/00 Contact Us For Availability
10
Washer SPQ 201/00202/00 Contact Us For Availability
10
Screw SPQ 208/00120/00 Contact Us For Availability
10
Door Hinge Spacer SPQ 118/00124/00 Contact Us For Availability
10
Pushbutton SPQ 44018801 Contact Us For Availability
10
Nut SPQ 208/00025/00 Contact Us For Availability
10
Washer SPQ 205/00106/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Connection Clamp SPQ 209/00622/01 Contact Us For Availability
10
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
10
Softener Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
11
Coupling SPQ 150/00210/00 Contact Us For Availability
11
O-Ring SPQ 205/00107/00 Contact Us For Availability
11
O-Ring SPQ 217/00002/00 Contact Us For Availability
11
Seal Plate Assembly SPQ B12333701 Contact Us For Availability
11
Washer SPQ 203/00010/00 Contact Us For Availability
11
Screw SPQ 207/00126/00 Contact Us For Availability
11
Coin Box SPQ 254/00077/00 Contact Us For Availability
11
Nut SPQ 208/00002/00 Contact Us For Availability
11
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
11
Terminal Block SPQ 209/00619/01 Contact Us For Availability
11
Siphon Break SPQ 223/00222/04 Contact Us For Availability
12
Screw SPQ 207/00112/00 Contact Us For Availability
12
Washer SPQ 202/00104/00 Contact Us For Availability
12
Fuse SPQ 209/00439/00 Contact Us For Availability
12
Nut SPQ 117/00042/00 Contact Us For Availability
12
Bolt SPQ 206/00027/00 Contact Us For Availability
12
Pressure Switch Cap SPQ 209/01625/00 Contact Us For Availability
12
Rinsing Box SPQ 223/00222/05 Contact Us For Availability
13
Nut SPQ 204/00116/00 Contact Us For Availability
13
Fastening Piece SPQ 217/00060/00 Contact Us For Availability
13
Screw SPQ 203/00005/00 Contact Us For Availability
13
Inverter Kit SPQ F8421003 Contact Us For Availability
13
Noise Filter SPQ 227/00242/00 Contact Us For Availability
13
Pressure Hose SPQ 223/00035/02 Contact Us For Availability
13
Outer and Inner Box Kit SPQ 223/00222/60 Contact Us For Availability
13
Soap Injector Orifice Nipple SPQ 223/00177/00 Contact Us For Availability
14
Tub Front Panel SPQ 150/10113/00 Contact Us For Availability
14
Retainer Ring SPQ 212/00006/00 Contact Us For Availability
14
Door Lock Bracket SPQ 201/00018/00 Contact Us For Availability
14
Right Front Panel SPQ 204/00006/00 Contact Us For Availability
14
Drive SPQ F8421104 Contact Us For Availability
14
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
14
Liquid Soap Dispenser Insert SPQ 223/00102/04 Contact Us For Availability
14
Soap Injector Coupling SPQ 211/00126/00 Contact Us For Availability
15
Tub Front Gasket SPQ 185/00049/00 Contact Us For Availability
15
Caddy Bracket SPQ 224/00052/00 Contact Us For Availability
15
Lock Shaft SPQ 207/00009/00 Contact Us For Availability
15
Drive SPQ F8421103 Contact Us For Availability
15
Screw SPQ B12350903 Contact Us For Availability
15
Rinse Insert SPQ 223/00102/08 Contact Us For Availability
16
Tub Front Ring Clamp SPQ 223/00242/00 Contact Us For Availability
16
Screw SPQ 224/00051/00 Contact Us For Availability
16
Seal Cover SPQ 219/00001/00 Contact Us For Availability
16
Microswitch SPQ 217/00052/11 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Plug SPQ 211/00091/00 Contact Us For Availability
16
Hose Clamp SPQ 223/00013/00 Contact Us For Availability
16
Softener Spray Nozzle SPQ 223/00102/03 Contact Us For Availability
16
Soap Injector Hose SPQ 223/00176/00 Contact Us For Availability
17
Nut SPQ 219/00007/00 Contact Us For Availability
17
Washer SPQ 206/00055/00 Contact Us For Availability
17
Door Solenoid Assembly SPQ 207/00102/00 Contact Us For Availability
17
Left Front Panel SPQ 208/00121/00 Contact Us For Availability
17
Inverter Kit SPQ F8421004 Contact Us For Availability
17
Siphon Break Dispenser Hose SPQ 223/00262/00 Contact Us For Availability
17
Liquid Soap Manifold SPQ 223/00102/05 Contact Us For Availability
18
Nut SPQ 201/00013/00 Contact Us For Availability
18
Interlock Coil Spring SPQ 217/00017/03 Contact Us For Availability
18
Side Panel Gasket SPQ 208/00124/00 Contact Us For Availability
18
Pressure Hose SPQ 223/00182/00 Contact Us For Availability
19
Inverter Box Cover SPQ 271/35945/00 Contact Us For Availability
19
Side Panel SPQ 150/00003/10 Contact Us For Availability
19
Liquid Soap Manifold SPQ 223/00250/00 Contact Us For Availability
19
Cable Tie SPQ 223/00180/00 Contact Us For Availability
20
Backbridge SPQ 150/01803/00 Contact Us For Availability
20
Shrink Fit SPQ 223/00044/00 Contact Us For Availability
20
Soap Injector Elbow Coupling SPQ 223/00179/10 Contact Us For Availability
21
Lever Spring SPQ B12495102 Contact Us For Availability
21
Crossbar SPQ 150/00003/20 Contact Us For Availability
21
Soap Dispenser Gasket SPQ 223/00010/00 Contact Us For Availability
21
Pressure Hose SPQ 204/00201/00 Contact Us For Availability
21
SPQ F140605 SPQ F140605 Contact Us For Availability
22
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
22
SPQ 246/00079/00 SPQ 246/00079/00 Contact Us For Availability
22
Vent Tube SPQ 201/00002/00 Contact Us For Availability
23
Washer SPQ 203/00007/00 Contact Us For Availability
23
Nut SPQ 224/00049/00 Contact Us For Availability
23
SPQ 206/00042/00 SPQ 206/00042/00 Contact Us For Availability
24
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
25
SPQ 204/00109/00 SPQ 204/00109/00 Contact Us For Availability
26
SPQ 111/50036/00 SPQ 111/50036/00 Contact Us For Availability
27
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
27
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
28
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
NI
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
NI
SPQ 206/00005/00 SPQ 206/00005/00 Contact Us For Availability
NI
Dual Drop Optical Sensor Kit SPQ B12311239 Contact Us For Availability
NI
Single Drop Optical Sensor Kit SPQ B12311234 Contact Us For Availability
NI
SPQ B12311222 SPQ B12311222 Contact Us For Availability
NI
SPQ B12311220 SPQ B12311220 Contact Us For Availability
NI
SPQ B12311214 SPQ B12311214 Contact Us For Availability
NI
SPQ B12311211 SPQ B12311211 Contact Us For Availability
NI
SPQ B12311206 SPQ B12311206 Contact Us For Availability
NI
SPQ B12311204 SPQ B12311204 Contact Us For Availability
NI
SPQ B12311201 SPQ B12311201 Contact Us For Availability
NI
SPQ B12311216 SPQ B12311216 Contact Us For Availability
NI
SPQ B12311304 SPQ B12311304 Contact Us For Availability
NI
SPQ 209/00600/01P SPQ 209/00600/01P Contact Us For Availability
NI
SPQ 152/00112/00 SPQ 152/00112/00 Contact Us For Availability
NI
SPQ B12388101 SPQ B12388101 Contact Us For Availability
NI
SPQ 155/00162/00 SPQ 155/00162/00 Contact Us For Availability
NI
Parameter Unit Assembly SPQ 111/01822/00 Contact Us For Availability
NI
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
NI
Grommet SPQ 208/00130/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
Fuse SPQ 209/00438/50 Contact Us For Availability
NI
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
NI
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
NI
SPQ 118/01063/00 SPQ 118/01063/00 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
