Model Whirlpool ICS300RS00 30`` GAS COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool ICS300RS00 30`` GAS COOKTOP

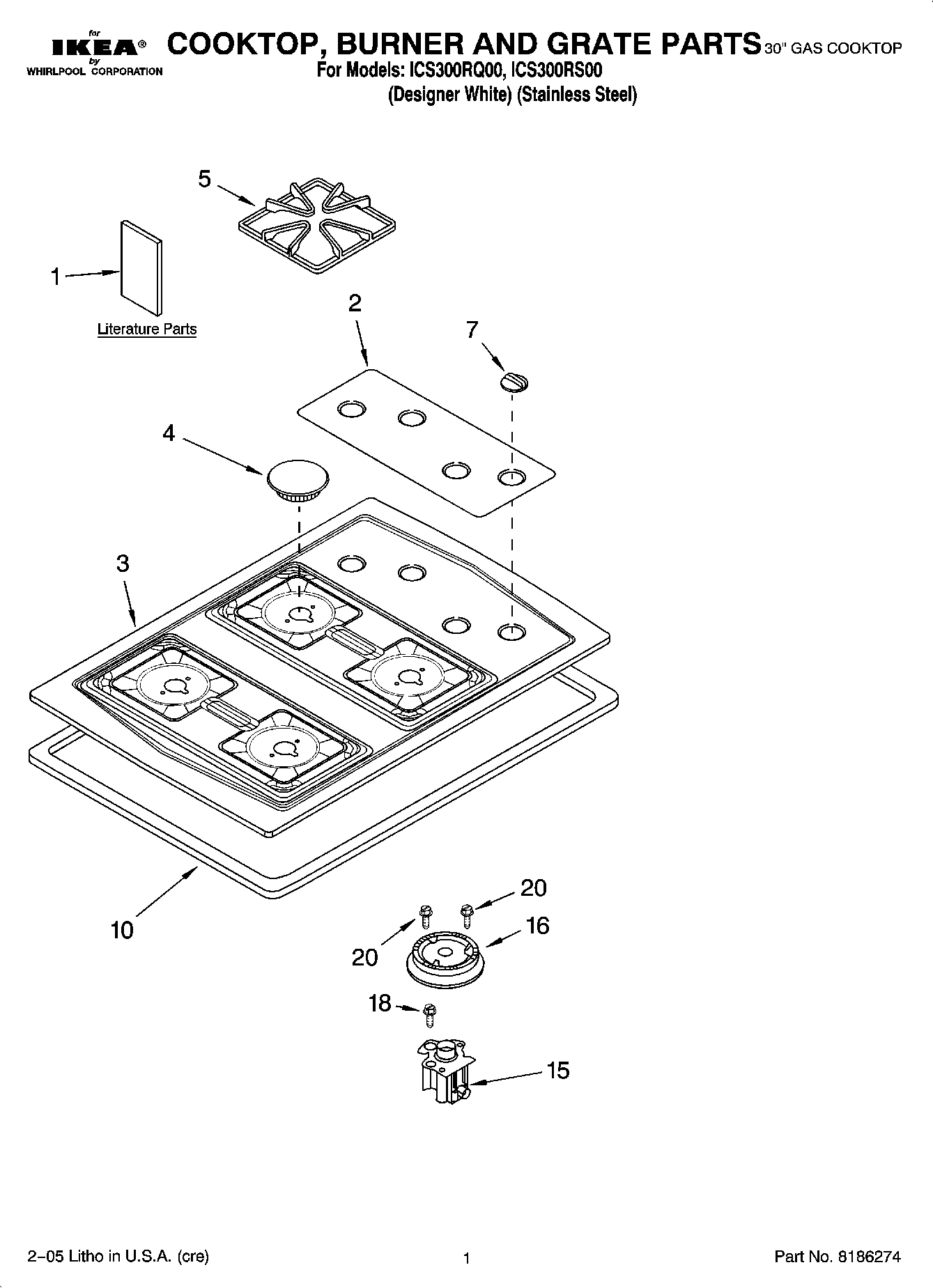

02 - BURNER BOX, GAS VALVES, AND SWITCHES

Print

• This Diagram
• All Diagrams

2

9759354 Whirlpool Oven Manifold Pipe Backorder WPL 9759354 View Details $105.84

View on Model

3

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 View Details $48.30

View on Model

3

WP3191901 Whirlpool Burner Cap Backorder WPL WP3191901 View Details $74.56

View on Model

3

WP3191903 Whirlpool Burner Cap In Stock WPL WP3191903 View Details $160.48

View on Model

3

WP3191904 Whirlpool Burner Cap Backorder WPL WP3191904 View Details $110.89

View on Model

3

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 View Details $59.80

View on Model

3

WP4456905 Whirlpool Wire Harness In Stock WPL WP4456905 View Details $167.62

View on Model

3

Gray WPL 3191899 Contact Us For Availability

View on Model

3

Cooktop (Biscuit) WPL 8284705 Contact Us For Availability

View on Model

3

6K (1) WPL ARI75365A1 Contact Us For Availability

View on Model

3

9.5K (1) WPL ARI75366A1 Contact Us For Availability

View on Model

3

12.5K (2) WPL ARI75367A9 Contact Us For Availability

View on Model

5

WP4456816 Whirlpool Burner Valve Backorder WPL WP4456816 View Details $202.01

View on Model

5

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 View Details $224.99

View on Model

5

Grate (4) (Black) WPL 9761231 Contact Us For Availability

View on Model

5

Grate (4) (Gray) WPL 9761232 Contact Us For Availability

View on Model

7

KNOB Backorder WPL 9758787 View Details $68.04

View on Model

7

9758788 Whirlpool Oven Knob Backorder WPL 9758788 View Details $13.89

View on Model

8

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $4.82

View on Model

10

9760045 Whirlpool Oven Foam Seal Backorder WPL 9760045 View Details $176.99

View on Model

10

Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability

View on Model

12

3191320 Whirlpool Oven Gas Tubing Backorder WPL 3191320 View Details $81.70

View on Model

13

Regulator, Pressure WPL 4454571 Contact Us For Availability

View on Model

15

WPW10128448 Whirlpool Igniter and Orifice Hol In Stock WPL WPW10128448 View Details $89.63

View on Model

15

WPW10155784 Whirlpool Orifice Holder In Stock WPL WPW10155784 View Details $52.99

View on Model

15

WPW10155785 Whirlpool Orifice Holder In Stock WPL WPW10155785 View Details $53.75

View on Model

16

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 View Details $39.13

View on Model

16

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 View Details $60.40

View on Model

16

Head, Burner (LR, RR) WPL 9760037 Contact Us For Availability

View on Model

18

WP3192741 Whirlpool LP Conversion Kit In Stock WPL WP3192741 View Details $33.99

View on Model

18

WP4449809 Whirlpool Screw In Stock WPL WP4449809 View Details $7.99

View on Model

20

4456626 Whirlpool Wire In Stock WPL 4456626 View Details $49.96

View on Model

20

4456627 Whirlpool Wire Harness In Stock WPL 4456627 View Details $150.10

View on Model

20

WP3368921 Whirlpool Screw In Stock WPL WP3368921 View Details $6.99

View on Model

20

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI75368A2 Contact Us For Availability

View on Model

20

Harness, Wire WPL ARI75369A6 Contact Us For Availability

View on Model

×
