Model Whirlpool ICNT22F93H REFRIGERATOR – Common Parts & Diagrams

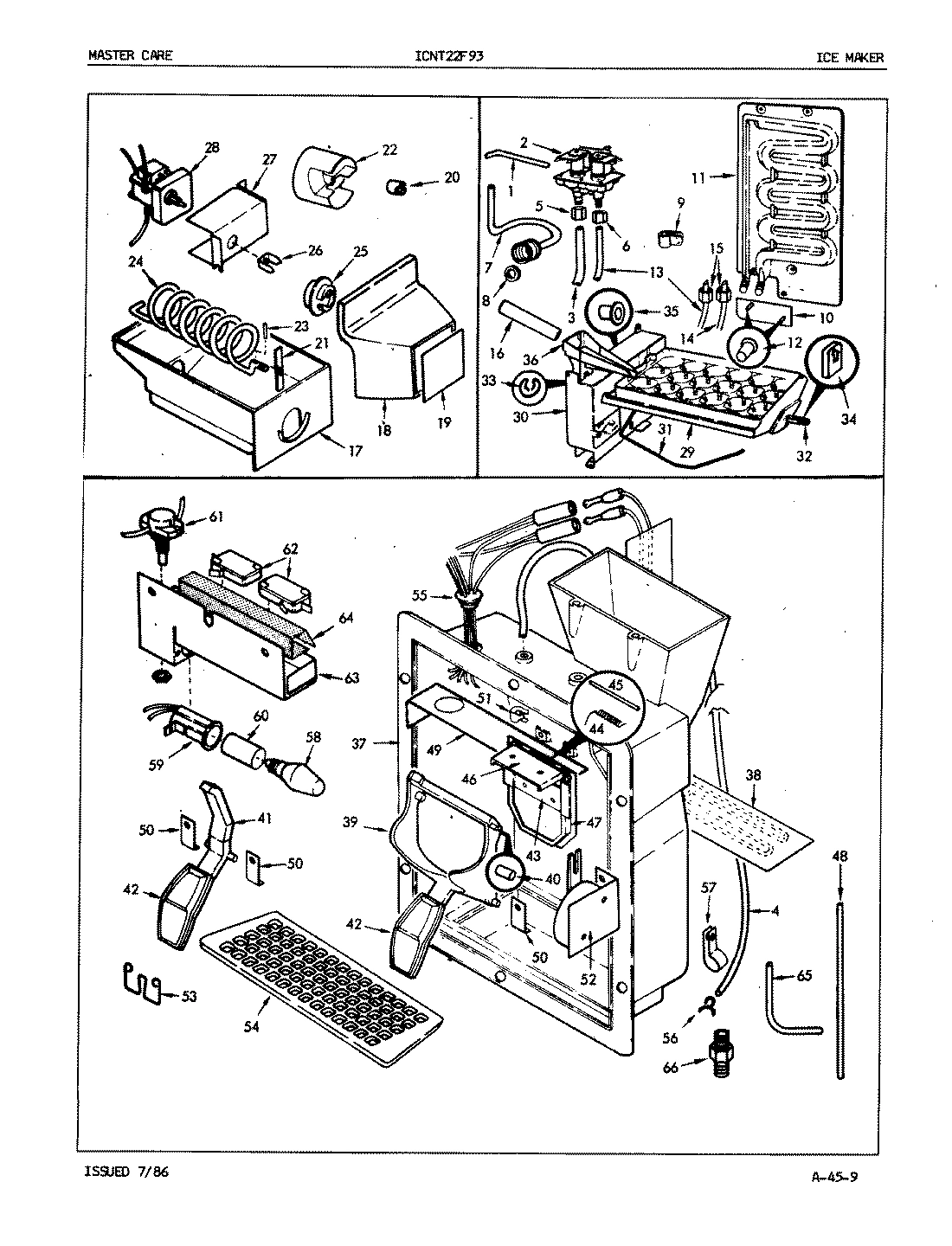

03 - ICE MAKER

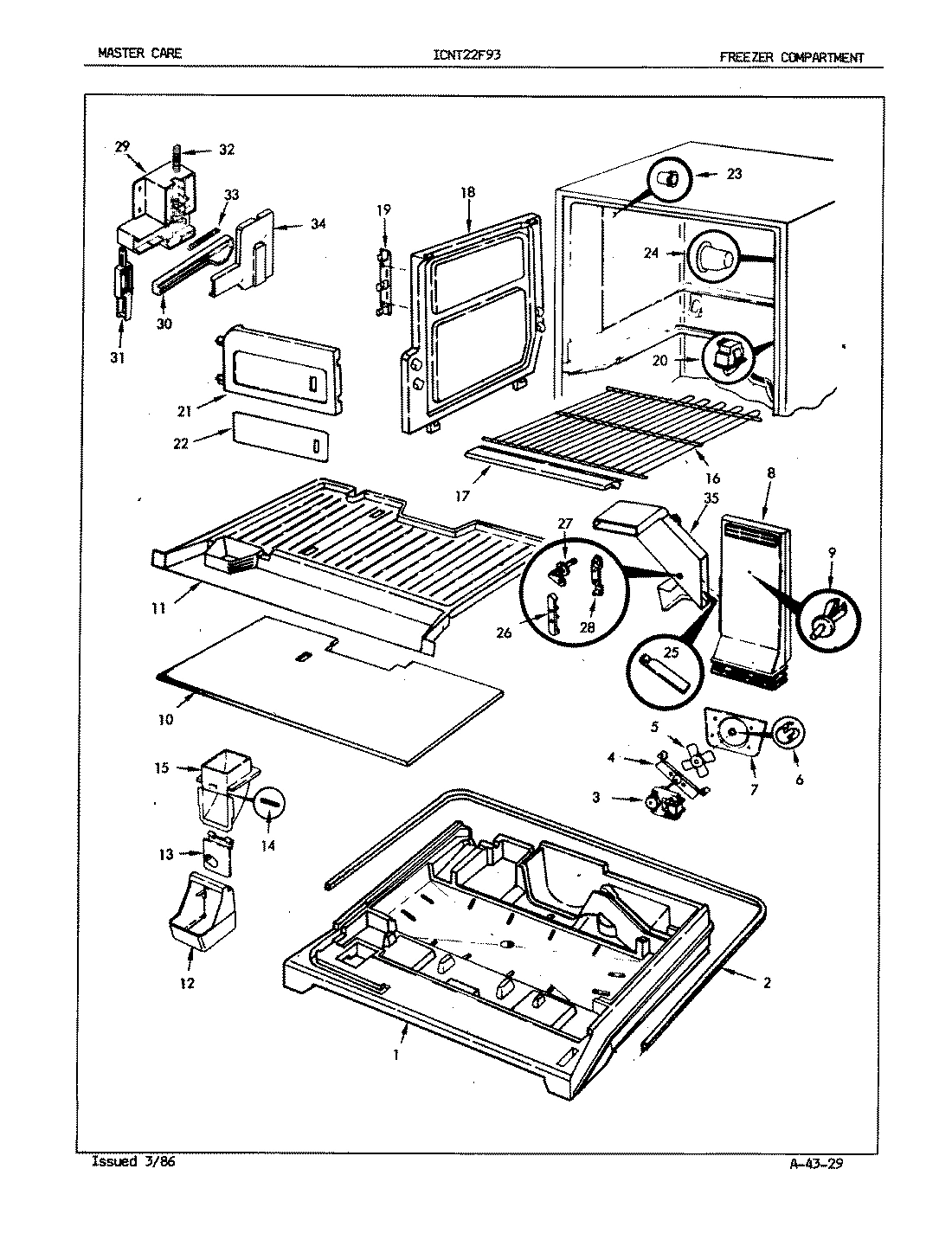

01 - FREEZER COMPARTMENT

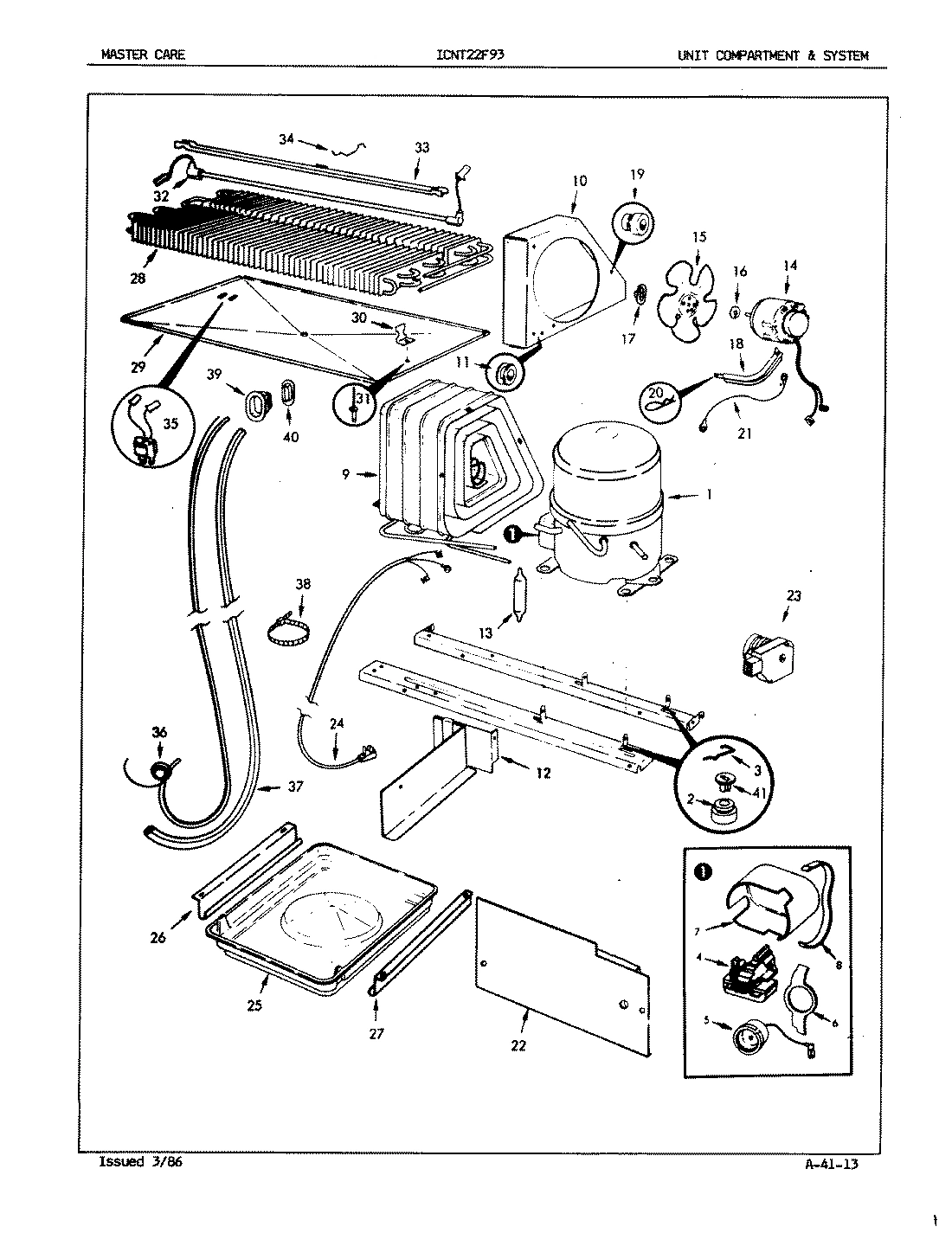

04 - UNIT COMPARTMENT & SYSTEM

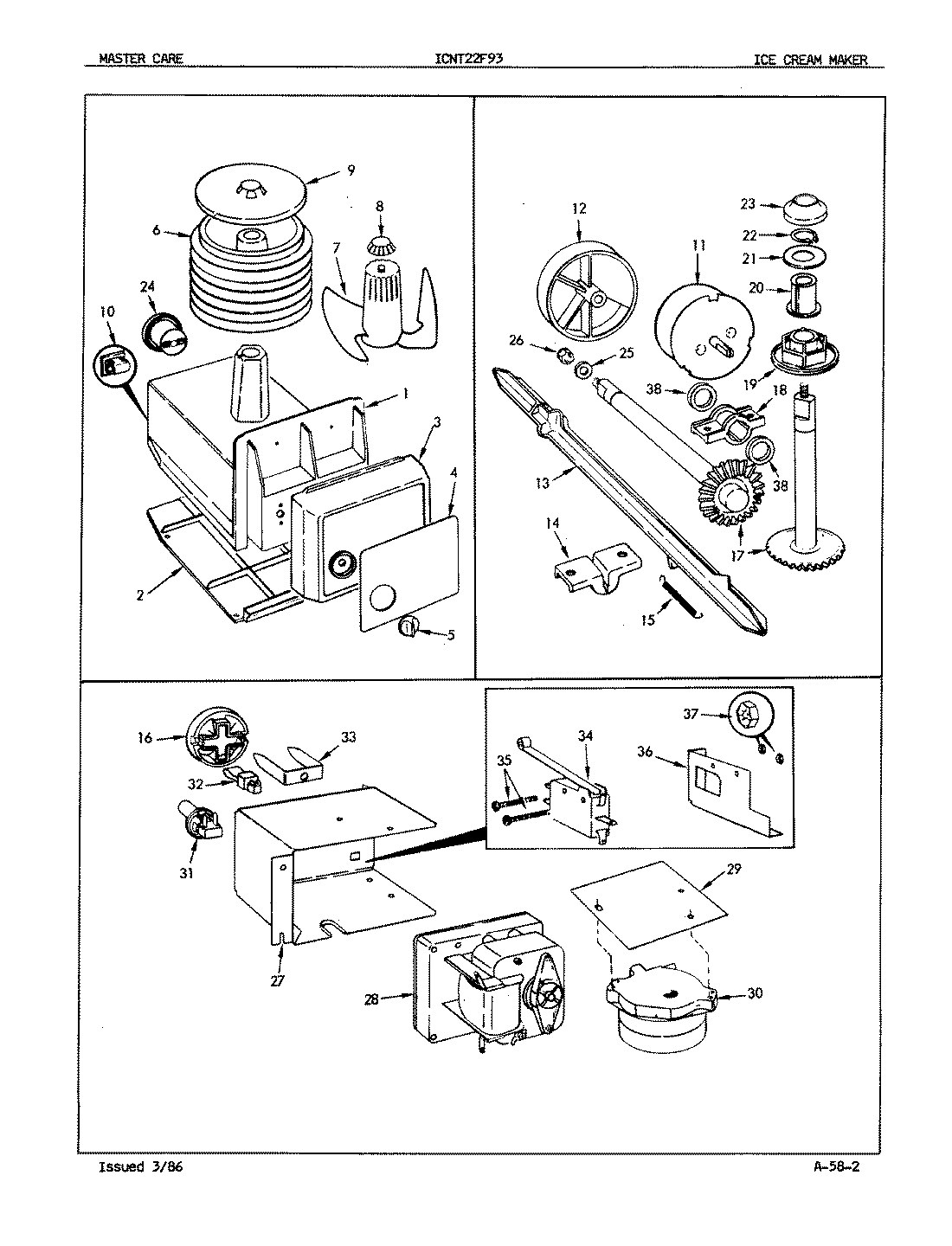

02 - ICE CREAM MAKER
Common parts from model Whirlpool ICNT22F93H REFRIGERATOR
1
TUBE WPL 561252 Contact Us For Availability
1
TRAY, DIVIDER WPL 605765 Contact Us For Availability
1
COMPRESSOR WPL RA993 Contact Us For Availability
1
BASE WPL 651241 Contact Us For Availability
2
SCREW WPL 4010181 Contact Us For Availability
2
VALVE, WATER WPL 565954 Contact Us For Availability
2
SEAL WPL 655184 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 402017001 Contact Us For Availability
2
BOTTOM BASE WPL 659601 Contact Us For Availability
3
TUBING WPL 556038 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR WPL 5448211 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4000011 Contact Us For Availability
3
BASE FRONT WPL 651261 Contact Us For Availability
4
TUBING WPL 556023 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY WPL 9286107 Contact Us For Availability
4
INSERT WPL 6528213 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 537071 Contact Us For Availability
5
OVERLOAD WPL 5306777 Contact Us For Availability
5
TIMER KNOB WPL 651282 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP WPL 595971 Contact Us For Availability
6
CANNISTER WPL 651221 Contact Us For Availability
7
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER WPL 594961 Contact Us For Availability
7
STIRRER WPL 651271 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
TUNNEL, AIR WPL 660441 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
STIRRER KNOB WPL 651442 Contact Us For Availability
9
CLAMP WPL 535162 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
CANNISTER LID WPL 651151 Contact Us For Availability
10
COVER WPL 654971 Contact Us For Availability
10
COVER, EVAPORATOR----NA WPL 605575 Contact Us For Availability
10
CONDENSER SHROUD WPL 600212 Contact Us For Availability
10
LATCH WPL 651842 Contact Us For Availability
11
SCREW, TANK CLAMP WPL 400048028 Contact Us For Availability
11
TANK, WATER WPL 654571 Contact Us For Availability
11
BOTTOM, FRZ. WPL 6047415 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SCREW WPL 4060361 Contact Us For Availability
11
TIMER, MECHANICAL WPL 653411 Contact Us For Availability
12
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
12
FRONT WPL 605031 Contact Us For Availability
12
AIR DIVIDER WPL 606393 Contact Us For Availability
12
TIMER CAM WPL 651041 Contact Us For Availability
13
TUBING 34`` WPL 5560224 Contact Us For Availability
13
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
13
SCREW WPL 652753 Contact Us For Availability
13
PLUNGER WPL 651081 Contact Us For Availability
14
TUBING WPL 5560229 Contact Us For Availability
14
HINGE PIN WPL 605051 Contact Us For Availability
14
FAN MOTOR WPL 2805610 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
BRACKET WPL 651161 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
15
ICE CHUTE WPL 605041 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
SPRING WPL 651421 Contact Us For Availability
16
TUBE, FILL WPL 584618 Contact Us For Availability
16
SHELF WPL 605141 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
BUSHING, PLUNGER GUIDE WPL 651761 Contact Us For Availability
17
BIN WPL 654611 Contact Us For Availability
17
TRIM WPL 6041410 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
GEAR & SHAFT ASSEMBLY WPL 651022 Contact Us For Availability
18
SCREW WPL 405022103 Contact Us For Availability
18
ICE DISP FRONT WPL 656251 Contact Us For Availability
18
SCREW WPL 400018103 Contact Us For Availability
18
SCREW WPL 40001512 Contact Us For Availability
18
WASHER WPL 420051900 Contact Us For Availability
18
WASHER WPL 420052900 Contact Us For Availability
18
DIVIDER WPL 656221 Contact Us For Availability
18
BRACKET WPL 600361 Contact Us For Availability
18
BEARING HORIZONTAL WPL 651091 Contact Us For Availability
19
INSERT WPL 657072 Contact Us For Availability
19
IM ENCL LATCH WPL 656301 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
BEARING, LOWER VERTICAL WPL 651071 Contact Us For Availability
20
NUT, AUGER WPL 660981 Contact Us For Availability
20
SWITCH WPL 557322 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
BEARING, UPPER VERTICAL WPL 651131 Contact Us For Availability
21
HUB, REINFORCING WPL 630841 Contact Us For Availability
21
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
21
IM ENCL FRONT WPL 656271 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
WASHER WPL 420097103 Contact Us For Availability
22
IMPELLER WPL 630831 Contact Us For Availability
22
INSERT WPL 656283 Contact Us For Availability
22
COVER WPL 660322 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
RETAINER WPL 651001 Contact Us For Availability
23
PIN, AUGER WPL 630711 Contact Us For Availability
23
CUP, SHELF WPL 603131 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER WPL 541135 Contact Us For Availability
23
SEAL WPL 652331 Contact Us For Availability
24
AUGER WPL 630992 Contact Us For Availability
24
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
DRIVE RING WPL 651711 Contact Us For Availability
25
RING, DRIVE WPL 630171 Contact Us For Availability
25
DAMPER WPL 606681 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
25
WASHER WPL 420066103 Contact Us For Availability
26
LINK RETAINER WPL 606761 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
LOCKNUT WPL 430087103 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
SCREW WPL 4000161 Contact Us For Availability
27
MOTOR BRACKET WPL 605592 Contact Us For Availability
27
HINGE WPL 606691 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
MOTOR, AUGER WPL 651862 Contact Us For Availability
28
SCREW WPL 4050221 Contact Us For Availability
28
LINK WPL 606771 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
29
TRAY, ICE WPL 596881 Contact Us For Availability
29
HOUSING WPL 606702 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
29
INSULATOR WPL 657981 Contact Us For Availability
30
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
30
ACTUATOR WPL 606712 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
SCREW WPL 4050721 Contact Us For Availability
30
CONTROL WPL 651323 Contact Us For Availability
31
SENSOR ARM WPL 604671 Contact Us For Availability
31
ACTUATOR WPL 606721 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SWITCH, AUGER SHUT OFF WPL 651771 Contact Us For Availability
32
SHAFT WPL 653192 Contact Us For Availability
32
SPRING WPL 606741 Contact Us For Availability
32
HEATER, DEFROST WPL 6010639 Contact Us For Availability
32
STRIKE, AUGER BOX WPL 651851 Contact Us For Availability
33
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
33
RING, RETAINER WPL 587061 Contact Us For Availability
33
SPRING WPL 606731 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
34
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
34
COVER WPL 606751 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
SWITCH, 2 CIRCUIT WPL 652851 Contact Us For Availability
35
SPACER WPL 653171 Contact Us For Availability
35
IM DUCT WPL 657594 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208525 Contact Us For Availability
35
SCREW WPL 4060431 Contact Us For Availability
35
WIRE HARNESS WPL 652924 Contact Us For Availability
36
SCREW WPL 405009103 Contact Us For Availability
36
SPOUT, FILL WPL 537481 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
BRACKET WPL 652862 Contact Us For Availability
37
DISPENSER, WATER WPL 630003 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
NUT WPL 4300021 Contact Us For Availability
38
HEATER WPL 605082 Contact Us For Availability
38
WIRE TIE WPL 575763 Contact Us For Availability
38
SPACER WPL 542333 Contact Us For Availability
39
ARM,ICE WPL 630073 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
41
ARM, WATER WPL 630083 Contact Us For Availability
41
WIRE HARNESS WPL 606231 Contact Us For Availability
41
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
41
COVER WPL 600673 Contact Us For Availability
41
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
41
WIRE HARNESS WPL 652726 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
43
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
44
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
45
PIN, ICE DOOR WPL 630531 Contact Us For Availability
46
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
47
INSULATION WPL 630892 Contact Us For Availability
47
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
48
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
49
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
50
CLIP WPL 630352 Contact Us For Availability
51
CLAMP, SPRING WPL 603331 Contact Us For Availability
52
MOTOR, INERTIA WPL 652121 Contact Us For Availability
52
CLIP WPL 655171 Contact Us For Availability
53
SPRING WPL 633061 Contact Us For Availability
54
GRILL WPL 630252 Contact Us For Availability
55
CLAMP, SPRING WPL 603332 Contact Us For Availability
55
WIRE HARNESS WPL 605231 Contact Us For Availability
55
SPACER WPL 620284 Contact Us For Availability
56
CLAMP, TUBING WPL 96029 Contact Us For Availability
57
CLAMP WPL 535169 Contact Us For Availability
58
BULB, LIGHT WPL 631792 Contact Us For Availability
59
SOCKET, LIGHT WPL 630391 Contact Us For Availability
60
SCREW WPL 4010111 Contact Us For Availability
60
SEAL WPL 630561 Contact Us For Availability
61
SWITCH, LIGHT WPL 630401 Contact Us For Availability
62
SCREW WPL 4050711 Contact Us For Availability
62
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
63
SCREW WPL 4000221 Contact Us For Availability
63
WIRE HARNESS WPL 606241 Contact Us For Availability
63
BRACKET, SWITCH WPL 630132 Contact Us For Availability
63
INSTA WPL 634592 Contact Us For Availability
64
WPL 653331 WPL 653331 Contact Us For Availability
65
WPL 630382 WPL 630382 Contact Us For Availability
66
WPL 592051 WPL 592051 Contact Us For Availability
× ![]()
Login and Registration Form
