Model Whirlpool ICNT22F93A REFRIGERATOR – Common Parts & Diagrams

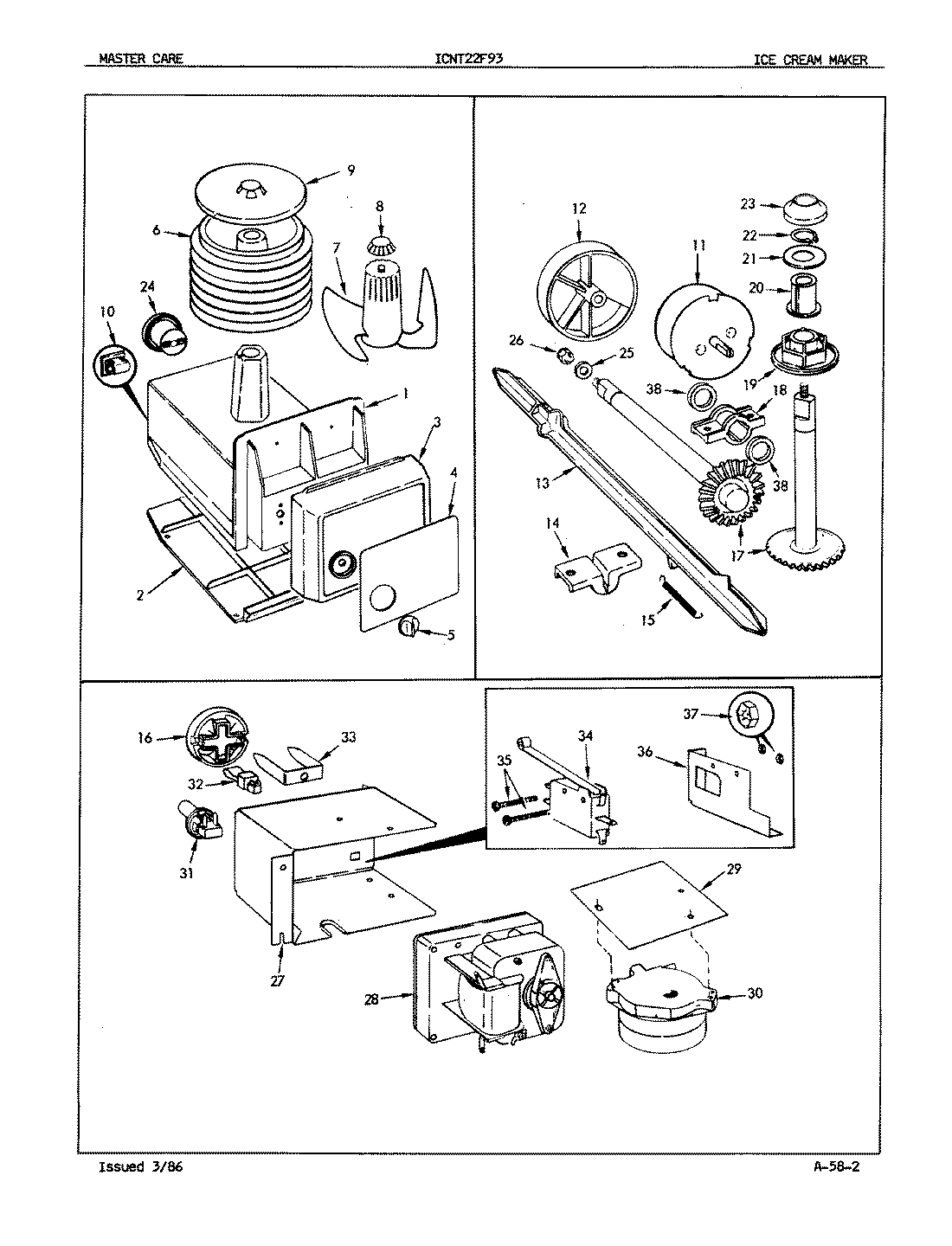

04 - ICE CREAM MAKER

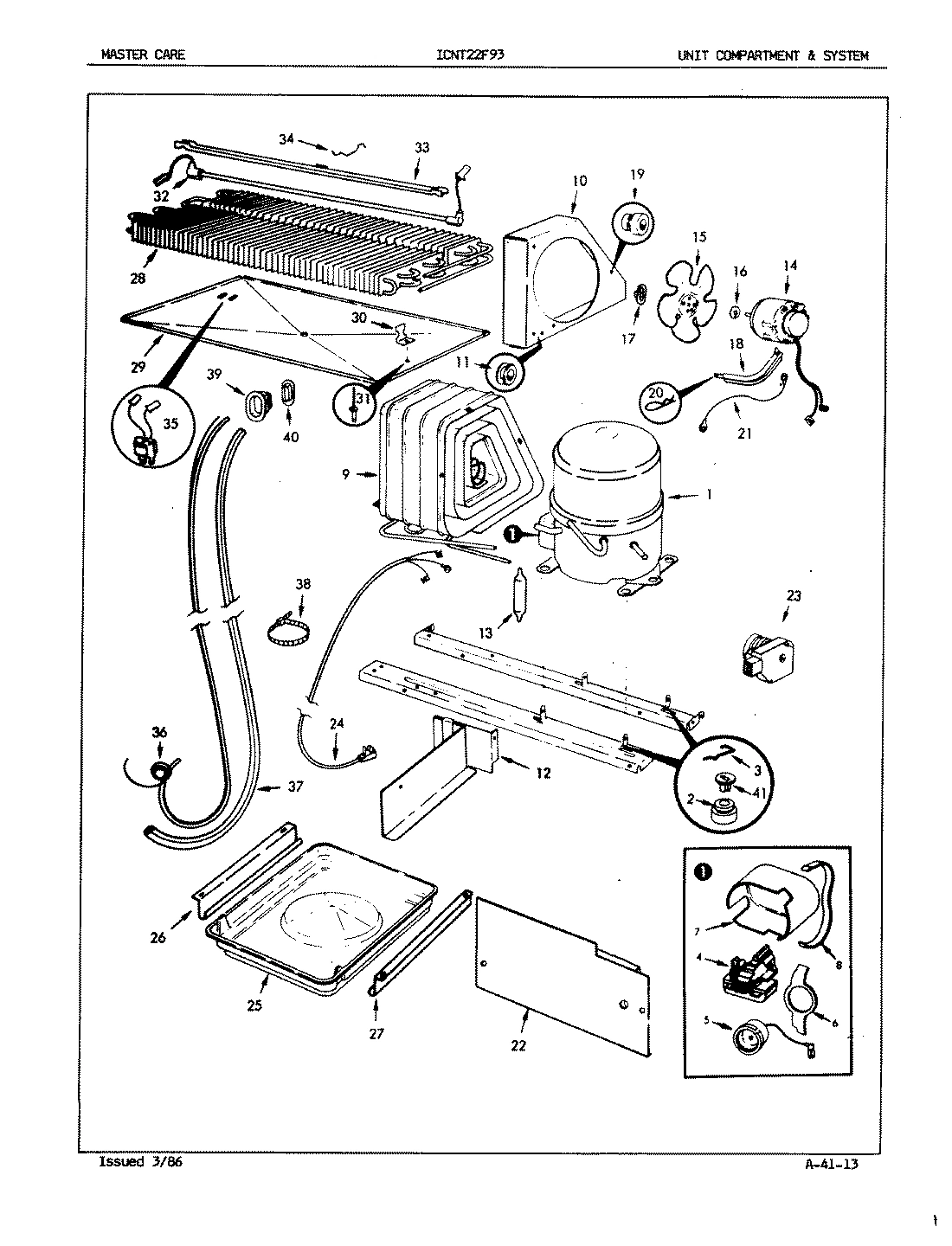

06 - UNIT COMPARTMENT & SYSTEM

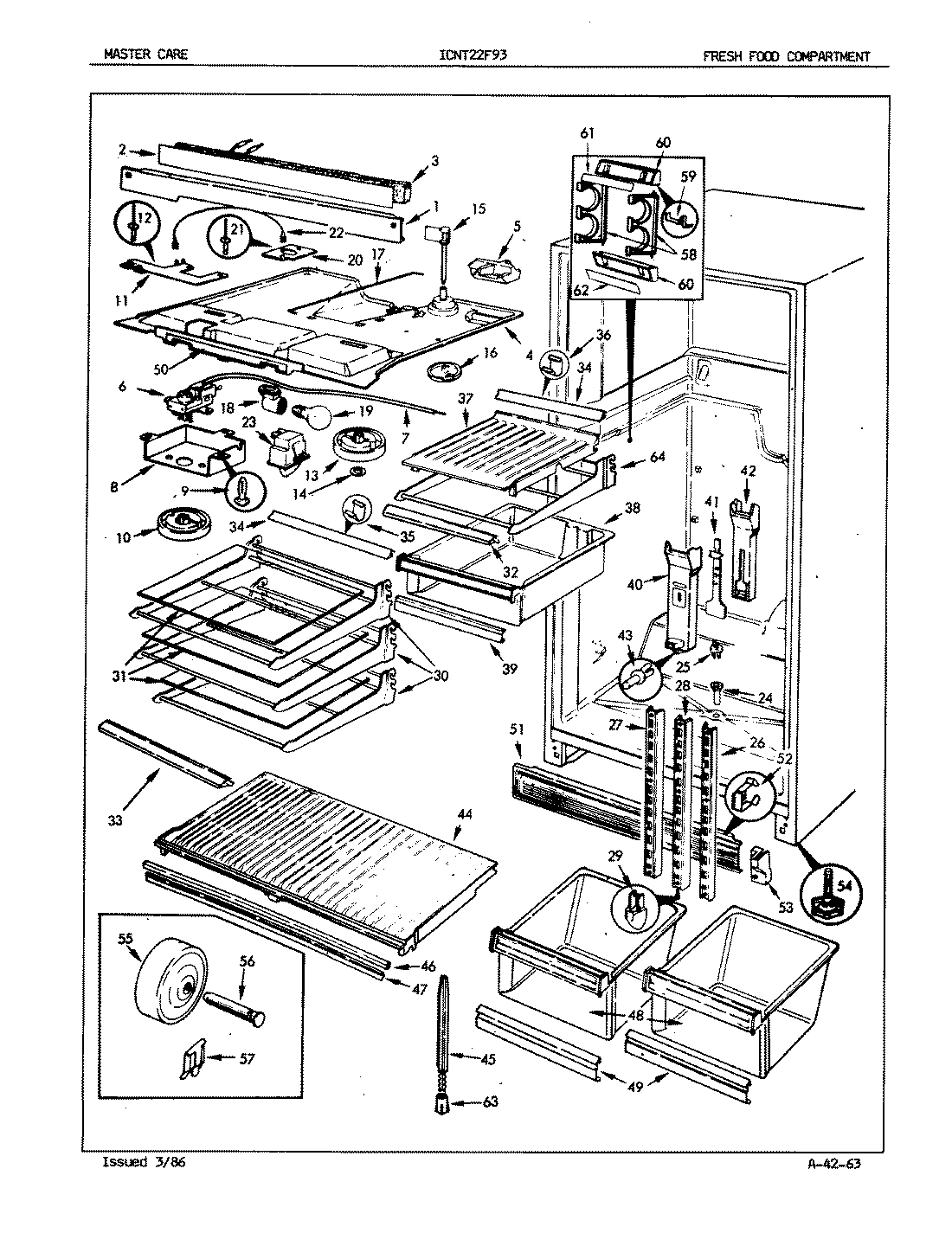

03 - FRESH FOOD COMPARTMENT

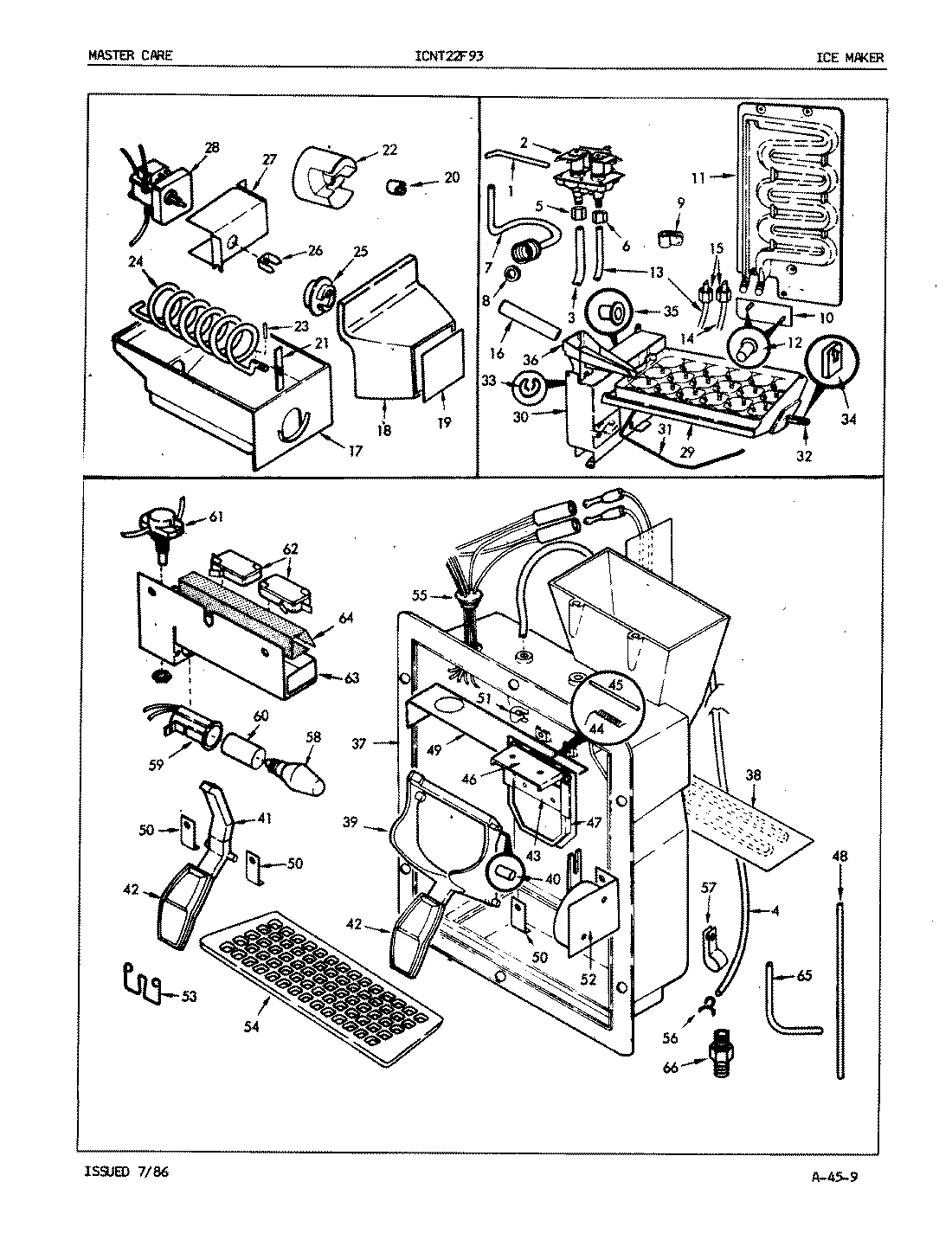

05 - ICE MAKER

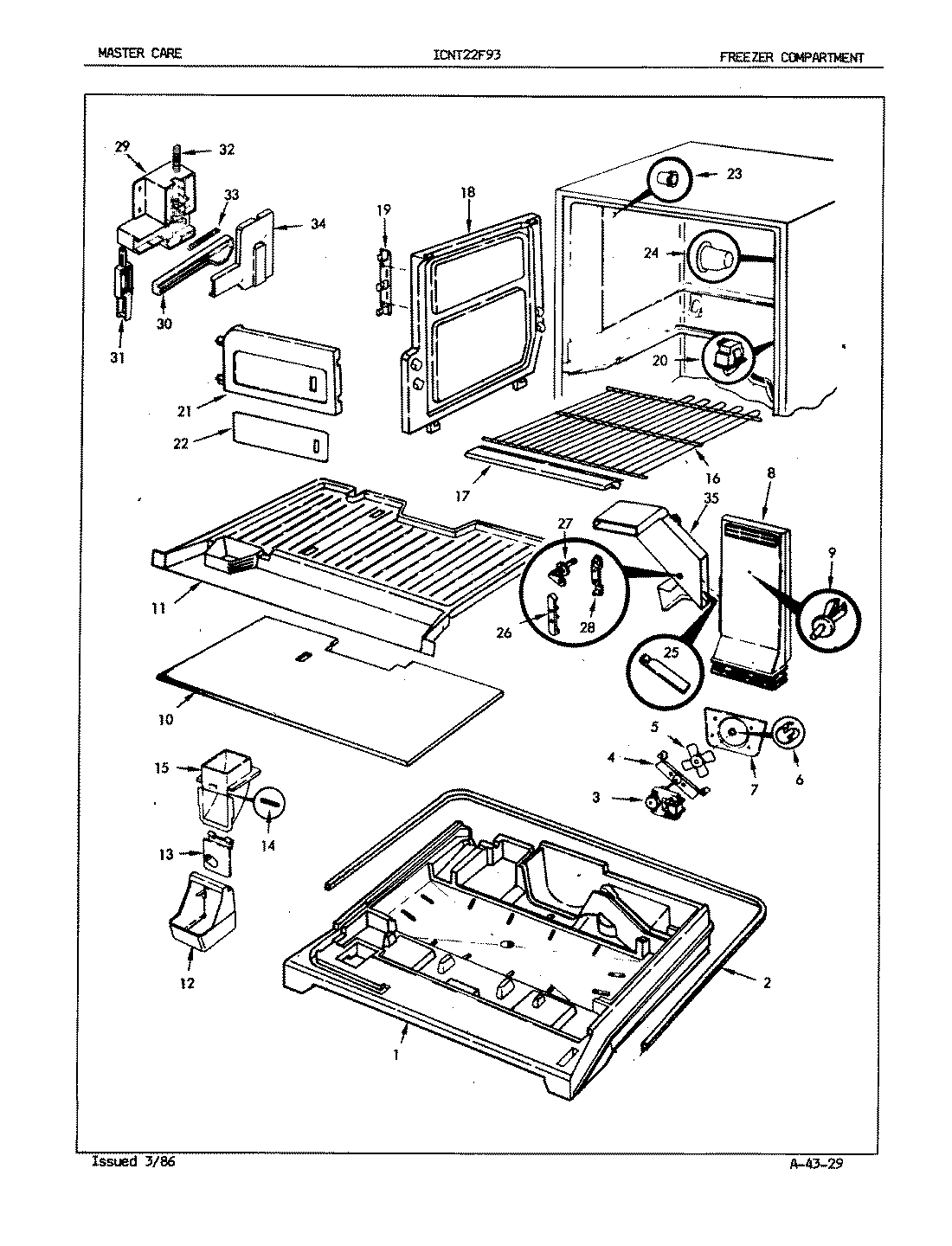

02 - FREEZER COMPARTMENT

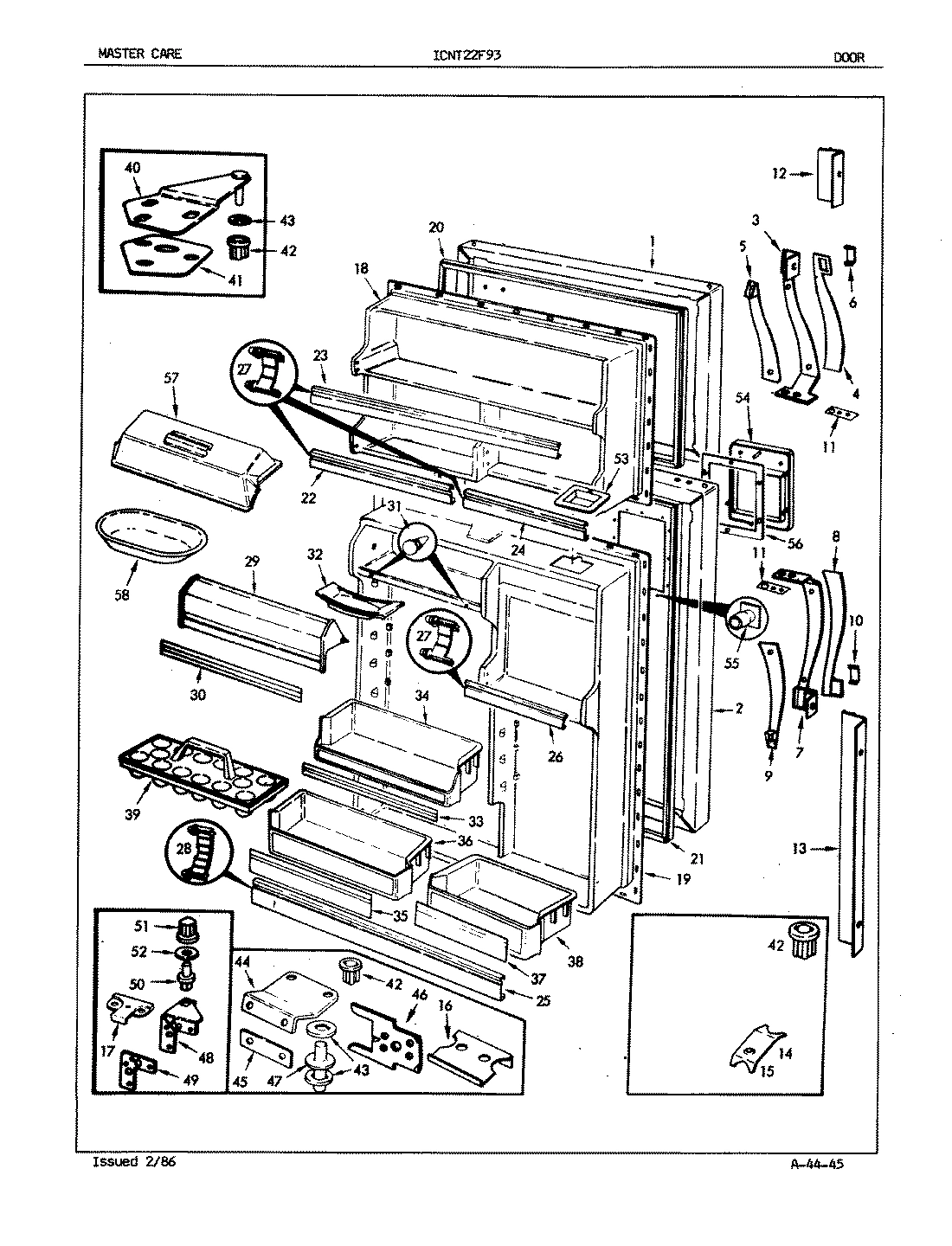

01 - DOOR
Common parts from model Whirlpool ICNT22F93A REFRIGERATOR
1
BASE WPL 651241 Contact Us For Availability
1
COMPRESSOR WPL RA993 Contact Us For Availability
1
SCREW WPL 4000171 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 657973AM Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
TUBE WPL 561252 Contact Us For Availability
1
TRAY, DIVIDER WPL 605765 Contact Us For Availability
1
OUTER PANEL WPL 6003330AM Contact Us For Availability
2
SCREW WPL 402017001 Contact Us For Availability
2
BOTTOM BASE WPL 659601 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HEATER WIRE WPL 6010512 Contact Us For Availability
2
SCREW WPL 4010181 Contact Us For Availability
2
VALVE, WATER WPL 565954 Contact Us For Availability
2
SEAL WPL 655184 Contact Us For Availability
2
OUTER PANEL WPL 6003278AM Contact Us For Availability
3
SCREW WPL 4000011 Contact Us For Availability
3
BASE FRONT WPL 651261 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
SUB 62165-1 WPL 527781 Contact Us For Availability
3
INSULATION WPL 601403 Contact Us For Availability
3
WIRE HARNESS WPL 652741 Contact Us For Availability
3
TUBING WPL 556038 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR WPL 5448211 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
HANDLE WPL 604435 Contact Us For Availability
4
INSERT WPL 6528213 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
RELAY WPL 9286107 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008543 Contact Us For Availability
4
TUBING WPL 556023 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
INSERT, HANDLE WPL 606021 Contact Us For Availability
5
TIMER KNOB WPL 651282 Contact Us For Availability
5
OVERLOAD WPL 5306783 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 537071 Contact Us For Availability
5
SCREW WPL 9986112 Contact Us For Availability
6
CANNISTER WPL 651221 Contact Us For Availability
6
CLIP WPL 595971 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
INSERT, HANDLE WPL 606031 Contact Us For Availability
7
STIRRER WPL 651271 Contact Us For Availability
7
COVER WPL 594961 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
HANDLE WPL 604436 Contact Us For Availability
8
STIRRER KNOB WPL 651442 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
TUNNEL, AIR WPL 660441 Contact Us For Availability
8
INSERT, HANDLE WPL 606022 Contact Us For Availability
9
CANNISTER LID WPL 651151 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
CLAMP WPL 535162 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
INSERT WPL 604451 Contact Us For Availability
10
LATCH WPL 651842 Contact Us For Availability
10
CONDENSER SHROUD WPL 600212 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
10
COVER WPL 654971 Contact Us For Availability
10
COVER, EVAPORATOR----NA WPL 605575 Contact Us For Availability
10
INSERT WPL 606035 Contact Us For Availability
11
SCREW WPL 4060361 Contact Us For Availability
11
TIMER, MECHANICAL WPL 653411 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
SCREW, TANK CLAMP WPL 400048028 Contact Us For Availability
11
TANK, WATER WPL 654571 Contact Us For Availability
11
BOTTOM, FRZ. WPL 6047415 Contact Us For Availability
11
SHIM WPL 604561 Contact Us For Availability
12
TIMER CAM WPL 651041 Contact Us For Availability
12
AIR DIVIDER WPL 606393 Contact Us For Availability
12
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
12
FRONT WPL 605031 Contact Us For Availability
12
TRIM WPL 602365 Contact Us For Availability
13
PLUNGER WPL 651081 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
13
TUBING 34`` WPL 5560224 Contact Us For Availability
13
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
13
SCREW WPL 652753 Contact Us For Availability
13
TRIM WPL 602364 Contact Us For Availability
14
BRACKET WPL 651161 Contact Us For Availability
14
FAN MOTOR WPL 2805610 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
TUBING WPL 5560229 Contact Us For Availability
14
HINGE PIN WPL 605051 Contact Us For Availability
14
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
15
SPRING WPL 651421 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DAMPER WPL 600711 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
15
ICE CHUTE WPL 605041 Contact Us For Availability
15
SCREW WPL 9986122 Contact Us For Availability
16
BUSHING, PLUNGER GUIDE WPL 651761 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
TUBE, FILL WPL 584618 Contact Us For Availability
16
SHELF WPL 605141 Contact Us For Availability
16
DOOR STOP WPL 600301 Contact Us For Availability
17
GEAR & SHAFT ASSEMBLY WPL 651022 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
17
BIN WPL 654611 Contact Us For Availability
17
TRIM WPL 6041410 Contact Us For Availability
17
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
17
DOOR STOP WPL 604196 Contact Us For Availability
17
SCREW WPL 9986108 Contact Us For Availability
18
BEARING HORIZONTAL WPL 651091 Contact Us For Availability
18
BRACKET WPL 600361 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
SCREW WPL 405022103 Contact Us For Availability
18
ICE DISP FRONT WPL 656251 Contact Us For Availability
18
SCREW WPL 400018103 Contact Us For Availability
18
WASHER WPL 420051900 Contact Us For Availability
18
WASHER WPL 420052900 Contact Us For Availability
18
DIVIDER WPL 656221 Contact Us For Availability
18
LINER, DOOR WPL 603802 Contact Us For Availability
19
BEARING, LOWER VERTICAL WPL 651071 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
BULB, LIGHT (40W-230V) WPL 240821 Contact Us For Availability
19
INSERT WPL 657072 Contact Us For Availability
19
IM ENCL LATCH WPL 656301 Contact Us For Availability
19
LINER, DOOR WPL 604042 Contact Us For Availability
19
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
20
BEARING, UPPER VERTICAL WPL 651131 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
NUT, AUGER WPL 660981 Contact Us For Availability
20
SWITCH WPL 557322 Contact Us For Availability
20
GASKET, DOOR WPL 604627 Contact Us For Availability
21
WASHER WPL 420097103 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 2967522 Contact Us For Availability
21
HUB, REINFORCING WPL 630841 Contact Us For Availability
21
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
21
IM ENCL FRONT WPL 656271 Contact Us For Availability
21
GASKET, DOOR WPL 604628 Contact Us For Availability
22
RETAINER WPL 651001 Contact Us For Availability
22
COVER WPL 660322 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
IMPELLER WPL 630831 Contact Us For Availability
22
INSERT WPL 656283 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515145 Contact Us For Availability
23
SEAL WPL 652331 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER WPL 541135 Contact Us For Availability
23
SWITCH WPL 557323 Contact Us For Availability
23
PIN, AUGER WPL 630711 Contact Us For Availability
23
CUP, SHELF WPL 603131 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 65151157 Contact Us For Availability
24
DRIVE RING WPL 651711 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
AUGER WPL 630992 Contact Us For Availability
24
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
24
TRIM, DOOR SHELF WPL 6515139 Contact Us For Availability
25
WASHER WPL 420066103 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
RING, DRIVE WPL 630171 Contact Us For Availability
25
DAMPER WPL 606681 Contact Us For Availability
25
TRIM WPL 6008018 Contact Us For Availability
26
LOCKNUT WPL 430087103 Contact Us For Availability
26
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
26
LINK RETAINER WPL 606761 Contact Us For Availability
26
TRIM, DOOR SHELF WPL 6515115 Contact Us For Availability
27
MOTOR BRACKET WPL 605592 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
27
SCREW WPL 4000161 Contact Us For Availability
27
HINGE WPL 606691 Contact Us For Availability
27
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
28
MOTOR, AUGER WPL 651862 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
28
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
28
LINK WPL 606771 Contact Us For Availability
28
RETAINER WPL 652461 Contact Us For Availability
29
INSULATOR WPL 657981 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
29
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
29
TRAY, ICE WPL 596881 Contact Us For Availability
29
HOUSING WPL 606702 Contact Us For Availability
29
DOOR, DAIRY WPL 636095 Contact Us For Availability
30
SCREW WPL 4050721 Contact Us For Availability
30
CONTROL WPL 651323 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
30
ACTUATOR WPL 606712 Contact Us For Availability
30
INSERT WPL 6057310 Contact Us For Availability
31
SWITCH, AUGER SHUT OFF WPL 651771 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
GLASS SHELF WPL 655984 Contact Us For Availability
31
SENSOR ARM WPL 604671 Contact Us For Availability
31
ACTUATOR WPL 606721 Contact Us For Availability
31
BUMPER, DOOR WPL 282726 Contact Us For Availability
32
STRIKE, AUGER BOX WPL 651851 Contact Us For Availability
32
HEATER, DEFROST WPL 6010639 Contact Us For Availability
32
TRIM WPL 604146 Contact Us For Availability
32
SHAFT WPL 653192 Contact Us For Availability
32
SPRING WPL 606741 Contact Us For Availability
32
TRAY, BUTTER WPL 299362 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
33
TRIM WPL 605245 Contact Us For Availability
33
RING, RETAINER WPL 587061 Contact Us For Availability
33
SPRING WPL 606731 Contact Us For Availability
33
INSERT WPL 605726 Contact Us For Availability
34
SWITCH, 2 CIRCUIT WPL 652851 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TRIM, REAR WPL 652767 Contact Us For Availability
34
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
34
COVER WPL 606751 Contact Us For Availability
34
DOOR SHELF WPL 6003712 Contact Us For Availability
35
SCREW WPL 4060431 Contact Us For Availability
35
WIRE HARNESS WPL 652924 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208525 Contact Us For Availability
35
CLIP WPL 653581 Contact Us For Availability
35
SPACER WPL 653171 Contact Us For Availability
35
IM DUCT WPL 657594 Contact Us For Availability
35
INSERT WPL 605723 Contact Us For Availability
36
BRACKET WPL 652862 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
CLIP WPL 653582 Contact Us For Availability
36
SCREW WPL 405009103 Contact Us For Availability
36
SPOUT, FILL WPL 537481 Contact Us For Availability
36
DOOR SHELF WPL 600379 Contact Us For Availability
37
SCREW WPL 4050221 Contact Us For Availability
37
NUT WPL 4300021 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
COVER, MEAT PAN WPL 600756 Contact Us For Availability
37
DISPENSER, WATER WPL 630003 Contact Us For Availability
37
INSERT WPL 605724 Contact Us For Availability
38
SPACER WPL 542333 Contact Us For Availability
38
PAN, MEAT WPL 60466226 Contact Us For Availability
38
HEATER WPL 605082 Contact Us For Availability
38
DOOR SHELF WPL 600378 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
HANDLE WPL 6013211 Contact Us For Availability
39
ARM,ICE WPL 630073 Contact Us For Availability
39
TRAY, EGG WPL 600663 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
TUNNEL WPL 600943 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
40
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
41
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
41
COVER WPL 600673 Contact Us For Availability
41
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
41
WIRE HARNESS WPL 652726 Contact Us For Availability
41
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
41
ARM, WATER WPL 630083 Contact Us For Availability
41
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
42
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
42
BUSHING WPL 557811 Contact Us For Availability
43
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
43
WASHER WPL 521851 Contact Us For Availability
43
SCREW WPL 998687 Contact Us For Availability
44
SHELF, CRISPER WPL 600198 Contact Us For Availability
44
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
44
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
45
SHELF SUPPORT WPL 658161 Contact Us For Availability
45
PIN, ICE DOOR WPL 630531 Contact Us For Availability
45
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
46
TRIM WPL 604543 Contact Us For Availability
46
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
46
TAPPING PLATE WPL 606221 Contact Us For Availability
46
SCREW WPL 9986107 Contact Us For Availability
47
SEAL WPL 601486 Contact Us For Availability
47
INSULATION WPL 630892 Contact Us For Availability
47
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
47
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
48
PAN, CRISPER WPL 60457256 Contact Us For Availability
48
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
48
SCREW WPL 4030625 Contact Us For Availability
48
HINGE WPL 606304 Contact Us For Availability
49
HANDLE WPL 601323 Contact Us For Availability
49
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
49
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
50
INSERT WPL 605711 Contact Us For Availability
50
CLIP WPL 630352 Contact Us For Availability
50
PIN WPL 654181 Contact Us For Availability
51
KICKPLATE WPL 6013812 Contact Us For Availability
51
CLAMP, SPRING WPL 603331 Contact Us For Availability
51
BUSHING WPL 606271 Contact Us For Availability
52
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
52
MOTOR, INERTIA WPL 652121 Contact Us For Availability
52
CLIP WPL 655171 Contact Us For Availability
52
SPACER WPL 542334 Contact Us For Availability
53
SCREW WPL 4020394 Contact Us For Availability
53
END CAP WPL 603811 Contact Us For Availability
53
SPRING WPL 633061 Contact Us For Availability
53
SCREW WPL 4020381 Contact Us For Availability
53
COLLAR WPL 630201 Contact Us For Availability
54
LEG, LEVELING WPL 60128 Contact Us For Availability
54
GRILL WPL 630252 Contact Us For Availability
54
ESCUTCHEON WPL 6048232 Contact Us For Availability
55
WIRE HARNESS WPL 606231 Contact Us For Availability
55
WHEEL WPL 298342 Contact Us For Availability
55
CLAMP, SPRING WPL 603332 Contact Us For Availability
55
WIRE HARNESS WPL 605231 Contact Us For Availability
55
SPACER WPL 620284 Contact Us For Availability
55
RETAINER, ESCUTCHEON WPL 652112 Contact Us For Availability
56
PIN, WHEEL WPL 298352 Contact Us For Availability
56
CLAMP, TUBING WPL 96029 Contact Us For Availability
56
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
57
CLIP WPL 602161 Contact Us For Availability
57
CLAMP WPL 535169 Contact Us For Availability
57
COVER WPL 603823 Contact Us For Availability
58
RACK, WINE WPL 565194 Contact Us For Availability
58
BULB, LIGHT WPL 631792 Contact Us For Availability
58
DISH, MICROWAVE WPL 654161 Contact Us For Availability
59
SPRING, WINE RACK WPL 580571 Contact Us For Availability
59
SOCKET, LIGHT WPL 630391 Contact Us For Availability
60
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
60
SCREW WPL 4010111 Contact Us For Availability
60
SEAL WPL 630561 Contact Us For Availability
61
INSERT WPL 657533 Contact Us For Availability
61
SWITCH, LIGHT WPL 630401 Contact Us For Availability
62
INSERT WPL 6575314 Contact Us For Availability
62
SCREW WPL 4050711 Contact Us For Availability
62
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
63
WIRE TIE WPL 575763 Contact Us For Availability
63
NUT WPL 658181 Contact Us For Availability
63
SCREW WPL 4000221 Contact Us For Availability
63
WIRE HARNESS WPL 606241 Contact Us For Availability
63
BRACKET, SWITCH WPL 630132 Contact Us For Availability
63
INSTA WPL 634592 Contact Us For Availability
64
FRAME, SHELF WPL 605704 Contact Us For Availability
64
NYLON NUT WPL 1953036 Contact Us For Availability
64
GROMMET WPL 555121 Contact Us For Availability
64
TUBE WPL 555131 Contact Us For Availability
64
WPL 653331 WPL 653331 Contact Us For Availability
65
WPL 630382 WPL 630382 Contact Us For Availability
66
WPL 592051 WPL 592051 Contact Us For Availability
× ![]()
Login and Registration Form
