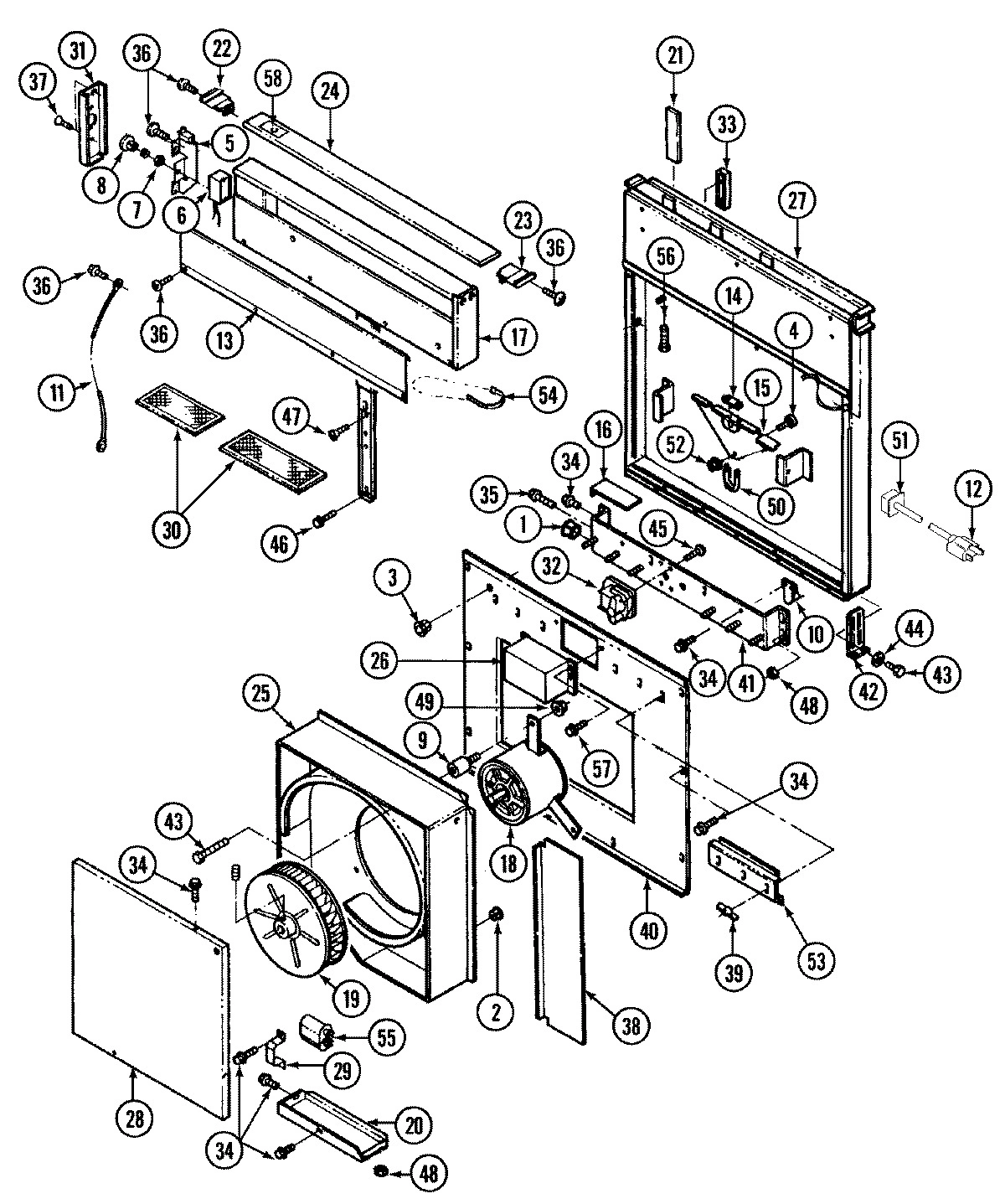

01 - HOOD
Common parts from model Whirlpool HV303 HOOD
1
BUSHING (7/8``) WPL 47001001 Contact Us For Availability
2
BUSHING (5/8``) WPL 47001002 Contact Us For Availability
3
BUSHING (1/2``) WPL 47001003 Contact Us For Availability
4
ROLLER, CRANK WPL 47001004 Contact Us For Availability
5
SWITCH ASSY. (UP/DOWN) WPL 47001005 Contact Us For Availability
6
CONTROL, SPEED WPL 47001006 Contact Us For Availability
7
NUT, KNOB WPL 47001007 Contact Us For Availability
8
KNOB WPL Y04500029 Contact Us For Availability
9
ISOLATOR, MOTOR WPL 47001008 Contact Us For Availability
10
BRACKET ASSY., SWITCH (LOWER) WPL Y04500046 Contact Us For Availability
11
WIRE, GROUND (GRN) WPL 47001009 Contact Us For Availability
12
CORD, POWER WPL 47001010 Contact Us For Availability
13
PANEL, CHIMNEY (STNLS) WPL 47001011 Contact Us For Availability
14
PLATE, BACK-UP WPL 04500045 Contact Us For Availability
15
CRANK WPL 47001013 Contact Us For Availability
16
COVER, SWITCH WPL 47001014 Contact Us For Availability
17
CHIMNEY ASSY. (W/SLIDE) WPL 47001015 Contact Us For Availability
17
CHIMNEY ASSY. (COMPLETE) WPL 47001046 Contact Us For Availability
18
MOTOR (W/CAPACITOR) WPL 47001017 Contact Us For Availability
18
BLOWER ASSY. (COMPLETE) WPL 47001045 Contact Us For Availability
19
WHEEL, BLOWER WPL 47001018 Contact Us For Availability
20
EXTENSION, SCROLL BOX WPL 47001019 Contact Us For Availability
21
SPACER WPL 04500054 Contact Us For Availability
22
TOP BRACKET ASSY. (RT-BLK) WPL 47001020 Contact Us For Availability
22
TOP BRACKET ASSY. (RT-WHT) WPL 48001002 Contact Us For Availability
23
TOP BRACKET ASSY. (LT-BLK) WPL 47001021 Contact Us For Availability
23
TOP BRACKET ASSY. (LT-WHT WPL 48001003 Contact Us For Availability
24
TOP (W/MEMBRANE) (BLK) WPL 47001022 Contact Us For Availability
24
COVER, TOP (WHT) WPL 48001001 Contact Us For Availability
25
BOX ASSY., SCROLL WPL 47001024 Contact Us For Availability
25
BOX ASY., SCROLL WPL 47001249 Contact Us For Availability
26
COVER, GEAR MOTOR WPL 47001025 Contact Us For Availability
27
BOX ASSY., AIR WPL 47001026 Contact Us For Availability
28
COVER, SCROLL BOX WPL 47001028 Contact Us For Availability
29
BRACKET, CAPACITOR WPL 47001029 Contact Us For Availability
30
FILTER KIT - 28`` WPL Y04500035 Contact Us For Availability
31
END CAP, CHIMNEY ASSY. WPL 47001030 Contact Us For Availability
32
MOTOR, GEAR WPL 47001031 Contact Us For Availability
32
MOTOR, GEAR WPL 47001250 Contact Us For Availability
33
BACK SIDE STRIP WPL 04500055 Contact Us For Availability
34
SCREW WPL 47001032 Contact Us For Availability
37
SCREW WPL 04500025 Contact Us For Availability
38
COVER, AIR BOX OPENING WPL 47001034 Contact Us For Availability
39
NUT, WING WPL 47001036 Contact Us For Availability
40
COVER, AIR BOX WPL 47001037 Contact Us For Availability
41
BRACKET ASSY., GEAR MOTOR WPL 47001039 Contact Us For Availability
42
BRACKET, SUPPORT WPL 47001040 Contact Us For Availability
43
SCREW, HEX HEAD WPL 04500014 Contact Us For Availability
44
FLAT WASHER WPL 04500052 Contact Us For Availability
47
SCREW WPL 04500019 Contact Us For Availability
49
HEX NUT WPL 04500011 Contact Us For Availability
50
U-BOLT WPL 04500041 Contact Us For Availability
51
GROMMET, POWER CORD WPL Y04500058 Contact Us For Availability
52
NUT, HEX FLANGE WPL Y04500057 Contact Us For Availability
53
CLAMP, WIRE CHANNEL WPL 47001042 Contact Us For Availability
54
WIRE TIE WPL 04500024 Contact Us For Availability
55
CAPACITOR WPL 47001043 Contact Us For Availability
56
SCREW WPL 47001044 Contact Us For Availability
57
SCREW WPL 04500048 Contact Us For Availability
58
BUTTON, S WPL 47001050 Contact Us For Availability
58
WPL 47001097 WPL 47001097 Contact Us For Availability
59
WPL 47001048 WPL 47001048 Contact Us For Availability
60
WPL 16000329 WPL 16000329 Contact Us For Availability
× ![]()
