Model Whirlpool HV30 HOOD – Common Parts & Diagrams
01 - HOOD

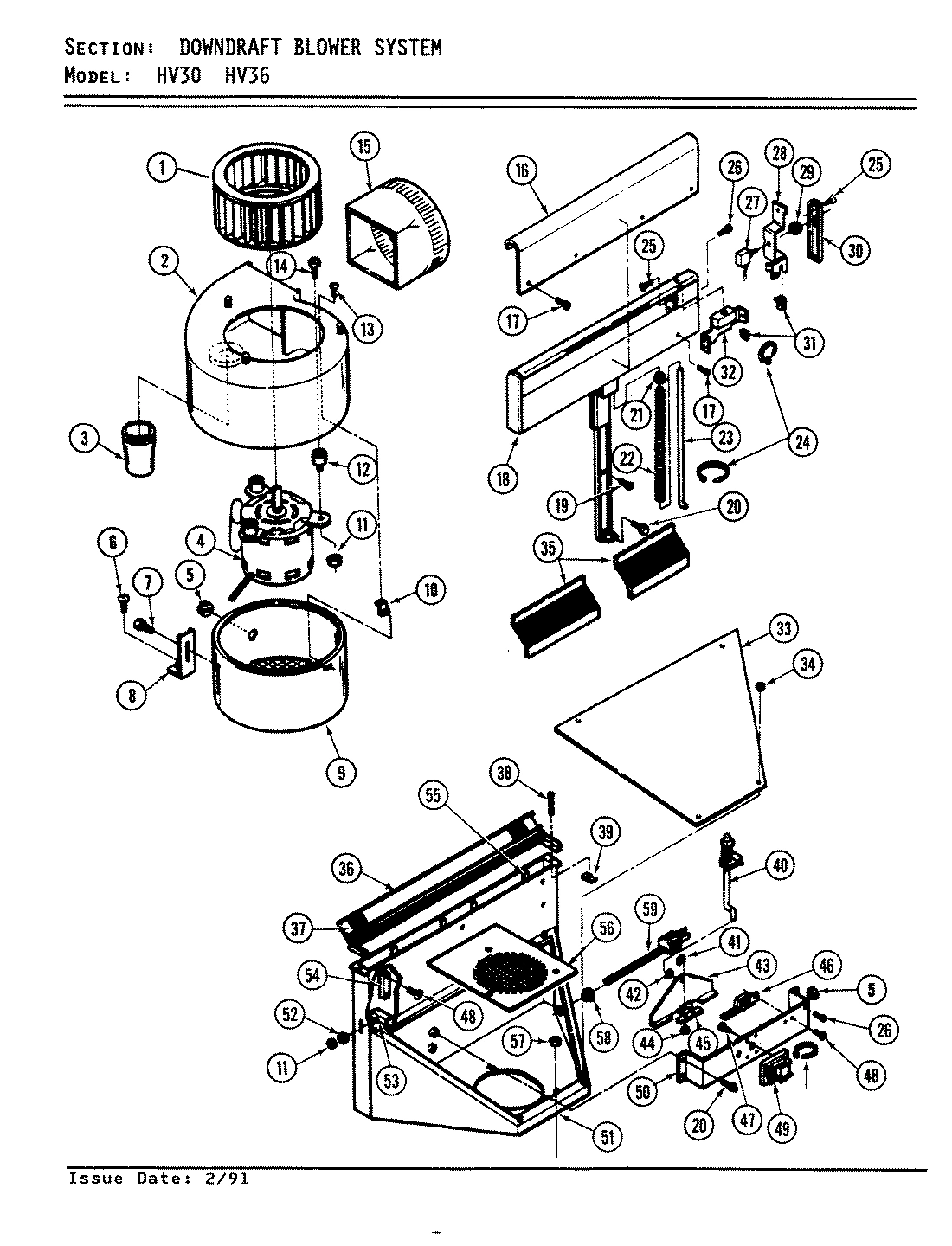

Common parts from model Whirlpool HV30 HOOD
1
BLOWER WHEEL WPL 04500001 Contact Us For Availability
1
BLOWER ASSY WPL 04500062 Contact Us For Availability
2
SCROLL WELDMENT WPL 04500002 Contact Us For Availability
3
GREASE JAR WPL 04500003 Contact Us For Availability
4
BLOWER MOTOR WPL 04500004 Contact Us For Availability
5
BUSHING WPL 04500005 Contact Us For Availability
6
SCREW WPL 04500006 Contact Us For Availability
7
SCREW WPL 04500007 Contact Us For Availability
8
SUPPORT LEG WPL 04500008 Contact Us For Availability
9
COVER, MOTOR WELDMENT WPL 47001091 Contact Us For Availability
10
SLEEVE FASTENER WPL 04500010 Contact Us For Availability
11
HEX NUT WPL 04500011 Contact Us For Availability
12
RUBBER MOUNTS WPL 04500012 Contact Us For Availability
13
SCREW WPL 04500013 Contact Us For Availability
14
SCREW, HEX HEAD WPL 04500014 Contact Us For Availability
15
TRANSITION, SQ TO ROUND WPL 04500015 Contact Us For Availability
16
28``S. STEEL TRIM PANEL WPL Y04500016 Contact Us For Availability
16
28`` AIR VENT ASSY WPL Y04500061 Contact Us For Availability
17
SCREW WPL 04500017 Contact Us For Availability
18
COVER, SWITCH WPL 47001049 Contact Us For Availability
18
28`` AIR VENT WELDMENT WPL Y04500018 Contact Us For Availability
19
SCREW WPL 04500019 Contact Us For Availability
21
BUSHING WPL 04500021 Contact Us For Availability
22
SPRING WPL 04500022 Contact Us For Availability
23
ROD WPL 04500023 Contact Us For Availability
24
WIRE TIE WPL 04500024 Contact Us For Availability
25
SCREW WPL 04500025 Contact Us For Availability
27
SPEED CONTROL KIT WPL 04500027 Contact Us For Availability
28
SPEED CONTROL BRACKET WPL 04500028 Contact Us For Availability
29
KNOB WPL Y04500029 Contact Us For Availability
30
RIGHT HAND END CAP WPL 04500030 Contact Us For Availability
31
NUT, SHEET METAL WPL 04500031 Contact Us For Availability
32
DOOR SWITCH/BRACKET ASSY WPL Y04500032 Contact Us For Availability
33
ACCESS DOOR WPL 04500033 Contact Us For Availability
34
HEX NUT WPL 04500034 Contact Us For Availability
35
FILTER KIT - 28`` WPL Y04500035 Contact Us For Availability
36
28`` DOOR KIT WPL Y04500036 Contact Us For Availability
37
MAGNET WPL 04500037 Contact Us For Availability
38
SCREW WPL 04500038 Contact Us For Availability
39
NUT, SHEET METAL WPL 04500039 Contact Us For Availability
40
CRANK ROD/SPRING ASSY WPL 04500040 Contact Us For Availability
41
U-BOLT WPL 04500041 Contact Us For Availability
42
FLAT WASHER WPL Y04500042 Contact Us For Availability
43
CRANK WPL 04500043 Contact Us For Availability
45
PLATE, BACK-UP WPL 04500045 Contact Us For Availability
46
BRACKET ASSY., SWITCH (LOWER) WPL Y04500046 Contact Us For Availability
48
SCREW WPL 04500048 Contact Us For Availability
49
GEAR MOTOR WPL 04500049 Contact Us For Availability
49
GEAR, MOTOR ASSY WPL 04500060 Contact Us For Availability
50
MOTOR BRACKET WPL 04500050 Contact Us For Availability
51
28`` TRANSITION WELDMENT WPL Y04500051 Contact Us For Availability
52
FLAT WASHER WPL 04500052 Contact Us For Availability
53
STOP BRACKET WELDMENT WPL 04500053 Contact Us For Availability
54
SPACER WPL 04500054 Contact Us For Availability
55
BACK SIDE STRIP WPL 04500055 Contact Us For Availability
56
VENTURI, PLATE WELDMENT WPL 04500056 Contact Us For Availability
57
NUT, HEX FLANGE WPL Y04500057 Contact Us For Availability
58
GROMMET, POWER CORD WPL Y04500058 Contact Us For Availability
59
CORD, POWER WPL 04500059 Contact Us For Availability
59
RECEPTACLE WPL 04500063 Contact Us For Availability
× ![]()
