Model LG HU70LA – Common Parts & Diagrams

Common parts from model LG HU70LA

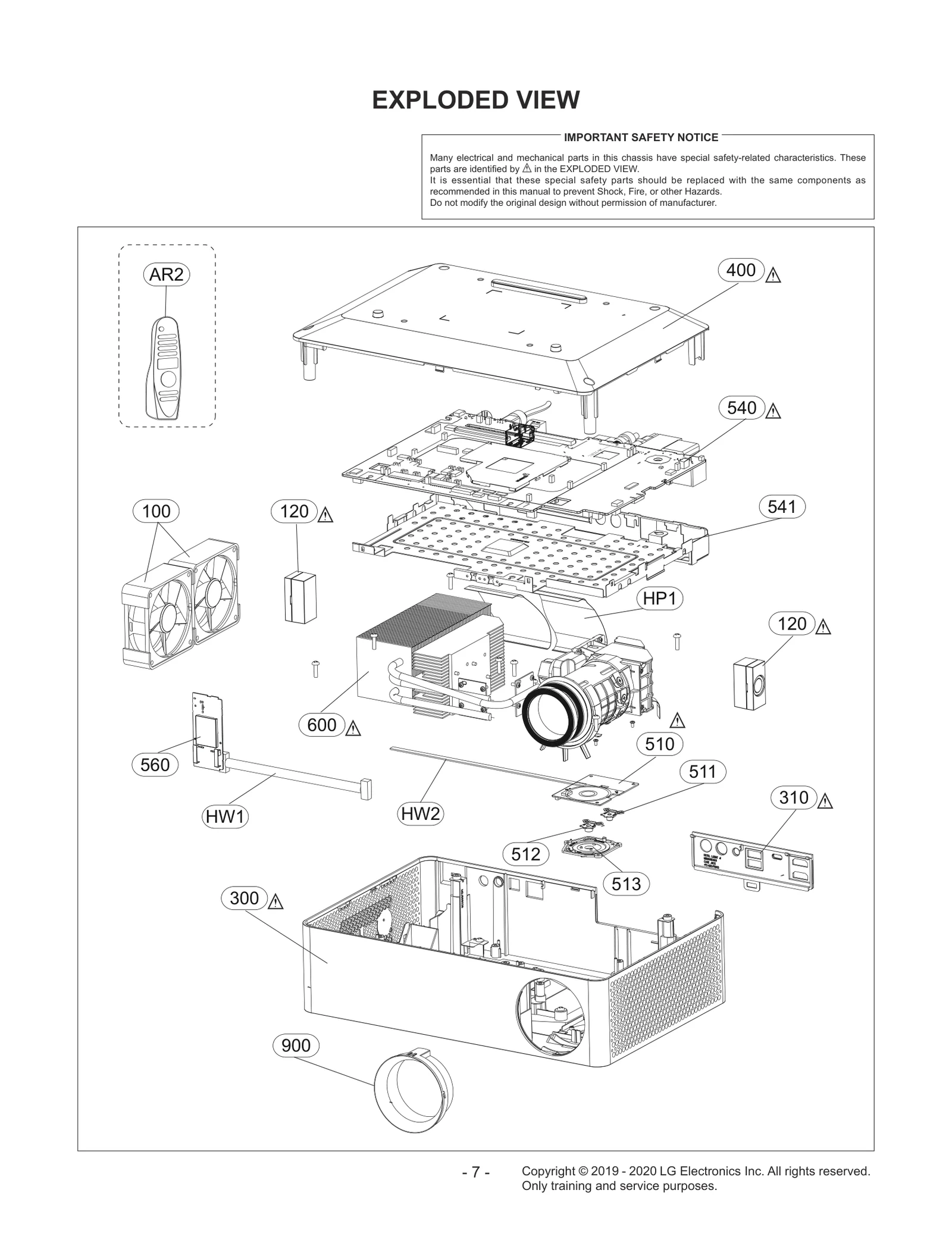

Diagram 0

Print

• This Diagram
• All Diagrams

100

Bracket Assembly LGE ABA73268502 Contact Us For Availability

View on Model

120

Speaker,Full Range Backorder LGE EAB62728502 View Details $35.37

View on Model

300

CASE ASSEMBLY Backorder LGE ABQ77464001 View Details $99.53

View on Model

310

Case LGE MBN66183801 Contact Us For Availability

View on Model

400

Case Assembly LGE ABQ77442901 Contact Us For Availability

View on Model

510

PCB Assembly,Sub LGE EBR88463401 Contact Us For Availability

View on Model

511

Button LGE MBG67664503 Contact Us For Availability

View on Model

512

Button,Power LGE MBG66803101 Contact Us For Availability

View on Model

513

Button,Control LGE MBG66803007 Contact Us For Availability

View on Model

540

Chassis Assembly LGE EBT66234201 Contact Us For Availability

View on Model

541

Plate,Shield LGE MGJ66981301 Contact Us For Availability

View on Model

560

EAT64454801 LG WiFi Bluetooth Module Backorder LGE EAT64454801 View Details $57.79

View on Model

560

EAT64454802 LG Wi-Fi Bluetooth Module Backorder LGE EAT64454802 View Details $57.79

View on Model

600

Chassis Assembly LGE EBT66234101 Contact Us For Availability

View on Model

660

IC,ASIC Backorder LGE EAN65186502 View Details $552.17

View on Model

665

Damper LGE MCQ70861802 Contact Us For Availability

View on Model

900

DECOR Backorder LGE MCR68127001 View Details $2.23

View on Model

A3

Power Cord,Detach LGE EAD63785902 Contact Us For Availability

View on Model

A4

Adapters LGE EAY65068601 Contact Us For Availability

View on Model

AR2

Remote Controller Assembly LGE AKB75735303 Contact Us For Availability

View on Model

HP1

PCB,FLEXIBLE Backorder LGE EAX69028301 View Details $35.37

View on Model

HW1

Harness,Single LGE EAD64126106 Contact Us For Availability

View on Model

HW2

Cable,FFC LGE EAD61670727 Contact Us For Availability

View on Model

×
