Model LG HTS20GBNCC – Common Parts & Diagrams
Diagram 0

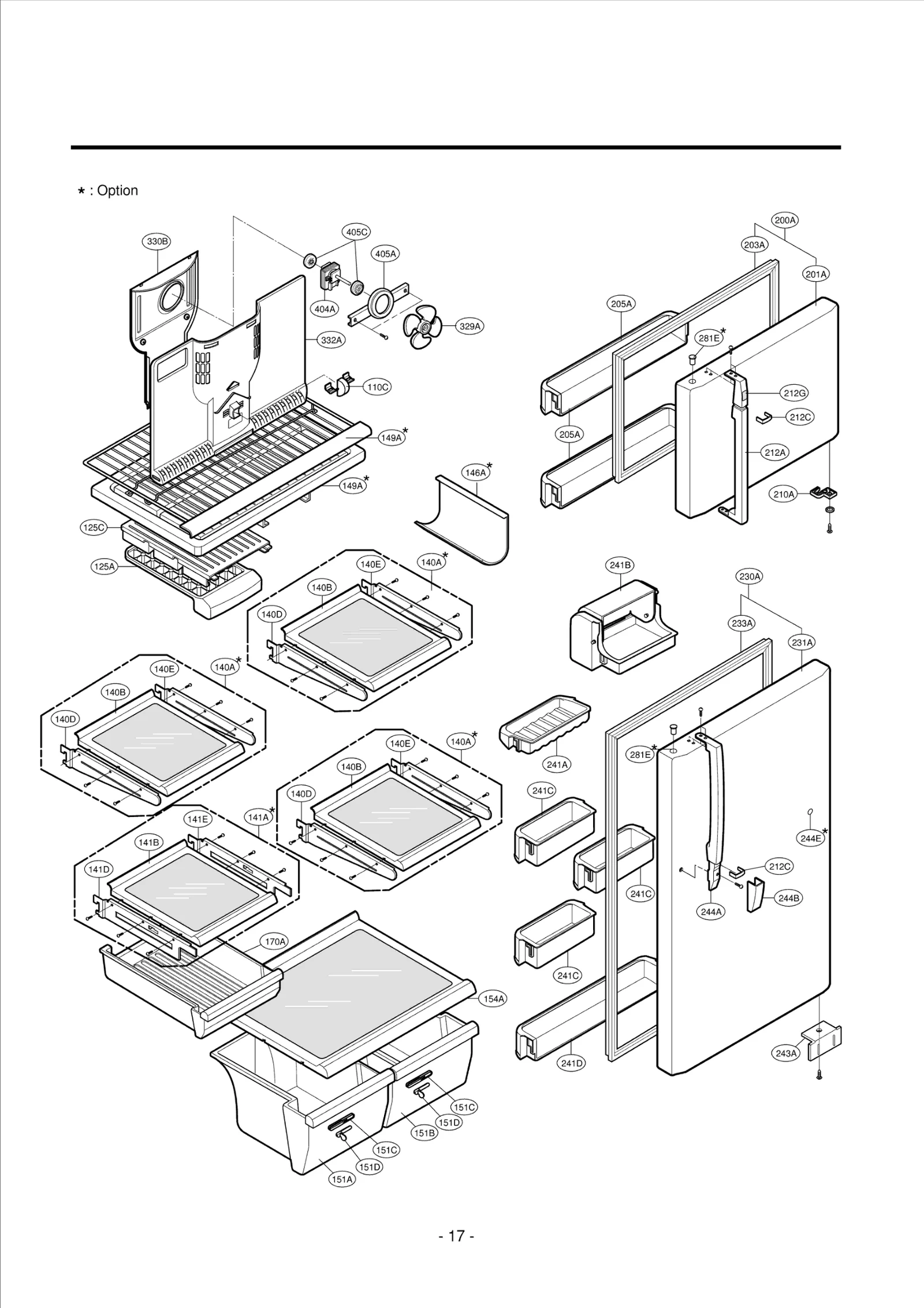

Diagram 1
Diagram 2
Common parts from model LG HTS20GBNCC
106A
LEG ASSY,ADJUST LGE 4779JA2003B Contact Us For Availability
110C
KNOB,DAMPER LGE 4940JD1007C Contact Us For Availability
113B
GUIDE LGE 4974JA2033A Contact Us For Availability
113C
SPRING LGE 4970JA3016A Contact Us For Availability
113D
GASKET LGE 4986JA2024A Contact Us For Availability
120A
CONTROL BOX ASSEMBLY (REFRIG) LGE 4995JA1022H Contact Us For Availability
120B
CONTROL BOX,R LGE 4994JD1037B Contact Us For Availability
120C
KNOB,DAMPER LGE 4940JD1006E Contact Us For Availability
125A
TRAY,ICE LGE 3390JA1111A Contact Us For Availability
125C
COVER,TRAY LGE 3550JA1119A Contact Us For Availability
140A
SHELF ASSEMBLY,NET LGE 5027JA1041J Contact Us For Availability
140B
SHELF ASSEMBLY,R LGE 5027JA1030E Contact Us For Availability
140D
SHELF,NET LGE 5026JA2016F Contact Us For Availability
140E
SHELF,NET LGE 5026JA2016E Contact Us For Availability
141A
SHELF ASSEMBLY,R LGE 5027JA1019U Contact Us For Availability
141D
SHELF,NET LGE 5026JA2012F Contact Us For Availability
141E
SHELF,NET LGE 5026JA2012C Contact Us For Availability
145A
HOLDER,SHELF LGE 4930JA2032A Contact Us For Availability
145B
HOLDER,SHELF LGE 4930JA2031A Contact Us For Availability
147A
BANK LGE 5074JA1008A Contact Us For Availability
149A
SHELF ASSY,F LGE 5026JA1108A Contact Us For Availability
151A
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1036G Contact Us For Availability
151B
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1036H Contact Us For Availability
151C
KNOB LGE 4940JA2012A Contact Us For Availability
151D
KNOB LGE 4940JA2011A Contact Us For Availability
154A
COVER ASSY,T/V LGE 3551JA1027D Contact Us For Availability
158C
COVER,LAMP LGE 3550JA2096A Contact Us For Availability
170A
TRAY,MEAT LGE 3390JD1050H Contact Us For Availability
200A
DOOR ASSEMBLY,F LGE 3581JA1045H Contact Us For Availability
201A
LGE 5433JA1056H LGE 5433JA1056H Contact Us For Availability
203A
GASKET ASSEMBLY,DOOR LGE 4987JA1032W Contact Us For Availability
205A
BASKET,DOOR LGE 5004JD1110B Contact Us For Availability
210A
STOPPER,DOOR LGE 4620JA2011A Contact Us For Availability
212A
FREEZER HANDLE LGE 3650JA1069F Contact Us For Availability
212C
HANDLE,PIECE LGE 3650JA2027A Contact Us For Availability
212G
NAME PLATE,P(H) LGE 4140JD2001D Contact Us For Availability
230A
DOOR ASSEMBLY,R LGE 3581JA1046R Contact Us For Availability
231A
LGE 5433JA1057N LGE 5433JA1057N Contact Us For Availability
233A
GASKET ASSEMBLY,DOOR LGE 4987JA1032X Contact Us For Availability
241B
BASKET ASSY,DOOR LGE 5005JA1001B Contact Us For Availability
241C
BASKET,DOOR LGE 5004JD1112B Contact Us For Availability
241D
BASKET,DOOR LGE 5004JD1111C Contact Us For Availability
243A
STOPPER LGE 4620JA3010B Contact Us For Availability
244A
HANDLE,R LGE 3650JA1070F Contact Us For Availability
244B
HANDLE,DECO LGE 3650JA1099C Contact Us For Availability
244E
CAP,HINGE LGE 5006JA3055D Contact Us For Availability
281A
COVER,HINGE LGE 3550JA2132E Contact Us For Availability
281B
HINGE ASSY,U LGE 4775JA2031B Contact Us For Availability
281E
CAP,HINGE LGE 5006JA3054D Contact Us For Availability
282B
HINGE ASSY,C LGE 4774JA2005A Contact Us For Availability
282C
WASHER,PLAIN LGE 1WPZJA3007A Contact Us For Availability
282E
CAP,HINGE LGE 5006JA2011Q Contact Us For Availability
282H
CAP,HINGE LGE 5006JA2020B Contact Us For Availability
283B
HINGE ASSY,L LGE 4775JA2026A Contact Us For Availability
284A
COVER,GRILLE FAN LGE 3550JA2191A Contact Us For Availability
284C
CAP,SCREW LGE 5006JA3080A Contact Us For Availability
284D
COVER,TUBE LGE 3550JA3121A Contact Us For Availability
301A
EVAPORATOR ASSY LGE 5421JA1032A Contact Us For Availability
304A
COVER,BACK-M/C LGE 3550JA1117A Contact Us For Availability
307A
COMPRESSOR,ASSEMBLY LGE 2521JA1006C Contact Us For Availability
308A
P.T.C LGE 6748JA3001A Contact Us For Availability
309A
O.L.P LGE 6750JA3001A Contact Us For Availability
310A
COVER,P.T.C LGE 3550JA2158A Contact Us For Availability
310B
STOPPER,CORD LGE 4620JA3014A Contact Us For Availability
312A
RUBBER,SEAT LGE 5040JA3044A Contact Us For Availability
315A
COMP BASE ASSY,STD LGE 3103JA1015B Contact Us For Availability
318A
HOLDER DRIER LGE J719-00006A Contact Us For Availability
319A
TRAY,DRIP LGE 3390JA1115A Contact Us For Availability
319C
GUIDE,FAN LGE 4974JA1046A Contact Us For Availability
323B
CONDENSER ASSY,WIRE LGE 5403JA1026A Contact Us For Availability
329C
FAN ASSY LGE 5901JA1005B Contact Us For Availability
330B
SHROUD,F LGE 4998JA1010A Contact Us For Availability
332A
GRILLE ASSY,FAN LGE 3531JA1018L Contact Us For Availability
334A
COVER LGE 3550JA2095A Contact Us For Availability
334B
RUBBER LGE 5040JA3039A Contact Us For Availability
401A
CONTROL ASSY,DEF LGE 6615JB2003F Contact Us For Availability
404A
MOTOR ASSEMBLY,REF FAN LGE 4681JB1018P Contact Us For Availability
409B
LAMP,INCANDESCENT LGE 6912JB2004C Contact Us For Availability
410C
DEFROST TIMER LGE 6914JB2006G Contact Us For Availability
410G
CAPACITOR[M/R] LGE 0CBZJB2001E Contact Us For Availability
411A
POWER CORD ASSY LGE 6411JB1013B Contact Us For Availability
418A
HEATER,SHEATH LGE 5300JB1050R Contact Us For Availability
420A
MOTOR(MECH),FAN LGE 4680JB1029A Contact Us For Availability
5074AA
BANK,ICE LGE 5074JA1023A Contact Us For Availability
BOX
LGE 3890JC2855E LGE 3890JC2855E Contact Us For Availability
OM
MANUAL,OWNERS LGE 3828JD8315V Contact Us For Availability
SM
MANUAL,SERVICE LGE 3828JD8488D Contact Us For Availability
× ![]()
