Model Maytag HSL2450 COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - MISCELLAEOUS INFORMATION
02 - DOOR/OUTER CABINET
03 - CONTROL PANELS
04 - INTERIOR COMPONENTS
05 - UPPER LAMP ASSEMBLY
06 - LOWER LAMP ASSEMBLY
07 - CAVITY & BASEPAN
08 - BLOWER

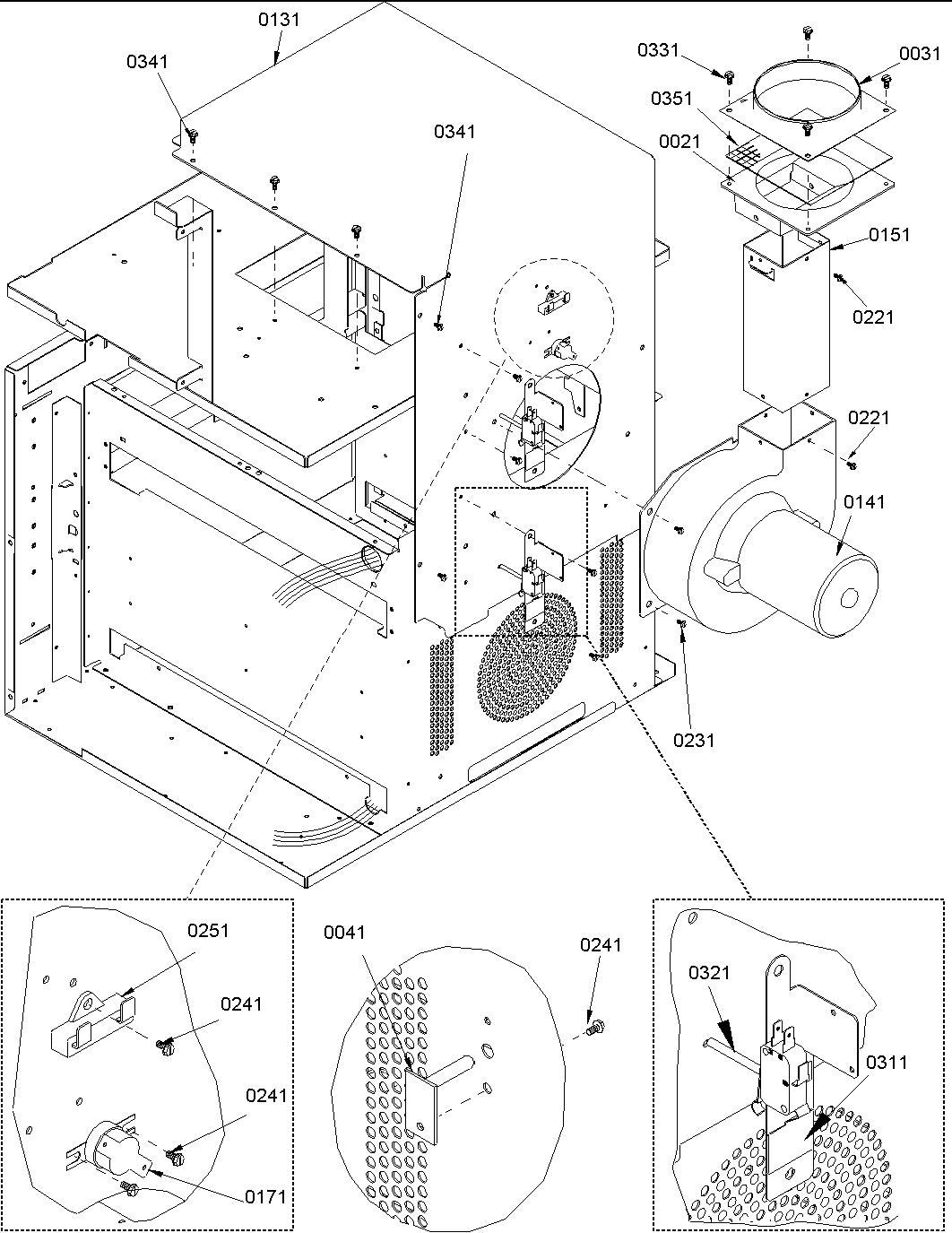

01 - BLOWER

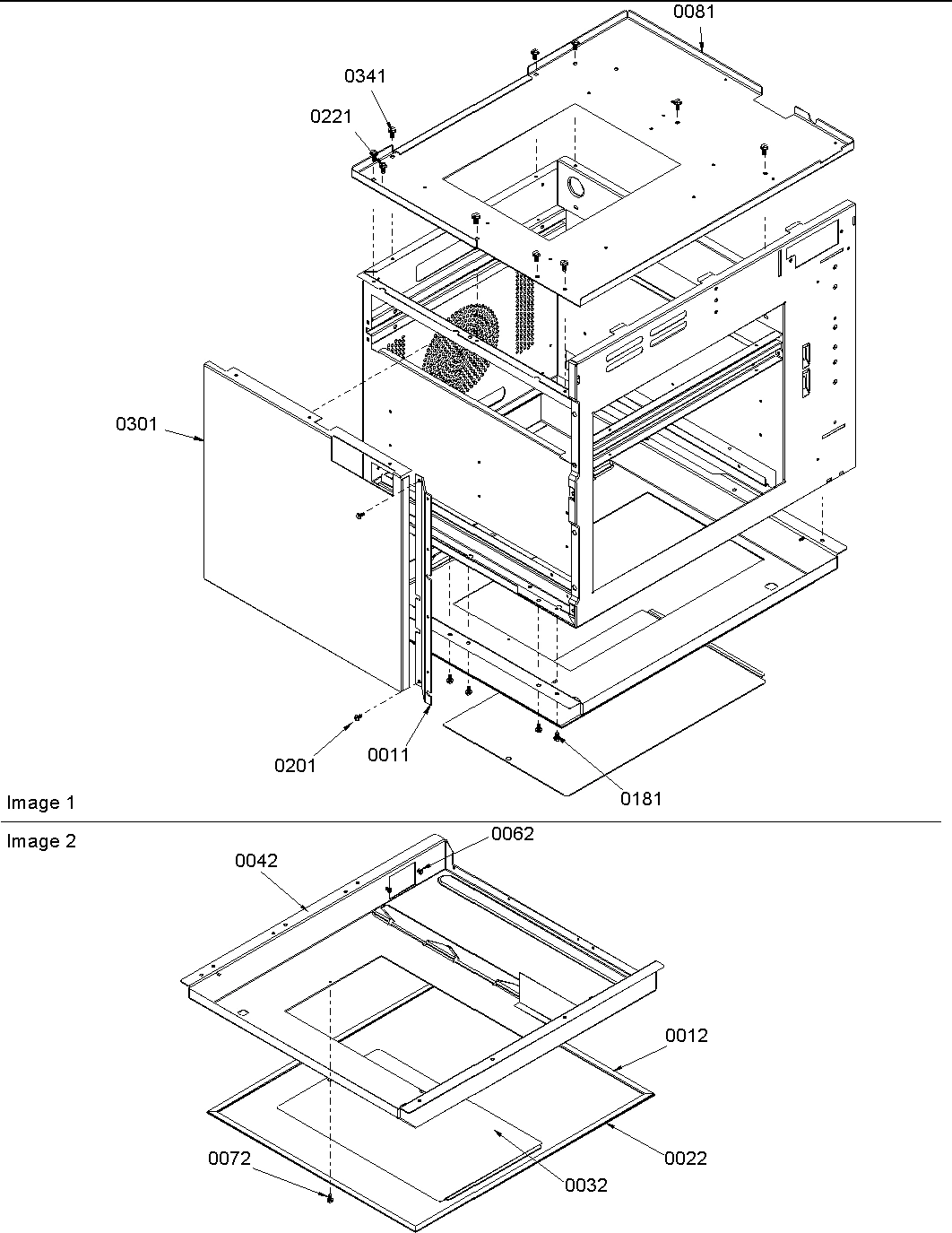

02 - CAVITY & BASEPAN

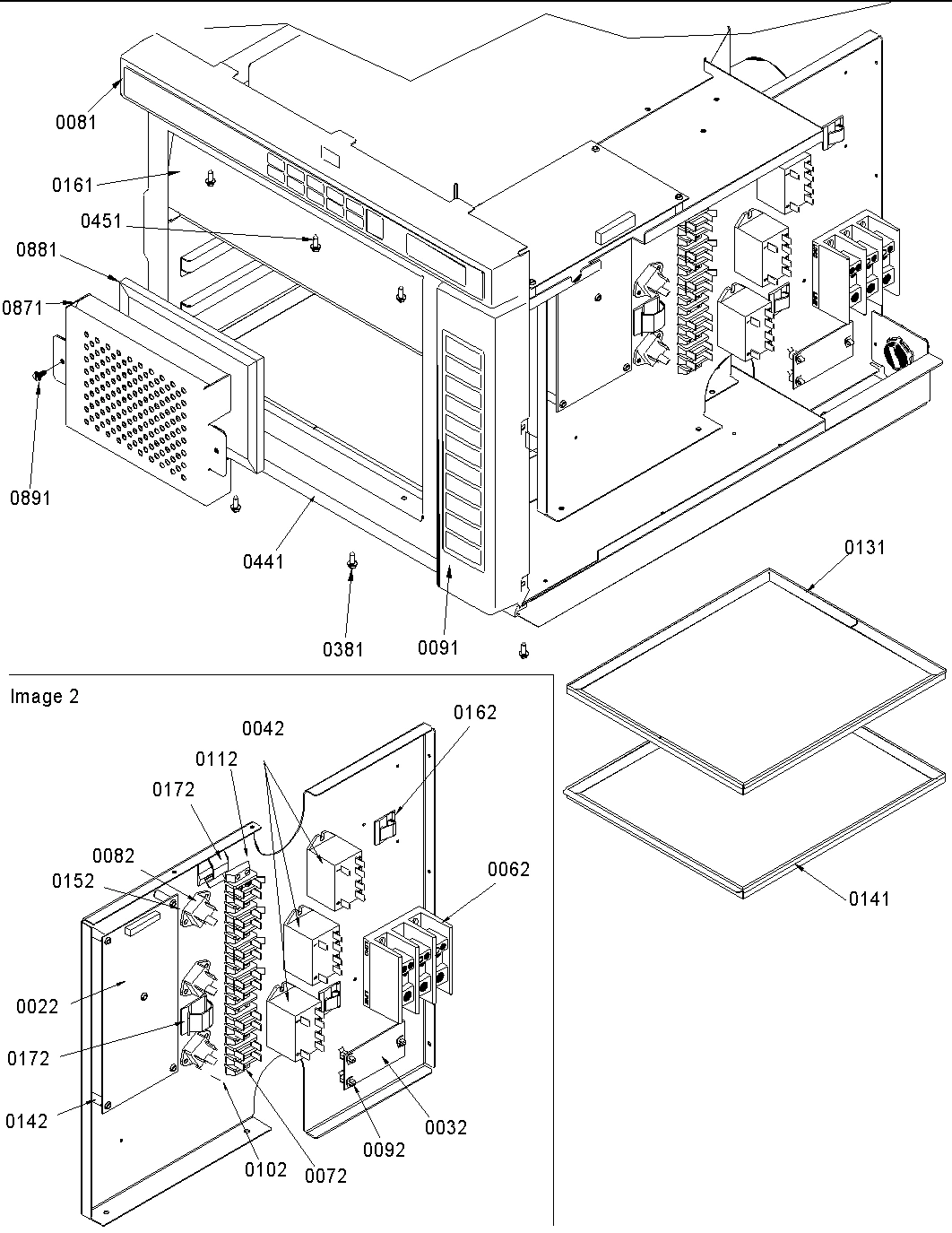

03 - CONTROL PANELS

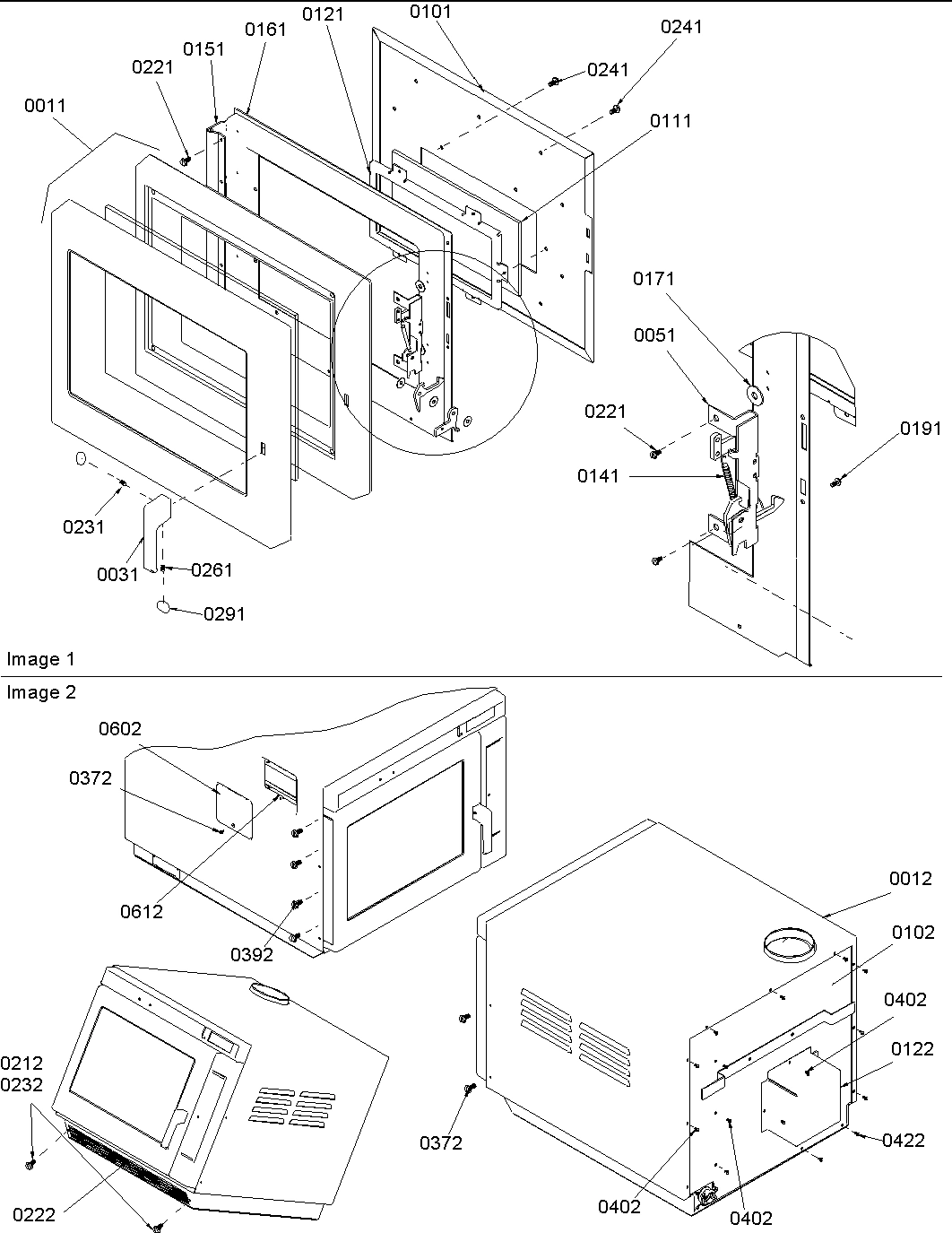

04 - DOOR/OUTER CABINET

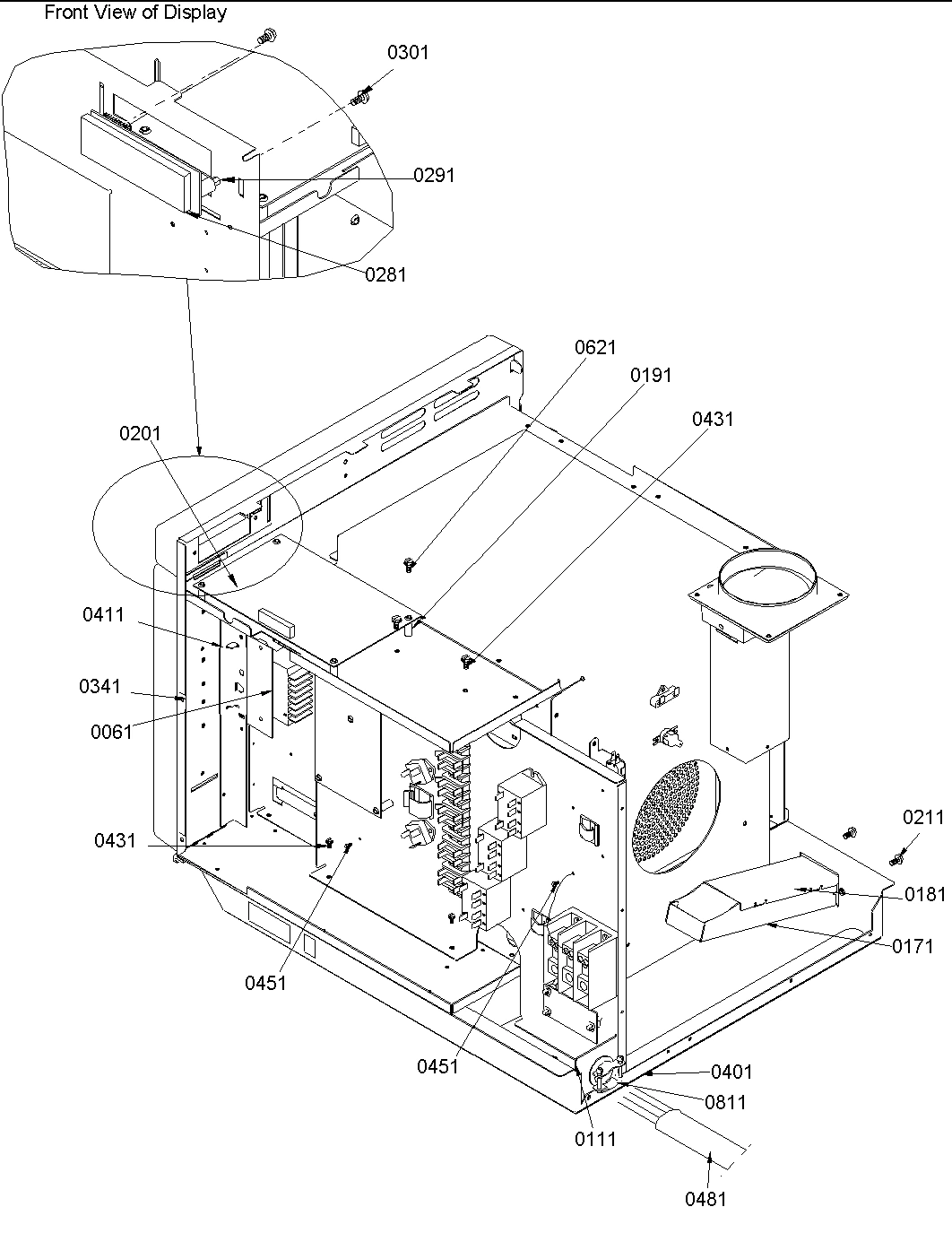

05 - INTERIOR COMPONENTS

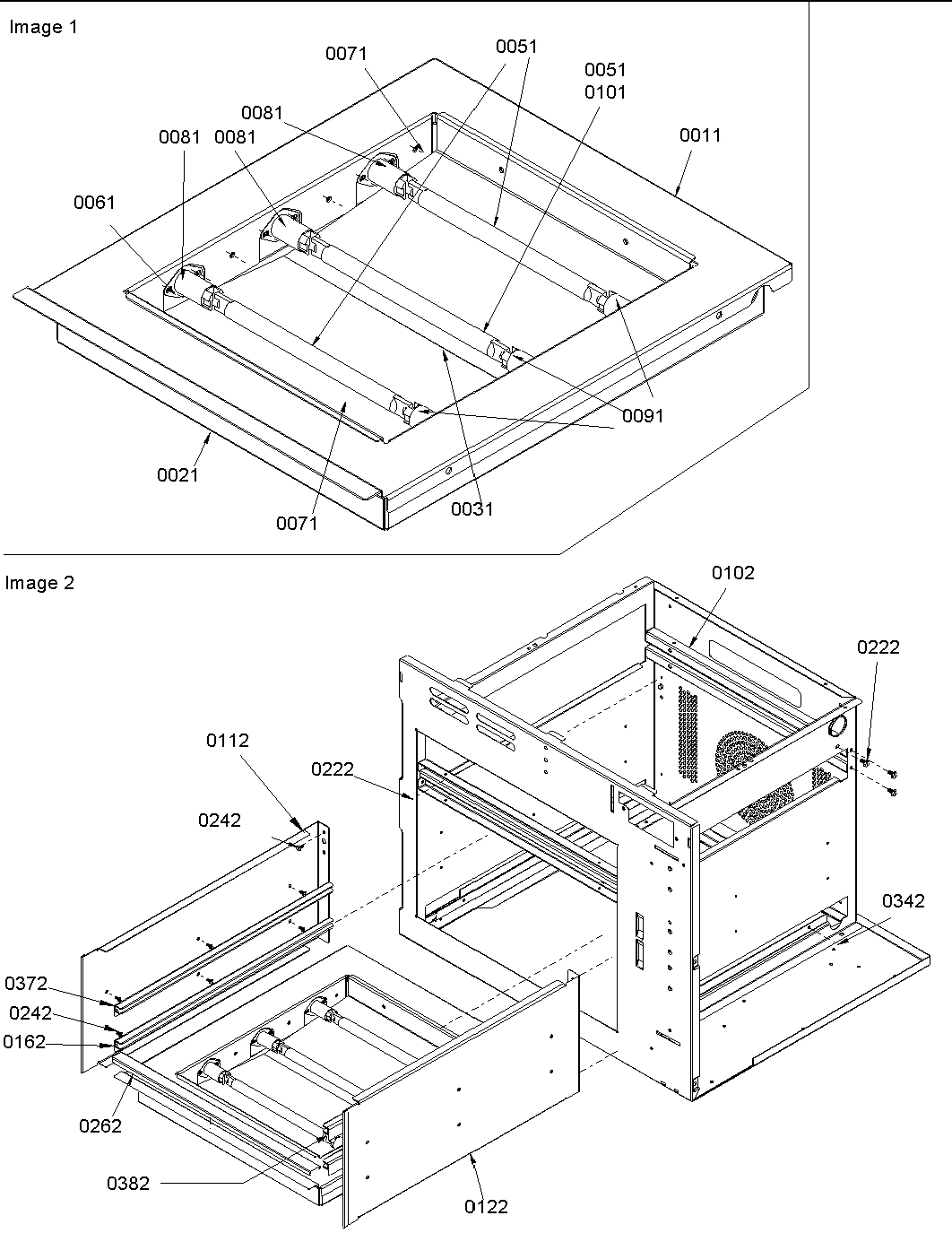

06 - LOWER LAMP ASSEMBLY
07 - MISCELLAEOUS INFORMATION

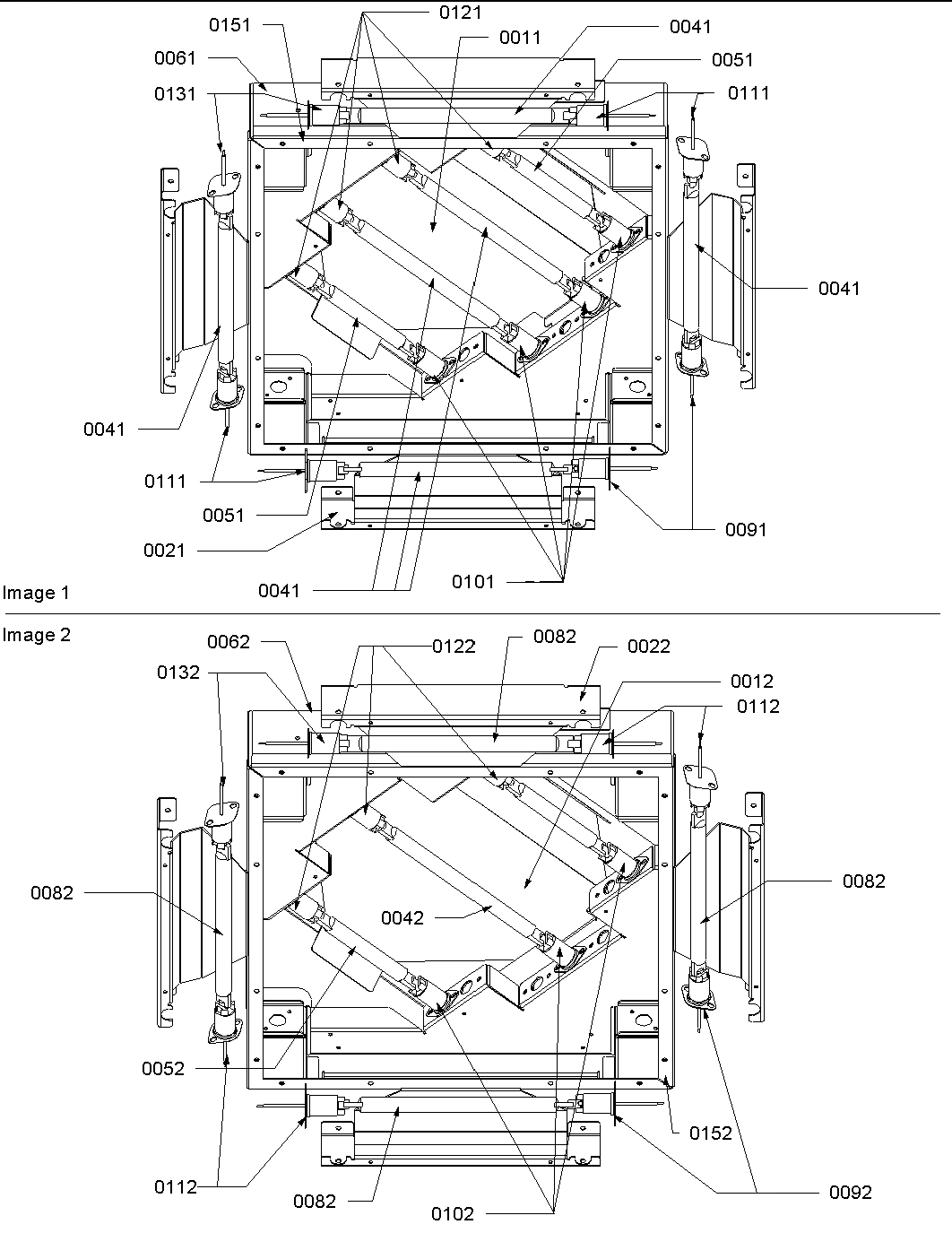

08 - UPPER LAMP ASSEMBLY
Common parts from model Maytag HSL2450 COMMERCIAL MICROWAVE
1
MNL, PTS HS LIGHT OVEN MAY RP2820001 Contact Us For Availability
1
MNL,SVC(COMM`L WAVE OVEN) MAY RS2820001 Contact Us For Availability
1
MAY RT2820001 MAY RT2820001 Contact Us For Availability
11
MAY R0156054 MAY R0156054 Contact Us For Availability
11
MAY 12237102 MAY 12237102 Contact Us For Availability
11
MAY 12189002 MAY 12189002 Contact Us For Availability
12
WRAPPER-OC (SS) MAY 10908902 Contact Us For Availability
12
MAY 12237401 MAY 12237401 Contact Us For Availability
12
MAY 10732506 MAY 10732506 Contact Us For Availability
21
MAY 12237201 MAY 12237201 Contact Us For Availability
21
MAY 11009401 MAY 11009401 Contact Us For Availability
21
MNL, USE & CARE MAY 12153401 Contact Us For Availability
22
MAY 12136801 MAY 12136801 Contact Us For Availability
22
MAY 12237501 MAY 12237501 Contact Us For Availability
22
MAY 10732507 MAY 10732507 Contact Us For Availability
31
MAY 10822301 MAY 10822301 Contact Us For Availability
31
MAY 12237601 MAY 12237601 Contact Us For Availability
31
MAY 11009701 MAY 11009701 Contact Us For Availability
32
MAY 12136901 MAY 12136901 Contact Us For Availability
32
MAY 10782402 MAY 10782402 Contact Us For Availability
41
MAY 12000201 MAY 12000201 Contact Us For Availability
42
MAY 12147101 MAY 12147101 Contact Us For Availability
42
MAY 12109404 MAY 12109404 Contact Us For Availability
42
BASEPAN WELD MAY R0150201 Contact Us For Availability
51
KIT, LATCH MAY R0150198 Contact Us For Availability
52
MAY 12109406 MAY 12109406 Contact Us For Availability
61
MAY 12232002 MAY 12232002 Contact Us For Availability
62
MAY 12147301 MAY 12147301 Contact Us For Availability
62
MAY 12109502 MAY 12109502 Contact Us For Availability
62
MAY M0294701 MAY M0294701 Contact Us For Availability
72
BLOCK, TERMINAL MAY 12147401 Contact Us For Availability
072
SCREW-SM MAY M0213815 Contact Us For Availability
81
MAY R0156053 MAY R0156053 Contact Us For Availability
81
MAY 12176506 MAY 12176506 Contact Us For Availability
81
MAY 12236501 MAY 12236501 Contact Us For Availability
82
MAY D7681501 MAY D7681501 Contact Us For Availability
82
MAY 12109405 MAY 12109405 Contact Us For Availability
91
MAY R0156052 MAY R0156052 Contact Us For Availability
91
MAY 12176507 MAY 12176507 Contact Us For Availability
92
MAY M0585505 MAY M0585505 Contact Us For Availability
92
MAY 12176501 MAY 12176501 Contact Us For Availability
101
MAY 12237801 MAY 12237801 Contact Us For Availability
102
WELD, PANEL MAY 12148701 Contact Us For Availability
102
MAY 12176502 MAY 12176502 Contact Us For Availability
102
MAY 12238801 MAY 12238801 Contact Us For Availability
111
MAY 12108503 MAY 12108503 Contact Us For Availability
111
MAY 12239001 MAY 12239001 Contact Us For Availability
112
SCREW-SM MAY M0216517 Contact Us For Availability
112
MAY 12176503 MAY 12176503 Contact Us For Availability
112
MAY 12237701 MAY 12237701 Contact Us For Availability
121
MAY 12297401 MAY 12297401 Contact Us For Availability
122
MAY 12176504 MAY 12176504 Contact Us For Availability
122
MAY 12237702 MAY 12237702 Contact Us For Availability
122
MAY 12239101 MAY 12239101 Contact Us For Availability
131
MAY 12265601 MAY 12265601 Contact Us For Availability
131
ASSY, AIR DUCT (WELDMENT) MAY 12110601 Contact Us For Availability
132
MAY 12176505 MAY 12176505 Contact Us For Availability
141
MAY C8893502 MAY C8893502 Contact Us For Availability
141
PANEL, LOWER MAY 12265802 Contact Us For Availability
141
MAY 12110701 MAY 12110701 Contact Us For Availability
151
MAY C8961811 MAY C8961811 Contact Us For Availability
151
ASSY, EXHAUST EXT (WELDMENT) MAY 12110802 Contact Us For Availability
152
MAY 12235301 MAY 12235301 Contact Us For Availability
161
WELDMENT-INNER DOOR MAY D7683907 Contact Us For Availability
161
FACADE, CAVITY MAY 12238401 Contact Us For Availability
162
SUPPORT-RACK MAY 12239301 Contact Us For Availability
162
MAY 12000301 MAY 12000301 Contact Us For Availability
171
MAY M0270528 MAY M0270528 Contact Us For Availability
171
PROTECTOR, THERMAL MAY B5684109 Contact Us For Availability
171
MAY 12112402 MAY 12112402 Contact Us For Availability
172
MAY M0104102 MAY M0104102 Contact Us For Availability
181
MAY M0224416 MAY M0224416 Contact Us For Availability
181
MAY 12238601 MAY 12238601 Contact Us For Availability
191
MAY A4539601 MAY A4539601 Contact Us For Availability
191
MAY M0800601 MAY M0800601 Contact Us For Availability
201
CONTROL BOARD MAY R0163327 Contact Us For Availability
201
MAY M0231704 MAY M0231704 Contact Us For Availability
211
MAY M0010214 MAY M0010214 Contact Us For Availability
211
MAY M0209701 MAY M0209701 Contact Us For Availability
221
SCREW-SM MAY M0216529 Contact Us For Availability
231
MAY 5051032202 MAY 5051032202 Contact Us For Availability
231
MAY M0211357 MAY M0211357 Contact Us For Availability
232
MAY M0274066 MAY M0274066 Contact Us For Availability
241
SCREW-SM MAY YM0214931 Contact Us For Availability
241
SCREW-TF MAY M0234403 Contact Us For Availability
251
MAY B5795305 MAY B5795305 Contact Us For Availability
261
MAY M0208342 MAY M0208342 Contact Us For Availability
262
MAY 12352401 MAY 12352401 Contact Us For Availability
281
MAY 12040201 MAY 12040201 Contact Us For Availability
291
MAY 12285602 MAY 12285602 Contact Us For Availability
291
MAY M0800401 MAY M0800401 Contact Us For Availability
301
MAY M0223416 MAY M0223416 Contact Us For Availability
301
MAY 12236801 MAY 12236801 Contact Us For Availability
311
ASSY, INTERLOCK SW MAY 12112002 Contact Us For Availability
321
PIN-INTLCK MAY NLA Contact Us For Availability
321
MAY 12112301 MAY 12112301 Contact Us For Availability
331
SCREW,AB 8-18 X .375 MAY 31750410 Contact Us For Availability
341
MAY M0287001 MAY M0287001 Contact Us For Availability
341
SCREW-TF MAY M0253516 Contact Us For Availability
351
MAY 12235401 MAY 12235401 Contact Us For Availability
372
MAY M0249619 MAY M0249619 Contact Us For Availability
381
SCREW-TR MAY M0234016 Contact Us For Availability
411
SCREW-TC MAY M0253504 Contact Us For Availability
441
MAY 10909001 MAY 10909001 Contact Us For Availability
481
MAY 10098914 MAY 10098914 Contact Us For Availability
501
MAY 12166401 MAY 12166401 Contact Us For Availability
511
HARNESS, POWER BOARD MAY 12166502 Contact Us For Availability
521
MAY 12166601 MAY 12166601 Contact Us For Availability
531
MAY 12166701 MAY 12166701 Contact Us For Availability
602
MAY 10785602 MAY 10785602 Contact Us For Availability
612
MAY M0288213 MAY M0288213 Contact Us For Availability
621
MAY M0216525 MAY M0216525 Contact Us For Availability
641
MAY M0275408 MAY M0275408 Contact Us For Availability
781
MAY 12189601 MAY 12189601 Contact Us For Availability
811
MAY 12190201 MAY 12190201 Contact Us For Availability
821
MAY 12176401 MAY 12176401 Contact Us For Availability
871
MAY 12346201 MAY 12346201 Contact Us For Availability
881
MAY 12181302 MAY 12181302 Contact Us For Availability
891
MAY M0236401 MAY M0236401 Contact Us For Availability
× ![]()
