Model LG HQ-2244UH WINDOW AC – Common Parts & Diagrams

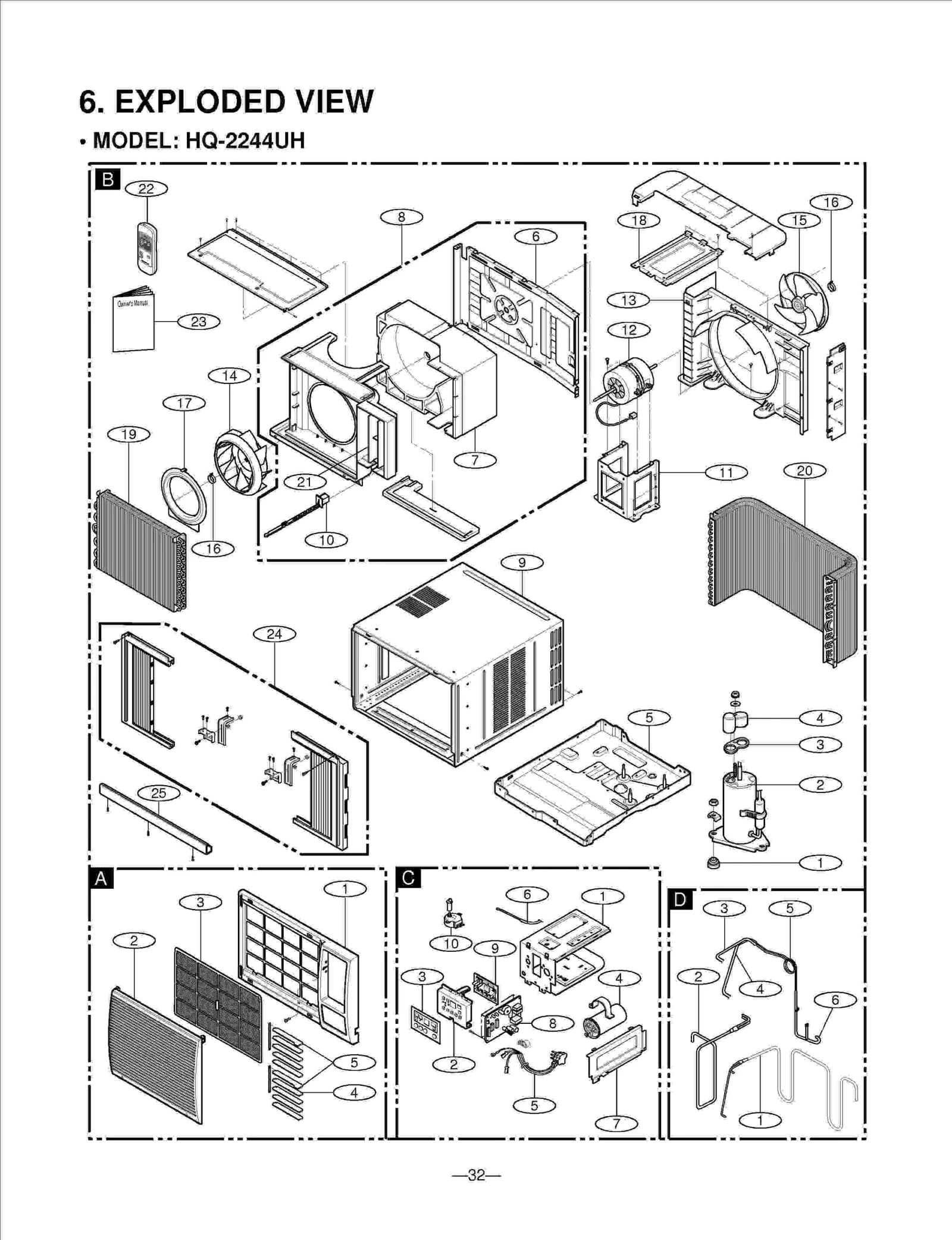

Diagram 0
Common parts from model LG HQ-2244UH WINDOW AC
130910
CABINET ASSEMBLY,SINGLE LGE 3091AR6056J Contact Us For Availability
135301
GRILLE,FRONT LGE 3530A10138A Contact Us For Availability
135303
GRILLE,INLET LGE 3530A10139A Contact Us For Availability
135312
LGE 3531A10189D LGE 3531A10189D Contact Us For Availability
135500
COVER LGE 3550A30048C Contact Us For Availability
135515
COVER ASSY,TOP(INDOO LGE 3551A30001A Contact Us For Availability
147581
LOUVER,HORIZONTAL LGE 4758AR7264J Contact Us For Availability
147581
LOUVER,HORIZONTAL LGE 4758AR7278J Contact Us For Availability
147582
LOUVER LGE 4758AR6157A Contact Us For Availability
147900
BARRIER,SINGLE LGE 4790A10036A Contact Us For Availability
149980
SHROUD LGE 4998AR1602A Contact Us For Availability
152312
FILTER ASSEMBLY,AIR CLEANER LGE 5231AR6159F Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20060D Contact Us For Availability
249950
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20315J Contact Us For Availability
263230
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
267110
REMOTE CONTROLLER ASSEMBLY LGE 6711A90018D Contact Us For Availability
268712
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20195T Contact Us For Availability
268714
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10070T Contact Us For Availability
330720
SCROLL LGE 3072A20009A Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20011L Contact Us For Availability
349480
ORIFICE LGE 4948A20014A Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960AR2895B Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A30325D Contact Us For Availability
352390
AIR GUIDE ASSEMBLY LGE 5239A20001V Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20017N Contact Us For Availability
552101
TUBE,CAPILLARY LGE 5425AR3147X Contact Us For Availability
552113
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A10067F Contact Us For Availability
554031
CONDENSER ASSEMBLY,BENT LGE 5403A20032F Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UHFK2CA Contact Us For Availability
559010
FAN ASSEMBLY,AXIAL LGE 5900AR1330B Contact Us For Availability
731273
INSTALL PART ASSEMBLY,SINGLE LGE 3127A10015U Contact Us For Availability
738290
LGE 3828A20391G LGE 3828A20391G Contact Us For Availability
749740
TOP RETAINER BAR ASM LGE 2H00858D Contact Us For Availability
W0CZZ
CAPACITOR LGE 6120AR2194P Contact Us For Availability
W4986
GASKET LGE 4986U-L004A Contact Us For Availability
W50400
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
W52106-1
TUBE,EVAPORATOR LGE 5210A30144U Contact Us For Availability
W52106-2
TUBE,EVAPORATOR LGE 5210A30144V Contact Us For Availability
× ![]()
