Model LG HMH030KD1 – Common Parts & Diagrams

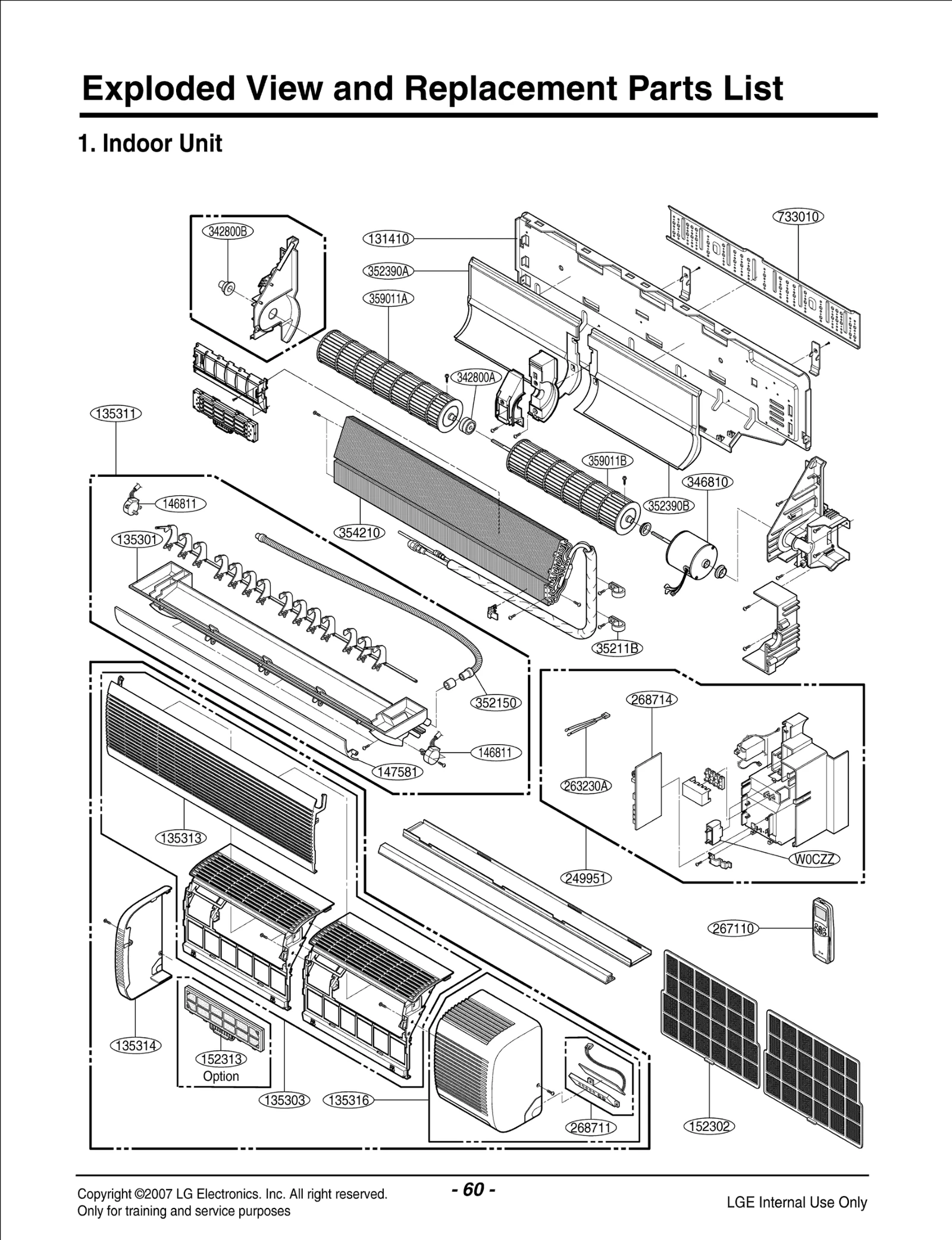

Diagram 0
Diagram 1
Common parts from model LG HMH030KD1
135303
Grille,Inlet LGE 3530A10045B Contact Us For Availability
135311
Grille Assembly,Discharge(Indoor) LGE 3531A10056M Contact Us For Availability
135313
Grille Assembly,Inlet LGE 3531A10060F Contact Us For Availability
135314
GRILLE,INLET LGE 3530A10042B Contact Us For Availability
135316
GRILLE ASSEMBLY,FRONT(INDOOR) LGE 3531A10058M Contact Us For Availability
137213A
PANEL ASSEMBLY,SIDE LGE 1A00202F Contact Us For Availability
137213B
Panel Assembly,Side LGE 3A02284N Contact Us For Availability
146811
MOTOR ASSY LGE 4681AR2727B Contact Us For Availability
147581
VANE,HORIZONTAL LGE 5990A20003B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A10001A Contact Us For Availability
152313
FILTER ASSEMBLY,DEODORIZER LGE 5231A20032F Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE 4995A20337G Contact Us For Availability
263230A
THERMISTOR ASSEMBLY INDOOR LGE 6323A20002C Contact Us For Availability
263230B
THERMISTOR ASSEMBLY LGE 6323A20002L Contact Us For Availability
267110
REMOTE CONTROLLER ASSY_PROBLEM WITH STOCK_LOG LGE 6711A20026T Contact Us For Availability
268711
PWB(PCB) ASSY,DISPLAY LGE 6871A20108A Contact Us For Availability
268714
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10153A Contact Us For Availability
342800B
BEARING LGE 4280A20001A Contact Us For Availability
346810
MOTOR ASSEMBLY,INDOOR LGE 4681AP2632H Contact Us For Availability
352150
HOSE ASSY,DRAIN LGE 5251AR1222P Contact Us For Availability
352390A
Guide Assembly,Air LGE 5239A10001A Contact Us For Availability
352390B
Guide Assembly,Air LGE 5239A10001B Contact Us For Availability
354210
EVAPORATOR ASSY,FIRST LGE 5421A20058A Contact Us For Availability
359011A
FAN ASSY,CROSS FLOW LGE 5901AR2441F Contact Us For Availability
359011B
FAN ASSY,CROSS FLOW LGE 5901AR2441G Contact Us For Availability
430410
Base Assembly,Outdoor LGE 3041AP2741Z Contact Us For Availability
435301
GRILLE,DISCHARGE LGE 3530A20007J Contact Us For Availability
435511
COVER ASSY,CONTROL(OUTDOOR) LGE 3551AR7184T Contact Us For Availability
437210
PANEL ASSY,FRONT SUB_AGL32105602 is HCI Assem LGE 1A00197C Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE 4791A30004G Contact Us For Availability
552111
TUBE ASSEMBLY,CAPILLARY LGE 5211A20034X Contact Us For Availability
552116
Tube Assembly,Reverse LGE 5211A20057B Contact Us For Availability
552202
Valve,Reverse LGE 3A02027B Contact Us For Availability
552202
VALVE,REVERSING LGE 3A02027J Contact Us For Availability
552203B
Valve,Service LGE 5220A20040C Contact Us For Availability
552203B
VALVE,SERVICE LGE 2A00393A Contact Us For Availability
552203B
VALVE,SERVICE LGE 2A00393H Contact Us For Availability
552205
VALVE,EXPANSION BODY LGE 5220A90001B Contact Us For Availability
554031
Condenser Assembly,Bending LGE 6140AP2096Q Contact Us For Availability
554160A
COMPRESSOR SET LGE 2520UKVK2BA Contact Us For Availability
554160B
COMPRESSOR SET LGE 2520UHAK2AA Contact Us For Availability
559010
Fan Assembly,Propeller LGE 1A00195G Contact Us For Availability
561410
COIL ASSEMBLY,REVERSING VALVE LGE 6141AR3733R Contact Us For Availability
566000
Switch,Pressure LGE 6600L000014 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE 4995A20383C Contact Us For Availability
668711
PWB(PCB) ASSEMBLY,MAIN(OUTDOOR LGE 6871A20514B Contact Us For Availability
733010
PLATE ASSY,INSTALL LGE 3301A10001A Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 3H01487G Contact Us For Availability
× ![]()
