Model LG HMH024KDD1 – Common Parts & Diagrams

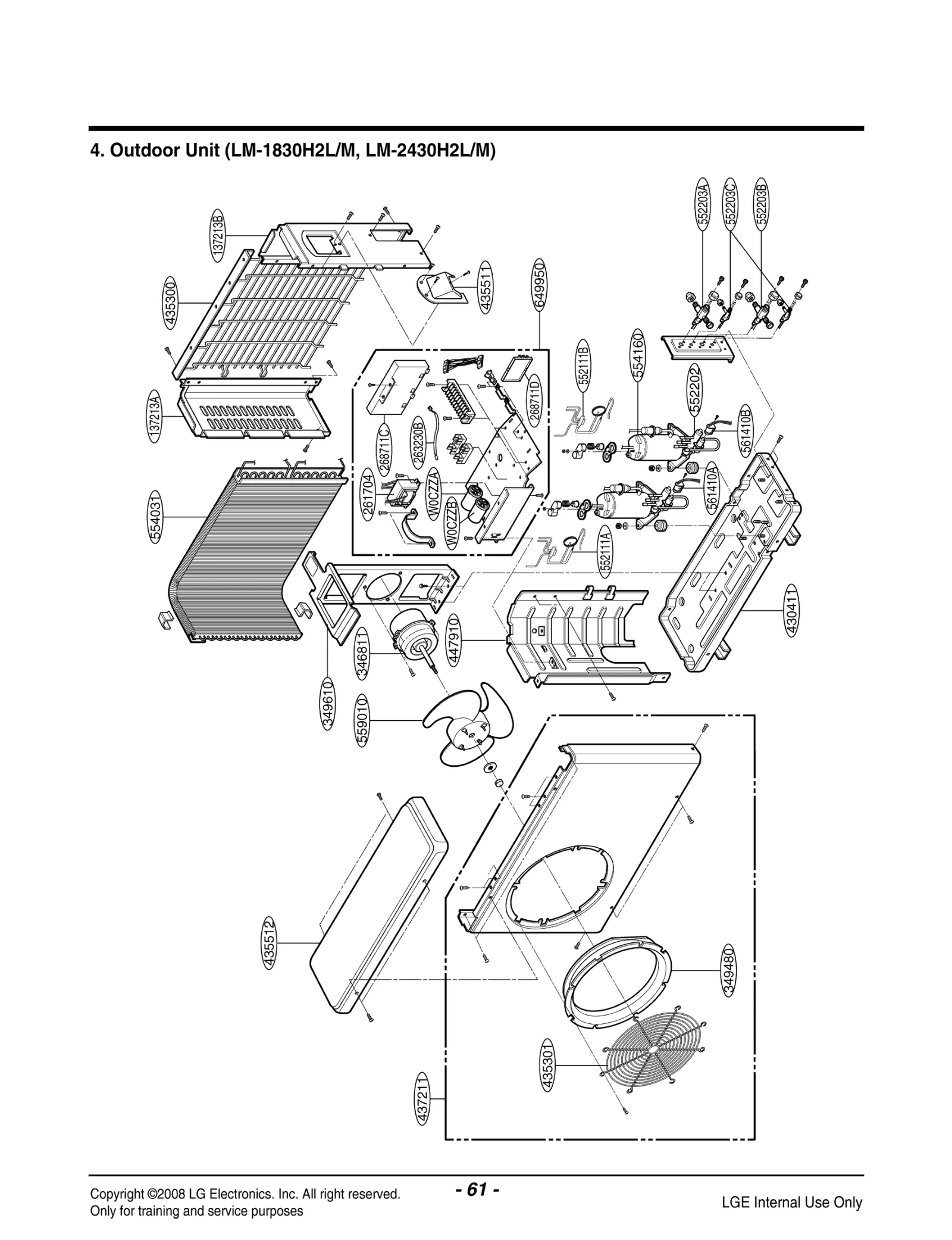

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG HMH024KDD1
35211B
TUBE ASSY,TUBING LGE 2H02449J Contact Us For Availability
131410
CHASSIS ASSY LGE 3141A20003D Contact Us For Availability
135311
Grille Assembly,Discharge(Indoor) LGE 3531A10023X Contact Us For Availability
135316
GRILLE ASSEMBLY,FRONT(INDOOR) LGE 3531A10099H Contact Us For Availability
135511
Cover LGE 3550A30035Y Contact Us For Availability
137213A
PANEL ASSY,SIDE LGE 1A00201D Contact Us For Availability
137213B
PANEL ASSY,SIDE LGE 3A02284M Contact Us For Availability
146811
MOTOR ASSY,STEP LGE 4681AR2727H Contact Us For Availability
147581A
VANE,HORIZONTAL LGE 5990A30006A Contact Us For Availability
147581B
VANE,HORIZONTAL LGE 5990A30007A Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20004E Contact Us For Availability
249951
CONTROL BOX ASSY,INDOOR LGE 4995A20143K Contact Us For Availability
261704
TRANSFORMER ASSY LGE 6171AQ3198A Contact Us For Availability
263230A
THERMISTOR ASSY LGE 6323A20003A Contact Us For Availability
263230B
THERMISTOR ASSY LGE 6323A20002A Contact Us For Availability
267110
REMOTE CONTROLLER ASSY_PROBLEM WITH STOCK_LOG LGE 6711A20026T Contact Us For Availability
268711A
PCB Assembly,Main LGE 6871A30009Q Contact Us For Availability
268711C
PWB(PCB) ASSY,MAIN(OUTDOOR) LGE 6871A10043A Contact Us For Availability
342800
BEARING LGE 3H02821B Contact Us For Availability
346812
MOTOR ASSY,DC LGE 4681AR2295H Contact Us For Availability
349480
ORIFICE LGE 4948AP2527A Contact Us For Availability
349610
MOUNT,MOTOR LGE 4960AP1361A Contact Us For Availability
352150
HOSE ASSEMBLY,DRAIN LGE 5251AR2575H Contact Us For Availability
354210
EVAPORATOR ASSY,FIRST LGE 5421A20032D Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421A20032H Contact Us For Availability
359011
FAN ASSY,CROSS FLOW LGE 5901AR6141C Contact Us For Availability
430411
BASE ASSY,OUTDOOR LGE 3041AP2741G Contact Us For Availability
435300
GRILLE,REAR LGE 1A00207B Contact Us For Availability
435301
GRILLE,DISCHARGE LGE 3530A20007B Contact Us For Availability
435511
Cover Assembly,Control(Outdoor) LGE 3551A10003L Contact Us For Availability
437211
PANEL ASSEMBLY,FRONT(OUTDOOR) LGE 3721A23001A Contact Us For Availability
447910
BARRIER ASSY,OUTDOOR LGE 4791A30004C Contact Us For Availability
552111A
TUBE ASSY,CAPILLARY LGE 5211A30335D Contact Us For Availability
552111B
TUBE ASSY,CAPILLARY LGE 5211A30336C Contact Us For Availability
552202
VALVE,REVERSING LGE 5220AR3084E Contact Us For Availability
552203A
Valve,Service LGE 5220A20059C Contact Us For Availability
552203B
Valve,Service LGE 5220A20059D Contact Us For Availability
552203B
VALVE,SERVICE LGE 2H01890Q Contact Us For Availability
552203C
Valve,Service LGE 5220A20005D Contact Us For Availability
554031
CONDENSER ASSY,BENT LGE 5403A10009D Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UKRK2EA Contact Us For Availability
559010
EXTRA FAN LGE 1A00195B Contact Us For Availability
559010
Fan Assembly,Propeller LGE 1A00195F Contact Us For Availability
561410A
COIL ASSY,REVERSING VALVE LGE 6141AR3509C Contact Us For Availability
561410B
COIL ASSY,REVERSING VALVE LGE 6141AR3509D Contact Us For Availability
649950
CONTROL BOX ASSY,OUTDOOR LGE 4995AP2701R Contact Us For Availability
733010
PLATE INSTALLATION LGE 1H00843A Contact Us For Availability
W0CZZA
CAPACITOR SH LGE 6120AR2194B Contact Us For Availability
W0CZZB
CAPACITOR LGE 6120AR2194S Contact Us For Availability
× ![]()
