  • LG HMC36AT-1 Parts List

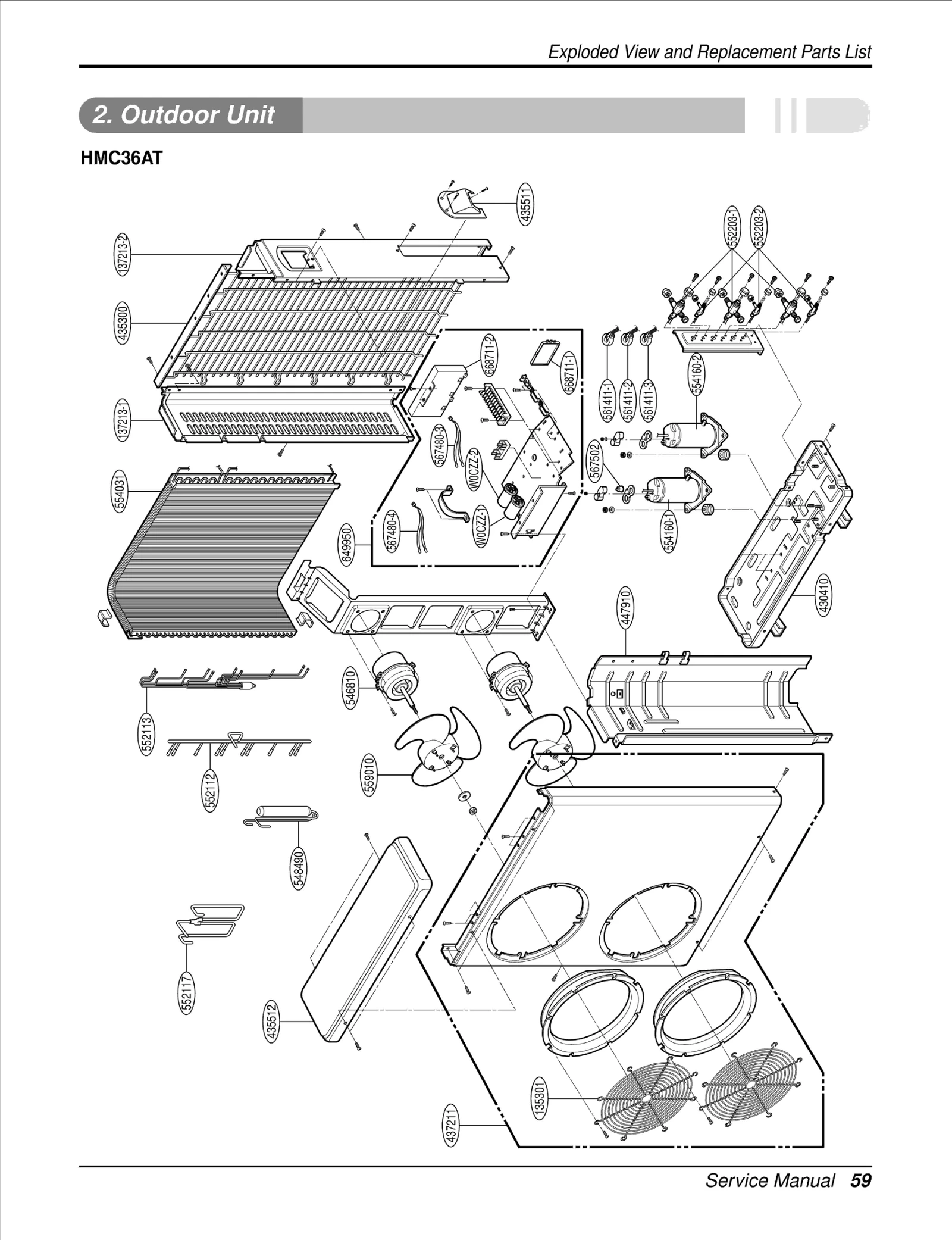

Model LG HMC36AT-1 – Common Parts & Diagrams

131410
CHASSIS ASSY
CHASSIS ASSY LGE 3141A20003D Contact Us For Availability
View on Model
135301
GRILLE,DISCHARGE
GRILLE,DISCHARGE LGE 3530A20006G Contact Us For Availability
View on Model
135311
Grille Assembly,Discharge(Indoor)
Grille Assembly,Discharge(Indoor) LGE 3531A10023X Contact Us For Availability
View on Model
135312
GRILLE ASSY,FRONT(INDOOR)
GRILLE ASSY,FRONT(INDOOR) LGE 3531A10098B Contact Us For Availability
View on Model
135314
LGE 3531A10054R
LGE 3531A10054R LGE 3531A10054R Contact Us For Availability
View on Model
135500
COVER
COVER LGE 3550A10107A Contact Us For Availability
View on Model
137213-1
PANEL ASSEMBLY,SIDE
PANEL ASSEMBLY,SIDE LGE 3721A10110A Contact Us For Availability
View on Model
137213-2
PANEL ASSEMBLY,SIDE
PANEL ASSEMBLY,SIDE LGE 3721A10111C Contact Us For Availability
View on Model
146811
MOTOR ASSY,STEP
MOTOR ASSY,STEP LGE 4681AR2727H Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A20004E Contact Us For Availability
View on Model
159901
VANE,HORIZONTAL
VANE,HORIZONTAL LGE 5990A30007A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A00003B Contact Us For Availability
View on Model
263230-1
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003A Contact Us For Availability
View on Model
263230-2
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20024A Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSY
REMOTE CONTROLLER ASSY LGE 6711A20025N Contact Us For Availability
View on Model
268712
PCB Assembly,Main
PCB Assembly,Main LGE 6871A30009Q Contact Us For Availability
View on Model
268714
PWB(PCB) ASSEMBLY,MAIN(DC)
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20502B Contact Us For Availability
View on Model
342800
BEARING
BEARING LGE 3H02821B Contact Us For Availability
View on Model
346812
MOTOR ASSY,DC
MOTOR ASSY,DC LGE 4681AR2295H Contact Us For Availability
View on Model
352150
HOSE ASSEMBLY,DRAIN
HOSE ASSEMBLY,DRAIN LGE 5251AR2575H Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY,FIRST
EVAPORATOR ASSY,FIRST LGE 5421A20032D Contact Us For Availability
View on Model
430410
Base Assembly,Weld(Outdoor)
Base Assembly,Weld(Outdoor) LGE 3041AP7177D Contact Us For Availability
View on Model
435300
GRILLE,REAR
GRILLE,REAR LGE 3530A10176B Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE 3551A10044B Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE 3721A10109C Contact Us For Availability
View on Model
447910
BARRIER ASSEMBLY,OUTDOOR
BARRIER ASSEMBLY,OUTDOOR LGE 4791A10019B Contact Us For Availability
View on Model
546810
MOTOR ASSEMBLY,OUTDOOR
MOTOR ASSEMBLY,OUTDOOR LGE 4681AR1392X Contact Us For Availability
View on Model
548490
TUBE ASSEMBLY,SUCTION(OUTDOOR)
TUBE ASSEMBLY,SUCTION(OUTDOOR) LGE 5211A21233B Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE 5211A11010C Contact Us For Availability
View on Model
552113
TUBE ASSEMBLY,CONDENSER OUT
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A12001C Contact Us For Availability
View on Model
552117
TUBE ASSEMBLY,SUCTION(OUTDOOR)
TUBE ASSEMBLY,SUCTION(OUTDOOR) LGE 5211A10446C Contact Us For Availability
View on Model
552203-1
VALVE,SERVICE
VALVE,SERVICE LGE 2H01890U Contact Us For Availability
View on Model
552203-2
VALVE,SERVICE
VALVE,SERVICE LGE 2H02479R Contact Us For Availability
View on Model
554031
CONDENSER ASSEMBLY,BENT
CONDENSER ASSEMBLY,BENT LGE 5403A20168C Contact Us For Availability
View on Model
554160-1
COMPRESSOR SET
COMPRESSOR SET LGE 2520UHGK2EA Contact Us For Availability
View on Model
554160-2
COMPRESSOR SET
COMPRESSOR SET LGE 2520UMMK2BA Contact Us For Availability
View on Model
561411-1
COIL ASSEMBLY,EXPANSION
COIL ASSEMBLY,EXPANSION LGE 6141A20018D Contact Us For Availability
View on Model
561411-3
COIL ASSEMBLY,EXPANSION
COIL ASSEMBLY,EXPANSION LGE 6141A20018F Contact Us For Availability
View on Model
567480-3
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20028A Contact Us For Availability
View on Model
567480-4
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20026A Contact Us For Availability
View on Model
567502
LGE 2H00599W
LGE 2H00599W LGE 2H00599W Contact Us For Availability
View on Model
649950
CONTROL BOX ASSEMBLY,OUTDOOR
CONTROL BOX ASSEMBLY,OUTDOOR LGE 4995A00002B Contact Us For Availability
View on Model
668711-1
PWB(PCB) ASSEMBLY,MAIN(AC)
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20500B Contact Us For Availability
View on Model
668711-2
PWB(PCB) ASSEMBLY,MAIN(OUTDOOR
PWB(PCB) ASSEMBLY,MAIN(OUTDOOR LGE 6871A20479B Contact Us For Availability
View on Model
733010
PLATE INSTALLATION
PLATE INSTALLATION LGE 1H00843A Contact Us For Availability
View on Model
W0CZZ-1
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 0CZZA20007Q Contact Us For Availability
View on Model
W0CZZ-2
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 2H01451S Contact Us For Availability
