Model LG HMC024KDD1 – Common Parts & Diagrams

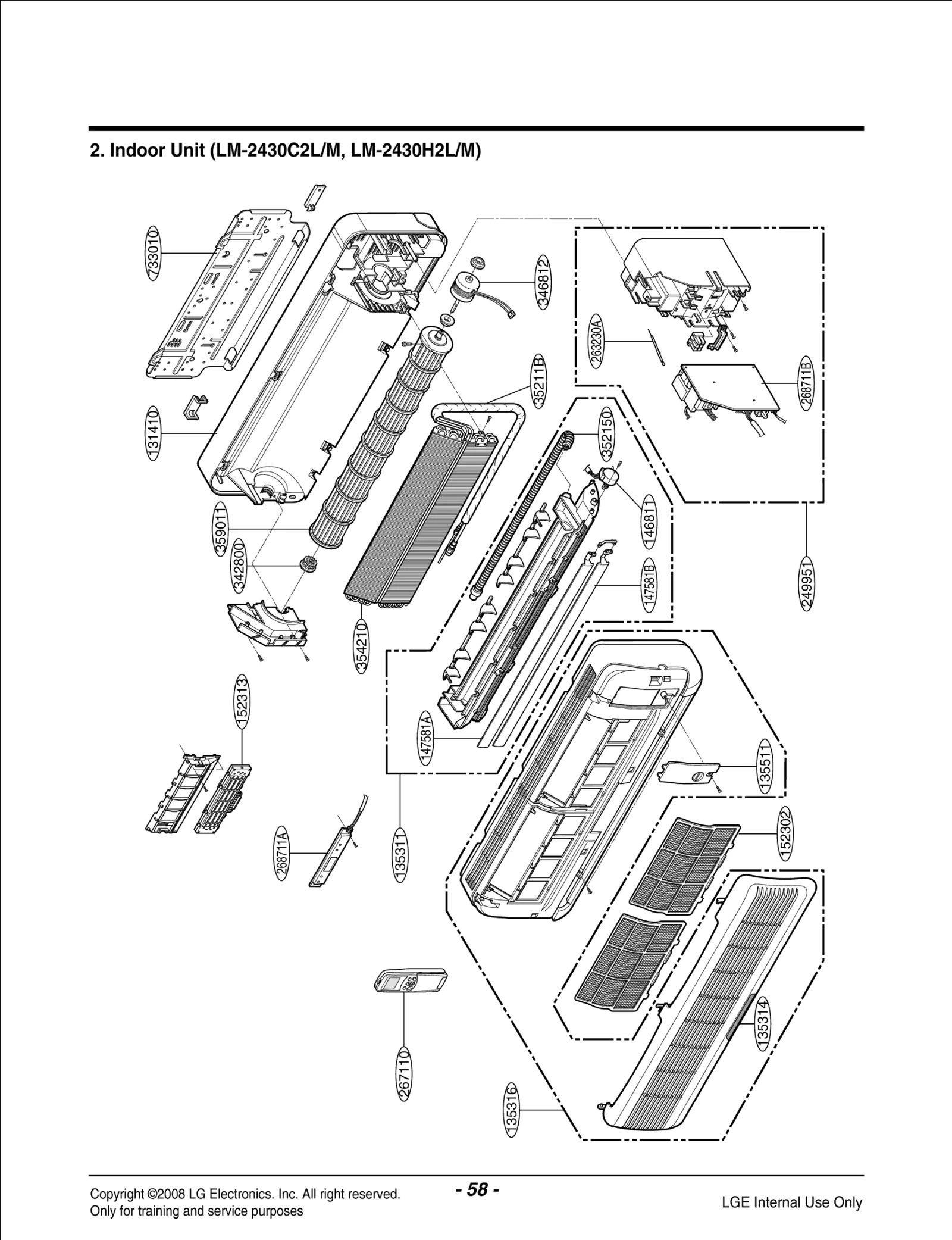

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG HMC024KDD1
35211B
TUBE ASSY,TUBING LGE 2H02449J Contact Us For Availability
131410
CHASSIS ASSY LGE 3141A20003D Contact Us For Availability
135311
Grille Assembly,Discharge(Indoor) LGE 3531A10023X Contact Us For Availability
135316
Grille Assembly,Front(Indoor) LGE 3531A10099J Contact Us For Availability
135511
Cover LGE 3550A30035Y Contact Us For Availability
137213
PANEL ASSY,REAR LGE 3720AP0003F Contact Us For Availability
146811
MOTOR ASSY,STEP LGE 4681AR2727H Contact Us For Availability
147581A
VANE,HORIZONTAL LGE 5990A30006A Contact Us For Availability
147581B
VANE,HORIZONTAL LGE 5990A30007A Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20004E Contact Us For Availability
249951
CONTROL BOX ASSY,INDOOR LGE 4995A20143L Contact Us For Availability
261704
TRANSFORMER ASSY LGE 6171AQ3198A Contact Us For Availability
263230A
THERMISTOR ASSY LGE 6323A20003A Contact Us For Availability
263230B
Thermistor,NTC LGE 6322AQ9189A Contact Us For Availability
267110
REMOTE CONTROLLER ASSY LGE 6711A20025M Contact Us For Availability
268711A
PCB Assembly,Main LGE 6871A30009Q Contact Us For Availability
342800
BEARING LGE 3H02821B Contact Us For Availability
346812
MOTOR ASSY,DC LGE 4681AR2295H Contact Us For Availability
349610
MOUNT,MOTOR LGE 4960AP1361A Contact Us For Availability
352150
HOSE ASSEMBLY,DRAIN LGE 5251AR2575H Contact Us For Availability
354210
EVAPORATOR ASSY,FIRST LGE 5421A20032D Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421A20032H Contact Us For Availability
359011
FAN ASSY,CROSS FLOW LGE 5901AR6141C Contact Us For Availability
430411
BASE ASSY,OUTDOOR LGE 3041AP2741G Contact Us For Availability
435301
GRILLE,DISCHARGE LGE 3530A20007B Contact Us For Availability
435511
Cover Assembly,Control(Outdoor) LGE 3551A10003K Contact Us For Availability
435512
COVER ASSY,TOP(OUTDO LGE 3H03266K Contact Us For Availability
437211
PANEL ASSY,FRONT(OUTDOOR) LGE 3721A20005P Contact Us For Availability
447910
BARRIER ASSY,OUTDOOR LGE 4791A30004A Contact Us For Availability
552111A
TUBE ASSEMBLY,CAPILLARY LGE 5211A30335E Contact Us For Availability
552111B
TUBE ASSEMBLY,CAPILLARY LGE 5211A30336D Contact Us For Availability
552203A
Valve,Service LGE 5220A20059C Contact Us For Availability
552203B
VALVE,SERVICE LGE 2H01890Q Contact Us For Availability
552203B
Valve,Service LGE 5220A20059D Contact Us For Availability
552203C
Valve,Service LGE 5220A20005D Contact Us For Availability
554031
Condenser Assembly,First LGE 5403A10009E Contact Us For Availability
554031
Condenser Assembly,First LGE 5403A90069E Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UKRK2EA Contact Us For Availability
559010
Fan Assembly,Propeller LGE 1A00195F Contact Us For Availability
649950
CONTROL BOX ASSY,OUTDOOR LGE 4995AP2701T Contact Us For Availability
733010
PLATE INSTALLATION LGE 1H00843A Contact Us For Availability
W0CZZA
CAPACITOR SH LGE 6120AR2194B Contact Us For Availability
W0CZZB
CAPACITOR LGE 6120AR2194S Contact Us For Availability
× ![]()
